Is an 800 kg rating enough for a Projectile Pallet?

Answer: Only with the test conditions. Evenly spread on flat concrete, yes; on one side or spanning a gap, expect under half.

Answer: Compare by trips. Timber is cheaper and done after about 300 trips; plastic costs more and can be washed.

Does 2 mm of hole deviation matter?

Answer: Under load, yes. Empty, a foot can be forced in; loaded, the weight locks it.

How thick a deck for five-high stacking?

Answer: Work from the load, not the layer count. Five high puts about four tonnes on the bottom Projectile Pallet.

Does the Projectile Pallet need antistatic treatment?

Answer: Depends on the store. Where flammable atmospheres exist, surface resistance should sit between 10^6 and 10^9 ohms; otherwise state it in the contract anyway.

What should an inspector check first?

Answer: The four-case trial on the Projectile Pallet. Holes, flatness and fork entry show up at once.

Projectile Pallet Choice: What Fourteen Yuan Actually Buys

Quick answer: A Projectile Pallet at 38 yuan and one at 52 yuan differ in deck thickness, rib count and sleeves. Multiply the 14 yuan by the batch, set it against one corner crack or one failed trial fit, and price stops being the deciding number.

Where the cheaper pallet saves money
Three checks you can run at goods-in
Fit with cases racking and forklifts
Spread the rework cost back over the unit price
FAQ

1. Where the cheaper pallet saves money

Fourteen yuan on a Projectile Pallet looks like nothing. On three hundred units it is 4,200 yuan, visible on the invoice the same week. A corner that cracks in service shows up three months later, when nobody links it to the purchase.

The saving sits in four places.

Where it is cut	Saving	At first	Later
Deck 22 mm to 18 mm	5 yuan	Nothing visible empty	Centre sags at five high
Seven ribs to five	4 yuan	One person stands on it	Corner lifts on single-fork entry
Four sleeves to two	3 yuan	Trial fit passes	Holes open after 200 cycles
Rounded to square corners	2 yuan	Looks stiffer	Cracks on the first drop

An 800 kg rating is measured new, on a flat floor, evenly spread. Real stores have drain covers, uneven beams and a forklift tipping one corner, so the load lands on two feet. Ask under which conditions it holds; a supplier who cannot answer has copied it.

2. Three checks you can run at goods-in

Half an hour with a tape measure settles most Projectile Pallet questions.

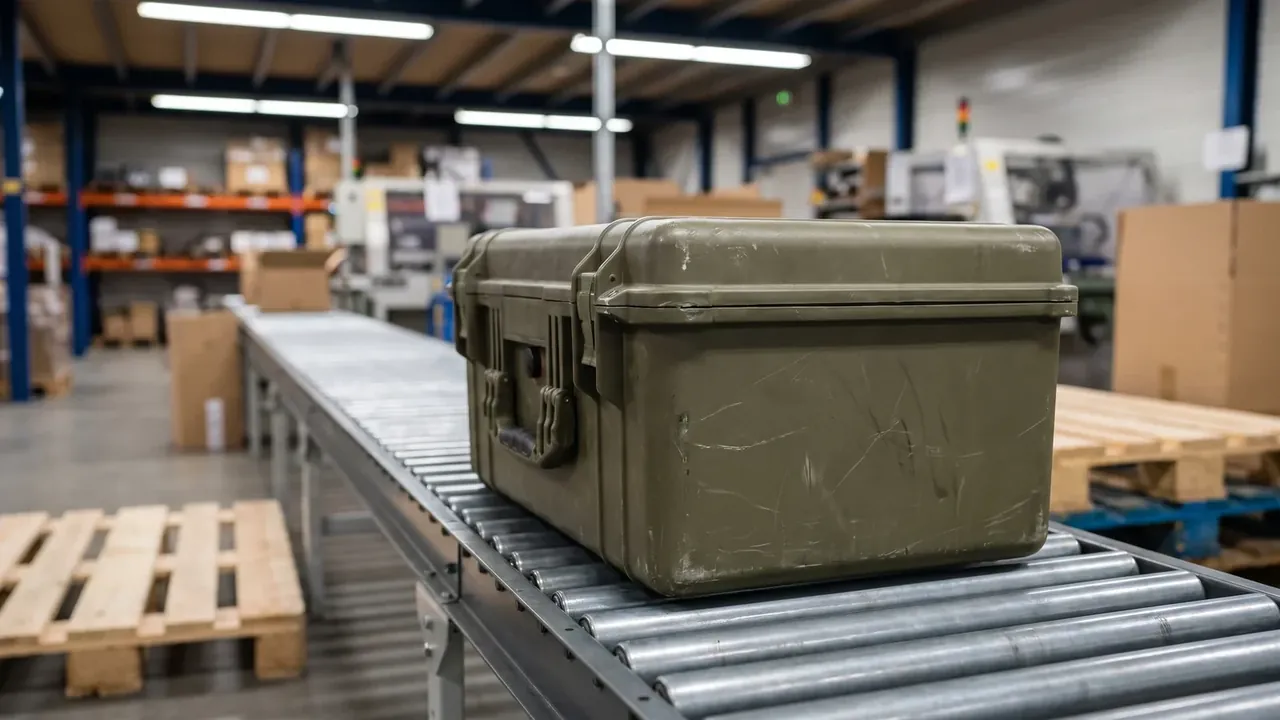

Projectile Pallet cases on the workshop roller line, scuffed lid, stacked timber pallets and cartons behind, concrete floor

Deflection first: two pallets deck up, bearers 1,000 mm apart, 500 kg on top, read the centre at ten minutes. Under 6 mm passes; over 8 mm sags at five high.

The holes come next. Load four cases and measure the diagonal at 1,200 by 1,000 mm; 2 mm of deviation means the fourth foot must be forced in.

Entry comes last: under 100 mm of clear height jams once fork heels wear; under 900 mm of depth the load slides in a turn.

Check	Run it	Pass	Failure
Deflection	1,000 mm span, 500 kg, ten minutes	Under 6 mm	Cases crush at five high
Holes	Four cases, diagonal measurement	Under 2 mm off	Feet forced in by hand
Entry	Tape on height and depth	100 by 900 mm	Forks jam, load slides

3. Fit with cases racking and forklifts

A Projectile Pallet earns nothing if it will not mate with three things.

Footprint: overhang under 25 mm a side, or the corner takes every landing.
Beams: both feet land within 50 mm of nominal spacing.
Forks: 210 to 680 mm of adjustment, matched to your usual setting.
Stack: five high loaded, so the bottom unit carries four.
Labels: pockets on both long sides, or the far aisle sees nothing.

Overhang is what buyers miss. A case 30 mm wider looks fine on the floor, yet that corner lands first, and after a year the crack starts there.

4. Spread the rework cost back over the unit price

Put Projectile Pallet rework onto the unit and 14 yuan rarely survives one incident.

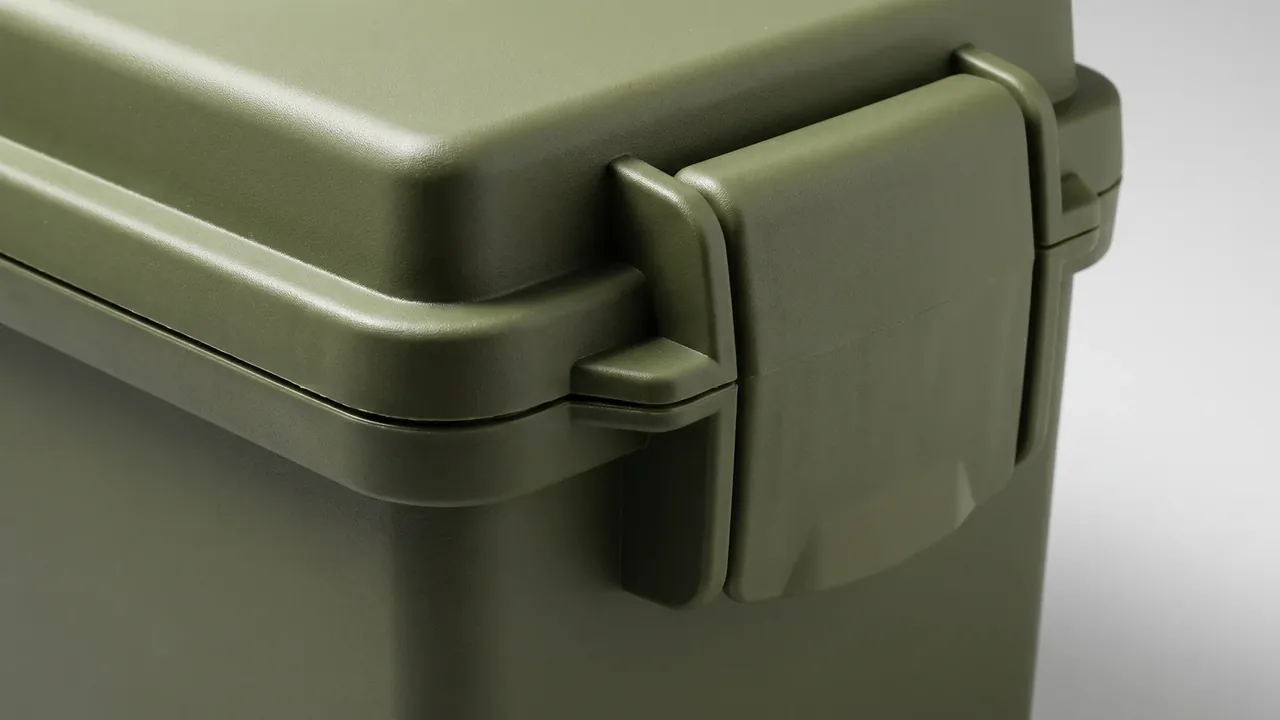

Projectile Pallet case latch detail, olive lid seam, two catches with the tongue and the clamping face in close view

Cost item	One event	Per unit over 300	Note
Corner crack	40 units, two people, three days	13 yuan	Replacements at 52 yuan
Hole reaming	60 units, two days	8 yuan	Enlarged holes halve life
Rack slip	Four hours, two lines	9 yuan	Converted from shift output

One event wipes out the saving; two make the cheap pallet the dear one. Rework is booked as occasional, so the payment repeats every year.

Run the same Projectile Pallet figures the other way: three hundred units at four turns a year carry 16,800 yuan over three years, enough for two corner events. Total cost follows rework frequency and downtime, not the unit price.

Conclusion

Price, rework, downtime: the question turns from cost into probability. The 14 yuan can be saved, but not before you know which of the three fails first. A Projectile Pallet is worth its price when it still fits after a loaded, overhung, much-handled year.

This article discusses only the container (case body) side of specifications and design intent, and does not cover any handling, loading or use of the contents.
