How long does immersion last on a waterproof box for boat use?

Answer: Commonly 1.5 m for 30 minutes in 3.5 percent salt water, agreed and written down.

Can an IP67 case go straight on deck?

Answer: Not advisable. IP67 covers a short fresh water soak only, with no salt or thermal cycling.

Is 480 hours of salt spray enough?

Answer: For deck positions, yes; humid machinery spaces deserve 720 hours. Judge the hinge pin.

How often is the gasket replaced?

Answer: Every two years at sea, or when compression set passes 25 percent.

Is a static pull enough for the rings?

Answer: No. Hull vibration is a long term load, so add the sweep and a torque recheck.

Waterproof Box for Boat Acceptance Standards: Tests and Limits

Quick answer: A waterproof box for boat is accepted in four groups: mechanical and lashing, washdown and immersion, salt spray and UV, seals and hardware. The pass point is not the IP number but whether the case still closes after salt and cycling.

What a Waterproof Box for Boat Acceptance Covers
Washdown and Immersion Tests
Salt Spray and UV Limits
Gaskets and Hardware
Lashing, Stacking and Batch Documents
FAQ

1. What a Waterproof Box for Boat Acceptance Covers

Sea duty is not one kind of water: a case on deck takes spray, washdown, salt deposit and hull vibration in the same watch, so one test proves little. Acceptance splits into four groups, each with its own sample count and pass wording.

Group	Condition	Verdict
A Mechanical	10–55 Hz sweep, 2 h; 500 N	No cracks or shift
B Water	12.5 L/min at 100 kPa; 1.5 m, 30 min	Dry inside
C Environment	480 h salt; 1000 h UV	No chalking, no red rust
D Seals	3000 cycles; force under 80 N	Stroke loss within 20%

Three samples per group is the floor, and group A adds one destructive sample cut open to expose wall thickness and insert encapsulation. Order matters: a scar is widened by salt, and a crack changes how the gasket beds.

2. Washdown and Immersion Tests

Washdown on a waterproof box for boat service uses two lances: a jet at 12.5 L/min and 100 kPa from 3 m for three minutes per face, then a fan nozzle at 8 L/min over a 60 degree arc. The lid parting line and the latch seats must take the full dwell.

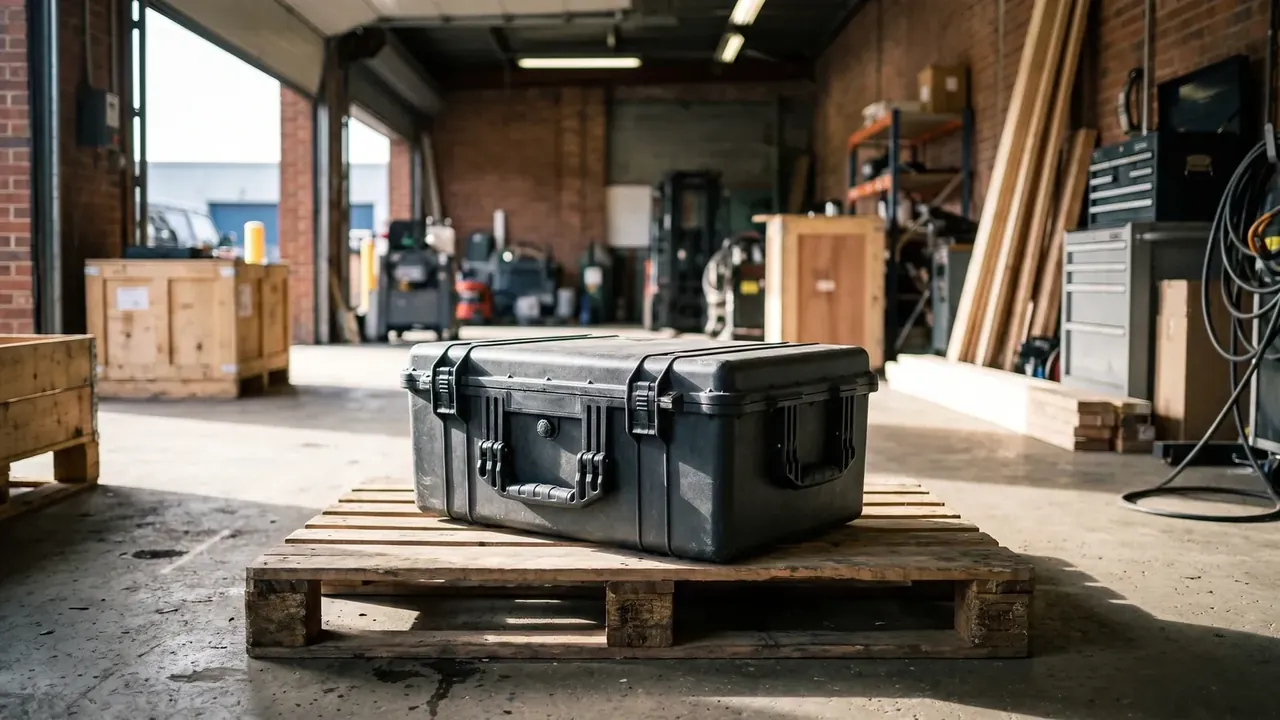

Waterproof box for boat: black closed case on a timber pallet, latches and folding handle facing out, brick workshop, crates and shelving behind

Immersion of the waterproof box for boat sample uses 3.5 percent sodium chloride. The case drops from 1.5 m, rests 30 minutes on the bottom, comes out unwiped and stands 24 hours before opening; water needs time to run down an inner wall.

The verdict is absorbent paper with no colour change, no water line and no salt bloom. Run washdown first: the jet opens hairline gaps that the soak then finds.

3. Salt Spray and UV Limits

Neutral salt spray runs 480 hours at 35 degrees with 5 percent sodium chloride, the whole case inside and nothing masked. Hinge pins, latch springs and lashing rings take a separate 96 hour copper-accelerated test, because fastener plating is far thinner than the shell.

UV ageing runs 1000 hours at 340 nm and 0.76 W/m², judged by colour difference within 3 units and no chalking.

Thermal cycling runs minus 25 to plus 65 degrees, four hours per step, ten cycles, then immersion at once: a warm case in cold water pulls a vacuum and draws water in.

4. Gaskets and Hardware

The gasket is the only barrier, so acceptance fixes three numbers: EPDM at 65 Shore A plus or minus 5, compression 22 to 28 percent, and set no higher than 25 percent after 24 hours at 70 degrees, which decides whether the seal springs back in two years.

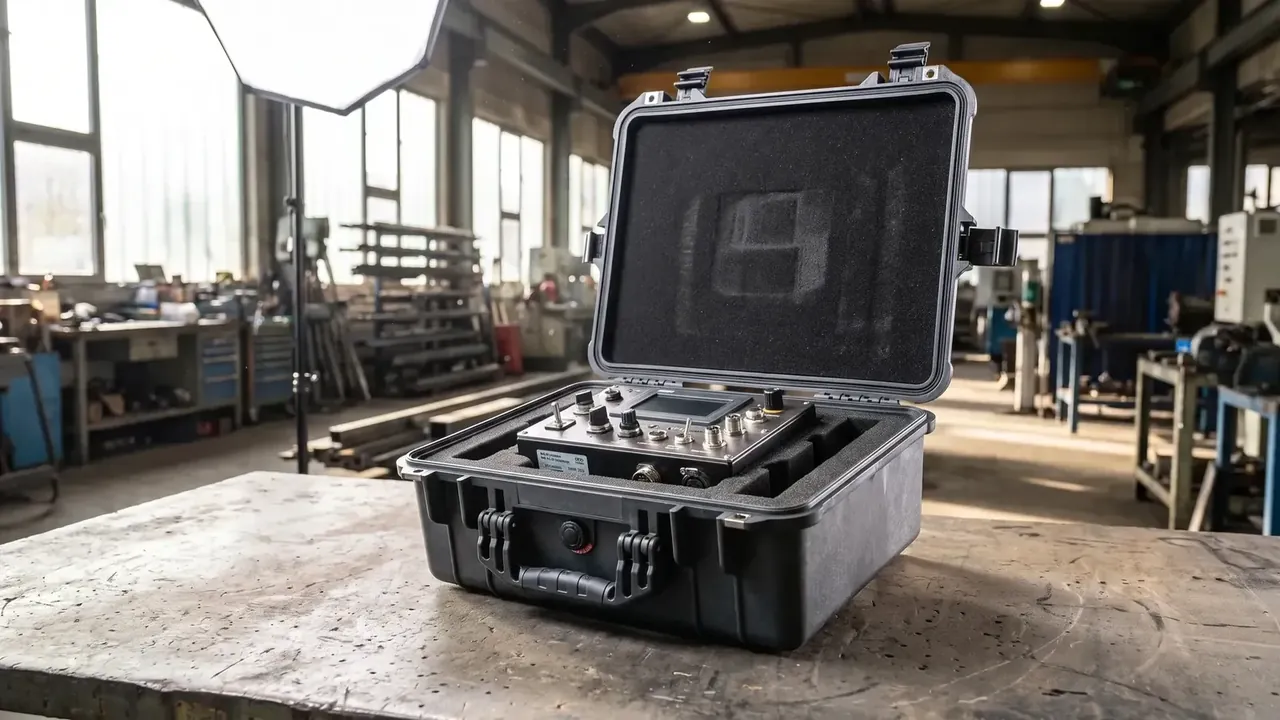

Waterproof box for boat: case open on a workshop bench, metal control panel with knobs and screen seated in base foam, lid lined with foam

Grades belong on the drawing: 316 stainless for pins and screws, 304 forgings for rings, phosphor bronze for springs. A waterproof box for boat duty also lives or dies at the latch: 3000 cycles within 20 percent stroke loss, and opening force under 80 newtons on every unit after salt spray.

M6 screws take 1.2 newton metres on a 5 percent logged sample; too little and the gasket never beds, too much and the insert area whitens.

5. Lashing, Stacking and Batch Documents

A lashing ring holds 500 newtons for a minute within 1 mm of set, and the case runs a 10–55 Hz sweep at 2 g for two hours before fasteners are rechecked for 15 percent torque loss.

Item	Condition	Verdict
Lashing ring	500 N for 1 min	Set within 1 mm
Sine sweep	10–55 Hz at 2 g, 2 h	Torque loss within 15%
Stacking	3 high, 72 h at 40 degrees	No collapse
Recheck after soak	30 min soak, 24 h rest	Force under 80 N

For each waterproof box for boat batch, documents ship one file each: material grade, gasket batch, machine tonnage, test reports, torque log, with document numbers matching sample numbers one to one.

Conclusion

Acceptance rests on four groups and one order: mechanical, then environment, then water. The IP number is a type test conclusion; opening force after salt water and cycling is what anyone can reproduce. Put conditions and verdicts into the contract, and a waterproof box for boat service starts to mean something.

This article discusses only the container (case body) side of specifications and design intent, and does not cover any handling, loading or use of the contents.
