Why does an Artillery Shell Storage Container cost more than a steel box?

Answer: The mold and the seal geometry. A formed channel, ribs and stacking bosses come from one steel tool amortized into the first batch, while a welded box needs cheap fixtures. Past 500 units the gap narrows.

Can a wooden ammunition box handle long-term storage?

Answer: Short term yes, long term no. Moisture costs dimension and strength, so lid gaps and collapse arrive within two years.

Does a stick-on gasket make a plastic crate equivalent?

Answer: Only partly. The corner cannot be sealed continuously and the adhesive lifts after a few closures.

How is the stack height decided?

Answer: From bottom load and clear height together. Multiply full-case weight by tier count, hold a 2.5x factor for the static test, then add pallets.

With a few dozen units, is a five-year view worth it?

Answer: Yes. Count reorder events instead, since each restarts procurement; reorders times unit price beats the sticker.

Artillery Shell Storage Container vs Steel and Wood Boxes

Quick answer: At equal volume, four numbers decide an Artillery Shell Storage Container against steel, wood or plastic: self-weight, stack tiers, seal life, trips per year.

How It Compares With a Steel Ammunition Box
What a Wooden Ammunition Box Really Costs
Where Plastic Crates Fall Short on Stacking and Sealing
How Self-Weight Multiplies in Transport
Life Span and Recycling Drive Total Cost
FAQ

1. How It Compares With a Steel Ammunition Box

Steel is the depot default: 1.2 mm cold-rolled sheet, fully welded, a gasket in the lid flange, six M8 bolts. At 1200 by 500 by 400 mm it weighs 18.6 kg; the Artillery Shell Storage Container weighs 9.4 kg.

Sealing sets the rhythm. Six bolts per opening, uneven torque leaving a corner proud, drivers run until they stall. Two latches and a formed channel open in three seconds, compression set by channel depth, not feel. A repaint costs about 60 yuan every three years; the body takes 480 hours of salt spray.

Item	Artillery Shell Storage Container	Steel box	Wooden box	Plastic crate
Empty weight	9.4 kg	18.6 kg	24 kg	5.2 kg
Cost index	100	78	46	22
Seal	Formed channel	Flange plus bolts	Lid overlap	None
Outdoor life	8 years plus	5 years	2 to 3 years	3 years

2. What a Wooden Ammunition Box Really Costs

A 20 mm pine box with two steel straps costs about 40 percent of a molded body. At 14 percent moisture, one wet season warps the diagonal 3 mm and the lid stops seating.

Artillery Shell Storage Container: three olive green cases on wet stone, two open to grey egg-crate foam, a large closed one beaded with rain

Strength falls with the water: boards bow at the third tier, rusted nails tear out, and export fumigation adds seven days for the IPPC mark. Two to three years and eight trips is the realistic life, so the niche is one-way movement.

3. Where Plastic Crates Fall Short on Stacking and Sealing

A 5.2 kg crate targets movement inside a warehouse. The lid rests on its own weight, rim nesting bows walls above five tiers, and the lid sags with water.

Eighteen months at 55 degrees Celsius embrittles PP latches. It never reaches IP65, a short shower passes the rim, and a stick-on gasket cannot run around a corner the way the channel of an Artillery Shell Storage Container does.

Item	Artillery Shell Storage Container	Steel box	Wooden box	Plastic crate
Normal stack	6 tiers	4 tiers	3 tiers	5 tiers
One open-close cycle	3 seconds	about 40 seconds	8 seconds	2 seconds
Ingress rating	IP65	IP54 to IP55	None	None
Short rain exposure	Dry inside	Bolt holes seep	Seam wicks	Rim leaks

4. How Self-Weight Multiplies in Transport

Sixty cases in a 40-foot high cube: 1116 kg of steel against 564 kg molded, 552 kg apart, room for 58 more empty cases. At 0.6 yuan a kilogram, 330 yuan saved.

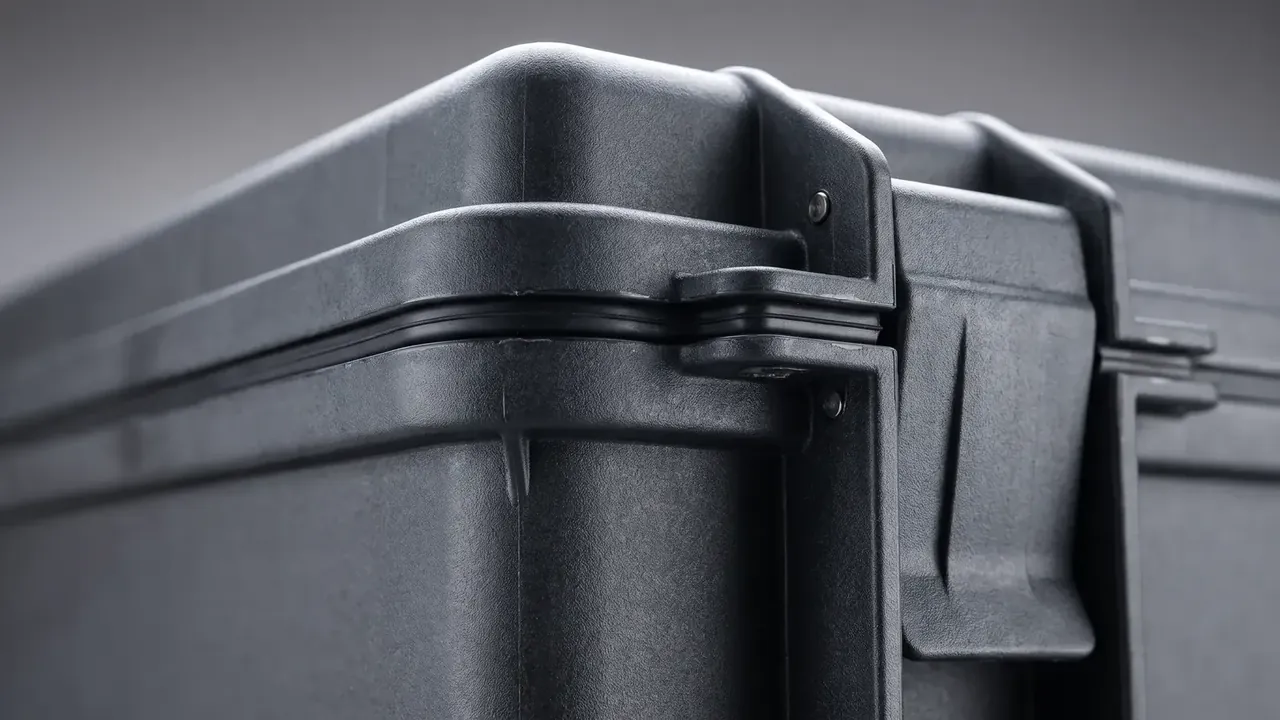

Artillery Shell Storage Container: black case corner close-up, a continuous seal groove along the parting line, one textured latch latched, stainless screws at the corner

In 4.2 m of clear height steel stacks four tiers, wood three, the molded body six, 50 percent more stock per square metre. Six full tiers load the bottom case with 480 kg.

5. Life Span and Recycling Drive Total Cost

Over five years: steel 78 plus 120 for repaints, wood 46 with two batches, a crate 22 with latch sets at 8 yuan, this body 100 with one gasket. Year one ranks the Artillery Shell Storage Container last, year five first.

HDPE regrinds, steel sells near 1.8 yuan a kilogram but its paint sludge is hazardous waste, and wet wood is charged by weight.

Cost line	This option	Steel box	Wooden box	Plastic crate
Purchase, five-year share	100	78	92	55
Maintenance	15	120	20	16
Disposal	minus 12	plus 10	25	minus 6
Five-year total	103	208	137	65

Below three trips a year wood or a crate is cheaper; above five, the molded body pays back.

Conclusion

No option wins everywhere; each matches a trip count. Steel absorbs impact, wood wins on one-way cost, the crate on weight, the molded body on seal and stack stability. Price stops deciding; above five trips, an Artillery Shell Storage Container carries the lowest total cost.

This article discusses only the container (case body) side of specifications and design intent, and does not cover any handling, loading or use of the contents.
