Are more slots always better on a Box, Ammunition Stowage?

Answer: No. Denser slots mean thinner walls and more foam segments, and the cell wall fails first in a drop. Heavy items split across two cases.

How is load per slot calculated?

Answer: Item weight times 1.5, not an average. Standing parts load the foam in shear, stacked parts in compression, a thirty percent difference.

What sets the stack height?

Answer: Floor load and picking height. Four high at 25 kg leaves 75 kg on the bottom unit, and hand picking stops at 1.6 m.

Can fork pockets replace handles?

Answer: Keep both. Pockets 65 mm by 200 mm suit pallet work, and a handle rated at 25 kg a side covers short carries.

Does the trace code have to be laser cut?

Answer: For long-life cases, yes. A paper label lifts within two years; a code cut 0.1 mm deep lasts as long as the shell and gives batch and mould in a scan.

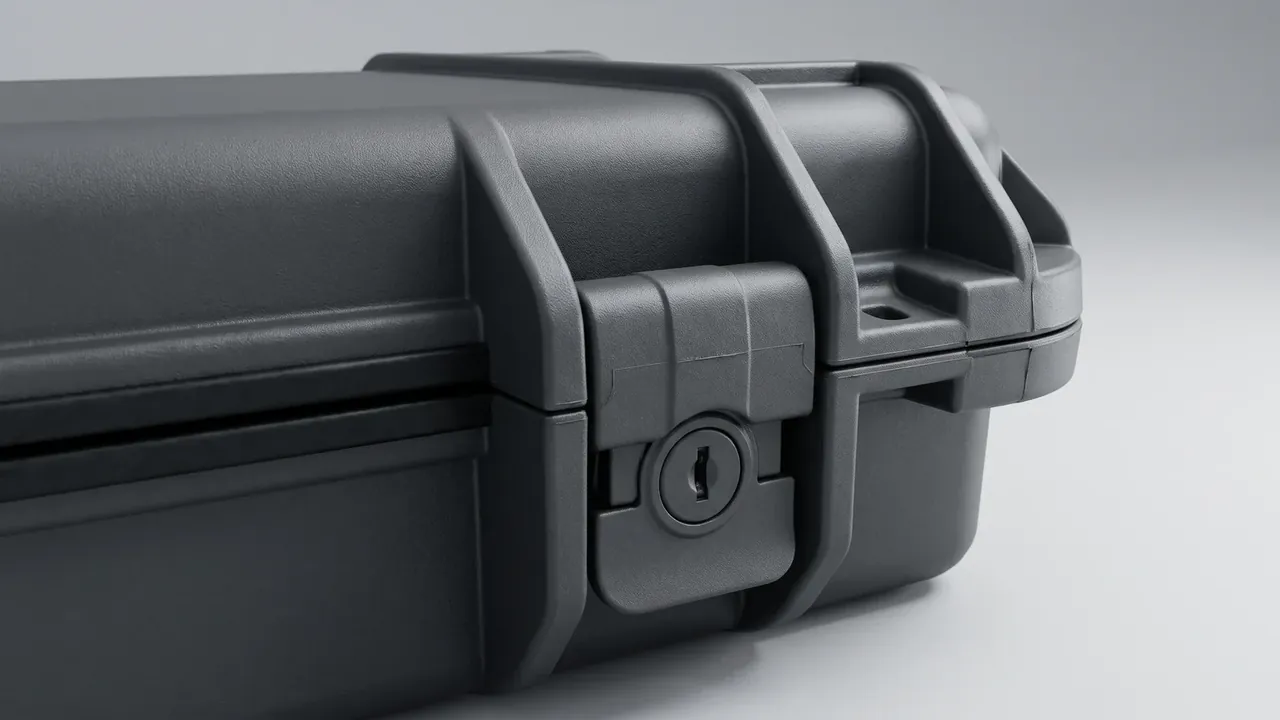

Box, Ammunition Stowage: How to Choose in 5 Steps

Quick answer: Choose a Box, Ammunition Stowage by fixing slots first, then load per slot, then stack height, then handling, and only then seal and certification. Reverse that order and half the slots stay empty, or the bottom case collapses.

The Five Criteria in Order
Slot Layout and Load per Slot
Stack Height and Pallets
Handling, Fork Pockets and Traceability
Certification and a Scoring Sheet
FAQ

1. The Five Criteria in Order

The order is the method. Measure the largest item to fix the slot, multiply its weight by 1.5 for load per slot, read store and picking height for the stack, check forklift access, then settle seal and certification. Each answer feeds the next, so a skipped step sends the drawing back.

The five also veto each other. More slots mean less load per slot; a taller stack thickens floor and pallet, adding weight and handling effort. Fill the five into one table and let the blocked item give way.

Criterion	Question	Usual range	Basis
Slots	Largest item	1.5 mm clearance	Measure the part
Load per slot	Weight, stacked	1.5 times weight	Foam still springs
Stack	Store and pick height	Four high, under 1.6 m	Static load

2. Slot Layout and Load per Slot

Layout starts from the item, not the case. A part 20 mm across and 70 mm long takes a 72 by 22 mm slot, leaving 1.5 mm all round; open it to 3 mm and the part rattles, wearing a groove in the foam. Cell walls run 3 mm, because a shared one at 2 mm crushes after a dozen pulls.

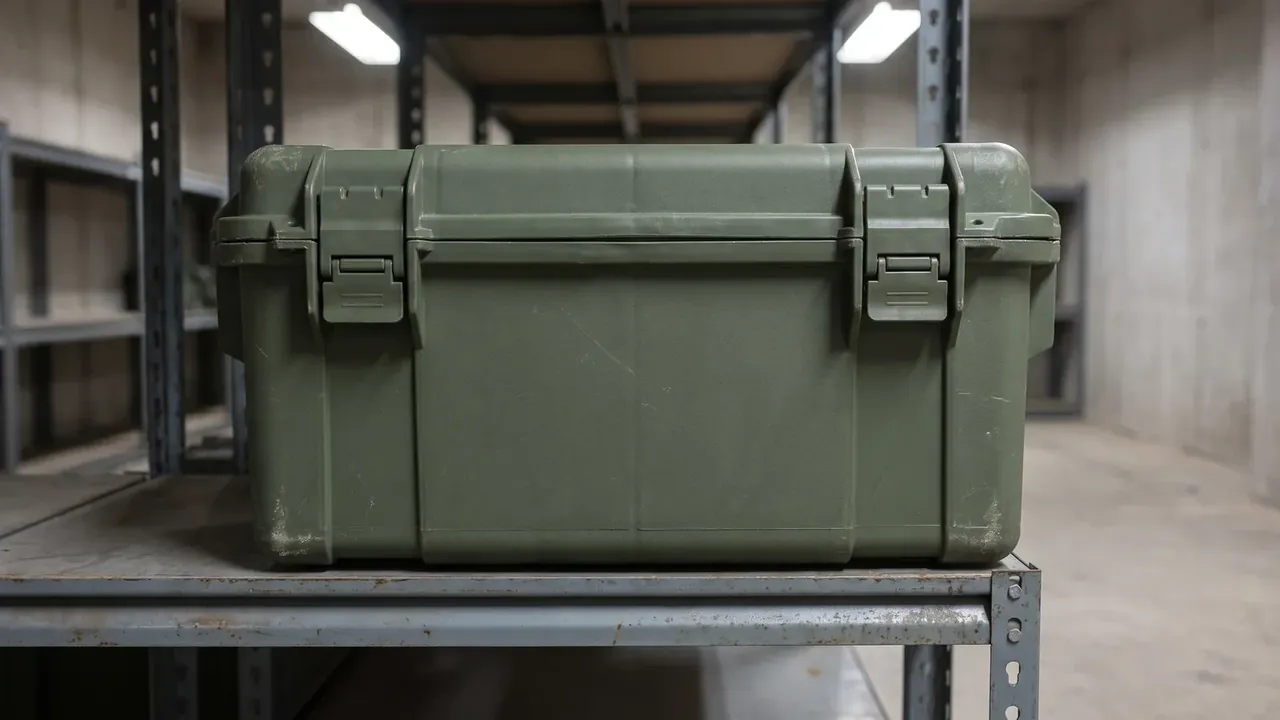

Box, Ammunition Stowage: closed olive case on a warehouse shelf, two black draw latches, moulded ribs on lid and body, scuffed corners, racking behind

Load is 1.5 times the item, never an average. Twenty-four slots at 12 kg comes to 288 kg, beyond sensible carrying, so the order splits into two cases of twelve. A 24-slot and a 12-slot Box, Ammunition Stowage share one shell, and the denser fails at the cell wall first.

3. Stack Height and Pallets

Stack height follows floor load and picking height. At 25 kg loaded, four high on a Box, Ammunition Stowage puts 75 kg on the bottom unit, checking at 1.5 times to 112 kg; a fifth layer needs a 150 kg check and thicker floor ribs. Hand picking stops at 1.6 m.

Pallet size limits both. A 1200 by 1000 mm pallet takes six cases, 150 kg of goods plus 20 kg of timber, still inside a hand truck; eight crown the load. Pedestals must drop into the lid recesses, since 5 mm of offset leans the stack.

4. Handling, Fork Pockets and Traceability

Handling comes before the order. With a forklift, cut two pockets 65 mm high and 200 mm wide, centred 40 mm off the floor; where two people carry, rate the handle on a Box, Ammunition Stowage at 25 kg a side.

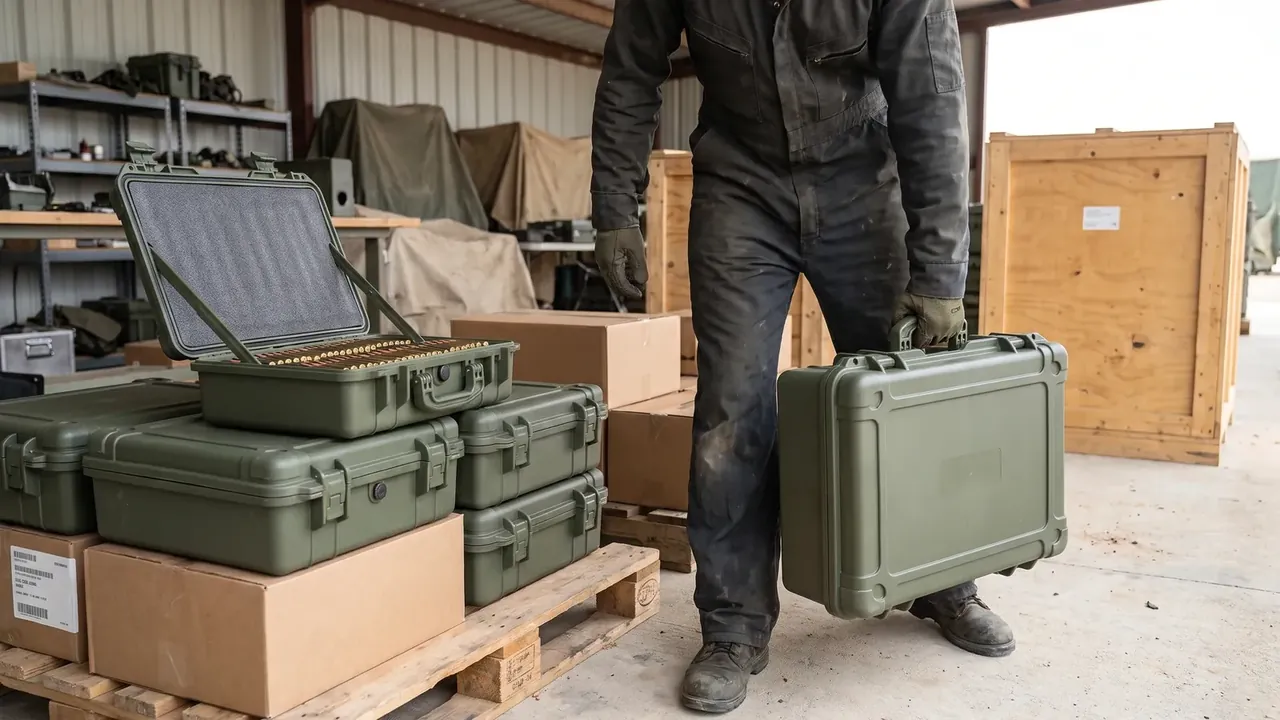

Box, Ammunition Stowage: worker in grey coveralls carrying an olive case by the handle, four cases on a pallet, one open showing brass

Seal and traceability belong together. Leave a 6 mm hole each side of the rim, aligned for a wire seal, and a 15 by 15 mm pad for a twelve-digit laser code cut 0.1 mm deep. Place the hole 20 mm beside the latch, since a hole directly under it blocks the closing stroke.

5. Certification and a Scoring Sheet

Certification follows the site. Indoor stores holding a Box, Ammunition Stowage care about IP67, thirty minutes at one metre without ingress; transit cares about drops, one metre twenty onto eight corners; cross-climate routes care about five cycles between minus thirty and fifty-five Celsius.

Put the five on a hundred-point sheet: load 25, slots 20, handling 15, traceability 20, certification 20. Above eighty makes the shortlist, below sixty is out.

Item	Points	Full marks	Usual deduction
Load per slot	25	Holds at 1.5 times	Average quoted
Slot design	20	1.5 mm, 3 mm walls	Packed too tight
Handling	15	Pockets and handles	Handles only
Trace and certification	40	One code, valid reports	Stickers only

Conclusion

Choosing a Box, Ammunition Stowage means turning a request into five numbers: slots, load per slot, stack height, handling and traceability. Put 1.5 mm of clearance, a 1.5 times factor and a 1.6 m limit in the contract, and the Box, Ammunition Stowage that arrives needs no rework.

This article discusses only the container (case body) side of specifications and design intent, and does not cover any handling, loading or use of the contents.
