Can the three lines be merged into one annual check?

Answer: No. Assembly faults on boxes, small arms ammunition surface at the pre-shift look, wear forms over a month, material faults over a year. Merged, two classes hide for eleven months.

Is the gasket changed on time or on condition?

Answer: Whichever comes first: 24 months on the calendar, or Shore A 80 on condition.

Can a repainted case still pass salt fog?

Answer: Yes, if sanded to bare metal before priming. Over the old coat adhesion halves, and after 96 hours the film blisters into rust spots.

What extra check does minus 25°C call for?

Answer: The feel of the latch. Cold hardens the gasket, and a dead feel means the rubber has gone hard; warm the case before closing.

How is latch pull measured on site?

Answer: A 0 to 500 N gauge at the plate centre, pulled steadily open, peak read at two points.

When is retirement better than another repair?

Answer: On boxes, small arms ammunition, retire at a wall below 1.5 mm or two gasket changes in two years — the shell can no longer take a drop, or the rim has deformed. ---

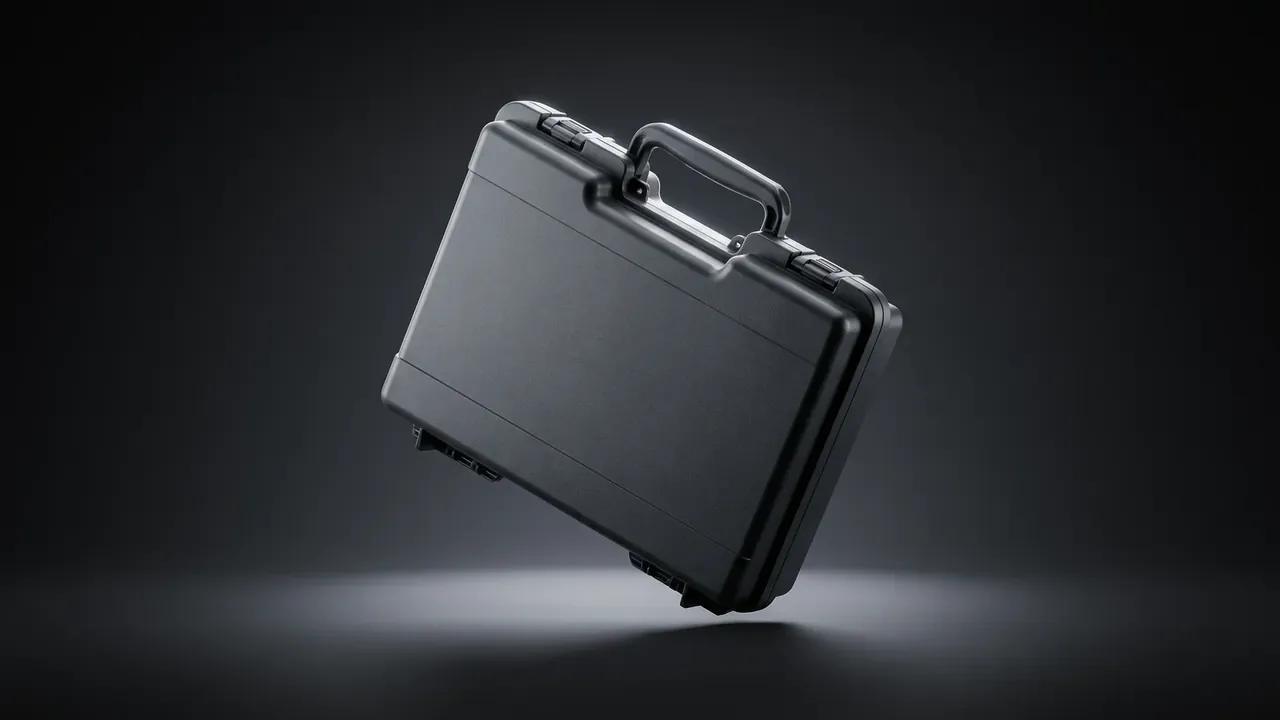

Three Lines and Four Numbers for Boxes, Small Arms Ammunition

Quick answer: Servicing boxes, small arms ammunition runs on three lines — pre-shift look, monthly measure, annual test — with fixed items and time. Four numbers then settle replacement: 1.5 mm of wall, 180 N of latch pull, 96 hours of salt-fog margin, four cases high. Cross one and the part is changed, without waiting for the annual.

Three inspection lines and what each one catches
Water temperature and drying time
Pass or fail figures for gasket and latch
Where the four numbers set the replacement line
A card on the case and the order of life extension
FAQ

1. Three inspection lines and what each one catches

Inspection of boxes, small arms ammunition should not collapse into one annual event: the lines differ in cycle, operator and what they find.

Line	Cycle	Time per case	Main checks	Record
Pre-shift	each shift	30 seconds	latches seated, gasket not pinched	tick on the board
Monthly	each month	10 minutes	pull force, witness mark, rust	values on the card
Annual	each year	40 minutes	seal retest, wall, coupon	filed, card replaced

Pre-shift catches assembly faults: a latch not fully seated, a gasket trapped under the rim. Monthly catches wear: a shallow witness mark, a thinned plate. Annual catches material — chalking, corrosion rate, wall loss, all accumulated over the year.

2. Water temperature and drying time

Cleaning is the cheapest life extension and the easiest to get wrong: too much pressure drives grit into the hinge pin, too much heat hardens the gasket early.

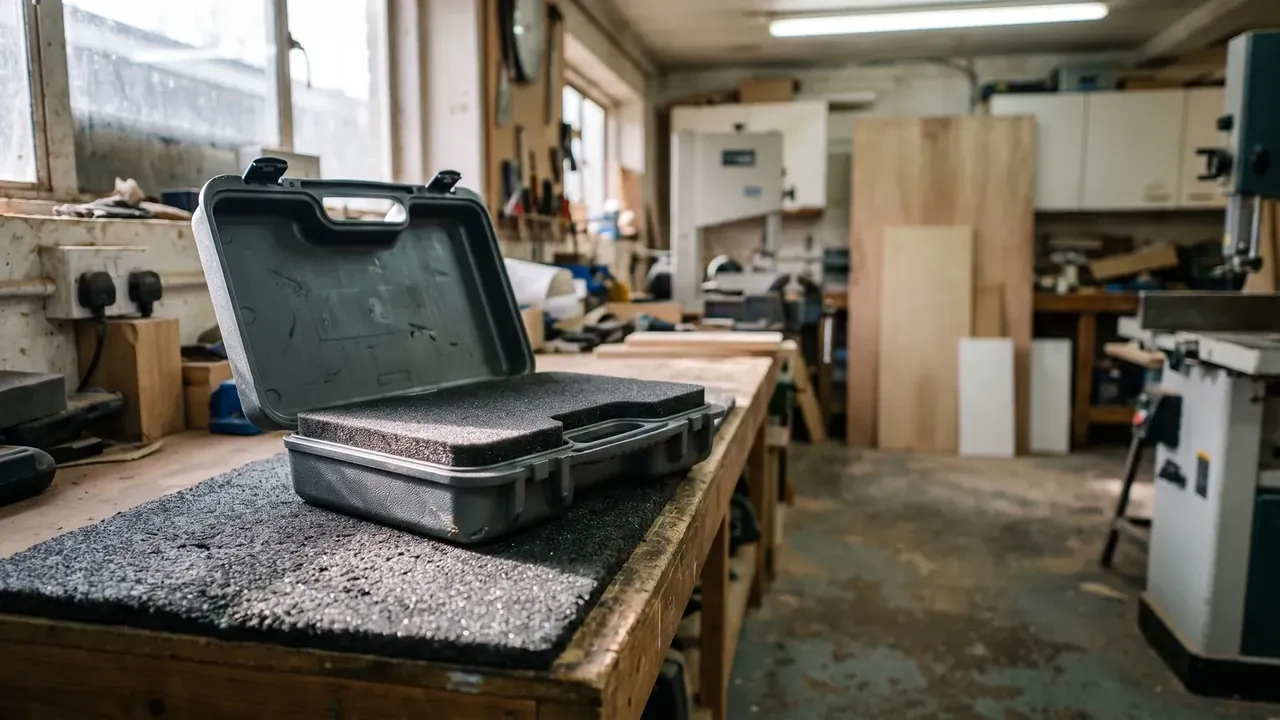

Boxes, Small Arms Ammunition: grey case open on a workshop bench, lid upright, empty liner, thick foam block in the base, band saw behind

Dry first, then wet: air-blast the grit, then wipe. Water stops at 40°C and the agent stays near pH 7; an alkaline cleaner strips passivation and the corners pale within five washes.

Drying matters more — thirty minutes at 40°C or four hours of moving air, until the groove holds no water. Closed damp, boxes, small arms ammunition grow mould from the groove floor.

3. Pass or fail figures for gasket and latch

The gasket is the only part of boxes, small arms ammunition that works by compression, so its verdict is a measurement, not an appearance. A new gasket sits at 25% to 30% compression: less and the lid leaks, more and the latch needs force and fatigues early. Read it at four points with a feeler gauge, keeping the smallest; a spread above 0.3 mm means a twisted lid, and a fresh gasket only buys time. Hardness tells the rest: Shore A 70 when new, past A 80 it has hardened and compresses nothing at minus 25°C. Replacement follows a 24-month calendar line and a hardness condition line, whichever comes first. On the latch side, pull with it seated: 180 to 220 N is the band, and under 180 N a loaded case pushes it open on a rough road. Hinge pin clearance stays under 0.5 mm, or the lid rocks, shears the gasket and shifts the mark.

Part	Figure	Tool	Action past the line
Gasket compression	25% to 30%	feeler gauge, caliper	adjust latch or replace
Gasket hardness	Shore A 70, ±5	durometer	replace once hard
Latch pull	180 to 220 N	force gauge	new plate or seat
Hinge pin clearance	0.5 mm maximum	feeler gauge	new pin or bushing
Wall thickness	1.5 mm minimum	ultrasonic gauge	downgrade or retire

4. Where the four numbers set the replacement line

Wall and pull are condition numbers that fall each year; salt-fog margin and stack height are capability numbers fixed at design. Confuse them and sound cases retire early.

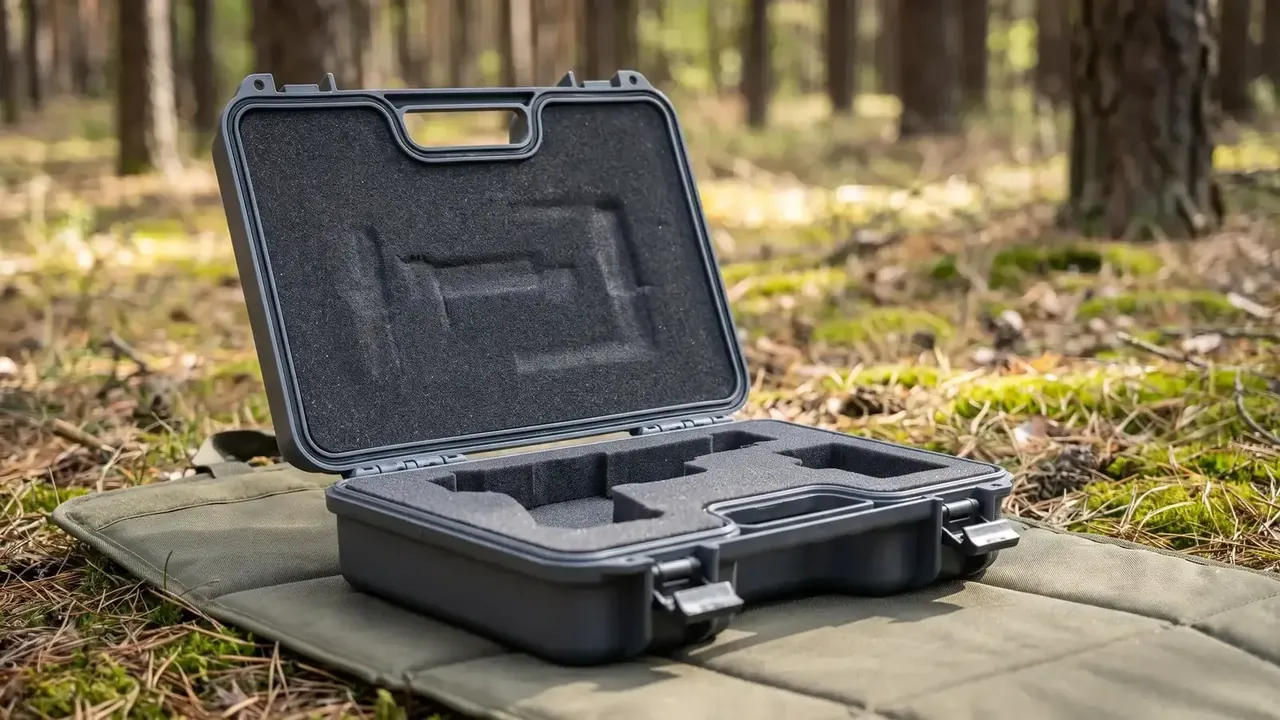

Boxes, Small Arms Ammunition: dark grey case open on an olive mat in a pine wood, foam in lid and base, two latches, pouch

Wall at 1.5 mm: below this a corner yields on a drop, and paint only hides it.
Latch pull at 180 N: below this a loaded case opens a gap on a rough road.
Salt-fog margin at 96 hours: the annual coupon must survive another 96 hours without base rust.
Stack height at four: a fifth layer puts the bottom lid ribs into creep within three months.

On boxes, small arms ammunition, stack height is forgotten most: it ignores age, follows ceiling height, pallet size and racking, and is recalculated whenever the store changes.

5. A card on the case and the order of life extension

Records start on the case: each carries a 90 by 60 mm card with the last annual date, four values and parts replaced. The card travels with the case; a ledger does not once the bay changes.

The order is fixed: gasket, latch, paint, hinge pin, retirement at the fifth round. Reverse it and the money is wasted — paint before a new gasket and the lid presses a ring into the fresh coat.

Conclusion

Three lines, four numbers, one card: the value is that nothing slips through. Boxes, Small Arms Ammunition rarely fail without warning — a shallow mark, a falling pull, a thinning wall all appear months ahead.

This article discusses only the container (case body) side of specifications and design intent, and does not cover any handling, loading or use of the contents.
