Why does a cartridge box cost twice a crate?

Answer: A gasket groove needs its own mould, the corners carry extra wall, and the insert is cut into compartments.

A steel box stacks six tiers, so why change?

Answer: Those tiers rest on corner returns, and seams pit after 480 hours of salt spray, taking six tiers to four.

Can a pouch replace the box?

Answer: For one short dry trip. Past a quarter of storage the zip fails, and a pouch cannot stack, so floor space doubles.

Does a lined tote count as the same thing?

Answer: A liner solves compartments, not sealing. The rim joint is flat, and ten minutes of rain gets in.

Is switching worth it at two hundred units?

Answer: Yes, in stages. Change the units that sit across seasons first and keep totes for turnaround work.

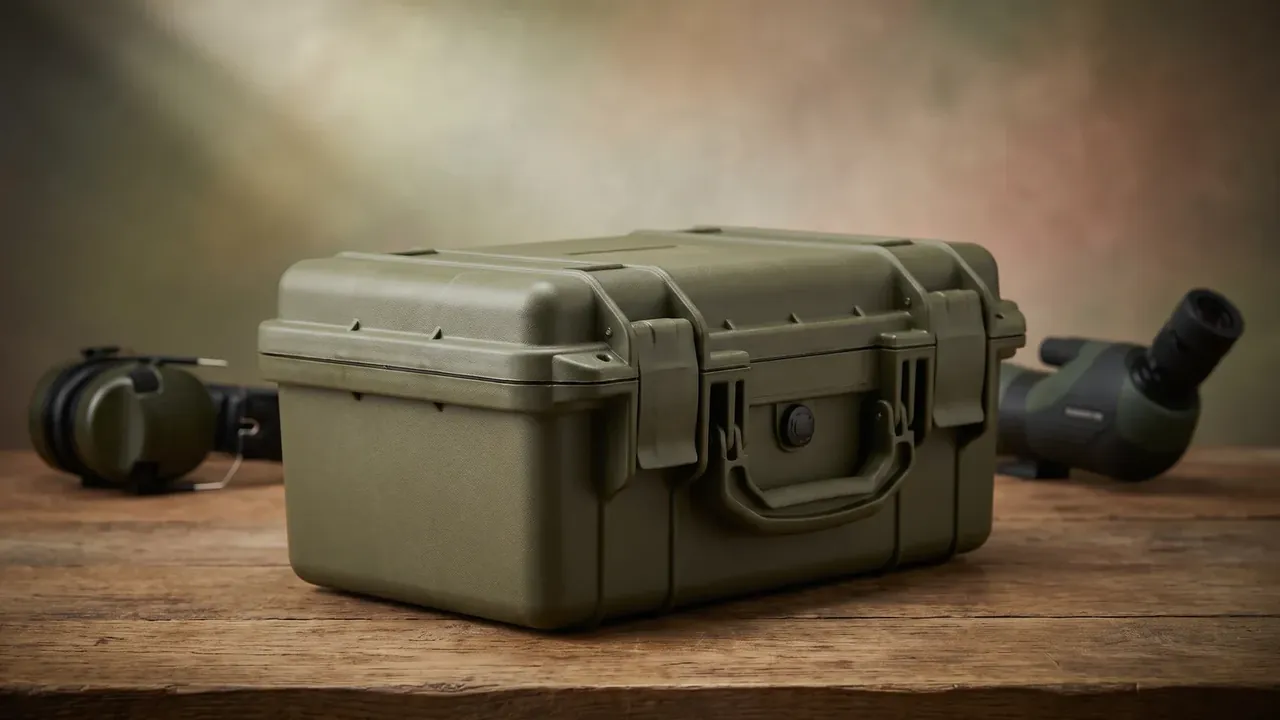

Cartridge Box vs Wood, Steel, Tote and Pouch

Quick answer: A cartridge box is set against a wooden crate, a steel box, a plastic tote and a soft pouch, priced from fifteen to four hundred yuan. The gap is not in the shell but in the seal, the insert, the stacking geometry and the latch cycle. Over ten years those four reorder the list.

What a cartridge box is compared with
Protection: sealing, compression and drop
Stacking and turnaround
Service life: how the replacement curve runs
The ten-year cost
FAQ

1. What a cartridge box is compared with

The five are not one class of object. A crate or a steel box is packaging for one consignment; a tote or a pouch is handling equipment, reused but never meant to store.

The cartridge box does both, so the comparison needs one ruler.

Option	Seal and protection	Tiers	Life	Price
Cartridge box	full gasket, IP67, foam insert	5	10 years	260-420 yuan
Wooden crate	none, liner paper and desiccant	4	3 years	90-160 yuan
Steel box	folded seam, gasket optional	6	8 years	180-300 yuan
Plastic tote	flat rim joint, no gasket	5	6 years	60-120 yuan
Soft pouch	zip or heat seam	cannot stack	1.5 years	15-40 yuan

2. Protection: sealing, compression and drop

Protection stacks in three layers: shell, seal, insert. The shell runs about 4.5 mm with thickened corners, a full gasket reaches IP67 once latched, and the insert holds each item within 1 mm.

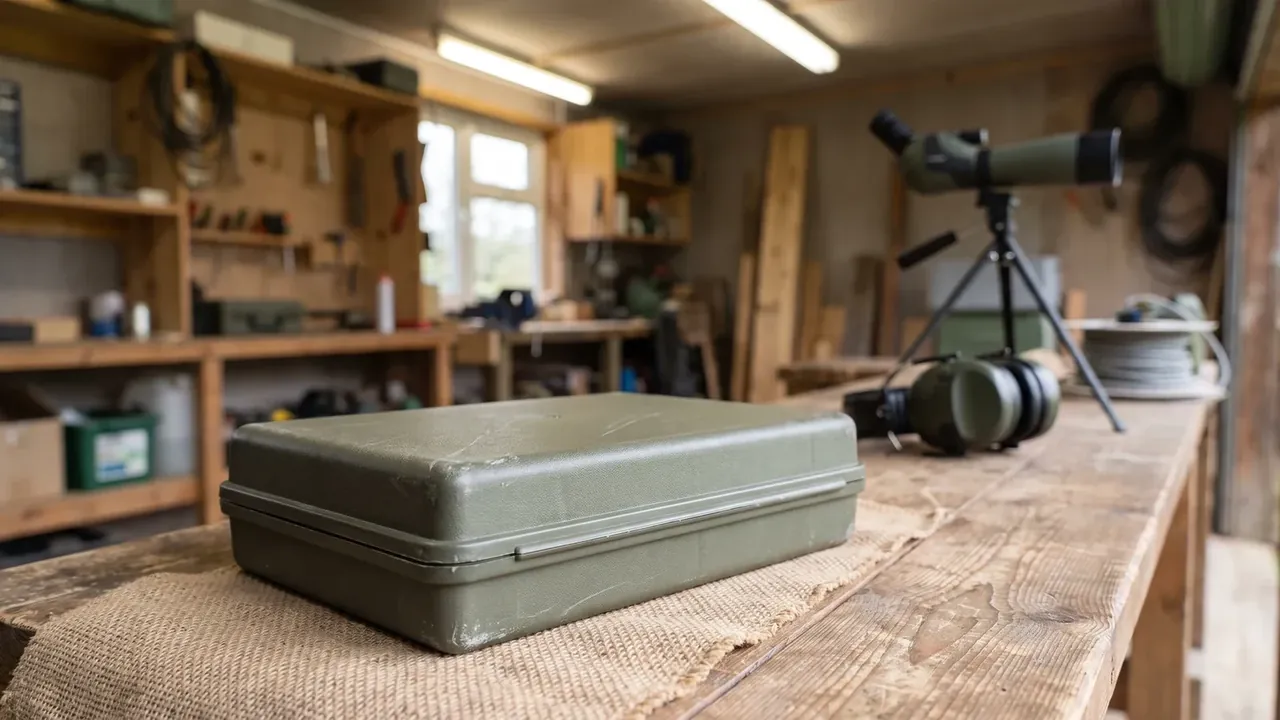

A low-profile cartridge box closed on burlap over a workbench, tool shelves, window light and a tripod-mounted spotting scope behind

A crate relies on liner paper and desiccant, reaching 70 percent two weeks after the store passes 80. Steel seams pit at 480 hours of salt spray, and a pitted seam is a water path. A pouch fails at the zip.

Drop is blunter: at 18 kg and 1.2 m onto a corner the guards take the energy, while a crate splits and a steel box dents into its insert.

3. Stacking and turnaround

Tier count follows the top face: recesses and bosses interlock, so five tiers stay square, while a crate drifts from the fourth and a pouch cannot stack.

Turnaround follows the latch. Two latches open one-handed in a second, four seconds a cycle; a crate needs a pry bar and forty seconds. At 24 units a pallet and six pallets a day, the gap is half a shift a year, six minutes against eighteen.

Option	Weight	Per pallet	Cycles
Cartridge box	4.2 kg	24	3,000+
Wooden crate	9.5 kg	16	1
Steel box	7.8 kg	30	800
Plastic tote	2.6 kg	30	2,000
Soft pouch	0.4 kg	binned	200

4. Service life: how the replacement curve runs

Life is a curve, not a number. The box is designed for ten years and replaced in the eighth to tenth, on a gasket or a latch claw rather than a cracked shell; between minus 30 and 60 degrees the shell moves under 0.3 percent.

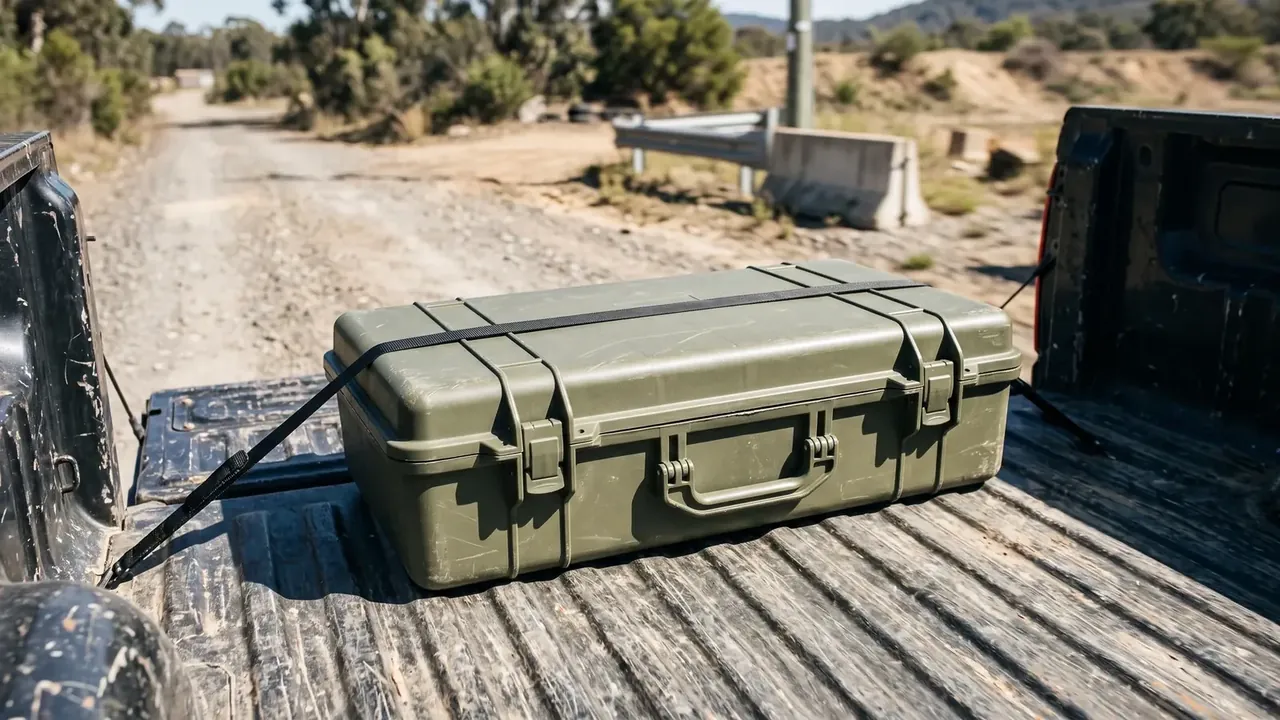

A long cartridge box strapped with two black webbing bands in a pickup bed, two front latches, gravel road and guardrail behind

A crate lasts two and a half years in a damp store; a steel box pits at year five; a tote embrittles outdoors and fractures rather than deforms; a pouch gives eighteen months. Salt spray of 480 hours approximates three coastal years, ultraviolet of 1,000 hours two outdoors.

5. The ten-year cost

Spread purchase, maintenance and replacement over ten years and the ranking inverts: the cheapest pouch is replaced six or seven times, so its cumulative purchase passes one box.

Option	Purchase	Upkeep	Replacement	Total
Cartridge box	340	24	0	364
Wooden crate	375	18	included	393
Steel box	240	60	180	480
Plastic tote	180	12	90	282
Soft pouch	105	0	included	105

Amounts in yuan. The table excludes failure cost: a tote totals 282, yet one wet season can cost more than the box that would have prevented it.

Conclusion

On price the crate wins, on tiers the steel box, on weight the tote, on footprint the pouch, and the cartridge box trails on none of the four. Selection is about the column that must not fail, not the strongest one. Over ten years the difference is a few yuan a year.

This article discusses only the container (case body) side of specifications and design intent, and does not cover any handling, loading or use of the contents.
