Is a 30 percent spread between cartridge storage box quotes normal?

Answer: Yes. The gap sits in wall thickness, insert type and freight basis, not margin. Six inputs and six cost blocks close it to under 10 percent.

The MOQ is 500 but I need 200. What now?

Answer: Ask for a trial run from 300 units with a 10 to 15 percent premium, in a standard colour.

Can tooling be amortised into the unit price?

Answer: Yes, but run the total. A one-off invoice is refundable at 5000 units; total spend usually differs by under 5 percent.

Can a 30-day lead time be guaranteed?

Answer: Only with an existing tool. New tooling plus rework takes 18 days, so 50 days end to end is normal.

Must the balance wait for acceptance?

Answer: Keep a tenth back if you can, and put inspection items and decision rules in the contract.

Cartridge Storage Box Procurement: Quotes, MOQ and Lead Time

Quick answer: Buying a cartridge storage box comes down to six enquiry inputs: cavity size, insert, hardware, colour, packing and commercial terms. Send all six and the spread between quotes falls from 30 percent to under 10. Then compare cost blocks and count lead time backwards.

Six Inputs a Cartridge Storage Box Quote Needs
What a Quotation Is Made Of
MOQ, Tooling and Sampling Costs
Breaking Down the Lead Time
Payment Milestones Tied to Acceptance
FAQ

1. Six Inputs a Cartridge Storage Box Quote Needs

One drawing sent to three factories returns 128 yuan and 176 yuan. The gap is rarely margin: walls of 3 mm against 5 mm, with or without the insert.

Input	What to state	What goes wrong without it
Size	Cavity and outer size in mm	Cavity derived from the shell, wall thinned
Insert	EVA cut-out or EPE dividers, slot count	Cheapest layout quoted, surcharge later
Hardware	Latch count, handle, pressure valve	Generic parts, wrong opening effort
Appearance	Pantone number, print or label	No basis for colour judgement
Commercial	Annual volume, acceptance basis	MOQ and lead time cannot be fixed

What is often missing is the acceptance basis. Approved against sample alone leaves open who seals the sample, how many, and who keeps them. State annual volume as a range: twelve thousand units over a year and in one quarter price differently.

2. What a Quotation Is Made Of

Compare whether the quote is broken down at all, not the total: a comparable one has six blocks, each with a unit price and its basis.

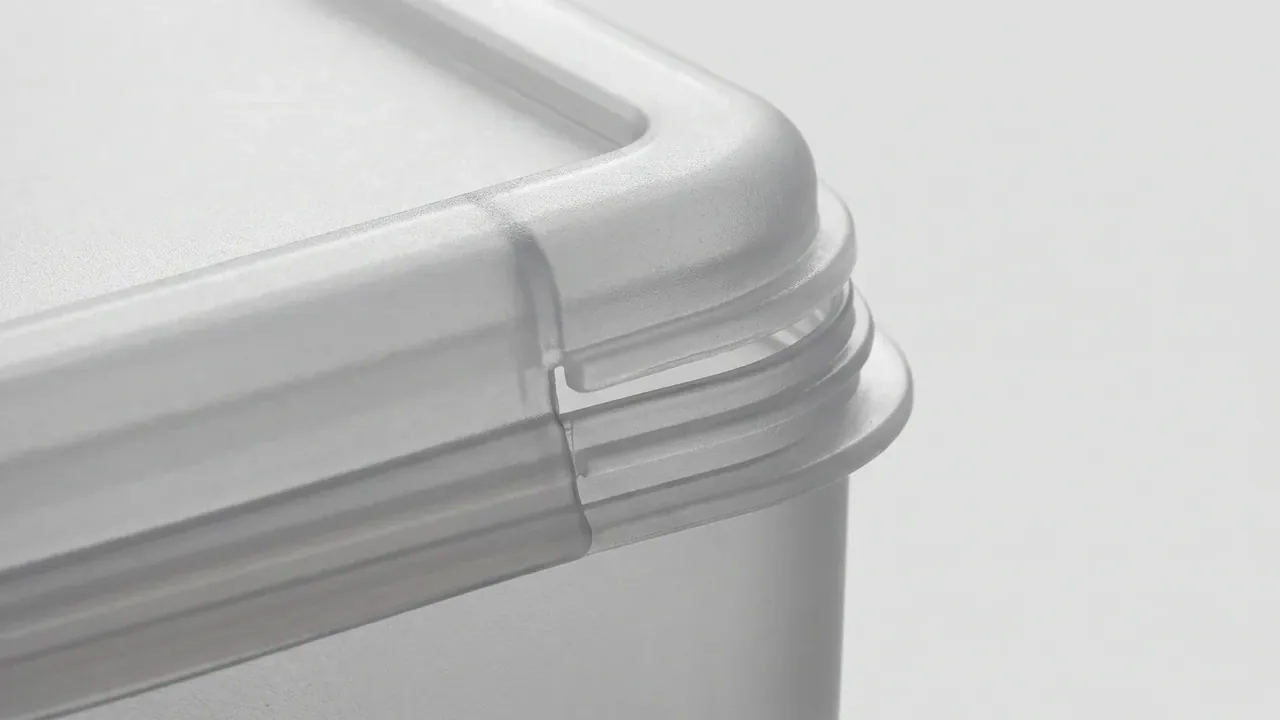

Cartridge Storage Box: close view of a pale grey case corner, the lid rim sitting over the wall mouth in one joint line, ribs and fine texture across the surfaces

Cost block	Share	Content
Moulding	55 to 62 percent	Resin, energy, labour, depreciation
Insert	16 to 22 percent	EVA or EPE material and cutting time
Hardware	6 to 9 percent	Latches, handles, valve, hinges
Testing and freight	5 to 8 percent	Pre-shipment check, trunk haul

Level three things first: 13 percent VAT swallows a gap, ex-works and delivered prices differ by trunk haul, and tooling amortised or invoiced once shifts the total. For 1000 units at 168 yuan with 38000 yuan tooling and 6 yuan freight, the total is 212000 yuan; folding tooling into a 205 yuan delivered price bills 205000, or 7000 less.

3. MOQ, Tooling and Sampling Costs

Minimum order quantity is arithmetic: purging losses and colour-change scrap decide it. Injection cases start at 500 units per batch, rotomoulded at 100, custom colour at 300 kg of resin with an 8 percent surcharge below it.

Tooling ownership belongs in the contract: the mould is the buyer's property, its number engraved on the frame, collectable after the program ends. Steel tools run 38000 yuan, aluminium 22000, refunded at 5000 units. Sampling confirms only cavity size, latch effort and insert fit; colour is judged at T2.

4. Breaking Down the Lead Time

Split the total into milestones and you see which stage compresses and which does not.

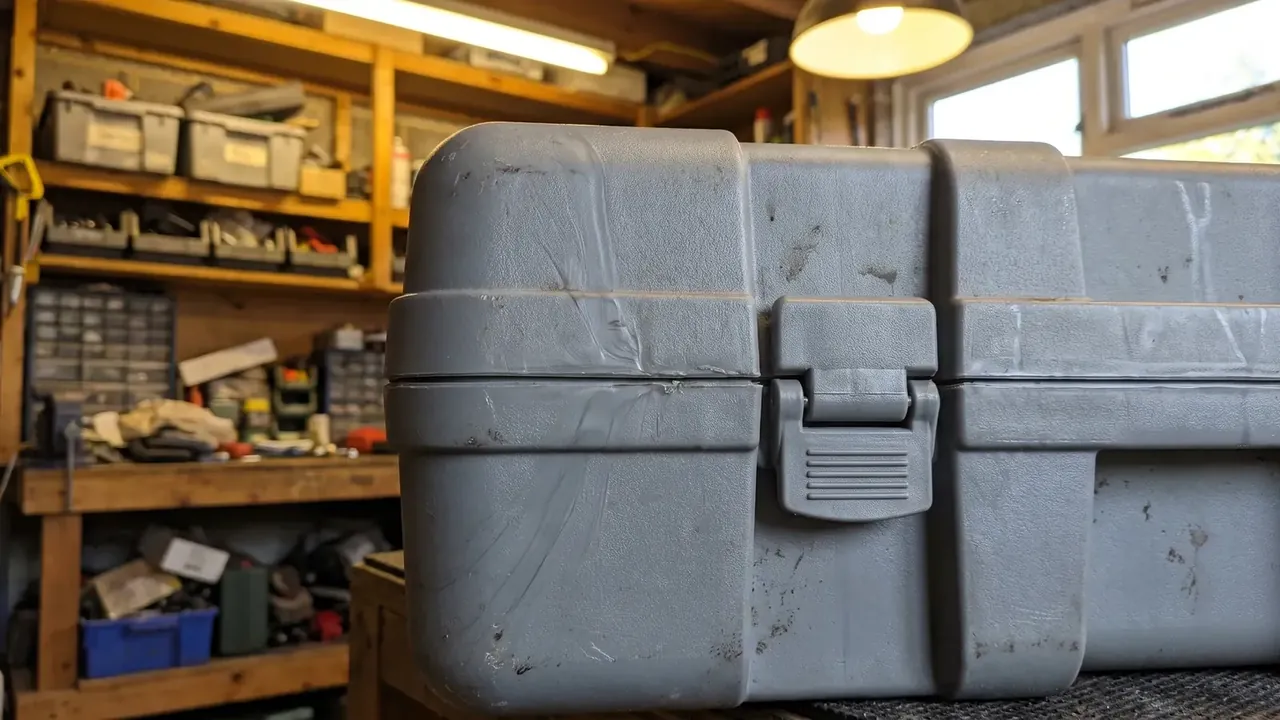

Cartridge Storage Box: front of a large grey case on a workshop bench, single centre latch closed, scuffed matte walls, parts bins on shelves behind

Milestone	Days	Precondition	Proof
Material	7	Deposit in, colour fixed	Material list, lot number
Tooling or rework	15 to 22	3D and tolerance signed	T1 samples
Moulding	12	First article passed	First article sheet
Assembly and test	6	Case and insert kitted	Pre-shipment report
Packing and freight	7	Balance or credit	Packing list, bill of lading

Inserts run parallel to moulding, so an order with a new tool runs 7 days of material, 18 of tooling, 12 of moulding, 6 of assembly and 7 of freight: 50 days. With the tool on the shelf, drop 18 and land at 32.

Each milestone needs a proof object, or the phrase already in production buys three weeks. Peak season adds buffer: the four weeks before Spring Festival and September fill the schedule, so add 10 days.

5. Payment Milestones Tied to Acceptance

The common split is 30 percent deposit, 60 before shipment and 10 on arrival, and every tranche needs a verifiable condition. Keep the last tenth until 30 days after acceptance, and deduct 3 to 5 percent when a lot is accepted by concession. Resin moving more than 8 percent triggers a quarterly review; late delivery costs 0.3 percent per day, capped at 5.

Conclusion

Procurement is not a race to the lowest unit price, but the work of putting assumptions on the table: six inputs in writing, six cost blocks, tooling and MOQ settled, milestones counted backwards. Then the cartridge storage box order becomes a schedule you can hold.

This article discusses only the container (case body) side of specifications and design intent, and does not cover any handling, loading or use of the contents.
