Can a latch broken on one side still be used?

Answer: No. With one side loaded, the lid lifts 1–2 mm at that corner and pressure falls past 0.5 kPa in 60 s, spending the whole 30 min IP67 immersion margin.

Is a moulded latch really unrepairable?

Answer: Without a removable joint there is nothing to swap, so the route is a new lid. After fitting, run a 1 m, 30 min immersion; pressure drop only screens.

Should the gasket be replaced at the same time?

Answer: Judge by rebound. A gasket staying under 80% of its original thickness after 5 s has taken a set and should go; one that springs back stays.

How long can spares sit on a shelf?

Answer: PA66 at 25 °C and 50% relative humidity loses about 15% impact strength in 3 years and stays out of a load path after 5. Zinc die-castings do not age, but plating shows white rust within 2 years in damp air.

Does the IP rating survive a latch swap?

Answer: Yes, while the holes stay unchanged. IP67 is judged at 1 m for 30 min, and 0.2 kPa per 60 s usually corresponds; once a hole is reamed 0.2 mm wider, add a 1.0 mm shim and retest, or water tracks along the rivet.

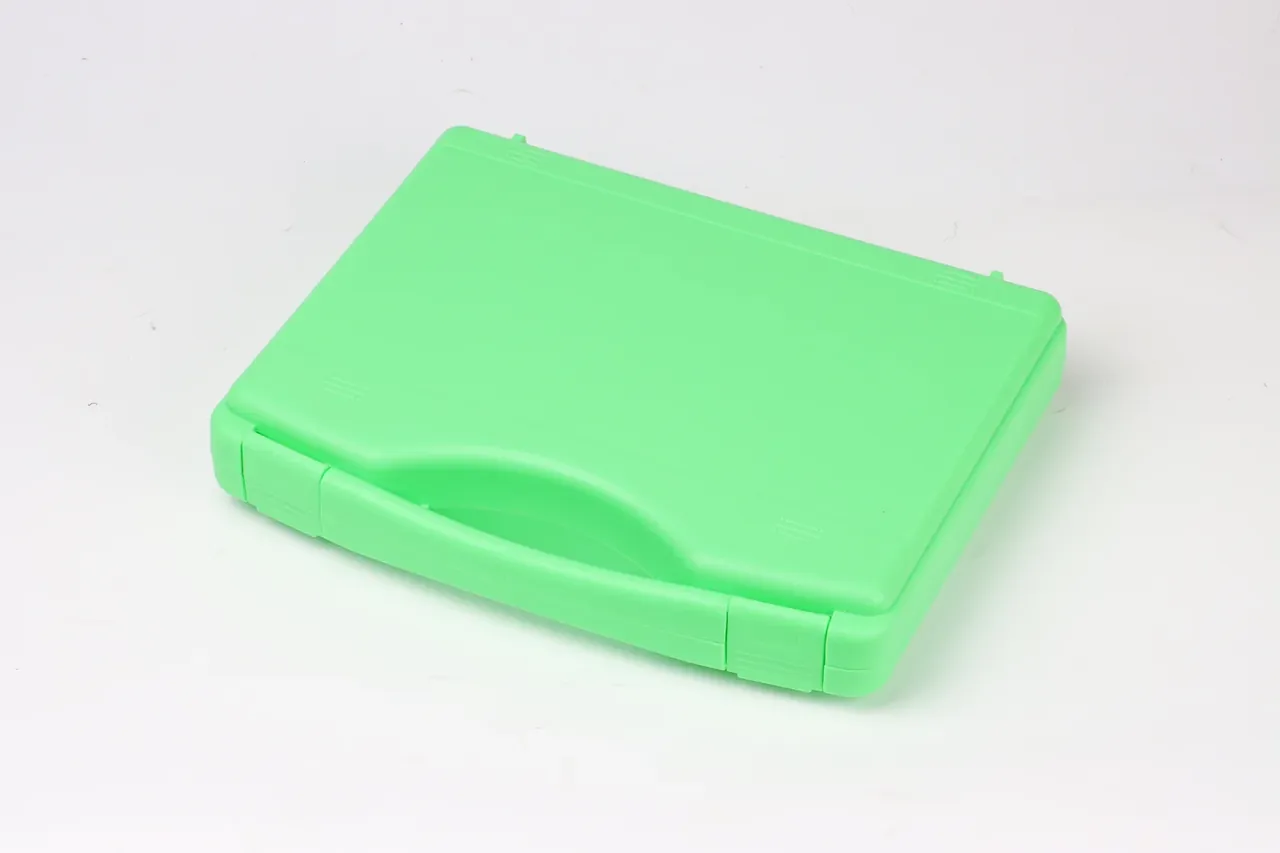

Can a Broken Latch Be Replaced Alone

Quick answer: A latch swaps on its own only when a rivet, screw or moulded-in nut holds it, so the test is whether the rim keeps a reusable hole once the old part is off; a latch moulded into the lid takes the whole lid with it.

How the Fastener Decides the Swap
Four Fastenings and What Removal Costs
Read the Break Before Ordering
Six Steps, Three Torque Stages
Mating Seats, Batches, Spares
FAQ

1. How the Fastener Decides the Swap

The fasteners inside the rim, not the shape of the latch, decide whether a case can be repaired. Pop rivets of 3.2 mm or 4.0 mm come out with a drill and leave two open holes. An M4 stainless self-tapping screw comes out with a PH2 driver but leaves a 0.1 mm groove where the plastic thread was cut. A heat-set brass nut survives 10 removals or more, since the thread sits in metal. All three leave a reusable interface. A latch moulded into the lid leaves none.

A moulded latch grows its spring tab straight out of the lid, with no joint to open. Prise at it and you tear the weld line.

Check the inside of the rim for a screw head, a rivet head or a countersunk nut, then the back of the latch for a separate metal plate. If none exists, latch and lid are one part. Where a plate is present, the 1.0 mm gasket under it goes too, since a compressed gasket will not return.

2. Four Fastenings and What Removal Costs

Fastening	Tool	Replaced alone	Refit note
Pop rivet 3.2/4.0 mm	3.5 mm drill	Yes	Ream 0.2 mm, sealant
M4 stainless screw	PH2 driver	Yes	0.8–1.2 N·m
Heat-set brass nut M4	3 mm hex key	Yes, 10+	Light threadlock
Moulded snap	None	No	New lid

Most rivet repairs go wrong. Drill 0.5 mm off centre and the wall scores; the new rivet seats with a gap under the plate, and a 2 kPa charge drops past 0.4 kPa within 60 s. Drill the head only, punch the shank through, ream to 4.2 mm, run sealant into the hole, cure 2 h, then set the rivet.

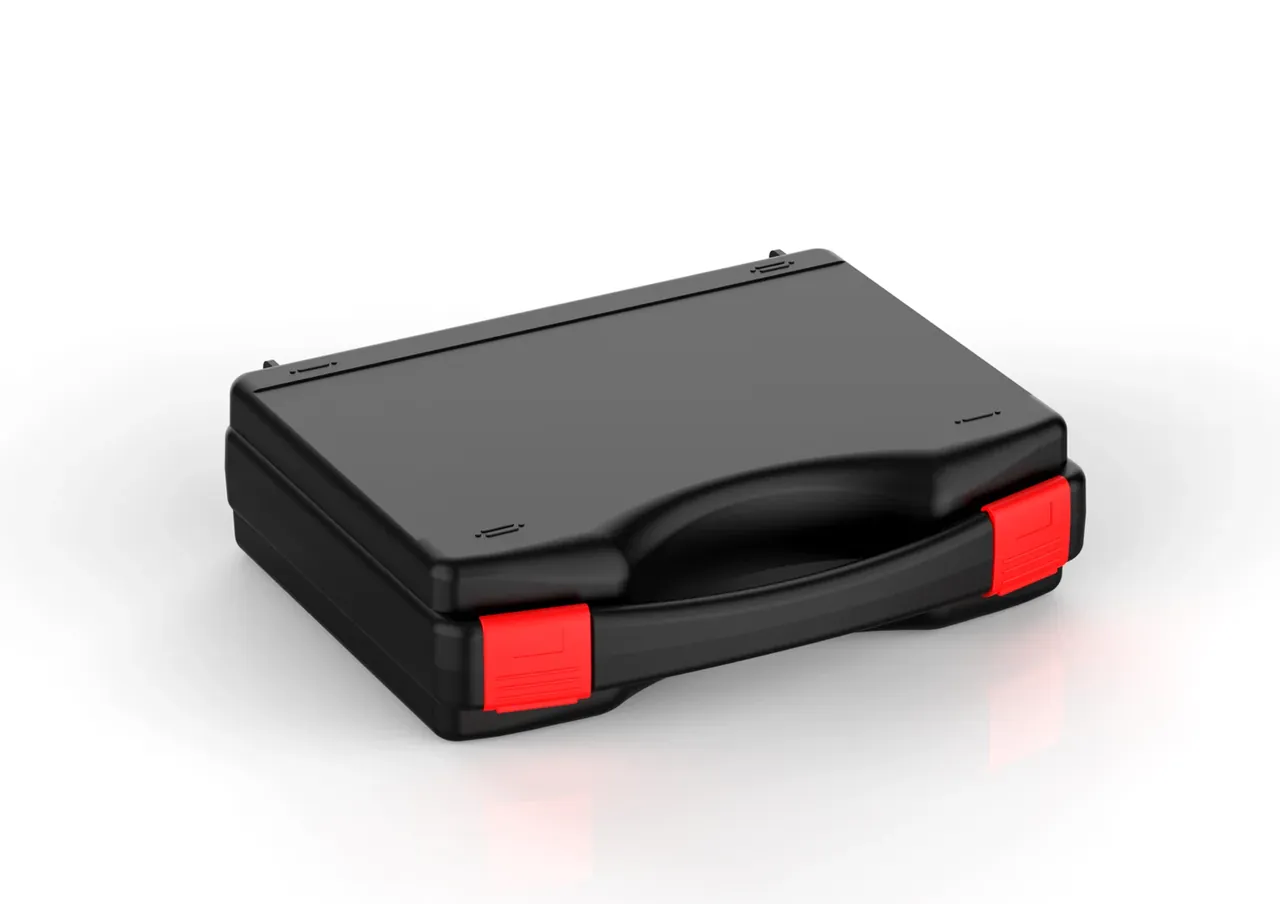

Latch arms in red standing proud on a black flat case, one each side of a recessed black handle, three-quarter view on white

Screws fail at the thread. By the third refit a hole that took 1.2 N·m keeps turning at 0.6 N·m, the plate stops clamping and the latch rocks. Step up to an M5 screw, or plug the hole with a 6 mm nylon rod. Brass nuts avoid that, yet a heat-set nut can pull out whole under a side impact at -20 °C, and the repair means re-setting it at 180 °C.

3. Read the Break Before Ordering

A tab that snaps at the root has failed in fatigue: fine beach marks, a white yield band along the edge. A pin worn to 0.3 mm of clearance loads the latch off axis, so the break moves to the bore. The first case is a latch job; the second takes the pin and the seat as well.

Some breaks are not in the latch at all, but in the seat ear moulded on the lid.

Cracks running from that ear toward the rim pass 8 mm quickly, and beyond that length the lid is the repair.

Break location	Field sign	Action
Tab root	Beach marks	Latch only
Pin bore	Oval bore, ≥0.3 mm	Latch and pin
Seat ear	Crack ≥8 mm to rim	New lid
Base plate	Plate warped ≥0.5 mm	Latch and gasket

Opening force is the second witness. A new latch releases at 40–60 N and falls to about 30 N by 8000 cycles, which feels loose but is not a fault. Force climbing past 80 N points to a seized pin or a flattened gasket jamming the rim, and forcing it breaks the tab first.

4. Six Steps, Three Torque Stages

The order is: remove, clean the hole, fit a new gasket, align, torque in stages, retest. Staging means finger-tight, then 0.4, 0.8 and 1.0 N·m in turn, alternating the two screws so the plate beds on all four edges; 0.3 mm of lift on one side is enough to leak. Die-cast zinc latches carry a 50,000 cycle rating against 20,000 for PA66+GF30, and they look identical, so a mixed batch loads the shorter-lived part twice over; match the material code.

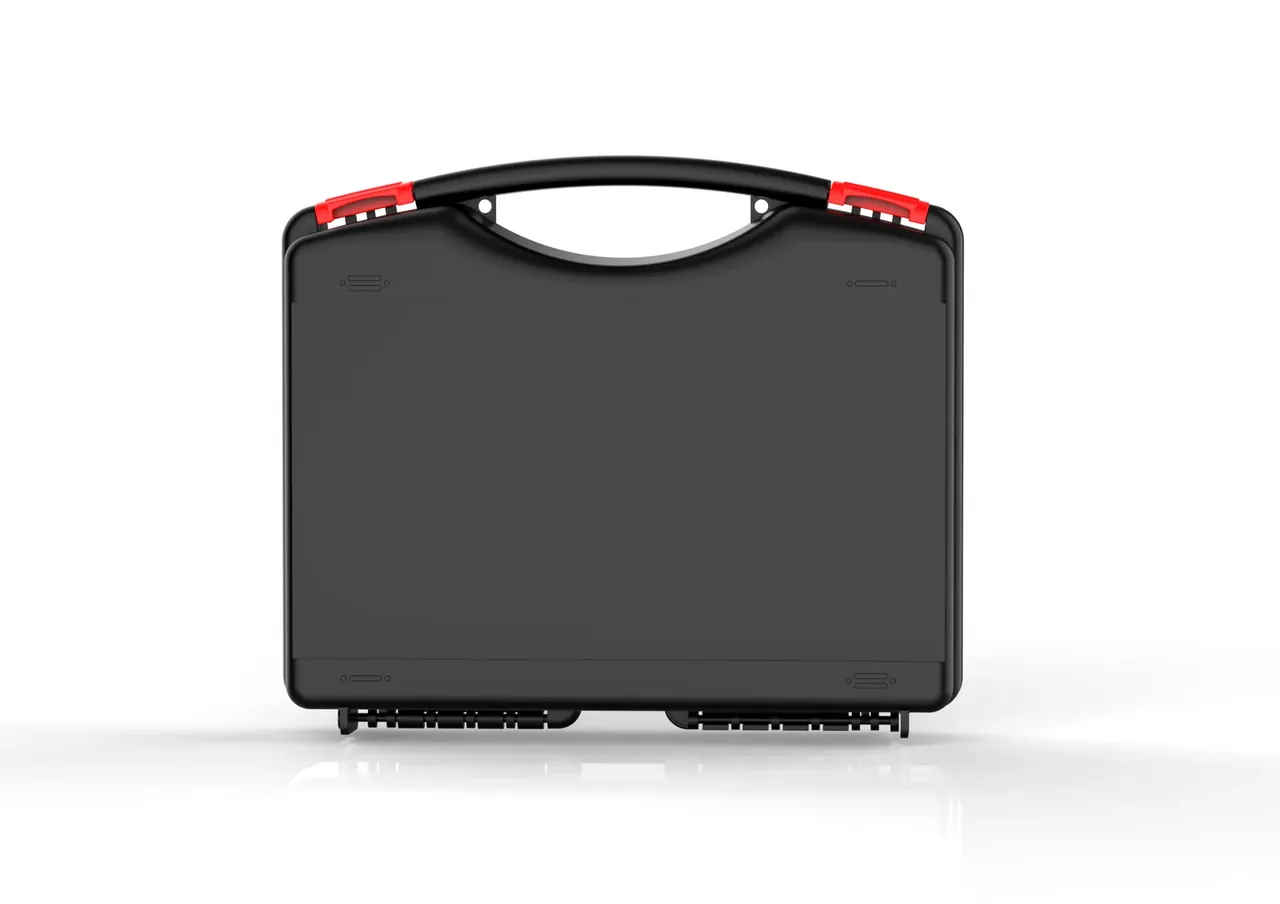

Latch pair in red on the front of a black case, arched integral handle between them, two low feet along the base, white background

Retest by pressure drop: charge to 2 kPa, hold 60 s, pass at 0.2 kPa or less. Without air, immerse 1 m for 30 min and check the seal face for a continuous water line.

Leave 24 h before a full load. The gasket needs time to bed.

5. Mating Seats, Batches, Spares

A latch is never one part; it is the body plus its seat. Seats from two batches 0.3 mm apart in height load one side only, and the unloaded side whitens within 200 closures before the tab root cracks. Swap the pair, or measure seat height with a caliper and replace both once the difference passes 0.2 mm.

Stock 2% of the installed count per model, plus one spare seat. Twenty cases need more than one latch, since a batch ages together. PA66 moves 0.4% in dimension as it takes up moisture, so a spare stored at 80% relative humidity fits tighter than the original: keep them foil-sealed and use them within 6 months.

Conclusion

Whether a latch can be replaced alone is answered by the rim, not by a parts list: with a rivet, a screw or a brass nut, a swap is routine maintenance; with a moulded snap, the lid is the part. Work in three steps: interface, break location, seat height difference. Reusable interface, a break at the tab, seats within 0.2 mm of each other, all three at once, and 20 minutes puts a new latch in place. When the crack has reached the seat ear, the hole is reamed loose, or one latch carries the closing load alone, a swap only postpones it.

This article discusses only the container (case body) side of specifications and design intent, and does not cover any handling, loading or use of the contents.
