How often does a drone case need a full service?

Answer: Every 12 months, covering the water retest, foam check and records, with monthly force checks between.

Force passes, but the lid rocks when pressed. Replace the catch?

Answer: Measure hinge play first: rocking means a worn pin or loose screw. Retorque to 1.5 N·m, replace the pin past 0.4 mm.

The gasket is not cracked, so why replace it on a calendar?

Answer: Ageing shows as slow rebound first. Past 25% set, or under 85% recovery in 10 seconds, it will not seal cold.

Can a shallow foam cavity be packed back up with shims?

Answer: Better not: shims tilt the airframe and concentrate impact. A cavity 3 mm shallow needs a new 38 kg/m³ top layer.

How do we confirm the case is still watertight after service?

Answer: Run the 0.3 m, 20-minute test with paper in every corner. Any damp spot fails it.

Drone Case Maintenance: Inspection Items and Replacement Lines

Quick answer: Drone case maintenance runs on four measurable values: latch force, lid seam gap, gasket compression set and foam sink depth. Look before each shift, measure force monthly, strip the gasket quarterly, retest in water yearly — about 45 minutes per case a year.

Four Maintenance Tiers: Pre-Shift, Monthly, Quarterly, Annual
Latches and Hinges: Measuring Force and Play
Gasket and Pressure Valve: Rebound, Set and Retest
Foam and Cavities: Sink Depth and Fit
Replacement Lines, Spares and Records
FAQ

1. Four Maintenance Tiers: Pre-Shift, Monthly, Quarterly, Annual

A drone case rarely fails all at once. Crews open one 800 to 1,200 times a year, and claw, gasket and foam wear at different rates, so one interval either misses a worn catch or overworks the rest.

Split into four tiers, the work comes to about 45 minutes per case a year: 5 before a shift, 12 monthly, 15 quarterly, 13 for records.

Tier	Interval	Items	Trigger
Pre-shift	Every dispatch	Lid seam, claw seating, corners	Light through seam
Monthly	30 days	Latch force, hinge play, screws	Force below 32 N
Quarterly	90 days	Gasket set, valve, wall cracks	Set above 25%
Annual	12 months	Water retest, foam, records	Damp paper in a corner

2. Latches and Hinges: Measuring Force and Play

Latch force fades slowly, so hands adapt first. Hook a push-pull gauge on the claw and pull perpendicular: a new case reads 50 N with ±8 N spread, and under 32 N the catch body is replaced, not adjusted.

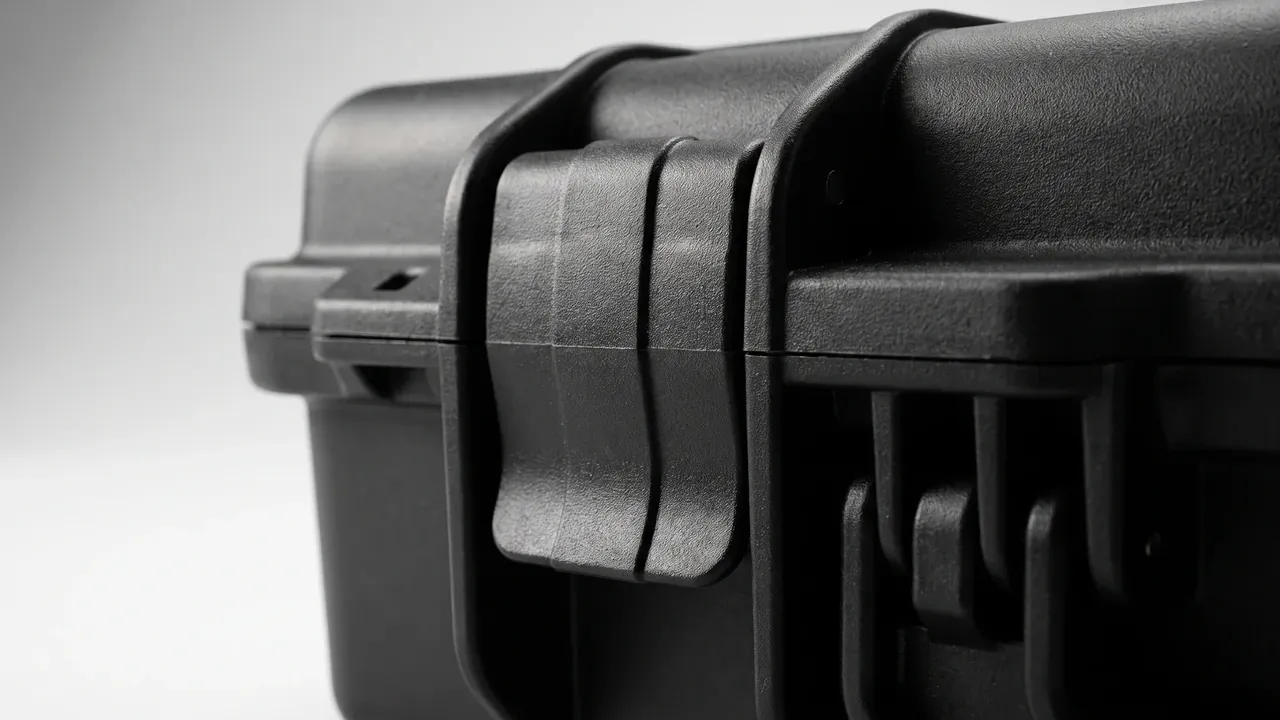

Drone Case: close-up of a wide black latch claw over the lid rim, grooved catch body, a second catch at right, curved wall rib

The claw wears separately: a flat 1.5 mm land rounds over, and past 0.8 mm of groove the catch pops open in a drop while the gauge still passes.

Hinge play past 0.4 mm calls for a new pin. Retorque the M4 screws to 1.5 N·m every 90 days; 2 N·m strips the boss.

3. Gasket and Pressure Valve: Rebound, Set and Retest

A gasket is judged by recovery. Rest the cord 24 hours and measure the section that began at 8 mm: six millimetres left is 25% set and no sealing load.

Compressed to 70%, it should pass 92% within 10 seconds. The valve membrane follows a calendar instead: 12 months or 20 high-altitude trips.

Part	Method	Replace at
Gasket thickness	Caliper on original section	Below 6.0 mm
Gasket rebound	70% compression, timed	Under 85% in 10 s
Lid seam	Feeler gauge, perimeter	Above 1.0 mm
Valve membrane	Breath test plus date	12 months

The annual water retest runs 0.3 m deep for 20 minutes with paper in each corner.

4. Foam and Cavities: Sink Depth and Fit

Foam changes shape on its own, and colour says nothing. Stand a steel rule on the cavity floor: 3 mm lower than new means the cradle has collapsed, and the airframe bottoms out on the shell. A wall that stays dented for 3 seconds after a thumb press shows the same ageing.

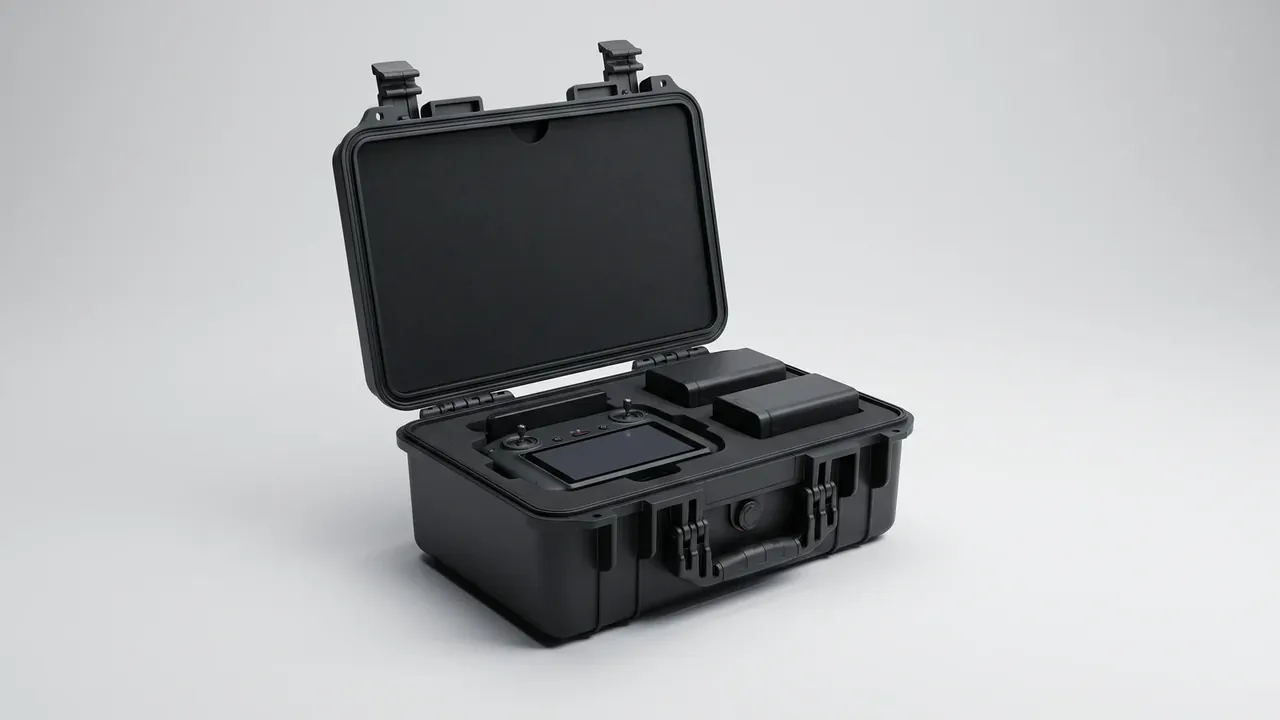

Drone Case: black case standing open on pale grey, flat black foam, a screen controller sunk in its slot, two battery blocks, twin front latches

Push the seated airframe sideways; over 1.5 mm means too much clearance and vibration rubs the arm root. A 38 kg/m³, Shore C 30 top layer with 0.5 mm allowance restores the fit.

5. Replacement Lines, Spares and Records

Catch bodies, pins and foam are judged by measurement; gasket and membrane by calendar, because they fail from the inside.

Part	Replace at	Time cap	Labour
Catch body	Under 32 N or groove over 0.8 mm	36 months	8 min
Hinge pin	Play above 0.4 mm	48 months	15 min
Gasket cord	Under 6 mm or 85% rebound	24 months	12 min
Valve membrane	Any breathing fault	12 months	5 min
Top foam layer	Cavity 3 mm shallow	30 months	10 min

A kit holds two catch bodies, one cord, two membranes and a top foam set. The log card carries date, latch force, worst seam gap and gasket thickness; three cards in a row show a trend.

Conclusion

Drone case maintenance means reading four numbers on schedule: latch force, seam gap, gasket thickness, cavity depth. Inside the band, keep the part; past the line, replace it; rubber parts carry a calendar cap. One kit, one log card and 45 minutes a year keep a drone case sealing as new.

This article discusses only the container (case body) side of specifications and design intent, and does not cover any handling, loading or use of the contents.
