Is 23 tools the ceiling for an electrician plastic tool case?

Answer: For one person on foot, yes: past 26 pieces the load passes 3.6 kg.

Is 3.2 kg too heavy to carry all day?

Answer: Eight hours is fine. Carry it up two flights one-handed; if that fails, drop tools rather than wall thickness.

What guarantees a 1.4-second opening on an electrician plastic tool case?

Answer: Release under 35 newtons, a hinge holding at 95 degrees, and a lid under 0.8 kg.

Are three spare slots enough?

Answer: For routine work, yes. On repair days carry a soft bag instead.

Can an electrician plastic tool case hang from a ladder rung?

Answer: No. Hung on a rung the load turns sideways and 12 kg falls below 5 kg.

Does the inspection cycle have to be 7 days?

Answer: Scale it to use: twenty openings a day earns a weekly check, two a week is fine at 30 days. ---

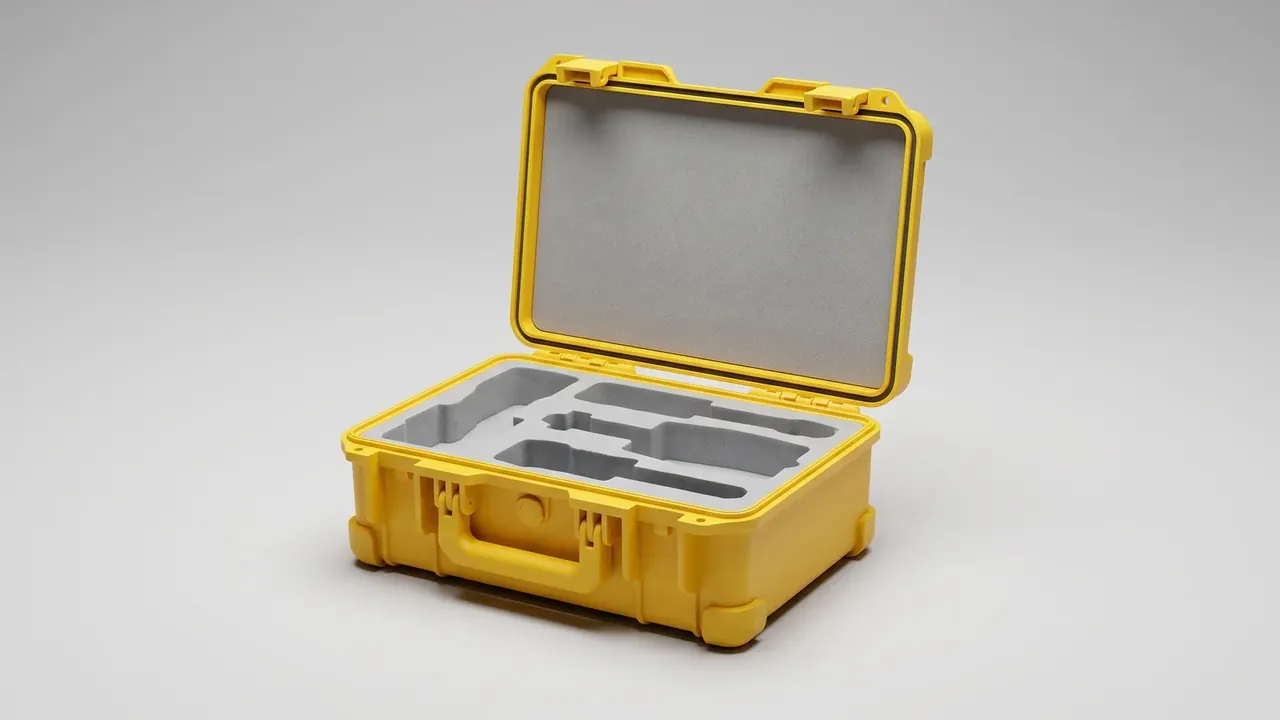

Electrician plastic tool case: 23 tools, 3.2 kg, six layers

Quick answer: An electrician plastic tool case can be specified in numbers: 23 everyday tools across six layers, 3.2 kg loaded, 1.4 seconds to open one-handed, 26 slots with three left empty. Meet all four and one person runs a full day from the case; miss one and the site drifts back to a bag.

Laying out 23 tools in six layers
One-handed opening in 1.4 seconds
Where the 3.2 kg goes
Arranging 26 slots
Shoulder and belt anchors
Night lighting and a 7-day cycle
FAQ

1. Laying out 23 tools in six layers

An electrician plastic tool case divides by reach order, not by tool name. The 23 pieces split four ways: six cutting and gripping tools, eight screwdrivers, four hex keys, two meters, three consumables.

Spread flat they need 0.11 square metres against a 445x330x185 mm base, so they stand upright in a double-sided tray, one face per group.

Layer	Holds	Pieces
Lid upper	3 flat, 3 Phillips, 2 precision drivers	8
Lid lower	4 hex keys	4
Tray face A	Pliers set, adjustable wrench	6
Tray face B	Multimeter, clamp meter	2
Base left	Tape, ties	2
Base right	Spare blade box	1

Twenty-three in total, with no spare driver and no second wrench: each extra piece takes a slot, and a crowded slot turns a pick into a search.

2. One-handed opening in 1.4 seconds

On site the complaint is rarely capacity, it is the lid: on a ladder, a lid that takes over two seconds gets the tools laid on the tread.

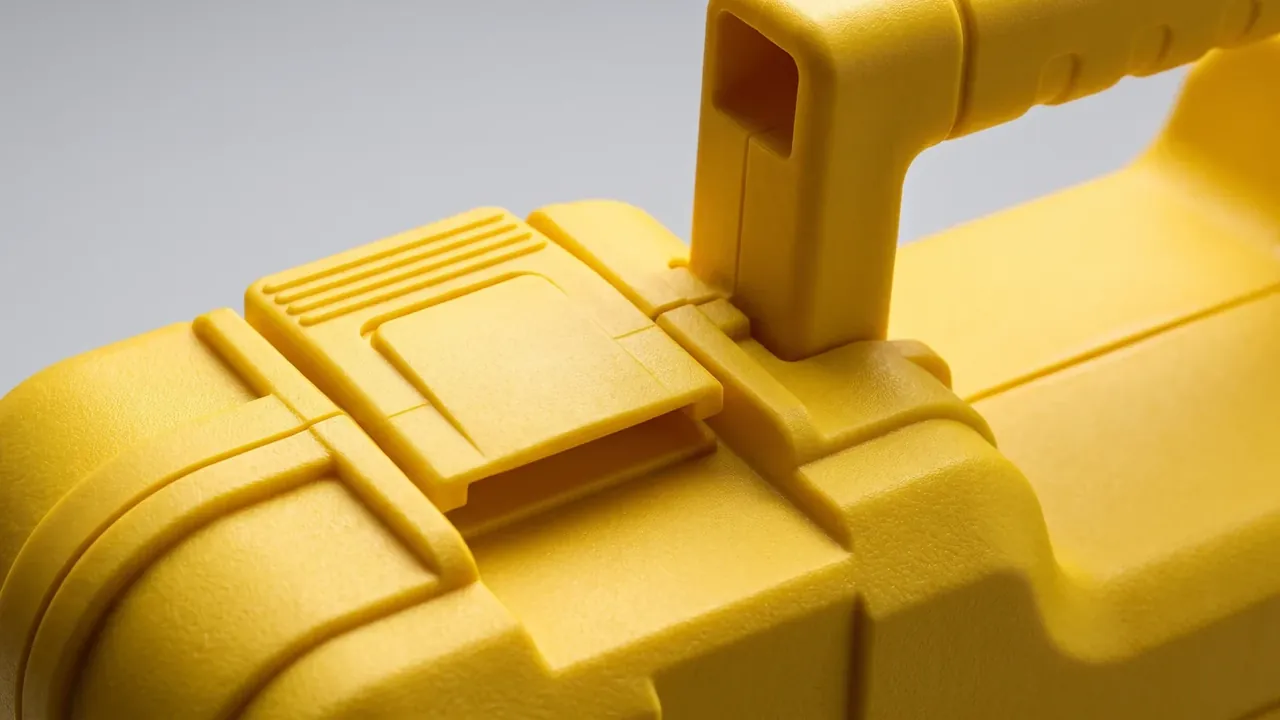

Electrician plastic tool case: a close view of the yellow latch and handle root, tongue seated in the lid groove, triangular ribs beside it

1.4 seconds comes from three details: a latch release under 35 newtons, a 6 mm hinge pin on bronze bushes holding the lid at 95 degrees, and a lid under 0.8 kg.

Two latches either side of the handle, 180 mm apart, share the rim load; a single centre latch lets both rim ends lift 2 mm.

3. Where the 3.2 kg goes

3.2 kg is the band for a day on the move in an electrician plastic tool case; past 4 kg most people set the case down. The figure is assembled, not weighed.

Body 1.6 kg: a 4 mm wall with a grid of base ribs, 0.5 kg under a thickened body, and it cannot stack five high.
Tray 0.35 kg: 2 mm PP in one piece, 0.2 kg under ABS with a liner, edges rounding after two years.
Tools 1.25 kg: the wrench and pump pliers share 0.55 kg, four precision drivers stay under 0.1 kg.

Lighter means fewer tools, not thinner walls: at 3 mm the body cracks on one drop at minus ten.

4. Arranging 26 slots

Twenty-six slots hold 23 tools; the three spares are deliberate, since site work collects removed screws, cut wire ends and borrowed terminals.

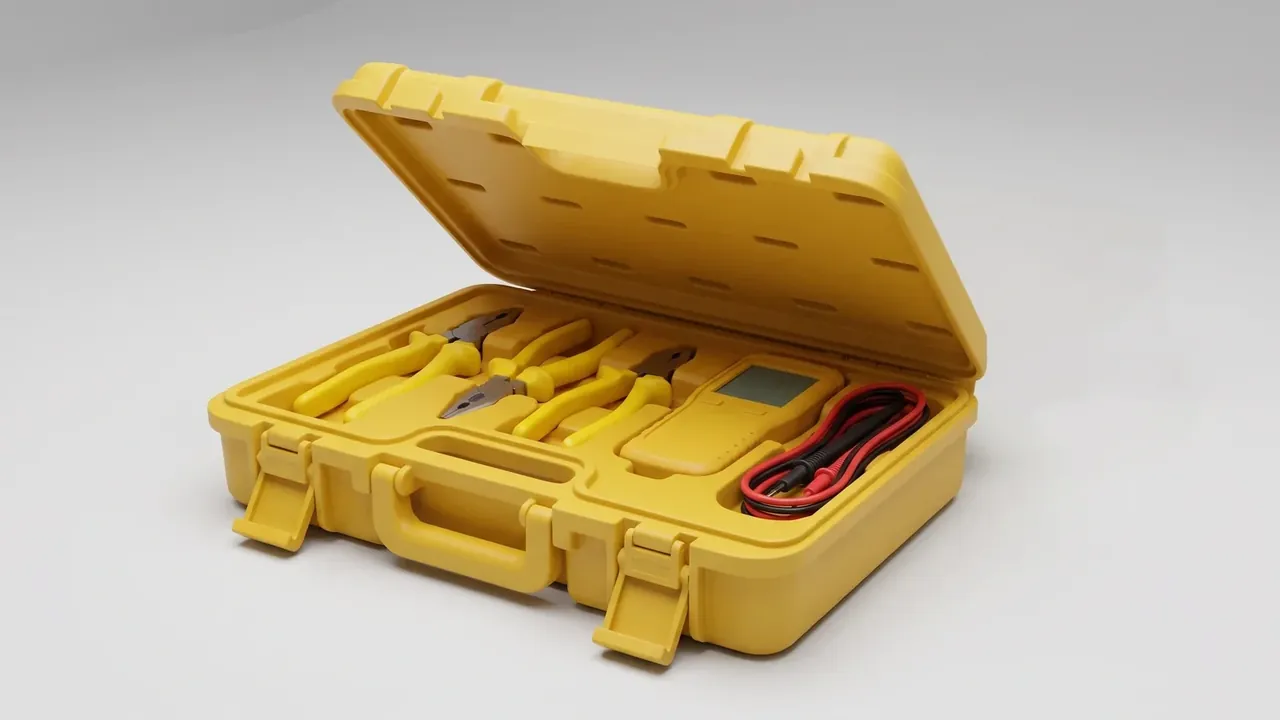

Electrician plastic tool case: the yellow case open from above, three pliers and two strippers left, a multimeter with coiled red and black leads

Slots follow tool shape, not tool name. Long nose pliers run 12 mm at the head and 22 mm at the grip, so the slot narrows forward and the tool drops home, where a straight slot lets it rotate 15 degrees. Spares sit at 60x40 mm, sized to a clamp meter head of 55 mm, and depth stops at 18 mm with 3 mm of liner compression.

5. Shoulder and belt anchors

One hand on the case and one on the ladder is the standing conflict, and an electrician plastic tool case answers with four anchors where position beats count.

Shoulder anchors: a third of the way down each side, 12 kg per point, so the case rides the hip.
Belt D-ring: 8 kg, for freeing a hand briefly.
Handle: 25 kg static, but working loads stay under 8 kg.
Hook holes: 8 mm each side of the rim, for a scaffold bar.

An anchor centred on the body swings the case sideways; set too high, the base kicks into the shin.

6. Night lighting and a 7-day cycle

Night call-outs on an electrician plastic tool case start with finding light: a 20 mm clip each side inside the lid for a 90 mm pen light, and a 32 mm magnetic pad for a small lamp. The clips angle down 15 degrees so the beam lands on the tray.

Inspection follows use, not the calendar.

Interval	Check	Limit
7 days	Latch release, hinge return	Adjust above 50 newtons
30 days	Slot edges, liner marks	New tray past 1 mm rounding
90 days	Handle root, anchors	Retire at 2 mm cracks
180 days	Gasket, magnetic pad	Replace if it stays flat

A slack latch does not fail at once, but opening time climbs from 1.4 to 2.6 seconds.

Conclusion

The layout of an electrician plastic tool case comes down to arithmetic: 23 tools in six layers, 26 slots with three empty, 3.2 kg loaded, 1.4 seconds to open. Adding a tool breaks the weight, adding weight breaks the time, adding slots breaks the pick order. Fix the four numbers and the electrician plastic tool case is configured rather than merely bought.

This article discusses only the container (case body) side of specifications and design intent, and does not cover any handling, loading or use of the contents.
