The unit price is 980 CNY, so why call it expensive?

Answer: Tooling adds 38000 CNY against a 200 unit minimum. At 50 units the landed price is 1740 CNY.

Can the tooling be refunded or shared?

Answer: Rarely refunded; ownership depends on the clause. Sizes in one family share a frame, but interiors need separate cavities, saving under 30%.

Below how many trips a year should I not buy?

Answer: Under 20. At a 6 year life the annual charge is 163 CNY, so leasing wins below that.

Is a steel case really cheaper?

Answer: 47% cheaper per unit, and the two meet at 223 CNY a year at 240 trips. Steel weighs 34 kg and takes 2 minutes longer to handle, so labour cost reverses it.

Can an explosive container go into a cleanroom?

Answer: Not above ISO 7. Foam lining keeps shedding particles and a full clean takes 40 minutes; stainless is cheaper to run.

When is there no alternative?

Answer: When two of three hold — 46 kg loaded, 4 tiers, 96 hours of salt spray. Timber, steel frames and fabric fail first.

2 mm Thicker, Still Wrong: Explosive Container Trade-offs

Quick answer: Four situations argue against buying one: a single shipment, a 1.6 m long item, fewer than 20 trips a year, and a cleanroom above ISO 7. Below are the figures that decide it, including a 38000 CNY tooling bill and the point where steel and plastic cost the same.

Where an explosive container is the wrong buy
Small batches: the 38000 CNY tooling bill
Short frequent loops: 12 years against 6
Cleanrooms and static: change the material
The other way round: three rules that leave no choice
FAQ

1. Where an explosive container is the wrong buy

A quotation hides its worst number in the price. At 980 CNY over 6 years an explosive container costs 163 CNY a year, and that rises as trips fall. Selection starts with duty cycle.

Four duties leave it exposed: one-way shipments, items longer than the 980 mm interior, under 20 trips a year, and cleanrooms above ISO 7. The first two fail on geometry, the last two on cost.

Duty	Why it loses	Better fit
One-way shipment	980 CNY serves 1 trip	Timber crate, 380 CNY
1.6 m long item	Interior is 980 mm	Steel frame, open ends
Under 20 trips a year	163 CNY a year unspread	Lease or share
Above ISO 7	Foam outgassing, 40 min clean	Stainless, washable

Ask three questions: trips a year, longest item, cleanliness class.

2. Small batches: the 38000 CNY tooling bill

Rotomoulded pricing splits into material, labour and tooling. The 980 CNY unit price covers the first two; tooling is billed separately at 38000 CNY against a 200 unit minimum. Spread over 200 units that is 190 CNY each, over 50 units 760 CNY — nearly the price of an explosive container again.

Batch	Tooling share	Landed price	Lead time
50	760 CNY	1740 CNY	25 days
200	190 CNY	1170 CNY	20 days
500	76 CNY	1056 CNY	30 days

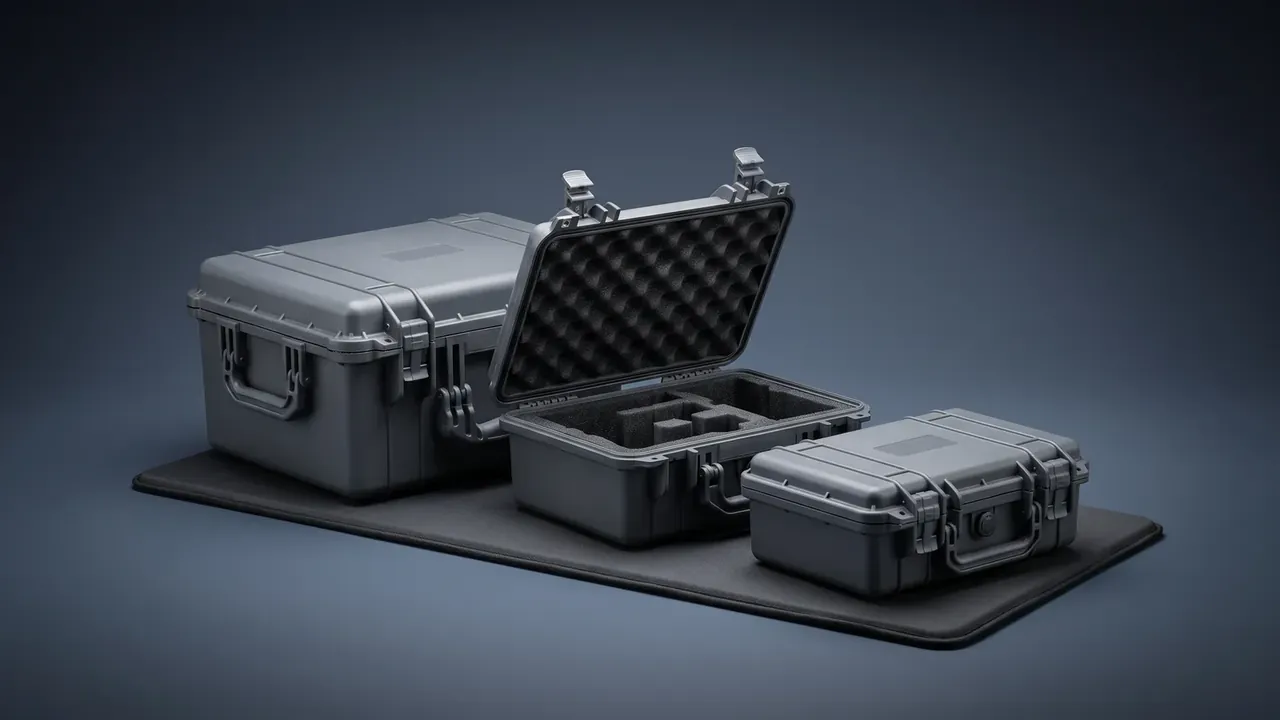

Explosive Container shown as three grey cases on a dark mat, the large one closed, the middle open with cut foam, the small one latched

Ownership belongs in the contract: if the tool sits in the supplier plant, switching suppliers means paying 38000 CNY twice. Two quotes 180 CNY apart usually differ on that clause. Lead time counts too — 25 days against 3 days for a crate.

3. Short frequent loops: 12 years against 6

Put life into the formula and the ranking flips. Steel at 520 CNY over 12 years costs 43 CNY a year; an explosive container at 980 CNY over 6 years costs 163 CNY. At 240 trips a year that is 0.2 CNY a trip against 0.7 CNY.

Item	Steel case	Explosive container
Unit price	520 CNY	980 CNY
Service life	12 years	6 years
Empty weight	34 kg	21 kg
Handling time	5 min	3 min
Annual upkeep	2 repaints, 180 CNY	1 gasket, 60 CNY
Annual cost	223 CNY	223 CNY

The curves meet at 240 trips a year, both at 223 CNY. From there the difference moves to handling: 34 kg against 21 kg, 5 minutes against 3, or 480 minutes a year, worth 960 CNY at 120 CNY an hour.

4. Cleanrooms and static: change the material

A cleanroom judges outgassing and surface resistance, not impact strength. Foam lining sheds particles in a room running 30 air changes an hour, and a full clean takes 40 minutes; dissipative material has to land between 1 megohm and 1 gigohm.

At a 40 °C spread and 65% humidity, plain HDPE builds a charge within 30 days. On an explosive container an earth stud clears it only while stud resistance stays under 10 ohm, a figure that occupies one row of the purchase sheet and decides whether the bay can open.

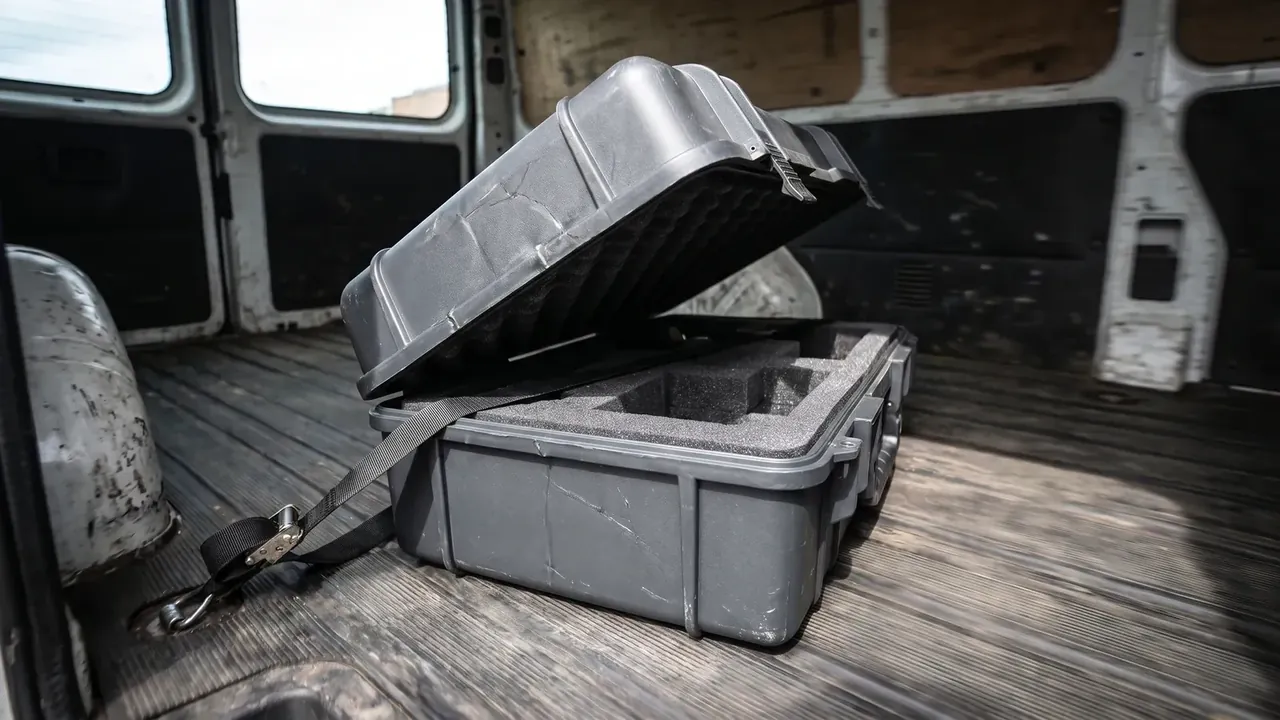

Explosive Container half open on a van floor, shell scratched at the corner, a black lashing strap hooked to the left

Cleaning time decides too: 40 minutes for foam, 8 for stainless, 2 times a week, or 55 hours a year. Material swaps carry a volume cost: 1.5 mm stainless walls cut 12 litres from the same envelope.

5. The other way round: three rules that leave no choice

Three conditions together leave no alternative: 46 kg loaded, 4 tiers of stacking, and either 96 hours of salt spray or a 1.2 m drop.

Test	Threshold	What fails
Loaded weight	above 46 kg	Timber and fabric distort
Stacking	4 tiers	190 kg on the bottom
Exposure	96 h salt spray	1.2 mm steel rusts through

Two of the three justify an explosive container; one alone points back to the duties above. Transport volume is a fourth test: below 60% fill, freight eats the saving.

Conclusion

An explosive container pays back through trips, batch size and environment. A 50 unit batch lands at 1740 CNY, under 20 trips a year carries 163 CNY, and at 240 trips the annual cost ties with steel at 223 CNY. Run those three numbers before choosing an explosive container, not the unit price.

This article discusses only the container (case body) side of specifications and design intent, and does not cover any handling, loading or use of the contents.
