How often should Foam Cutting be inspected?

Answer: Twice a day, before the shift and at handover, five minutes each. Vacuum, die clamp and extraction cover it; longer rounds get skipped.

Must a die be replaced on stroke count alone?

Answer: No. A die short of 12,000 strokes but past 0.15 mm edge radius still needs a grind, while one at 35,000 and flat within 0.1 mm can run on.

Can a hot wire run until it snaps?

Answer: No. By then it has thinned to 0.32 mm and the kerf is 0.2 mm wide, so that whole batch is scrap.

Should carbide blades be resharpened?

Answer: Not usually. Sharpening costs CNY 15 against CNY 40 new, but the changed edge angle pulls fibres and the saving returns as rework.

What counts as good enough maintenance?

Answer: One unplanned stop a month at most, sampled parts inside 0.3 mm, every replacement logged. With those three, Foam Cutting equipment is stable.

Foam Cutting Maintenance: Checks and Replacement Lines

Quick answer: Foam Cutting is maintained on three lines rather than on feel: a consumable worn to a dimension, a tolerance drifted out, an interval come due. Log strokes, wire diameter and blade metres, and unplanned stops drop.

Three Inspection Layers for Foam Cutting
Three Wear Lines on a Cutting Die
Hot Wire and CNC Blades Retire by Dimension
Checking and Correcting Drift
Spare Parts and Downtime Cost
FAQ

1. Three Inspection Layers for Foam Cutting

Checklists borrowed from machining do not fit Foam Cutting. The daily round covers vacuum, die clamping and extraction airflow; weekly adds rail lubrication and belt tension; monthly takes bearings and servos apart. The layering follows downtime cost: five minutes before a shift against four hours lost mid-order.

Vacuum is the item operators skip. Below minus 0.035 MPa the sheet lifts 0.5 mm mid-cut and pocket depth wanders, so the blade gets blamed.

Interval	Check	Limit	Action
Daily	Vacuum	not below minus 0.035 MPa	clean filter, recheck
Daily	Die clamping	no gap at the clamp face	reset the die
Daily	Extraction	steady, screen clear	back-blow or replace
Weekly	Rail lubrication	continuous film, no squeal	add 3 ml of grease
Weekly	Belt tension	5 mm deflection at mid-span	tension or replace

2. Three Wear Lines on a Cutting Die

Foam Cutting die life is not a calendar question. Three lines run at once: strokes, edge radius, base flatness. At 12,000 strokes the die gets its first grind, at 35,000 it is scrapped. An edge radius past 0.15 mm tears the face, and flatness past 0.2 mm spreads pressure unevenly.

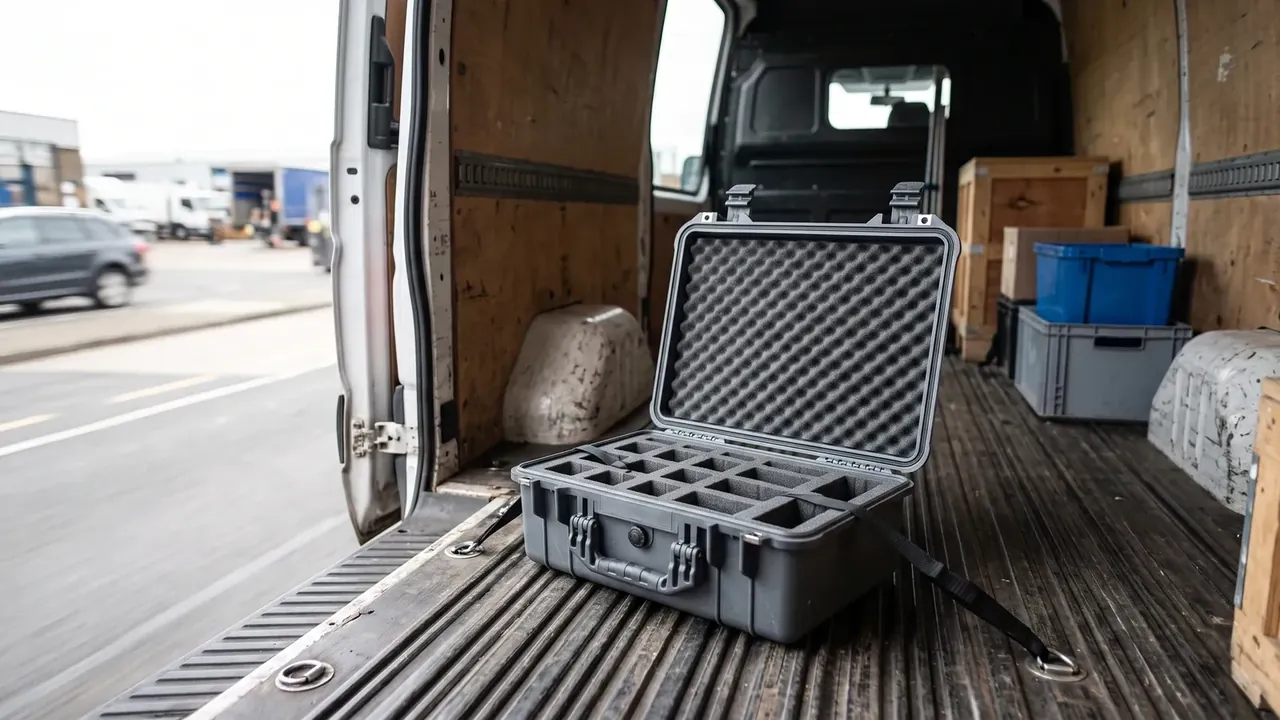

Foam Cutting: a grey case open on a ribbed van floor, foam liners visible inside, wooden crates and a blue tote behind

Grinding is finite: die height is 23.8 mm, each grind takes 0.15 to 0.2 mm, and at 23.2 mm no stock is left. Thirty-five minutes covers teardown, sharpening, refit and three trial parts.

Sponge rubber goes with it: once flattened it returns slowly and the foam sticks to the edge. Retire it when a caliper reads 5 mm, down from 8 mm.

3. Hot Wire and CNC Blades Retire by Dimension

A hot wire fails by thinning long before it snaps. At 0.32 mm from a nominal 0.4 mm the kerf widens from 0.5 mm to 0.7 mm and parts from the same program stop seating. A weekly micrometer reading beats watching the cut.

Amperage sets temperature: 6.5 A holds about 380 C, right for 38 kg per cubic metre PE, and a drop to 5.8 A means a stretched wire or an oxidised electrode. Carbide blades retire on metres: index one edge at 600 m, replace at 1,800 m.

Part	Measured by	Warning	Replace at
Cutting die	strokes	12,000	35,000
Die base	flatness	0.15 mm	0.2 mm
Hot wire	diameter	0.36 mm	0.32 mm
CNC blade	metres cut	600 m index	1,800 m
Sponge rubber	thickness	6 mm	5 mm
Filter cartridge	pressure drop	1.2 kPa	1.5 kPa

4. Checking and Correcting Drift

Foam Cutting accuracy does not survive one calibration. Sample three parts per 500 and measure pocket depth, width and centre distance; a 0.3 mm drift stops the machine, checked in the order vacuum, blade, rail.

Foam Cutting: a closed black case angled in near darkness, two latches on each side, blank front panel, soft floor shadow

Direction points at the cause. A shallow pocket means poor hold-down or sheet spring-back, a one-sided widening an unevenly worn blade, a shift across all centres lost servo steps or a slipping belt. Squareness matters too: 0.2 mm over 100 mm tilts a stacked insert, and no edit recovers it.

5. Spare Parts and Downtime Cost

Foam Cutting spares are sized from downtime, not shelf space. Four unplanned hours at CNY 240 per hour is CNY 960 before any late delivery, so six blades, twelve wires and four cartridges cover two weeks without tying up cash.

A log needs three columns: fitted date, accumulated usage, next check point. Dies count strokes, blades metres, wires hours, cartridges pressure drop. Without them, replacements are guesses; a run of eighteen wires a year points at tension or electrodes.

Conclusion

The hard part is not technique but writing three lines down and holding to them. Strokes, wire diameter and blade metres look trivial, yet they decide whether a stop is planned. Compare a logged machine with an unlogged one after a year; the difference is Foam Cutting discipline.

This article discusses only the container (case body) side of specifications and design intent, and does not cover any handling, loading or use of the contents.
