GB/T 4857 Transport Packaging Testing for Protective Cases

GB/T 4857 transport packaging testing is a family of Chinese test-method standards for transport packages, used to evaluate the ability of a package to withstand vibration, shock, stacking, temperature and humidity, and water spray during handling, transport and storage. Its core value is turning whether the packaging is strong enough from a subjective judgment into a reproducible test with defined criteria, so that package design has a basis and package validation has a report to deliver. For a protective case, a sound case does not by itself mean a sound package: whether the liner matches, whether the outer box is reinforced, whether the fixing is reliable and whether the stacking is stable all have to be validated through a complete transport packaging test. This article covers GB/T 4857, transport packaging testing, packaging vibration testing, drop test standards and protective case package validation, breaking down the purpose of testing, the structure of the standard family, vibration testing, drop testing, stacking and compression testing, conditioning and water spray, test sequence and sample size, turning results into design improvements, the relationship with ISTA and ASTM D4169, test equipment and laboratory selection, procurement and acceptance, and common mistakes, with tables that can be used directly in a test plan and at acceptance.

Readers who need the fundamentals of cases and liners should first review Plastic Protective Cases: Material and Structure and Seal Material and Seal Structure Selection. For transport test procedures see ISTA Transport Testing Procedures, for environmental test methods see MIL-STD-810H Environmental Testing and Compliance, and for water ratings see IP67 Protective Cases and Waterproof Ratings.

What Is GB/T 4857 Transport Packaging Testing

GB/T 4857 transport packaging testing applies the conditions of vibration, shock, stacking, temperature and humidity, and water spray to a complete transport package, including the contents, liner, cushioning and outer box, to evaluate its protective capability. It differs fundamentally from a single case strength test: a case strength test only answers how much pressure the box itself can take, while a transport packaging test answers whether the package can deliver the contents intact to the destination.

By test object, a transport package usually has three layers: the contents or product itself, the inner packaging including cushioning, liner, dividers, moisture barrier and fixing, and the outer packaging including corrugated boxes, wooden crates or reusable cases. A protective case may play the role of outer packaging or of a case inside a case. As outer packaging, the combined capability of the case and the cushioning system is evaluated; as an inner case, the interaction of two levels of cushioning is evaluated. The test plan should therefore first state which layer is the test object and whether the criterion is the contents or the package itself.

Typical users include the design and quality departments of case and packaging manufacturers, the packaging engineering teams of equipment, instrument and electronics producers, third-party test bodies and laboratories, and bidders and suppliers who must submit a packaging validation report to a customer. Wherever reliability must be proven with test data, that is the application boundary of GB/T 4857 transport packaging testing.

Why a Protective Case Must Be Package-Validated

The first reason is that real transport conditions are far harsher than static storage. A package experiences repeated handling, road and rail vibration, parcel sorting drops, stacking loads and temperature and humidity swings, and these conditions must be reproduced in an orderly way in the laboratory to expose weak points in advance. The second is that failures usually occur in the system fit rather than in a single part: a very strong case with a mismatched liner, a too-thin cushion or unreliable fixing will still damage the contents, and only a full test can reveal it.

The third reason is liability and evidence. Freight damage, customer complaints and insurance claims usually need evidence, and without a test report responsibility is hard to establish, whereas a complete report both proves compliance and provides the basis for improvement. The fourth is compliance and market entry, since some industries and customers explicitly require a transport packaging test report at tender or qualification, particularly for precision instruments, defense-related components and export products. The fifth is cost optimization, because testing finds the balance between over-packaging and under-packaging and cuts both material waste and damage claims.

The common conclusion from these reasons is that protective case package validation should be test-plan-driven with a closed result loop: draft a test plan from the transport profile, define items, levels, sequence and criteria, and use the data to improve the design. A single drop test or a case compression test alone cannot cover the real risk.

Structure of the GB/T 4857 Family and How to Cite It

GB/T 4857 is a family of standards whose parts cover marking, conditioning, stacking, drop, vibration, shock, water spray and low pressure. Understanding the family is the prerequisite for drafting a test plan: select the items needed from the transport profile, then cite the corresponding part's method and level, rather than running every item once.

Three principles are recommended for citation. First, state the standard number and part number rather than citing the family loosely. Second, state the test conditions of level, duration, orientation and conditioning and put them in the test plan, not just the item name. Third, state the criteria, whether contents damage, package cracking or function retention, and agree the judgment and nonconforming handling flow.

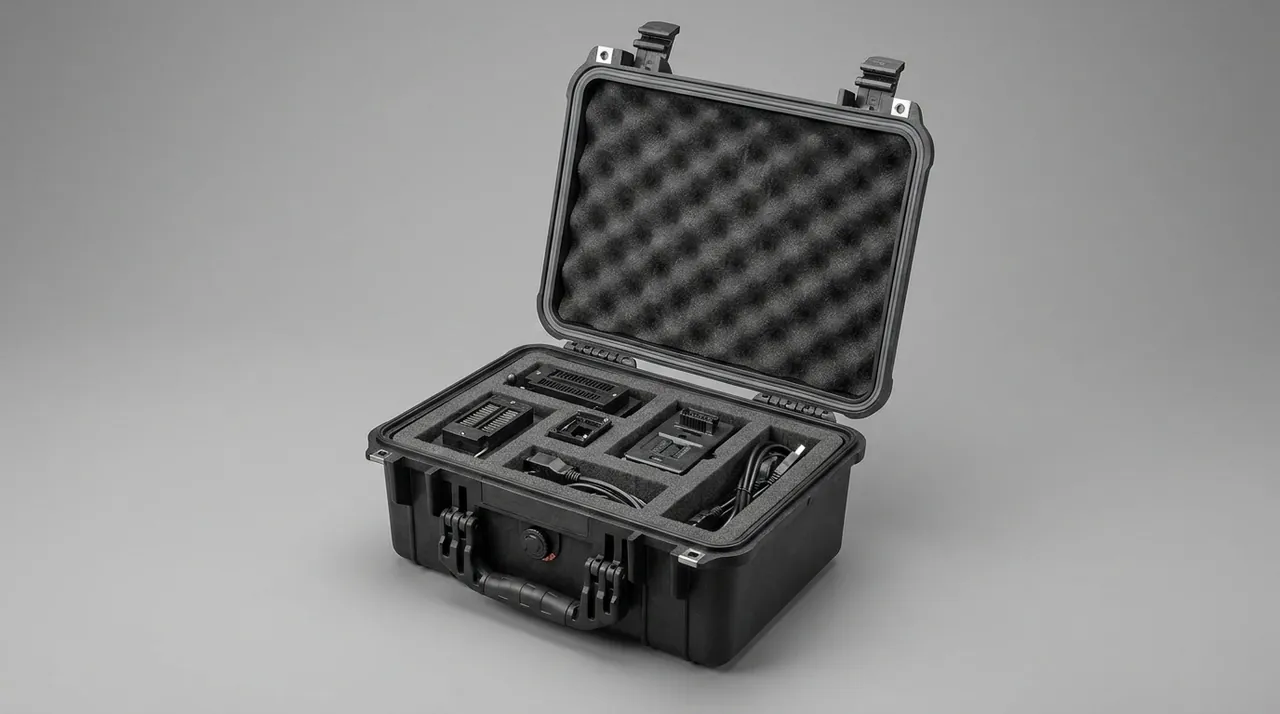

Vibration Testing: Sinusoidal, Random and Resonance

Vibration is both the most common load in transport and the most underestimated. Sinusoidal vibration evaluates fixing reliability and resonance response: a fixed-frequency test excites at one frequency continuously, while a swept test sweeps a frequency range to find resonance points. Random vibration simulates the broadband excitation of a real road surface and is closer to actual transport. For a protective case, vibration testing mainly assesses three things: whether the liner lets the contents move, whether the fixing loosens, and whether the structure amplifies response at a resonance frequency.

Four points are worth attention in practice. First, define the vibration axes, usually testing all three axes separately or as the standard requires, and for a package with an offset center of gravity or asymmetric structure the three-axis test matters more. Second, identify resonance: if sweeping reveals a pronounced resonance, add damping, adjust the cushion hardness or change the fixing so that the resonance frequency avoids the dominant excitation band. Third, control duration so that it corresponds to transport distance and road conditions, avoiding a test that is too short to be meaningful or too long and leads to over-design. Fourth, record response by placing accelerometers on the contents or at critical points and comparing measured response with the allowed value, rather than only checking whether the package broke.

For protective cases holding precision instruments and electronic parts, vibration can also loosen bolts, wear connectors and fatigue solder joints, so a functional check after the test matters as much as an appearance check.

Drop Testing: Faces, Edges, Corners and Free Fall

Drop is the main shock source in handling and sorting and the most common cause of contents damage. A drop test is usually run by package orientation, face, edge and corner, because the shock response of a corner drop or an edge drop is markedly higher than that of a face drop. The plan should state the drop height, the orientation and the number of drops, and whether the drop is free or directed.

Drop height is usually set from package mass and transport conditions: the heavier the package and the more mechanized the handling, the lower the drop height but the greater the impact energy, while small parcels may involve a higher drop height in sorting. Four points are worth attention in practice. First, test the most vulnerable areas first, such as corners and the side away from the center of gravity. Second, define the sequence, usually conditioning before drop, to simulate material performance at temperature and humidity extremes. Third, use a drop surface stiff enough to represent real ground. Fourth, after the test check both the package and the contents: a cracked package with intact contents is sacrificial protection, while an intact package with damaged contents shows the cushioning design is wrong.

Drop testing is often combined with vibration and stacking. Passing an individual test does not mean passing a combined test, because vibration first loosens the fixing and the subsequent drop then does far more damage.

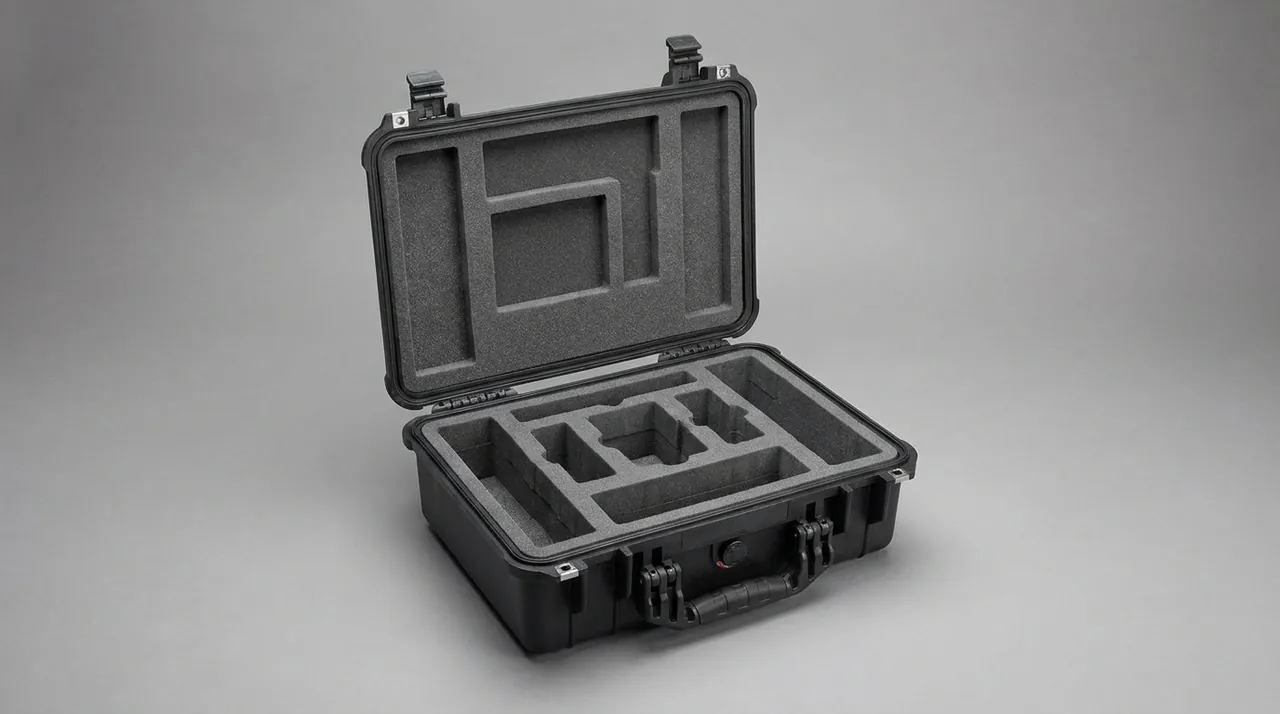

Stacking and Compression Testing

Stacking is the longest-duration load in storage and transport. A static-load stacking test evaluates deformation and failure under long-term stacking, while a compression-machine stacking test evaluates compression strength quickly. For a protective case, stacking testing assesses three things: whether the case can carry the design number of layers, whether the stacking structure is stable, and whether the seal and structure fail after long compression.

Four points are worth attention in practice. First, define the stacking height and duration, extending the test time for long storage periods to expose creep. Second, define how the load is applied, since uniform and eccentric loading give clearly different results, so aligned and offset stacking should be assessed separately. Third, control the environment, because high temperature markedly lowers the compression capability of plastics, so stacking tests are best run at elevated temperature to cover the worst case. Fourth, check performance after stacking: not only whether it collapsed, but whether the gasket took a permanent set, whether the latches failed and whether the liner was crushed.

For packages intended for marine export, stacking testing matters even more, because multi-layer stacking inside a container combined with high temperature is a high-incidence condition for creep deformation in plastic cases.

Conditioning and Water Spray Testing

Temperature-humidity conditioning is the precondition of a test, bringing the packaging materials to a defined temperature and humidity state so that the subsequent vibration, drop and stacking tests reflect the worst case. The usual practice is to condition the package for a defined time at high temperature and high humidity, at low temperature, or under standard conditions, and then run the mechanical test. For a plastic case, high temperature lowers stiffness and compression capability while low temperature can embrittle the material, so at least high-temperature and high-humidity plus low-temperature conditioning should be covered.

Water spray testing evaluates the water resistance of the package, simulating outdoor storage or handling in rain. The test should define the flow, pressure, duration and spray direction, and after the test the package interior should be checked for water ingress and the contents for dampness. For a protective case that relies on a gasket and latches, check the gasket compression state and the drainage structure at the same time, to avoid the case where the outside is dry but the inside has taken on moisture.

For long storage, also assess material aging and outgassing against the temperature and humidity conditions; related seal and material choices can be found in Seal Material and Seal Structure Selection and IP67 Protective Cases and Waterproof Ratings.

Test Sequence, Sample Size and Criteria

The test sequence directly affects the conclusion. The general principle is environment before mechanics, mild before severe, single before combined: condition first, then vibrate, then drop and stack, and if a combined test is required, follow the sequence the standard specifies. A wrong sequence distorts the conclusion; dropping before vibrating, for example, cannot expose the typical failure mode in which vibration loosens the fixing and the drop then causes failure.

Sample size depends on the judgment required: evaluating the package itself needs fewer samples, while evaluating contents function retention needs more to cover manufacturing variation. The test plan should state the sample size, the sampling method and the consistency requirement, and keep a spare set for retest or comparison.

Criteria should have two layers: package criteria, covering whether it cracked, came apart or lost stacking capability, and contents criteria, covering appearance, dimensions, function and performance retention. It is best to agree the acceptable degree of damage before the test, for example allowing surface scratches but not structural cracking or functional failure, so that the parties do not disagree after the test.

From Test Results to Protective Case Design Improvement

The value of testing is design improvement. Build a result, cause, countermeasure loop: first identify the failure mode, such as contents damage, package cracking, fixing loosening or seal failure, then analyze the root cause, such as insufficient cushioning, wrong hardness, too few fixing points, insufficient structural stiffness or uneven gasket compression, and finally give a targeted countermeasure rather than simply adding thickness.

Common mappings are as follows. Corner damage to contents usually means insufficient corner cushioning or an uncovered drop orientation, so add corner cushioning or move to center suspension. Contents movement or wear usually means insufficient fixing or a loose liner fit, so add locating features. Case cracking usually means low-temperature embrittlement or stress concentration, so switch to a low-temperature-tough material or add fillets and ribs. Stacking deformation usually means creep or insufficient compression strength, so add ribs, change the stacking structure or reduce the number of layers. Water ingress usually means uneven compression or an unsealed opening, so improve latch distribution and opening seals.

After each improvement, run a local retest to confirm the problem is solved, and for a change with wide impact rerun the full test. Filing each test data set, root cause and countermeasure builds a packaging design knowledge base that shortens later development cycles considerably.

Relationship with ISTA and ASTM D4169

GB/T 4857 is the Chinese transport packaging test-method family; the ISTA series is issued by the International Safe Transit Association and organizes complete test programs by package type and distribution channel; and ASTM D4169 is issued by ASTM International and emphasizes combining a test sequence according to the distribution cycle. All three share the same goal of proving package reliability with testing, but they differ in organization and application.

Selection should follow the principle that the market decides the standard. Projects for domestic sale and government procurement should cite GB/T 4857 first; export and cross-border e-commerce projects usually see customers requiring an ISTA report; and projects for the North American market or large retail channels may require ASTM D4169. For products serving several markets at once, use one main test plan with market-specific additional items, avoiding the cost of duplicated testing.

Note that when mixing standards, avoid mixing items with unclear criteria: different standards assume different levels and sequences, and piecing them together can produce a conclusion that cannot be explained. The report should state the cited standard, the test conditions and the source of the criteria so that the conclusion is traceable.

Test Equipment and Laboratory Selection

Equipment and laboratory capability directly determine how credible the conclusion is. Four points matter in selection. First, equipment capability, whether the shaker thrust and frequency range, the drop tester height and load, and the compression machine range cover the requirement. Second, measurement capability, whether the accelerometers, displacement measurement and data acquisition system meet the accuracy requirement. Third, environmental chamber capability, whether the temperature and humidity range, uniformity and ramp rate meet the conditioning requirement. Fourth, reporting capability, whether the laboratory has the appropriate qualification and can issue a traceable report.

For companies building in-house capability, at least drop and stacking facilities are recommended for routine sampling and fast iteration, while type tests and customer-required validation are best commissioned to a qualified third-party laboratory with the test plan agreed jointly, so that the report is not rejected because the conditions were interpreted differently. Related environmental test methods and item selection can be found in MIL-STD-810H Environmental Testing and Compliance.

Typical Application Scenarios and Configurations

For tender projects that must submit a report to the customer, define the test plan, laboratory choice and report format at the scheme stage and put the test lead time into the delivery schedule, so that delivery is not delayed by laboratory scheduling.

Procurement and Acceptance Checklist

When procuring a protective case and packaging validation services, treat the case, the packaging scheme and the testing as one whole. The checklist is as follows. First, contents information covering weight, center of gravity, dimensions and sensitive areas. Second, the transport profile covering transport mode, handling count, stacking layers and storage period. Third, test plan requirements covering items, levels, sequence, sample size and criteria. Fourth, case and packaging requirements covering material, sealing level, cushioning material and fixing method. Fifth, laboratory and report requirements covering qualification, report format and data retention. Sixth, improvement and retest arrangements covering nonconforming handling and retest scheduling. Seventh, delivery, packaging and after-sales service.

Acceptance should check four things: whether the report covers the agreed items and levels, whether the test condition records are complete, whether the criteria were applied as agreed, and whether the improvement loop is documented. Writing that the report must be usable for customer and regulatory review into the agreement avoids a report that is formally acceptable but substantively unusable.

Common Mistakes to Avoid

The first mistake is testing only case compression and not the complete package. The second is drawing a conclusion from a single drop test and ignoring the combined effect of vibration and stacking. The third is running the sequence carelessly, severe before mild, so the conclusion is distorted. The fourth is skipping conditioning and concluding that a package passes at room temperature but fails at high temperature. The fifth is checking only whether the package broke and not whether the contents still function. The sixth is mixing GB/T 4857, ISTA and ASTM D4169 items at will with unclear criteria. The seventh is not recording test conditions, so the report cannot be reused or traced. The eighth is simply adding material thickness when a problem appears, without root-cause analysis and retest. Putting these into a review form markedly improves the effectiveness of validation.

JUNZHJIA Customization Capability

JUNZHJIA provides protective case customization and packaging validation support for equipment, instrument and electronics companies. Case structure, cushioning liner and fixing schemes can be designed around the contents characteristics and the transport profile, with four material routes, rotomolded, injection-molded, aluminum and composite, and with gaskets, latches, stacking features and a unified numbering scheme. Test plans can be drafted to the GB/T 4857 series and ISTA procedures, and vibration, drop, stacking, temperature-humidity and water spray validation can be completed with the customer or a third-party laboratory, with liner and structural improvements and retests driven by the test data. The company can provide material certificates and related test documents and execute the acceptance scheme agreed in the technical protocol. For teams sharing several product models, a standardized-case and dedicated-liner scheme is supported, combining long-term case reuse with liner replacement by model to balance protection, validation cost and long-term delivery.

Frequently Asked Questions (FAQ)

Question: What is the essential difference between GB/T 4857 transport packaging testing and a case compression test? Answer: The essential difference is the test object and the scope of the conclusion. A case compression test only answers how much pressure the box itself can take, which is a single-part property, while a transport packaging test takes the complete transport package, including contents, liner, cushioning and outer box, and applies vibration, shock, stacking, temperature-humidity and water spray to answer whether the package can deliver the contents intact to the destination. Even with a strong case, a mismatched liner or unreliable fixing can still damage the contents, and only a full test reveals such system-fit problems.

Question: Which test items should be included when validating a protective case package? Answer: Select them from the transport profile rather than running every item once. Common items include temperature-humidity conditioning as preconditioning, sinusoidal and random vibration for fixing reliability and resonance, drop for handling and sorting shock, stacking and compression for storage and transport stacking, water spray for rain and water resistance, horizontal impact for marshalling and braking, and low pressure for air and high-altitude transport. Precision instruments should also add a functional check. The scheme stage should define the level, duration and orientation of each item and state the criteria.

Question: Why does vibration testing specifically look for resonance points? Answer: Because resonance greatly amplifies the response. When the excitation frequency approaches the natural frequency of the package or the contents, the same input produces a response several times larger, causing fixing loosening, structural fatigue or contents damage. Once a swept test identifies the resonance point, adding damping, adjusting cushion hardness or changing the fixing can move the resonance frequency away from the dominant excitation band in transport, raising overall reliability at relatively low cost.

Question: How should the drop height and orientation be determined? Answer: Drop height is usually set from package mass and transport conditions: the heavier the package and the more mechanized the handling, the lower the drop height but the greater the impact energy, while small parcels may see a higher drop height in sorting. For orientation, test the most vulnerable areas first, such as corners and the side away from the center of gravity, because corner and edge drops produce a markedly higher shock response than a face drop. Also state the number of drops and the sequence, usually conditioning before drop, to simulate material performance at temperature and humidity extremes.

Question: Why does the test sequence affect the conclusion? Answer: Because the loads are coupled. The general principle is environment before mechanics, mild before severe, single before combined. For example, vibrating first loosens the fixing so that the subsequent drop does far more damage, which is exactly the typical failure mode in real logistics; if the order is reversed and the drop comes first, that failure mode cannot be exposed. The test plan should therefore specify the sequence and the report should record the actual sequence performed.

Question: How should I choose between GB/T 4857, ISTA and ASTM D4169? Answer: Choose by target market. Projects for domestic sale and government procurement should cite GB/T 4857 first; export and cross-border e-commerce projects usually see customers requiring an ISTA report; and projects for the North American market or large retail channels may require ASTM D4169. For products serving several markets, use one main test plan with market-specific additional items. Note in particular that when mixing standards, avoid mixing items at will with unclear criteria, and state the cited standard, the test conditions and the source of the criteria in the report.

Question: How should I improve the design when a test finds a problem? Answer: Build a result, cause, countermeasure loop rather than simply adding thickness. First identify the failure mode, such as contents damage, package cracking, fixing loosening, seal failure or stacking deformation, then analyze the root cause, such as insufficient cushioning, wrong hardness, too few fixing points, insufficient structural stiffness, uneven gasket compression or low-temperature embrittlement, and finally give a targeted countermeasure: add corner cushioning or switch to suspension for corner damage, add locating for movement and wear, change material or add fillets and ribs for cracking, add ribs or reduce layers for stacking deformation, and improve latch distribution and opening seals for water ingress. Run a local retest after each improvement, and rerun the full test when the change has wide impact.

Question: What should be watched most closely when procuring or accepting packaging validation services? Answer: Four things. First, whether the report covers the agreed items and levels. Second, whether the test condition records are complete, since a report without levels, durations, sequence and conditioning cannot be reused or traced. Third, whether the criteria were applied in the agreed two layers, package and contents. Fourth, whether the improvement loop has records and a retest report. Also confirm that the laboratory qualification and report format meet customer or regulatory review requirements, and write that the report must be usable for customer and regulatory review into the agreement, so that a formally acceptable report is not substantively unusable.
