If a military equipment protective case claims MIL-STD-810H compliance, has it passed a military standard?

Answer: No. 810H supplies methods only; the acceptance criterion comes from the contract. Compliance without a level cannot be judged.

What changes between method 500 at -20 C and at -51 C?

Answer: Material state. Most modified PP keeps toughness at -20 C and only turns brittle near -51 C, where a drop cracks at the rib root.

Can a GJB report replace a MIL-STD report?

Answer: Not directly. Methods correspond, but default levels and cycling differ, so compare item by item.

A supplier offers a certificate with no report number. Accept it?

Answer: Better not. Without a number, accreditation and raw data cannot be checked, so it is reference material.

If 516 shock passed, is a transport drop still needed?

Answer: Yes. 516 grades functional shock on an installed unit; a drop grades handling, and waveforms and counts differ.

How many damp heat cycles should a military equipment protective case be specified for?

Answer: Match the storage environment. Three cycles covers warehousing; coastal or open storage needs five to ten, with recovery time in the clause.

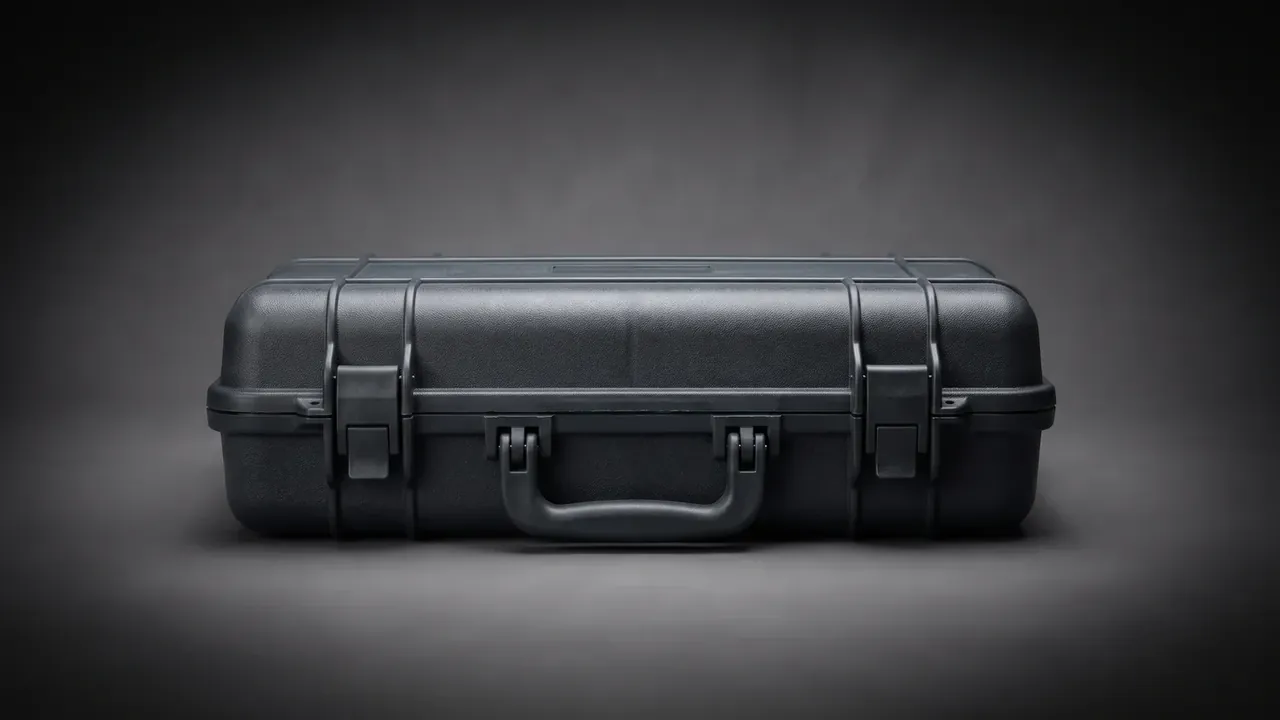

Military equipment protective case: MIL-STD is not a pass mark

Quick answer: MIL-STD-810H is a test method standard, not a product certification. It says how to run a test, never how much is enough. Fit for a military equipment protective case starts from the route the case travels, then matches each stage to a method number, then checks that the report matches the standard revision, the sample and the raw curves.

Military equipment protective case choice starts from the route
What the four methods cover, and where they stop
Using GJB and MIL-STD side by side
Four layers of report verification
Five misreadings that show up in procurement
FAQ

1. Military equipment protective case choice starts from the route

Many buyers treat compliant with MIL-STD-810H as a free pass for a military equipment protective case. The sentence promises nothing. 810H methods define procedure, not acceptance criteria, so two tests can both claim method 500 while one holds -20 C for two hours and the other -51 C for four.

The method number is procedure. The level is the gate.

Work backwards in four steps: draw the transport and storage route, mark the dominant stress in each leg, look up the method, then write temperature, dwell, cycles and axis into the contract.

Route leg	Dominant stress	Method reference	Boundary most often missed
Long road haul	Random vibration, road shock	514, 516	Levels shift with mounting position and axis
Coastal storage	Humidity, condensation	507	High heat alone leaves condensation untested
Cold plateau winter	Cold start, embrittlement	500	Operation right after the soak is the real test

2. What the four methods cover, and where they stop

Method 500 splits into storage and operation procedures; a common level is -51 C for four hours then a function check, grading plastic embrittlement and lubricant failure. It does not grade sealing or repeated freeze-thaw.

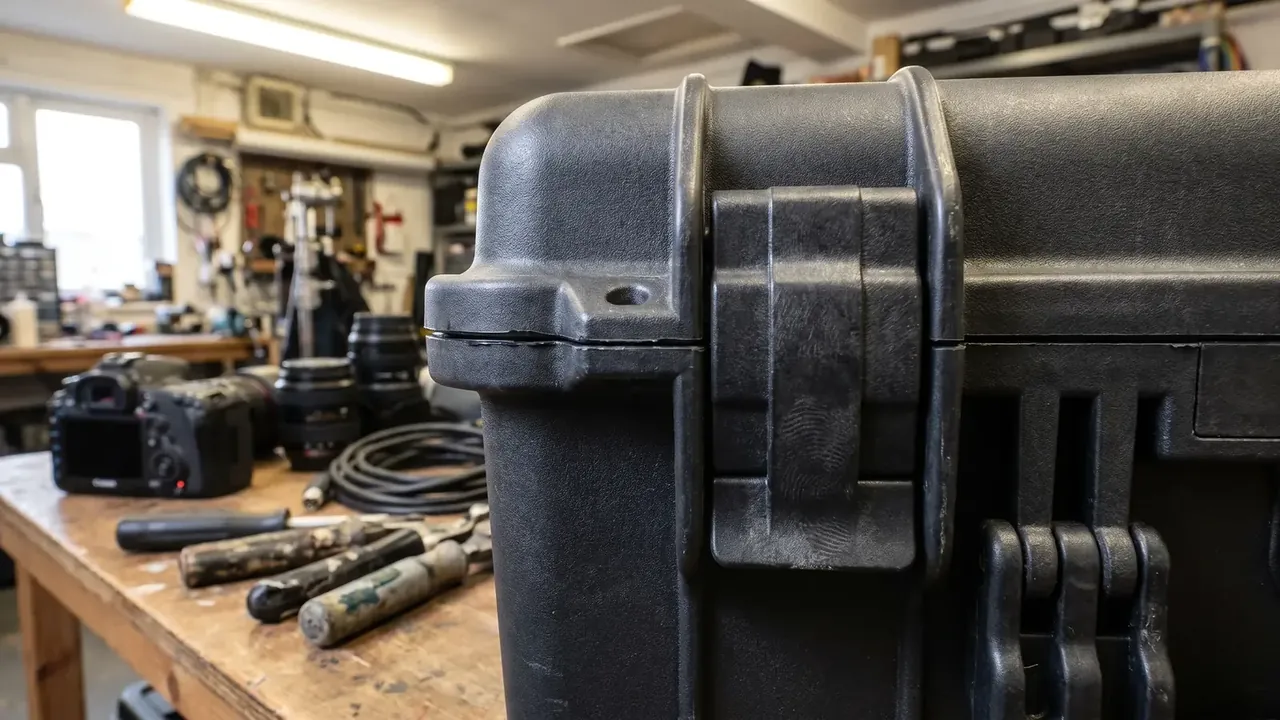

Military equipment protective case: close front view of a black case on a workbench, a large latch at right, a round lock hole left

Four sentences hold the boundaries.

501 high temperature starts near +60 C, grading shell softening and internal rise, not UV ageing
507 humidity runs at 95% RH in 24 hour cycles, usually three or more, grading condensation and metal, not salt fog
516 shock uses 40 g at 11 ms half-sine, three shocks per axis each direction, grading functional shock, not a transport drop
Methods do not stack; order changes the outcome, since humidity before cold fails elsewhere than cold before humidity

One point is routinely lost: 810H requires tailoring, and default levels are only a starting point. A report without temperature, dwell, cycle count and axis cannot be compared. That is why two suppliers both claiming a 507 pass behave very differently in the field.

3. Using GJB and MIL-STD side by side

GJB 150A is the domestic family of laboratory environmental test methods. Its part numbers line up roughly with MIL-STD numbers, but default levels and tailoring rules differ, so a level from 810H cannot be copied into a GJB report.

Environment	GJB 150A part	MIL-STD-810 method	Main difference
High temperature	150A.3	501	Starting temperature and dwell differ
Low temperature	150A.4	500	Levels set by equipment class, finer split
Damp heat	150A.9	507	Cycle count and recovery time differ
Shock	150A.18	516	Waveform and tolerance wording differ

Use them to match methods, not numbers. Confirm both sides test the same event, then write the project level into the technical agreement. A clause that says equivalent to a standard without a number cannot be executed on acceptance day.

4. Four layers of report verification

Report checking for a military equipment protective case has four layers.

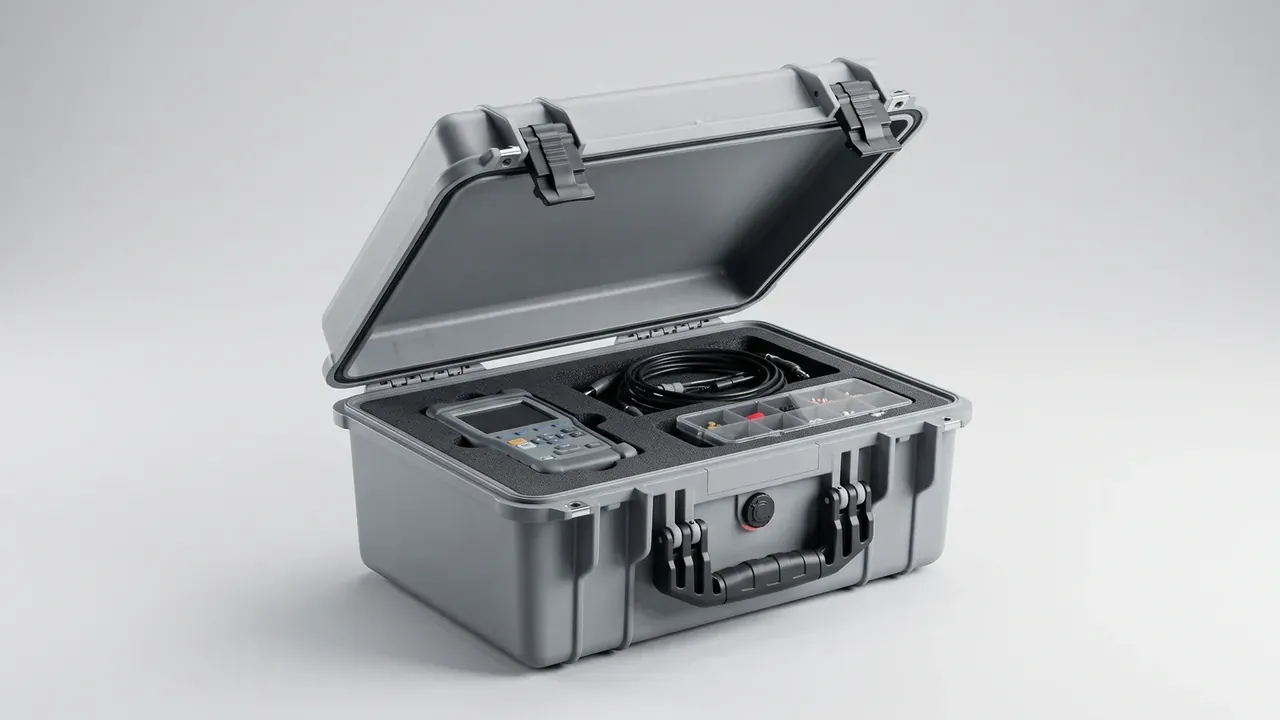

Military equipment protective case: light grey case open at 45 degrees, foam holding a handheld meter and a coiled cable, a parts box at right

First is laboratory accreditation: CNAS or CMA, with scope covering the exact standard revision and method. A scope listing 810G against a report citing 810H is outside it. Second is the report number, traceable on the accreditation platform; numbers that cannot be found belong to internal documents. Third is sample identity, where model, serial number and photographs must match the unit submitted, or another case was tested. Fourth is raw data: temperature curves, cycle counts, shock waveforms and tolerances attached. A conclusion page alone cannot be reviewed.

Only when all four hold does compliant mean anything.

5. Five misreadings that show up in procurement

Treating a method standard as a product certification: 810H issues no certificate
Treating a method number as a grade: ran method 500 does not mean rated to -51 C
Using 516 results in place of a transport drop: waveform and count both differ
Reusing an older report for a newer revision: 810G evidence does not prove 810H compliance
Reading only the word pass, without the level or the criterion

All five confuse testing with passing.

Conclusion

A military standard names the environment precisely: how cold, how humid, how hard the shock, how long it lasts. It never tells you whether a case suits your route; that judgement comes from working backwards and verifying the report. Line up method number, level, revision and raw data, and the choice of a military equipment protective case finally rests on evidence.

This article discusses only the container (case body) side of specifications and design intent, and does not cover any handling, loading or use of the contents.
