Can a Military Firearm Storage Box be accepted on visual and dimension alone?

Answer: No. Those two filter drift; seal, drop and stacking are design capability and need type reports.

Why run both air seal and immersion?

Answer: Their sensitivity differs: a 3 kPa test on a Military Firearm Storage Box misses seepage that 30 minutes at 1 m turns into a visible mark.

Why put an upper limit on latch force?

Answer: Handling. Above 120 N one hand cannot close the latch, so crews pry it, which fails worse than a loose latch.

The sample passed but the customer still finds defects. Why?

Answer: Usually the grading. Seal faults filed as minor survive any sampling plan, so fix that list first.

How long does a type report stay valid?

Answer: Twelve months by default; any change of material, mould or process needs a fresh report.

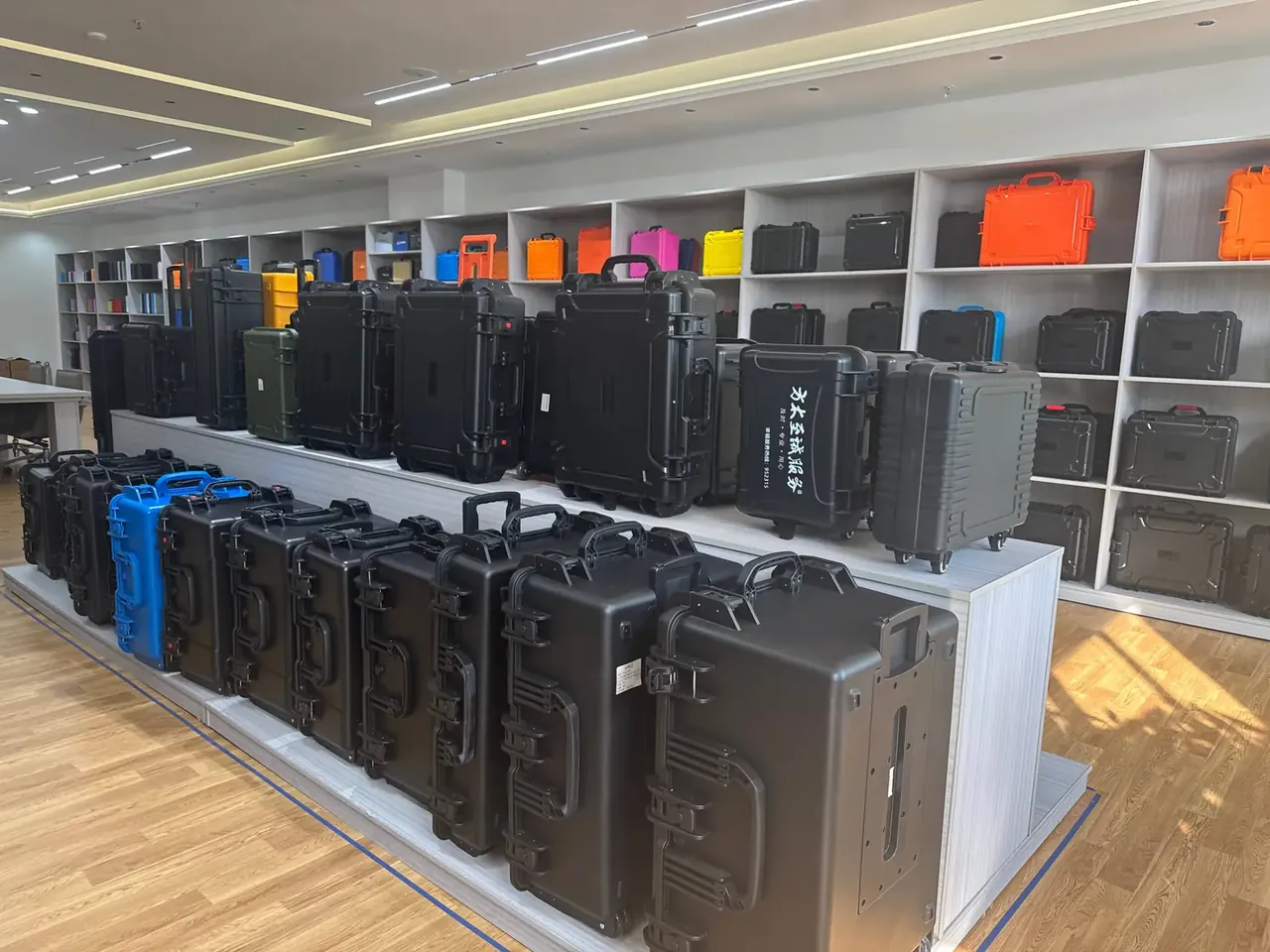

Military Firearm Storage Box Acceptance: Items and Rulings

Quick answer: Acceptance of a Military Firearm Storage Box splits into four groups: visual and hardware, dimension and fit, type performance, packing and marking. Each needs its own items, tools, limits and sampling, and defects are graded fatal, major or minor. One fatal defect rejects the lot.

The Four Inspection Groups a Military Firearm Storage Box Needs
Visual and Hardware Limits
Dimension and Fit Judgement
Seal Drop and Stack Type Tests
Sampling and Defect Classification
FAQ

1. The Four Inspection Groups a Military Firearm Storage Box Needs

The usual failure is treating inspection as one quick look. A Military Firearm Storage Box needs four groups: visual and hardware by eye, dimension and fit by gauge, type performance in a lab, packing before shipment. Merge them and the ruling belongs to whoever holds the clipboard.

Order matters: visual and hardware come first, since burrs disturb gauge contact; type tests wait until the process settles.

Group	Timing	Evidence
Visual, hardware	Every lot	Limit table
Dimension, fit	Every lot	Drawing frames
Type performance	First article, yearly	Lab report

2. Visual and Hardware Limits

Visual limits for a Military Firearm Storage Box must be numbers, or one scratch gets two verdicts. Colour is judged under D65 at 1.5 or below, sink marks under 0.3 mm, parting-line flash under 0.2 mm, and no face carries more than two scratches over 10 mm.

Hardware is judged by three motions: latch, open, turn. Closing force sits at 90–120 N; below it the latch slips in transit, above it one hand cannot close it and the lid gets pried. Cycle life is 5000 closings, force rechecked every 1000, with a 20 percent loss failing the batch. Hinge end play stays within 0.6 mm, or the lid rocks. Inserts pass a 6H gauge at 0.3 mm depth.

Item	Tool	Limit
Colour	Standard, D65	1.5 max
Latch force	Force gauge	90–120 N
Hinge end play	Feeler gauge	0.6 mm max

3. Dimension and Fit Judgement

The Military Firearm Storage Box dimension check judges fits. Three sets: outline and stacking rim, cavity and lid face, hardware holes. Outline against the drawing is plus or minus 0.6 mm, and two stacked boxes must leave a rim gap of 1.2 mm or less.

Cavity work centres on lid flatness and depth: on a surface plate a 0.4 mm feeler gauge must not enter, and cavity depth read at four corners plus the centre may spread 0.8 mm. Hardware holes are checked with a fixture at 0.5 mm offset, since one shifted hole makes the two latch sides read 130 N and 70 N.

4. Seal Drop and Stack Type Tests

For a Military Firearm Storage Box, type tests answer whether the design works, not whether this lot does. Air seal is charged to 3 kPa with a pressure drop of 0.4 kPa or less over 60 seconds. Immersion runs 1 m deep for 30 minutes with no water mark inside after drying; a micro leak can sit on the pressure limit, hence both.

Drop covers six faces, three edges and one corner, ten impacts on one sample, then a repeat seal test. Order is fixed at corner, edge, face, since damage accumulates. Salt spray runs 48 hours with no red rust. Stacking pairs with temperature: five cycles at -30 and 55 degrees C, then static load, then residual set after 24 hours.

Test	Condition	Ruling
Air seal	3 kPa, 60 s	Drop 0.4 kPa max
Immersion	1 m, 30 min	No mark inside
Drop	10 impacts, one sample	No split, seal holds

5. Sampling and Defect Classification

Sampling for a Military Firearm Storage Box follows single normal inspection at general level II; a lot of 501 to 1200 takes 80 pieces. Fatal means a crack, a failed latch or a pulled insert, accepted at zero, so one piece rejects the lot. Major covers latch force, lid flatness and hole offset at an AQL of 0.65. Minor covers scratches, colour and marking at 1.5.

Write the switching rules down: five accepted lots allow reduced inspection, two rejected lots switch to tightened, and a tightened lot that still fails returns the mould for review. Without them, a Military Firearm Storage Box scheme runs as a rubber stamp. One recheck is allowed, on the failed sample only.

Conclusion

A workable Military Firearm Storage Box acceptance document keeps four groups in lanes: visual gives limits, dimension points, type tests conditions, sampling levels. If the grading is vague, every number downstream loses its grip. The sharper the criteria, the fewer arguments a Military Firearm Storage Box causes at goods-in.

This article discusses only the container (case body) side of specifications and design intent, and does not cover any handling, loading or use of the contents.
