When is a Missile Warhead Container clearly the wrong buy?

Answer: When 8 cycles, 30 units and 40 kg all fail at once, tooling and unit price never amortise; a general box with foam lands near a third of the cost.

Is a steel case cheaper?

Answer: No, it runs 3,400 CNY a unit. It only beats the moulded case past 50 cycles or where field welding decides.

One export shipment only — is a dedicated case worth it?

Answer: No. Under 10 units and a single trip, a 180 CNY crate does the job and the saving covers 8 spares.

Can foam inside a general box match a dedicated cradle?

Answer: Only down to 5 mm of shift. Compression and rebound carry about 2 mm on their own, so 1.5 mm is out of reach.

Why not store aluminium cases long term?

Answer: Aluminium conducts heat quickly: with a 10 °C day-night swing, condensation starts 2 hours earlier and desiccant use rises nearly 30%.

Who pays for the tooling?

Answer: Under 30 units, usually the buyer, 26,000 CNY once. Past 50 units most suppliers share it against a 3 year no-transfer clause.

Five Checks That Rule Out a Missile Warhead Container

Quick answer: Run 5 checks first: 8 cycles a year, items over 40 kg, batches over 30 units, spares for 5 years, tag control. Break 2 and the dedicated case stops paying; each alternative below gets its price band and its exit condition.

Five Checks Before You Commit
Steel Welded Cases Only Pay Above 60 kg
Where a One-Way Plywood Crate Wins
Five Boundaries Between General and Dedicated
FAQ

1. Five Checks Before You Commit

Prices separate fast. A dedicated case sits at 1,480 CNY, a general rotomolded box at 620 CNY and a plywood export crate at 180 CNY, a factor of 8. What that gap buys is re-use cycles and traceability, not wall thickness, so count cycles first.

The 5 checks are: 8 or more cycles a year, items over 40 kg, batches over 30 units, spares for 5 years, and tag control. Break 2 of them and the cost structure stops working.

Check that fails	What you see on site	Switch to
Under 8 cycles a year	Amortised cost above 185 CNY a trip	Plywood crate or general box
Items under 40 kg	Excess shell stiffness	General box with foam
Batches under 30 units	Tooling never absorbed	General or aluminium case
No spares past 5 years	No hinge available in year 3	Steel case, welded on site
No tag control	No record of opening	One-way packaging

Batch size is the check people misread. Under 30 units the 26,000 CNY tooling cannot be spread, and a run of 20 carries 1,300 CNY each.

2. Steel Welded Cases Only Pay Above 60 kg

Steel runs 85 kg empty with a 3 mm wall at 3,400 CNY, 2.3 times the dedicated case. What it offers is repairability: change a hinge pin, weld a patch, and 50 cycles is where the premium flattens out.

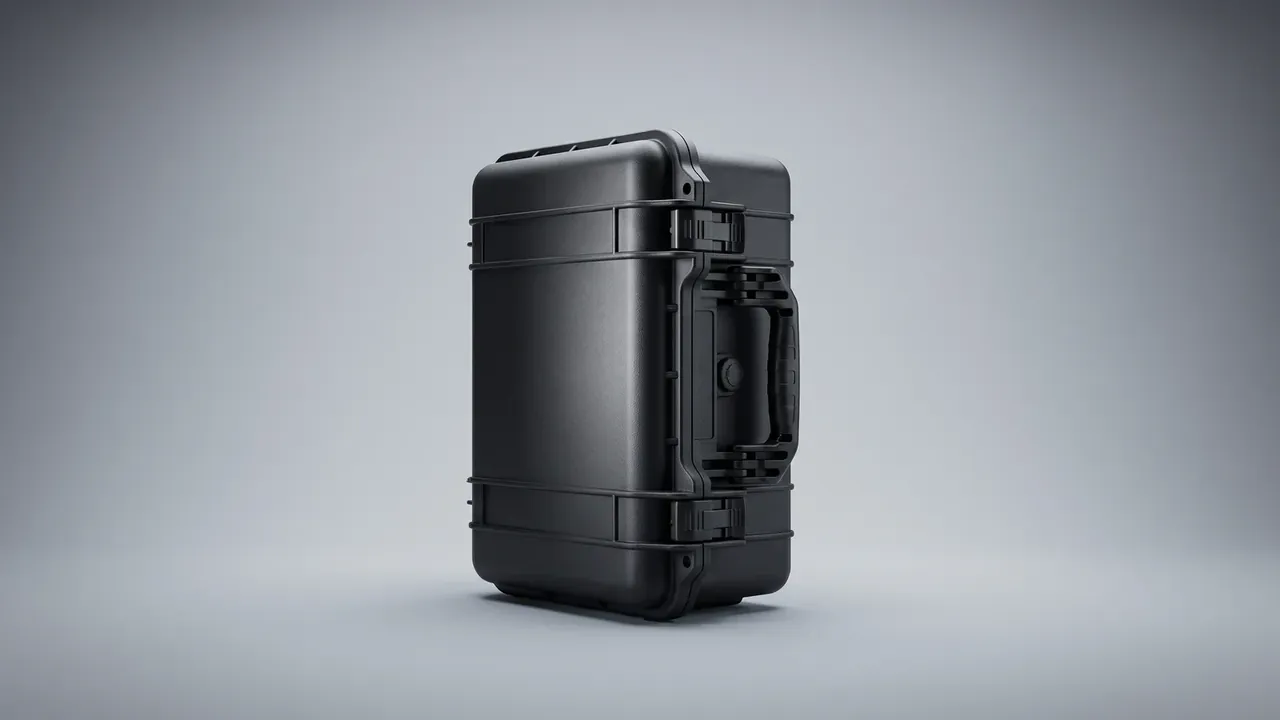

Missile Warhead Container standing upright in black plastic, recessed handle on the front side, one draw latch above and one below on the right

Aluminium removes 39% of that weight at 52 kg, but needs a 4 mm wall to hold stiffness, costs 2,900 CNY and distorts once repaired. By air at 22 CNY per kg, 33 kg less is 726 CNY a trip.

The line sits at 60 kg. Above it, with fewer than 8 cycles a year and a welder on site, steel wins. Between 30 and 60 kg for air freight, aluminium wins. Under 30 kg, neither: go back to a moulded case.

3. Where a One-Way Plywood Crate Wins

An 18 mm plywood crate with 2 steel bands costs 180 CNY, ships in 7 days and needs no fumigation. It wins in exactly 2 cases: batches of 10 or fewer, or a single one-way shipment.

Storage is the weak point. At 60% humidity, plywood climbs from 8% to 14% moisture in 24 months and starts to delaminate at the corners. Getting to 3 years takes a 0.1 mm foil bag and 25 g of desiccant, another 40 CNY.

Stacking stops at 2 tiers. A third tier sags the bottom lid 4 mm in 90 days and the bands go slack.

4. Five Boundaries Between General and Dedicated

A general box gives 800 × 600 × 400 mm of cavity, a 4 mm wall, 12 kg and 620 CNY. The dedicated type is built to the item: 6 mm wall, 31 kg, 1,480 CNY. The extra 860 CNY buys 4 things — support points, sealing, status reading and stack stiffness.

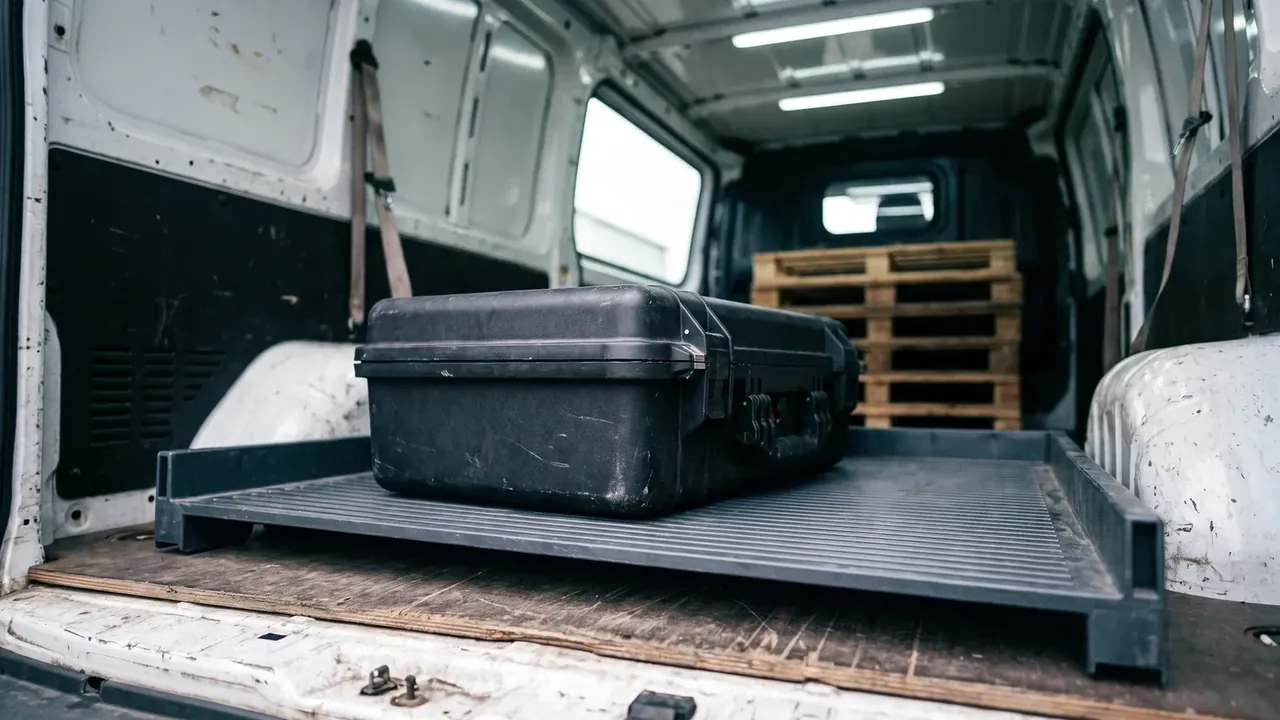

Missile Warhead Container flat on a grey pallet inside a panel van, two side latches, two lashing straps hanging on the wall

Item	General box	Dedicated type
Cavity	800 × 600 × 400 mm	Built to the item
Wall	4 mm	6 mm
Support shift	5 mm	1.5 mm
Seal	Single	Double
Unit price	620 CNY	1,480 CNY
Batch fit	1 to 8 units	Over 30 units

Displacement settles it. Foam allows 5 mm after clamping and 6 mm after one drop; a cradle seated on the flange stops at 1.5 mm.

Under 3 cycles a year, below 25 kg, with 5 mm of movement accepted, a general box with cut foam is enough. Break any 1 of those 3 and the dedicated type starts to pay.

Conclusion

Choosing is arithmetic on cycles, not a contest of wall thickness. 8 cycles, 40 kg and 30 units fence the dedicated type into a narrow band; outside it, a Missile Warhead Container is simply the expensive answer.

This article discusses only the container (case body) side of specifications and design intent, and does not cover any handling, loading or use of the contents.
