How often should a multi-purpose outdoor case be washed?

Answer: 30 days on a coast, 90 inland, 180 in storage; dry 4 hours at 25℃ before closing.

What gasket compression counts as failed?

Answer: Below 22%. Between 25% and 30% is marginal: log it and retest at 90 days.

Can a hinge pin or latch be replaced alone?

Answer: Not advised. The partner part sits within 15%, so pairs avoid a second teardown.

Can a cracked case be welded?

Answer: Under 40 mm, yes, but strength returns at 60% and the weld reopens; above that, replace.

Thirteen-point check: Multi-purpose Outdoor Case care intervals

Quick answer: Three figures decide the service life of a multi-purpose outdoor case: gasket compression below 22%, hinge play over 0.8 mm, latch pull under 180 N. Check at 30, 90 and 180 days.

The 30-day walk-around: five places, five limits
Washing: salt, mud and grease each need their own method
Gasket: the compression figure that means replacement
Hinges and latches: play, torque and replacement rhythm
Liners and breather valves: four small ways to add years
Repair or replace: putting labour and parts on one line
FAQ

1. The 30-day walk-around: five places, five limits

Tip the shell and rake a torch across the four bottom corners: every landing dumps its energy there, a pale patch means the wall has begun to creep, and months later it cracks.

The second point is the lid gasket: slide a 1.5 mm feeler round the rim, and if it enters, compression is short. A gasket can be hard on the skin and soft at the core, so fingers mislead. Third is the hinge pin — rock the lid at 90 degrees; 0.8 mm of play means a new pin. Fourth is the latch on a spring scale, tired below 180 N. Fifth is the valve membrane: a white bloom is salt, half blocking it.

Point	Tool	Limit	Action
Lid gasket	1.5 mm feeler	25% to 35%	Full ring
Hinge pin	Feeler	Play under 0.8 mm	New pin
Latch	Spring scale	Above 180 N	Replace in pairs
Membrane	Eye	Cracks at 8 kPa	New membrane
Corners	Torch	No pale patch	Skid plate

The cost lies in the miss: a cracked corner on a 62 litre shell means a new shell, while a 4 mm skid plate 30 days earlier costs 6 yuan.

2. Washing: salt, mud and grease each need their own method

A case back from the coast gets washed for salt before the mud. Crystals sit in the gasket groove and latch pivot; dry brushing drives them deeper.

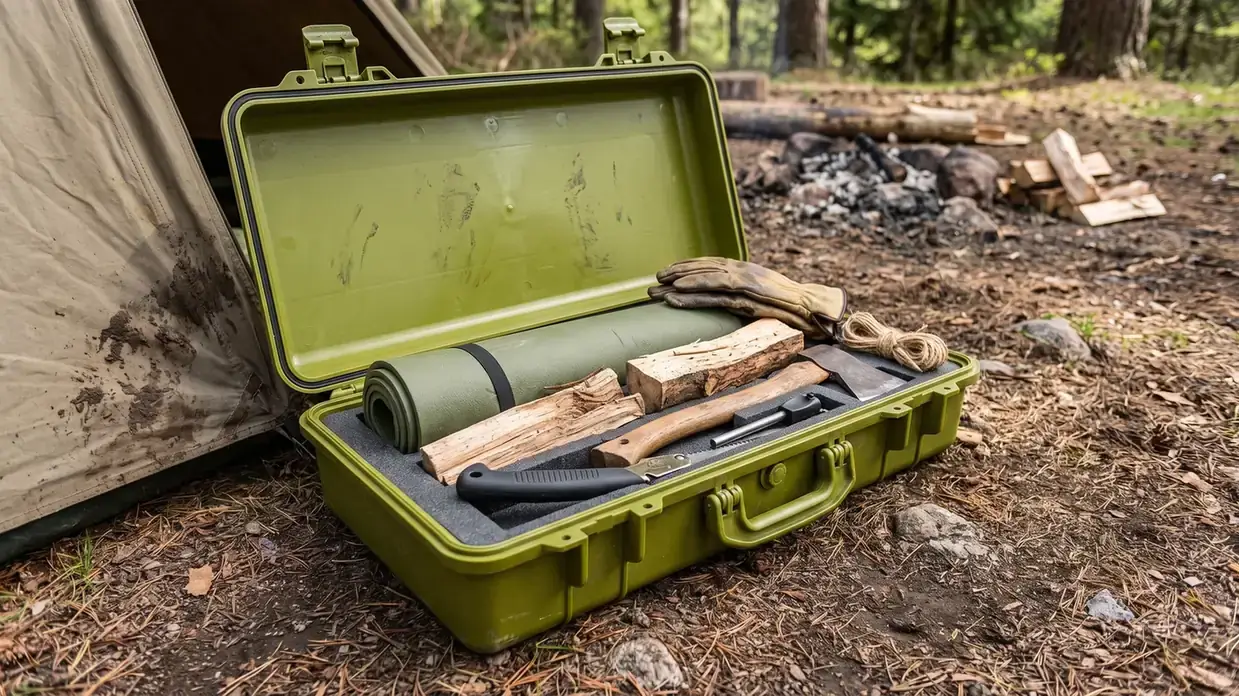

Multi-purpose Outdoor Case: an olive case open on pine needles by a tent, black gasket in the lid, rolled mat and split logs inside

Wash salt with neutral detergent at pH 6 to 8 and water under 40℃, soak 3 minutes, then rinse. Alkaline cleaners strip plasticiser and the rubber blooms within three months. Mud is the opposite: soak it soft, because a scratch past 0.2 mm is a stress riser.

Soil	Cleaner	Water	Never
Sea salt	Neutral, pH 6 to 8	Under 40℃	Pressure washer
Dry mud	Soak 3 minutes	Ambient	Wire brush
Grease	Isopropyl	Ambient	Petrol, thinner
Mould	Dilute bleach	Ambient	Acid mix

Drying counts as much: 4 hours at 25℃ with airflow, or mould takes hold within two weeks. Intervals for a multi-purpose outdoor case follow the site: 30 days on a coast, 90 inland, 180 in storage.

3. Gasket: the compression figure that means replacement

Compression is the only gasket figure worth measuring. A new multi-purpose outdoor case closes at 30% with rebound left; at 25% rebound slows, and at 22% it is gone.

Compression	State	Action
30% to 35%	Normal	Clean, continue
25% to 30%	Marginal	Log, retest at 90 days
22% to 25%	Critical	Shim or adjust
Below 22%	Failed	Full ring

Method beats the table. A feeler gives compressed over free thickness, and free thickness must be read with the lid open. Read four points; if any falls under 22%, treat the whole ring, since a flat spot shifts load around the rim.

Buy a ring, not a splice: a spliced joint reopens within 12 months, and 2.1 metres at 18 yuan per metre stays under 40 yuan.

4. Hinges and latches: play, torque and replacement rhythm

Hinge failure starts with play, not fracture: at 0.8 mm the lid shifts sideways on closing, grinding the gasket edge, so the rubber dies before the pin.

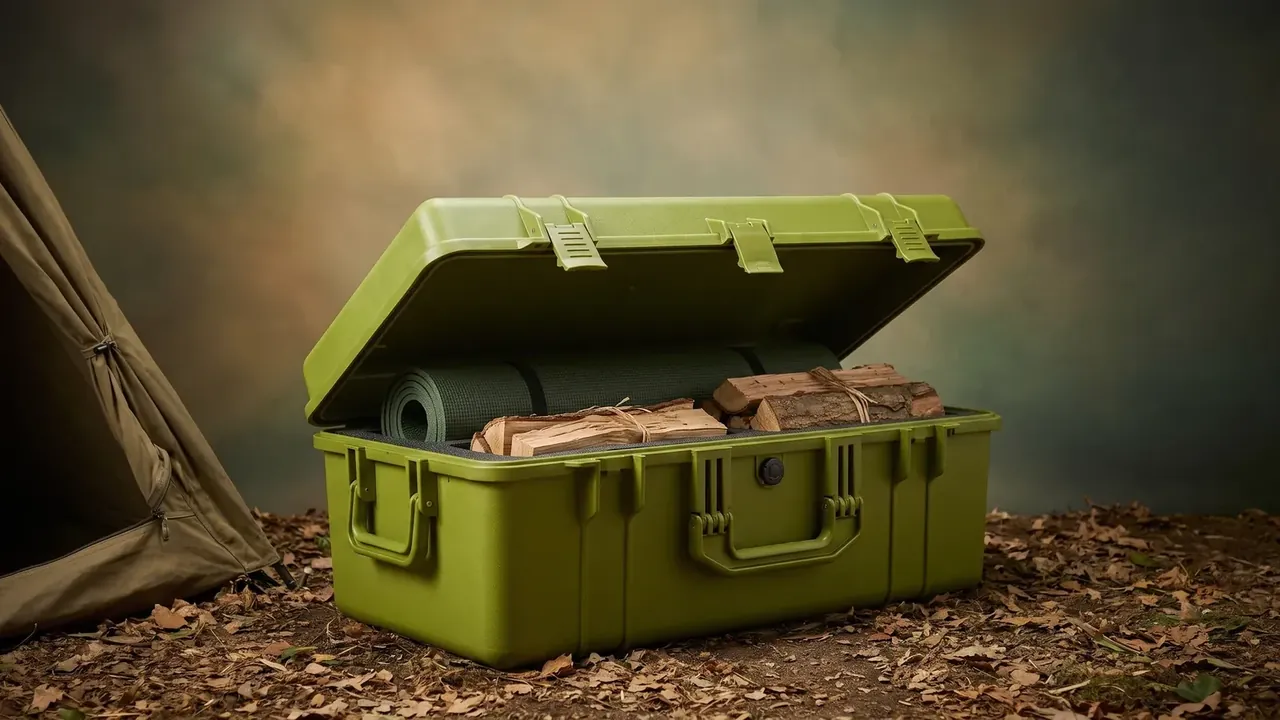

Multi-purpose Outdoor Case: an olive case open on fallen leaves, three green latches on the lid, firewood bundles and a rolled mat inside

Fasteners go in at 2.5 N·m; past 3 N·m the boss cracks, and a crack in salt air is a fast lane for corrosion. A new pin takes 0.2 g of silicone grease. Replace latches in pairs: the partner sits within 15%, and both saves a teardown later.

Five hundred closures is a useful line: at 6 a week that is 19 months, just past the second 180 day check, where pin, latch and gasket are checked together.

5. Liners and breather valves: four small ways to add years

On a multi-purpose outdoor case the liner is not a consumable, but compression set ruins it. Specify EVA at 38 kg/m³, measure at 90 days, replace past 5% loss after rebound. Foam under 30 kg/m³ hardens in the cold and eats half its travel.

The valve membrane is a 180 day item: cracking pressure drifting off 8 kPa has failed. Mount the body on the lower side wall, 30 mm above the base, so condensate cannot pool.

Part	Check	Interval	Replace at
EVA liner	Thickness	90 days	Over 5% loss
Membrane	Cracking pressure	180 days	Off 8 kPa
Gasket groove	Residue	90 days	Cannot clean
Shell surface	Chalking	180 days	Below 85%

Storage counts too: latches a notch open, -10℃ to 40℃, under 70% humidity. Twelve months in the open leaves 85% tensile strength, the second year under 70%, so a 20 yuan cover earns its place.

6. Repair or replace: putting labour and parts on one line

Draw the boundary as one sum: parts plus labour against 40% of a new shell. Gasket at 18 yuan a metre, latches at 12 yuan each, pins at 3 yuan — a routine refresh lands near 65 yuan and 0.5 hours against 320 yuan for the shell. The 40% line is 128 yuan.

The wall crosses the line. A bottom crack over 40 mm keeps 60% of its strength after welding and reopens at the seam; a moulded part has no rear wall to swap. Replace the multi-purpose outdoor case, then strip it for gasket, latches and liner.

Log 30, 90 and 180 days with three fields — date, compression, play. Two years shows the decay rate of a multi-purpose outdoor case.

Conclusion

The life of a multi-purpose outdoor case is set by three numbers — compression, play, pull — not by wall thickness. Five points at 30 days, four readings at 90, one review at 180: that is how an 8 year design life reaches 11.

This article discusses only the container (case body) side of specifications and design intent, and does not cover any handling, loading or use of the contents.
