How does a pistol case differ from a generic hard case?

Answer: In the cavity. One is cut to the item, the other uses pluck foam, so positioning and replacement cost diverge.

Is a soft pouch enough at half the price?

Answer: For a dry day trip. Add stack load, immersion or long storage and it stops protecting.

Is the steel box the strongest option?

Answer: Against puncture, yes; against corrosion, no. Damp rooms bring rust along the weld.

Over how many years should cost be counted?

Answer: Over the real cycle: three years for heavy use, eight for storage, one trip for foam.

Must the foam be cut by the supplier?

Answer: Not necessarily, but fit decides whether the item stays put. Hand-cut slots fray and stop gripping. ---

Pistol Case Comparison: Where It Wins and Loses

Quick answer: A pistol case competes with four other ways to hold a short firearm: a generic hard case, a soft pouch, a steel box and a moulded foam box. They differ on shock absorption, opening speed, eight-year spend and whether one failed part can be replaced.

Five Options and One Measuring Stick
Protection Under Drop and Stack Load
Carrying Comfort and Opening Speed
Price Against Eight-Year Cost
When the Case Is the Wrong Choice
FAQ

1. Five Options and One Measuring Stick

Three questions set the frame: is the cavity cut to one item or generic, is the shell rigid, and does a failure cost one part or the whole box? The alternatives to a pistol case are a generic hard case, a 600D pouch, a steel box and an EPS or EPP box.

Option	Shell	Cavity	Empty weight	Unit price
Pistol case	PP or ABS, 3.0–4.5 mm	Cut foam	1.4 kg	180–260 CNY
Generic hard case	Injection moulded	Pluck foam	1.6 kg	130–200 CNY
Soft pouch	600D over 5 mm foam	Straps	0.35 kg	55–90 CNY
Steel box	0.8–1.2 mm sheet	Felt strips	2.8 kg	380–520 CNY
Moulded foam box	EPS or EPP	Tool recess	0.5 kg	30–60 CNY

All rows assume 320 × 220 × 90 mm inside; 0.35 kg against 2.8 kg is an eightfold gap.

2. Protection Under Drop and Stack Load

A 1.5 m six-face drop onto concrete sorts the field. Corner ribs deform first and pass the rest to foam; the steel box cracks paint along its weld; the foam box sheds material on the second drop.

At 200 kg over the lid for 24 hours at 40 °C, the pistol case holds set under 1 mm. Sealing rests on clamping evenness: a gasket in a groove held by a full ring of latches stays closed, while a two-latch case lifts along its long edge.

Pistol Case: four olive cases on a dark surface, largest closed on two latches, smallest open showing grey foam, a long case open

Check	Pistol case	Generic hard case	Soft pouch	Steel box	Moulded foam
1.5 m six-face drop	No cracks	White marks	Item takes the hit	Paint cracks at weld	Sheds on impact two
200 kg for 24 hours	Under 1 mm set	1.5–3 mm	No resistance	Lid dishes	Collapses
1 m immersion, 30 min	Usually dry	Latch-dependent	Not waterproof	Seals, but rusts	Softens if wet

The advantage is the absence of a weak link.

3. Carrying Comfort and Opening Speed

A moulded handle about 28 mm across the grip spreads palm pressure at a 6 kg working load; folded steel bites at the edges; webbing cuts the fingers when loaded.

From latch release to closed again, a practised user needs 4 seconds on a pistol case, 5 on a generic hard case, 6 on a zipped pouch and 12 on a steel box with wing nuts. Outside dimensions add roughly 30 mm per side, a third more boot space than a pouch.

4. Price Against Eight-Year Cost

Over eight years a pistol case at 198 CNY, plus two foam sets at 96 and a gasket at 26, reaches 320 CNY, or 40 a year. A 65 CNY pouch lasts two and a half years, so three reach 195 CNY, or 24 a year. A steel box at 420 CNY needs rust repair every fourth year and lands near 490 CNY, or 61 a year.

Off-ledger costs remain: pluck foam retorn at 30 to 50 CNY on every item change, and desiccant for a pouch that never seals. The pistol case sits upper-middle on annual spend but turns it into predictable maintenance.

5. When the Case Is the Wrong Choice

Four situations argue against a pistol case: more than 3000 openings a year, an item near the internal diagonal, a store fixed for three years, and a one-trip budget under 60 CNY.

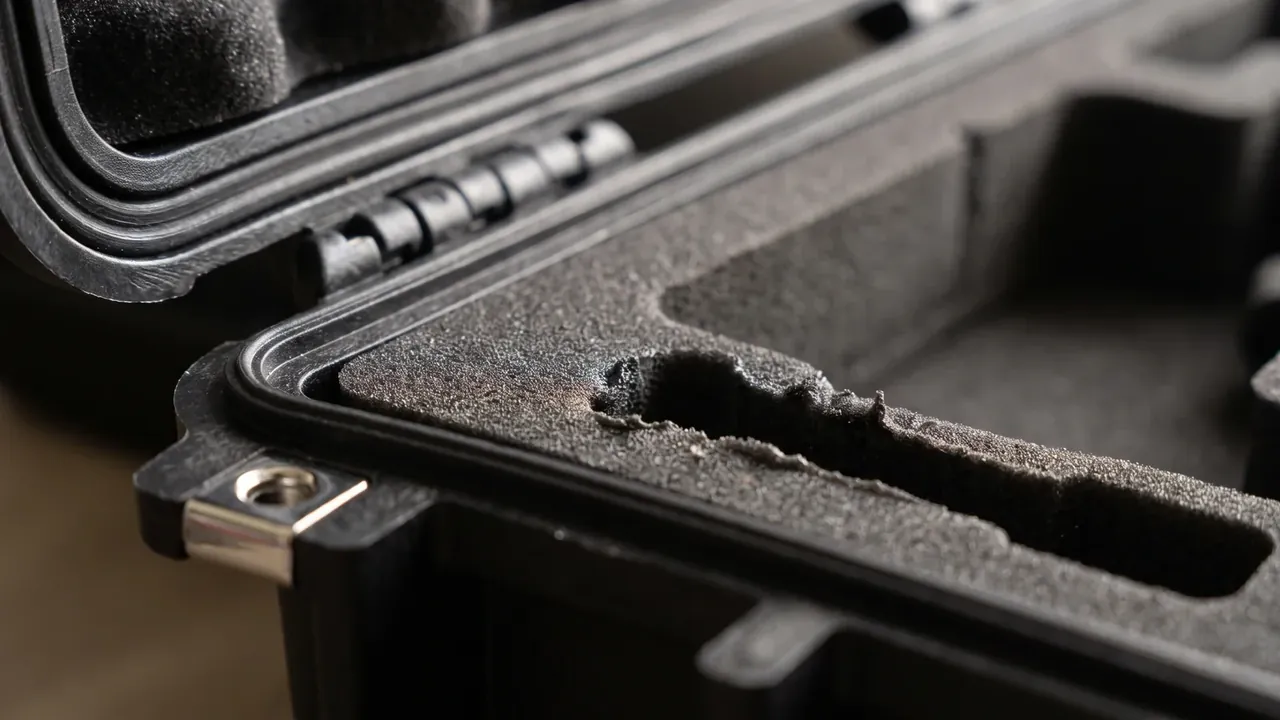

Pistol Case: close-up of a black interior, rubber gasket seated in the rim groove, moulded hinge ribs, a foam slot torn at the edge

Humidity is another matter: without a pressure-equalisation valve the shell breathes in on every temperature swing, pulling moisture toward the liner.

Conclusion

The moulded case packs positioning, cushioning, sealing and controlled opening into one shell and charges for it in weight and price, while a pouch wins on mass, steel on puncture and foam on unit cost. Where item-specific positioning and long-term sealing are both needed, a pistol case stays the most balanced of the five.

This article discusses only the container (case body) side of specifications and design intent, and does not cover any handling, loading or use of the contents.
