Can one pistol storage case serve both the range and a depot?

Answer: Yes, if configured to the stricter end: depot sealing costs nothing at a range, but a light case stacked four high bows at the lid.

Will a summer in a boot ruin the case?

Answer: It depends on the gasket. EPDM rated to 105 C copes; nitrile hardens and weeps within two summers.

How high can a depot stack go?

Answer: Four high at 45 kg per layer. Beyond that add a divider, or the bottom lid creeps.

Does an issue number have to be laser marked?

Answer: Not necessarily, but 0.6 mm marking does not rub off like a label, and a fixed position keeps the log useful.

Should a civilian case be bolted down?

Answer: Yes. Four 8 mm holes with M8 bolts remove the risk of the case being carried away.

Where a Pistol Storage Case Is Used: Scenes and Setups

Quick answer: A pistol storage case is configured by scene, not by price. Range trips want light and fast; depot storage wants stackable and sealed; agency issue wants numbers and seals; freight wants pallets; civilian storage wants fixing and locking.

Which Variables Change a Pistol Storage Case Setup
Range Trips: Light and Fast to Open
Long-Term Vault Storage: Stacking and Sealing
Agency Issue and Cross-Border Freight
Civilian Licensed Storage at Home
FAQ

1. Which Variables Change a Pistol Storage Case Setup

The same box is a different object at a range and in a depot. Four variables separate the scenes: carry distance, storage time, opening frequency, and whether anyone must prove ownership or access later.

Past 3 kg with gear, a case lifted in and out of a car daily becomes a nuisance, while trolley work can spend weight on wall thickness.

Variable	Range	Direct effect
Carry distance	by hand or trolley	weight and outer size
Storage time	hours to twelve months	seal class and desiccant
Opens per day	ten or more to twice a year	latch type and hinge life
Traceability	none to auditable	numbering and seal hole

2. Range Trips: Light and Fast to Open

A range trip is short, hot and repetitive: ninety minutes each way, the case baking at 55 C in a boot, five or six openings on site. The enemy is heat, so the gasket softens and the insert wears a groove.

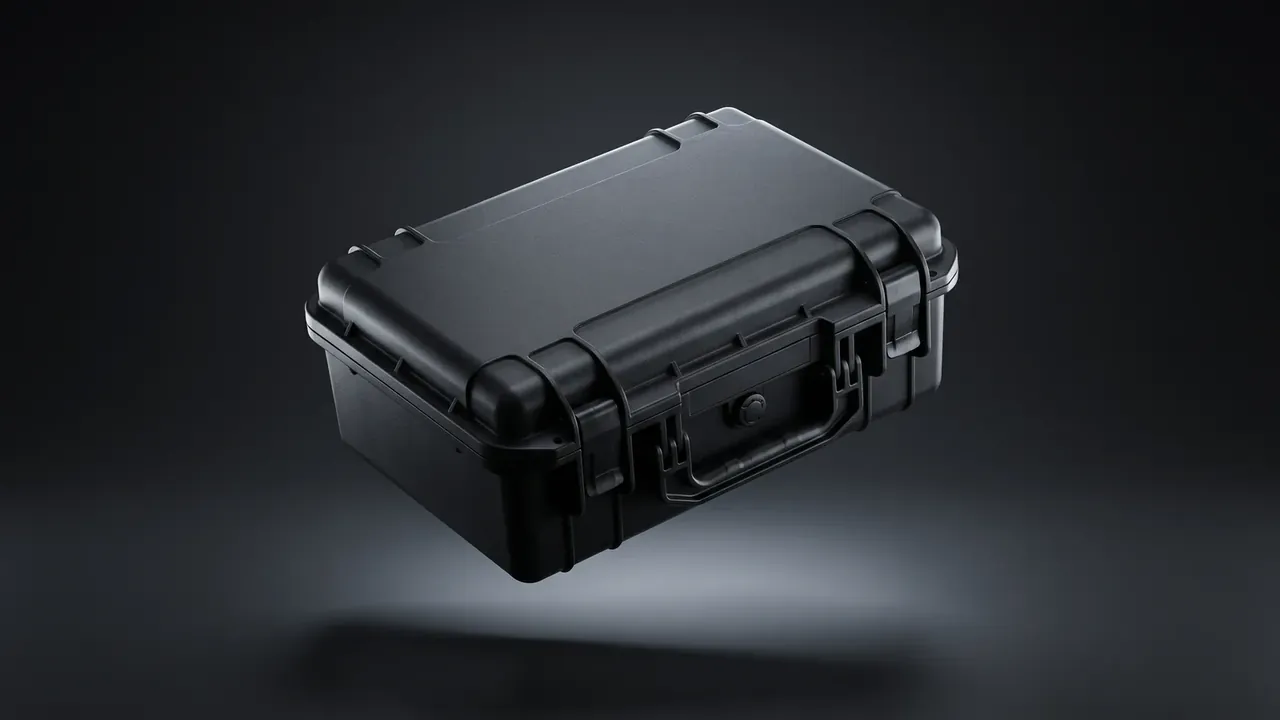

Pistol Storage Case: black moulded case at an angle on dark grey, two front latches, recessed handle between them, two lid channels

Weight and speed come first. At 400 by 310 by 135 mm and 2.1 kg empty, a pistol storage case lifts in one hand; two latches and a central handle open it in about four seconds.

Heat resistance is the hidden spec: EPDM rated to 105 C keeps the body from cracking in sun, and two shallow channels stop it sliding on boot carpet.

3. Long-Term Vault Storage: Stacking and Sealing

A case sits on a shelf for six to twelve months at around 60 percent humidity, stacked four high at 45 kg per layer. Weight stops mattering; without ribs under the lid centre the gasket ends up crushed on one side.

Ribs 10 mm tall with a 5 mm corner step stop stacks shifting, and compression is set at 22 percent, low on purpose, because a gasket under permanent load never recovers. Desiccant goes in at 120 g, changed on the 90 day count, and labels sit at one height on the short side so a glance along the rack works.

4. Agency Issue and Cross-Border Freight

Agency issue is about traceability. Each pistol storage case is laser marked at 0.6 mm deep with a number tied to the log, and a 6 mm seal hole takes a one-time seal at handover. The insert is laid out two-up, main pocket plus two magazine slots, so a handover takes three minutes.

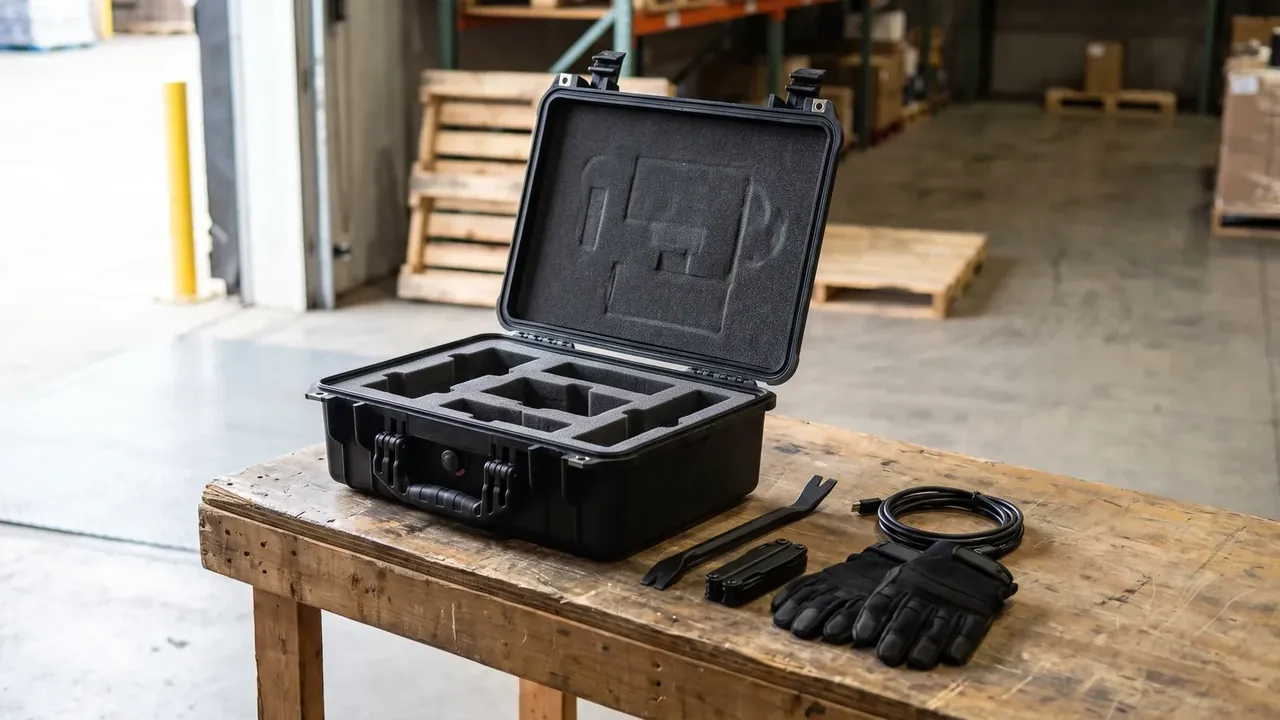

Pistol Storage Case: black case open on a warehouse bench, foam in lid, cut compartments, gloves, coiled cable, pry bar, pallets behind

Freight is packing: on a 1200 by 800 mm pallet, 20 cases go per pallet with corrugated dividers, three wraps of film, corner boards and marks on two adjacent faces. The declared range is minus 25 to 55 C, with a pressure valve at 0.4 bar.

Both users need the case to match paperwork: one fixed, readable marking position.

5. Civilian Licensed Storage at Home

Civilian storage is the messiest scene: a drawer, a shelf, a boot. Drawers run 480 mm deep and wardrobe shelves give 350 mm clear height, so measure the opening first.

Four 8 mm holes in the base take M8 bolts into furniture or a vehicle body, so the case cannot be walked off; a three-digit combination plus a key gives two routes in. The insert is a removable pad, so only the top layer changes when gear does.

Scene	Outer size	Closure	Sealing
Range trips	400×310×135 mm	two latches	splash
Depot storage	450×350×160 mm	latches, padlock eye	short immersion
Agency issue	420×320×150 mm	latches, seal hole	short immersion
Freight	460×360×170 mm	latches, seal hole	valve fitted
Civilian	380×290×120 mm	combination lock	splash

Conclusion

A pistol storage case has no universal setup, only a scene-specific one: light for the range, sealed for the depot, numbered for issue, palletised for freight, locked at home. Write the four variables down first, because that is how a pistol storage case ends up being used.

This article discusses only the container (case body) side of specifications and design intent, and does not cover any handling, loading or use of the contents.
