What MOQ should a first pistol storage case order use?

Answer: 300 units with tooling bought outright. That batch proves mould and insert; a 500-unit reorder trims 6 percent.

Is a single total price acceptable?

Answer: No. Ask for seven lines with tooling and insert separate, or a discount cannot be traced.

Is 25 working days fast or slow?

Answer: Normal for a new mould is 22 to 28. Below 20, ask if trials were skipped; above 30, which press it queues behind.

Does a colour deviation reject the whole lot?

Answer: Grade it by reading. Between 1.5 and 3 delta E can pass with correction next batch; above 3 the lot goes back.

Buy the tooling or amortise it?

Answer: Follow the forecast. Beyond 3,000 units in two years, buying is cheaper; for one season, amortising keeps cash free.

Pistol Storage Case Procurement: Quotes, MOQ and Lead Time

Quick answer: A pistol storage case order rests on three documents: a quote split into seven cost lines, an MOQ ladder showing what volume buys, and a lead time in four dated milestones.

What a Pistol Storage Case Quote Should Break Down
MOQ and Tooling Amortisation
Lead Time in Four Milestones
Incoming Handover: First Articles and Paperwork
Six Numbers to Fix in the Contract
FAQ

1. What a Pistol Storage Case Quote Should Break Down

A single-number quote hides the money. A pistol storage case carries seven cost lines: resin, tooling, insert, hardware, packing, testing, freight. Split them and hard costs separate from those open to argument.

Resin follows moulded weight: a 3.2 kg case at 9.5 CNY per kilogram of PP compound holds about 30 CNY, and ABS adds 20 to 35 percent. Tooling reverses that: 12,000 CNY over 3,000 units is 4 CNY each, over 1,000 units 12 CNY.

Cost line	Basis	Share
Resin	Moulded weight times grade price	35 to 45%
Tooling	Mould cost divided by order size	3 to 8%
Insert	Material plus routing time	10 to 18%
Hardware	Latch and hinge count	8 to 12%
Packing, testing, freight	Priced per carton or per volume	10 to 19%

Insert and hardware hide in a vague accessories figure: flat EVA against CNC routing differs by 8 to 15 CNY per unit, extra latches add 6 CNY, a steel hinge pin 3 CNY. Fix quote validity at 30 days with an 8 percent index adjustment, or a reorder returns at a price nobody can trace.

2. MOQ and Tooling Amortisation

MOQ is the smallest batch that pays for a changeover: pulling the mould, setting the press, trial shots and approval all land there. Steps of 300, 500 and 1,000 sit 6 to 9 percent apart.

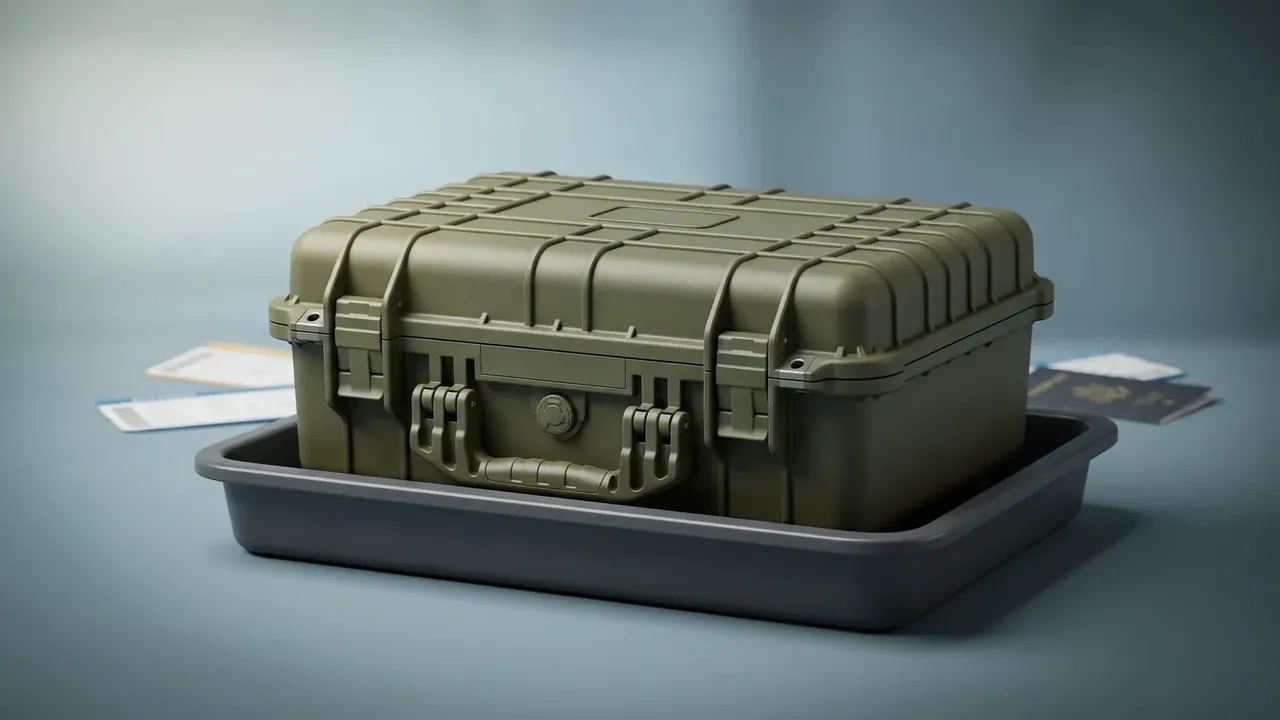

Pistol Storage Case: closed olive case in a grey plastic tray, ribbed lid, two long-side latches fastened, folding handle and round pressure valve

Tooling is bought outright at 12,000 CNY, buyer-owned, or amortised at 4 CNY per unit until 3,000 ship. Outright suits a known life, amortising a trial season; colour splits should carry no set-up fee.

Order size	Index	Tooling treatment
300 units	100	Outright, 12,000 CNY
500 units	94	3 CNY each on first 200
1,000 units	88	Fully amortised
2,000+ units	85	Amortised, 30% refunded

3. Lead Time in Four Milestones

Lead time is four periods added, not one end date: 7 days for trials, 12 for moulding, 3 for packing, 3 for inspection and freight, 25 working days in all. Unsplit, it hides which stage slipped.

Trials need correction time: a first article failing on latch engagement costs 3 to 5 days of tool work. Moulding follows press tonnage: an 800-tonne machine running a 3.2 kg case at a four-minute cycle makes about 300 units a day on two shifts, so 1,000 units hold the press three to four days.

4. Incoming Handover: First Articles and Paperwork

Handover starts at the first article, not the dock. Three first-off units arrive with a measurement record, and the buyer has 48 hours to check them assembled: latch closure, lid contact, insert edges flat.

Pistol Storage Case: closed olive case riding a roller conveyor in a workshop, grey tray beneath, stacked timber pallets and coiled cables behind

Sampling runs per pallet, two units, 13 covering a 500-unit lot. Four readings decide it: colour within 1.5 delta E, cavity within 1.5 mm, latch retention, lid gap under 1 mm. Three documents travel with the goods: delivery note, inspection report, signed first-article copy.

5. Six Numbers to Fix in the Contract

The annex outranks the body: orders go wrong less on price than on what acceptance means and who owns the mould.

Clause	Wording	Verified by
Quote validity	30 days, 8% index swing reopens price	Index screenshot
MOQ	300 first lot, 500 on reorder	Order confirmation
Lead time	25 working days in four stages	Signed schedule
Acceptance	2 units per pallet, four readings	Sampling record
Tooling	12,000 CNY outright, buyer-owned	Transfer sheet
Delay	0.3% per day, capped at 5%	Monthly statement

Damages need a cap and a trigger: the delivery date is the day the lot passes inspection, not the day it leaves.

Conclusion

Buying a pistol storage case is less about a lower number than about definitions that survive an audit. Seven cost lines show where a discount came from, three MOQ steps what volume buys, four milestones give delay a place to land. File those sheets and a reorder needs only new figures. Done consistently, the pistol storage case becomes a managed cost rather than a price comparison.

This article discusses only the container (case body) side of specifications and design intent, and does not cover any handling, loading or use of the contents.
