Do plastic outdoor storage boxes waterproof under a roof still need UV testing?

Answer: Yes. A roof blocks direct sun, not scatter and reflection, which carry about 60 percent of open-sky dose. Ageing slows, not stops.

Is 90 minutes of spray too long?

Answer: Thirty minutes suits routine acceptance, 90 suits sign-off. Tilted-rain leaks often appear at minute 40.

Why does a 9-point hardness rise fail a unit?

Answer: Nine points costs about 20 percent of rebound, and the seam stops tracking the lid in wind.

Is 30 mm of standing water enough to mimic a downpour?

Answer: Yes. Capillary rise depends on soak time, not depth, so 72 hours at 30 mm beats a short test at twice the depth.

Colour shift is inside 3.5 but hardness is over. Can the lot pass?

Answer: No. Colour is cosmetic, hardness is functional; a functional miss fails the unit.

Plastic Outdoor Storage Boxes Waterproof: Will Rain Get In?

Quick answer: Most leaks in plastic outdoor storage boxes waterproof enough for a terrace start at the lid seam after UV and freeze-thaw. Four checks, in one fixed order, settle it.

Where the Water Enters: Failure Spread Across 40 Units
Rain Angle Matters More Than Rain Volume
1000 Hours of UV: Fading Lids, Hardening Gaskets
Freeze-Thaw and Standing Water: Six Cycles, Two Changes
Judgement Order and Disposition
FAQ

1. Where the Water Enters: Failure Spread Across 40 Units

Forty units sat on a coastal terrace for 12 months, logged quarterly for leaks and weather. Two walls split; the rest leaked near a joint.

Leak position	Share	Direct cause	Check that catches it
Long lid seam, middle	62 percent	Gasket under-compressed, seam lifts	Compression, impression width
Latch boss root	18 percent	UV embrittlement, boss cracks	Pull force after 1000 hours
Hinge pin seat	11 percent	Freeze-thaw opens the bore	Seam width after cycling
Base corners	9 percent	Ground water climbs molding marks	Depth, soak time

The lid seam dominates. Its perimeter runs about 2.8 m, more than twice the length of the side walls, so any under-compressed stretch joins into one channel. Plastic outdoor storage boxes waterproof performance is spent on that ring.

The wall is rarely the short board. At 2.5 mm the body dents before it perforates.

2. Rain Angle Matters More Than Rain Volume

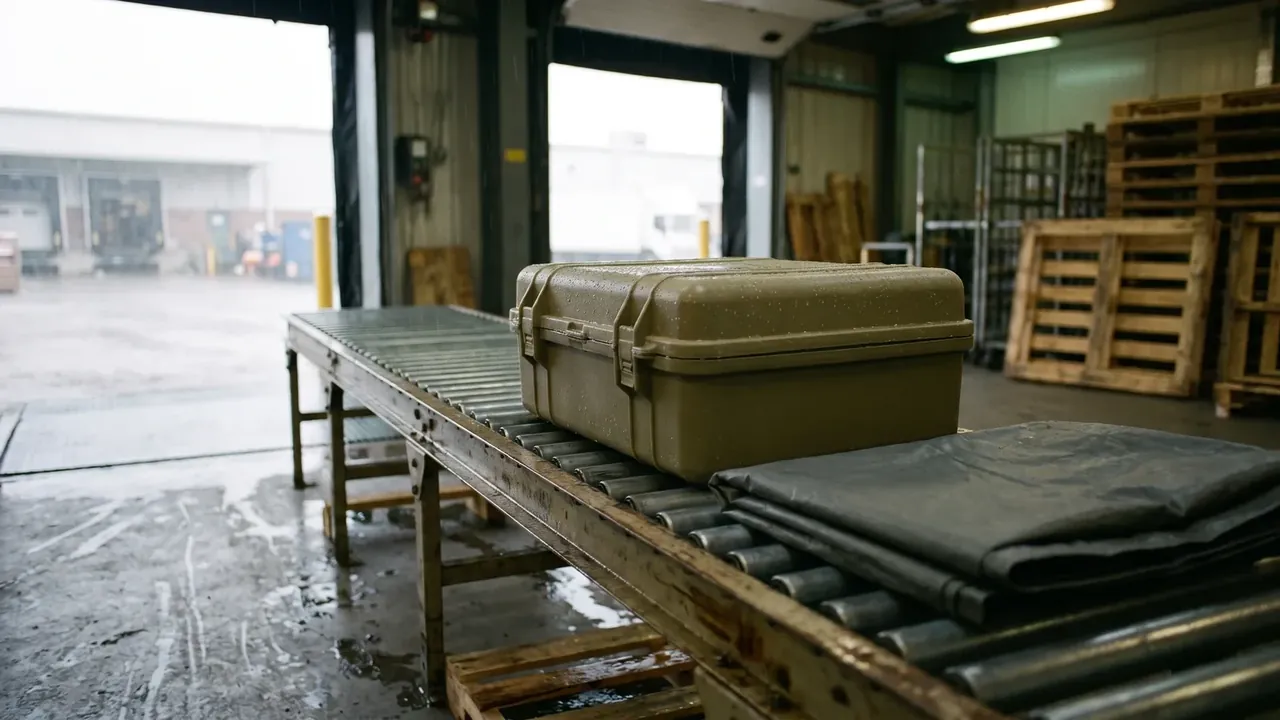

Plastic outdoor storage boxes waterproof: olive green case riding a roller conveyor at a loading bay, roller door open, timber pallets stacked right, wet floor

Indoor rigs drop water straight down with volume cranked up and angle at zero. On plastic outdoor storage boxes waterproof enough to sit outside, rain rarely falls vertically; wind pushes it past 20 degrees, into the long seam.

Oscillating tube flow: 10 litres per minute over a 1.2 m sample
Case tilt: 20 degrees forward, as it sits on a sloped slab
Spray duration: 90 minutes, three times a normal acceptance run
Pass mark: a continuous film inside the rim fails; droplets are allowed

Change the angle and the problem appears. Twelve units that passed 90 minutes of vertical spray produced three long-seam failures by minute 40 once tilted.

The product did not get worse; the old test missed the spot. A tilted seam takes load in the opening direction, and vertical rain only presses.

3. 1000 Hours of UV: Fading Lids, Hardening Gaskets

The chamber runs 0.55 W per square metre at 340 nm for 1000 hours, black panel at 65 C, 18 minutes of spray every 20 hours. The target is the gasket, not the colour.

Item	Condition	Pass mark
Colour shift	After 1000 hours	Delta E of 3.5 or less
Gasket hardness	Shore A, before and after	Rise of 9 points or less
Compression set	30 percent, 24 hours	Recovery of 82 percent or more
Latch pull-off	After ageing	180 N or more
Lid warp	600 mm span, after ageing	1.6 mm or less

In the batch tested, hardness climbed from 62 to 71 Shore A. That is exactly nine points. Harder rubber rebounds less, so the seam stops following the lid. Colour read 2.8 and passed, yet the skin had already degraded. Read the two together and month three makes sense: soft gasket in month one, UV critical in month two, then a cold snap leaves hardened rubber unable to track the lid. Colour alone misses most of it on plastic outdoor storage boxes waterproof to this level, because hardness is the functional number.

A dark lid also passes 70 C at noon, ageing the gasket faster.

4. Freeze-Thaw and Standing Water: Six Cycles, Two Changes

Cycling runs minus 15 C for 4 hours and 25 C for 4 hours, six times, 48 hours in all. Two positions get measured: seam width and bore clearance.

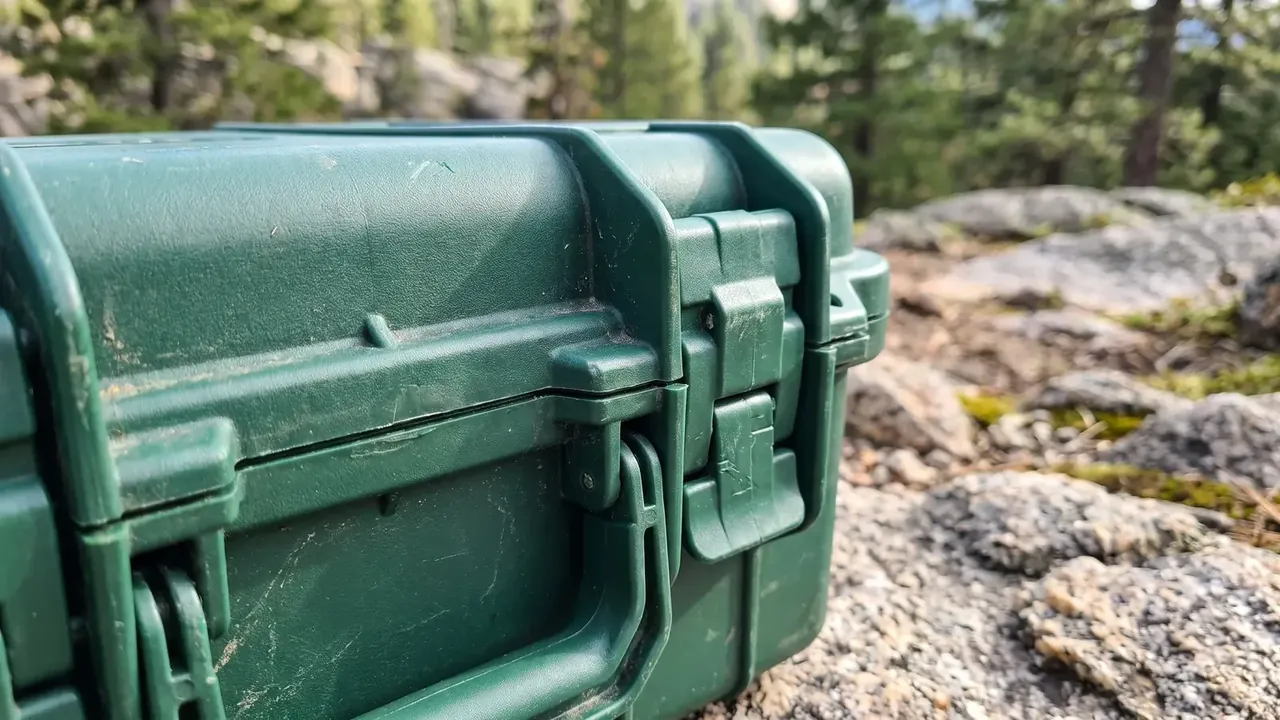

Plastic outdoor storage boxes waterproof: dark green corner close-up, two stacked latches at the corner, hinge seam, handle cutout below, rocky slope and pines behind

The seam widened from 0.4 mm to 0.8 mm, the bore from 0.15 mm to 0.3 mm. Both doubled, for different reasons: the gasket stopped returning after contraction, the bore was stretched by shrinkage between two materials.

Standing water is the check most often skipped. The base sits in 30 mm of water for 72 hours, is wiped dry and weighed two hours later; a gain above 15 g fails.

Pass both, and a terrace year is survivable for plastic outdoor storage boxes waterproof to this level.

5. Judgement Order and Disposition

The order is fixed for plastic outdoor storage boxes waterproof to this level: UV first, freeze-thaw second, rain last. The first two change the material state; rain tests the seal that state left behind.

Hardness rise above 9 points: class B, swap the gasket lot, repeat 1000 hours
Seam above 0.8 mm after cycling: class B, thicken the rim flange or go double-lip
Continuous film in rain: class A, whole lot returned, no single-unit rework
Water gain above 15 g: class B, start with molding marks on the base

Class A covers rain alone: a continuous film means the structure is open, and reworking one unit changes nothing.

Conclusion

A leak in month three looks random but is UV, freeze-thaw and tilted rain stacking in order. Test plastic outdoor storage boxes waterproof the same way: age the material, freeze the joint, drive rain at it sideways.

This article discusses only the container (case body) side of specifications and design intent, and does not cover any handling, loading or use of the contents.
