How large a storage box should I buy?

Answer: Work back from the weight one person can lift. A 45 L box at 22 kg is a one-person carry; past 35 kg, specify forklift slots.

Do four tiers need reinforcement?

Answer: Only with pads of 8 mm or more and feet that seat into them. A flat lid needs wrap from the second tier.

Which lid type works against a wall?

Answer: Front opening. A hinged lid needs 220 mm of headroom and cannot reach full travel with a wall behind it.

Can a standard storage box go into a cold store?

Answer: Not advised. After four hours at -25 °C the corners crack on a drop test; specify a low-temperature grade at 3.2 mm.

What matters in a wash-down area?

Answer: A removable gasket and a 6 mm drain hole in the bottom corner.

How to Choose a Storage Box: Five Criteria That Decide It

Quick answer: Choose a storage box from load and stacking downward to volume, tier load, access side and environment. Reverse that order and you get boxes half empty, or lids buckling on the third tier.

Five Criteria for Choosing a Storage Box
Nominal Litres vs Usable Internal Volume
Stacking Load and How Many Tiers Hold
Lid Type, Aisle Width and Access Side
Temperature Range, Washing and Service Life
FAQ

1. Five Criteria for Choosing a Storage Box

Rank the criteria by what each costs when wrong, not by the order on a spec sheet. Load sets volume, stacking sets tier load and lid geometry, access sets the lid type, environment sets the resin.

Stacking is skipped most often. A storage box in a warehouse is rarely alone: four or five sit on a pallet, and the bottom one carries the rest. At 25 kg a box and four tiers, the base sees 75 kg for months, at the resin strength it has at 40 °C.

Criterion	Check	Range	Risk
Load	Cavity size, usable litres	45 to 120 L	Half empty
Stacking	Tier load, locating pads	25 to 40 kg	Lid collapse
Access	Lid direction, aisle	800 mm or more	Jams on a wall
Environment	Temperature, washing	-25 to 55 °C	Cracking, ingress
Handling	Handles, forklift slots	22 to 45 kg full	Two people

2. Nominal Litres vs Usable Internal Volume

Nominal litres follow the outer profile, so usable volume is smaller. A 2.8 mm wall, a 40 mm lid depth and corner radii all take space: a 68 L storage box usually holds 58 to 62 L.

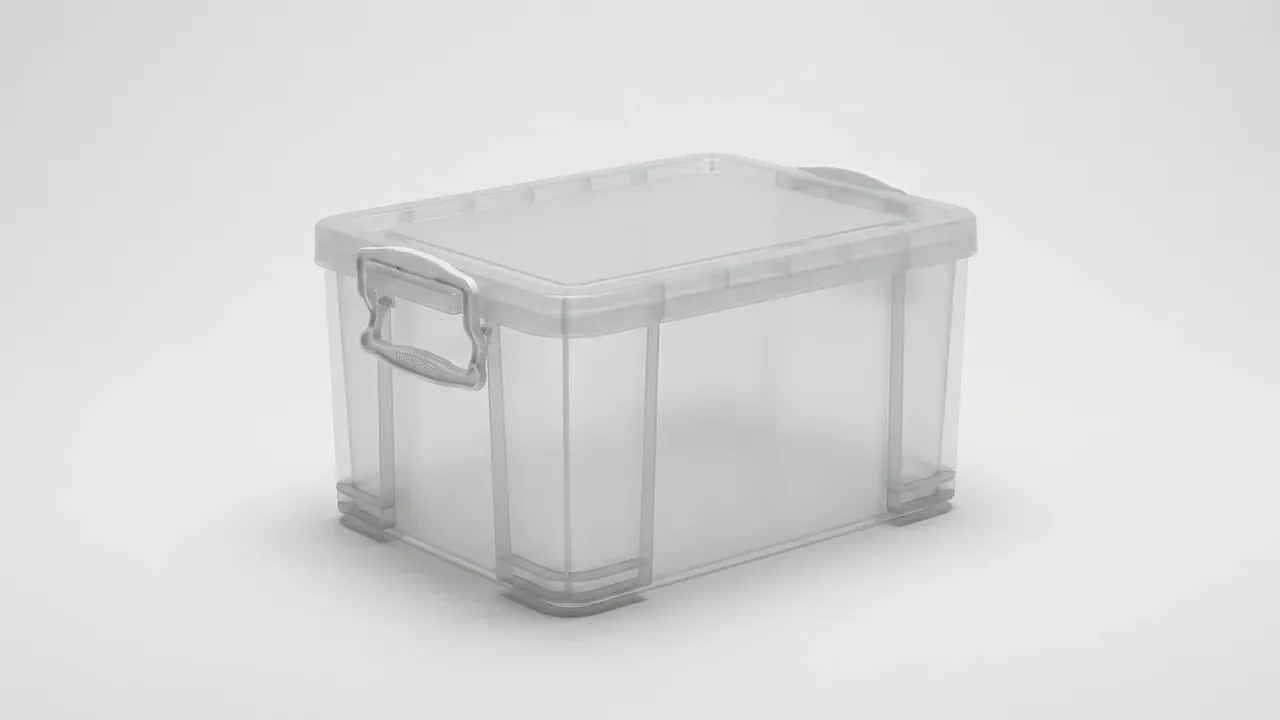

Storage Box: one translucent white square storage box on a white sweep, thick rim, a silver folding handle on the left wall

Measure the cavity, not the label: narrowest length, width and height, divided by a thousand, minus lid depth. Square corners let cartons sit flat; radiused ones drop better but waste side space.

Weight belongs in the same sum: a 45 L box holds about 22 kg, a 120 L box over 45 kg.

3. Stacking Load and How Many Tiers Hold

Tier load is the static load the bottom box carries while full, on a flat floor, evenly spread. An uneven floor takes about 20 percent off that.

Four raised pads of 8 mm or more, matched by recesses in the base, stop a stack sliding when a forklift brakes. A flat lid needs stretch wrap above two tiers.

Tiers	Full box	Load at base	Condition
2	25 kg	25 kg	Flat lid
4	25 kg	75 kg	8 mm pads
5	18 kg	72 kg	Corner posts
6	15 kg	75 kg	Racking

4. Lid Type, Aisle Width and Access Side

A hinged lid seals best but needs headroom. A front opening lets someone reach in while standing, at the cost of a hinge line that collects dust. A removable lid suits tipping the box out.

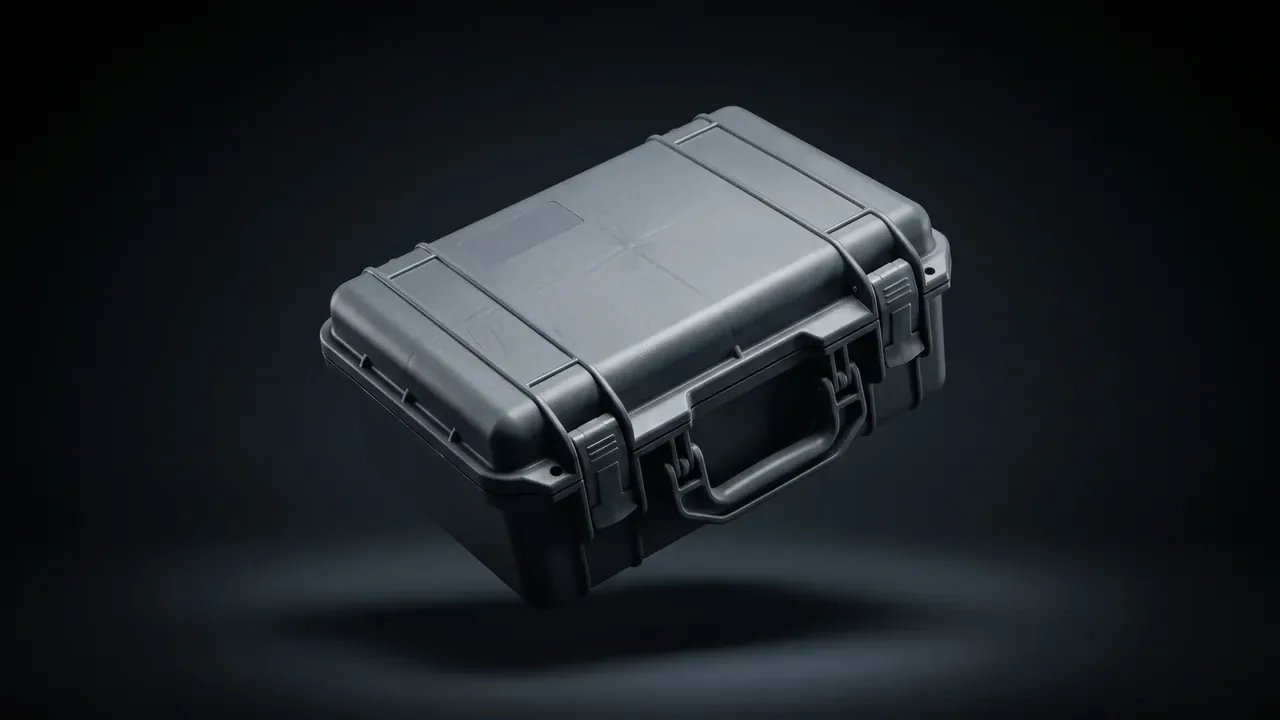

Storage Box: one black storage box tilted on a dark sweep, two latches and a folding side handle on the near face

Aisle width rules the choice. At 800 mm only front opening works, since a door swinging 350 mm still leaves room to pass; at 1000 mm a hinged lid clears and a removable one needs 1200 mm. Hinge life is worth asking about: eight openings a day is 15,000 over five years, and a metal bushing survives 20,000 cycles against 10,000 for plastic.

5. Temperature Range, Washing and Service Life

Ask about temperature by storage location, not shipping origin. Standard copolymer polypropylene embrittles at -10 °C; held at -25 °C for four hours and dropped, the corners crack. A low-temperature grade with the wall thickened from 2.8 mm to 3.2 mm passes, and most products stop at 55 °C.

A wash-down area changes the design. An 8 MPa lance at 300 mm drives water past the rim, so the box needs a 6 mm drain hole in the bottom corner and a removable gasket. Outdoors, without UV stabiliser the surface chalks in two years and the safe drop falls from 1.2 m to 0.6 m.

Conclusion

Five numbers settle most of it: usable cavity volume, tier load, tier count, lid headroom, temperature range. Match all five and the box goes into service; miss one and it returns as a collapsed lid or a wet pallet. A storage box is not better for being heavier, only for matching where it lives.

This article discusses only the container (case body) side of specifications and design intent, and does not cover any handling, loading or use of the contents.
