Can a tool roll go in a washing machine?

Answer: Not advisable. Agitation stretches the needle holes and the coating cracks there first. Hand wash below 40 °C.

Can I re-sew a loose tool roll strap myself?

Answer: Yes, with backstitching. A plain run pulls out at the first stitch under load. Use 210D nylon.

Does a tacky coating mean the tool roll is finished?

Answer: No. Tackiness is plasticiser migration; the roll can serve another year if washed less and kept from sun.

How are rusted fasteners treated?

Answer: Dry them, work silicone grease into the pivot, cycle ten times. Machine oil gathers dust.

How often does a tool roll need a full inspection?

Answer: One minute weekly, a flat full inspection quarterly, including rolled diameter and snap force.

Tool Roll Maintenance: Inspection Items and Replacement Lines

Quick answer: Service a tool roll in order of consequence: straps and fasteners first, stitching second, coated face third, pockets last. A released strap spills the whole roll at once, a tired snap lets tools walk out, and a worn coating shows itself only once oil reaches the weave.

Where Tool Roll Maintenance Starts
Fabric and Stitching: Wear Grades
Straps and Fasteners at the Load Points
Pockets and Dividers Losing Shape
Washing, Mildew and the Replacement Line
FAQ

1. Where Tool Roll Maintenance Starts

A tool roll fails from the outside in. All rolling tension runs through one main strap, so a strap that lets go empties a dozen pockets at once, while a broken stitch line only makes one mouth gape.

Before a shift, one minute of function: roll tight, listen for the fastener, tug the strap. After a shift, lay it flat, hold the seams against the light, wipe the face. Thresholds belong in numbers, not in feel.

Area	Check	Interval	Threshold
Main strap	Straighten, read both edges	Weekly	Fray beyond 15 mm
Fasteners	Open and close three times	Weekly	Snap force under 15 N
Stitching	Backlight the pocket seam	Monthly	3 loose stitches in a row
Coated face	Wipe, watch for pale marks	Quarterly	Tear over 10 mm

2. Fabric and Stitching: Wear Grades

Face wear divides into three grades. Grade one is polish: the coating turns matte and a fingernail slides without catching, so a wipe is enough. Grade two is coating worn through to the weave, where a nail lifts fibres and oil tracks inward. Grade three is a tear with frayed edges, which cannot be patched, only shortened or retired.

The common face is 600D polyester with PVC coating about 0.35 mm thick. Coating hardens before it turns tacky, and once tacky it traps dust, so a sticky roll needs less washing.

Judge stitching at the pocket mouth and along the rolled edge. Most rolls run 210D nylon at four to five stitches per centimetre: denser, and needle holes line up as a tear path; sparser, and each stitch snaps first.

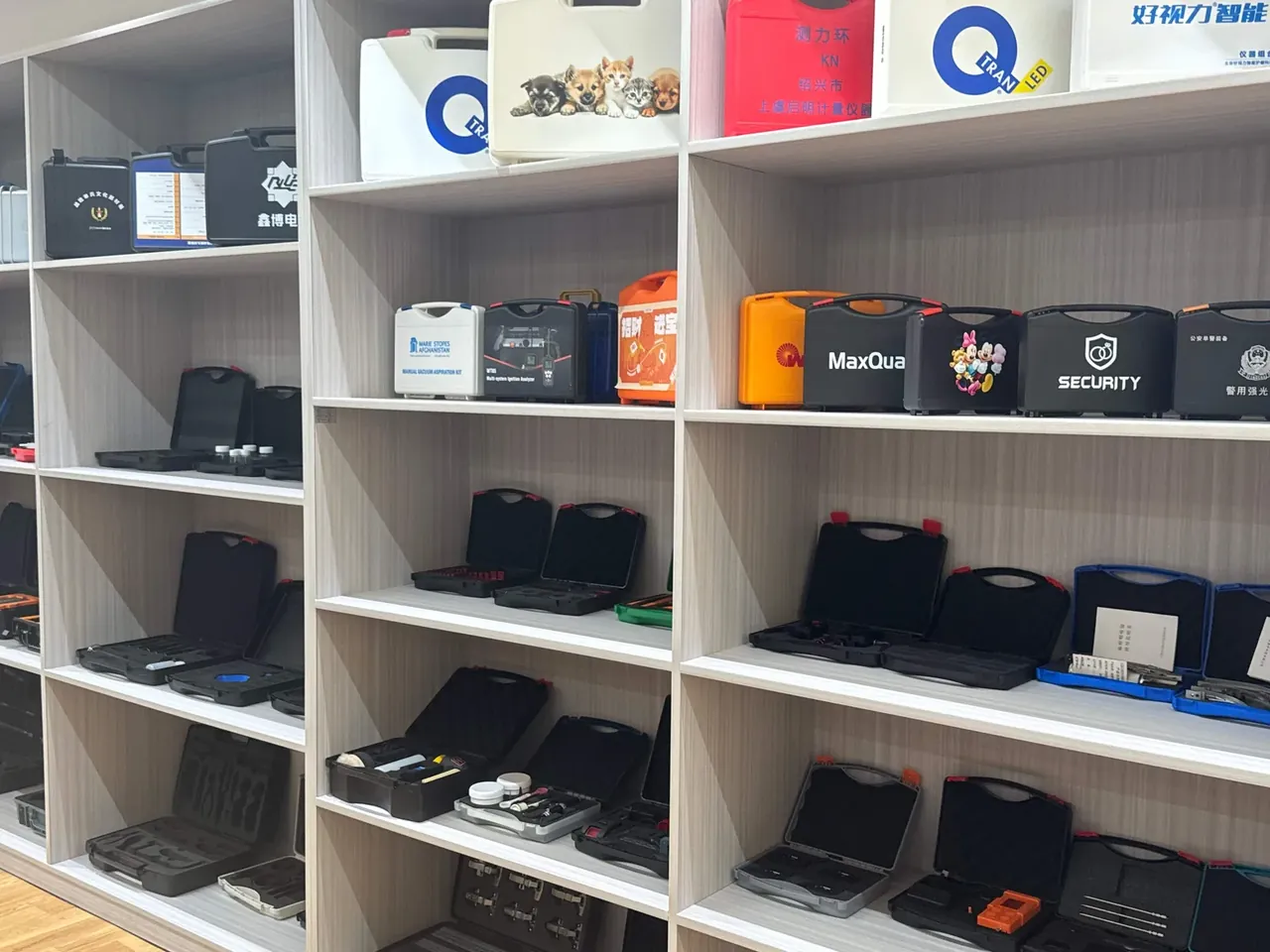

Tool Roll: white wood shelving in five tiers holding black, orange and beige hard cases, several open below showing dark inserts

3. Straps and Fasteners at the Load Points

The strap is the only load-bearing part. Most are 25 mm polyester webbing rated near 1200 N, a margin that shrinks once you see the sewn section carries two backstitches. Treat working load as one fifth of the break figure, and inspect the ends: fuzz where webbing enters the seam, filaments along the edge. Past 15 mm of fray, re-stitching will not hold.

Snaps open on a spring disc and read 25 to 40 N when new; below 15 N they pop open mid-roll. Buckle claws whiten before cracking, and metal hooks round off and release without a sound. A brass snap in salt air films over within 24 hours, drags, then gets forced until the disc bends. Silicone grease, never machine oil.

4. Pockets and Dividers Losing Shape

Pocket distortion begins at the mouth. Elastic loses about thirty percent of its recovery after a few hundred stretches, and the pocket stops closing over its tool. Cut the elastic out and fit a 20 mm webbing strip closed by a snap.

Overloading has one test: a roll designed to close at 70 mm is overloaded at 90 mm, because the strap must stretch thirty percent to reach its fastener. Dividers sewn shut at both ends pull the panel out of square; sew one end and leave 10 mm of float.

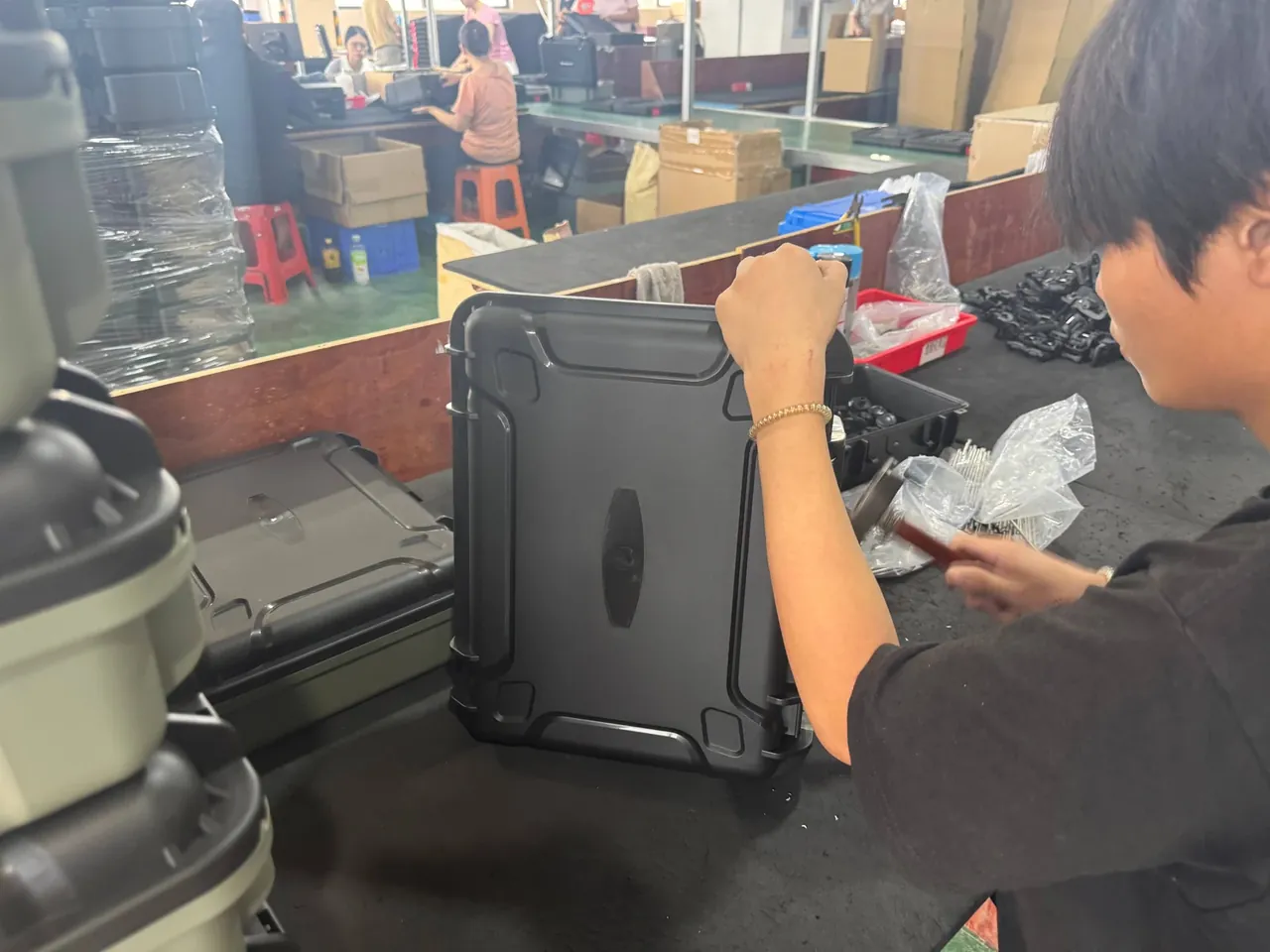

Tool Roll: worker in a black shirt drives a screwdriver into a black case latch at a factory bench, red crates and screws beside him

5. Washing, Mildew and the Replacement Line

Wash only when needed: water under 40 °C, neutral detergent, a soft brush along the weave. No machine wash or spin, and dry out of sun, since ultraviolet light speeds plasticiser migration.

Mildew is the overlooked fault. Above 65 percent relative humidity with 48 hours of still air, grey-green spots appear at the pocket base. Wipe with 75 percent ethanol and dry fully before rolling.

Trigger	Reading	Action
Strap seam opened	Over 20 mm of loose stitch	Retire
Face torn	Over 30 mm, or frayed	Retire
Fastener missing	Below original count	Restore first
Pocket floor torn	Seam split full length	Retire

Conclusion

Tool roll maintenance comes down to three numbers: 15 mm of strap fray, 15 N of snap force, 90 mm of rolled diameter. Past any one, act rather than wait for the roll to open on the road.

This article discusses only the container (case body) side of specifications and design intent, and does not cover any handling, loading or use of the contents.
