How often does the gasket need replacing?

Answer: Count cycles, not years. Four openings a day is 1,200 a year, and EPDM loses rebound near 5,000 cycles, so year four.

Can a slightly warped lid be accepted?

Answer: Under 0.6 mm flatness, yes. Up to 1.2 mm, downgrade it to a dry store. Above that, reject it; no latch adjustment recovers a floating gasket.

Does vacuum testing damage the gasket?

Answer: At minus 20 kPa for 60 seconds, no. Continuous cycling without a pause is the risk, so leave 30 seconds between cases.

What latch retention should a waterproof box with lid pass at?

Answer: 300 N per latch, 600 N for the pair. Anything under 250 N pops open on a long haul.

Is a supplier spray report enough?

Answer: No. It proves one moment, not reserve margin. Ask for a decay curve under 1 kPa in 60 seconds.

Buying 20 units, do all three tests apply?

Answer: Run vacuum at minimum. Immersion for 20 pieces costs 5 yuan each in floor time; vacuum clears the batch in 1.5 hours at 3 yuan.

Waterproof box with lid: a 6 yuan gasket, 3,200 yuan of rework

Quick answer: On a 600 mm waterproof box with lid the gasket costs 6 yuan, the latches 9 yuan, the air test 3 yuan, under a tenth of the ex-works price. One 240-piece lot sent back costs 3,200 yuan and 14 days. Inspect for a 0.3 mm lid gap, 25% to 30% compression and 1 kPa vacuum decay.

Where the money sits
Lid fit and hinge alignment
Inspection order
Water tests and their costs
Sampling: the 13 and the 26
Disposition of failures
FAQ

1. Where the money sits

A 600 mm waterproof box with lid, 3 mm wall, has only three items that inspection can influence.

Item	Per unit	Share	Catchable
Gasket, 2.4 m	6 yuan	4%	Compression, joint
Two latches	9 yuan	6%	Retention, alignment
Air test	3 yuan	2%	Decay curve
Shell	62 yuan	41%	Flatness only
Packing	18 yuan	12%	No

Bargaining for hours over a 3 yuan unit price buys nothing: a returned lot brings 1,800 yuan of freight plus 45 minutes of labour per case at 35 yuan an hour, and lands at 3,200 yuan.

2. Lid fit and hinge alignment

A weeping waterproof box with lid is usually not a gasket problem. It is a lid that is not flat.

Set the case on a plate, run a 0.3 mm feeler gauge around the rim, and mark where the blade enters. Then check flatness with a straight edge at 0.6 mm per metre. A lid warped to 1.2 mm crushes the gasket at four corners and floats it in the middle, which is the same as no gasket.

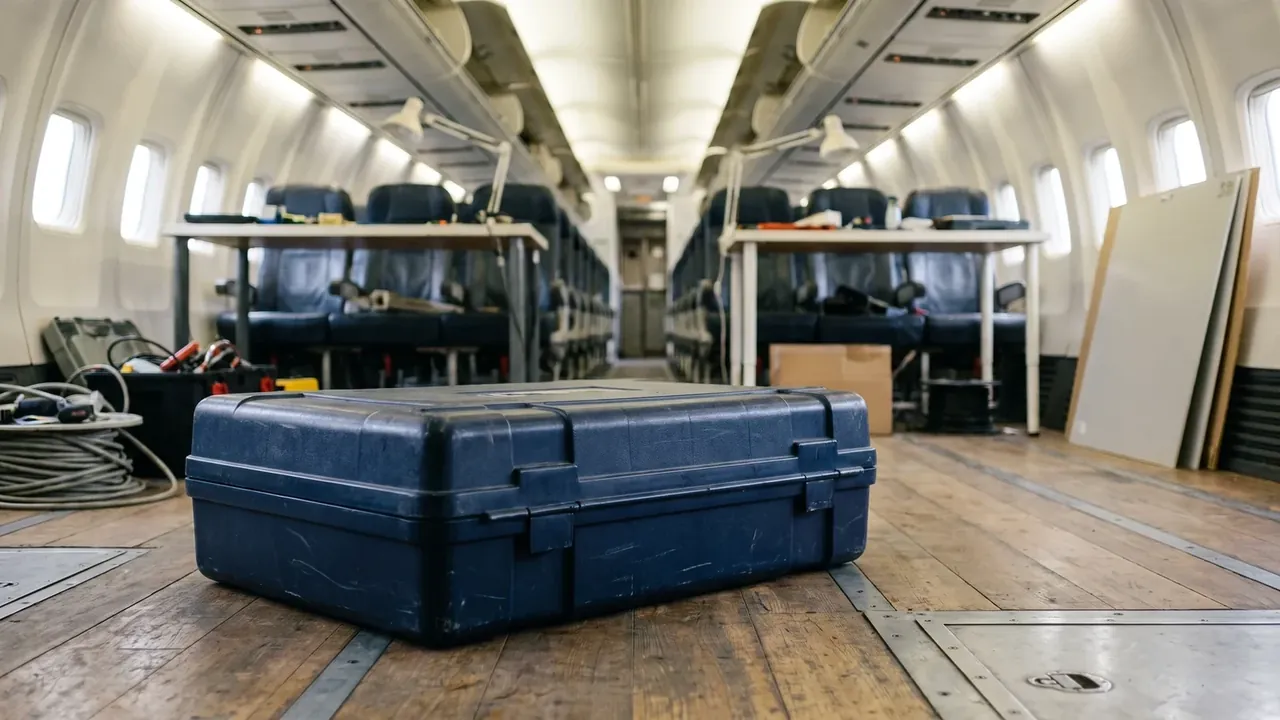

Waterproof box with lid: a scratched navy case flat on a wooden cabin floor, two front latches, blue seats and work tables behind, cables left

Hinge alignment is the hidden cost. A 0.5 mm offset between the two axes makes the lid drift as it closes, so one-handed latching turns two-handed and returns climb. Driving a pin in with a hammer shaves plastic into the gasket groove, and the air test then fails on debris rather than on design. The shop-floor check needs no instrument: open to 90 degrees, let go, and watch whether it stays. Warp, hinge offset and a wide gap share one cause, uneven cooling and unbalanced ejection. Fixing the tool costs less than reworking the lot, so a batch-wide pattern goes back to the moulder.

3. Inspection order

Sequence decides whether a good waterproof box with lid is judged bad:

Gasket: joint cut at 45 degrees, butted within 0.3 mm, standing 0.5 mm proud.
Latches: symmetrical pressure points, under 1 mm of lid movement, 300 N each.
Hinges: gap re-checked after 5,000 cycles; above 0.8 mm, replace the bush.
Air test: last, or the result describes assembly rather than sealing.

Four steps, about three minutes a case.

4. Water tests and their costs

Three methods, three different questions.

Waterproof box with lid: a charcoal hard-shell trolley case standing in a cabin aisle, grey fabric seats and oval windows on both sides

Method	Lot time	Per unit	Misses
Spray, 30 min	4 hours	2 yuan	Slow seepage
Vacuum, 60 s	1.5 hours	3 yuan	Shell deformation
Immersion, 30 min	6 hours	5 yuan	Joint creep

Spray proves only that nothing leaked at that moment. Vacuum finds 0.05 mm paths and needs a pump and plugs. Immersion is closest to service and eats floor space. The usual split is immersion on first articles, vacuum on production samples, spray before dispatch, under 4 yuan a unit.

5. Sampling: the 13 and the 26

A 240-piece lot at general level II, AQL 1.0, samples 13 with an accept number of zero.

One leak in those 13 does not kill the lot. Draw 26 more: if all pass, accept and tag that case; a second failure returns the lot. The rule separates a short shot in one cavity from a gasket batch or tool problem.

6. Disposition of failures

Rework of the waterproof box with lid at 26 yuan a case covers strip-down, a new gasket and retest, and suits lots with sound shells. Concession at 8% off, about 15 yuan, covers cosmetics only. Return costs 3,200 yuan and 14 days of schedule.

Most plants fail at the second door. Under delivery pressure a functional defect is booked as cosmetic, and a waterproof box with lid that leaks three months later costs far more than 15 yuan.

Conclusion

Accepting a waterproof box with lid costs 18 yuan of gasket, latches and testing, against a 3,200 yuan rework bill that would buy 170 new cases. Put the four numbers on the receiving sheet, a 0.3 mm gap, 25% to 30% compression, 300 N retention and 1 kPa decay, and the rework rate falls. The 6 yuan saved on a gasket is always paid by someone else later. Buy a waterproof box with lid on test data, not on unit price.

This article discusses only the container (case body) side of specifications and design intent, and does not cover any handling, loading or use of the contents.
