How is an armoury cabinet layered?

A: Three layers by weapon type, aligned with the register so counting needs no cross-referencing.

Why single layer at a checkpoint?

A: Small capacity makes three layers wasteful; a single layer keeps access between waist and chest.

How is a field store cabinet fixed?

A: Ballast, an anti-tip bracket against a wall, and straps to a structural element — anchors are unreliable.

What may vary by site?

A: Shelf count, locking and fixing; wall thickness, lock bar and frame reinforcement may not.

How is moisture handled in a field store?

A: Desiccant checked weekly, cabinet raised a hundred millimetres with airflow underneath. ---

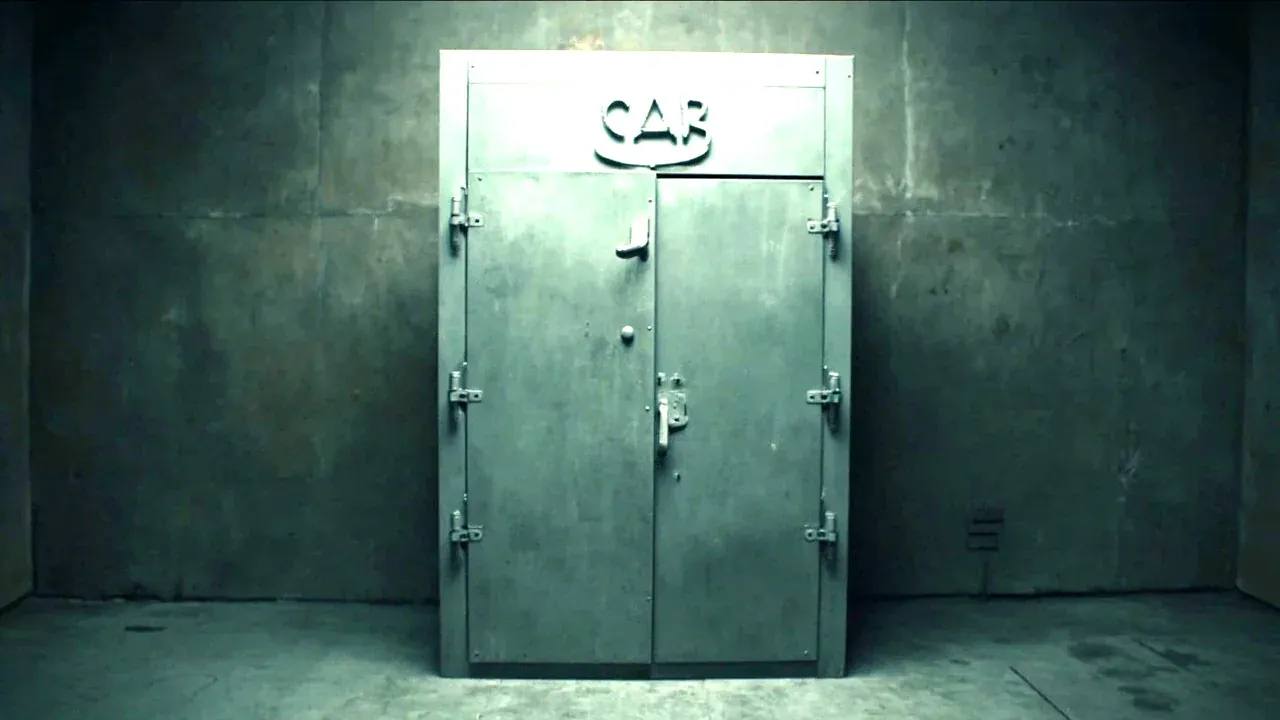

Weapon Storage Cabinet in Armoury, Checkpoint and Field Store

Quick answer: The same weapon storage cabinet needs different configuration in an armoury, a checkpoint and a field store: the armoury sizes by register and layering, the checkpoint by seconds to access, the field store by whether it can be anchored.

How configuration differs across three sites
Armoury: counting efficiency first
Checkpoint: the shortest access path
Field store: fixing decides usability
What is shared and what differs
FAQ

1. How configuration differs across three sites

An armoury is stable in stock, strict in control and low in access frequency: capacity from the register plus twenty percent, three layers by weapon type, three-point locking with key tiers. Counting and traceability matter, not speed.

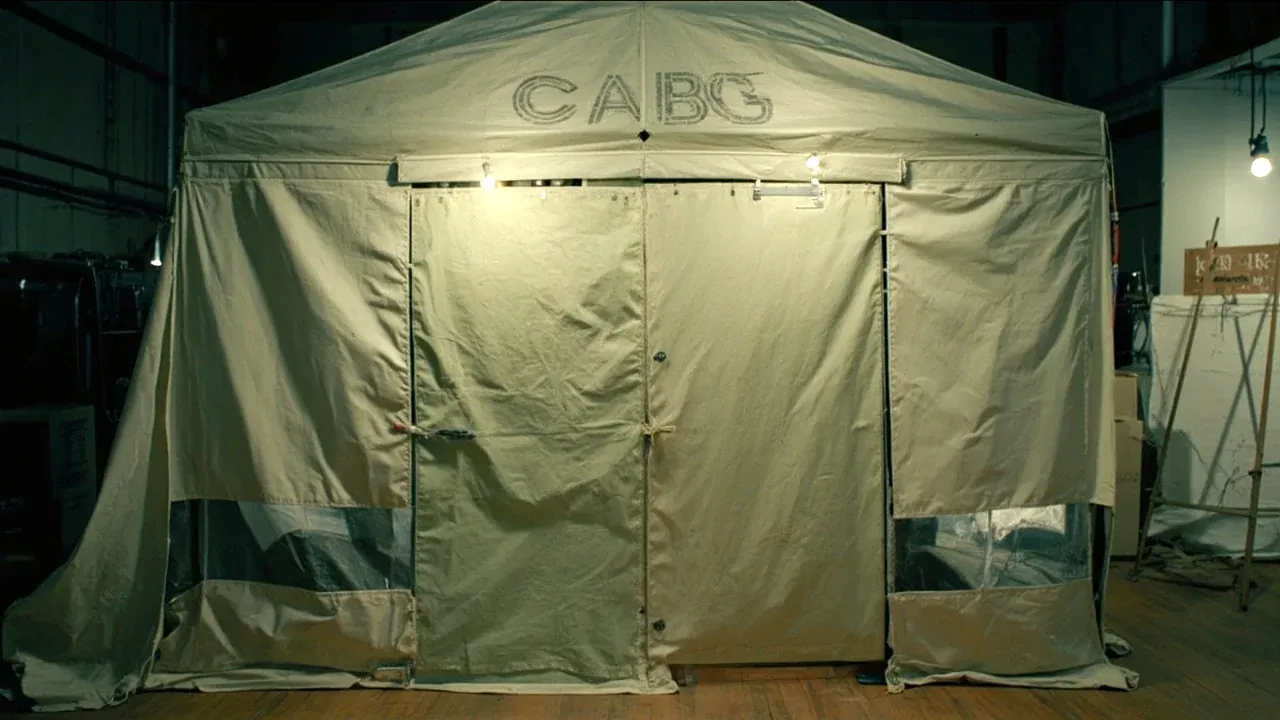

The cabinet in a temporary store on a timber floor, doors closed, no people

A checkpoint has small stock, frequent access and no time to lose: capacity for the shift's equipment, but the door and the draw must be short. Access path dominates, and nothing inside should block the hand.

A field store has uncertain ground and may move at any time: the cabinet must be stable without floor anchors, usually an anti-tip bracket plus ballast. Stability is the metric, and it never shows in a photograph.

Site	Capacity	Layering	Fixing and locking
Armoury	register plus 20 percent	three layers by type	anchors, three-point lock, key tiers
Checkpoint	the shift's issue	single layer, shortest path	wall plus anti-tip, single lock with log
Field store	varies by task	two adjustable layers	ballast and straps, through-pin lock

2. Armoury: counting efficiency first

An armoury cabinet should allow a rough check before opening and an item-by-item one after. Align the internal zones with the register: if the log is paginated by weapon type, the cabinet layers by type, and checking stops requiring cross-referencing.

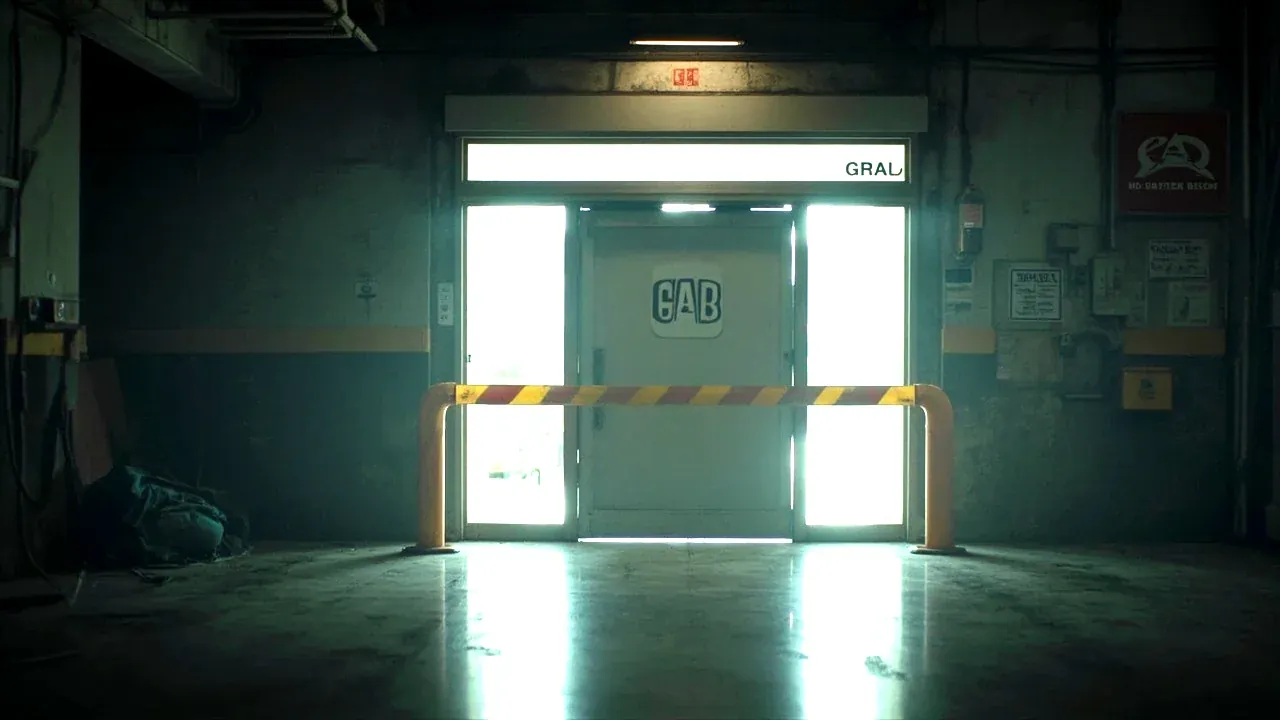

The cabinet at a checkpoint entrance, anchored to the floor

Door type affects speed: double doors can be checked from both sides at once, but they need a wider aisle. Below two metres, a single door is easier in practice.

3. Checkpoint: the shortest access path

A checkpoint cabinet serves only the shift's issue, so capacity is small and mistakes are easy: copying the armoury's three layers leaves one or two weapons per layer and forces bending or reaching.

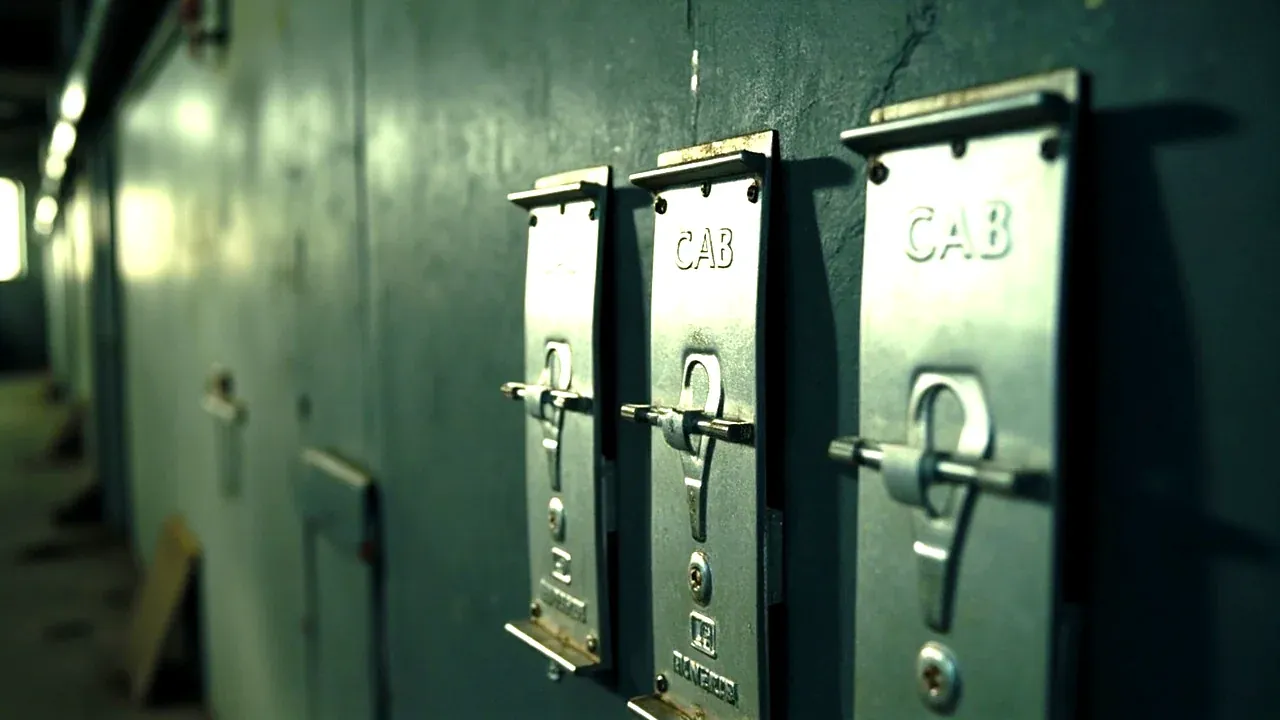

Three cabinets in a row along a wall, all closed

Keep it single or double layer, with access between waist and chest. Simplify the opening to one lock and one door, with no second divider inside. In time-sensitive work that beats any security feature, because a slow second is an exposed second.

4. Field store: fixing decides usability

Field floors may be concrete, timber or gravel, so anchors are unreliable. Three options work: ballast in the base, an anti-tip bracket braced against a wall, and straps tied to a structural element — they can be combined.

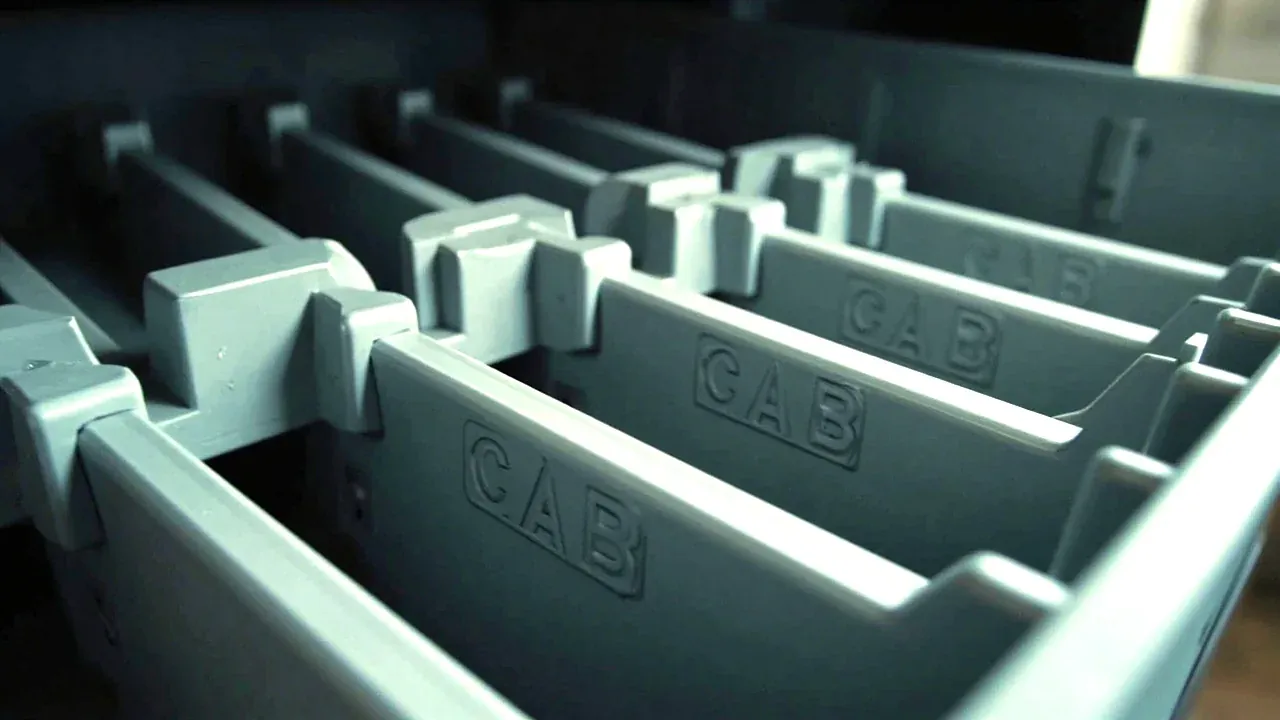

Close-up of the internal shelf and dividers with empty cradles

Moisture matters as much: field stores rarely have dehumidifiers, so desiccant goes inside and is checked weekly, with the cabinet raised a hundred millimetres for ventilation. Temporary stores usually last longer than planned.

5. What is shared and what differs

One model can serve all three, with configuration differing in three places: shelf count, locking, and fixing. What must not change is the body — wall, lock bar and door frame reinforcement are never downgraded.

The line is simple: anything tied to a management action may vary, anything tied to structural strength may not. That prevents a thin-walled unit at a checkpoint for speed, or a light one in a field store for portability.

Conclusion

Three sentences: the armoury reads counting, the checkpoint reads access, the field store reads fixing. One model is fine; one configuration is not. Management may vary, structure may not. One more point: lighting differs sharply between these sites, and a low-voltage strip inside the cabinet prevents more mistakes than an extra lock.

This article covers container-side specifications and design implications only, not the handling, loading or use of the contents.
