Should the large plastic storage box manufacturer amortise tooling into the unit price?

Answer: Separate is clearer. A tooling line with cavity count and ownership keeps the unit price about the box alone.

Why do two quotes from one supplier differ?

Answer: The resin date moved. PP swings 500 yuan per tonne, or 4.3 yuan on an 8.6 kg box.

Which machine should I check in a large plastic storage box manufacturer audit?

Answer: The one scheduled for your job. Note tonnage, tie-bar gap and platen daylight.

Can we skip the cut sample on a large plastic storage box manufacturer run?

Answer: Better not. A cut section is the only proof of wall thickness and rib position.

Can loading quantity be fixed in the contract?

Answer: Yes, as a minimum per 40HQ with a loading plan, supplier paying shortfall freight.

Is a 60-day payment term a good deal?

Answer: Look at the tail: 30% down plus 10% retention ties acceptance to the report.

Large plastic storage box manufacturer quotes: why a 30% gap?

Quick answer: A 30% spread between quotes rarely sits in the unit price. It sits in the press a mould size demands, the weight a wall produces and the freight a 40HQ absorbs. Dropping 3.4 mm to 2.7 mm saves 0.9 kg and 11% of price, taking the stacking margin with it.

Why Quotes Differ by Thirty Percent
Machine Size Sets the Quote
Wall Thickness and Weight
Sampling: Eighteen Days to a Signed Sample
Loading and the Freight Share
Tooling Ownership, MOQ and Payment
FAQ

1. Why Quotes Differ by Thirty Percent

One 1200 × 800 × 640 mm drawing sent to three suppliers returns 428, 396 and 371 yuan. Add tooling amortisation and freight basis and the landed spread hits 30%: three presses, three walls, three packings.

Item	A	B	C
Unit price	428 yuan	396 yuan	371 yuan
Nominal wall	3.4 mm	3.0 mm	2.7 mm
Unit weight	8.6 kg	7.9 kg	7.4 kg
Units per 40HQ	84	96	108

Picking the cheapest quote from a large plastic storage box manufacturer is the easy mistake: half its advantage is wall, half load count, both visible after goods land.

2. Machine Size Sets the Quote

Ask only for outline dimensions and every large plastic storage box manufacturer says yes; ask for projected area and mould envelope and a press model comes back.

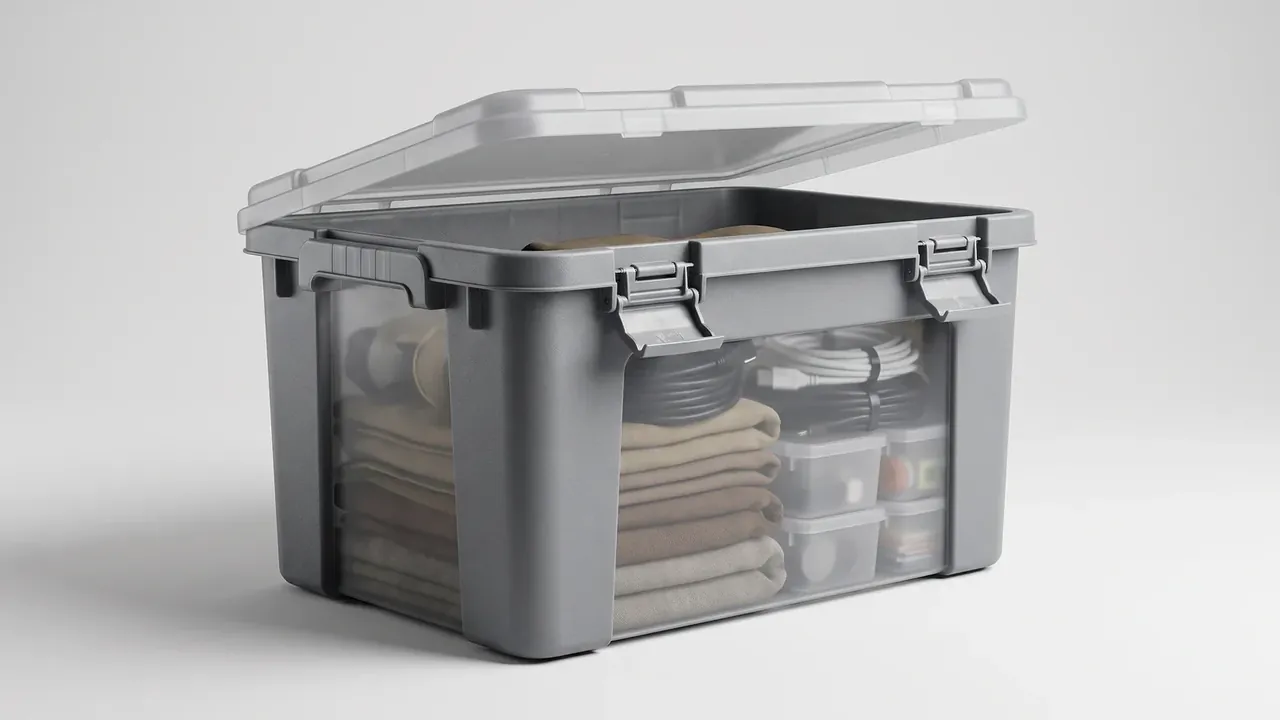

Large plastic storage box manufacturer: a grey box with transparent side panels showing folded cloth and coiled cables, lid raised, two black latches

A 1200 × 800 mm base is 9,600 cm². At the 0.22 t/cm² clamp ratio for PP crates that means 2,112 t, so 2,500 t is practical.

The mould sets limits too: a 640 mm tall box needs about 850 mm of stack inside a 900 mm platen daylight, and the 1.75 × 1.35 m body must pass a 1.9 × 1.6 m tie-bar gap. Break one and the job climbs a machine size.

3. Wall Thickness and Weight

Wall thickness sits on the drawing, weight on the quote. A 3.4 mm box weighs 8.6 kg, a 2.7 mm box 7.4 kg, and at 20 yuan per kg that line is 24 yuan of the 57 yuan gap.

Wall	Weight	Deflection at 500 N	Price index	Risk
3.4 mm	8.6 kg	2.1 mm	100	Costly, heavy
3.0 mm	7.9 kg	3.4 mm	93	Liner above four layers
2.7 mm	7.4 kg	5.2 mm	87	Cracks in a 1.2 m drop

Thin walls work with ribs and radii; the quote to catch says 3.0 mm and delivers 2.6 mm. Cut a sample and measure three points; anything over 0.3 mm under nominal fails.

4. Sampling: Eighteen Days to a Signed Sample

Ask any large plastic storage box manufacturer for a schedule and 18 days is realistic: two days of review, three of mould design, eight of machining, two for T1 and three for changes. Review is where schedules die. Unsettled chamfers, draft angles or stacking step mean every change strips the mould and re-heats the barrel. T1 gives three samples: one cut, one dropped, one filed. The first-article report covers twelve items, at ±0.6 mm on the outline, ±0.15 mm on wall and 1.5 mm flatness. PP shrinks 1.6% to 1.9%, so that band belongs in the design, or two batches differ by 2 mm and the lid groove stops gripping.

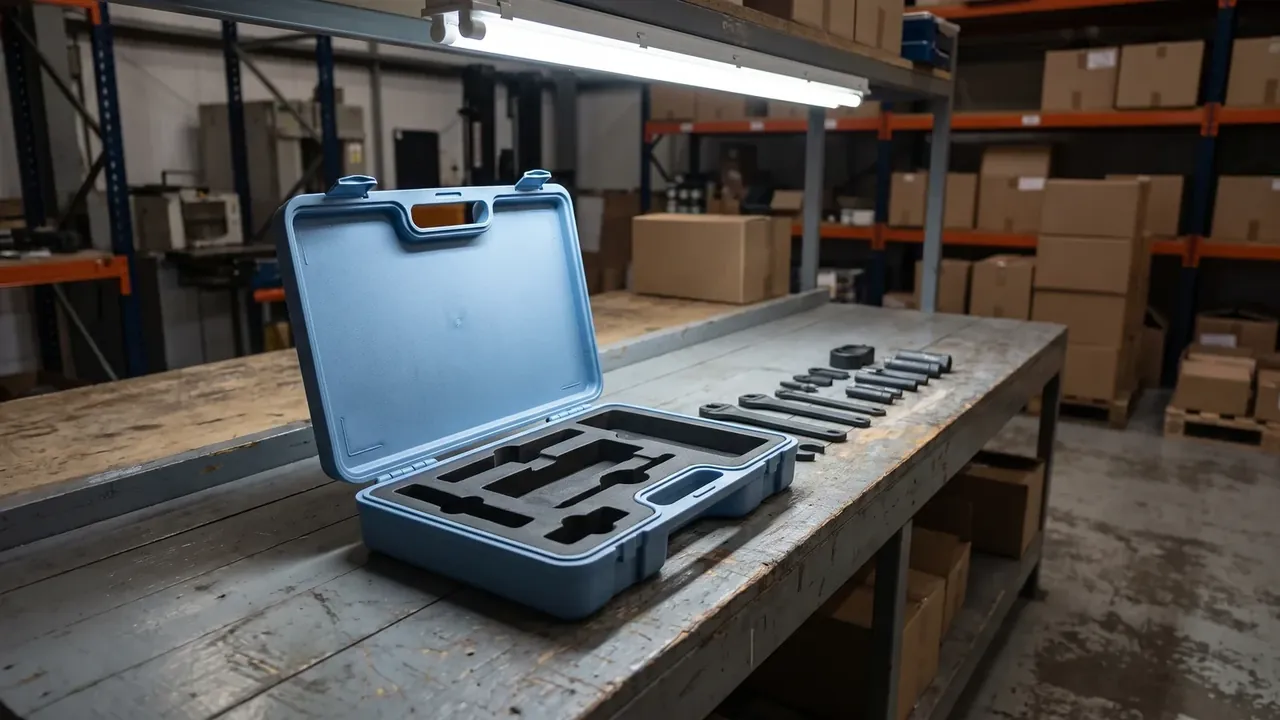

Large plastic storage box manufacturer: open blue case with foam tool cavities on a workshop bench, spanners in a row, racking behind

Fees: 3,000 yuan refunded above 500 units, or free samples against full tool prepayment refused.

5. Loading and the Freight Share

Freight is not a rounding error for a large plastic storage box manufacturer. A 40HQ runs about 12.03 × 2.35 × 2.69 m; laid down, a 1200 × 800 × 640 mm box fits 24 per tier over four tiers, 96 in theory, 84 to 96 once pallet thickness and tolerance bite. At 24,000 yuan per 40HQ, 84 units carry 286 yuan each and 96 carry 250, a 36 yuan gap near 8% of unit price.

Lock the basis into the enquiry:

Pallet thickness: 18 mm against 25 mm costs 7 mm per tier, 28 mm over four.
Tolerances: quote the upper limit, or a top-of-range batch will not fit.
Discharge: slip sheets free 0.15 m³ and four units.

For 600 units, 84 per 40HQ means eight loads, 96 means seven; one load is 24,000 yuan, more than 3 yuan off a unit price.

6. Tooling Ownership, MOQ and Payment

Tooling at 86,000 yuan, one cavity, 300,000 shots: all three belong in the annex. Ownership with the buyer, no repeat charge, retrieval after twelve months idle.

MOQ runs 300 per batch, with changeover below 200. Terms of 30% deposit, 60% against a bill copy and 10% after acceptance tie the tail to the report.

Conclusion

Comparing quotes from a large plastic storage box manufacturer is less about the lowest number than about who reads the drawing the same way. Match the press to the projected area, the wall to the weight, the loading plan to the freight, and the remaining difference is real. Put those three into the annex and a 30% spread becomes a few negotiable points with any large plastic storage box manufacturer.

This article discusses only the container (case body) side of specifications and design intent, and does not cover any handling, loading or use of the contents.
