Why do quotes from Pelican style plastic case suppliers differ by a factor of two?

Answer: Mostly wall thickness, resin grade and seal design. PP at 3.2 and 4.5 mm differs by 40 percent in weight, and six latches with a double lip sit above four single-lip ones.

How can specification parity be checked without relying on a brand?

Answer: List interior size on three axes, measured wall thickness, resin grade, latch count, gasket hardness, compression and the report standard. All six in one band means parity; one crossing means re-pricing.

Will mass production match the sample?

Answer: Not automatically. Tool wear, resin switches and shift changes move the part, so sign a first-article sample and check three cases per batch at ±1.5 mm.

Is a third-party report always required?

Answer: No. In-house reports suit internal acceptance; tenders and exports need third-party reports matching the ordered size.

Can small orders reach volume pricing?

Answer: Yes, through stock tooling or a colour change. A new mould amortised over 1,000 pieces will not pay back at 300, so most Pelican style plastic case suppliers start buyers on stock tooling.

Pelican Style Plastic Case Supplier: How Alternatives Compare

Quick answer: Compare interior size and wall thickness, then resin and seal design, then test protocols, then MOQ, lead time and price. In that order, quotes from any Pelican style plastic case supplier become comparable.

What a Pelican Style Plastic Case Supplier Is Compared On
Interior Volume and Wall Thickness First
Resin, Latches and Seal Architecture
Aligning Test Protocols and Certificates
MOQ, Lead Time and Price Bands
FAQ

1. What a Pelican Style Plastic Case Supplier Is Compared On

Pelican is a well-known name in hard cases. The brand and its trademarks belong to their owner, and this site does not sell that brand's products. A Pelican style plastic case supplier here means a moulder with comparable specifications and interchangeable dimensions.

Dimension	Evidence
Interior size	Three-axis drawing with tolerances
Wall thickness	Sectioned part or ultrasonic log
Resin grade	Certificate and melt index
Latches and seal	Cycle test, compression record
Test protocol	Report number and expiry
MOQ and lead time	Scheduling clause

Normalise first: a 445 × 325 × 155 mm interior and a 500 × 380 × 175 mm exterior cannot sit side by side, so measure the interior at its narrowest point.

2. Interior Volume and Wall Thickness First

Interior size decides what fits, wall thickness what survives, and neither changes later. Ask a Pelican style plastic case supplier to quote three axes with measuring points: 445 × 325 × 155 mm at ±1.5 mm, R8 bottom corner, about 1 mm extra draw.

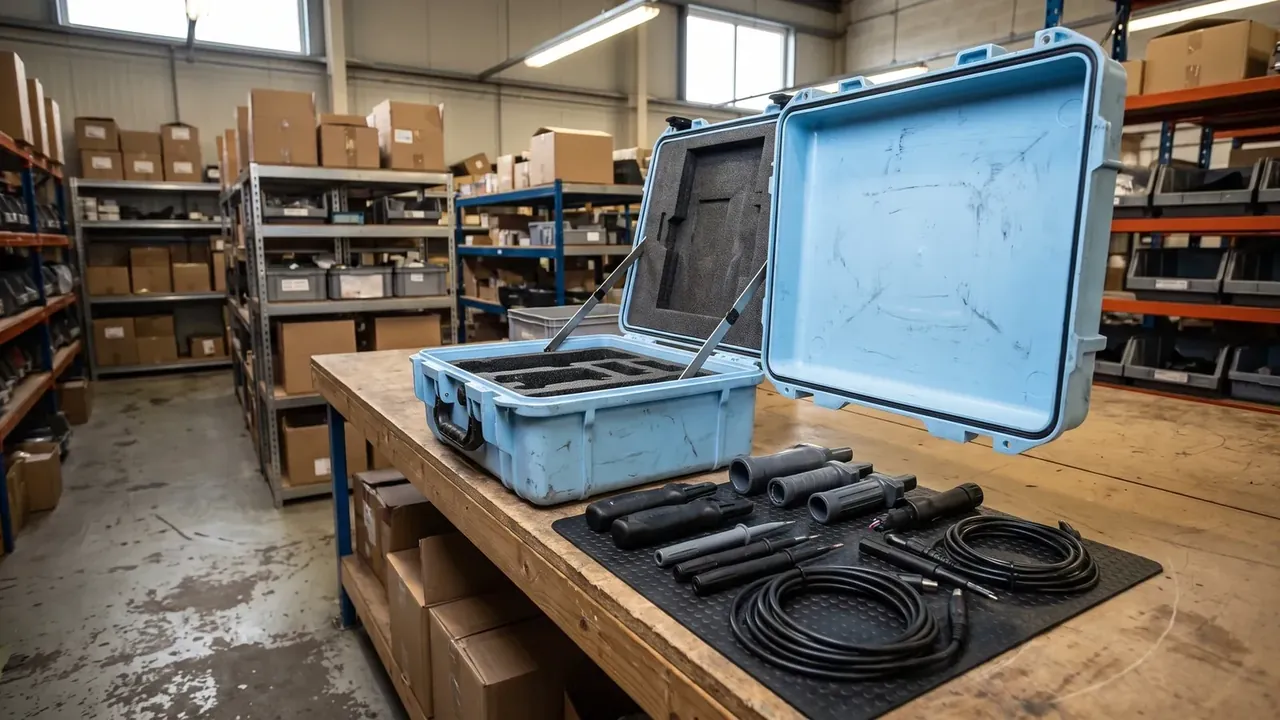

Light blue case open on a wooden bench, grey foam insert, lid held by metal stays

Class	Interior	Wall	Load
Small	300 × 225 × 130 mm	2.8 mm	under 8 L
Medium	445 × 325 × 155 mm	3.2 mm	about 22 L
Large	620 × 470 × 280 mm	4.5 mm	about 80 L

A 3.2 mm PP case that survives ten 1.2 m drops onto concrete covers most transit duty; 4.5 mm adds 40 percent to weight for modest gain.

3. Resin, Latches and Seal Architecture

PP stays ductile at minus 20 degrees Celsius, ABS finishes cleaner, and HDPE resists chemicals but needs ribs at large sizes. Ask for grade and melt index.

Four latches pull two per side; six add two at the front edge for an even seal load. Gaskets run Shore A 55 at 25 to 30 percent compression: too little leaks, too much sets.

Ask a Pelican style plastic case supplier whether the hinge uses a continuous 316 pin or a segmented one, then run 5,000 cycles and retest the seal.

4. Aligning Test Protocols and Certificates

The same IP67 claim hides different tests: 1 m of water for 30 minutes, fully submerged. Some labs cut the dwell to 10 minutes and still print IP67.

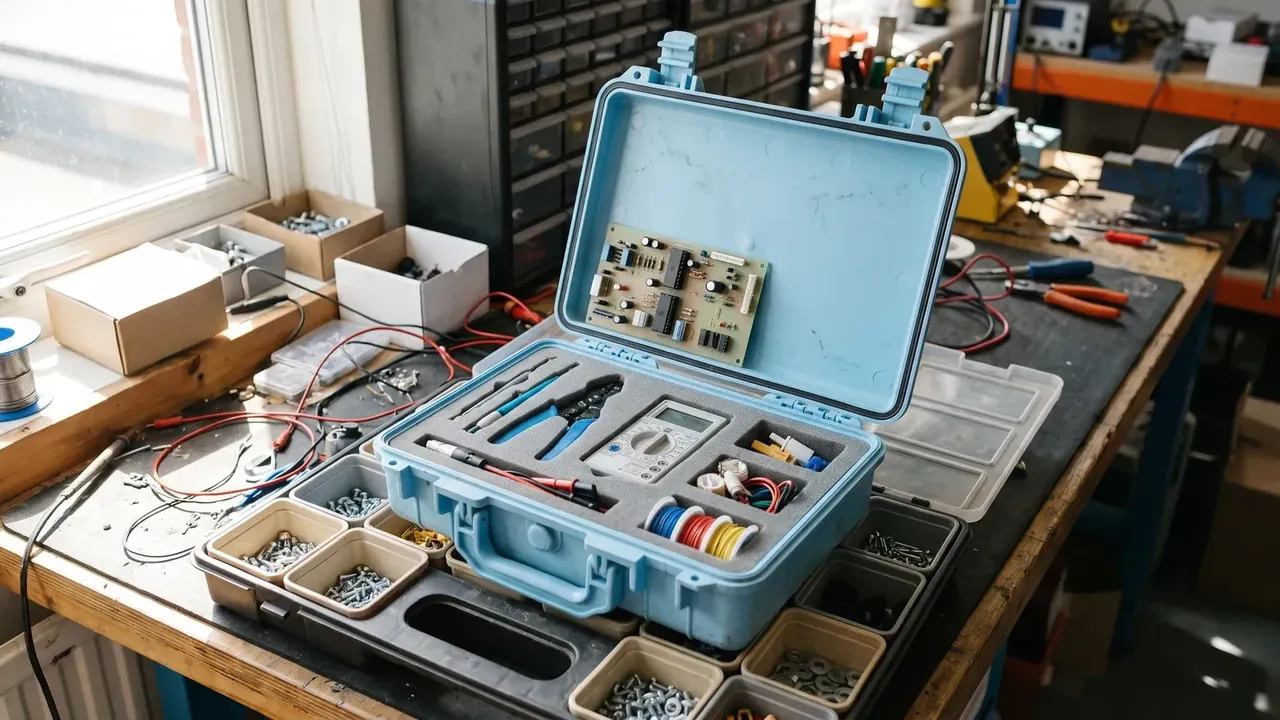

Light blue case open by a window, foam cutouts holding a meter and tools

Drop testing varies more: 1.2 m, six faces, three edges, one corner, ten drops. Ask a Pelican style plastic case supplier for the sequence, not a verdict.

Pins in 304 stainless rust after 48 hours of salt spray; 316 holds to 96 hours.

5. MOQ, Lead Time and Price Bands

A 300-piece order at 22 working days may cost 15 percent more than 1,000, yet inventory carry often closes that gap.

Band	MOQ	Lead time	Price
Stock tooling	50 pcs	7 days	45 to 80 CNY
Custom colour	300 pcs	22 days	60 to 110 CNY
New mould	1,000 pcs	45 days	110 to 180 CNY

Prices are ex-works, excluding tax, freight and pallets. Confirm tooling, insert and test fees, which swing 20 percent.

Twenty-two working days from order confirmation is not the same as from drawing approval. That clause is what a Pelican style plastic case supplier is least likely to volunteer.

Conclusion

Comparing alternatives means putting six measurable dimensions on one sheet and replacing catalogue values with measured ones. A ±1.5 mm interior tolerance, walls of 3.2 and 4.5 mm, gasket compression of 25 to 30 percent and a 22 working day lead time belong in the inquiry. Brands change, specifications do not, so judge a Pelican style plastic case supplier by the sheet, not the name.

This article discusses only the container (case body) side of specifications and design intent, and does not cover any handling, loading or use of the contents.
