Blow moulded or injection moulded Portable Tool Box, how do I tell?

Answer: Look at the parting line: blow moulding leaves it at mid-height with a wall running 3.4 mm to 2.6 mm; an injected body is even.

Why thicken the handle root?

Answer: Stress concentrates there. At a 3 mm wall a repeated 25 kg lift whitens the root, then cracks it; 5.2 mm with an R10 fillet spreads the load.

Is a 6 mm tray overlap enough?

Answer: Yes. It carries the tray and 4.5 kg of tools, not a drop. Below 4 mm the tray slips out once the body shrinks in the cold.

Is 0.8 mm of latch interference too tight?

Answer: It suits room temperature. POM stiffens at minus 20 °C, so past 1.2 mm it needs two hands; below 0.5 mm the lid releases.

Are corner bumpers always better than a thicker corner?

Answer: No. For light indoor work a 4.5 mm corner is enough; where a case goes in and out of vehicles daily, the TPE layer earns its second shot.

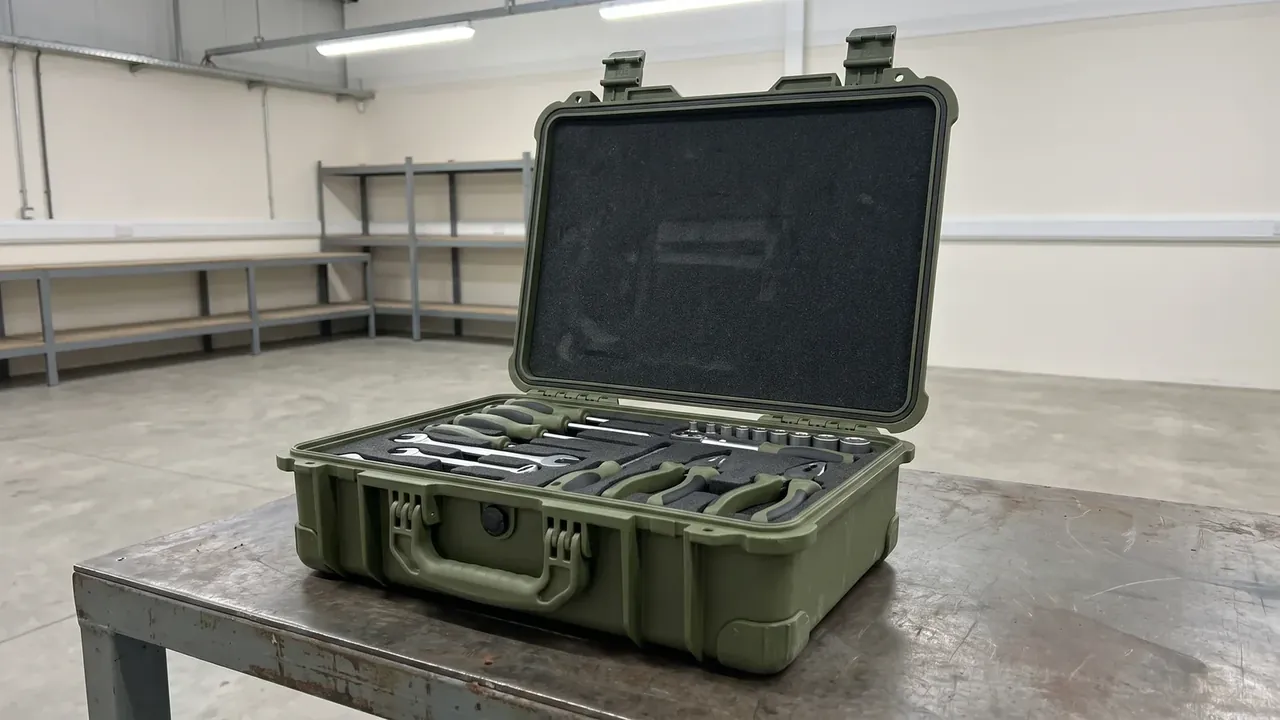

Portable Tool Box: Five Details That Decide Its Life

Quick answer: A Portable Tool Box lives or dies on five drawing decisions: moulding route and wall, the load path at handle and strap anchors, tray overlap in the rim, latch and hinge interference, and the wear layer at base and corners.

How a Portable Tool Box Body Is Moulded
Handle and Strap Load Paths
Tray Layout and Compartment Spacing
Latches, Hinges and Interference
Base Ribs and Corner Wear
FAQ

1. How a Portable Tool Box Body Is Moulded

A Portable Tool Box body follows one of two routes. Blow moulding runs HDPE through a 140 mm parison and a 2.6 mm die gap at a blow ratio near 2.4, leaving a 3.4 mm wall with corners near 2.6 mm. Injection moulding runs PP at a flat 2.6 mm, keeps corners crisp and moulds cells in the same shot, at the price of a 650 tonne press.

Flash at the parting line stays under 0.3 mm, or two cases grip each other on a shelf.

Route	Wall	Cavity accuracy	Tooling
Blow moulded HDPE	3.4 mm, 2.6 mm low	medium	low
Injection moulded PP	2.6 mm, even	high, cells in one shot	650 t press

2. Handle and Strap Load Paths

The handle is lifted thousands of times, so its root thickens from 3.4 mm to 5.2 mm with an R10 fillet: 25 kg static, run at 1.2 times that for two thousand cycles without whitening.

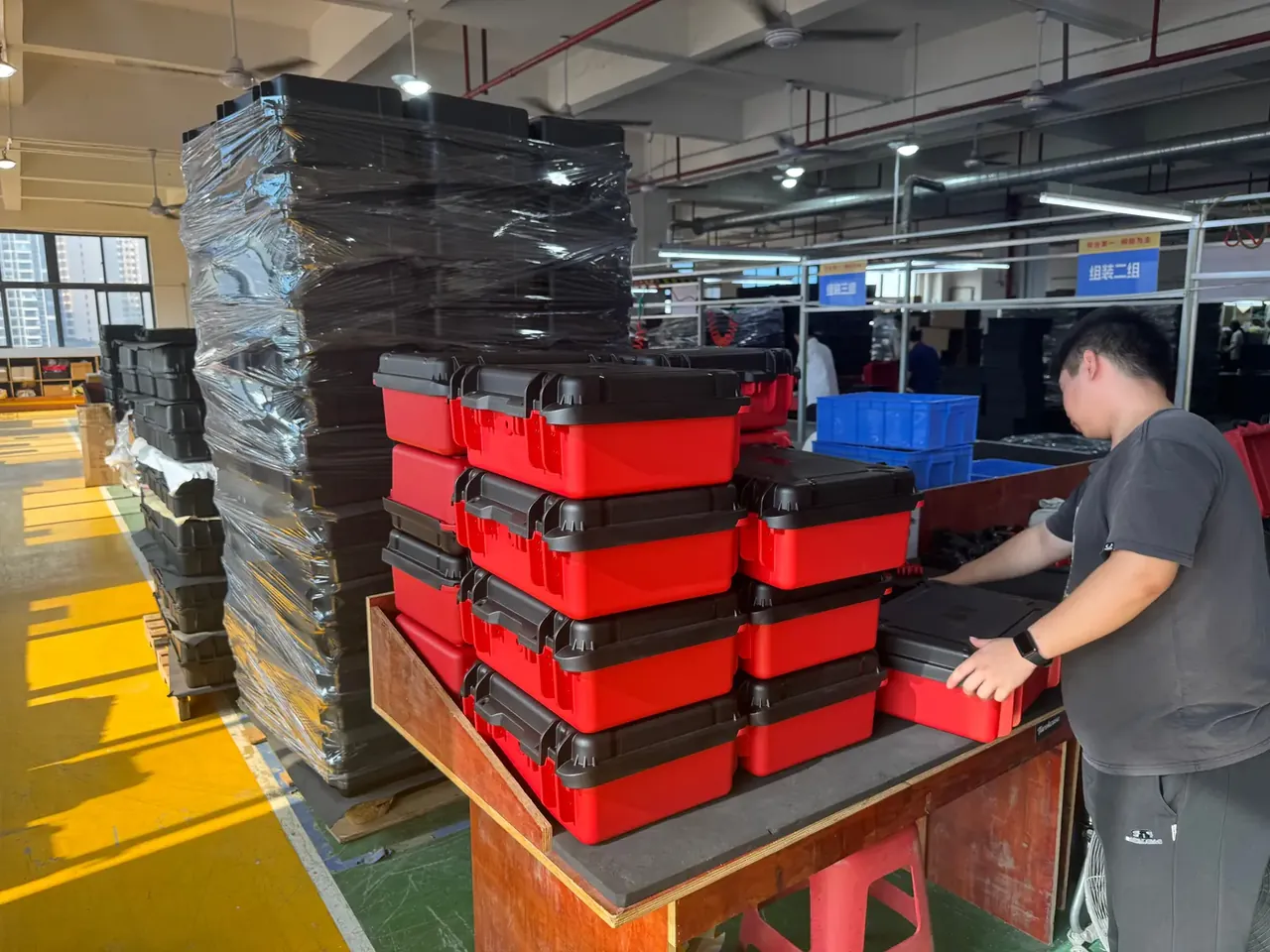

Portable Tool Box: red bodies with black lids stacked six high on a bench, a worker steadying the top case, wrapped stacks behind

A folding handle on a 6 mm pin sits flush, but its bosses land at the lid corner where a drop will find them, so each carries a 5 mm pad. Strap anchors are a separate job: below a 3 mm wall, an M6 insert rated at 1.6 kN replaces any moulded eye.

Carry method	Load path	Detail
Moulded handle	root into the wall	5.2 mm, R10
Shoulder strap	two inserts share load	M6, 1.6 kN

3. Tray Layout and Compartment Spacing

A tray inside a Portable Tool Box is usually PP: dividers 1.6 mm, cells 90 by 70 mm, sag under 2 mm with 4.5 kg aboard. It hangs on a 6 mm overlap turned into the rim, which also stops fore-and-aft slide.

Leave 3 mm between cells so fingers fit, and 5 mm to the wall, since the wall bows inward on impact and a tight cell will split. Slotted 2 mm dividers on a 25 mm pitch let users rearrange; a moulded grid is stronger but fixed.

4. Latches, Hinges and Interference

Each latch holds about 380 N, two opposite each other, tongue interference 0.8 mm. Less and the lid pops open on a washboard road; more and a gloved thumb cannot shut it in winter. POM tongues run on PP without grooving the seat, and since the ribs behind the seat crack first, two 3 mm ribs beat a thicker tongue.

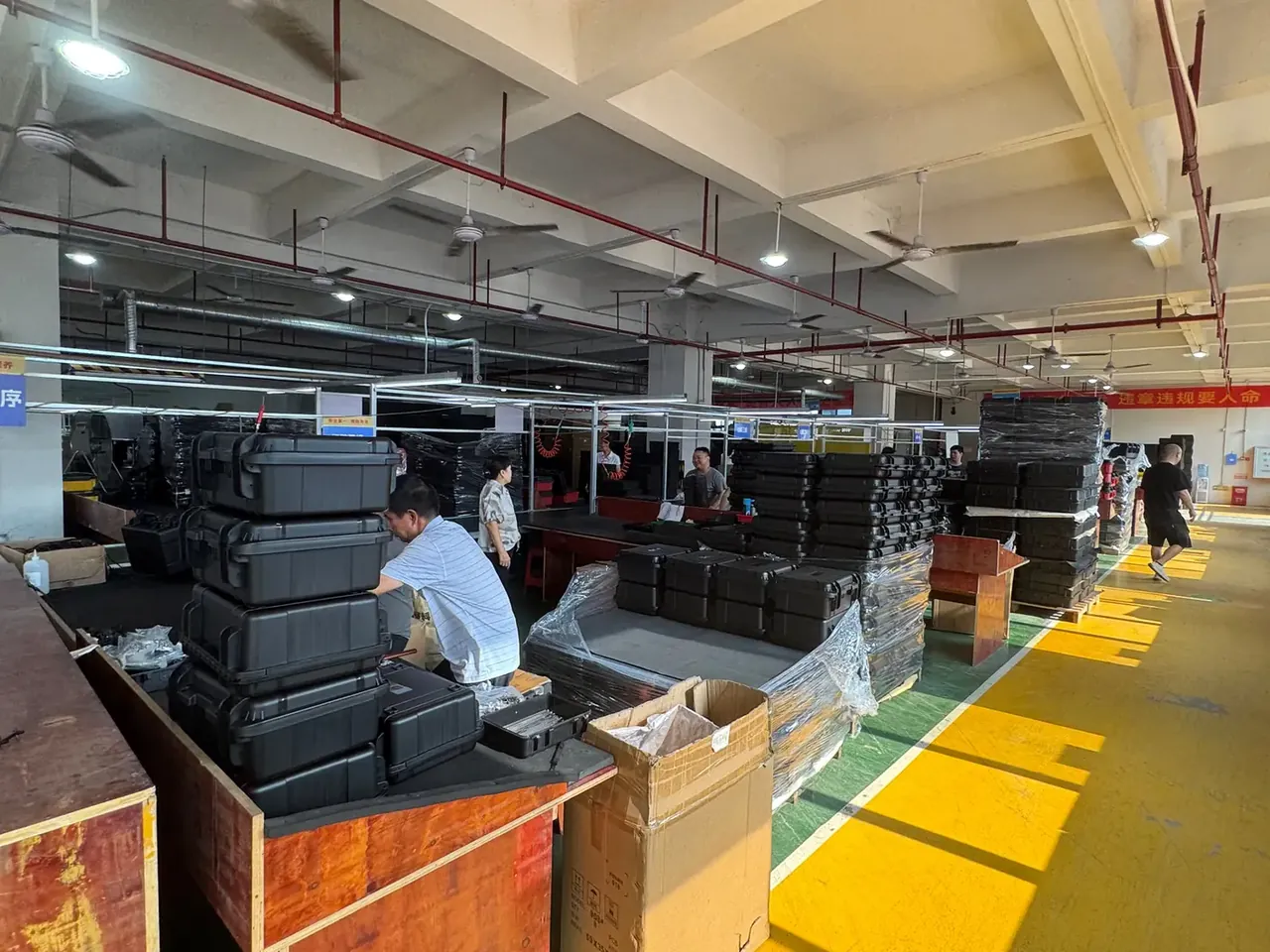

Portable Tool Box: black cases four or five high on a timber bench, an inspector leaning over a lid, wrapped pallets beside

A 1.2 mm living hinge is cheap but lasts about three thousand folds before it whitens; a 4 mm stainless pin through two 4 mm bosses, stopped at 105 degrees, avoids that.

5. Base Ribs and Corner Wear

Cross ribs 8 mm tall at 55 mm pitch spread a landing impact; a wider pitch lets 30 kg bow the floor until the case rocks.

Corners take the first hit, so a second-shot TPE bumper at 70A and 4 mm deforms and recovers; without it the wall goes to 4.5 mm with an R12 radius. At minus 20 °C PP keeps about forty percent of its impact strength, so a Portable Tool Box bound for cold sites has no bumper-free version. Six drops from 1.2 m, one per face, no crack, no latch release.

Base and corner	Abrasion	Impact	Cost
Flat base with ribs	fair	fair	one shot
4 mm TPE bumpers	good	good	second shot

Conclusion

The five details form one chain: the moulding route fixes the wall, the wall lets handle and hinge root, the tray sets where ribs can sit, and latch and bumper take the hit outside. Walk that chain on paper and the Portable Tool Box is ready for steel.
