A four and a half metre carbon rod rides three hundred kilometres on a roof rack and arrives with a ring of blushing at the second ferrule that is almost invisible to the naked eye. Three days later, on the first bend of a hooked fish, it snaps in two. The fracture is clean, the finish is unmarked, and no guide has shifted. Without that ring of whitening nobody would connect the break with the journey. Most tackle losses do not announce themselves at the moment they happen. A reel left in a beach hut for two months sees its starting torque climb from 0.15 to 0.4 newton metres. Lure hooks grow a film of surface rust in a damp cabin. A fish finder fails its power-on self test after a wet season in a car boot. None of these are cosmetic damage. They are latent failures of the kind that surfaces only on the water, when responsibility can no longer be assigned.

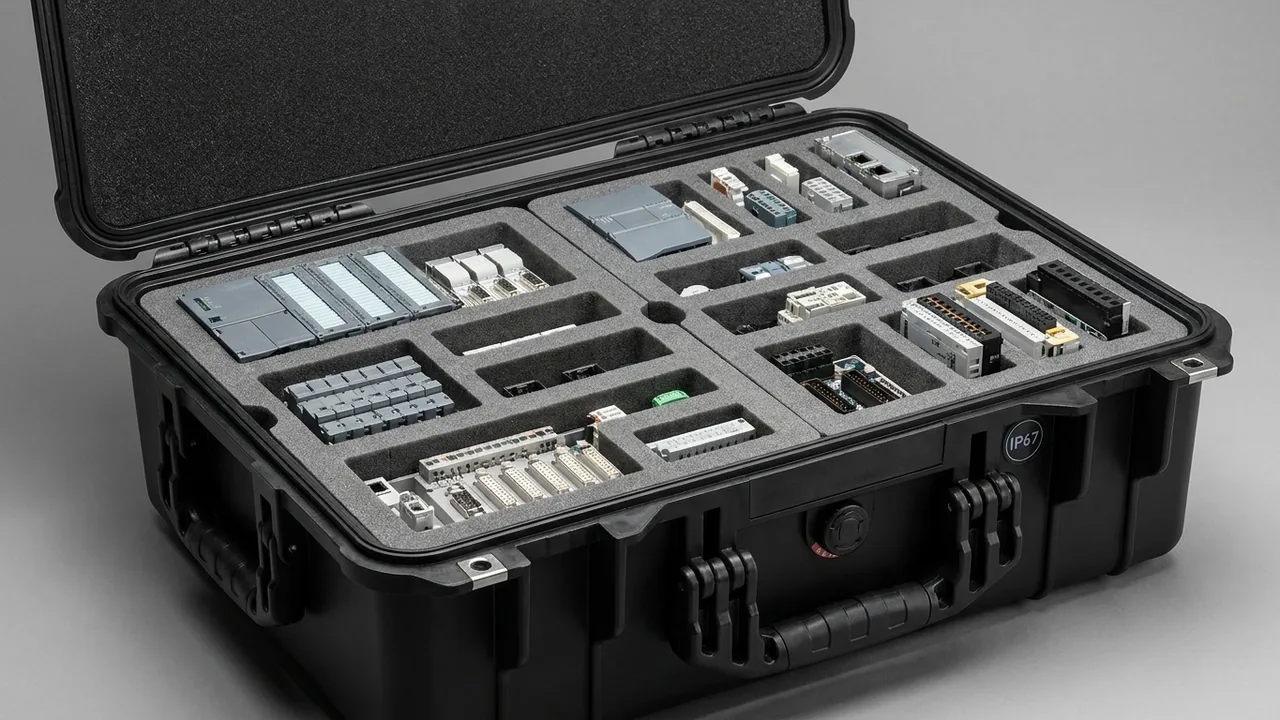

The objective of tackle protection is not an undamaged case but a case that is ready to fish the moment it is opened: the shell must hold shock acceleration, salt-laden moisture, wet-dry cycling and rod bend restraint simultaneously inside the window the gear itself allows. JUNZHIJIA builds fishing tackle cases on four layers. The shell carries stacking, puncture and deck impact loads. A closed-cell liner carries energy absorption and location. Compartmentalisation carries isolation and drainage. The sealing and desiccant system carries salt spray and condensation control. Drop any one layer and the loss does not appear at delivery; it appears on the next trip out, as a broken blank, a stiff reel or a rusted hook.
Table of Contents
- 1. The Tackle Failure Map: From Blank Whitening Rings to Reel Starting Torque Drift
- 2. Angling Gear Classes and the Protection Requirements Matrix
- 3. Case Material Selection: Where PP Copolymer, ABS and Rotomoulded LLDPE Divide
- 4. Ingress Protection: How IP65 and IP67 Divide the Wet-Service Envelope
- 5. Salt Spray and Wet-Dry Cycling: Corrosion Mechanisms and Material Countermeasures
- 6. Rod Storage: Axial Support, End-Cap Cushioning and Bend Restraint
- 7. Dedicated Bays for Reels and Electronic Devices
- 8. Compartmentalisation for Lures, Hooks and Terminal Tackle
- 9. Cushion Liners: Density Matching and Drainage with EPE, EVA and IXPE
- 10. Latches, Hinges and the Pressure Equalisation Valve
- 11. Transport Test Validation: ISTA, GB/T 4857 and ASTM D4169
- 12. Stacking Load, Cabin Stowage and Vehicle Restraint
- 13. Arrival Acceptance Criteria and the Unpacking Care Routine
- 14. Frequently Asked Questions FAQ
- 15. Conclusion and Related Reading
1. The Tackle Failure Map: From Blank Whitening Rings to Reel Starting Torque Drift
Tackle losses share one signature: they surface late. The case looks undamaged, the latches are intact, the liner shows no permanent set, yet the gear has already crossed its own allowable boundary somewhere between packing and unpacking. Sorting real claim and repair records produces six dominant failure modes, each with a measurable criterion rather than a vague sense that something got worse.
| Failure mode | Direct cause | Field criterion | Structural response |
|---|---|---|---|
| --- | --- | --- | --- |
| Whitening ring and second-section fracture | Point load at a guide foot or ferrule, local stress above interlaminar shear strength | Ring visible against light, kink in the bend curve | Full-length axial support with cushioned end caps, no single-point support |
| Reel starting torque drift | Salt-laden moisture in bearings and the one-way clutch, emulsified grease, salt crystallisation | Starting torque more than 30 percent above factory value | Sealed dedicated bay, desiccant, freshwater rinse routine |
| Lure hook rust and soft bait blocking | High humidity in a closed cavity plus plasticiser migration | Surface rust on points, soft baits stuck together | Divided rigid trays, desiccant, soft and hard baits separated |
| Fish finder and battery failure | Condensation on the circuit board | Self test fails on power up, swollen cells | Waterproof pouch, insulated battery box, desiccant |
| Line degradation | Heat, ultraviolet exposure and long-term compression set | Nylon loses breaking strain, braid fuzzes | Light-proof bay, loose spooling, temperature ceiling |
| Waders and boots mildew | Wet storage in a sealed cavity | Black spotting, odour, tacky coating | Breathable divider, drying, unpack-and-air routine |
What these six share is that none of them declares itself on arrival; each appears at first use. Acceptance criteria therefore have to move from nothing is broken to nothing has changed, writing re-measurable quantities such as starting torque, bend curve and hook condition into the purchase specification.
2. Angling Gear Classes and the Protection Requirements Matrix
Tackle is not one class of object. It is a collection of objects whose governing sensitivities differ completely, and mixing them in a single cavity either forces the liner to be designed for the most delicate item or sacrifices everything else to the coarsest one. The matrix below is the classification input that precedes any compartmentalisation work.
| Gear class | Governing sensitivity | Allowable boundary (engineering reference) | Storage requirement |
|---|---|---|---|
| --- | --- | --- | --- |
| Carbon rods, telescopic or jointed | Bend radius, point load, interlaminar shear | Bend radius not below the blank rated minimum, no local support | Full-length support, individual rod channel, cushioned end caps |
| Reels, spinning or baitcasting | Chloride corrosion, bearing precision, gear backlash | Starting torque within plus or minus 20 percent of factory value | Sealed dedicated bay, desiccant, freshwater rinse on arrival |
| Lures and hooks | Corrosion, point dulling, soft bait blocking | No surface rust on arrival, soft baits not stuck together | Divided rigid trays, desiccant, soft and hard baits separated |
| Fish finders, transducers, cameras | Condensation, ingress, cell state | One-pass power-on self test, no water marks | Waterproof pouch, insulated battery box |
| Line, nylon, braid or fluorocarbon | Temperature, ultraviolet, compression set | Storage below 40 degrees Celsius, no direct sun | Light-proof bay, loose spooling, no hard objects in the same cavity |
| Waders, boots, flotation gear | Mildew, rubber ageing | No spotting, no odour, coating not tacky | Breathable divider, drying, separate cavity |
| Tools, nets, accessories | Impact and abrasion | No loosening, no exposed sharp edges | Accessory bay, isolated from rods and reels |
Once the classification is fixed it belongs in the packing specification and must be maintained with the product revision. Many real cases where a good arrangement later went wrong trace back to one added accessory dropped into a bay originally dimensioned for a reel.

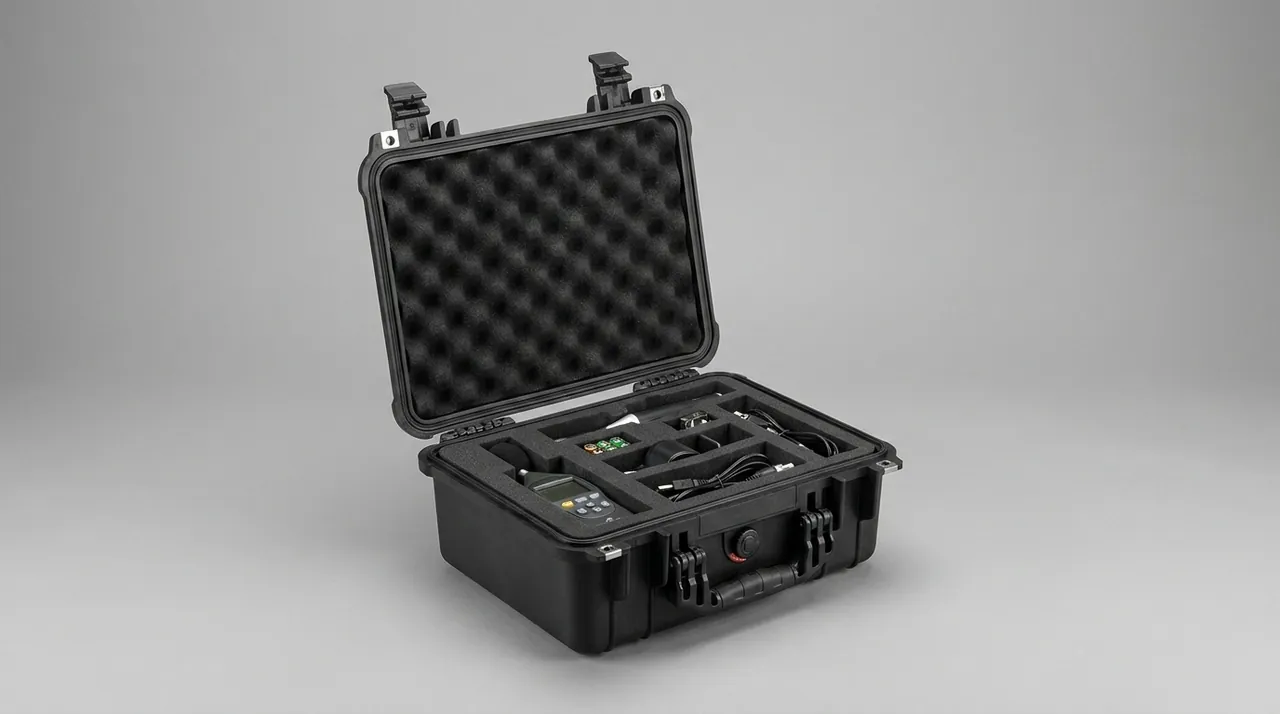

3. Case Material Selection: Where PP Copolymer, ABS and Rotomoulded LLDPE Divide
A tackle case lives in a compound environment of salt, sunlight, temperature swing and deck knocks, so material selection cannot be made on room-temperature impact strength alone. PP copolymer keeps useful toughness below freezing and suits ice fishing and winter transport. ABS delivers higher surface hardness and dimensional stability, which matters when a case must hold precision compartments. Rotomoulded LLDPE, typically four to six millimetres thick, gives the best drop and puncture performance, at the cost of looser dimensional tolerance and a liner that has to be profiled from a measured sample.
| Material | Density (g/cm3) | Service range (degrees Celsius) | Process and wall | Strengths | Constraints |
|---|---|---|---|---|---|
| --- | --- | --- | --- | --- | --- |
| PP copolymer | 0.90 to 0.91 | minus 30 to 80 | Injection, 2.5 to 4.0 mm | Low-temperature toughness, salt resistance, low cost | Modest surface hardness, scratches readily |
| ABS | 1.04 to 1.06 | minus 20 to 70 | Injection, 2.5 to 3.5 mm | Stiff, dimensionally stable, high surface quality | Impact drops when cold, needs UV-stabilised grade |
| Rotomoulded LLDPE | 0.93 to 0.94 | minus 40 to 70 | Rotomoulding, 4.0 to 6.0 mm | Best drop and puncture resistance, integral corner reinforcement | Loose tolerance, liner must be profiled from a sample |
| PC, viewing window or lid | 1.20 | minus 40 to 120 | Injection | Transparent, impact resistant | Poor scratch resistance, needs hard coat |
| Aluminium frame with panel | 2.70 | minus 50 to 150 | Extrusion and riveting | High stiffness, good stacking behaviour | Needs anodising for salt service, heavy |
Three ancillary specifications should be locked at the same time. First, the ultraviolet stabiliser system: for outdoor service specify carbon black or a hindered amine light stabiliser system and verify with five hundred hours of xenon-arc exposure. Second, the weathering grade of the colour masterbatch. Third, the alloy of every metal component, because in a salt environment hardware fails before the shell does and this is not the place to save cost.
4. Ingress Protection: How IP65 and IP67 Divide the Wet-Service Envelope
Ingress ratings follow IEC 60529 and GB/T 4208, and the two digits are independent: the first covers solid objects and dust, the second covers water. Tackle cases normally specify IP65 or IP67, and the engineering meanings of the two are far apart.
| Rating | First digit test condition | Second digit test condition | Suitable wet service | Not suitable for |
|---|---|---|---|---|
| --- | --- | --- | --- | --- |
| IP65 | 6: dust-tight, GB/T 4208 dust chamber with negative pressure for 8 hours, no visible deposit inside | 5: water jet, 6.3 mm nozzle, 12.5 litres per minute, 3 metres | Deck washdown, handling in rain, open-bed vehicle transport | Immersion after going overboard |
| IP66 | 6: as above | 6: powerful jet, 12.5 mm nozzle, 100 litres per minute | High-pressure wash, spray over the gunwale | Continuous submersion |
| IP67 | 6: as above | 7: temporary immersion, 1 metre for 30 minutes | Accidental overboard, wading crossings, flooded cabin | Prolonged soaking and diving use |
| IP68 | 6: as above | 8: continuous immersion, conditions agreed between buyer and seller and stricter than 7 | Long-term underwater or wet bilge stowage | Must be verified separately against the agreed condition |
Three points need to be stated plainly. First, the thirty minutes of IP67 is a single laboratory test condition, not a service condition, and it says nothing about underwater work. Second, the rating holds only with the lid closed, every latch engaged and the valve intact; one missing latch or a length of line pinched in the seal voids it immediately. Third, testing is done in clean water at ambient temperature, whereas seawater carries chloride and leaves salt crystals, so real corrosion risk exceeds anything the clean-water test reveals, and salt spray must be handled as a separate requirement. A fuller comparison is available in the analysis of IP65, IP66 and IP67 differences.
5. Salt Spray and Wet-Dry Cycling: Corrosion Mechanisms and Material Countermeasures
Seawater damage comes from the chloride ion, not from water as such. Chloride is small and penetrating; it breaks down the passive film on stainless steel and initiates pitting. Wet-dry cycling concentrates salt repeatedly, so local concentration rises far above bulk seawater and the corrosion rate exceeds that of continuous immersion. A tackle case therefore needs three lines of defence.
The first is hardware alloy. Latch pins, hinge pins, screws and handle brackets should be 316 stainless or an equivalent; 304 pits and stains in salt service and should not be used for visible or load-bearing parts. Aluminium extrusions should be anodised and sealed, with a film thickness of at least ten micrometres.
The second is crevice design. Corrosion concentrates inside crevices: the interface between latch body and shell, screw holes, and hinge leaf overlaps are all places where brine sits. Design should close dead cavities, provide flush channels at mating faces, and use blind holes with sealing washers so brine cannot be retained.
The third is verification. Neutral salt spray testing follows GB/T 10125: five percent sodium chloride, 35 degrees Celsius, pH between 6.5 and 7.2, a deposition rate of one to two millilitres per eighty square centimetres per hour, with 96-hour and 240-hour checkpoints, rated to GB/T 6461. It must be said clearly that salt spray testing ranks one scheme against another, cannot be converted directly into field service life, and supports no claim of certification.
6. Rod Storage: Axial Support, End-Cap Cushioning and Bend Restraint
The blank is the most fragile and usually the most expensive item in a tackle kit. Carbon rod strength comes from fibres laid along the axis, which makes it extremely sensitive to point loads and lateral crushing. Resting a rod on the case rim, strapping it tight at mid-length, or letting two sections lie across each other all generate local stresses far above design values.
Three constraints follow. First, support: the blank must lie on a continuous bearing surface along its whole length, with a low-hardness closed-cell foam as the contact material, and never be supported only at the ends with the middle free, because self-weight deflection combined with transport vibration produces repeated flexing at the ferrule. Second, end-cap cushioning: telescopic rods must be fully collapsed with the manufacturer cap fitted, and the cap needs axial cushioning inside the case so hard braking cannot drive the blank into the end wall. Third, separation: each rod gets its own channel, channel depth at least 0.6 times rod diameter, and channel pitch sufficient to prevent rod-to-rod contact.
Guide feet deserve the same attention. A guide foot is a local high point on the blank, and if the liner supports only the shaft while the guide hangs free, lateral shock uses the guide as a fulcrum and creates a bending moment. The correct approach is a relief channel on the guide side, or a matching cut-out in the liner, so the guide carries no support reaction. When rods travel in a separate tube, the tube bore should exceed the guide outside diameter by eight to twelve millimetres, with ring foam supports in three places along the length.
7. Dedicated Bays for Reels and Electronic Devices
The reel is the most precise item in a tackle kit and the one that degrades fastest in salt air. Its failure path is well defined: salt-laden moisture reaches the spool bearings and the one-way clutch, grease emulsifies, salt crystallises, starting torque rises, and the angler feels a gritty wind, unstable drag and shorter casts.
A dedicated bay involves four provisions. The reel shares no cavity with rods or tools, so nothing can strike the spool rim or handle under vibration. The bay floor carries a drainage channel leading to the case drain, so fresh water that gets in leaves rather than pooling. Desiccant and a humidity indicator card go inside, and the card is read on arrival to decide whether internal drying is needed. For long storage the drag is backed off so the washers are not left compressed.
Electronics need separate treatment: fish finder head units, transducer and cable assemblies, underwater cameras and lithium packs. The head unit goes into a waterproof pouch with desiccant, transducer cable must not be bent to a small radius, and lithium cells travel in their own insulated box under UN 38.3 and the applicable transport rules, which impose clear limits on quantity and state of charge for air freight. The reasoning behind shell sealing and valve selection is set out in the discussion of the pressure equalisation valve.
8. Compartmentalisation for Lures, Hooks and Terminal Tackle
Lures and hooks are numerous, irregular, low in unit value and high in replacement frequency, which is exactly why they get tipped loose into a case, and exactly why they are the main source of rust and blocking. Compartmentalisation rests on physical separation working together with humidity control.
Hard baits are grouped by body length with one to two millimetres of clearance so drawing one out does not scuff the finish. Treble hooks should all face the same way and wear point guards, so points cannot interlock or pierce a neighbouring body. Soft baits in PVC or TPE must be stored away from hard baits, because plasticiser migrates out of the soft bait, swells and tackifies paint finishes, and heat accelerates the process sharply. Soft baits themselves should not be held above 50 degrees Celsius for long or they deform and bleed oil.
Small items such as hooks, sinkers and swivels belong in a lidded divided box with a sachet of desiccant and a strip of vapour-phase corrosion inhibitor paper inside the lid. Loose storage loses items and, worse, turns small metal parts into an abrasive that wears everything else under vibration. Terminal gear such as net heads, grips and pliers goes in the accessory bay, and blades or shears need edge guards so they cannot pierce the liner or score the shell.
9. Cushion Liners: Density Matching and Drainage with EPE, EVA and IXPE
Wet service imposes one requirement that a general transit case does not have to meet: the liner itself must not absorb water. Open-cell foam becomes a water reservoir after immersion and mildews in long-term wet storage, so a tackle case should use closed-cell materials throughout.
| Material | Typical density (kg/m3) | Water absorption by volume | Rebound and creep resistance | Chemical resistance | Typical use |
|---|---|---|---|---|---|
| --- | --- | --- | --- | --- | --- |
| EPE, expanded polyethylene | 20 to 35 | Low, closed cell | Good rebound, survives repeated impact | Resists water, salt and most solvents | Outer energy-absorbing layer |
| EVA, ethylene vinyl acetate foam | 50 to 90 | Very low | Good creep resistance, dimensionally stable | Resists water, verify against strong solvents | Locating layer, formed cradles |
| IXPE, irradiated cross-linked polyethylene | 33 to 100 | Extremely low, fine closed cell | Best rebound and dimensional stability | Resists water and salt, easy to clean | Contact surface, wet zones, fitting faces |
| PE foam, high expansion | 25 to 40 | Low | Moderate | Good | Low-value filler |
| Open-cell PU foam | 20 to 60 | High | Good | Poor in long-term wet service | Not recommended for wet-service cases |
Thicker is not automatically safer. The compression travel needed follows an energy relationship: travel is approximately two times drop height divided by the permitted acceleration expressed as a multiple of g. What actually decides the outcome is fit accuracy, because clearance between liner and item must stay under one millimetre; above that the item free-travels before it strikes the liner, which is equivalent to raising the drop height, and measured shock can rise by sixty percent or more.

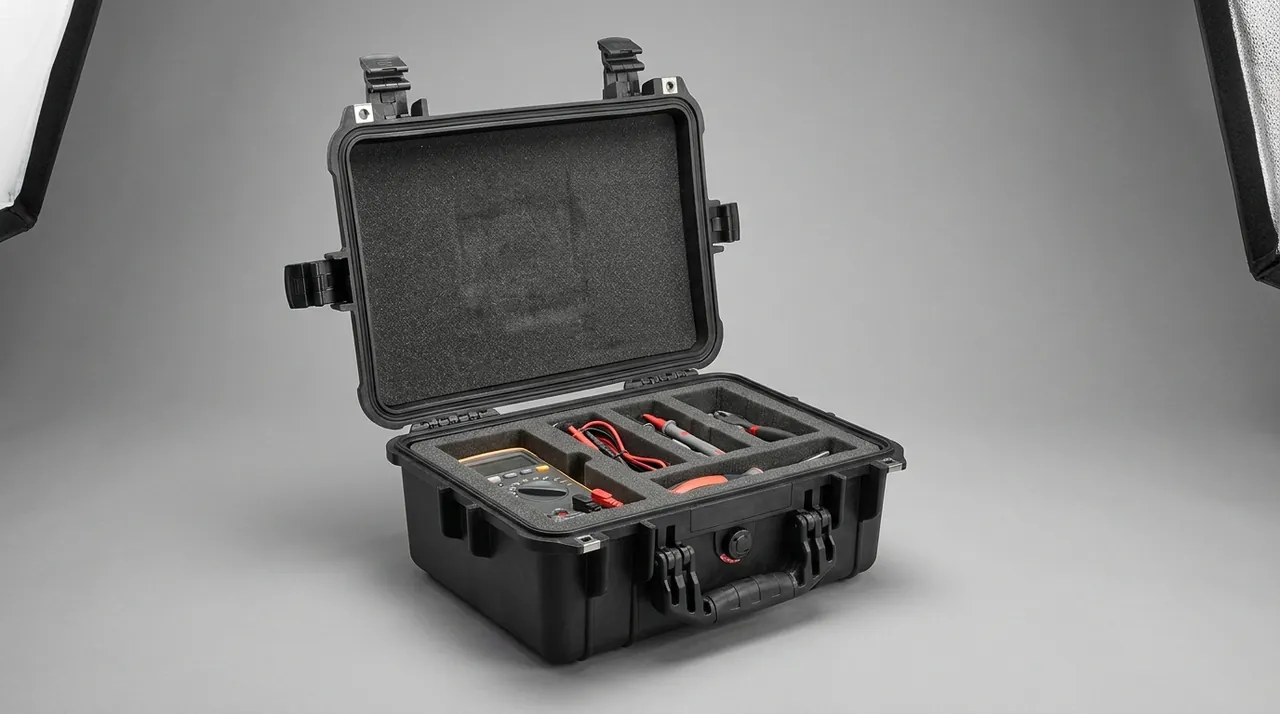

Drainage belongs to liner engineering as well. The liner floor carries channels three to five millimetres wide running to the case drain, and bearing ribs between the channel and the contact face keep the item from sitting in standing water. Wet zones should specify an anti-mould additive, with the mould growth grade written into the technical condition.
10. Latches, Hinges and the Pressure Equalisation Valve
The three components that wear out before the shell are the latch, the hinge and the valve.
The latch supplies the closing force that makes sealing possible. Bodies in PA66 with glass fibre or an equivalent engineering plastic, with tongues and pins in 316 stainless, are the standard recommendation. Latch count and pitch must compress the seal evenly around the full perimeter, with compression normally set at fifteen to thirty percent of the seal free height. Acceptance should measure opening and closing force, and the change in that force after salt spray, not appearance alone.
Hinges follow one of two routes. A full-length piano hinge is stiff and has a long open-close life, suiting large cases and stacked stowage. A one-piece living hinge is moulded from the same material as the shell, giving continuous sealing with no metal, but its tear resistance and cold behaviour depend entirely on the resin grade and it cannot be replaced alone. In salt service a replaceable hinge with a metal pin is preferred, with the pin alloy written into the specification.
The pressure equalisation valve removes the differential created by temperature and altitude change. A waterproof-breathable valve using an ePTFE membrane with pores in the 0.1 to 1 micrometre range passes gas while blocking liquid water, holding the differential near one kilopascal even when the raw differential reaches several kilopascals, so the seal is neither sucked in nor blown out. The important caveat is that the membrane breathes both ways: water vapour can enter. Desiccant must therefore be planned as part of the same control scheme, and the valve body needs a protective cap so silt cannot foul the membrane.
11. Transport Test Validation: ISTA, GB/T 4857 and ASTM D4169
Choosing a test scheme is really choosing which segment of the distribution environment to simulate. The purchase specification should separate the purpose of the three families.
ISTA and the GB/T 4857 series evaluate the packed case as a whole under vibration, impact and stacking, and conclude that the combination of case, liner and gear holds under that spectrum. ASTM D4169 organises testing around distribution cycles, letting the actual route select a DC and chain drop, stack, vibration and low-pressure hazards together. Gear-level testing, such as half-sine shock and random vibration at component level, evaluates the item and concludes that it survives that magnitude of direct excitation.
| Test item | Common clauses | Simulated scenario | Tackle case decision points |
|---|---|---|---|
| --- | --- | --- | --- |
| Drop | GB/T 4857.5, ISTA drop procedures | Handling, drops during loading | No shell crack, latches stay engaged, no permanent liner set |
| Swept sinusoidal vibration | GB/T 4857.7 | Fixed-frequency road excitation | No resonant amplification, rod does not shift |
| Random vibration | GB/T 4857.23, ASTM D4728 | Measured road spectrum | Reel bay stays tight, fastener torque retained |
| Stacking | GB/T 4857.3, ASTM D642 | Warehouse and cabin stowage | Deflection within limit, case still opens after the load |
| Low pressure | GB/T 4857.13, ASTM D6653 | Aircraft cargo hold | Valve works, seal neither bulges nor is drawn in |
Every test round must be followed by re-measurement rather than a visual check: re-measure reel starting torque, check the rod bend curve and ferrule condition, and run the power-on self test on electronics. Only a parameter-based criterion gives both parties a defensible basis for accepting or rejecting a batch, and both reports belong in the same batch file so that either one alone cannot be used to assign responsibility.

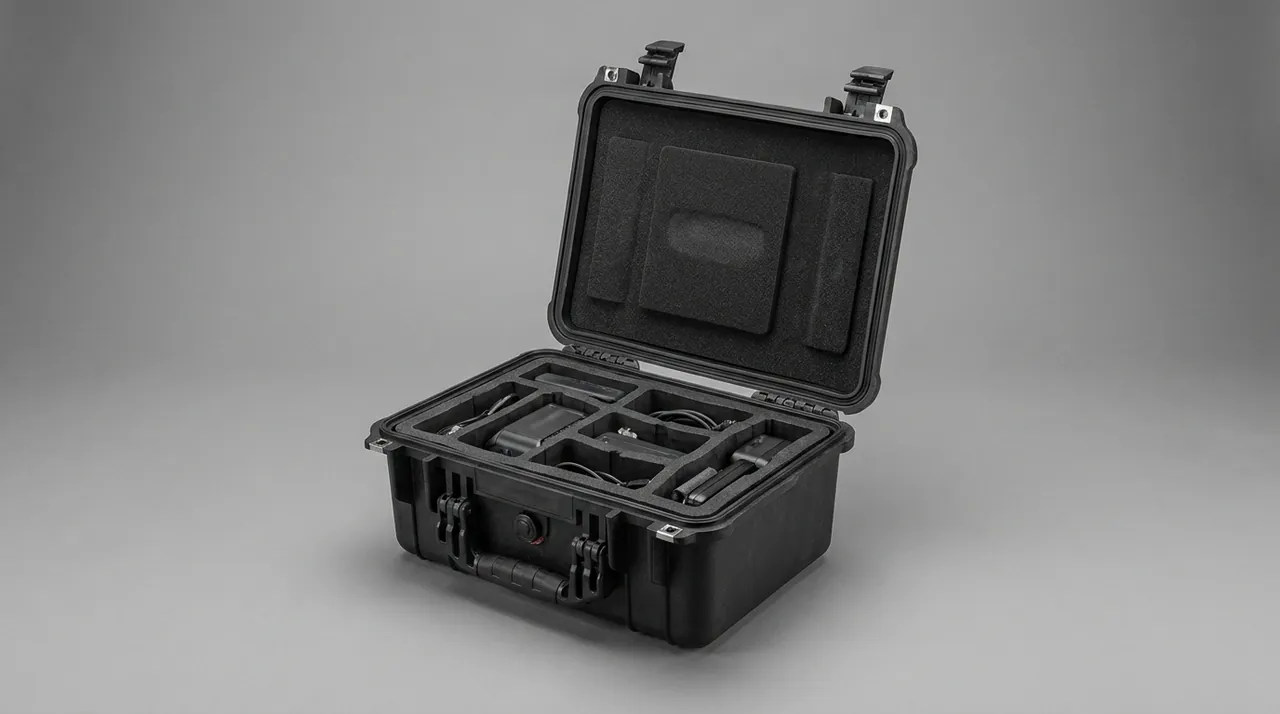

12. Stacking Load, Cabin Stowage and Vehicle Restraint
Tackle cases are frequently stacked several high in a cabin or a boot, and stacking failure shows up as slow deformation, latch misalignment and eventually lost sealing. Three things must be pinned down.
The first is the marking of stack tiers and unit mass. Stacking load is computed from the bottom case carrying the full mass of everything above it, with a safety factor of 1.5 to 2.0, and because PP and PE creep markedly more at 40 degrees Celsius than at room temperature, the marked tier count should be reduced for tropical routes and summer boots.
The second is case-to-case location. Stacking faces should interlock, using boss and recess or corner interlock features, so an upper case cannot slide sideways in transit. Sliding causes drops and puts shear load into the side walls, which is a common origin of cracked latch seats.
The third is restraint. In a cabin use the case strap grooves or an external strap, with corner protectors at contact points. In a vehicle do not rely on dead weight alone; rod cases should lie parallel to the chassis rails and be blocked against longitudinal movement. Ultraviolet exposure matters for cases left outdoors: the resin should carry a UV stabiliser system and a light colour helps keep surface temperature down.
13. Arrival Acceptance Criteria and the Unpacking Care Routine
Acceptance is the last link in the protection chain and the only one that can fix responsibility. Sampling should follow GB/T 2828.1, normal inspection, single sampling, general inspection level II, with an AQL of 1.0 for critical characteristics and 2.5 for general ones.
Site acceptance runs in a fixed order: confirm case condition and record the humidity indicator reading and desiccant state, reconcile item count and serial numbers against the packing list, re-test function by measuring reel starting torque and inspecting the rod bend curve against light, then photograph anything found and compare with the pre-dispatch packing photographs.
Care continues after unpacking. After any saltwater trip rinse the outer shell and hardware with fresh water, then open the lid and air dry in shade; never direct hot air at a carbon blank or a foam liner. Replace desiccant once spent, and re-dry any case whose indicator has exceeded its limit. Retire rather than keep in service any case showing a through crack, latches that can no longer compress evenly, a seal that has split, a liner that does not recover, or pitting on metal parts.
14. Frequently Asked Questions FAQ
Q: Why does a carbon rod break inside a case when nothing looks damaged?
A: Carbon rod strength comes from fibres laid along the axis, which makes the blank extremely sensitive to local point loads. If the rod rests in a case supported only at the ends with the middle free, self-weight deflection combines with transport vibration and produces repeated flexing at the ferrule. If a high point in the liner, such as a seam, a screw head or the edge of another item, presses on the shaft, the entire load enters through that point and local stress runs far above the average. Interlaminar shear strength between fibre layers and the resin matrix is much lower than fibre tensile strength, so the compression side cracks first, and the visible result is a whitened ring that only shows when the blank is held against the light. At that stage the ultimate bending moment has already fallen sharply, yet the rod still looks sound, so the next bend under a fish becomes the final event. The correct response is continuous full-length support, one channel per rod, relief cuts at the guides, and no hard points anywhere in the liner. Bend curves should be checked against the light both on arrival and before every trip.
Q: Can an IP67 tackle case be left soaking in the bottom of a boat cabin?
A: No. Under IEC 60529 and GB/T 4208, IP67 means protection against temporary immersion: at one metre for thirty minutes, a single laboratory exposure, water must not enter in a harmful quantity. That is a pass criterion, not a service condition. The bottom of a real cabin is salty, silty, continuously wet and thermally cycled, which differs from clean ambient water in every respect that matters: chloride attacks hardware and initiates pitting, silt abrades sealing faces, sustained load accelerates compression set in the seal, and wet-dry cycling concentrates salt repeatedly. There is a further condition attached to the rating itself. It holds only with every latch engaged, the valve intact and the seal clean and free of trapped debris, so a single pinched length of line or grain of sand voids it. The engineering answer separates the requirements: select IP67 to cover overboard and washdown events, then use a stand or a drip tray to lift the case clear of standing water in the bilge, and rinse with fresh water and air dry after every trip. Continuous immersion is IP68 territory, and its conditions must be agreed and verified separately.
Q: Why should a reel have its own bay, and what happens if it travels with the rods?
A: A reel is the most precise item in a tackle kit. Spool bearings, the one-way clutch and gear backlash are all on the order of tens of micrometres, and the reel is sensitive to two things above all: salt-laden moisture and local impact. Sharing a cavity with rods means the rod shifts relative to the reel under vibration, and the spool rim and handle are the first parts to meet. Once the spool rim takes a dent, line release becomes inconsistent during the cast, and that damage is very hard to see in use; it simply shows up as shorter casts and a higher backlash rate. Mixed storage brings a second problem, which is moisture. Water carried in on rods and waders accumulates in a closed cavity, grease inside the reel emulsifies, and salt crystallisation lifts starting torque. The dedicated bay answers both: physical separation from every other cavity, a floor channel leading to the case drain, desiccant and a humidity indicator card inside, and a card reading that triggers internal drying on arrival. For long storage the drag should be backed off so washers are not left compressed. The measures cost very little against one reel repair.
Q: Why do soft baits stick to hard baits, and how is that prevented?
A: Soft baits are usually based on PVC or TPE with a substantial plasticiser loading to keep them supple. Plasticiser is not chemically bonded into the base polymer; it migrates slowly to the surface and, on contact with a compatible material such as a hard bait paint film or certain tray plastics, it diffuses in and causes swelling, tackiness and sometimes colour loss. Temperature accelerates migration sharply, so a car boot above 50 degrees Celsius can produce visible blocking within days. Prevention works on three levels. First, physical separation: soft and hard baits occupy different cavities or different trays and are never stacked directly. Second, container choice: keep soft baits in the original bag or in a rigid polypropylene tray, and avoid polystyrene boxes, which the plasticiser dissolves. Third, temperature and humidity control: store below 40 degrees Celsius, keep out of direct sun, use desiccant and allow ventilation. Lightly bleeding baits can be wiped and stored alone, but a swollen paint finish on a hard bait cannot be recovered, so prevention is the only effective measure. The isolation rule belongs in the packing specification so a later accessory change cannot break it.
Q: How often should desiccant in a tackle case be replaced, and can it just stay in the case?
A: Desiccant is a consumable with a finite adsorption capacity. Once saturated it stops removing moisture and, at elevated temperature, can release what it has already adsorbed back into the cavity. Replacement timing should not be judged by feel but by a humidity indicator card: when the indicator spot changes from blue to pink the corresponding humidity limit has been exceeded, and the reading should be taken and recorded the moment the case is opened. One widespread misunderstanding needs correcting. Because the case carries a waterproof-breathable valve to relieve differential pressure, and that membrane breathes in both directions, water vapour enters the case continuously. Desiccant left loose in the outer cavity absorbs that incoming vapour, exhausts its capacity early and is already spent when it is actually needed. The correct architecture separates the functions: the outer case vents through the valve to equalise pressure, while the item, the desiccant and the humidity indicator card are sealed together inside a barrier pouch, creating a genuinely low-humidity micro-environment the valve cannot reach. Dosage is calculated from pouch volume and expected transit duration, and the sachet is replaced at every unpacking inspection. Loose desiccant in the outer cavity is one of the commonest and cheapest packaging errors to fix.
Q: Why is closed-cell liner recommended for tackle cases when open-cell foam feels softer and fits better?
A: Open-cell foam does feel softer, but in wet service it has one fatal property: the open structure absorbs water like a sponge and then becomes a saturated layer held against the gear, so moisture cannot drain away, metal parts and rod ferrules sit in damp air, and mould becomes a real risk. A tackle case liner has to be closed-cell. The usual candidates are EPE at 20 to 35 kilograms per cubic metre, EVA at 50 to 90, and IXPE at 33 to 100. IXPE is irradiated cross-linked, giving a fine uniform cell structure, extremely low water absorption by volume and a surface that wipes clean, which suits direct contact faces and wet zones. EVA resists creep and holds dimensions, suiting formed cradles and locating layers. EPE rebounds well and costs less, suiting the outer energy-absorbing layer. Two further provisions apply: cut drainage channels three to five millimetres wide in the liner floor running to the case drain so fresh water that gets in can escape, and specify an anti-mould additive for wet zones with the mould growth grade written into the technical condition. Softer is not the same as more suitable; closed cell plus drainage is the correct combination here.
Q: If a case passes ISTA or GB/T 4857 testing, is gear-level testing still necessary?
A: The two are not interchangeable. A whole-case test evaluates the combined system of case, liner and gear and concludes that this combination protects the gear under that spectrum; it says nothing about how much direct excitation the gear itself tolerates. A gear-level test evaluates the item and concludes that it survives that magnitude of direct excitation; it says nothing about how the case behaves under stacking, aircraft cargo low pressure, or the dynamic loads of repeated transfer. Complete validation needs both data sets, and every test round must be followed by parameter re-measurement rather than a visual check: re-measure reel starting torque, inspect the rod bend curve and ferrule condition, and run the electronics self test. Upgrading the criterion from no structural damage to no parameter change is what gives both parties a defensible basis for accepting or rejecting a delivery. Commercially this matters because latent failures do not surface at delivery, and only a parameter-based criterion produces a clear conclusion at the moment of handover. Both reports belong in the same batch file, because either one alone cannot support a responsibility decision.
Q: How many tiers can tackle cases be stacked, and why does a marked case still deform?
A: A marked tier count is established at room temperature, statically, with the load evenly distributed and the stacking faces fully interlocked. Real failures come from four neglected factors. The first is creep: PP and PE creep substantially more at 40 degrees Celsius than at room temperature, so tropical routes warrant dropping a tier. The second is eccentricity and sliding: without interlocking features the upper case shifts sideways in transit and puts shear into the side walls, a common origin of cracked latch seats. The third is load concentration: placing weight to one side pushes actual load beyond the uniform assumption. The fourth is time, because a stacking test runs 24 hours to 7 days while a sea leg can run several weeks. Compute the stacking load from the bottom case carrying everything above it with a safety factor of 1.5 to 2.0, mark maximum tiers, unit mass and centre of gravity, and design interlocking stacking faces.
15. Conclusion and Related Reading
Tackle protection means opening the case ready to fish, not merely receiving an undamaged box. JUNZHIJIA supports that goal with liner profiling, tooling, OEM and ODM programmes, and complete shipping documentation.
