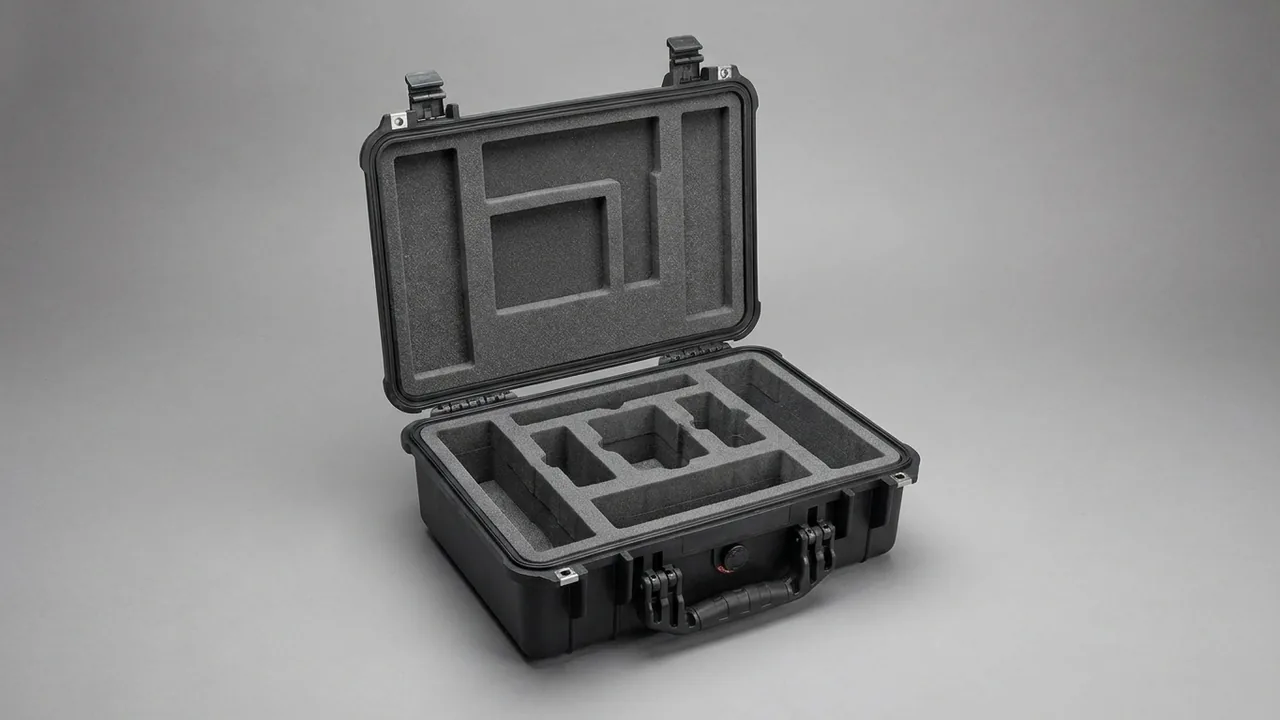

Industrial Paint Line Cases: Pump & Atomizer Component Protection

Blockages and leaks dominate the failure statistics on industrial paint lines, and the seed of both is often planted during shipping. Dried coating inside a pump cavity, a knocked bell cup edge, a chipped nozzle or a scratched needle seat all show up after restart as flow drift, uneven atomization and coating thickness variation. What JUNZHIJIA provides for this component family is a case built around one rule: strip the coating residue completely, then lock every precision mating surface with a contoured insert while controlling both humidity and solvent vapour inside the cavity. Paint pumps and atomizers are components where fit tolerance equals performance, and the mating surfaces are the one thing that cannot be compromised.

This article covers component tiering, residue identification, split protection for pump types, atomizer protection, lines and metering devices, insert selection, solvent and VOC compliance, the cleaning checklist, and transport validation with acceptance criteria. The items can be quoted directly in a technical agreement. MIL-STD-810H is cited here only as a source of environmental test methods and does not constitute a military certification. Because industrial paint lines rely heavily on solvent-borne coatings, shipping and storage must also address flammable residue, dangerous goods rules and volatile organic compound emission control.

Contents

• Typical industrial paint line components and transport tiers
• Coating residue: where blockages in pump cavities, atomizers and lines start
• Seal protection for diaphragm and piston pumps
• Holding dimensional accuracy on gear and metering pumps
• Protecting the critical surfaces of rotary bell atomizers
• Nozzles and needles on air spray and airless guns
• Clean packing for paint filters and pressure regulators
• Moisture and vibration protection for electrostatic and turbine drive parts
• Shipping paint lines, flow meters and fittings
• Selecting inserts, compartments and rack layouts
• Solvent residue, VOC emissions and explosion protection compliance
• Cleaning, drying and packing checklist
• FAQ
• Conclusion and related reading

Typical industrial paint line components and transport tiers

An industrial paint line serving automotive parts, hardware, appliances or construction machinery breaks down into six shippable families: the pump family including diaphragm, piston, plunger, gear and screw pumps; the atomizer family including rotary bells, discs, air spray guns, airless guns and air-assisted airless guns; the line and valve family including paint supply hose, return hose, pressure regulators, back pressure valves and colour change valve blocks; the metering and filtration family including gear flow meters, mass flow meters, paint filters and filter bags or cartridges; the electrical and electrostatic family including high voltage generators, turbine drive controllers and spray gun controllers; and the auxiliary family including paint drums, agitators and temperature control jackets.

Tiering should be based on fit tolerance rather than weight, which differs from general machinery practice.

High precision mating family. Gear pairs and end faces in gear pumps, plungers and sleeves in plunger pumps, bearings and cones in bells, nozzle and needle mating faces. Clearances here are often measured in microns, and any impact, scratch or embedded foreign body changes performance immediately, usually beyond repair.

Media cleanliness family. Paint filters, filter bags, paint hose bores and colour change valve passages. Performance depends on bore and media cleanliness, and dried residue is a hidden mine that only detonates during the first hours or first batches after restart.

Electrical and electrostatic family. High voltage generators, turbine air drive parts and gun controllers, which fear moisture, cable flexing and static discharge.

Structural family. Paint drums, jackets and brackets, which are comparatively tolerant but still need protection to keep sealing faces true.

One frequently overlooked fact: much of the repair cost for paint pumps and atomizers is not parts, it is diagnostic labour spent hunting for a fault that has no obvious cause. Protecting mating surfaces at packing time is really a way to avoid that cost later.

Coating residue: where blockages in pump cavities, atomizers and lines start

Blockages on paint pumps and atomizers originate from four sources in transit and storage, and each one points to a specific cleaning measure.

Polymerized skin. Most industrial coatings, especially two-component, polyurethane, epoxy and some waterborne systems, crosslink slowly once they lose solvent or meet air. A thin film on a pump cavity wall forms an insoluble skin within days, then flakes off on restart as sheet-like particles that lodge in check valve seats or atomizer orifices.

Pigment settling. Coatings carrying heavy pigments such as zinc dust, mica or metallic flakes settle and compact when left static. On restart, the settled layer forms a high viscosity lump that both loads the pump and drives filter differential pressure up sharply.

Seal swelling and shrinkage. Coating systems differ widely in how they swell elastomers. A seal soaked in solvent and then drained can shrink back and produce a micro leak after restart.

Bore film in paint lines. Dried film on the inside of a paint hose flakes off under temperature change and vibration, and it is a leading cause of atomizer nozzle blockage.

The pre-pack routine for paint pumps and atomizers therefore needs four steps, not a simple blow-down: confirm media compatibility, drain, circulate clean, then dry. Practices for oil seals and flange protection on general pump hardware are covered in pump and valve component oil seal and rust protection, but paint pumps add coating compatibility as a further dimension.

Seal protection for diaphragm and piston pumps

Diaphragm and piston pumps are the workhorses of paint circulation, and their construction dictates where protection must focus.

Diaphragm pumps. The critical items are the diaphragm and the check valves, which may be ball or flapper type. Diaphragm failure comes mainly from fatigue and media attack, while transit threatens corrosion on metal seats after moisture exposure and sticking check balls. Drain and circulate clean before shipping, remove balls and seats for separate packing, or coat seat surfaces with a grease compatible with the coating system. If the pump carries an air reversing valve, protect the spool mating surfaces from airborne dust as well.

Piston and plunger pumps. The critical items are the plunger-to-sleeve fit and the packing. Plungers are normally chrome plated or ceramic, and surface roughness governs seal life. In the case, the plunger must stay on its vertical or horizontal axis and never be stored at an angle, otherwise self-weight bends the plunger or wears the seal unevenly. Where a plunger is removable, pull it and pack it in a long contoured compartment with protective caps at both ends.

Practical protection points:

• Remove every removable seal and valve part, bag it separately, and label specification and batch.
• Apply a protective agent compatible with the downstream coating system to mating surfaces. Avoid general purpose anti-rust oil, which may be incompatible.
• Fit blind plates or soft covers to pump inlet and outlet flanges to protect sealing faces from impact.
• Plug the air motor inlet so transit dust cannot enter the vane chamber.

Holding dimensional accuracy on gear and metering pumps

Gear pumps on paint lines usually handle metering and pressure stabilization, and performance depends on gear mesh backlash and end face clearance. Precision gear metering pumps run clearances in the low micron range, so their transport requirements resemble precision instruments.

Three non-negotiable requirements:

1. No axial impact whatsoever. End face clearance on a gear pump changes easily under axial shock, so let the pump rest on its base flange or mounting face, and never use the shaft ends as support points.
2. Never store fully dry for long periods. After cleaning and drying, gears lose the lubricating medium between gear and cavity, and long storage can cause light corrosion or adhesion. Inject a small quantity of medium-compatible preservation oil after drying, and turn the shaft by hand before packing to confirm free rotation.
3. Protect the shaft extension and keyway. These are classic impact damage points, so fit a shaft extension sleeve and fill the keyway with soft material so the key cannot escape.

For metering pump packages with a gearbox, confirm whether the gearbox is filled or drained per the manufacturer's instruction, and mark the state on the case so nobody refills it incorrectly at reassembly.

Protecting the critical surfaces of rotary bell atomizers

Electrostatic rotary bells and discs are among the highest value and highest risk parts on an industrial paint line. Three characteristics drive their transport requirements: extremely high rotational speed, bell cone and edge geometry that directly sets droplet size distribution, and dynamic balance that must be preserved exactly.

The three most critical surfaces:

• Cone and edge. The atomizing edge is an extremely fine ring, and any burr from impact causes fibre formation in the spray pattern and lowers transfer efficiency. This edge must never touch a hard object.
• Bearing and spindle. Radial clearance on a bell spindle is tiny, and a shock that changes clearance produces vibration and noise, and in severe cases early bearing failure.
• Bell interior. Interior roughness affects how evenly coating spreads across the cone, and a scratch creates a flow streak zone.

The protection approach:

1. Remove the bell and pack it in a contoured insert, cone facing up or facing a non-contact surface, with the edge unsupported and free.
2. Fit a soft cover over the bell body with an inner diameter larger than the bell mouth, so it never clamps.
3. Fixture the spindle and bearing assembly at the manufacturer's specified shipping position, retaining any transport locking hardware supplied with the unit.
4. Keep turbine air drive parts clean and dry, with plugs in inlet and exhaust ports.
5. Never stack bells or squeeze several with one pad. Mouth-to-mouth stacking is the classic fatal error.

For bells with integrated high voltage capability, treat them as electrical parts too: moisture protection, static control and intact ground terminals.

Nozzles and needles on air spray and airless guns

Air spray and airless guns concentrate transport risk at two extremes: the very front and the very inside.

The front is the nozzle and air cap. Nozzle orifices are often under a millimetre, and air cap atomizing holes are smaller still on precision machined caps. Any impact burr changes the spray pattern. Remove nozzles before shipping and pack them in a rigid small box with end face protection, filled with soft material that does not press on the orifice.

The inside is the needle and seat. This pair governs shut-off tightness, and a scratch causes dripping, which becomes a quality defect when it lands on a part. Protection points: do not remove the needle, leave the gun in the closed position, fit a soft plug at the gun mouth after nozzle removal to keep foreign matter out of the seat, and if the needle must come out, pack needle and seat together as a matched pair with the pairing recorded so the original fit is not lost.

Airless guns add a high pressure dimension. Airless spraying runs at 100 to 300 bar or more, so damaged threads or sealing faces create a high pressure jet risk after restart. Thread protectors and sealing face caps are mandatory on these connections.

Clean packing for paint filters and pressure regulators

Paint filters are the classic case of a component whose performance is defined by cleanliness. The main transit risk is not rupture but residual coating drying inside, which cuts effective filtration area sharply. Before medium or long term storage: disassemble fully so bags or cartridges are separated from the housing, clean housing passages thoroughly, treat filter media per the manufacturer's guidance because not every medium can be recleaned, and bag seals separately so they are not compressed out of shape.

Pressure and back pressure regulators depend on the spring and the valve spool fit. Transit risks are spool displacement from its seat and permanent spring set under continuous compression. Back the adjusting screw off to the relief position so the spring sits free, and cap both ports so dust or foreign matter cannot enter.

Colour change valve blocks are integrated multi-valve assemblies with complex internal passages where residue skins easily in changeover blind spots. Before shipping, run the coating supplier's colour change cleaning programme, do a final displacement with a compatible cleaning agent, and purge with dry air. Valve spools are precision fits, so keep the block horizontal in the case and never let a spool carry side load.

Moisture and vibration protection for electrostatic and turbine drive parts

The electrostatic system comprises the high voltage generator, high voltage cable, turbine drive controller and ground circuit, and it is more moisture sensitive than most paint line parts.

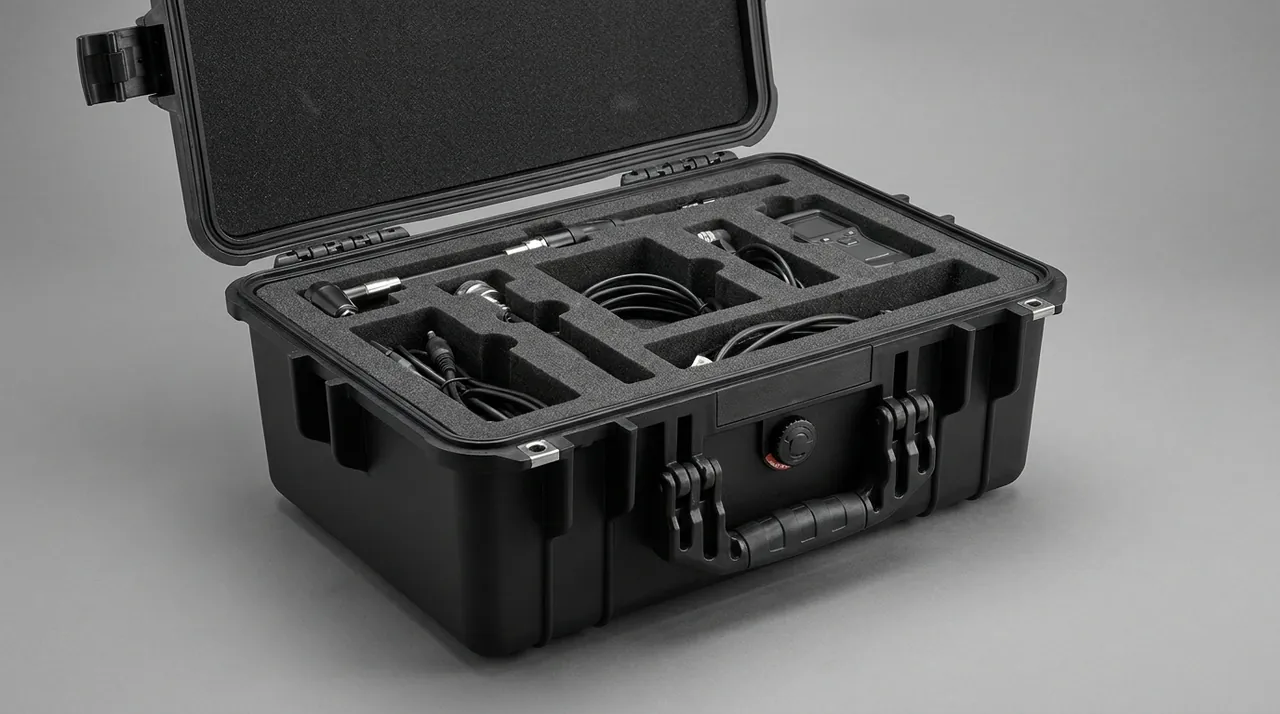

• High voltage generator. Surface moisture raises leakage current and drags output voltage down. Size desiccant to cavity volume and purge with dry air before sealing, choosing a case with a pressure equalization valve for long cross-climate shipments.
• High voltage cable. Coil at or above the manufacturer's minimum bend radius and never leave a sharp bend in the shield. Cap both cable ends, because a connector body that takes an impact can develop a creepage path.
• Turbine drive parts. Air turbine blades and bearings are dust sensitive, so plug inlet and exhaust ports and keep the cavity free of loose dust.
• Ground integrity. Static dissipation depends on the ground circuit, so a chipped or corroded ground terminal can leave installed ground resistance out of specification. Cap and grease ground terminals, and where a conductive insert is used, ensure electrical continuity from insert to case body.

In cold climate shipping or storage, remember that elastomers stiffen and become more brittle at low temperature, so avoid applying pre-compression to seals at packing. Material behaviour under these conditions is discussed in protective case design for extreme temperature environments.

Shipping paint lines, flow meters and fittings

Paint hoses. Bore film is the main issue, and hoses are long, which makes on-site cleaning hard. Run the colour change cleaning programme before shipping, plug and film both ends so air and dust stay out, and coil at or above the minimum bend radius. Avoid coiling at low temperature, which risks cracking.

Gear and mass flow meters. These are metering devices whose rotors or measuring tubes are impact sensitive, and whose calibration is locked in at the factory. Requirements: keep the manufacturer's specified orientation, since some meters are directional; allow no axial load; cap the end faces. On unpacking, do not install immediately. First confirm the calibration certificate shipped with the unit and is still valid.

Pressure gauges and thermometers. Glass faces and capillaries are fragile, so they get their own compartment and never share a cavity with heavy parts.

Selecting inserts, compartments and rack layouts

Industrial paint line parts vary widely in shape, material and precision class, so insert selection is normally per family rather than one design for the whole case.

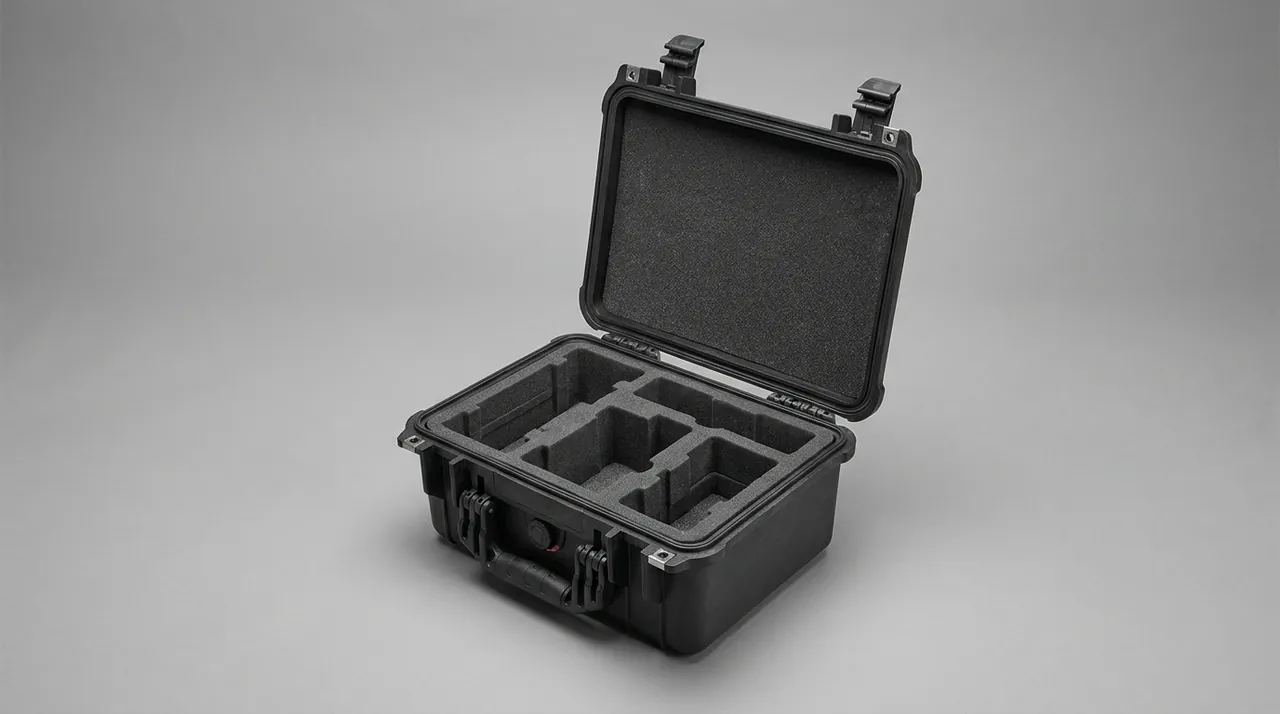

For the high precision family, use fully contoured CNC routed EVA with independent clamp plates or soft straps. Routing accuracy should hold part movement inside the case to 1 or 2 millimetres, which matters especially for gear pumps, bells and flow meters. Density selection and cutting parameters are covered in the custom foam insert design and tooling guide.

For the media cleanliness family, the priority is not introducing contamination. Foam can release plasticiser or shed particles, so paint filters, hose bores and nozzles should be wrapped in non-shedding material such as PE film before seating, and should not contact coloured foam directly.

For the electrical and electrostatic family, use materials with a controlled surface resistance band and place boards and generators in antistatic shielding bags.

For the structural family, a rigid board divider layout with soft lining balances cost and stiffness.

On case architecture, service cases for paint lines often use a drawer rack plus compartments: heavy items such as pump bodies on the lower level, and nozzles, seals and flow meters in upper drawers. This layout cuts search time on site and makes counting by family easier. Where a case must be lifted whole, design lifting points into the case rather than slinging ropes around the sides, which presses on internal precision parts. Evaluation criteria for comparing whole-case options are listed in how to choose a protective case OEM factory.

Manufacturer capability. As a JUNZHIJIA brand manufacturer, Kexin New Materials (Guangdong) Co., Ltd. designs case locating structures around the actual mounting interfaces of paint pumps and atomizers. OEM and ODM programmes, wholesale, agency and global supply are all available, and the list of test and material documents to ship with the goods can be written into the contract.

Solvent residue, VOC emissions and explosion protection compliance

Industrial paint lines rely heavily on solvent-borne coatings, and compliance touches packaging in three areas.

Solvent residue and dangerous goods. Where a component retains solvent-borne coating or cleaning agent, assess against the applicable rules whether the shipment is a dangerous good, and pack, mark and document it accordingly. General packaging and marking expectations are set out in ADR and IMDG hazmat packaging requirements. The most common failure in practice is a pump cavity or hose that was cleaned but not dried. Even a small residue can create a flammable vapour space inside a sealed case, and the risk rises in a hot container at sea.

Volatile organic compound emissions. Paint mixing, cleaning, spray booth and curing all emit VOCs. Air emission control on this line is governed by GB 37822 for fugitive releases and GB 16297 for integrated discharge limits. The requirements that touch packing and shipping are concrete: cleaning should happen at a station with collection and abatement rather than in an open area with solvent in bulk; solvent-wet rags and spent filter bags are hazardous waste and must not ship inside the case or be discarded casually; and after a whole-line move, exhaust ducting for booth and oven should pass a leak test before the line restarts.

Explosion protection and static. Solvent-borne painting areas are classified as hazardous zones, typically Zone 1 or Zone 2, with the European Union framework set by ATEX Directive 2014/34/EU. Export projects should also confirm that referenced standard lists are current, since the European Commission published 2021/1709/EU updating the standard lists in several directives. Packaging-related requirements include opening cases only in a ventilated area with static dissipation provisions, using non-sparking tools, having operators in antistatic clothing and footwear, and maintaining ground continuity on removable conductive parts. Where flammable solvent and combustible dust coexist, apply the stricter side of the two.

Cleaning, drying and packing checklist

Breaking cleaning and packing into a signed checklist is the most effective quality control for paint line parts. Run these ten steps and keep records:

1. Confirm compatibility between the coating system, the cleaning agent, the seals and the protective agent. Two-component and waterborne systems differ significantly.
2. Drain pumps, lines and atomizers, collecting the material in a designated container.
3. Circulate clean per the coating supplier's procedure until the discharged cleaning liquid is clean.
4. Do a final displacement with a compatible cleaning agent and avoid mixing agents that can form precipitate.
5. Purge with dry air until no obvious solvent odour remains, using dehumidification or a settling period if needed.
6. Remove removable seals, valve parts, nozzles and bells, bag and number them separately.
7. Apply a compatible protective agent to mating surfaces and fit sleeves to shaft extensions and threads.
8. Seat the parts and tighten restraints, confirming the shaft still turns freely.
9. Add desiccant and a humidity indicator card, and confirm no free dust or liquid drops before sealing.
10. Close and label with the parts list, cleaning state, closing date and the explosion protection and grounding markings.

Step five is the one most often shortened, yet it is the one that governs fire safety. A working criterion: no obvious solvent odour should be detectable in the case. If that cannot be achieved, ventilate the case and shorten the storage period.

FAQ

Q: Must a paint pump be fully cleaned before shipping, or is draining enough?

A: Draining is acceptable for a short trip with the line restarting the same day, but it is a weak basis for a routine shipping programme. Paint pump passages are geometrically complex, and draining only removes material that can still flow. Residual film remains on cavity walls, around check valve seats, and in seal grooves. Under transit vibration and temperature change that film slowly dries and skins, then flakes off on restart as sheet particles that lodge in valve seats or atomizer orifices, producing the classic blockage that only appears hours after start-up. With two-component coatings the risk is higher, because residue can crosslink on its own when the mix ratio is no longer correct, forming hard lumps that resist removal. The sounder practice is to drain, circulate clean per the coating supplier's procedure, displace with a compatible cleaning agent, and purge with dry air until no strong odour remains. Where a unit must ship without cleaning, mark it as containing coating residue on both the technical file and the case, assess it against dangerous goods rules, and shorten the storage period.

Q: What is the most common mistake when packing a rotary bell, and how serious is it?

A: The most common mistake is stacking several bells or squeezing them with a single pad. The critical surface is the cone and its atomizing edge, a very fine ring, and any hard contact or mouth-to-mouth stacking can leave a burr or a slight curl on that edge. The consequence is not cosmetic. A burr changes how coating spreads across the cone, producing fibre formation in the pattern, local over-thickness and reduced transfer efficiency, and in most cases the only remedy is replacing the bell, which is a high value part. A second common mistake is failing to fixture the spindle and bearing assembly at the manufacturer's specified shipping position after removing the bell, which lets bearing clearance shift under long vibration and shows up afterwards as higher vibration and noise. The correct approach is to locate each bell individually in a contoured insert, cone up or facing a non-contact surface, with the edge unsupported and free; fit a soft cover whose inner diameter exceeds the bell mouth so it cannot clamp; lock the spindle at the transport position; plug turbine inlet and exhaust ports; and keep anything that can shed particles out of the cavity.

Q: How much do different coating systems affect the seals, and how should the selection be judged?

A: The difference is substantial, and it is amplified during transport and storage. Aromatic, ester and ketone solvents in solvent-borne coatings swell nitrile rubber noticeably, so a seal that soaks and is then drained can shrink back and produce a micro leak. Waterborne coatings are built on water with a small amount of co-solvent, so swelling is limited on most rubbers, but the corrosion risk to metal parts is higher. High solids and solvent-free systems are viscous and heavily filled, so seal abrasion becomes more evident. Judge this in three steps. First, ask the coating supplier for a chemical compatibility list for the specific system and confirm the seal compound. Second, fix the seal specification and brand in the equipment technical file so field staff cannot substitute a general purpose part. Third, for pumps going into long storage, remove seals after cleaning and drying, bag them separately, and renew them at reassembly instead of reusing soaked parts. Note especially that when a line switches systems, for example from solvent-borne to waterborne, seals, hoses and pump body materials all need reassessment, and that switch is best scheduled together with the transport and storage plan so old and new residues never mix and form precipitate.

Q: How should a paint filter be handled before long term storage so it is not scrap on arrival?

A: A filter is a porous media component, and once its effective area is blinded by dried coating the loss cannot be found by appearance, so handling decides whether it can be reused. Work through four steps. First, disassemble fully, separating bags or cartridges from the housing, and never ship the assembly with liquid inside. Second, clean housing passages thoroughly, with attention to inlet and outlet connections, differential pressure taps and drain ports, which are the areas most often skipped, then confirm no paint scale remains. Third, treat the media as the manufacturer advises. Not every medium can be recleaned. Metal mesh and some polyester media tolerate cleaning, while certain depth media are single use and cleaning them damages the structure. Fourth, bag seals separately so they are not compressed out of shape, and prevent contact with hard housing edges in the case. Storage conditions matter too, so keep the filter in a dry environment with desiccant and a humidity indicator card in the case. Before restart, judge filtration performance from differential pressure and flow measurement rather than visual inspection, which surfaces moisture uptake or blockage early.

Q: What concrete packing requirements follow from explosion protection and static control on a paint line?

A: Solvent-borne industrial painting involves hazardous zones, normally classified as Zone 1 or Zone 2, with the European Union framework set by ATEX Directive 2014/34/EU. Translated into packing and shipping, six requirements are practical. First, dry cleaned parts thoroughly and confirm no strong solvent odour, so no flammable vapour space forms inside the case. Second, open and clean in a ventilated area with static dissipation provisions, and never use solvent in bulk inside an enclosed space. Third, use non-sparking tools and avoid metal-to-metal impact. Fourth, have operators wear antistatic clothing and footwear. Fifth, maintain ground continuity on removable conductive parts, and where a conductive insert is used, ensure an unbroken electrical path from insert to case body to the external ground terminal. Sixth, manage solvent-wet rags, spent filter bags and waste cleaning liquid as hazardous waste, never shipping them in the case or discarding them casually. One reminder matters in practice: sites frequently have both flammable solvent and combustible dust present, in which case the stricter of the two sets of measures applies, and that should be written into the work instruction rather than left to judgement.

Q: Drawer racks or fixed compartments, which is right for a paint line service case?

A: The two suit different operating patterns, and the deciding factors are how often the case is opened and what precision class the parts belong to. A drawer rack suits frequent access, for example a service case opened repeatedly to take a few small items such as nozzles, seals, flow meters and tools. Drawers cut search time significantly and make it easy to separate precision classes, typically with heavy pump bodies on the lower level and precision small parts in upper drawers. Fixed compartments suit the one-kit-per-case pattern, such as a whole-line move or a complete spare parts shipment, because locating rigidity is better, vibration performance is stronger and cost is generally lower. In practice a hybrid works well: fixed compartments at the base for heavy items with drawers above for precision parts, balancing location integrity with access convenience. Selection can start from four parameters: parts per case, heaviest single part, number of openings per day, and whether one person must lift parts by hand. Whichever layout is chosen, drawer rails must be locked for transport so a drawer cannot slide out and press on the lid, and compartment walls must not apply continuous lateral clamping force, which causes distortion and stress relaxation in long storage.

Q: How do we tell at incoming inspection whether a paint pump or atomizer was damaged in transit?

A: Visual inspection alone is not enough. Work through four escalating levels: appearance, feel, calibration, then trial run. Level one is appearance. Look for signs of axial shock on the pump, such as witness marks on the mounting face or any indication that the shaft has been pushed; check nozzle orifices for burrs and bell edges for curling. Level two is feel. Before reassembly, turn gear and plunger pumps by hand. Normal rotation is smooth with no catching or abnormal noise. Intermittent catching usually means gear pair clearance has changed or foreign matter is inside the cavity. Level three is calibration. For gear flow meters and metering pumps, confirm that the calibration certificate shipped and is still valid, then perform a flow and pressure calibration after reassembly and compare with factory data. A deviation outside the process window means the unit needs internal inspection. Level four is a trial run at low pressure, watching for leakage and flow drift, with atomizers checked for pattern before production. Safety-related items must be verified individually, including airless gun threads and sealing faces and electrostatic ground continuity, because damage there creates high pressure jet or static discharge risk. Whole-case test criteria are described in ASTM D4169 distribution cycle testing, and the test level plus acceptance criteria should be fixed in the purchase specification.

Q: For ocean export, what should appear on packaging and markings for solvent-borne paint line components?

A: Export shipments must satisfy transport identification, dangerous goods compliance and quarantine at the same time. For identification, the outer case should carry component name, quantity, net and gross weight, lifting points, stacking limit, and pictorial marks for this way up, keep dry and keep away from ignition sources. Multi-case shipments need case number and total. For dangerous goods compliance, if a component retains solvent-borne coating or cleaning agent, determine against destination country and carrier rules whether it is a dangerous good, and establish the correct packing group, marks and accompanying documents. The general expectations are outlined in ADR and IMDG hazmat packaging requirements, and the most common compliance gap on real projects is an incompletely cleaned unit that was never declared. For quarantine, timber packing and dunnage must meet ISPM 15 heat treatment or fumigation requirements and carry the mark. Note also that sealed cases see large temperature and pressure swings on a cross-climate voyage, and condensed solvent vapour raises the flammable vapour concentration inside, so a case with pressure equalization is advisable and storage periods should be controlled. Retain the transport test report, cleaning records and material documents with the shipment for customer audits and claims.

Conclusion and related reading

What separates paint pump and atomizer protection from general machinery packaging is that failure rarely means broken, it means the precision has moved. Three commitments protect the outcome: residue must be removed and fully dried, mating surfaces and atomizing edges must never touch hard objects or be stacked under pressure, and the cavity must control moisture, static and solvent vapour together. If flow drift, fibre formation or dripping appears after restart, suspect the transport and storage stage before blaming equipment age, and work through the appearance, feel, calibration and trial run sequence item by item.
