PV Inspection Equipment Cases & Wind-Turbine Maintenance Toolkits

New-energy power stations are mostly distributed in harsh environments such as deserts, mountains, coasts, and high altitudes, where inspection and maintenance equipment travels back and forth through sand, salt fog, rain, snow, and bumpy transport. The core conclusion is clear: protection for instruments at photovoltaic, wind, storage, and charging-pile sites must guarantee "ready to use on arrival, data safe on return" - the three-proof (waterproof, dustproof, shockproof) and quick access matter more than mere toughness. This article covers four new-energy case families - PV inspection equipment cases, wind-turbine maintenance toolkits, storage-battery test cases, and charging-pile maintenance boxes - explaining ingress ratings, liners, EMC, and field-operation points.

The common pain point of new-energy sites is high-value but low-frequency instruments, transferred long-term between station warehouses and fields. If the case seal fails, sand and condensation directly ruin precision probes. Selection should grade by "mission environment plus instrument list" dual dimensions, not by experience with generic cases. The following expands item by item.

Table of Contents

• Special Environment and Pain Points of New-Energy Inspection Cases
• Protection Design of PV Inspection Equipment Cases
• High-Altitude and Salt-Fog Response of Wind-Turbine Maintenance Toolkits
• Electrical Safety of Storage-Battery Test Cases
• Portability and Accessories of Charging-Pile Maintenance Boxes
• Three-Proof Standards: IP, IK and ISTA Transport
• Materials and UV/Salt-Fog Treatment
• Liners and Instrument Positioning
• EMC Shielding and Anti-Static
• Temperature-Humidity Monitoring and Data Retention
• Field Operation and Transfer Flow
• Test Documentation and Certification
• OEM/ODM and Procurement Advice
• Common Selection Mistakes

Special Environment and Pain Points of New-Energy Inspection Cases

PV stations sit in gobi and on rooftops with heavy dust and large day-night temperature swings; wind farms are offshore or in mountains with strong salt fog and high-altitude wind; storage and charging piles spread along cities and highways with frequent temperature-humidity fluctuation. These environments demand three capabilities: dust/sand resistance, salt-fog corrosion resistance, and transport-vibration resistance. A normal injection case without sealing and accessory anti-corrosion can have rusted latches within half a year.

Another pain point is "complete but scattered" instruments: irradiance meters, IV-curve testers, thermal imagers, and insulation meters from different brands with different sizes. The case must position multiple instruments through die-cut liners to avoid collision. Related multi-instrument storage thinking references the compartment design in Detection Instrument Protective Cases.

For O&M units, inspection cases should also support asset barcodes and batch tracing for annual inventory. Fields often coordinate with Power-Line Patrol Cases & Substation Maintenance Toolkits, sharing electrical-safety test standards.

Protection Design of PV Inspection Equipment Cases

PV inspection equipment cases mainly load irradiance sensors, IV-curve testers, module EL testers, and multimeters. Ingress protection recommends IP67 against rooftop ponding, sandstorm, and rain. Liners give each instrument an independent slot; compression-fragile devices like thermal imagers sit on upper soft foam, heavy items like batteries on bottom hard support.

Module EL inspection is mostly at night, so the case should have luminous handles and reflective strips for low-light locating. Cables (MC4 test leads) need independent routing grooves with clips to avoid tangling with instruments. For residential PV troubleshooting needing portability, the case can add a shoulder strap; related carry design references Handheld, Shoulder-Strap & Wheeled Transport Boxes.

JUNZHJIA can die-cut liners by the PV instrument list and integrate MC4 test leads and irradiance stands into one storage, reducing on-site assembly. For batch O&M projects, unified case appearance and asset numbers improve warehouse efficiency.

High-Altitude and Salt-Fog Response of Wind-Turbine Maintenance Toolkits

Wind farms split into onshore and offshore; offshore turbine maintenance at tower base, nacelle, and hub faces strong salt fog and high-altitude hoisting. Case material must resist salt fog; metal accessories use 316 stainless or dacromet, with salt-fog experience value 96-480 h no red rust. At height the case should open with one hand and have an anti-drop tether to avoid injuring people below.

Maintenance tools include torque wrenches, hydraulic pumps, feeler gauges, and flaw detectors - heavy and long-shaped. Liners use vertical separation, long tools fixed individually; hydraulic parts stand upright to prevent oil leakage, related leak-proof design references the sealing thinking in Oil-Well Pressure Instruments & Pipeline Inspection Equipment Cases. Nacelle space is tight, so the case should be compact and stackable.

Offshore wind also needs floating and recovery: if tools fall in water, closed-cell structure with a locating buoy aids salvage. Transport follows MIL-STD-810H vibration and ISTA 3 series, verifying hoist and vehicle shock.

In real-world deployment of the protective case, sealing performance must be verified against GB/T 4208, which is equivalent to IEC 60529, with IP67 as the common target: fully dust-tight and able to survive immersion at 1 m depth for 30 minutes. For units that are airdropped, vehicle-mounted, or shipboard-transported, it is advisable to add MIL-STD-810H drop (Method 516.8) and random vibration (Method 514.8) to confirm environmental adaptability, and to require a formal test report with a defined sampling plan at acceptance rather than relying on the manufacturer's claimed rating. JUNZHJIA can supply the corresponding documentation package for batch OEM programs. Related approaches are described in the equipment case program. Flame retardancy and corrosion resistance are hard thresholds for the enclosure in harsh conditions. The shell is preferably modified PP, ABS, or PC and should be rated under UL94, typically targeting V-0 or V-1; salt-fog and damp-heat environments are tested per GB/T 10125 neutral salt spray, with metal parts preferably 316 stainless steel or corrosion-resistant engineering plastics. For this class of equipment case, the service life of latches, hinges, and gaskets under corrosion often decides the usable years of the whole case earlier than the shell itself does. Related approaches are described in the equipment case program. From a maintenance-support angle, the case should be field-repairable. The liner is custom-cut to the tool or spare list, with edges and pressure parts in separate pockets; common latches and gaskets are made field-replaceable. For this case, attach a concise maintenance card: inspect gasket, lubricate latch, dehumidify liner every 3 to 6 months; strengthen corrosion control in salt fog; rotate stock to stay fresh, sharing standardized upkeep with similar equipment to keep missions uninterrupted. Related approaches are described in the equipment case program. On standards mutual recognition, export or defense-trade cases often need parallel standards: domestic IP per GB/T 4208, international IP per IEC 60529 equivalently; environmental testing per MIL-STD-810H or associated GJB methods; flame per UL94 or the corresponding national standard. For the buyer, requiring readable test reports with sampling plans is more valuable than a single pass/fail verdict and lets the same evidence chain be reused across multiple national acceptances. Related approaches are described in the equipment case program.

Electrical Safety of Storage-Battery Test Cases

Storage-station testing involves cluster voltage, internal resistance, temperature, and BMS communication, with equipment containing precision acquisition modules and high-voltage test leads. Case protection focuses on electrical safety and anti-static: shell uses anti-static material or conductive liner cloth to avoid static disturbing sampling; high-voltage leads separated and labeled to prevent accidental contact.

Storage-battery test cases need a sealed cable gland on the lid so test leads exit without breaking overall sealing. Internal temperature-humidity cards help judge condensation risk; for sample transport containing cells, follow lithium-battery transport rules with batteries separately insulated and fire-proof. JUNZHJIA can custom-cut liners and sealed glands by storage-module size and provide ESD and flame-retardant test records.

Field testing often shares insulation and grounding rules with Power Detection Equipment Cases; O&M units should build a unified electrical-safety checklist standardizing case opening, grounding, and voltage verification.

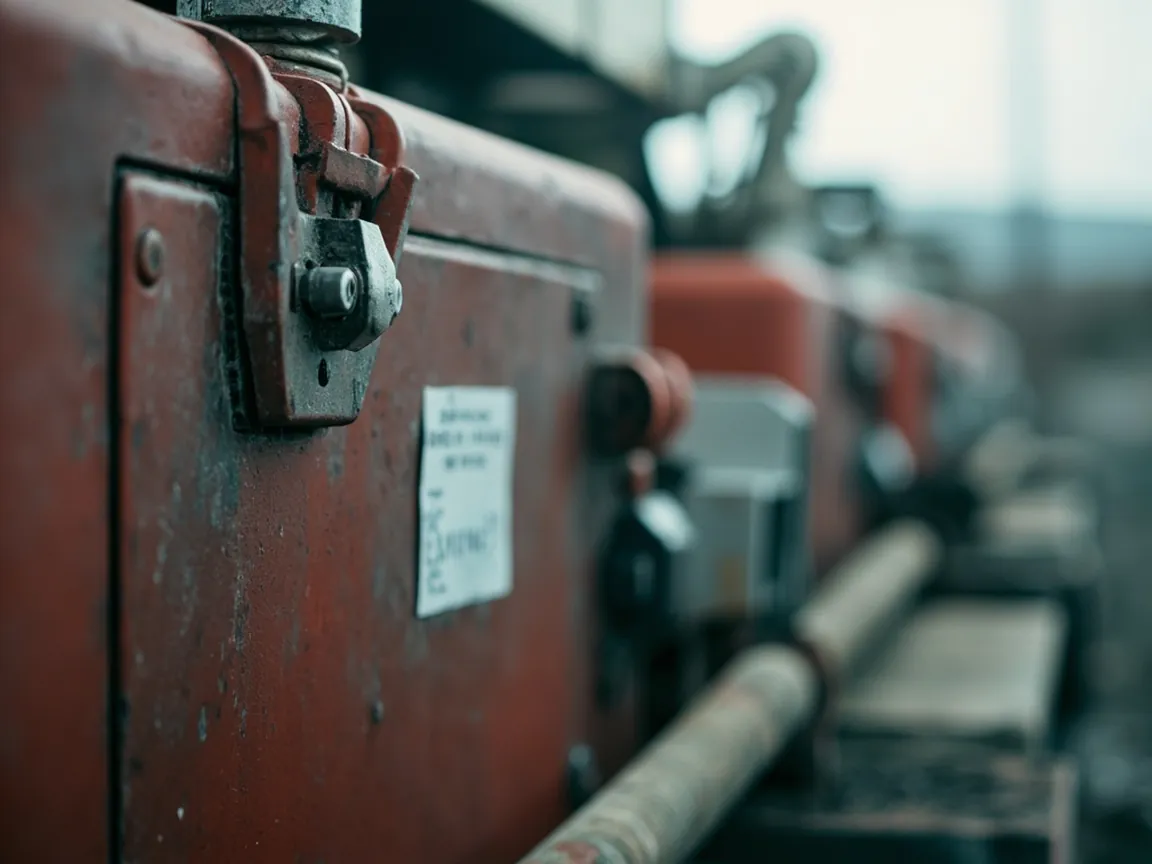

Transport fixation is the easily-overlooked step. When cases are stacked, anti-slip ribs and locating bosses keep the stack stable; single-stack height limits and counterweights must be stated in the specification. Vehicle transport fixes the case with webbing through the lift-ring so it does not shift during hard braking or cornering. ISTA procedures (e.g., ISTA 2A/3A) simulate accumulated damage from road and intermodal shipping and serve as a useful reference method before the equipment case leaves the factory, markedly reducing field open-box breakage rates. Related approaches are described in the equipment case program. On risk control, configuration errors of the case are costly: mixed weapons and ammunition, sample leakage, or instrument shock damage all translate directly into mission failure. For this case, run a failure-mode analysis (FMEA thinking) before design freeze to identify high risks such as seal failure, fixation loosening, temperature drift, and EMC interference, and add redundancy; before delivery, use ISTA/MIL-STD sampling verification so every batch falls within an acceptable quality interval rather than depending on one sample case passing. Related approaches are described in the equipment case program.

Portability and Accessories of Charging-Pile Maintenance Boxes

Charging piles spread across highway service areas, parking lots, and parks; maintenance is dispersed short duties, so the case stresses lightness and complete accessories. Typical load: insulation resistance tester, ground resistance tester, AC test pen, communication debug cable, and spares (fuse, contactor). IP65 covers most indoor-outdoor scenarios; upgrade to IP67 in frequent rain.

Liners lay out "frequently used on top, spares below", with debug cables in a coil groove. The case should have shoulder strap and handle dual mode and reserve a QR asset plate. For high-voltage maintenance of DC fast chargers, test leads need separate shielded separation; related electrical testing references the EMC thinking in Communication Equipment Cases & Network/Radio Tester Cases.

Charging-pile maintenance often needs on-site power, so the case should not store live modules; carried backup power should be isolated in an Emergency Comms Power Case style solution to reduce risk.

Cushioning and liner are the core of protecting precision contents. High-density EVA is custom-cut to the three-dimensional profile of the equipment; heavy items use contoured pockets plus straps, optics get independent shock-isolated compartments, and tool edges get separate cut-resistant pockets. The buffering design should address both impact (IK-rated 0.5 to 20 J) and long-term compression creep. JUNZHJIA can produce custom-cut liners from the equipment list so every item is individually located and stays put when opened or closed, with modular dividers replaceable in the field. Related approaches are described in the equipment case program. In real-world deployment of the protective case, sealing performance must be verified against GB/T 4208, which is equivalent to IEC 60529, with IP67 as the common target: fully dust-tight and able to survive immersion at 1 m depth for 30 minutes. For units that are airdropped, vehicle-mounted, or shipboard-transported, it is advisable to add MIL-STD-810H drop (Method 516.8) and random vibration (Method 514.8) to confirm environmental adaptability, and to require a formal test report with a defined sampling plan at acceptance rather than relying on the manufacturer's claimed rating. JUNZHJIA can supply the corresponding documentation package for batch OEM programs. Related approaches are described in the equipment case program.

Three-Proof Standards: IP, IK and ISTA Transport

The three-proof of new-energy inspection cases centers on IP. The IP code follows IEC 60529 / GB/T 4208: IP65 resists spraying, IP66 strong jetting, IP67 brief immersion. Field rain and wading mostly take IP66-IP67. IK grade (GB/T 20138 / IEC 62262) describes housing impact resistance; IK08-IK10 suits frequent toolbox knocks.

Transport verification follows ISTA 3 series (simulated transport hazards) or MIL-STD-810H Method 514.8 random vibration. The table gives common grading for new-energy scenarios:

Grading is not the higher the better; balance cost and weight. Writing standard numbers into acceptance avoids verbal debate on "enough protection". More standard explanation is in Industrial Equipment Cases.

Temperature control and seal-failure analysis matter greatly. Gaskets are preferably foamed silicone or EPDM, retaining elasticity from -40 deg C to +80 deg C; extreme ranges require high-low temperature cycling (MIL-STD-810H Methods 502.7/501.7) to confirm no embrittlement or leakage. For cases holding electronics, reagents, or samples, reserve a slot for a temperature-humidity data logger so the whole transit is recorded and traceable at goods receipt, supporting accountability and acceptance evidence. Related approaches are described in the equipment case program. Flame retardancy and corrosion resistance are hard thresholds for the enclosure in harsh conditions. The shell is preferably modified PP, ABS, or PC and should be rated under UL94, typically targeting V-0 or V-1; salt-fog and damp-heat environments are tested per GB/T 10125 neutral salt spray, with metal parts preferably 316 stainless steel or corrosion-resistant engineering plastics. For this class of equipment case, the service life of latches, hinges, and gaskets under corrosion often decides the usable years of the whole case earlier than the shell itself does. Related approaches are described in the equipment case program. Transport fixation is the easily-overlooked step. When cases are stacked, anti-slip ribs and locating bosses keep the stack stable; single-stack height limits and counterweights must be stated in the specification. Vehicle transport fixes the case with webbing through the lift-ring so it does not shift during hard braking or cornering. ISTA procedures (e.g., ISTA 2A/3A) simulate accumulated damage from road and intermodal shipping and serve as a useful reference method before the equipment case leaves the factory, markedly reducing field open-box breakage rates. Related approaches are described in the equipment case program.

Materials and UV/Salt-Fog Treatment

Case material is mainly modified PP or ABS/PC alloy. Long outdoor exposure needs UV resistance: add UV stabilizers or surface coating to extend outdoor life several times by experience. Salt-fog environments prefer PP (good chemical resistance) with 316 stainless accessories; coastal projects recommend salt-fog pre-test, experience value 96-480 h.

Latches, hinges, and handles are corrosion hotspots and should be dacromet or electrophoretic anti-corrosion. Gaskets use EPDM or silicone closed-cell foam, ozone resistant with good compression rebound. If a transparent window is used, choose UV-resistant PC with anti-scratch layer; related window design references the transparent-window solution in Handheld, Shoulder-Strap & Wheeled Transport Boxes.

Procurement acceptance should write the case metrics into a technical specification and close the loop with test documents. The core checklist: IP rating (GB/T 4208), drop and vibration (MIL-STD-810H), flame rating (UL94), impact (IK level), non-spark latches and cycle life, certifications and compliance files, lead time and OEM/ODM capability. For batch programs, sample first to confirm liner and protection, then validate in a small batch, then mass-produce, avoiding systemic risk from a single large order placed blindly. Related approaches are described in the equipment case program. Cushioning and liner are the core of protecting precision contents. High-density EVA is custom-cut to the three-dimensional profile of the equipment; heavy items use contoured pockets plus straps, optics get independent shock-isolated compartments, and tool edges get separate cut-resistant pockets. The buffering design should address both impact (IK-rated 0.5 to 20 J) and long-term compression creep. JUNZHJIA can produce custom-cut liners from the equipment list so every item is individually located and stays put when opened or closed, with modular dividers replaceable in the field. Related approaches are described in the equipment case program.

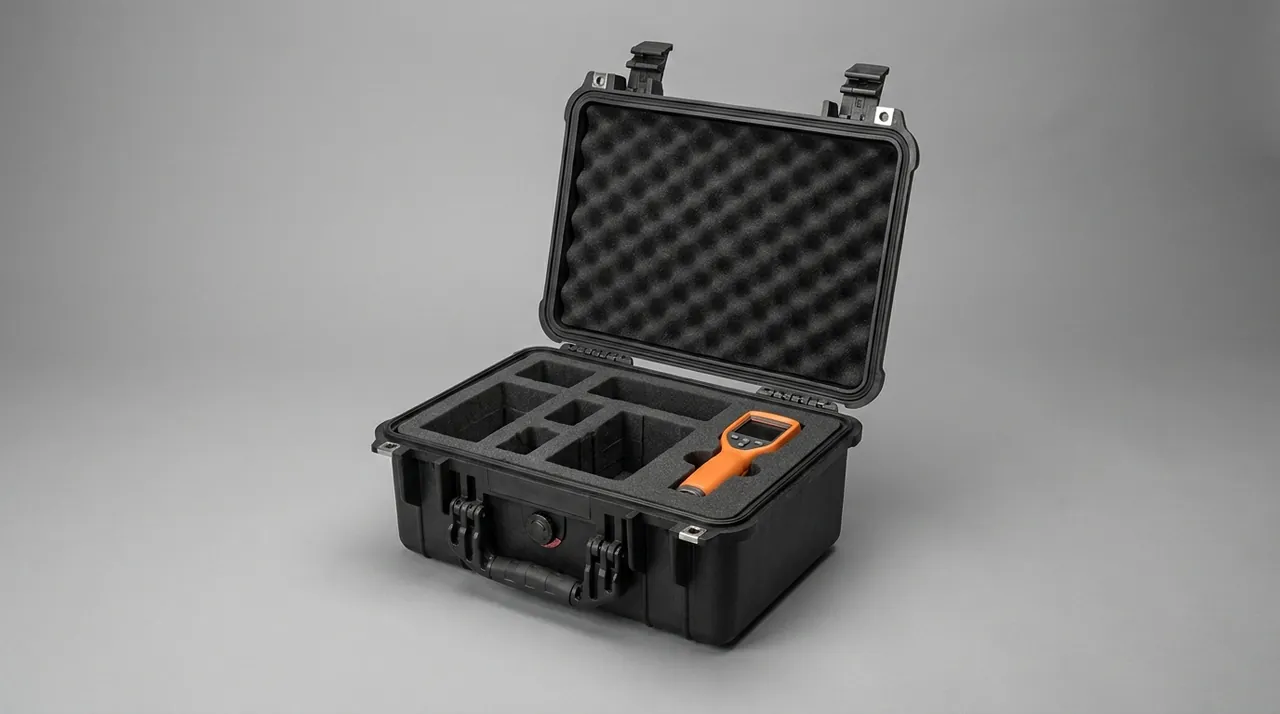

Liners and Instrument Positioning

New-energy instruments are "many and mixed"; liner value turns a list into positions. Flow: list instruments, measure sizes, layered layout, CNC die-cut, trial fit. Heavy instruments bottom hard support, precision instruments upper soft foam, cables independent groove. Each instrument a unique fixed position, take-out without collision.

Liner material by scenario: normal EVA 30-60 hardness; salt-fog closed-cell PE cotton anti-hygroscopic; anti-static conductive foam. JUNZHJIA supports OEM/ODM liners by instrument list and can add a transparent pouch for operation cards on the lid. For PV detection with many probes, compartment logic references the quick-access design in Detection Instrument Protective Cases.

Liners should allow partial replacement: wear-prone slots use hook-loop foam, replaced singly when worn, lowering full-liner cost.

In operational composition, the equipment case is rarely used alone; it is paired with command, communication, medical, and supply units into a system. Taking this case as an example, it can interface with command-comms, scene-investigation, and maintenance-support units to form a complete chain such as command-weapon-support or detect-handle-review. Select interfaces and standardized outer dimensions early so same-batch cases stack, intermodal-ship, and share maintenance, lowering lifecycle management and inventory cost. Related approaches are described in the equipment case program. Temperature control and seal-failure analysis matter greatly. Gaskets are preferably foamed silicone or EPDM, retaining elasticity from -40 deg C to +80 deg C; extreme ranges require high-low temperature cycling (MIL-STD-810H Methods 502.7/501.7) to confirm no embrittlement or leakage. For cases holding electronics, reagents, or samples, reserve a slot for a temperature-humidity data logger so the whole transit is recorded and traceable at goods receipt, supporting accountability and acceptance evidence. Related approaches are described in the equipment case program.

EMC Shielding and Anti-Static

New-energy sites have strong EMI (inverters, transformers, RF); sensitive acquisition needs EMC protection. The case can line conductive cloth or metallized foam to form a Faraday cage, with conductive gaskets at seams for continuous shielding. Lead exits use filtered cable glands to prevent coupling along cables.

For anti-static, shell surface resistance per GB/T 32304 / IEC 61340 stays in 10^4-10^11 ohm. Storage and charging-pile high-voltage test equipment especially need dual anti-static and shielding. For IT acquisition modules, related protection references the anti-static cushioning in IT Carry Cases.

Shielding effectiveness needs third-party data (e.g. 30 MHz-1 GHz attenuation experience value in dB) written into delivery files, avoiding "has shielding" claims without evidence.

Material and structure decide reliability under harsh duty. Wall thickness is usually 2.5 to 4 mm with thickened corners and stiffeners against deformation; PC may be used for transparent status viewing but needs UV treatment against yellowing. For this case, impact resistance depends not only on the shell but also on latch load paths and lid hinge design; in severe environments prefer metal-cored axles and widened latch bolts, validated to IK08 or above. Related approaches are described in the equipment case program. From a lifecycle-cost view, the equipment case should not be compared on unit price alone. Gasket aging, liner replacement, latch repair, and re-verification all incur ongoing cost; a one-case-one-file record of batch, repair, and rotation minimizes the chance of missing a case before mission. For scaled outfitting, modular liners and universal gasket kits cut spare-part variety and let the front line self-replace, raising equipment readiness. Related approaches are described in the equipment case program.

Temperature-Humidity Monitoring and Data Retention

Precision probes are temperature-humidity sensitive; the case should embed a temp-humidity record tag or external logger recording the whole transfer. On arrival, read data; if exceeded, evaluate instrument status before use. For short in-case sample storage (e.g. cells), logging is even more critical.

Data retention also includes instrument calibration validity, last maintenance date, and asset number. Recommend RFID or QR on the case with a warehouse system for "case-instrument-person" tracing. JUNZHJIA provides batch traceability numbers and test summaries at delivery for O&M asset systems. Related cold-chain data thinking references Logistics Monitoring Cases & Cold-Chain Recorder Cases.

EMC and ESD protection are not negligible for electronic contents. Cases holding PCBs, batteries, or sensors should use conductive liners and grounding following general ESD practice (in the spirit of IEC 61340); for radiated or strong-magnetic environments add a shielding layer. When the case involves night-vision, comms, or detection gear, transport and storage avoid strong magnetic fields and unknown radiation, with temperature, humidity, and shock logging forming an auditable transit file. Related approaches are described in the equipment case program.

Field Operation and Transfer Flow

Standard flow: before outbound check seal and latches, verify instruments by list, fix during transport to prevent shift, open at a flat site, take by liner, clean and return after work, close and verify seal, inventory on return. Each step traceable to a person reduces loss and misuse.

Transport fixation uses straps through case fixing rings; avoid direct sun heating the interior in vehicles. High-altitude wind cases must tether anti-drop. Wading PV scenarios can add buoys. For cross-region patrols, cases should coordinate with Emergency Command Comms Cases & Scene Investigation Kits for communication and data return.

Packaging and marking are the last compliance step. Hazardous, weapon, or sample classes must have matching seal numbers, consistent in-case manifest and shipping note, and full traceability; high-visibility color and warning marks aid identification and inventory. For cross-border or defense-trade scenes, reserve a certification nameplate position stating IP, applied standard, and manufacturer, together with GB/T 4208 and MIL-STD-810H documents, reducing customs and acceptance friction. Related approaches are described in the equipment case program.

Test Documentation and Certification

Delivery files should contain IP grade report, IK report, salt-fog report, vibration record, ESD/EMC parameters, UL94 flame-retardant grade, and factory inspection sheet. Export or overseas projects also need RoHS, REACH statements. Files must be numbered, with sample photos and co-signature.

JUNZHJIA provides bilingual test summaries and traceability numbers by batch, supporting OEM/ODM customers directly into system acceptance. Testing is not a cost center but turns "experience values" into "citable conclusions", reducing overseas customs and acceptance disputes. Related quality spec references Security Inspection Cases & Explosion-Proof Inspection Toolkits.

Scenario-based selection beats parameter stacking. If the case is for alpine border duty, prioritize weatherability, UV resistance, and low-temperature toughness; if shipboard, prioritize salt-fog corrosion resistance and anti-sway fixation; if urban emergency, prioritize fast open-close and modular swap. For this case, list the usage profile (temperature, humidity, drop, vibration, exposure media) first, then match material, seal, and liner backward, avoiding both over-design and under-protection. Related approaches are described in the equipment case program.

OEM/ODM and Procurement Advice

New-energy O&M units often run multi-site, multi-instrument types; recommend a "standard shell plus swappable liner" module: fixed case type and accessories, swap liner by instrument list. This batches shells to spread cost, liners small-batch custom, inventory variety drops.

Communicate with the maker: instrument list (size/weight/vulnerability), site environment (salt fog/height/wading or not), EMC/anti-static needed or not. JUNZHJIA supports from single-case customization to full-line OEM/ODM, gaskets by model, liners by drawing, plus test files, suitable for fast-iterating O&M. Contract should specify protection grade, acceptance standard number, warranty, and spare supply.

Common Selection Mistakes

Mistake one: only IP ignoring IK, frequent knocks crack the shell. Mistake two: normal steel accessories in salt fog, rusted in half a year. Mistake three: liner too loose, instruments collide in transport. Mistake four: high-voltage leads mixed with precision instruments, contact risk. Mistake five: no EMC shielding, data drift near inverters. Mistake six: no temp-humidity log, condensation damage unnoticed. Mistake seven: no batch tracing, loss hard to trace.

The core to avoid is "environment plus list" dual grading, writing standard numbers into contract and acceptance. Using Power-Line Patrol Cases & Substation Maintenance Toolkits as a reference shortens evaluation.

Frequently Asked Questions

Q: How to choose protection grades for PV, wind, storage, charging-pile inspection cases, is higher always better? A: Not always; base on site environment. Rooftop and wading PV recommend IP67, onshore wind IP66 suffices, offshore wind IP67 for salt fog and splash, storage and charging piles start IP65 indoor-outdoor, upgrade IP67 in frequent rain. IK describes impact resistance, IK08-IK10 for frequent knocks. Transport uses ISTA 3 or MIL-STD-810H vibration. Over-grading raises cost and weight, under-grading lacks protection; correctly reverse-derive grade from instrument list and site environment, write IP/IK/transport standard numbers into acceptance, replacing "enough or not" verbal debate with citable conclusions.

Q: Why must offshore wind maintenance cases use 316 stainless accessories, can normal steel work? A: Offshore salt fog contains chloride ions with extremely strong corrosion; normal steel and 304 stainless easily pit and rust at splash zones, causing latches to jam and handles to fall, high risk at height. 316 stainless contains molybdenum, far better pitting resistance than 304; if cost sensitive, dacromet or electrophoretic carbon steel works but salt-fog experience value needs 96-480 h no red rust. Beyond accessories, case material should be chemical-resistant PP with salt-fog pre-test before delivery. JUNZHJIA usually delivers offshore wind projects with salt-fog pre-test plus accessory anti-corrosion double insurance for long sea service.

Q: Why do storage-battery test cases need both EMC shielding and anti-static? A: Storage sites have inverters, transformers, and RF interference; sensitive acquisition with only anti-static but no shielding drifts from electromagnetic coupling; with only shielding but no anti-static, shell charge may discharge and damage sampling chips. So shell surface resistance per GB/T 32304 / IEC 61340 stays 10^4-10^11 ohm anti-static, while conductive cloth or metallized foam liner forms continuous shielding, seams with conductive gaskets, lead exit with filtered cable gland. Shielding effectiveness needs third-party 30 MHz-1 GHz attenuation data in files. JUNZHJIA can custom-cut liners and sealed glands by storage module and provide ESD and flame-retardant records for system acceptance.

Q: What are the anti-drop design points for wind high-altitude cases? A: Core is "no opening no drop, catch if fallen". The case should have an anti-drop tether clipped to the worker or nacelle point; latches with anti-misopen safety avoid wind-vibration pop; wide soft-padded handles reduce fatigue; long tools vertically separated and individually fixed to avoid swinging out. Nacelle space is tight, so compact stackable case. If tools fall in water, closed-cell structure with locating buoy aids salvage. Transport follows MIL-STD-810H vibration and ISTA 3 series verifying hoist and vehicle shock for intact arrival.

Q: Charging-pile maintenance boxes carry high-voltage test leads, how to avoid accidental contact? A: High-voltage leads must be separated and clearly labeled, not mixed with precision instruments; exit through sealed cable gland keeping overall seal; leads in a coil groove to avoid tangling. DC fast-charger maintenance leads also need shielded separation, referencing communication EMC thinking. Case opening, grounding, voltage verification should enter a unified electrical-safety checklist, verify voltage before wiring. On-site power, the case stores no live modules; carried backup power isolated in an emergency comms power case style. JUNZHJIA can integrate liners and accessories by charging-pile list to lower contact risk.

Q: Do new-energy inspection cases need temperature-humidity logging, what is it for? A: Very necessary. Precision probes are sensitive; an in-case temp-humidity tag records the whole transfer, read on arrival, if exceeded evaluate instrument status before use, avoiding sick operation. For short cell-sample storage, logging is a compliance requirement. Data also includes calibration validity, maintenance date, asset number, with RFID or QR for "case-instrument-person" tracing. JUNZHJIA provides batch traceability and test summaries at delivery for asset systems. Related cold-chain data thinking references logistics monitoring cases, turning environment data into auditable evidence.

Q: How long does liner die-cutting take, what data to provide? A: At minimum provide instrument list (name, size, weight, vulnerability) and outline (2D or 3D, physical measurable). Flow is measure, layered layout, CNC die-cut, trial fit, revise; small-batch sample cycle experience value 1-3 weeks by liner complexity. Salt-fog uses closed-cell PE cotton anti-hygroscopic, anti-static uses conductive foam. To shorten, provide clear drawings at quotation and specify foam hardness (30-60). JUNZHJIA supports OEM/ODM liners by list, lid can add transparent pouch for operation cards, wear slots use hook-loop foam for single replacement.

Q: What must test files contain, any extra export requirements? A: Basic files should contain IP grade report, IK report, salt-fog report, vibration record, ESD/EMC parameters, UL94 flame-retardant grade, and factory inspection sheet, all numbered, with sample photos and co-signature. Export or overseas projects also need RoHS, REACH statements, some markets require corresponding language. Files issued by qualified labs, avoiding verbal guarantees. JUNZHJIA provides bilingual test summaries and traceability numbers by batch for direct overseas acceptance. Writing standard numbers and test conclusions into the contract is the most effective way to reduce acceptance disputes and ease overseas customs.

Q: How to use "standard shell plus swappable liner" to lower multi-site inventory? A: First sort the large case types shared by multi-site units, fix shell type and latch accessories, only swap liner modules by instrument list, liners using hook-loop or locating pins for on-site quick swap. Benefits: shells batch-purchased to spread cost, liners small-batch custom, inventory variety drops significantly. Key points: shell reserves uniform liner fixing, liner numbered to site and task, build borrow-return ledger. For units running PV, wind, storage, charging piles together, this system balances protection consistency and task flexibility, annual re-inspection only targets the shell, liners supplemented as needed, lowering total ownership cost.

Conclusion and Related Reading

Selecting new-energy station inspection cases is essentially "environment plus list" dual grading: reverse-derive IP/IK/transport grades from salt fog, height, wading, and EMC; position multiple instruments by liner; turn experience into evidence by test files. PV inspection equipment cases, wind-turbine maintenance toolkits, storage-battery test cases, and charging-pile maintenance boxes each emphasize different points, but all revolve around three-proof, quick access, and traceability.
