In pre-hospital emergency, grassroots outreach, and disaster medical response, diagnostic and treatment equipment must stay usable between bumpy transport and complex field sites. The core conclusion: selecting a portable diagnostic equipment case centers on "shock protection without misdiagnosis, protection without delaying rescue". Use layered cushioning to protect precision probes, quick access to win rescue time, and traceable testing to keep equipment ready at all times. This article covers five families - portable ultrasound equipment case, patient monitor protective case, ventilator transport case, defibrillator protective case, and mobile diagnostic case - and also addresses compact solutions such as patient monitor protective box, ventilator transport box, defibrillator protective box, endoscope disinfection box, and mobile diagnostic box.
The common traits of emergency and outreach devices are "expensive, precise, urgent": ultrasound probes fear pressure, monitors fear vibration, ventilators fear moisture and knocks, defibrillator electrodes fear accidental touch. Poor case design means tiny transport shift causes boot failure. Selection should reverse-derive liner and grade from device vulnerability. The following expands item by item.
Table of Contents
- Tasks and Common Traits of Portable Diagnostic Equipment Cases
- Probe Protection of Portable Ultrasound Equipment Cases
- Cushioning and Cable Management of Patient Monitor Protective Cases
- Moisture and Oxygen Accessories of Ventilator Transport Cases
- Electrode and Battery Safety of Defibrillator Protective Cases
- Integrated Storage of Mobile Diagnostic Cases
- Compact Solutions: Patient Monitor Protective Box and Mobile Diagnostic Box
- Sterile Transfer of Endoscope Disinfection Boxes
- Protection and Cleanliness Standards: IP, YY and GB
- Materials and Custom Liners
- Temperature-Humidity and Battery Management
- Test Documentation and Certification
- OEM/ODM and Procurement Advice
- Common Selection Mistakes
Tasks and Common Traits of Portable Diagnostic Equipment Cases
Portable diagnostic equipment cases serve ambulances, outreach teams, drills, and disaster sites, stressing "ready on arrival". Three common traits: first, transport-vibration resistance, vehicle and air random vibration verified per MIL-STD-810H 514.8; second, quick access, the shorter from open to boot the better within golden rescue time; third, clean and reusable, especially patient-contact probes and tubing easy to disinfect.
Device vulnerabilities differ: the portable ultrasound equipment case core is convex/linear probes fearing pressure and scratch; the patient monitor protective case host and screen fear vibration; the ventilator transport case air path fears moisture and dust; the defibrillator protective case electrodes and battery fear accidental touch and short. Case design should "assign cushioning by vulnerability" not uniform thick foam. Related specialty-instrument transport references Surgical Instrument Cases & Dental/Ophthalmic Instrument Protection.
Probe Protection of Portable Ultrasound Equipment Cases
The portable ultrasound probe is the most valuable and fragile part; pressure or scratch directly causes artifacts or scrap. The liner should give the probe an independent hard-support slot, probe face down or sideways with a protective cap, contact face microfiber cloth. Cable coiled in an independent groove avoids pressing the probe. Host bottom hard support, screen with anti-pressure layer.
Ingress protection IP65 covers in-vehicle and indoor transfer; field wading upgrades IP67. The case should have luminous handles and reflective strips for dark locating. For frequently relocating outreach teams, the portable ultrasound equipment case can add a shoulder strap; related carry design references Handheld, Shoulder-Strap & Wheeled Transport Boxes. JUNZHJIA can die-cut probe liners by ultrasound model, ensuring each probe a unique fixed position.
Cushioning and Cable Management of Patient Monitor Protective Cases
The monitor contains host, screen, multi-parameter module, and lead wires - vibration-fragile and cable-heavy. Liner layers: host and screen bottom hard support with anti-pressure layer, module independent slot, lead and SpO2 wires in coil grooves with clips. Cushioning follows MIL-STD-810H random vibration, screen corners with guard foam against knocks.
The patient monitor protective case should open smoothly, latches with anti-misopen to avoid popping on hard braking. For sites needing compact form, a patient monitor protective box integrates host and common wires into a compact case for single-person outreach. JUNZHJIA supports liner and wire-groove integration by monitor model, lid adding transparent pouch for operation cards. Related multi-module thinking references the compartment design in Military Electronics Protective Cases.
In real-world deployment of the protective case, sealing performance must be verified against GB/T 4208, which is equivalent to IEC 60529, with IP67 as the common target: fully dust-tight and able to survive immersion at 1 m depth for 30 minutes. For units that are airdropped, vehicle-mounted, or shipboard-transported, it is advisable to add MIL-STD-810H drop (Method 516.8) and random vibration (Method 514.8) to confirm environmental adaptability, and to require a formal test report with a defined sampling plan at acceptance rather than relying on the manufacturer's claimed rating. JUNZHJIA can supply the corresponding documentation package for batch OEM programs. Related approaches are described in the equipment case program. Flame retardancy and corrosion resistance are hard thresholds for the enclosure in harsh conditions. The shell is preferably modified PP, ABS, or PC and should be rated under UL94, typically targeting V-0 or V-1; salt-fog and damp-heat environments are tested per GB/T 10125 neutral salt spray, with metal parts preferably 316 stainless steel or corrosion-resistant engineering plastics. For this class of equipment case, the service life of latches, hinges, and gaskets under corrosion often decides the usable years of the whole case earlier than the shell itself does. Related approaches are described in the equipment case program. From a maintenance-support angle, the case should be field-repairable. The liner is custom-cut to the tool or spare list, with edges and pressure parts in separate pockets; common latches and gaskets are made field-replaceable. For this case, attach a concise maintenance card: inspect gasket, lubricate latch, dehumidify liner every 3 to 6 months; strengthen corrosion control in salt fog; rotate stock to stay fresh, sharing standardized upkeep with similar equipment to keep missions uninterrupted. Related approaches are described in the equipment case program. On standards mutual recognition, export or defense-trade cases often need parallel standards: domestic IP per GB/T 4208, international IP per IEC 60529 equivalently; environmental testing per MIL-STD-810H or associated GJB methods; flame per UL94 or the corresponding national standard. For the buyer, requiring readable test reports with sampling plans is more valuable than a single pass/fail verdict and lets the same evidence chain be reused across multiple national acceptances. Related approaches are described in the equipment case program.
Moisture and Oxygen Accessories of Ventilator Transport Cases
The ventilator contains host, circuit, humidifier jar, and battery; air path fears moisture and dust, humidifier jar fears inversion leakage. Liner should fix the humidifier jar upright with a leak-proof bladder, circuit independent coil groove. Ingress protection recommends IP65, wading IP67; case with humidity card and desiccant to judge condensation. Oxygen accessories (adapters, masks) in separate small bags to avoid loss.
Battery separately insulated and fire-proof, meeting transport fire safety; check charge and airtight before boot. For field no-power, the case can reserve an external power compartment or pair with an Emergency Comms Power Case. JUNZHJIA can custom-cut liner and bladder by ventilator list and provide flame-retardant and ESD records. For more compact transfer, a ventilator transport box compresses host and essential circuit into a portable case for vehicle and personnel.

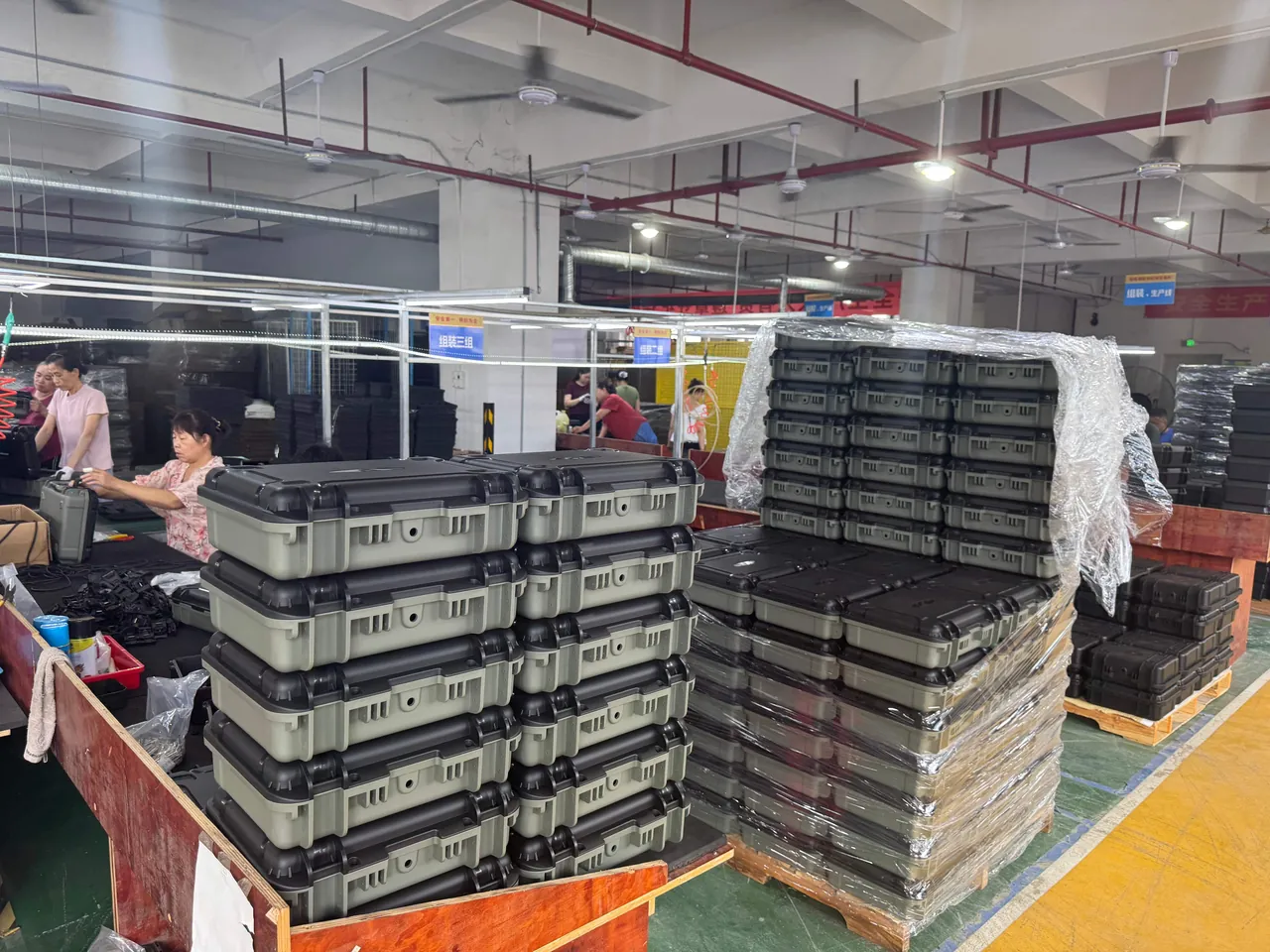

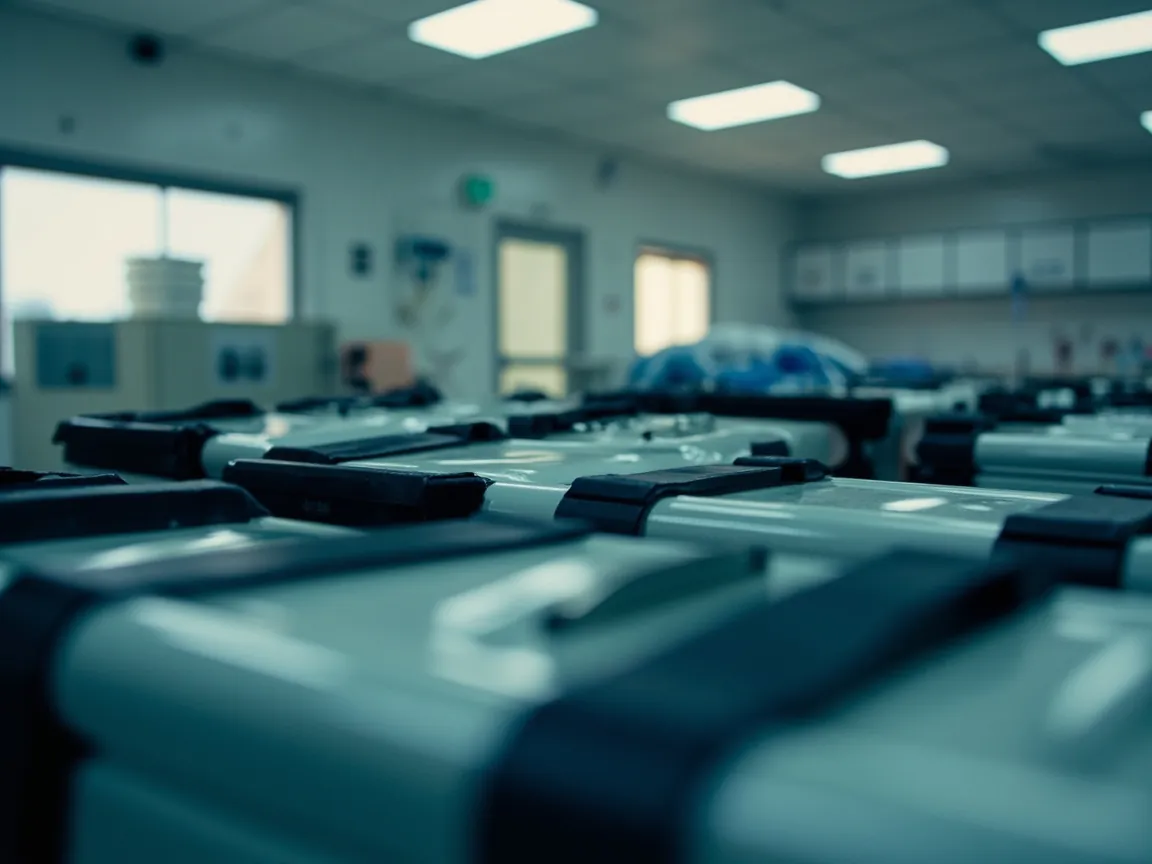

Transport fixation is the easily-overlooked step. When cases are stacked, anti-slip ribs and locating bosses keep the stack stable; single-stack height limits and counterweights must be stated in the specification. Vehicle transport fixes the case with webbing through the lift-ring so it does not shift during hard braking or cornering. ISTA procedures (e.g., ISTA 2A/3A) simulate accumulated damage from road and intermodal shipping and serve as a useful reference method before the equipment case leaves the factory, markedly reducing field open-box breakage rates. Related approaches are described in the equipment case program. On risk control, configuration errors of the case are costly: mixed weapons and ammunition, sample leakage, or instrument shock damage all translate directly into mission failure. For this case, run a failure-mode analysis (FMEA thinking) before design freeze to identify high risks such as seal failure, fixation loosening, temperature drift, and EMC interference, and add redundancy; before delivery, use ISTA/MIL-STD sampling verification so every batch falls within an acceptable quality interval rather than depending on one sample case passing. Related approaches are described in the equipment case program.
Electrode and Battery Safety of Defibrillator Protective Cases
The defibrillator rescues cardiac arrest; every second from open to shock matters. The liner must make electrodes and host "reachable at hand", electrode position with anti-misopen cap but still single-hand takeable; battery fixed separately meeting transport fire safety, charge indicator visible outside. Latches quick-open with anti-misopen safety, avoiding pop on bumps yet preventing accidental discharge.
Ingress protection IP65 start, wading IP67. The defibrillator protective case should coordinate with monitor and ventilator in one vehicle and case as a rescue unit. For single-person outreach or community stations, a defibrillator protective box integrates host, electrodes, and simple airway into a small case, raising deployment density. JUNZHJIA can build quick-access liners by defibrillator model with bilingual test summaries for batch pre-hospital issue.

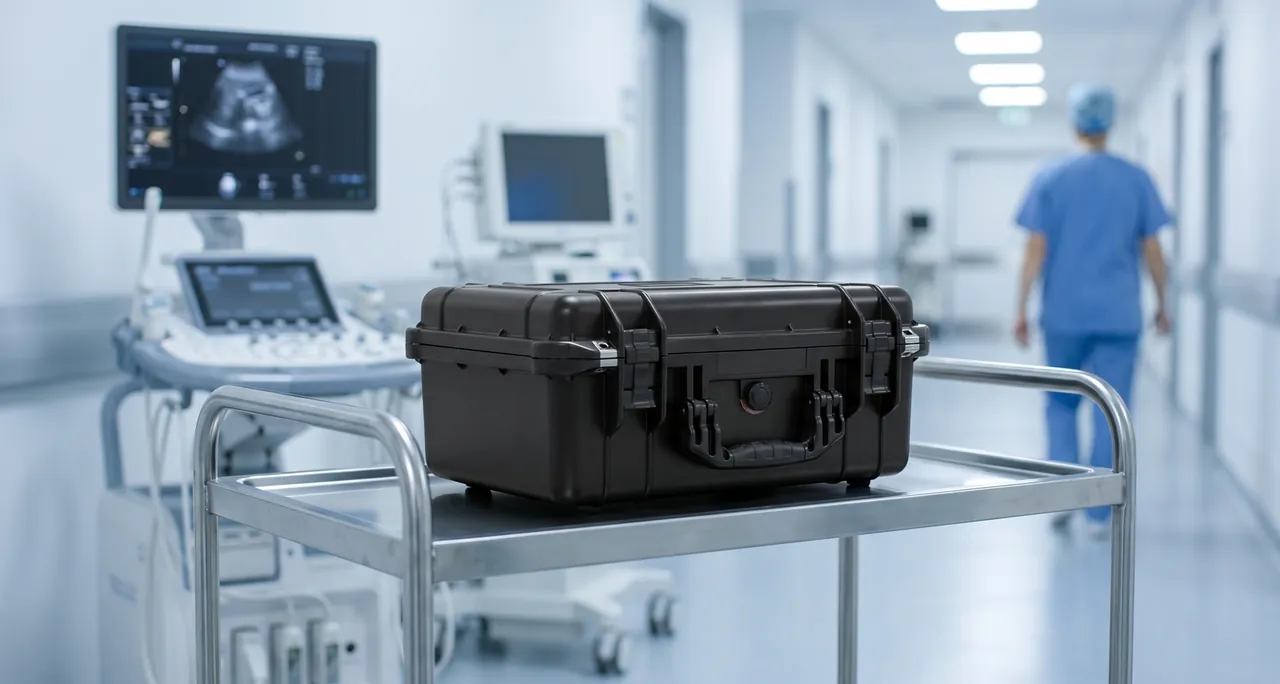

Cushioning and liner are the core of protecting precision contents. High-density EVA is custom-cut to the three-dimensional profile of the equipment; heavy items use contoured pockets plus straps, optics get independent shock-isolated compartments, and tool edges get separate cut-resistant pockets. The buffering design should address both impact (IK-rated 0.5 to 20 J) and long-term compression creep. JUNZHJIA can produce custom-cut liners from the equipment list so every item is individually located and stays put when opened or closed, with modular dividers replaceable in the field. Related approaches are described in the equipment case program. In real-world deployment of the protective case, sealing performance must be verified against GB/T 4208, which is equivalent to IEC 60529, with IP67 as the common target: fully dust-tight and able to survive immersion at 1 m depth for 30 minutes. For units that are airdropped, vehicle-mounted, or shipboard-transported, it is advisable to add MIL-STD-810H drop (Method 516.8) and random vibration (Method 514.8) to confirm environmental adaptability, and to require a formal test report with a defined sampling plan at acceptance rather than relying on the manufacturer's claimed rating. JUNZHJIA can supply the corresponding documentation package for batch OEM programs. Related approaches are described in the equipment case program. Flame retardancy and corrosion resistance are hard thresholds for the enclosure in harsh conditions. The shell is preferably modified PP, ABS, or PC and should be rated under UL94, typically targeting V-0 or V-1; salt-fog and damp-heat environments are tested per GB/T 10125 neutral salt spray, with metal parts preferably 316 stainless steel or corrosion-resistant engineering plastics. For this class of equipment case, the service life of latches, hinges, and gaskets under corrosion often decides the usable years of the whole case earlier than the shell itself does. Related approaches are described in the equipment case program.
Integrated Storage of Mobile Diagnostic Cases
The mobile diagnostic case targets outreach, free clinic, and drill, integrating basic diagnosis plus simple treatment plus consumables. Liner zones by "check-treat-consume": top common (sphygmomanometer, stethoscope, glucose), middle instruments, bottom consumables (dressing, small drug box). Ingress IP65, field IP67. Case with shoulder strap and handle, stackable.
The mobile diagnostic case stresses "one case for visit", so liner numbering matches list for fast return. For community and village doctors, a mobile diagnostic box further miniaturizes with basic tests and common drugs for home visits. JUNZHJIA supports zone liners by diagnostic list, lid transparent pouch for flow card. Related emergency transfer references the material-list logic in Emergency Transport Cases & Blood Collection Boxes.
Temperature control and seal-failure analysis matter greatly. Gaskets are preferably foamed silicone or EPDM, retaining elasticity from -40 deg C to +80 deg C; extreme ranges require high-low temperature cycling (MIL-STD-810H Methods 502.7/501.7) to confirm no embrittlement or leakage. For cases holding electronics, reagents, or samples, reserve a slot for a temperature-humidity data logger so the whole transit is recorded and traceable at goods receipt, supporting accountability and acceptance evidence. Related approaches are described in the equipment case program. Transport fixation is the easily-overlooked step. When cases are stacked, anti-slip ribs and locating bosses keep the stack stable; single-stack height limits and counterweights must be stated in the specification. Vehicle transport fixes the case with webbing through the lift-ring so it does not shift during hard braking or cornering. ISTA procedures (e.g., ISTA 2A/3A) simulate accumulated damage from road and intermodal shipping and serve as a useful reference method before the equipment case leaves the factory, markedly reducing field open-box breakage rates. Related approaches are described in the equipment case program.
Compact Solutions: Patient Monitor Protective Box and Mobile Diagnostic Box
The "box" solution is the compact version of the "case", for single-person carry, dense deployment, or as in-case module. The patient monitor protective box integrates host and common wires, dropping excess space; the mobile diagnostic box holds basic tests and common drugs for home and vehicle. Both share protection grade and liner logic with corresponding cases, only smaller volume and faster access.
Choose case or box by "task duration plus item amount": short outreach, single-disease follow-up uses box; all-day visit, multi-disease uses case. Ventilator transport box and defibrillator protective box follow the same, light forms of corresponding cases. JUNZHJIA can output "case plus box" two liners for one device, shared inventory, task swap. Related box references Medical Equipment Boxes & Instrument Boxes.
Procurement acceptance should write the case metrics into a technical specification and close the loop with test documents. The core checklist: IP rating (GB/T 4208), drop and vibration (MIL-STD-810H), flame rating (UL94), impact (IK level), non-spark latches and cycle life, certifications and compliance files, lead time and OEM/ODM capability. For batch programs, sample first to confirm liner and protection, then validate in a small batch, then mass-produce, avoiding systemic risk from a single large order placed blindly. Related approaches are described in the equipment case program. Cushioning and liner are the core of protecting precision contents. High-density EVA is custom-cut to the three-dimensional profile of the equipment; heavy items use contoured pockets plus straps, optics get independent shock-isolated compartments, and tool edges get separate cut-resistant pockets. The buffering design should address both impact (IK-rated 0.5 to 20 J) and long-term compression creep. JUNZHJIA can produce custom-cut liners from the equipment list so every item is individually located and stays put when opened or closed, with modular dividers replaceable in the field. Related approaches are described in the equipment case program.
Sterile Transfer of Endoscope Disinfection Boxes
The endoscope is high-value, thin-channel, needs sterile transfer after disinfection. The endoscope disinfection box core is "sterile state not broken": liner uses high-temperature disinfectable material (medical silicone or PP), scope coiled with radius not less than minimum bend radius to avoid fold; channel port with protective cap against contamination. Case IP65, clean environment can use transparent lid visual.
The disinfection box should be high-temperature or chemical disinfectable, avoiding liner absorbing liquid and hiding bacteria; each use with sterilization indicator card and trace code. For shared surgery and clinic, related sterile transport references Surgical Instrument Cases & Dental/Ophthalmic Instrument Protection. JUNZHJIA builds fold-proof liners by endoscope model and provides material biocompatibility and heat-resistance notes.
In operational composition, the equipment case is rarely used alone; it is paired with command, communication, medical, and supply units into a system. Taking this case as an example, it can interface with command-comms, scene-investigation, and maintenance-support units to form a complete chain such as command-weapon-support or detect-handle-review. Select interfaces and standardized outer dimensions early so same-batch cases stack, intermodal-ship, and share maintenance, lowering lifecycle management and inventory cost. Related approaches are described in the equipment case program.
Protection and Cleanliness Standards: IP, YY and GB
Ingress grade uses IP (IEC 60529 / GB/T 4208), in-vehicle IP65, field wading IP67. Medical device cleanliness and electrical safety cite YY 0505 (medical electrical EMC), GB 9706 series (medical electrical equipment safety) as device-body requirements; the case is not a device but liner material should be biocompatible and easy-clean.
The table gives common device grading:
| Device | Suggested IP | Transport | Liner Point |
|---|---|---|---|
| --- | --- | --- | --- |
| Portable ultrasound | IP65/IP67 | MIL-STD-810H 514.8 | Probe hard support, cable groove |
| Patient monitor | IP65 | Random vibration | Screen anti-pressure, module slot |
| Ventilator | IP65/IP67 | Random vibration | Humidifier upright, leak-proof |
| Defibrillator | IP65 | Random vibration | Electrode quick, battery separated |
| Mobile diagnostic | IP65/IP67 | ISTA 3A | Zone storage |
Grading should enter acceptance, avoiding verbal debate. More medical transfer standards in Field Medical Cases & Combat First-Aid Kits.
Material and structure decide reliability under harsh duty. Wall thickness is usually 2.5 to 4 mm with thickened corners and stiffeners against deformation; PC may be used for transparent status viewing but needs UV treatment against yellowing. For this case, impact resistance depends not only on the shell but also on latch load paths and lid hinge design; in severe environments prefer metal-cored axles and widened latch bolts, validated to IK08 or above. Related approaches are described in the equipment case program. From a lifecycle-cost view, the equipment case should not be compared on unit price alone. Gasket aging, liner replacement, latch repair, and re-verification all incur ongoing cost; a one-case-one-file record of batch, repair, and rotation minimizes the chance of missing a case before mission. For scaled outfitting, modular liners and universal gasket kits cut spare-part variety and let the front line self-replace, raising equipment readiness. Related approaches are described in the equipment case program. Temperature control and seal-failure analysis matter greatly. Gaskets are preferably foamed silicone or EPDM, retaining elasticity from -40 deg C to +80 deg C; extreme ranges require high-low temperature cycling (MIL-STD-810H Methods 502.7/501.7) to confirm no embrittlement or leakage. For cases holding electronics, reagents, or samples, reserve a slot for a temperature-humidity data logger so the whole transit is recorded and traceable at goods receipt, supporting accountability and acceptance evidence. Related approaches are described in the equipment case program.
Materials and Custom Liners
Case material is mainly modified PP, ABS/PC; liner contacting patients should use medical-grade disinfectable material (PP, medical silicone, PE cotton). Foam hardness 30-60, probes and screens with soft foam plus hard support. Cutting uses CNC die-cut, high precision no burr.
Custom flow: device list, measure sizes, layered layout, die-cut, trial fit. Heavy device low, precision part hard support, cable independent groove, each item unique fixed position. JUNZHJIA supports liner and bladder by device model, lid transparent pouch for operation card and sterilization indicator. For multi-probe, compartment logic references the quick-access design in Detection Instrument Protective Cases.
EMC and ESD protection are not negligible for electronic contents. Cases holding PCBs, batteries, or sensors should use conductive liners and grounding following general ESD practice (in the spirit of IEC 61340); for radiated or strong-magnetic environments add a shielding layer. When the case involves night-vision, comms, or detection gear, transport and storage avoid strong magnetic fields and unknown radiation, with temperature, humidity, and shock logging forming an auditable transit file. Related approaches are described in the equipment case program.
Temperature-Humidity and Battery Management
Precision electronics fear condensation; case with humidity card and desiccant, read on arrival, evaluate before boot if exceeded. Batteries (ultrasound, monitor, ventilator, defibrillator) separately insulated and fire-proof meeting transport fire safety; charge indicator visible outside, periodic charge maintenance. For cold-chain reagents (test strips, small drug box), case can set cold-storage compartment; related thinking references Vaccine Cold-Chain Cases & Medicine Insulated Boxes.
Data retention includes calibration validity, maintenance date, asset number, with RFID or QR for "case-device-person" tracing. JUNZHJIA provides batch traceability and test summaries at delivery for pre-hospital asset systems. Related cold-chain data references Logistics Monitoring Cases & Cold-Chain Recorder Cases.
Packaging and marking are the last compliance step. Hazardous, weapon, or sample classes must have matching seal numbers, consistent in-case manifest and shipping note, and full traceability; high-visibility color and warning marks aid identification and inventory. For cross-border or defense-trade scenes, reserve a certification nameplate position stating IP, applied standard, and manufacturer, together with GB/T 4208 and MIL-STD-810H documents, reducing customs and acceptance friction. Related approaches are described in the equipment case program.
Test Documentation and Certification
Delivery files should contain IP grade report, vibration/shock record, liner material biocompatibility or easy-clean note, flame-retardant grade (UL94), ESD parameters, factory inspection sheet. Export needs RoHS, REACH, and corresponding market medical compliance statements. Files numbered, sample photos, co-signed.
JUNZHJIA provides bilingual test summaries and traceability numbers by batch, supporting OEM/ODM customers into pre-hospital acceptance. Testing turns "experience values" into "citable conclusions", key for overseas and in-hospital acceptance. Related quality spec references Security Inspection Cases & Explosion-Proof Inspection Toolkits.
Scenario-based selection beats parameter stacking. If the case is for alpine border duty, prioritize weatherability, UV resistance, and low-temperature toughness; if shipboard, prioritize salt-fog corrosion resistance and anti-sway fixation; if urban emergency, prioritize fast open-close and modular swap. For this case, list the usage profile (temperature, humidity, drop, vibration, exposure media) first, then match material, seal, and liner backward, avoiding both over-design and under-protection. Related approaches are described in the equipment case program.
OEM/ODM and Procurement Advice
Pre-hospital and grassroots units often run multi-device, multi-site; recommend "standard shell plus swappable liner plus case-box same structure": fix case type and latches, swap liner by device; one device outputs case and box two liners. This batches shells to spread cost, liners small-batch custom, inventory drops.
Communicate with the maker: device list (size/weight/vulnerability), task environment (in-vehicle/field/wading), sterile liner needed or not. JUNZHJIA supports from single-case customization to full-line OEM/ODM, liners by model, bladders by drawing, plus test files. Contract should specify protection grade, acceptance standard number, warranty and spare supply; writing standard numbers into contract gives a basis for disputes.
Common Selection Mistakes
Mistake one: uniform thick foam, probe crushed. Mistake two: cable pressed on host, boot failure. Mistake three: humidifier jar inverted leaking without bladder. Mistake four: electrode accidental-touch risk, no anti-misopen. Mistake five: battery not isolated, transport fire unsafe. Mistake six: liner not disinfectable, hides bacteria. Mistake seven: no tracing, loss hard to find.
The core to avoid is "assign cushioning by vulnerability plus quick access plus traceable", writing standard numbers into files. Using Portable Diagnostic Equipment Cases as reference shortens evaluation.
Frequently Asked Questions
Q: Why must portable ultrasound probes use hard-support slots instead of thick foam? A: The ultrasound probe face has piezo crystals; pressure or scratch causes artifacts or scrap, and thick foam still loads the probe under overall compression, unable to protect at a point. The correct way is an independent hard-support slot for the probe, probe face down or sideways with a protective cap, contact face microfiber, cable coiled in an independent groove away from the probe. Host bottom hard support, screen anti-pressure layer. JUNZHJIA can die-cut probe liners by ultrasound model, ensuring each probe a unique fixed position. Ingress IP65 covers in-vehicle, field wading IP67. Writing "probe hard support" into acceptance is the key red line against transport probe damage.
Q: How to choose patient monitor protective case vs patient monitor protective box, what is the difference? A: Both share protection and liner logic, differing in volume and carry form. The patient monitor protective case suits all-day visit, multi-parameter modules and multi-lead wires, layering host, screen, module, and wire grooves; the patient monitor protective box is compact, integrating host and common wires into a small case for single-person outreach and dense community deployment. Choose case or box by "task duration plus item amount": short single-disease follow-up uses box, all-day multi-disease uses case. JUNZHJIA can output case and box two liners for one monitor, shared inventory, task swap, lowering multi-site inventory variety. Related box-series references medical equipment boxes series.
Q: How to prevent humidifier jar leakage in ventilator transport cases, how to place the battery? A: The humidifier jar must be fixed upright with a leak-proof bladder, the bladder using sealable material to catch accidental leakage, circuit independent coil groove to avoid flattening. Case IP65, wading IP67, with humidity card and desiccant. Battery separately insulated and fire-proof meeting transport fire safety, check charge and airtight before boot. Field no-power can reserve external power compartment or pair with emergency comms power case. JUNZHJIA custom-cuts liner and bladder by ventilator list with flame-retardant and ESD records. For more compact transfer use a ventilator transport box compressing host and essential circuit into a portable case for vehicle and personnel.
Q: How does a defibrillator protective case balance "quick access" and "prevent accidental discharge"? A: Core is liner zoning plus latch double safety. Electrodes and host liner "reachable at hand", electrode position with anti-misopen cap but still single-hand takeable; battery fixed separately meeting transport fire safety, charge visible outside. Latch quick-open with anti-misopen safety avoids popping on hard braking yet prevents accidental discharge. Ingress IP65, wading IP67. The defibrillator should coordinate with monitor and ventilator in one vehicle and case as rescue unit; single-person outreach can use a defibrillator protective box integrating host, electrodes, simple airway, raising deployment density. JUNZHJIA builds quick-access liners by defibrillator model with test summaries for batch pre-hospital issue.
Q: What scenarios suit mobile diagnostic case vs mobile diagnostic box? A: The mobile diagnostic case targets all-day outreach, free clinic, drill, integrating check plus treat plus consumables, liner zoned "check-treat-consume", shoulder strap handle stackable, IP65 / field IP67. The mobile diagnostic box is miniaturized with basic tests and common drugs for home and vehicle, dense deployment. Choose case or box by task: all-day multi-disease uses case, short home follow-up uses box. JUNZHJIA supports zone liners by diagnostic list, lid transparent pouch for flow card; related emergency material-list logic references emergency transport cases and blood collection boxes.
Q: How does an endoscope disinfection box keep sterile state unbroken? A: Core is disinfectable liner plus scope fold-proof plus channel contamination-proof. Liner uses high-temperature disinfectable material (medical silicone or PP), scope coiled radius not less than minimum bend radius to avoid fold, channel port with protective cap; case IP65, clean environment transparent lid visual. The disinfection box should be high-temperature or chemical disinfectable, avoiding liner absorbing liquid and hiding bacteria; each use with sterilization indicator card and trace code. For shared surgery and clinic, sterile transport references the specialty approach in surgical instrument cases. JUNZHJIA builds fold-proof liners by endoscope model with material biocompatibility and heat-resistance notes, turning "sterile unbroken" into a verifiable liner layout.
Q: What are the battery transport requirements for portable diagnostic cases, how to manage? A: Ultrasound, monitor, ventilator, defibrillator all contain batteries; transport must meet fire and short-proof: batteries separately insulated and fire-proof, not contacting probe metal; charge indicator visible outside, periodic charge maintenance; lithium batteries follow corresponding transport rules. Case ingress IP65 start, humidity card inside to judge condensation, read data before boot on arrival. Data retention includes calibration validity, maintenance date, asset number, with RFID or QR for "case-device-person" tracing. JUNZHJIA provides batch traceability and test summaries at delivery into pre-hospital asset systems; cold-chain reagents can set cold-storage compartment in case, thinking referencing vaccine cold-chain cases.
Q: What must test files contain, any extra export requirements? A: Basic files should contain IP grade report, vibration/shock record, liner material biocompatibility or easy-clean note, flame-retardant grade (UL94), ESD parameters, factory inspection sheet, numbered, sample photos, co-signed. Export needs RoHS, REACH, and corresponding market medical compliance statements, some markets require corresponding language. Files issued by qualified labs, avoiding verbal guarantees. JUNZHJIA provides bilingual test summaries and traceability numbers by batch for direct in-hospital and overseas acceptance. Writing standard numbers and material notes into the contract is the most effective way to reduce acceptance disputes.
Q: How to use "case-box same structure" to lower multi-device inventory? A: First sort the large case types shared by multi-device units, fix case type and latch accessories, swap liner by device; one device outputs "case plus box" two liners, the box as in-case module or independent carry. Benefits: shells batch-purchased to spread cost, liners small-batch custom, inventory variety drops significantly. Key points: shell reserves uniform liner fixing, liner numbered to device and task, build borrow-return ledger. For units running ultrasound, monitor, ventilator, defibrillator together, this system balances protection consistency and task flexibility, annual re-inspection only targets the shell, liners supplemented as needed, lowering total ownership cost.
Conclusion and Related Reading
Selecting portable diagnostic equipment cases is essentially "assign cushioning by vulnerability, win time by quick access, ensure readiness by traceable testing". Portable ultrasound equipment cases, patient monitor protective cases, ventilator transport cases, defibrillator protective cases, and mobile diagnostic cases each emphasize different points; patient monitor protective boxes, ventilator transport boxes, defibrillator protective boxes, endoscope disinfection boxes, and mobile diagnostic boxes are compact supplements for corresponding scenarios. Whether case or box, all revolve around shock protection, cleanliness, and traceability.
