Surgical, dental, and ophthalmic instruments are high-value, high-precision, and patient-contacting; their transport and storage baseline is "sterile state not broken, precision structure not damaged". The core conclusion: selecting a specialty medical instrument case centers on triple assurance of "clean liner plus point cushioning plus traceable sterilization", making instruments controllable, usable, and auditable from warehouse to operating table. This article covers four families - surgical instrument cases, dental instrument cases, ophthalmic equipment cases, and endoscope disinfection transfer cases - and also addresses compact solutions such as medical equipment cases, surgical instrument boxes, dental instrument boxes, and ophthalmic equipment boxes.
The common traits of specialty instruments are "clean, precise, sharp": surgical instruments fear rust and knock, blades and scissors need fixing to avoid injury; dental handpieces fear vibration and contamination; ophthalmic microscopes and phaco probes are extremely precise; endoscopes with thin channels need fold-proof and contamination-proof. A case with non-disinfectable liner or misaligned cushion directly threatens patient safety. The following expands item by item.
Table of Contents
- Tasks and Baseline of Specialty Medical Instrument Cases
- Rust Prevention and Sharp Fixing of Surgical Instrument Cases
- Handpiece Protection of Dental Instrument Cases
- Precision Cushioning of Ophthalmic Equipment Cases
- Sterile Fold-Proof of Endoscope Disinfection Transfer Cases
- Compact Solutions: Surgical Instrument Boxes and Dental Instrument Boxes
- Integration of Medical Equipment Cases and Ophthalmic Equipment Boxes
- Protection and Cleanliness Standards: IP, YY and Sterilization
- Materials and Disinfectable Liners
- Custom Liners and Point Cushioning
- Sterilization Indicator and Traceability
- Test Documentation and Certification
- OEM/ODM and Procurement Advice
- Common Selection Mistakes
Tasks and Baseline of Specialty Medical Instrument Cases
Specialty instrument cases serve operating rooms, dentistry, ophthalmology, and endoscopy centers, also outreach, aid-abroad, and disaster medicine. The task baseline is sterile state not broken: liner material must be high-temperature or chemical disinfectable, avoiding liquid-absorbing bacteria hiding; instrument points fixed to avoid mutual knock producing edges or contamination. Ingress IP65 covers in-hospital transfer, field IP67.
Vulnerabilities differ: surgical instrument cases focus on rust prevention and sharp fixing; dental instrument cases focus on handpiece shock and contamination; ophthalmic equipment cases focus on phaco probe and microscope anti-vibration; endoscope disinfection transfer cases focus on channel fold-proof and contamination-proof. Selection reverses from "vulnerability plus sterilization requirement". Related emergency transfer references Emergency Transport Cases & Blood Collection Boxes.
Rust Prevention and Sharp Fixing of Surgical Instrument Cases
Surgical instruments include knife, scissor, forceps, clamp, needle holder; metal rusts easily, sharps injure easily. The liner should die-cut fixed slots per piece, blades and scissors with protective sleeve or independent sharp position, avoiding mutual knock curling edges and cut on take-out. Case interior dry, humidity card and desiccant against condensation rust. Ingress IP65, transfer verified by ISTA 3A.
Liner uses disinfectable material (PP, medical silicone, PE cotton), each use with sterilization indicator card and trace code. For compact outreach, a surgical instrument box compresses basic instruments into a portable case for rural and aid-abroad. JUNZHJIA can die-cut liners by instrument list, lid transparent pouch for sterilization indicator position. Related specialty thinking references the vulnerability-assigned cushioning in Portable Diagnostic Equipment Cases.
Handpiece Protection of Dental Instrument Cases
Dental handpieces (high/low speed) are precise, vibration-fragile, contamination-fragile; bearing and chuck damage affects speed. Liner gives handpiece independent hard-support slot, body and tubing separated fixed to avoid mutual pressure. Burs, reamers and other sharps in independent small cells against puncture. Ingress IP65, inter-clinic transfer IP67.
Liner disinfectable, each use with sterilization indicator. For multi-chair clinics, a dental instrument box configures basic handpiece and burs per chair, raising turnover. JUNZHJIA supports liners and bladders by dental device model, providing material biocompatibility and heat-resistance notes. Related box-series references Medical Equipment Boxes & Instrument Boxes.
In real-world deployment of the protective case, sealing performance must be verified against GB/T 4208, which is equivalent to IEC 60529, with IP67 as the common target: fully dust-tight and able to survive immersion at 1 m depth for 30 minutes. For units that are airdropped, vehicle-mounted, or shipboard-transported, it is advisable to add MIL-STD-810H drop (Method 516.8) and random vibration (Method 514.8) to confirm environmental adaptability, and to require a formal test report with a defined sampling plan at acceptance rather than relying on the manufacturer's claimed rating. JUNZHJIA can supply the corresponding documentation package for batch OEM programs. Related approaches are described in the equipment case program. Flame retardancy and corrosion resistance are hard thresholds for the enclosure in harsh conditions. The shell is preferably modified PP, ABS, or PC and should be rated under UL94, typically targeting V-0 or V-1; salt-fog and damp-heat environments are tested per GB/T 10125 neutral salt spray, with metal parts preferably 316 stainless steel or corrosion-resistant engineering plastics. For this class of equipment case, the service life of latches, hinges, and gaskets under corrosion often decides the usable years of the whole case earlier than the shell itself does. Related approaches are described in the equipment case program. From a maintenance-support angle, the case should be field-repairable. The liner is custom-cut to the tool or spare list, with edges and pressure parts in separate pockets; common latches and gaskets are made field-replaceable. For this case, attach a concise maintenance card: inspect gasket, lubricate latch, dehumidify liner every 3 to 6 months; strengthen corrosion control in salt fog; rotate stock to stay fresh, sharing standardized upkeep with similar equipment to keep missions uninterrupted. Related approaches are described in the equipment case program. On standards mutual recognition, export or defense-trade cases often need parallel standards: domestic IP per GB/T 4208, international IP per IEC 60529 equivalently; environmental testing per MIL-STD-810H or associated GJB methods; flame per UL94 or the corresponding national standard. For the buyer, requiring readable test reports with sampling plans is more valuable than a single pass/fail verdict and lets the same evidence chain be reused across multiple national acceptances. Related approaches are described in the equipment case program.
Precision Cushioning of Ophthalmic Equipment Cases
Ophthalmic equipment includes surgical microscope, phaco/vitrectomy probe, slit lamp, extremely precise, vibration and dust fragile. Liner layers: host bottom hard support, probe and optics independent slot with protective cap, cable independent routing groove. Cushioning follows MIL-STD-810H 514.8 random vibration ensuring zero shift under vehicle bumps. Humidity card judges condensation.
Phaco probe channel is thin; liner avoids flattening its tubing; microscope optical face with anti-pressure anti-scratch layer. Ingress IP65, field IP67. JUNZHJIA builds precision liners by ophthalmic device model with ESD and flame-retardant records. For portable outreach, an ophthalmic equipment box compresses basic examination and handheld instruments into a small case for rural visits. Related precision protection references Precision Instrument Cases.
Transport fixation is the easily-overlooked step. When cases are stacked, anti-slip ribs and locating bosses keep the stack stable; single-stack height limits and counterweights must be stated in the specification. Vehicle transport fixes the case with webbing through the lift-ring so it does not shift during hard braking or cornering. ISTA procedures (e.g., ISTA 2A/3A) simulate accumulated damage from road and intermodal shipping and serve as a useful reference method before the equipment case leaves the factory, markedly reducing field open-box breakage rates. Related approaches are described in the equipment case program. On risk control, configuration errors of the case are costly: mixed weapons and ammunition, sample leakage, or instrument shock damage all translate directly into mission failure. For this case, run a failure-mode analysis (FMEA thinking) before design freeze to identify high risks such as seal failure, fixation loosening, temperature drift, and EMC interference, and add redundancy; before delivery, use ISTA/MIL-STD sampling verification so every batch falls within an acceptable quality interval rather than depending on one sample case passing. Related approaches are described in the equipment case program.
Sterile Fold-Proof of Endoscope Disinfection Transfer Cases
Endoscopes are high-value, thin-channel, need sterile transfer after disinfection. The endoscope disinfection transfer case core is "sterile unbroken plus scope un-folded": liner uses high-temperature disinfectable material (medical silicone or PP), scope coiled radius not less than minimum bend radius to avoid fold; channel port with protective cap against contamination; case IP65, clean environment transparent lid visual.
The disinfection case should be high-temperature or chemical disinfectable, avoiding liner absorbing liquid and hiding bacteria; each use with sterilization indicator card and trace code. For shared surgery and clinic, related sterile transport references the endoscope disinfection box in Portable Diagnostic Equipment Cases. JUNZHJIA builds fold-proof liners by endoscope model with material biocompatibility and heat-resistance notes, turning "sterile unbroken" into a verifiable layout.
Cushioning and liner are the core of protecting precision contents. High-density EVA is custom-cut to the three-dimensional profile of the equipment; heavy items use contoured pockets plus straps, optics get independent shock-isolated compartments, and tool edges get separate cut-resistant pockets. The buffering design should address both impact (IK-rated 0.5 to 20 J) and long-term compression creep. JUNZHJIA can produce custom-cut liners from the equipment list so every item is individually located and stays put when opened or closed, with modular dividers replaceable in the field. Related approaches are described in the equipment case program. In real-world deployment of the protective case, sealing performance must be verified against GB/T 4208, which is equivalent to IEC 60529, with IP67 as the common target: fully dust-tight and able to survive immersion at 1 m depth for 30 minutes. For units that are airdropped, vehicle-mounted, or shipboard-transported, it is advisable to add MIL-STD-810H drop (Method 516.8) and random vibration (Method 514.8) to confirm environmental adaptability, and to require a formal test report with a defined sampling plan at acceptance rather than relying on the manufacturer's claimed rating. JUNZHJIA can supply the corresponding documentation package for batch OEM programs. Related approaches are described in the equipment case program. Flame retardancy and corrosion resistance are hard thresholds for the enclosure in harsh conditions. The shell is preferably modified PP, ABS, or PC and should be rated under UL94, typically targeting V-0 or V-1; salt-fog and damp-heat environments are tested per GB/T 10125 neutral salt spray, with metal parts preferably 316 stainless steel or corrosion-resistant engineering plastics. For this class of equipment case, the service life of latches, hinges, and gaskets under corrosion often decides the usable years of the whole case earlier than the shell itself does. Related approaches are described in the equipment case program.
Compact Solutions: Surgical Instrument Boxes and Dental Instrument Boxes
The "box" is the compact version of the "case", for basic config, chair turnover, and rural outreach. The surgical instrument box holds basic blade scissor forceps and dressing, die-cut by position for fast return; the dental instrument box configures handpiece and burs per chair, raising turnover. Both share protection and liner logic with corresponding cases, only smaller volume and faster access.
Choose case or box by "task duration plus item amount": all-day multi-surgery uses case, single or chair turnover uses box. JUNZHJIA can output "case plus box" two liners for one set of instruments, shared inventory, task swap. Related box-series references medical equipment boxes and instrument boxes series.
Temperature control and seal-failure analysis matter greatly. Gaskets are preferably foamed silicone or EPDM, retaining elasticity from -40 deg C to +80 deg C; extreme ranges require high-low temperature cycling (MIL-STD-810H Methods 502.7/501.7) to confirm no embrittlement or leakage. For cases holding electronics, reagents, or samples, reserve a slot for a temperature-humidity data logger so the whole transit is recorded and traceable at goods receipt, supporting accountability and acceptance evidence. Related approaches are described in the equipment case program. Transport fixation is the easily-overlooked step. When cases are stacked, anti-slip ribs and locating bosses keep the stack stable; single-stack height limits and counterweights must be stated in the specification. Vehicle transport fixes the case with webbing through the lift-ring so it does not shift during hard braking or cornering. ISTA procedures (e.g., ISTA 2A/3A) simulate accumulated damage from road and intermodal shipping and serve as a useful reference method before the equipment case leaves the factory, markedly reducing field open-box breakage rates. Related approaches are described in the equipment case program.
Integration of Medical Equipment Cases and Ophthalmic Equipment Boxes
The medical equipment case is the generic specialty solution, often integrating examination plus simple treatment plus consumables for outreach and aid-abroad. Liner zones by "check-treat-consume", shoulder strap handle stackable, IP65 / field IP67. The ophthalmic equipment box is the portable ophthalmic form, holding basic examination and handheld instruments for home and vehicle.
Both stress "one case for visit", liner numbering matches list for fast return. JUNZHJIA supports zone liners by diagnostic list, lid transparent pouch for flow card and sterilization indicator. Related emergency material-list logic references Emergency Transport Cases & Blood Collection Boxes.
Procurement acceptance should write the case metrics into a technical specification and close the loop with test documents. The core checklist: IP rating (GB/T 4208), drop and vibration (MIL-STD-810H), flame rating (UL94), impact (IK level), non-spark latches and cycle life, certifications and compliance files, lead time and OEM/ODM capability. For batch programs, sample first to confirm liner and protection, then validate in a small batch, then mass-produce, avoiding systemic risk from a single large order placed blindly. Related approaches are described in the equipment case program.
Protection and Cleanliness Standards: IP, YY and Sterilization
Ingress grade uses IP (IEC 60529 / GB/T 4208), in-hospital IP65, field IP67. Medical device cleanliness and electrical safety cite YY 0505, GB 9706 series as device-body requirements; the case is not a device but liner material should be biocompatible, easy-clean, disinfectable. Sterilization references WS 310 or corresponding disinfection spec, case with sterilization indicator.
The table gives common device grading:
| Device | Suggested IP | Sterilization / Transport | Liner Point |
|---|---|---|---|
| --- | --- | --- | --- |
| Surgical instrument | IP65 | WS 310, ISTA 3A | Per-piece fixed, sharp slot |
| Dental handpiece | IP65/IP67 | Sterilization indicator | Handpiece hard support, bur cell |
| Ophthalmic equipment | IP65/IP67 | MIL-STD-810H 514.8 | Probe anti-pressure, optic cap |
| Endoscope | IP65 | Sterile unbroken | Fold-proof coiling, channel cap |
Grading and sterilization requirements should enter acceptance, avoiding verbal debate. More medical transfer standards in Field Medical Cases & Combat First-Aid Kits.
In operational composition, the equipment case is rarely used alone; it is paired with command, communication, medical, and supply units into a system. Taking this case as an example, it can interface with command-comms, scene-investigation, and maintenance-support units to form a complete chain such as command-weapon-support or detect-handle-review. Select interfaces and standardized outer dimensions early so same-batch cases stack, intermodal-ship, and share maintenance, lowering lifecycle management and inventory cost. Related approaches are described in the equipment case program. Material and structure decide reliability under harsh duty. Wall thickness is usually 2.5 to 4 mm with thickened corners and stiffeners against deformation; PC may be used for transparent status viewing but needs UV treatment against yellowing. For this case, impact resistance depends not only on the shell but also on latch load paths and lid hinge design; in severe environments prefer metal-cored axles and widened latch bolts, validated to IK08 or above. Related approaches are described in the equipment case program. Cushioning and liner are the core of protecting precision contents. High-density EVA is custom-cut to the three-dimensional profile of the equipment; heavy items use contoured pockets plus straps, optics get independent shock-isolated compartments, and tool edges get separate cut-resistant pockets. The buffering design should address both impact (IK-rated 0.5 to 20 J) and long-term compression creep. JUNZHJIA can produce custom-cut liners from the equipment list so every item is individually located and stays put when opened or closed, with modular dividers replaceable in the field. Related approaches are described in the equipment case program. Temperature control and seal-failure analysis matter greatly. Gaskets are preferably foamed silicone or EPDM, retaining elasticity from -40 deg C to +80 deg C; extreme ranges require high-low temperature cycling (MIL-STD-810H Methods 502.7/501.7) to confirm no embrittlement or leakage. For cases holding electronics, reagents, or samples, reserve a slot for a temperature-humidity data logger so the whole transit is recorded and traceable at goods receipt, supporting accountability and acceptance evidence. Related approaches are described in the equipment case program. Procurement acceptance should write the case metrics into a technical specification and close the loop with test documents. The core checklist: IP rating (GB/T 4208), drop and vibration (MIL-STD-810H), flame rating (UL94), impact (IK level), non-spark latches and cycle life, certifications and compliance files, lead time and OEM/ODM capability. For batch programs, sample first to confirm liner and protection, then validate in a small batch, then mass-produce, avoiding systemic risk from a single large order placed blindly. Related approaches are described in the equipment case program.
Materials and Disinfectable Liners
Case material is mainly modified PP, ABS/PC; liner contacting patients uses medical-grade disinfectable material (PP, medical silicone, PE cotton), avoiding liquid-absorbing bacteria hiding. Foam hardness 30-60, sharps and precision parts with hard support. Cutting uses CNC die-cut, high precision no burr.
Liner should be fully removable for high-temperature or chemical disinfection, resisting repeated disinfection without collapse. JUNZHJIA die-cuts liners by instrument list, lid transparent pouch for sterilization indicator and operation card. For multi-probe, compartment logic references the quick-access design in Detection Instrument Protective Cases.
From a lifecycle-cost view, the equipment case should not be compared on unit price alone. Gasket aging, liner replacement, latch repair, and re-verification all incur ongoing cost; a one-case-one-file record of batch, repair, and rotation minimizes the chance of missing a case before mission. For scaled outfitting, modular liners and universal gasket kits cut spare-part variety and let the front line self-replace, raising equipment readiness. Related approaches are described in the equipment case program. In operational composition, the equipment case is rarely used alone; it is paired with command, communication, medical, and supply units into a system. Taking this case as an example, it can interface with command-comms, scene-investigation, and maintenance-support units to form a complete chain such as command-weapon-support or detect-handle-review. Select interfaces and standardized outer dimensions early so same-batch cases stack, intermodal-ship, and share maintenance, lowering lifecycle management and inventory cost. Related approaches are described in the equipment case program.

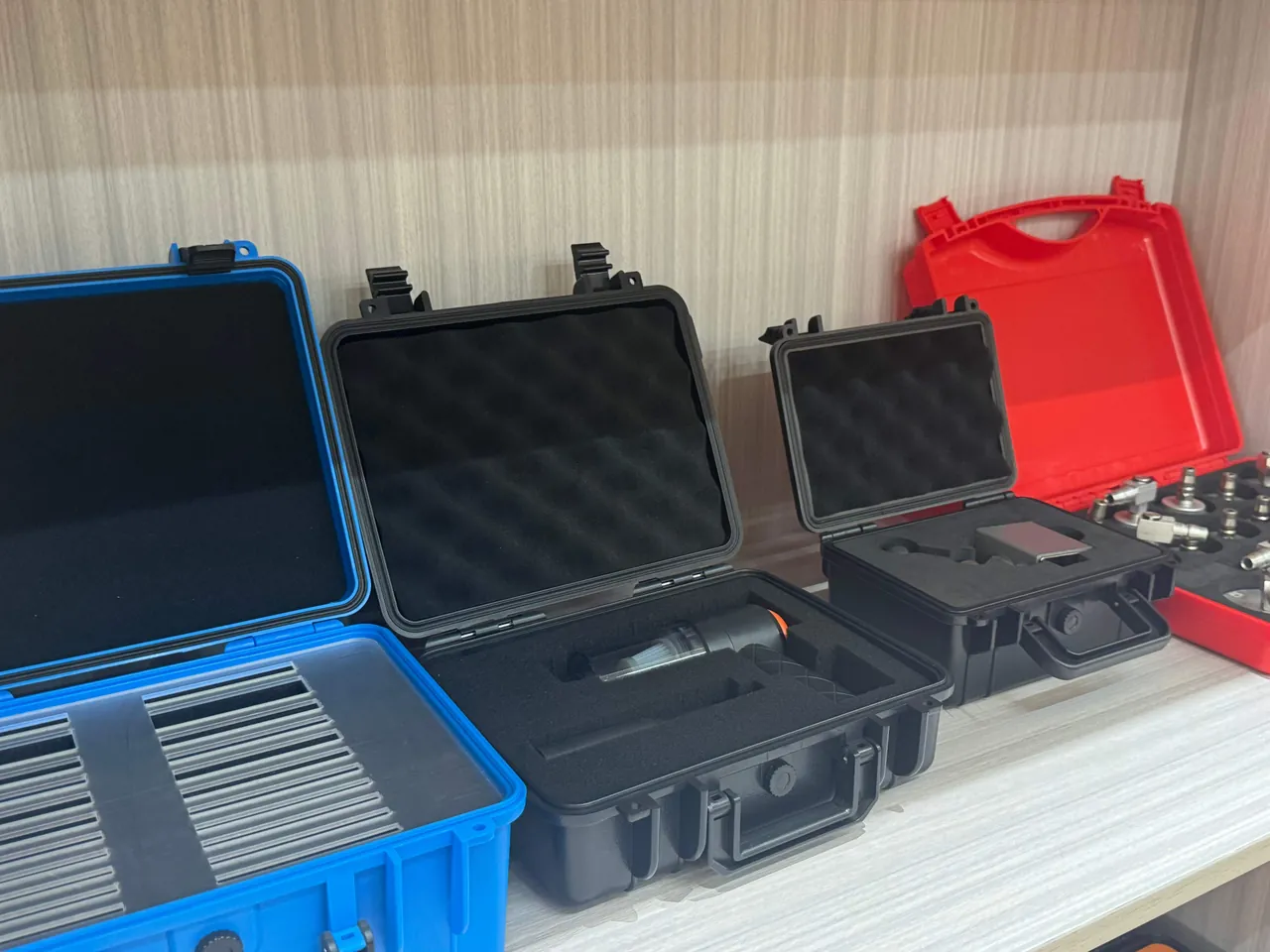

Custom Liners and Point Cushioning
Specialty instruments are "many pieces, varied shapes, need positioning"; liner value turns a list into positions. Flow: instrument list, measure sizes, layered layout, CNC die-cut, trial fit. Heavy piece low, precision part hard support, sharp independent protection, cable independent groove. Each piece unique fixed position, take-out without collision or contamination.
Blunt and sharp instruments compartment-separated to avoid mutual knock curling edges; wet and dry parts zoned to prevent cross-contamination. JUNZHJIA supports OEM/ODM liners by list, lid transparent pouch for operation card and sterilization indicator. For multi-probe ophthalmology, compartment references the anti-vibration logic in Precision Instrument Cases.
EMC and ESD protection are not negligible for electronic contents. Cases holding PCBs, batteries, or sensors should use conductive liners and grounding following general ESD practice (in the spirit of IEC 61340); for radiated or strong-magnetic environments add a shielding layer. When the case involves night-vision, comms, or detection gear, transport and storage avoid strong magnetic fields and unknown radiation, with temperature, humidity, and shock logging forming an auditable transit file. Related approaches are described in the equipment case program.
Sterilization Indicator and Traceability
Each use attaches a sterilization indicator card (chemical/biological), and a trace code outside the case records sterilization time, operator, and validity. On arrival first check indicator change and validity, re-sterilize if abnormal before use. Data retention includes calibration validity, maintenance date, asset number, with RFID or QR for "case-instrument-person" tracing.
JUNZHJIA provides batch traceability and test summaries at delivery for infection-control and asset systems. Related cold-chain data references Logistics Monitoring Cases & Cold-Chain Recorder Cases. For cold-chain reagents, case can set cold-storage compartment, thinking referencing Vaccine Cold-Chain Cases & Medicine Insulated Boxes.
Packaging and marking are the last compliance step. Hazardous, weapon, or sample classes must have matching seal numbers, consistent in-case manifest and shipping note, and full traceability; high-visibility color and warning marks aid identification and inventory. For cross-border or defense-trade scenes, reserve a certification nameplate position stating IP, applied standard, and manufacturer, together with GB/T 4208 and MIL-STD-810H documents, reducing customs and acceptance friction. Related approaches are described in the equipment case program.
Test Documentation and Certification
Delivery files should contain IP grade report, vibration/shock record, liner material biocompatibility or easy-clean note, disinfection validation, flame-retardant grade (UL94), ESD parameters, factory inspection sheet. Export needs RoHS, REACH, and corresponding market medical compliance statements. Files numbered, sample photos, co-signed.
JUNZHJIA provides bilingual test summaries and traceability numbers by batch, supporting OEM/ODM customers into acceptance. Testing turns "experience values" into "citable conclusions", key for overseas and in-hospital acceptance. Related quality spec references the delivery requirements in Security Inspection Cases & Explosion-Proof Inspection Toolkits, keeping cross-project consistency.
Scenario-based selection beats parameter stacking. If the case is for alpine border duty, prioritize weatherability, UV resistance, and low-temperature toughness; if shipboard, prioritize salt-fog corrosion resistance and anti-sway fixation; if urban emergency, prioritize fast open-close and modular swap. For this case, list the usage profile (temperature, humidity, drop, vibration, exposure media) first, then match material, seal, and liner backward, avoiding both over-design and under-protection. Related approaches are described in the equipment case program.
OEM/ODM and Procurement Advice
Infection-control and specialty units often run multi-device, multi-site; recommend "standard shell plus swappable liner plus case-box same structure": fix case type and latches, swap liner by instrument; one set of instruments outputs case and box two liners. Shells batch-purchased spread cost, liners small-batch custom, inventory drops.
Communicate with the maker: instrument list (size/weight/vulnerability), sterile liner needed or not, task environment. JUNZHJIA supports from single-case customization to full-line OEM/ODM, liners by model, bladders by drawing, plus test files. Contract should specify protection grade, sterilization requirement, acceptance standard number, warranty and spare supply; writing standard numbers into contract gives a basis for disputes.
Common Selection Mistakes
Mistake one: liner not disinfectable, hides bacteria causing infection. Mistake two: sharps no protection position, cut on take-out, mutual curl. Mistake three: precision probe no hard support, transport inaccurate. Mistake four: endoscope coiling radius too small, fold tube. Mistake five: no sterilization indicator, status unknown. Mistake six: wet and dry mixed, cross-contamination. Mistake seven: no traceability, loss hard to find.
The core to avoid is "clean liner plus point cushioning plus traceable sterilization", writing standard numbers and sterilization requirements into files. Using Surgical Instrument Cases & Dental/Ophthalmic Instrument Protection as reference shortens evaluation.
Frequently Asked Questions
Q: Why must surgical instrument case liners be disinfectable, can normal foam work? A: No. Surgical instruments enter wounds directly; if the liner absorbs liquid and hides bacteria, next use carries bacteria causing infection. Normal foam absorbs liquid and is hard to fully disinfect, must use medical-grade disinfectable material (PP, medical silicone, PE cotton) fully removable for high-temperature or chemical disinfection resisting repeated cycles without collapse. Each instrument die-cut fixed, blades and scissors with protective sleeve or independent sharp position against curl and cut. JUNZHJIA die-cuts liners by instrument list, lid transparent pouch for sterilization indicator. Each use attaches sterilization indicator card and trace code, turning "clean" into a verifiable liner layout. Ingress IP65, transfer ISTA 3A.
Q: How to protect dental handpieces in dental instrument cases, why fear vibration? A: Dental handpiece bearings and chucks are extremely precise; vibration or contamination drops speed and fails to grip burs, directly affecting cavity and cutting. Liner gives handpiece independent hard-support slot, body and tubing separated fixed to avoid mutual pressure; burs, reamers and other sharps in independent small cells against puncture. Liner disinfectable, each use with sterilization indicator. Multi-chair clinics can use a dental instrument box configuring basic handpiece and burs per chair to raise turnover. JUNZHJIA builds liners and bladders by dental device model with material biocompatibility and heat-resistance notes. Ingress IP65, inter-clinic IP67, related box-series references medical equipment boxes and instrument boxes.
Q: How to cushion ophthalmic phaco probes and microscopes in ophthalmic equipment cases? A: Ophthalmic equipment is extremely precise, vibration and dust fragile. Liner layers: host bottom hard support, probe and optics independent slot with protective cap, cable independent routing groove; cushioning follows MIL-STD-810H 514.8 random vibration for zero shift. Phaco probe channel thin; liner avoids flattening its tubing; microscope optical face anti-pressure anti-scratch layer. Humidity card judges condensation, ingress IP65, field IP67. JUNZHJIA builds precision liners by ophthalmic device model with ESD and flame-retardant records; portable outreach can use an ophthalmic equipment box compressing basic examination and handheld instruments into a small case. Related precision protection references precision instrument cases.
Q: How does an endoscope disinfection transfer case keep sterile unbroken and scope un-folded? A: Core is disinfectable liner plus scope fold-proof plus channel contamination-proof. Liner uses high-temperature disinfectable material (medical silicone or PP), scope coiled radius not less than minimum bend radius to avoid fold, channel port with protective cap; case IP65, clean environment transparent lid visual. The disinfection case should be high-temperature or chemical disinfectable avoiding liquid-absorbing bacteria; each use with sterilization indicator card and trace code. JUNZHJIA builds fold-proof liners by endoscope model with material biocompatibility and heat-resistance notes. For shared surgery and clinic, sterile transport references the endoscope disinfection box in portable diagnostic equipment cases, turning "sterile unbroken" into a verifiable layout.
Q: What scenarios suit surgical instrument boxes and dental instrument boxes, difference from cases? A: The box is the compact version of the case, for basic config, chair turnover, and rural outreach. The surgical instrument box holds basic blade scissor forceps and dressing, die-cut by position for fast return; the dental instrument box configures handpiece and burs per chair raising turnover. Both share protection and liner logic with corresponding cases, only smaller volume and faster access. Choose case or box by task: all-day multi-surgery uses case, single or chair turnover uses box. JUNZHJIA can output case and box two liners for one set, shared inventory, task swap; related box-series references medical equipment boxes series.
Q: How do medical equipment cases and ophthalmic equipment boxes integrate for visits? A: The medical equipment case is the generic specialty solution, often integrating examination plus simple treatment plus consumables for outreach and aid-abroad, liner zoned "check-treat-consume", shoulder strap handle stackable, IP65 / field IP67. The ophthalmic equipment box is the portable ophthalmic form, holding basic examination and handheld instruments for home and vehicle. Both stress one case for visit, liner numbering matches list for fast return. JUNZHJIA supports zone liners by diagnostic list, lid transparent pouch for flow card and sterilization indicator; related emergency material-list logic references emergency transport cases and blood collection boxes.
Q: How to build sterilization traceability for specialty instrument cases? A: Each use attaches a sterilization indicator card (chemical/biological), trace code outside the case records sterilization time, operator, and validity; on arrival first check indicator change and validity, re-sterilize if abnormal before use. Data includes calibration validity, maintenance date, asset number, with RFID or QR for "case-instrument-person" tracing. JUNZHJIA provides batch traceability and test summaries at delivery into infection-control and asset systems; cold-chain reagents can set cold-storage compartment in case, thinking referencing vaccine cold-chain cases. Related trace data references logistics monitoring cases, turning environment data into auditable evidence.
Q: What must test files contain, any extra export requirements? A: Basic files should contain IP grade report, vibration/shock record, liner material biocompatibility or easy-clean note, disinfection validation, flame-retardant grade (UL94), ESD parameters, factory inspection sheet, numbered, sample photos, co-signed. Export needs RoHS, REACH, and corresponding market medical compliance statements, some markets require corresponding language. Files issued by qualified labs, avoiding verbal guarantees. JUNZHJIA provides bilingual test summaries and traceability numbers by batch for direct in-hospital and overseas acceptance. Writing standard numbers and sterilization requirements into the contract is the most effective way to reduce acceptance disputes.
Q: How to use case-box same structure to lower multi-specialty inventory? A: First sort the large case types shared by multi-specialty units, fix case type and latch accessories, swap liner by instrument; one set outputs case and box two liners, the box as chair or rural module. Benefits: shells batch-purchased spread cost, liners small-batch custom, inventory variety drops. Key points: shell reserves uniform liner fixing, liner numbered to specialty and task, build borrow-return ledger. For units running surgery, dental, ophthalmology, endoscopy together, this system balances cleanliness consistency and task flexibility, annual re-inspection only targets the shell, liners supplemented as needed, lowering total ownership cost.
Conclusion and Related Reading
Selecting specialty medical instrument cases has the baseline "sterile state not broken, precision structure not damaged": disinfectable liner for cleanliness, point cushioning for precision, sterilization indicator and traceability for audit. Surgical instrument cases, dental instrument cases, ophthalmic equipment cases, and endoscope disinfection transfer cases each emphasize different points; medical equipment cases, surgical instrument boxes, dental instrument boxes, and ophthalmic equipment boxes are compact supplements for corresponding scenarios. Whether case or box, all revolve around cleanliness, cushioning, and traceability.
