Medical sample and blood transport set rigid demands on temperature and leak protection. A qualified emergency transport case and blood collection box should simultaneously meet IP67 protection, controlled 2–8 C cold chain, leak-secondary container and full temperature traceability, while biological and pathology samples add shock-break protection and fixative leak prevention. Otherwise sample failure or cross-contamination harms diagnosis and transfusion safety. This article covers eight case types: the emergency transport case, blood collection box, biological sample transport case, pathology specimen case, lab reagent case and the smaller emergency transport box, blood collection box and pathology specimen box, explaining temperature, material, liner and selection points for hospitals, blood centers, CDC and procurement.
The medical sample case is the transport link of the "diagnosis chain". From pre-hospital, blood collection, lab send to pathology transfer, the shell must protect blood, samples and reagents through vibration, temperature swing and possible overturn. We clarify classification first, then break it down.
Protection Positioning of Medical Sample Transport
The medical sample case transports blood, specimens and reagents between pre-hospital and hospitals, the physical guarantee that the diagnosis chain is not broken. Its positioning is "cold chain unbroken, leak contained, traceable", so cold chain and leak prevention are the baseline.
This case is often grouped with the field medical case and the portable diagnostic case into a care unit, syncing triage and sample.
Mission Scenes of the Emergency Transport Case
The emergency transport case serves monitoring and sustainment during casualty evacuation, with portable monitor, oxygen, infusion fix and warming. Core is fixation and temperature: instruments in independent bays against shock, infusion bag against pressure and leak, warming blanket against damp.
Its small variant is the emergency transport box, for single-vehicle or department embed, more compact, suited as supply and replace unit for the case.
Protection and Cold-Chain Standards (IP / GB/T 4208 / Temperature)
Basic protection IP67: fully dust-tight, 1 m / 30 min immersion. Blood and most samples control 2–8 C; some reagents need below −20 C. Reference GB/T 4208 for IP, cold chain by full-load temperature curve.
| Item | Requirement | Note |
|---|---|---|
| --- | --- | --- |
| Rating | IP67 | Dust/water |
| Temp | 2–8 C | Blood/sample |
| Leak | Secondary | Spill collect |
| Trace | Temp log | Full check |
Procurement requires GB/T 4208 and cold-chain validation with sampling plan.
In real-world deployment of the protective case, sealing performance must be verified against GB/T 4208, which is equivalent to IEC 60529, with IP67 as the common target: fully dust-tight and able to survive immersion at 1 m depth for 30 minutes. For units that are airdropped, vehicle-mounted, or shipboard-transported, it is advisable to add MIL-STD-810H drop (Method 516.8) and random vibration (Method 514.8) to confirm environmental adaptability, and to require a formal test report with a defined sampling plan at acceptance rather than relying on the manufacturer's claimed rating. JUNZHJIA can supply the corresponding documentation package for batch OEM programs. Related approaches are described in the equipment case program. Flame retardancy and corrosion resistance are hard thresholds for the enclosure in harsh conditions. The shell is preferably modified PP, ABS, or PC and should be rated under UL94, typically targeting V-0 or V-1; salt-fog and damp-heat environments are tested per GB/T 10125 neutral salt spray, with metal parts preferably 316 stainless steel or corrosion-resistant engineering plastics. For this class of equipment case, the service life of latches, hinges, and gaskets under corrosion often decides the usable years of the whole case earlier than the shell itself does. Related approaches are described in the equipment case program. On standards mutual recognition, export or defense-trade cases often need parallel standards: domestic IP per GB/T 4208, international IP per IEC 60529 equivalently; environmental testing per MIL-STD-810H or associated GJB methods; flame per UL94 or the corresponding national standard. For the buyer, requiring readable test reports with sampling plans is more valuable than a single pass/fail verdict and lets the same evidence chain be reused across multiple national acceptances. Related approaches are described in the equipment case program. On risk control, configuration errors of the case are costly: mixed weapons and ammunition, sample leakage, or instrument shock damage all translate directly into mission failure. For this case, run a failure-mode analysis (FMEA thinking) before design freeze to identify high risks such as seal failure, fixation loosening, temperature drift, and EMC interference, and add redundancy; before delivery, use ISTA/MIL-STD sampling verification so every batch falls within an acceptable quality interval rather than depending on one sample case passing. Related approaches are described in the equipment case program. Scenario-based selection beats parameter stacking. If the case is for alpine border duty, prioritize weatherability, UV resistance, and low-temperature toughness; if shipboard, prioritize salt-fog corrosion resistance and anti-sway fixation; if urban emergency, prioritize fast open-close and modular swap. For this case, list the usage profile (temperature, humidity, drop, vibration, exposure media) first, then match material, seal, and liner backward, avoiding both over-design and under-protection. Related approaches are described in the equipment case program. From a maintenance-support angle, the case should be field-repairable. The liner is custom-cut to the tool or spare list, with edges and pressure parts in separate pockets; common latches and gaskets are made field-replaceable. For this case, attach a concise maintenance card: inspect gasket, lubricate latch, dehumidify liner every 3 to 6 months; strengthen corrosion control in salt fog; rotate stock to stay fresh, sharing standardized upkeep with similar equipment to keep missions uninterrupted. Related approaches are described in the equipment case program.
Emergency Transport Case: Casualty Evacuation Config
The emergency transport case layers by life support: monitor and oxygen in independent bays against shock, infusion bag against pressure and leak, warming blanket against damp, record anti-magnetic and anti-pressure. Vehicle bracket fixes against braking shift.
Opening layers by care order to avoid field search. This complements the portable thinking of the emergency device case.

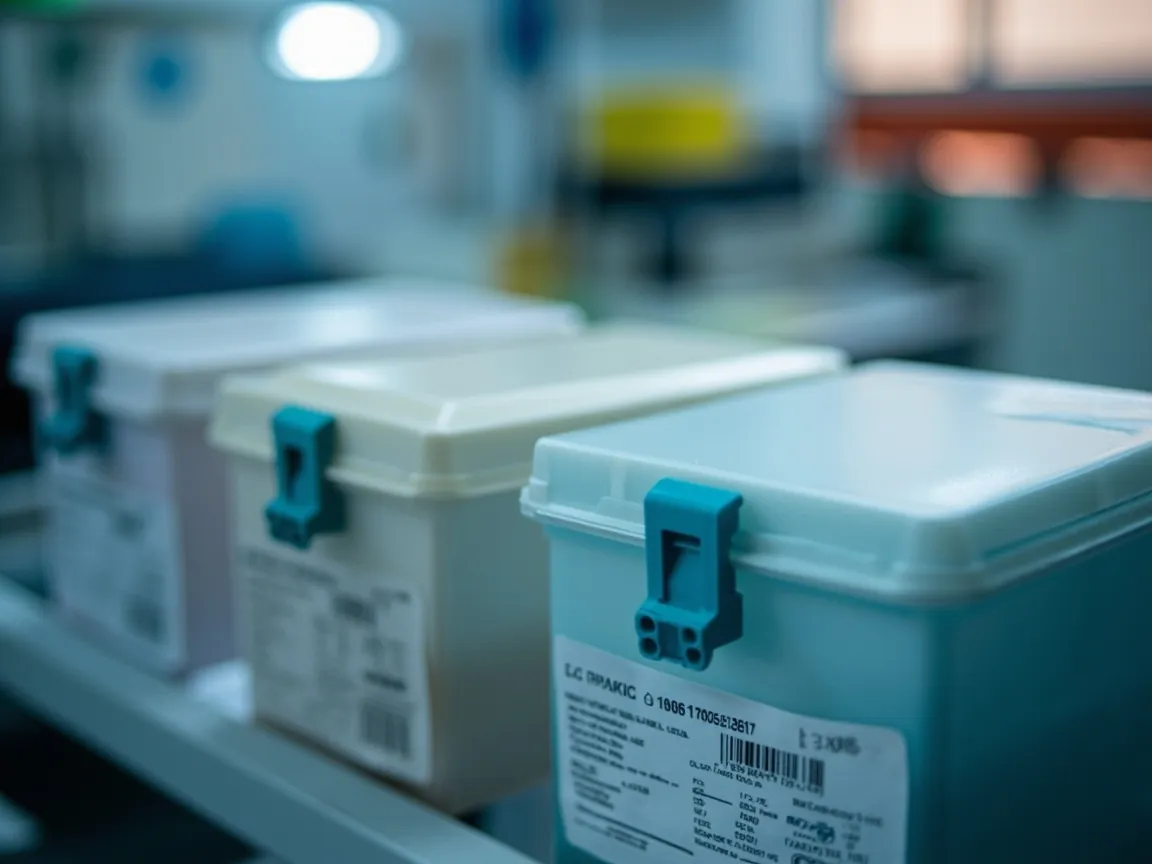

Transport fixation is the easily-overlooked step. When cases are stacked, anti-slip ribs and locating bosses keep the stack stable; single-stack height limits and counterweights must be stated in the specification. Vehicle transport fixes the case with webbing through the lift-ring so it does not shift during hard braking or cornering. ISTA procedures (e.g., ISTA 2A/3A) simulate accumulated damage from road and intermodal shipping and serve as a useful reference method before the equipment case leaves the factory, markedly reducing field open-box breakage rates. Related approaches are described in the equipment case program. In real-world deployment of the protective case, sealing performance must be verified against GB/T 4208, which is equivalent to IEC 60529, with IP67 as the common target: fully dust-tight and able to survive immersion at 1 m depth for 30 minutes. For units that are airdropped, vehicle-mounted, or shipboard-transported, it is advisable to add MIL-STD-810H drop (Method 516.8) and random vibration (Method 514.8) to confirm environmental adaptability, and to require a formal test report with a defined sampling plan at acceptance rather than relying on the manufacturer's claimed rating. JUNZHJIA can supply the corresponding documentation package for batch OEM programs. Related approaches are described in the equipment case program. On standards mutual recognition, export or defense-trade cases often need parallel standards: domestic IP per GB/T 4208, international IP per IEC 60529 equivalently; environmental testing per MIL-STD-810H or associated GJB methods; flame per UL94 or the corresponding national standard. For the buyer, requiring readable test reports with sampling plans is more valuable than a single pass/fail verdict and lets the same evidence chain be reused across multiple national acceptances. Related approaches are described in the equipment case program. On risk control, configuration errors of the case are costly: mixed weapons and ammunition, sample leakage, or instrument shock damage all translate directly into mission failure. For this case, run a failure-mode analysis (FMEA thinking) before design freeze to identify high risks such as seal failure, fixation loosening, temperature drift, and EMC interference, and add redundancy; before delivery, use ISTA/MIL-STD sampling verification so every batch falls within an acceptable quality interval rather than depending on one sample case passing. Related approaches are described in the equipment case program.
Blood Collection Box: Blood 2–8 C Cold Chain
The blood collection box serves transport between collection points and blood centers, holding anticoagulant bags, cold packs and records. Core is 2–8 C control and leak prevention: passive phase-change or active semiconductor, bags in independent holders against break, leak bay for emergency.
Its small variant is the blood collection box for single-bag or short department haul, leaner with same temperature logic. Body logs and indicates temperature, alerts on overrun with trace for acceptance.

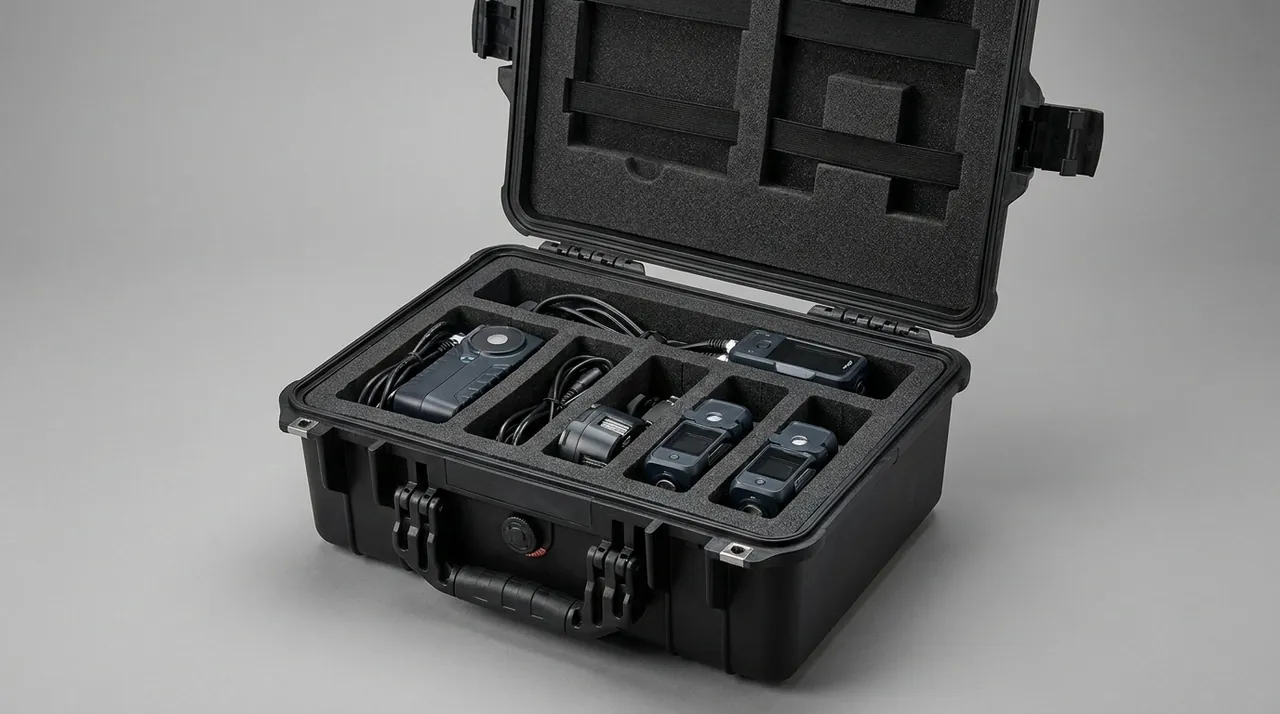

Cushioning and liner are the core of protecting precision contents. High-density EVA is custom-cut to the three-dimensional profile of the equipment; heavy items use contoured pockets plus straps, optics get independent shock-isolated compartments, and tool edges get separate cut-resistant pockets. The buffering design should address both impact (IK-rated 0.5 to 20 J) and long-term compression creep. JUNZHJIA can produce custom-cut liners from the equipment list so every item is individually located and stays put when opened or closed, with modular dividers replaceable in the field. Related approaches are described in the equipment case program. Flame retardancy and corrosion resistance are hard thresholds for the enclosure in harsh conditions. The shell is preferably modified PP, ABS, or PC and should be rated under UL94, typically targeting V-0 or V-1; salt-fog and damp-heat environments are tested per GB/T 10125 neutral salt spray, with metal parts preferably 316 stainless steel or corrosion-resistant engineering plastics. For this class of equipment case, the service life of latches, hinges, and gaskets under corrosion often decides the usable years of the whole case earlier than the shell itself does. Related approaches are described in the equipment case program. Transport fixation is the easily-overlooked step. When cases are stacked, anti-slip ribs and locating bosses keep the stack stable; single-stack height limits and counterweights must be stated in the specification. Vehicle transport fixes the case with webbing through the lift-ring so it does not shift during hard braking or cornering. ISTA procedures (e.g., ISTA 2A/3A) simulate accumulated damage from road and intermodal shipping and serve as a useful reference method before the equipment case leaves the factory, markedly reducing field open-box breakage rates. Related approaches are described in the equipment case program. In real-world deployment of the protective case, sealing performance must be verified against GB/T 4208, which is equivalent to IEC 60529, with IP67 as the common target: fully dust-tight and able to survive immersion at 1 m depth for 30 minutes. For units that are airdropped, vehicle-mounted, or shipboard-transported, it is advisable to add MIL-STD-810H drop (Method 516.8) and random vibration (Method 514.8) to confirm environmental adaptability, and to require a formal test report with a defined sampling plan at acceptance rather than relying on the manufacturer's claimed rating. JUNZHJIA can supply the corresponding documentation package for batch OEM programs. Related approaches are described in the equipment case program. Flame retardancy and corrosion resistance are hard thresholds for the enclosure in harsh conditions. The shell is preferably modified PP, ABS, or PC and should be rated under UL94, typically targeting V-0 or V-1; salt-fog and damp-heat environments are tested per GB/T 10125 neutral salt spray, with metal parts preferably 316 stainless steel or corrosion-resistant engineering plastics. For this class of equipment case, the service life of latches, hinges, and gaskets under corrosion often decides the usable years of the whole case earlier than the shell itself does. Related approaches are described in the equipment case program.
Biological Sample Transport Case: Multi-Sample Protection
The biological sample transport case serves nucleic acid, serum, fluid and more, stressing sorting and break protection. Sample tubes in independent holders, different biohazard levels zoned, sharps in separate puncture-proof bay, leak bay for emergency.
This case shares cold-chain logic with the vaccine cold-chain case but stresses multi-sample zoning. Liner washable for decontamination, tamper-evident seal for chain integrity.
Temperature control and seal-failure analysis matter greatly. Gaskets are preferably foamed silicone or EPDM, retaining elasticity from -40 deg C to +80 deg C; extreme ranges require high-low temperature cycling (MIL-STD-810H Methods 502.7/501.7) to confirm no embrittlement or leakage. For cases holding electronics, reagents, or samples, reserve a slot for a temperature-humidity data logger so the whole transit is recorded and traceable at goods receipt, supporting accountability and acceptance evidence. Related approaches are described in the equipment case program. Cushioning and liner are the core of protecting precision contents. High-density EVA is custom-cut to the three-dimensional profile of the equipment; heavy items use contoured pockets plus straps, optics get independent shock-isolated compartments, and tool edges get separate cut-resistant pockets. The buffering design should address both impact (IK-rated 0.5 to 20 J) and long-term compression creep. JUNZHJIA can produce custom-cut liners from the equipment list so every item is individually located and stays put when opened or closed, with modular dividers replaceable in the field. Related approaches are described in the equipment case program. Transport fixation is the easily-overlooked step. When cases are stacked, anti-slip ribs and locating bosses keep the stack stable; single-stack height limits and counterweights must be stated in the specification. Vehicle transport fixes the case with webbing through the lift-ring so it does not shift during hard braking or cornering. ISTA procedures (e.g., ISTA 2A/3A) simulate accumulated damage from road and intermodal shipping and serve as a useful reference method before the equipment case leaves the factory, markedly reducing field open-box breakage rates. Related approaches are described in the equipment case program.
Pathology Specimen Case: Fixation and Leak Prevention
The pathology specimen case holds tissue and fixative, core is fixative leak prevention and specimen break protection. Specimen bottles in independent holders, fixative bay leak-proof, body with absorbent for spill. Transport avoids inversion and violent vibration.
Its small variant is the pathology specimen box for inter-department short haul, compact with tighter seal. This complements the specialist transfer of the surgical instrument case: the former samples, the latter instruments.
Procurement acceptance should write the case metrics into a technical specification and close the loop with test documents. The core checklist: IP rating (GB/T 4208), drop and vibration (MIL-STD-810H), flame rating (UL94), impact (IK level), non-spark latches and cycle life, certifications and compliance files, lead time and OEM/ODM capability. For batch programs, sample first to confirm liner and protection, then validate in a small batch, then mass-produce, avoiding systemic risk from a single large order placed blindly. Related approaches are described in the equipment case program. Temperature control and seal-failure analysis matter greatly. Gaskets are preferably foamed silicone or EPDM, retaining elasticity from -40 deg C to +80 deg C; extreme ranges require high-low temperature cycling (MIL-STD-810H Methods 502.7/501.7) to confirm no embrittlement or leakage. For cases holding electronics, reagents, or samples, reserve a slot for a temperature-humidity data logger so the whole transit is recorded and traceable at goods receipt, supporting accountability and acceptance evidence. Related approaches are described in the equipment case program. Cushioning and liner are the core of protecting precision contents. High-density EVA is custom-cut to the three-dimensional profile of the equipment; heavy items use contoured pockets plus straps, optics get independent shock-isolated compartments, and tool edges get separate cut-resistant pockets. The buffering design should address both impact (IK-rated 0.5 to 20 J) and long-term compression creep. JUNZHJIA can produce custom-cut liners from the equipment list so every item is individually located and stays put when opened or closed, with modular dividers replaceable in the field. Related approaches are described in the equipment case program.
Lab Reagent Case: Light-Proof and Shock
The lab reagent case serves reagent and QC transport, holding ELISA, chemiluminescence and biochemistry reagents. Core is light-proof and shock: photosensitive reagent in independent dark bay, glass bottle break-proof holder, temperature by reagent need layered.
The reagent case and the biological sample case share the lab chain, but reagent stresses stability, sample isolation. Liner modular for project swap.
In operational composition, the equipment case is rarely used alone; it is paired with command, communication, medical, and supply units into a system. Taking this case as an example, it can interface with command-comms, scene-investigation, and maintenance-support units to form a complete chain such as command-weapon-support or detect-handle-review. Select interfaces and standardized outer dimensions early so same-batch cases stack, intermodal-ship, and share maintenance, lowering lifecycle management and inventory cost. Related approaches are described in the equipment case program. Procurement acceptance should write the case metrics into a technical specification and close the loop with test documents. The core checklist: IP rating (GB/T 4208), drop and vibration (MIL-STD-810H), flame rating (UL94), impact (IK level), non-spark latches and cycle life, certifications and compliance files, lead time and OEM/ODM capability. For batch programs, sample first to confirm liner and protection, then validate in a small batch, then mass-produce, avoiding systemic risk from a single large order placed blindly. Related approaches are described in the equipment case program.
Temperature Control and Cold-Chain Design (Passive / Active)
Sample cases split passive and active. Passive uses phase-change coolant, experience holds 2–8 C for some hours with no power, suited to pre-hospital and transfer; active uses semiconductor or compressor, precise but powered.
| Mode | Pros | Limits | Use |
|---|---|---|---|
| --- | --- | --- | --- |
| Passive | No power | Timed | Pre-hospital |
| Active | Precise | Powered | Fixed |
| Hybrid | Both | Complex | Mobile |
Selection by distance and power, with temperature log reserved. JUNZHJIA can fit custom-cut liner and cold bay by cold-chain need.
Material and structure decide reliability under harsh duty. Wall thickness is usually 2.5 to 4 mm with thickened corners and stiffeners against deformation; PC may be used for transparent status viewing but needs UV treatment against yellowing. For this case, impact resistance depends not only on the shell but also on latch load paths and lid hinge design; in severe environments prefer metal-cored axles and widened latch bolts, validated to IK08 or above. Related approaches are described in the equipment case program. From a lifecycle-cost view, the equipment case should not be compared on unit price alone. Gasket aging, liner replacement, latch repair, and re-verification all incur ongoing cost; a one-case-one-file record of batch, repair, and rotation minimizes the chance of missing a case before mission. For scaled outfitting, modular liners and universal gasket kits cut spare-part variety and let the front line self-replace, raising equipment readiness. Related approaches are described in the equipment case program. In operational composition, the equipment case is rarely used alone; it is paired with command, communication, medical, and supply units into a system. Taking this case as an example, it can interface with command-comms, scene-investigation, and maintenance-support units to form a complete chain such as command-weapon-support or detect-handle-review. Select interfaces and standardized outer dimensions early so same-batch cases stack, intermodal-ship, and share maintenance, lowering lifecycle management and inventory cost. Related approaches are described in the equipment case program. Material and structure decide reliability under harsh duty. Wall thickness is usually 2.5 to 4 mm with thickened corners and stiffeners against deformation; PC may be used for transparent status viewing but needs UV treatment against yellowing. For this case, impact resistance depends not only on the shell but also on latch load paths and lid hinge design; in severe environments prefer metal-cored axles and widened latch bolts, validated to IK08 or above. Related approaches are described in the equipment case program. From a lifecycle-cost view, the equipment case should not be compared on unit price alone. Gasket aging, liner replacement, latch repair, and re-verification all incur ongoing cost; a one-case-one-file record of batch, repair, and rotation minimizes the chance of missing a case before mission. For scaled outfitting, modular liners and universal gasket kits cut spare-part variety and let the front line self-replace, raising equipment readiness. Related approaches are described in the equipment case program.
Shell Material and Disinfectant Resistance
Sample shells use modified PP or ABS, resisting alcohol, chlorine and quaternary wipes without color or crack. PC clear lid views status. Long body-fluid contact needs easy-clean formula; latch and hinge in 304 stainless against corrosion.
Wall 2.5–4 mm, corners thick. Surface adds UV masterbatch. Inner washable for decontamination.
EMC and ESD protection are not negligible for electronic contents. Cases holding PCBs, batteries, or sensors should use conductive liners and grounding following general ESD practice (in the spirit of IEC 61340); for radiated or strong-magnetic environments add a shielding layer. When the case involves night-vision, comms, or detection gear, transport and storage avoid strong magnetic fields and unknown radiation, with temperature, humidity, and shock logging forming an auditable transit file. Related approaches are described in the equipment case program.
Liner Zoning and Leak Prevention
Liner decides leak and zoning. Blood and samples in independent holders, sharps in puncture-proof bay, leak bay with absorbent. Liner washable and disinfectable for repeat use. Tamper-evident seal for chain integrity.
Zoning matches the anti-cross thinking of the forensic evidence case but the sample case stresses temperature and leak. Modular dividers rebuild by mission.
Packaging and marking are the last compliance step. Hazardous, weapon, or sample classes must have matching seal numbers, consistent in-case manifest and shipping note, and full traceability; high-visibility color and warning marks aid identification and inventory. For cross-border or defense-trade scenes, reserve a certification nameplate position stating IP, applied standard, and manufacturer, together with GB/T 4208 and MIL-STD-810H documents, reducing customs and acceptance friction. Related approaches are described in the equipment case program. EMC and ESD protection are not negligible for electronic contents. Cases holding PCBs, batteries, or sensors should use conductive liners and grounding following general ESD practice (in the spirit of IEC 61340); for radiated or strong-magnetic environments add a shielding layer. When the case involves night-vision, comms, or detection gear, transport and storage avoid strong magnetic fields and unknown radiation, with temperature, humidity, and shock logging forming an auditable transit file. Related approaches are described in the equipment case program.
Transport Fixing and Traceability
Sample cases move by vehicle or air, need bracket fix against braking shift, stack with anti-slip ribs. Air must meet dangerous and biological material rules, seal and number correspond. Temperature log exported fully, overrun traced.
This matches the forward-delivery thinking of the drone transport case, balancing light and shock. Transport sheet and in-case record match for traceability.
Packaging and marking are the last compliance step. Hazardous, weapon, or sample classes must have matching seal numbers, consistent in-case manifest and shipping note, and full traceability; high-visibility color and warning marks aid identification and inventory. For cross-border or defense-trade scenes, reserve a certification nameplate position stating IP, applied standard, and manufacturer, together with GB/T 4208 and MIL-STD-810H documents, reducing customs and acceptance friction. Related approaches are described in the equipment case program.
Selection Checklist and Procurement Points
Procure against: rating (IP67), temperature range and duration, leak secondary container, liner disinfectable and customizable, tamper seal, temperature log, certification (GB/T 4208), cold-chain validation, lead time and OEM.
| Dimension | Transport | Blood | Sample | Pathology |
|---|---|---|---|---|
| --- | --- | --- | --- | --- |
| Rating | IP67 | IP67 | IP67 | IP67 |
| Temp | Opt | 2–8 C | 2–8 C | No |
| Leak | Yes | Yes | Yes | Strong |
| Disinfect | Yes | Yes | Yes | Yes |
Scenario-based selection beats parameter stacking. If the case is for alpine border duty, prioritize weatherability, UV resistance, and low-temperature toughness; if shipboard, prioritize salt-fog corrosion resistance and anti-sway fixation; if urban emergency, prioritize fast open-close and modular swap. For this case, list the usage profile (temperature, humidity, drop, vibration, exposure media) first, then match material, seal, and liner backward, avoiding both over-design and under-protection. Related approaches are described in the equipment case program. From a maintenance-support angle, the case should be field-repairable. The liner is custom-cut to the tool or spare list, with edges and pressure parts in separate pockets; common latches and gaskets are made field-replaceable. For this case, attach a concise maintenance card: inspect gasket, lubricate latch, dehumidify liner every 3 to 6 months; strengthen corrosion control in salt fog; rotate stock to stay fresh, sharing standardized upkeep with similar equipment to keep missions uninterrupted. Related approaches are described in the equipment case program.
Common Mistakes and Pitfalls
Mistake one: vague "medical" claim, no IP or cold-chain data. Mistake two: no secondary container, leak contaminates vehicle. Mistake three: no temperature log, overrun untraceable. Mistake four: liner not disinfectable, repeat contamination. Mistake five: missing seal, broken chain.
Write protection, temperature, leak and trace into the spec, and accept with the test report.
Maintenance and Lifecycle Management
Inspect sample cases every 3–6 months: silicone grease on seals, liner disinfect and air, verify cold-chain material. Blood and reagent cases export temperature logs periodically. Build one-case-one-file, rotate stock fresh.
Like the field medical case, run standardized operation for diagnosis continuity.
JUNZHJIA Custom Capability
JUNZHJIA supports OEM/ODM for sample cases: custom-cut liner, IP67 seal kits, cold bay (passive/active), disinfectant-resistant material and washable inner, leak secondary container, with GB/T 4208 and cold-chain documents, suited to scaled outfitting by hospitals, blood centers and CDC.
FAQ
Q: What is the difference between emergency transport case and emergency transport box? A: The emergency transport case serves casualty evacuation, larger with complete layered liner, holding monitor, oxygen, infusion fix and warming, vehicle bracket fixed. The emergency transport box is its small variant for single-vehicle or department embed, more compact with same temperature logic, often as supply and replace unit. Both share IP67; the difference is capacity and carry mode, and they can be issued by pre-hospital and department echelons.
Q: How does a blood collection box keep 2–8 C and traceable? A: Use phase-change coolant passive or semiconductor active, bags in independent holders against break, leak bay for emergency. Body logs and indicates temperature, alerts on overrun with trace for acceptance. Validation runs a full-load curve, recording time to rise to 8 C as selection basis. The blood collection box is a single-bag short-haul variant with same logic but leaner. Verify coolant long term; transport sheet and in-case record match for traceability.
Q: How does a biological sample case prevent cross-contamination? A: Sample tubes in independent holders, different biohazard levels zoned, sharps in separate puncture-proof bay, leak bay with absorbent for emergency. Liner washable for decontamination, tamper-evident seal for chain integrity. Shares cold-chain logic with the vaccine cold-chain case but stresses multi-sample zoning. Modular dividers swap by project. Transport meets biological material rules, seal number corresponds, temperature log exported.
Q: Why does a pathology specimen case stress leak prevention? A: Tissue soaks in fixative; inversion or vibration during transport easily spills and contaminates. Specimen bottles need independent holders, fixative bay leak-proof, body with absorbent for spill, transport avoids inversion and violent vibration. The pathology specimen box is an inter-department short-haul variant with tighter seal. Complements the surgical instrument case specialist transfer: the former samples, the latter instruments. Liner disinfectable, check seal periodically.
Q: How does a lab reagent case stay light-proof and shock-safe? A: Photosensitive reagent in independent dark bay, glass bottle break-proof holder, temperature layered by reagent need. The reagent case and biological sample case share the lab chain, but reagent stresses stability, sample isolation. Liner modular for project swap, shell disinfectant-wipe resistant. Vehicle fix against braking shift, avoid light and vibration that fail reagents. Write into spec and accept by report.
Q: Should sample cold chain be passive or active? A: By distance and power. Passive uses phase-change coolant, experience holds 2–8 C for some hours with no power, suited to pre-hospital and transfer; active is precise but powered, suited to fixed sites; hybrid serves mobile units. Reserve temperature log and state range and duration in spec. JUNZHJIA can fit custom liner and cold bay by need, balancing weight and timeliness.
Q: How often is a medical sample case maintained? A: Every 3–6 months: silicone grease on seals, liner disinfect and air, verify cold-chain material. Blood and reagent cases export temperature logs periodically. Build one-case-one-file with batch and disinfection; replace broken liner or failed seal at once. Rotate stock fresh, ready at need, with standardized operation for diagnosis continuity.
Q: Why secondary container and seal for sample transport? A: The secondary container collects spill when the primary breaks, preventing vehicle and personnel contamination; the tamper-evident seal secures chain from sampling to testing, number corresponding for trace. Both are hard compliance needs, especially air and cross-institution transfer. Liner sets leak bay with absorbent, seal one-time tamper-evident. This matches the forensic evidence case anti-cross thinking, but the sample case stresses temperature and leak.
Q: Can temperature and leak inner be customized in batch? A: Yes. JUNZHJIA supports OEM/ODM batch customization including disinfectant-resistant shell, washable inner, custom-cut liner, IP67 seal kits, passive or active cold bay, leak secondary container, with GB/T 4208 and cold-chain documents. Batch projects prototype first to confirm liner and temperature curve, then mass produce, suited to scaled outfitting and unified operation by hospitals, blood centers and CDC.
Conclusion and Related Reading
Emergency transport cases and blood collection boxes protect the "diagnosis chain" samples and blood; their protection, temperature, leak and traceability directly affect diagnosis and transfusion safety. Write every metric into the spec and accept by test report, so quality and safety hold in transport.
