Military Electronics Protective Cases: Aviation Equipment Cases, Shipboard Cases & Tactical Comms Cases

Military electronics are high-value and environment-sensitive, demanding integrated "three-proof" protection from cases. A qualified military electronics protective case should simultaneously meet IP67 water and dust protection, drop resistance above 1.5 meters, EMC shielding and transport shock resistance, while aviation, shipboard and power classes add temperature, salt-spray and battery safety. Otherwise water, interference or drop disables the equipment. This article covers six case types: the aviation equipment case, shipboard case, tactical comms case, night-vision equipment case, radar accessory case and military power case, explaining three-proof, material, EMC and selection points for military, defense and procurement departments.

The military electronic case is the physical barrier of "information equipment". From ground crew, ship-surface support, tactical link to night-vision and radar support, the shell must protect precision electronics through salt spray, vibration, EM and shock. We clarify classification first, then break it down.

Protection Positioning of Military Electronics Cases

The military electronics protective case carries radios, navigation, night vision, radar accessories and power, the physical guarantee of the combat information chain. Its positioning is "three-proof holds, EM no crosstalk, transport no damage", so water, shock and EMC are equal.

This case is often grouped with the emergency command comms case and the mobile command case into a command-info unit for "link, power, sense" integration.

Three-Proof Requirements (Water / Shock / EMC)

Military electronic three-proof means water-dust, shock buffer and EMC. Water by IP67, shock by MIL-STD-810H drop and vibration, EMC by GJB 151B controlling emission and susceptibility. They constrain each other: holes break water, shield adds weight, so balance is needed.

Procurement requires corresponding reports with samples and criteria stated.

Protection and Military Standards (IP / GB/T 4208 / MIL-STD-810H)

Basic protection IP67: fully dust-tight, 1 m / 30 min immersion. Military scenes reference MIL-STD-810H drop, random vibration, temp-humidity and salt spray; EMC references GJB 151B. Aviation and shipboard add temperature and salt validation.

The spec should state test method, acceptance and sampling; accept item by item, avoiding vague "military grade".

In real-world deployment of the protective case, sealing performance must be verified against GB/T 4208, which is equivalent to IEC 60529, with IP67 as the common target: fully dust-tight and able to survive immersion at 1 m depth for 30 minutes. For units that are airdropped, vehicle-mounted, or shipboard-transported, it is advisable to add MIL-STD-810H drop (Method 516.8) and random vibration (Method 514.8) to confirm environmental adaptability, and to require a formal test report with a defined sampling plan at acceptance rather than relying on the manufacturer's claimed rating. JUNZHJIA can supply the corresponding documentation package for batch OEM programs. Related approaches are described in the equipment case program. Flame retardancy and corrosion resistance are hard thresholds for the enclosure in harsh conditions. The shell is preferably modified PP, ABS, or PC and should be rated under UL94, typically targeting V-0 or V-1; salt-fog and damp-heat environments are tested per GB/T 10125 neutral salt spray, with metal parts preferably 316 stainless steel or corrosion-resistant engineering plastics. For this class of equipment case, the service life of latches, hinges, and gaskets under corrosion often decides the usable years of the whole case earlier than the shell itself does. Related approaches are described in the equipment case program. On standards mutual recognition, export or defense-trade cases often need parallel standards: domestic IP per GB/T 4208, international IP per IEC 60529 equivalently; environmental testing per MIL-STD-810H or associated GJB methods; flame per UL94 or the corresponding national standard. For the buyer, requiring readable test reports with sampling plans is more valuable than a single pass/fail verdict and lets the same evidence chain be reused across multiple national acceptances. Related approaches are described in the equipment case program. On risk control, configuration errors of the case are costly: mixed weapons and ammunition, sample leakage, or instrument shock damage all translate directly into mission failure. For this case, run a failure-mode analysis (FMEA thinking) before design freeze to identify high risks such as seal failure, fixation loosening, temperature drift, and EMC interference, and add redundancy; before delivery, use ISTA/MIL-STD sampling verification so every batch falls within an acceptable quality interval rather than depending on one sample case passing. Related approaches are described in the equipment case program. Scenario-based selection beats parameter stacking. If the case is for alpine border duty, prioritize weatherability, UV resistance, and low-temperature toughness; if shipboard, prioritize salt-fog corrosion resistance and anti-sway fixation; if urban emergency, prioritize fast open-close and modular swap. For this case, list the usage profile (temperature, humidity, drop, vibration, exposure media) first, then match material, seal, and liner backward, avoiding both over-design and under-protection. Related approaches are described in the equipment case program. From a maintenance-support angle, the case should be field-repairable. The liner is custom-cut to the tool or spare list, with edges and pressure parts in separate pockets; common latches and gaskets are made field-replaceable. For this case, attach a concise maintenance card: inspect gasket, lubricate latch, dehumidify liner every 3 to 6 months; strengthen corrosion control in salt fog; rotate stock to stay fresh, sharing standardized upkeep with similar equipment to keep missions uninterrupted. Related approaches are described in the equipment case program.

Aviation Equipment Case: Airborne and Ground-Crew Protection

The aviation equipment case serves ground crew carrying avionics modules, testers and spares, facing oil, vibration and temperature swing. Body above IP67, internal modules in independent bays against shock, cables against bend. Airborne type must be light with flame-retardant low-smoke non-toxic.

The aviation case complements the aerospace equipment case in ground support: the former ground-carry, the latter payload and ground equipment. Shell resists aviation-fuel wipe, latch anti-corrosion.

Transport fixation is the easily-overlooked step. When cases are stacked, anti-slip ribs and locating bosses keep the stack stable; single-stack height limits and counterweights must be stated in the specification. Vehicle transport fixes the case with webbing through the lift-ring so it does not shift during hard braking or cornering. ISTA procedures (e.g., ISTA 2A/3A) simulate accumulated damage from road and intermodal shipping and serve as a useful reference method before the equipment case leaves the factory, markedly reducing field open-box breakage rates. Related approaches are described in the equipment case program. In real-world deployment of the protective case, sealing performance must be verified against GB/T 4208, which is equivalent to IEC 60529, with IP67 as the common target: fully dust-tight and able to survive immersion at 1 m depth for 30 minutes. For units that are airdropped, vehicle-mounted, or shipboard-transported, it is advisable to add MIL-STD-810H drop (Method 516.8) and random vibration (Method 514.8) to confirm environmental adaptability, and to require a formal test report with a defined sampling plan at acceptance rather than relying on the manufacturer's claimed rating. JUNZHJIA can supply the corresponding documentation package for batch OEM programs. Related approaches are described in the equipment case program. On standards mutual recognition, export or defense-trade cases often need parallel standards: domestic IP per GB/T 4208, international IP per IEC 60529 equivalently; environmental testing per MIL-STD-810H or associated GJB methods; flame per UL94 or the corresponding national standard. For the buyer, requiring readable test reports with sampling plans is more valuable than a single pass/fail verdict and lets the same evidence chain be reused across multiple national acceptances. Related approaches are described in the equipment case program. On risk control, configuration errors of the case are costly: mixed weapons and ammunition, sample leakage, or instrument shock damage all translate directly into mission failure. For this case, run a failure-mode analysis (FMEA thinking) before design freeze to identify high risks such as seal failure, fixation loosening, temperature drift, and EMC interference, and add redundancy; before delivery, use ISTA/MIL-STD sampling verification so every batch falls within an acceptable quality interval rather than depending on one sample case passing. Related approaches are described in the equipment case program.

Shipboard Case: Salt Spray and Damp Proof

The shipboard case serves ship-surface and in-cabin electronic support, where salt spray and high humidity are the main conflict. Body must resist salt spray (neutral salt-spray test experience 480 h no red rust), seal damp, interior with desiccant and humidity indicator.

Metal in 316 stainless or anti-corrosion coat, plastic with UV masterbatch. This complements the marine port inspection case ship protection: the former electronics, the latter instruments.

Cushioning and liner are the core of protecting precision contents. High-density EVA is custom-cut to the three-dimensional profile of the equipment; heavy items use contoured pockets plus straps, optics get independent shock-isolated compartments, and tool edges get separate cut-resistant pockets. The buffering design should address both impact (IK-rated 0.5 to 20 J) and long-term compression creep. JUNZHJIA can produce custom-cut liners from the equipment list so every item is individually located and stays put when opened or closed, with modular dividers replaceable in the field. Related approaches are described in the equipment case program. Flame retardancy and corrosion resistance are hard thresholds for the enclosure in harsh conditions. The shell is preferably modified PP, ABS, or PC and should be rated under UL94, typically targeting V-0 or V-1; salt-fog and damp-heat environments are tested per GB/T 10125 neutral salt spray, with metal parts preferably 316 stainless steel or corrosion-resistant engineering plastics. For this class of equipment case, the service life of latches, hinges, and gaskets under corrosion often decides the usable years of the whole case earlier than the shell itself does. Related approaches are described in the equipment case program. Transport fixation is the easily-overlooked step. When cases are stacked, anti-slip ribs and locating bosses keep the stack stable; single-stack height limits and counterweights must be stated in the specification. Vehicle transport fixes the case with webbing through the lift-ring so it does not shift during hard braking or cornering. ISTA procedures (e.g., ISTA 2A/3A) simulate accumulated damage from road and intermodal shipping and serve as a useful reference method before the equipment case leaves the factory, markedly reducing field open-box breakage rates. Related approaches are described in the equipment case program. In real-world deployment of the protective case, sealing performance must be verified against GB/T 4208, which is equivalent to IEC 60529, with IP67 as the common target: fully dust-tight and able to survive immersion at 1 m depth for 30 minutes. For units that are airdropped, vehicle-mounted, or shipboard-transported, it is advisable to add MIL-STD-810H drop (Method 516.8) and random vibration (Method 514.8) to confirm environmental adaptability, and to require a formal test report with a defined sampling plan at acceptance rather than relying on the manufacturer's claimed rating. JUNZHJIA can supply the corresponding documentation package for batch OEM programs. Related approaches are described in the equipment case program. Flame retardancy and corrosion resistance are hard thresholds for the enclosure in harsh conditions. The shell is preferably modified PP, ABS, or PC and should be rated under UL94, typically targeting V-0 or V-1; salt-fog and damp-heat environments are tested per GB/T 10125 neutral salt spray, with metal parts preferably 316 stainless steel or corrosion-resistant engineering plastics. For this class of equipment case, the service life of latches, hinges, and gaskets under corrosion often decides the usable years of the whole case earlier than the shell itself does. Related approaches are described in the equipment case program.

Tactical Comms Case: Comms and Power

The tactical comms case carries radio, antenna, router and power, stressing link and power integration. Top radio and antenna, middle router, lower power and cables; liner custom-cut for no shift in transport.

Body reserves cable holes and interface panel to avoid field cutting that breaks sealing. Linked with the military power case for sustained link. High-sensitivity radio needs EMC shield, referencing the EMI-shielded case thinking.

Temperature control and seal-failure analysis matter greatly. Gaskets are preferably foamed silicone or EPDM, retaining elasticity from -40 deg C to +80 deg C; extreme ranges require high-low temperature cycling (MIL-STD-810H Methods 502.7/501.7) to confirm no embrittlement or leakage. For cases holding electronics, reagents, or samples, reserve a slot for a temperature-humidity data logger so the whole transit is recorded and traceable at goods receipt, supporting accountability and acceptance evidence. Related approaches are described in the equipment case program. Cushioning and liner are the core of protecting precision contents. High-density EVA is custom-cut to the three-dimensional profile of the equipment; heavy items use contoured pockets plus straps, optics get independent shock-isolated compartments, and tool edges get separate cut-resistant pockets. The buffering design should address both impact (IK-rated 0.5 to 20 J) and long-term compression creep. JUNZHJIA can produce custom-cut liners from the equipment list so every item is individually located and stays put when opened or closed, with modular dividers replaceable in the field. Related approaches are described in the equipment case program. Transport fixation is the easily-overlooked step. When cases are stacked, anti-slip ribs and locating bosses keep the stack stable; single-stack height limits and counterweights must be stated in the specification. Vehicle transport fixes the case with webbing through the lift-ring so it does not shift during hard braking or cornering. ISTA procedures (e.g., ISTA 2A/3A) simulate accumulated damage from road and intermodal shipping and serve as a useful reference method before the equipment case leaves the factory, markedly reducing field open-box breakage rates. Related approaches are described in the equipment case program.

Night-Vision Equipment Case: Light-Block and Shock

The night-vision equipment case holds image-intensifier and IR scopes, thermal cores and cells, with high light-block, shock and damp needs. Core is light-block inner against sensor burn, independent bay against shock, cell isolated against short.

Night-vision gear matches the precise-optics thinking of the scope protection box but stresses light-block and temperature more. Body light-block design, avoid direct strong light on optics when opening.

Procurement acceptance should write the case metrics into a technical specification and close the loop with test documents. The core checklist: IP rating (GB/T 4208), drop and vibration (MIL-STD-810H), flame rating (UL94), impact (IK level), non-spark latches and cycle life, certifications and compliance files, lead time and OEM/ODM capability. For batch programs, sample first to confirm liner and protection, then validate in a small batch, then mass-produce, avoiding systemic risk from a single large order placed blindly. Related approaches are described in the equipment case program. Temperature control and seal-failure analysis matter greatly. Gaskets are preferably foamed silicone or EPDM, retaining elasticity from -40 deg C to +80 deg C; extreme ranges require high-low temperature cycling (MIL-STD-810H Methods 502.7/501.7) to confirm no embrittlement or leakage. For cases holding electronics, reagents, or samples, reserve a slot for a temperature-humidity data logger so the whole transit is recorded and traceable at goods receipt, supporting accountability and acceptance evidence. Related approaches are described in the equipment case program. Cushioning and liner are the core of protecting precision contents. High-density EVA is custom-cut to the three-dimensional profile of the equipment; heavy items use contoured pockets plus straps, optics get independent shock-isolated compartments, and tool edges get separate cut-resistant pockets. The buffering design should address both impact (IK-rated 0.5 to 20 J) and long-term compression creep. JUNZHJIA can produce custom-cut liners from the equipment list so every item is individually located and stays put when opened or closed, with modular dividers replaceable in the field. Related approaches are described in the equipment case program.

Radar Accessory Case: Precision and Shielding

The radar accessory case holds front-end assemblies, waveguides and calibration parts, high-value and precision-sensitive. Core is precise fixation and EMC shield: assemblies in independent holders against shock, metal inner if needed to lower interference, keeping calibrated state.

The radar accessory case complements the radar accessory box: the former case carry, the latter box small parts. Transport avoids strong magnet and violent vibration, with temperature log.

In operational composition, the equipment case is rarely used alone; it is paired with command, communication, medical, and supply units into a system. Taking this case as an example, it can interface with command-comms, scene-investigation, and maintenance-support units to form a complete chain such as command-weapon-support or detect-handle-review. Select interfaces and standardized outer dimensions early so same-batch cases stack, intermodal-ship, and share maintenance, lowering lifecycle management and inventory cost. Related approaches are described in the equipment case program. Procurement acceptance should write the case metrics into a technical specification and close the loop with test documents. The core checklist: IP rating (GB/T 4208), drop and vibration (MIL-STD-810H), flame rating (UL94), impact (IK level), non-spark latches and cycle life, certifications and compliance files, lead time and OEM/ODM capability. For batch programs, sample first to confirm liner and protection, then validate in a small batch, then mass-produce, avoiding systemic risk from a single large order placed blindly. Related approaches are described in the equipment case program.

Military Power Case: Battery Safety and Supply

The military power case holds battery packs, inverter and cables; lithium risk is high. Core is cell independent bay, buffer, pressure relief and anti-short, never mixed with metal tools. Fuel generation needs explosion-proof ventilation and tray.

Power case with tactical comms case in one vehicle, separate fixed, fuel away from fire. Matches the emergency power case thinking.

Material and structure decide reliability under harsh duty. Wall thickness is usually 2.5 to 4 mm with thickened corners and stiffeners against deformation; PC may be used for transparent status viewing but needs UV treatment against yellowing. For this case, impact resistance depends not only on the shell but also on latch load paths and lid hinge design; in severe environments prefer metal-cored axles and widened latch bolts, validated to IK08 or above. Related approaches are described in the equipment case program. From a lifecycle-cost view, the equipment case should not be compared on unit price alone. Gasket aging, liner replacement, latch repair, and re-verification all incur ongoing cost; a one-case-one-file record of batch, repair, and rotation minimizes the chance of missing a case before mission. For scaled outfitting, modular liners and universal gasket kits cut spare-part variety and let the front line self-replace, raising equipment readiness. Related approaches are described in the equipment case program. In operational composition, the equipment case is rarely used alone; it is paired with command, communication, medical, and supply units into a system. Taking this case as an example, it can interface with command-comms, scene-investigation, and maintenance-support units to form a complete chain such as command-weapon-support or detect-handle-review. Select interfaces and standardized outer dimensions early so same-batch cases stack, intermodal-ship, and share maintenance, lowering lifecycle management and inventory cost. Related approaches are described in the equipment case program. Material and structure decide reliability under harsh duty. Wall thickness is usually 2.5 to 4 mm with thickened corners and stiffeners against deformation; PC may be used for transparent status viewing but needs UV treatment against yellowing. For this case, impact resistance depends not only on the shell but also on latch load paths and lid hinge design; in severe environments prefer metal-cored axles and widened latch bolts, validated to IK08 or above. Related approaches are described in the equipment case program. From a lifecycle-cost view, the equipment case should not be compared on unit price alone. Gasket aging, liner replacement, latch repair, and re-verification all incur ongoing cost; a one-case-one-file record of batch, repair, and rotation minimizes the chance of missing a case before mission. For scaled outfitting, modular liners and universal gasket kits cut spare-part variety and let the front line self-replace, raising equipment readiness. Related approaches are described in the equipment case program.

Shell Material and EMC Shielding

Electronic shells use modified PP or ABS; high-sensitivity gear needs EMC shield (conductive coat or metal inner) to lower interference and emission. Wall 2.5–4 mm, corners thick. Clear window in flame-retardant PC.

Shield must stay compatible with IP sealing, avoiding holes that break protection. Long outdoor adds UV masterbatch; salt spray uses 316 stainless.

EMC and ESD protection are not negligible for electronic contents. Cases holding PCBs, batteries, or sensors should use conductive liners and grounding following general ESD practice (in the spirit of IEC 61340); for radiated or strong-magnetic environments add a shielding layer. When the case involves night-vision, comms, or detection gear, transport and storage avoid strong magnetic fields and unknown radiation, with temperature, humidity, and shock logging forming an auditable transit file. Related approaches are described in the equipment case program.

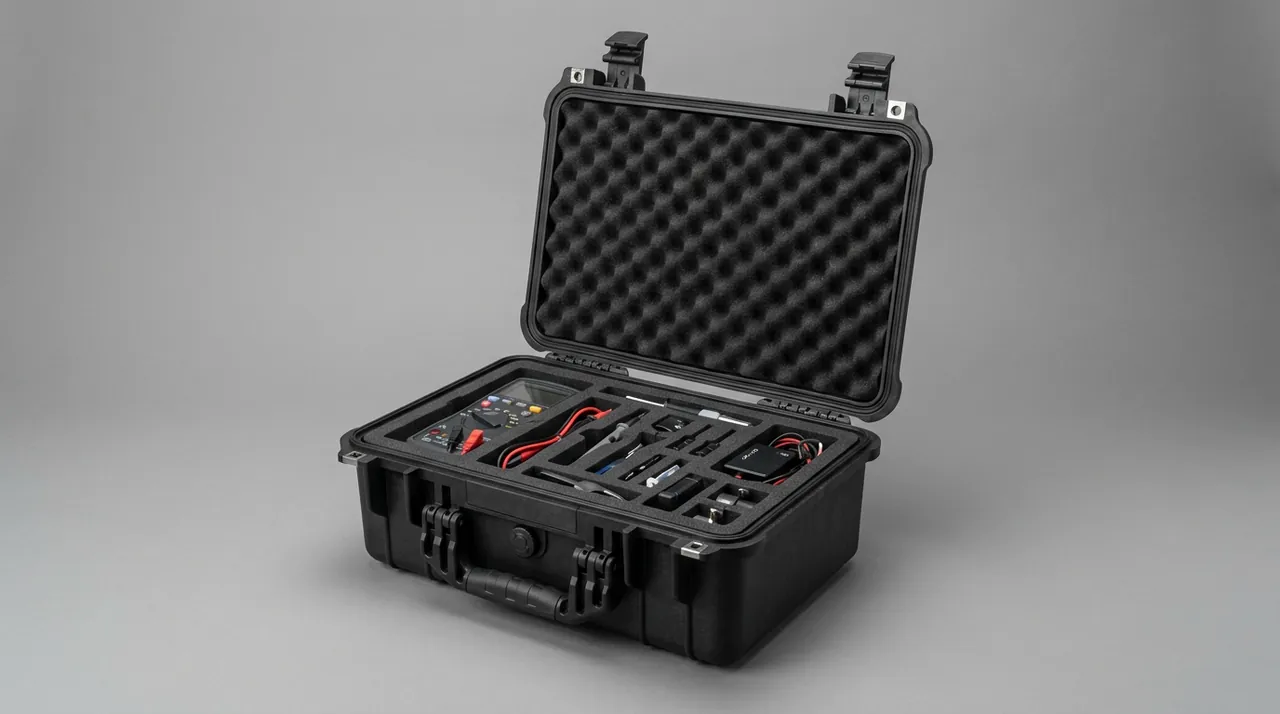

Liner and Buffer Design

Liner custom-cut to device three-dimensional profile; high-density EVA supports modules, grid divider modular. Precision in independent bay against shock, cell isolated against short, cables against bend.

JUNZHJIA can make custom-cut liner from the device list, fixing every device with no shift on open, and supports modular divider swap.

Packaging and marking are the last compliance step. Hazardous, weapon, or sample classes must have matching seal numbers, consistent in-case manifest and shipping note, and full traceability; high-visibility color and warning marks aid identification and inventory. For cross-border or defense-trade scenes, reserve a certification nameplate position stating IP, applied standard, and manufacturer, together with GB/T 4208 and MIL-STD-810H documents, reducing customs and acceptance friction. Related approaches are described in the equipment case program. EMC and ESD protection are not negligible for electronic contents. Cases holding PCBs, batteries, or sensors should use conductive liners and grounding following general ESD practice (in the spirit of IEC 61340); for radiated or strong-magnetic environments add a shielding layer. When the case involves night-vision, comms, or detection gear, transport and storage avoid strong magnetic fields and unknown radiation, with temperature, humidity, and shock logging forming an auditable transit file. Related approaches are described in the equipment case program.

Transport Fixing and Vehicle / Shipboard

Electronic cases move by vehicle, ship or air, need bracket fix against braking shift, stack with anti-slip ribs. Shipboard adds anti-tip fix, air meets rules. Dual latch, sling reserves lift point and weight check.

This matches the forward-delivery thinking of the drone transport case, balancing light and shock.

Packaging and marking are the last compliance step. Hazardous, weapon, or sample classes must have matching seal numbers, consistent in-case manifest and shipping note, and full traceability; high-visibility color and warning marks aid identification and inventory. For cross-border or defense-trade scenes, reserve a certification nameplate position stating IP, applied standard, and manufacturer, together with GB/T 4208 and MIL-STD-810H documents, reducing customs and acceptance friction. Related approaches are described in the equipment case program.

Selection Checklist and Procurement Points

Procure against: rating (IP67), EMC need (GJB 151B), temperature and salt, liner customizable, latch life, vehicle/ship interface, certification (GB/T 4208, MIL-STD-810H), lead time and OEM.

Scenario-based selection beats parameter stacking. If the case is for alpine border duty, prioritize weatherability, UV resistance, and low-temperature toughness; if shipboard, prioritize salt-fog corrosion resistance and anti-sway fixation; if urban emergency, prioritize fast open-close and modular swap. For this case, list the usage profile (temperature, humidity, drop, vibration, exposure media) first, then match material, seal, and liner backward, avoiding both over-design and under-protection. Related approaches are described in the equipment case program. From a maintenance-support angle, the case should be field-repairable. The liner is custom-cut to the tool or spare list, with edges and pressure parts in separate pockets; common latches and gaskets are made field-replaceable. For this case, attach a concise maintenance card: inspect gasket, lubricate latch, dehumidify liner every 3 to 6 months; strengthen corrosion control in salt fog; rotate stock to stay fresh, sharing standardized upkeep with similar equipment to keep missions uninterrupted. Related approaches are described in the equipment case program.

Common Mistakes and Pitfalls

Mistake one: appearance over sealing, no IP report. Mistake two: generic liner, precision parts interfere and shift. Mistake three: no EMC shield for sensitive gear, link disturbed. Mistake four: cells and metal tools in one bay, short risk. Mistake five: ordinary shipboard latch, salt rust.

Write protection, EMC, weathering and fixing into the spec, and accept with the test report.

Maintenance and Lifecycle Management

Inspect electronic cases every 3–6 months: silicone grease on seals, latch lube, liner dehumidify. Check shield intact, salt strengthens anti-corrosion. Activate cells on schedule, build one-case-one-file, rotate stock fresh.

Like the field medical case, run standardized operation for info-chain continuity.

JUNZHJIA Custom Capability

JUNZHJIA supports OEM/ODM for military electronic cases: custom-cut liner, IP67 seal kits, EMC shield option, salt-resistant material and anti-corrosion latch, vehicle/ship interface, with GB/T 4208 and MIL-STD-810H documents, suited to scaled outfitting by military and defense.

FAQ

Q: Why does a military electronics case stress three-proof? A: Military electronics are high-value and sensitive; water, vibration or EM interference any one can disable. Three-proof is IP67 water-dust, drop above 1.5 m shock, EMC shield by GJB 151B. They constrain: holes break water, shield adds weight, so balance and write into spec. Group with the emergency command comms case into an info unit for link, power and sense. Require corresponding reports for acceptance.

Q: What differs aviation equipment case from aerospace equipment case? A: Both serve ground support but scenes differ. The aviation equipment case stresses ground-carry, holding avionics modules, testers and spares, must be light, flame-retardant low-smoke non-toxic, aviation-fuel wipe resistant, IP67 and shock. The aerospace equipment case stresses payload and ground equipment, covering flight controller, avionics and ground support, wider spec. They complement; shell oil-resistant, latch anti-corrosion, both reference MIL-STD-810H, issued by task echelon.

Q: How does a shipboard case resist salt spray? A: Salt spray and high humidity are the ship-surface conflict; body must resist neutral salt-spray test experience 480 h no red rust, seal damp, interior with desiccant and humidity indicator. Metal in 316 stainless or anti-corrosion coat, plastic with UV masterbatch. Complements the marine port inspection case ship protection: the former electronics, the latter instruments. Inspect seals and latches periodically, strengthen anti-corrosion in salt, build one-case-one-file.

Q: How does a tactical comms case balance link and power? A: Top radio and antenna, middle router, lower power and cables; liner custom-cut for no shift. Reserve cable holes and interface panel to avoid cutting that breaks seal. Linked with the military power case for sustained link; high-sensitivity radio needs EMC shield, referencing the EMI-shielded case. Separate fixed with power case in one vehicle, fuel away from fire. Unify cell specs to simplify resupply.

Q: Why must a night-vision case block light? A: Image-intensifier and IR scopes, thermal cores are light-sensitive; direct exposure may burn sensors, so light-block inner prevents damage, independent bay against shock, cell isolated against short. Matches the scope protection box precise-optics thinking but stresses light-block and temperature. Body light-block design, avoid direct strong light on optics when opening, transport against strong magnet and vibration. Write into spec and accept by report.

Q: Why does a radar accessory case need shielding? A: Radar front-end assemblies, waveguides and calibration parts are high-value and precision-sensitive; outside EM and structural background disturb calibrated state. Assemblies in independent holders against shock, metal inner if needed to lower interference, keeping calibration. Complements the radar accessory box: the former case carry, the latter box small parts. Transport avoids strong magnet and violent vibration, with temperature log. Shield must stay compatible with IP sealing, avoid holes, accept by report.

Q: What are the safety points of a military power case? A: Lithium risk is high, so cell independent bay, buffer, pressure relief and anti-short, never mixed with metal tools; fuel generation needs explosion-proof ventilation, tray and ground. Hybrid dual-isolate and separate fixed. With tactical comms case in one vehicle, separate fixed, fuel away from fire. Activate cells on schedule, test-run and change fuel. Cooling holes with breath film balance protection and temperature, write into spec and accept.

Q: How often is a military electronic case maintained? A: Every 3–6 months: silicone grease on seals, latch clean and lube, liner dehumidify. Check shield intact, salt strengthens anti-corrosion. Activate cells on schedule. Build one-case-one-file with batch and repair, rotate stock fresh. Like the field medical case, run standardized operation for info-chain continuity, ready at need.

Q: Can EMC shield and shipboard interface be customized in batch? A: Yes. JUNZHJIA supports OEM/ODM batch customization including custom-cut liner, IP67 seal kits, EMC shield option, salt-resistant material and anti-corrosion latch, vehicle/ship interface, with GB/T 4208 and MIL-STD-810H documents. Batch projects prototype first to confirm liner and shield, then mass produce, suited to scaled outfitting and unified operation by military and defense.

Conclusion and Related Reading

Military electronics protective cases protect "information equipment"; their water, shock, EMC and fixing directly affect combat info-chain reliability. Write every metric into the spec and accept by test report, so equipment holds in complex battlefield and ship-surface environments.
