Security inspection, explosion-proof, and video-surveillance equipment serve airports, stations, venues, government, and major events, with detection and construction equipment working in crowded, temporary-control, and bumpy-transport conditions. The core conclusion: the baseline of a security inspection case is "explosion-proof anti-static and device accuracy equally weighted" - the case itself must not produce fire, must not interfere with signals, while protecting X-ray, metal-detection, explosion-detection, and surveillance equipment from vibration and dust. This article covers five families - security inspection cases, explosion-proof inspection toolkits, video surveillance system cases, security engineering toolkits, and explosion-proof toolkits - explaining ingress grades, EMC, liners, and field points.
The risk chain at security sites: detection equipment contains electronics and batteries, static or spark may ignite residual risk material on site; metal detectors and surveillance probes fear vibration and magnetism; construction tools need anti-corrosion and anti-loss. Selection must treat "explosion-proof correspondence, EMC shielding, quick deployment" as hard indicators. The following expands item by item.
Table of Contents
- Risks and Protection Baseline of Security Inspection Cases
- Detection Instrument Protection of Security Inspection Cases
- Anti-Static and Flame-Retardant of Explosion-Proof Inspection Toolkits
- Shock and EMC of Video Surveillance System Cases
- Portability and Accessories of Security Engineering Toolkits
- Explosion-Proof Structure of Explosion-Proof Toolkits
- Protection and Electrical Standards: IP, EMC and Explosion-Proof
- Materials and Anti-Static, Shielding Treatment
- Liners and Instrument Positioning
- Cable Management and Cable-Gland Sealing
- Field Deployment and Transfer Flow
- Test Documentation and Certification
- OEM/ODM and Procurement Advice
- Common Selection Mistakes
Risks and Protection Baseline of Security Inspection Cases
The first risk at security sites is explosion and fire. The area where detection equipment works may have residual flammable material; if the case static-discharges or latch sparks, it may ignite. The second risk is signal interference: metal detection, surveillance, and wireless transmission are EMI-sensitive, poor case shielding causes data drift or missed alarm. The third is device inaccuracy and loss: transport vibration and temporary-control loose-part management.
The protection baseline locks three points: case and accessories produce no fire (anti-static, no-spark structure, flame-retardant liner); EMC shielding ensures detection accuracy; sealing controlled (IP65-IP67). Related hazardous-environment protection references the anti-static thinking in Explosion-Proof Equipment Cases.
Before purchase, define the deployment area grade (explosive or not, outdoor or not), then set the case. For sites needing command coordination, cases should coordinate storage with Emergency Command Comms Cases & Scene Investigation Kits.
Detection Instrument Protection of Security Inspection Cases
Security inspection cases load metal-detection gate modules, handheld metal detectors, explosive/drug detectors, and accessories. Ingress IP65 covers indoor venues, outdoor deployment IP67. Liner with shock slot for handheld detectors, detector host bottom hard support, cable independent groove. Battery separately insulated and fire-proof meeting transport fire safety.
Detection equipment is static-sensitive; shell surface resistance per GB/T 32304 / IEC 61340 stays 10^4-10^11 ohm anti-static. For X-ray or source devices, liner adds shielding layer and meets corresponding radiation-safety transport rules. JUNZHJIA can integrate liners and accessories by security equipment list, supporting OEM/ODM small-batch for staged airport-station issue. Related terminal protection references POS-Terminal Protective Boxes & Barcode-Scanner Cases.
Anti-Static and Flame-Retardant of Explosion-Proof Inspection Toolkits
Explosion-proof inspection toolkits serve suspected-explosive screening; the case must be passive explosion-proof: anti-static material or conductive coating (surface resistance 10^4-10^11 ohm), no-spark latch hinges, flame-retardant liner foam (UL94 V-0/V-2). Any metal fit should avoid sparking; related points are consistent with Hazardous-Chemical Test Cases.
Tools (probe, pliers, explosion-proof camera) fixed in layers, precision probes soft foam with hard support. Case should open with one hand and anti-misopen for operation in protective gear. For explosive sites, case with locating and warning marks. JUNZHJIA can custom-cut anti-static liners and flame-retardant accessories by explosion-proof inspection list, providing ESD and flame-retardant records for safety acceptance.
In real-world deployment of the protective case, sealing performance must be verified against GB/T 4208, which is equivalent to IEC 60529, with IP67 as the common target: fully dust-tight and able to survive immersion at 1 m depth for 30 minutes. For units that are airdropped, vehicle-mounted, or shipboard-transported, it is advisable to add MIL-STD-810H drop (Method 516.8) and random vibration (Method 514.8) to confirm environmental adaptability, and to require a formal test report with a defined sampling plan at acceptance rather than relying on the manufacturer's claimed rating. JUNZHJIA can supply the corresponding documentation package for batch OEM programs. Related approaches are described in the equipment case program. Flame retardancy and corrosion resistance are hard thresholds for the enclosure in harsh conditions. The shell is preferably modified PP, ABS, or PC and should be rated under UL94, typically targeting V-0 or V-1; salt-fog and damp-heat environments are tested per GB/T 10125 neutral salt spray, with metal parts preferably 316 stainless steel or corrosion-resistant engineering plastics. For this class of equipment case, the service life of latches, hinges, and gaskets under corrosion often decides the usable years of the whole case earlier than the shell itself does. Related approaches are described in the equipment case program. From a maintenance-support angle, the case should be field-repairable. The liner is custom-cut to the tool or spare list, with edges and pressure parts in separate pockets; common latches and gaskets are made field-replaceable. For this case, attach a concise maintenance card: inspect gasket, lubricate latch, dehumidify liner every 3 to 6 months; strengthen corrosion control in salt fog; rotate stock to stay fresh, sharing standardized upkeep with similar equipment to keep missions uninterrupted. Related approaches are described in the equipment case program. On standards mutual recognition, export or defense-trade cases often need parallel standards: domestic IP per GB/T 4208, international IP per IEC 60529 equivalently; environmental testing per MIL-STD-810H or associated GJB methods; flame per UL94 or the corresponding national standard. For the buyer, requiring readable test reports with sampling plans is more valuable than a single pass/fail verdict and lets the same evidence chain be reused across multiple national acceptances. Related approaches are described in the equipment case program.
Shock and EMC of Video Surveillance System Cases
Video surveillance equipment contains cameras, NVR, switches, fiber transceivers, and power, vibration and magnetism fragile. Liner layers: host bottom hard support, lens and camera independent slot with protective cap, cable independent routing groove. Cushioning follows MIL-STD-810H 514.8 random vibration ensuring zero shift under vehicle bumps.
For EMC, surveillance sites often have strong interference; sensitive acquisition needs shielding: conductive cloth or metallized foam liner forms continuous shielding, seams conductive gasket, filtered flange for leads. Shielding effectiveness needs third-party attenuation data in files. Ingress IP65, outdoor pole IP67. JUNZHJIA custom-cuts liners and sealed glands by surveillance module with ESD and flame-retardant records. Related shielding design references IT Carry Cases.
Transport fixation is the easily-overlooked step. When cases are stacked, anti-slip ribs and locating bosses keep the stack stable; single-stack height limits and counterweights must be stated in the specification. Vehicle transport fixes the case with webbing through the lift-ring so it does not shift during hard braking or cornering. ISTA procedures (e.g., ISTA 2A/3A) simulate accumulated damage from road and intermodal shipping and serve as a useful reference method before the equipment case leaves the factory, markedly reducing field open-box breakage rates. Related approaches are described in the equipment case program. On risk control, configuration errors of the case are costly: mixed weapons and ammunition, sample leakage, or instrument shock damage all translate directly into mission failure. For this case, run a failure-mode analysis (FMEA thinking) before design freeze to identify high risks such as seal failure, fixation loosening, temperature drift, and EMC interference, and add redundancy; before delivery, use ISTA/MIL-STD sampling verification so every batch falls within an acceptable quality interval rather than depending on one sample case passing. Related approaches are described in the equipment case program.
Portability and Accessories of Security Engineering Toolkits
Security engineering toolkits target installation, loading drill, crimping pliers, cable tester, terminals, and consumables. Stress portability and complete accessories: liner "power below, manual above, consumables layered", small parts in divider boxes to avoid loss. Ingress IP65, heavy dust IP66.
Case with handle and shoulder strap dual mode, stackable, reserve QR asset plate. For fiber-splicing devices, related tools reference the field logic in IT Operations Toolkits: Fiber Splicer, Base-Station Maintenance & Data-Center Patrol. JUNZHJIA supports liner and accessory integration by engineering list for batch team issue. For sites involving network, cases coordinate with Communication Equipment Cases & Network/Radio Tester Cases.
Cushioning and liner are the core of protecting precision contents. High-density EVA is custom-cut to the three-dimensional profile of the equipment; heavy items use contoured pockets plus straps, optics get independent shock-isolated compartments, and tool edges get separate cut-resistant pockets. The buffering design should address both impact (IK-rated 0.5 to 20 J) and long-term compression creep. JUNZHJIA can produce custom-cut liners from the equipment list so every item is individually located and stays put when opened or closed, with modular dividers replaceable in the field. Related approaches are described in the equipment case program. In real-world deployment of the protective case, sealing performance must be verified against GB/T 4208, which is equivalent to IEC 60529, with IP67 as the common target: fully dust-tight and able to survive immersion at 1 m depth for 30 minutes. For units that are airdropped, vehicle-mounted, or shipboard-transported, it is advisable to add MIL-STD-810H drop (Method 516.8) and random vibration (Method 514.8) to confirm environmental adaptability, and to require a formal test report with a defined sampling plan at acceptance rather than relying on the manufacturer's claimed rating. JUNZHJIA can supply the corresponding documentation package for batch OEM programs. Related approaches are described in the equipment case program. Flame retardancy and corrosion resistance are hard thresholds for the enclosure in harsh conditions. The shell is preferably modified PP, ABS, or PC and should be rated under UL94, typically targeting V-0 or V-1; salt-fog and damp-heat environments are tested per GB/T 10125 neutral salt spray, with metal parts preferably 316 stainless steel or corrosion-resistant engineering plastics. For this class of equipment case, the service life of latches, hinges, and gaskets under corrosion often decides the usable years of the whole case earlier than the shell itself does. Related approaches are described in the equipment case program.
Explosion-Proof Structure of Explosion-Proof Toolkits
Explosion-proof toolkits store explosion-proof instruments and detection accessories, structurally same source as explosion-proof inspection toolkits: anti-static shell, no-spark latches, flame-retardant liner. The difference emphasizes "explosion-proof material of the tools themselves" - such as copper-alloy tools avoiding impact sparks, compartment-stored to avoid mutual knock producing fire. Shell surface resistance 10^4-10^11 ohm, liner UL94 flame-retardant.
Explosion-proof toolkits need GHS and warning label areas, transport per dangerous-goods related rules. For cross-border projects, packaging meets corresponding international rules with compliance statements. JUNZHJIA issues media and separation plans by explosion-proof tool list with bilingual test summaries for overseas acceptance. Related explosion-proof spec references the police/military series in Military Equipment Boxes & Tactical Gear Boxes.
Temperature control and seal-failure analysis matter greatly. Gaskets are preferably foamed silicone or EPDM, retaining elasticity from -40 deg C to +80 deg C; extreme ranges require high-low temperature cycling (MIL-STD-810H Methods 502.7/501.7) to confirm no embrittlement or leakage. For cases holding electronics, reagents, or samples, reserve a slot for a temperature-humidity data logger so the whole transit is recorded and traceable at goods receipt, supporting accountability and acceptance evidence. Related approaches are described in the equipment case program.
Protection and Electrical Standards: IP, EMC and Explosion-Proof
Ingress grade uses IP (IEC 60529 / GB/T 4208), indoor IP65, outdoor IP67, heavy dust IP66. EMC cites GB/T 17626 series, shielding effectiveness by scenario. Explosion-proof cites GB 3836 series or corresponding international area grade; the case is not electrical equipment, but its anti-static, no-spark, and flame-retardant requirements should match the site area.
The table gives common device grading:
| Device / Scenario | Suggested IP | EMC / Explosion-Proof | Transport |
|---|---|---|---|
| --- | --- | --- | --- |
| Security inspection | IP65/IP67 | Anti-static | ISTA 3A |
| Explosion-proof inspection | IP65 | Anti-static + flame-retardant | MIL-STD-810H 514.8 |
| Video surveillance | IP65/IP67 | Shielding | MIL-STD-810H 514.8 |
| Security engineering | IP65/IP66 | Anti-static | Vehicle random vibration |
| Explosion-proof toolkit | IP65 | Anti-static + flame-retardant | ISTA 3A |
Grading should enter acceptance, avoiding verbal debate. More standard explanation in Industrial Equipment Cases.
Procurement acceptance should write the case metrics into a technical specification and close the loop with test documents. The core checklist: IP rating (GB/T 4208), drop and vibration (MIL-STD-810H), flame rating (UL94), impact (IK level), non-spark latches and cycle life, certifications and compliance files, lead time and OEM/ODM capability. For batch programs, sample first to confirm liner and protection, then validate in a small batch, then mass-produce, avoiding systemic risk from a single large order placed blindly. Related approaches are described in the equipment case program. Transport fixation is the easily-overlooked step. When cases are stacked, anti-slip ribs and locating bosses keep the stack stable; single-stack height limits and counterweights must be stated in the specification. Vehicle transport fixes the case with webbing through the lift-ring so it does not shift during hard braking or cornering. ISTA procedures (e.g., ISTA 2A/3A) simulate accumulated damage from road and intermodal shipping and serve as a useful reference method before the equipment case leaves the factory, markedly reducing field open-box breakage rates. Related approaches are described in the equipment case program. Cushioning and liner are the core of protecting precision contents. High-density EVA is custom-cut to the three-dimensional profile of the equipment; heavy items use contoured pockets plus straps, optics get independent shock-isolated compartments, and tool edges get separate cut-resistant pockets. The buffering design should address both impact (IK-rated 0.5 to 20 J) and long-term compression creep. JUNZHJIA can produce custom-cut liners from the equipment list so every item is individually located and stays put when opened or closed, with modular dividers replaceable in the field. Related approaches are described in the equipment case program.
Materials and Anti-Static, Shielding Treatment
Case material is mainly modified PP, ABS/PC; security scenarios prefer anti-static PP. Metal accessories dacromet or insulated coating to avoid sparks. Gaskets EPDM or silicone closed-cell foam. UV environments add stabilizers for longer life.
Anti-static: shell surface resistance 10^4-10^11 ohm; shielding scenarios liner conductive cloth or metallized foam, seams conductive gasket, avoid personnel touching live. JUNZHJIA recommends material and gasket by list, delivery file with ESD and shielding notes. For coastal or outdoor sites, material also needs salt-fog resistance; related treatment references the salt-fog solution in PV Inspection Equipment Cases & Wind-Turbine Maintenance Toolkits.
In operational composition, the equipment case is rarely used alone; it is paired with command, communication, medical, and supply units into a system. Taking this case as an example, it can interface with command-comms, scene-investigation, and maintenance-support units to form a complete chain such as command-weapon-support or detect-handle-review. Select interfaces and standardized outer dimensions early so same-batch cases stack, intermodal-ship, and share maintenance, lowering lifecycle management and inventory cost. Related approaches are described in the equipment case program. Temperature control and seal-failure analysis matter greatly. Gaskets are preferably foamed silicone or EPDM, retaining elasticity from -40 deg C to +80 deg C; extreme ranges require high-low temperature cycling (MIL-STD-810H Methods 502.7/501.7) to confirm no embrittlement or leakage. For cases holding electronics, reagents, or samples, reserve a slot for a temperature-humidity data logger so the whole transit is recorded and traceable at goods receipt, supporting accountability and acceptance evidence. Related approaches are described in the equipment case program. Procurement acceptance should write the case metrics into a technical specification and close the loop with test documents. The core checklist: IP rating (GB/T 4208), drop and vibration (MIL-STD-810H), flame rating (UL94), impact (IK level), non-spark latches and cycle life, certifications and compliance files, lead time and OEM/ODM capability. For batch programs, sample first to confirm liner and protection, then validate in a small batch, then mass-produce, avoiding systemic risk from a single large order placed blindly. Related approaches are described in the equipment case program.
Liners and Instrument Positioning

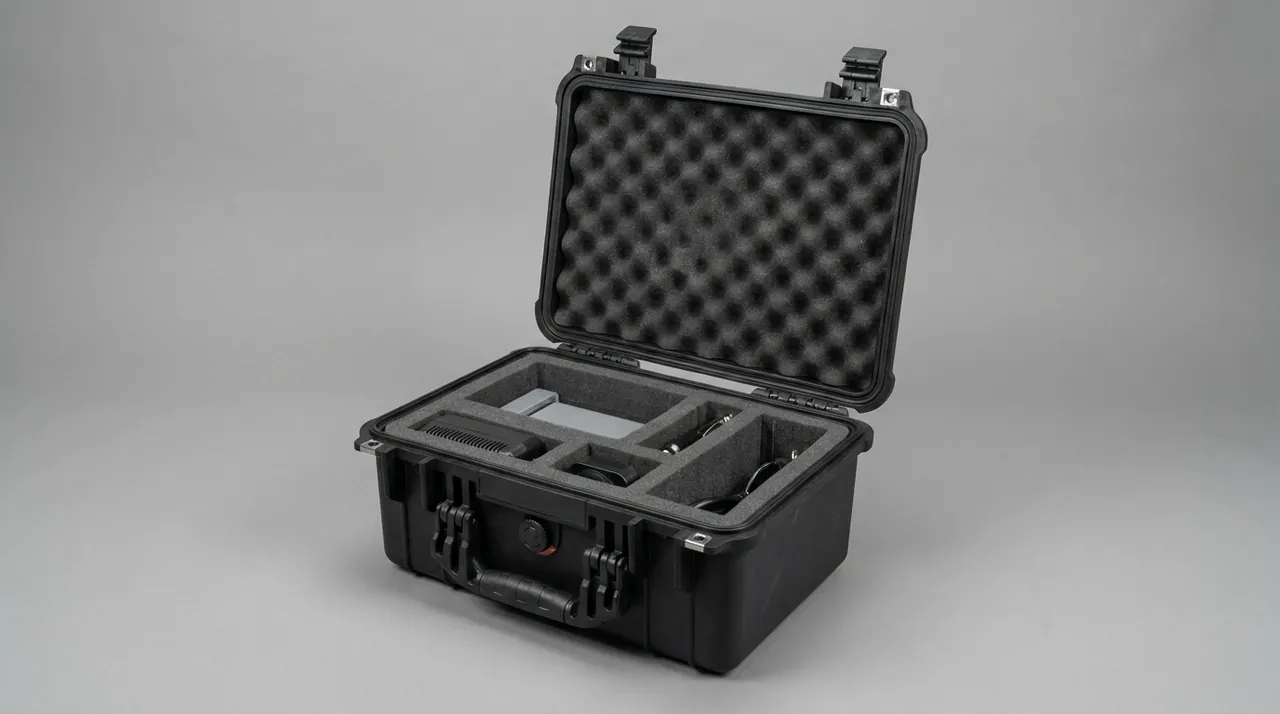

Security instruments are "multi-probe, multi-accessory, multi-cable"; liner value turns a list into positions. Flow: list, measure sizes, layered layout, CNC die-cut, trial fit. Heavy instrument bottom hard support, precision instrument upper soft foam, cable independent groove. Each instrument a unique fixed position, take-out without collision.
Liner material by scenario: normal EVA 30-60, anti-static conductive foam, shielding metallized foam. JUNZHJIA supports OEM/ODM liners by list, lid transparent pouch for operation cards. For multi-probe detection, compartment references the quick-access design in Detection Instrument Protective Cases.
Material and structure decide reliability under harsh duty. Wall thickness is usually 2.5 to 4 mm with thickened corners and stiffeners against deformation; PC may be used for transparent status viewing but needs UV treatment against yellowing. For this case, impact resistance depends not only on the shell but also on latch load paths and lid hinge design; in severe environments prefer metal-cored axles and widened latch bolts, validated to IK08 or above. Related approaches are described in the equipment case program. From a lifecycle-cost view, the equipment case should not be compared on unit price alone. Gasket aging, liner replacement, latch repair, and re-verification all incur ongoing cost; a one-case-one-file record of batch, repair, and rotation minimizes the chance of missing a case before mission. For scaled outfitting, modular liners and universal gasket kits cut spare-part variety and let the front line self-replace, raising equipment readiness. Related approaches are described in the equipment case program. In operational composition, the equipment case is rarely used alone; it is paired with command, communication, medical, and supply units into a system. Taking this case as an example, it can interface with command-comms, scene-investigation, and maintenance-support units to form a complete chain such as command-weapon-support or detect-handle-review. Select interfaces and standardized outer dimensions early so same-batch cases stack, intermodal-ship, and share maintenance, lowering lifecycle management and inventory cost. Related approaches are described in the equipment case program. Material and structure decide reliability under harsh duty. Wall thickness is usually 2.5 to 4 mm with thickened corners and stiffeners against deformation; PC may be used for transparent status viewing but needs UV treatment against yellowing. For this case, impact resistance depends not only on the shell but also on latch load paths and lid hinge design; in severe environments prefer metal-cored axles and widened latch bolts, validated to IK08 or above. Related approaches are described in the equipment case program.
Cable Management and Cable-Gland Sealing

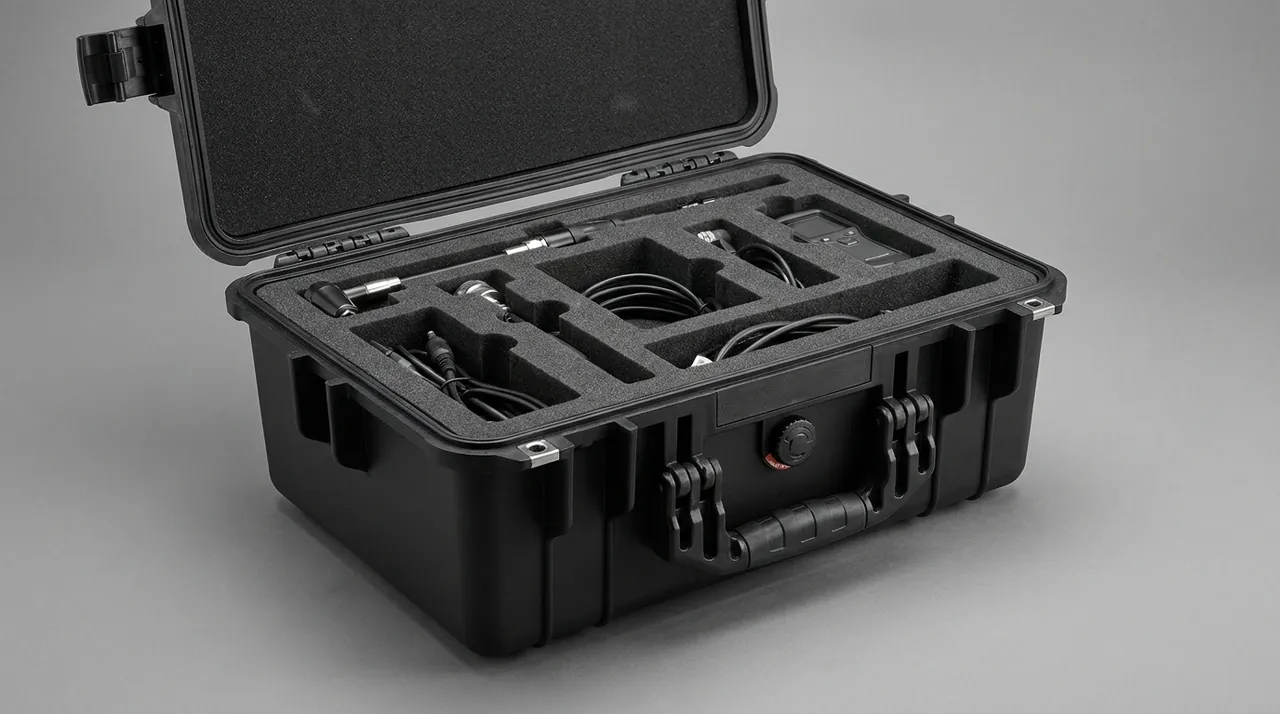

Security cables are many (video, network, power, fiber); poor management tangles. Liner sets coil grooves and clips, color-fixed by cable type. For exit use cable gland keeping overall IP seal. Video and network cables separately shielded, avoiding mutual inductance with power.
Cable-gland material weather and media resistant, pressure equalization valve waterproof breathable membrane anti-clog. JUNZHJIA customizes wire grooves and glands by cable spec with ESD records. Related gland design references the integration thinking in Military Electronics Protective Cases.
EMC and ESD protection are not negligible for electronic contents. Cases holding PCBs, batteries, or sensors should use conductive liners and grounding following general ESD practice (in the spirit of IEC 61340); for radiated or strong-magnetic environments add a shielding layer. When the case involves night-vision, comms, or detection gear, transport and storage avoid strong magnetic fields and unknown radiation, with temperature, humidity, and shock logging forming an auditable transit file. Related approaches are described in the equipment case program. From a lifecycle-cost view, the equipment case should not be compared on unit price alone. Gasket aging, liner replacement, latch repair, and re-verification all incur ongoing cost; a one-case-one-file record of batch, repair, and rotation minimizes the chance of missing a case before mission. For scaled outfitting, modular liners and universal gasket kits cut spare-part variety and let the front line self-replace, raising equipment readiness. Related approaches are described in the equipment case program.
Field Deployment and Transfer Flow
Standard flow: before outbound check insulation and seal, verify devices by list, fix during transport to prevent shift, open at a flat site, take by liner for quick deployment, clean and return after work, close and verify seal, inventory on return. In explosive areas verify environment first then operate, tools standard return.
Transport fixation uses straps through fixing rings, avoid sun heating interior in vehicles. Major-event deployment cases should coordinate with Emergency Command Comms Cases & Scene Investigation Kits for communication and data return. For temporary points, cases can add wheels to lower handling effort.
Packaging and marking are the last compliance step. Hazardous, weapon, or sample classes must have matching seal numbers, consistent in-case manifest and shipping note, and full traceability; high-visibility color and warning marks aid identification and inventory. For cross-border or defense-trade scenes, reserve a certification nameplate position stating IP, applied standard, and manufacturer, together with GB/T 4208 and MIL-STD-810H documents, reducing customs and acceptance friction. Related approaches are described in the equipment case program.
Test Documentation and Certification
Delivery files should contain IP grade report, IK report, ESD parameters, salt-fog report, vibration record, EMC shielding data, UL94 flame-retardant grade, factory inspection sheet. Export needs RoHS, REACH statements. Files numbered, sample photos, co-signed.
JUNZHJIA provides bilingual test summaries and traceability numbers by batch, supporting OEM/ODM customers into acceptance. Testing turns "experience values" into "citable conclusions", key for overseas customs and acceptance. Related quality spec keeps cross-project consistency with the delivery requirements of Security Inspection Cases & Explosion-Proof Inspection Toolkits.
Scenario-based selection beats parameter stacking. If the case is for alpine border duty, prioritize weatherability, UV resistance, and low-temperature toughness; if shipboard, prioritize salt-fog corrosion resistance and anti-sway fixation; if urban emergency, prioritize fast open-close and modular swap. For this case, list the usage profile (temperature, humidity, drop, vibration, exposure media) first, then match material, seal, and liner backward, avoiding both over-design and under-protection. Related approaches are described in the equipment case program.
OEM/ODM and Procurement Advice
Security units often run multi-site, multi-system; recommend a "standard shell plus swappable liner plus explosion-proof accessories" module: fix anti-static case type and latches, swap liner by system. Shells batch-purchased spread cost, liners small-batch custom, inventory drops.
Communicate with the maker: device list, deployment area grade (explosive or not, outdoor or not), EMC shielding needed or not. JUNZHJIA supports from single-case customization to full-line OEM/ODM, gaskets by model, liners by drawing, plus test files. Contract should specify protection grade, ESD and explosion-proof corresponding grade, acceptance standard number, warranty and spare supply; writing standard numbers into contract gives a basis for disputes.
Common Selection Mistakes
Mistake one: normal case replacing explosion-proof, static ignition risk. Mistake two: ignoring EMC shielding, surveillance data drift missed alarm. Mistake three: liner too loose, transport probe inaccurate. Mistake four: cables mixed with power, mutual inductance. Mistake five: no flame-retardant liner, fire spread. Mistake six: no batch tracing, loss hard to find. Mistake seven: no explosion area statement, no acceptance basis.
The core to avoid is the three hard indicators "explosion-proof + EMC + traceable", writing standard numbers into files. Using Security Inspection Cases & Explosion-Proof Inspection Toolkits as reference shortens evaluation.
Frequently Asked Questions
Q: What does explosion-proof mean for security inspection cases, does the case need explosion-proof certification? A: Here "explosion-proof" is passive safety: the case and accessories themselves must not become an ignition source, including anti-static (surface resistance 10^4-10^11 ohm per GB/T 32304 / IEC 61340), no-spark latch hinges, flame-retardant liner (UL94 V-0/V-2). The case itself is usually not electrical equipment and does not take ATEX/IECEx equipment certification, but its protection should match the site area (e.g. explosive grade) and state the corresponding grade in writing. Real explosion-proof certification targets the detection instrument itself. Require the supplier to state case and accessory explosion-proof corresponding grade into acceptance, avoiding vague "explosion-proof quality" replacing citable conclusions. Related anti-static references explosion-proof equipment cases.
Q: How to transport X-ray or source devices in security inspection cases? A: Devices with X-ray modules or sources need, beyond IP65/IP67 and shock protection, a shielding liner layer meeting corresponding radiation-safety transport rules; batteries separately insulated and fire-proof meeting transport fire safety. Shell anti-static avoids sampling interference. Host bottom hard support, cable independent groove, handheld detector shock slot. JUNZHJIA integrates liners and accessories by security equipment list, supporting OEM/ODM small-batch for staged airport-station issue. Transport fixation uses straps to prevent shift, read temp-humidity record before boot on arrival, related data thinking references logistics monitoring cases.
Q: Why must explosion-proof inspection toolkits use flame-retardant liner, can normal foam work? A: No. Suspected-explosive screening sites are high risk; if abnormal high temperature or small fire occurs inside, normal foam helps spread fire. Flame-retardant liner (UL94 V-0/V-2) suppresses burning, buying time for handling. Meanwhile the case needs anti-static shell, no-spark latches, flame-retardant liner foam, tools layered to avoid mutual knock producing fire. JUNZHJIA custom-cuts anti-static liners and flame-retardant accessories by explosion-proof inspection list, providing ESD and flame-retardant records for safety acceptance. Related hazardous thinking is consistent with hazardous-chemical test cases, unified passive explosion-proof requirements.
Q: Why do video surveillance system cases need both EMC shielding and anti-static? A: Surveillance sites have strong interference; sensitive acquisition with only anti-static but no shielding drifts video and data even missed alarm; with only shielding but no anti-static, shell charge may discharge and damage chips. So shell surface resistance per GB/T 32304 / IEC 61340 stays 10^4-10^11 ohm anti-static, while conductive cloth or metallized foam liner forms continuous shielding, seams conductive gasket, filtered flange for leads. Shielding effectiveness needs third-party attenuation data in files. JUNZHJIA custom-cuts liners and sealed glands by surveillance module with ESD and flame-retardant records. Related shielding design references IT carry cases.
Q: How to prevent small-part loss in security engineering toolkits? A: Engineering tools include drill, crimping pliers, cable tester, terminals, consumables, small parts easy to lose. Liner "power below, manual above, consumables layered", small parts in divider boxes; case stackable, handle shoulder strap dual mode, reserve QR asset plate. Ingress IP65, heavy dust IP66. JUNZHJIA integrates liners and accessories by engineering list for batch team issue. For fiber-splicing devices, related tools reference the field logic in fiber splicer and base-station maintenance toolkits, turning "part in place" into a verifiable liner layout.
Q: What is the difference between explosion-proof toolkit and explosion-proof inspection toolkit? A: Both share explosion-proof structure (anti-static shell, no-spark latches, flame-retardant liner); the difference is content focus. The explosion-proof inspection toolkit targets suspected-explosive screening, loading probe, pliers, explosion-proof camera and other detection accessories; the explosion-proof toolkit emphasizes "explosion-proof material of the tools themselves" such as copper-alloy tools avoiding impact sparks, compartment-stored to avoid mutual knock producing fire. Both shell surface resistance 10^4-10^11 ohm, liner UL94 flame-retardant, need GHS and warning labels. JUNZHJIA issues media and separation plans by list with bilingual test summaries, related explosion-proof spec references the police/military series in military equipment boxes and tactical gear boxes.
Q: What to provide for liner die-cutting, how long the cycle? A: At minimum provide device list (name, size, weight, vulnerability) and outline (2D or 3D, physical measurable). Flow is measure, layered layout, CNC die-cut, trial fit, revise; small-batch sample cycle experience value 1-3 weeks. Normal EVA 30-60, anti-static conductive foam, shielding metallized foam. To shorten, provide clear drawings at quotation and specify foam hardness. JUNZHJIA supports OEM/ODM liners by list, lid transparent pouch for operation cards; multi-probe scenarios borrow the quick-access design in detection instrument cases.
Q: What must test files contain, any extra export requirements? A: Basic files should contain IP grade report, IK report, ESD parameters, salt-fog report, vibration record, EMC shielding data, UL94 flame-retardant grade, factory inspection sheet, numbered, sample photos, co-signed. Export needs RoHS, REACH statements, some markets require corresponding language. Files issued by qualified labs, avoiding verbal guarantees. JUNZHJIA provides bilingual test summaries and traceability numbers by batch for direct overseas acceptance. Writing standard numbers and ESD/explosion-proof corresponding grade into the contract is the most effective way to reduce acceptance disputes and ease overseas customs.
Q: How to use modular design to lower multi-system site inventory? A: First sort the large case types shared by multi-site units, fix anti-static case type and latch accessories, only swap liner by system, liner with quick-release for on-site switch. Benefits: shells batch-purchased spread cost, liners small-batch custom, inventory variety drops. Key points: shell reserves uniform liner fixing, liner numbered to system and task, build borrow-return ledger. For units running security, explosion-proof, surveillance, engineering together, this system balances protection consistency and task flexibility, annual re-inspection only targets the shell, liners supplemented as needed, lowering total ownership cost.
Conclusion and Related Reading
Selecting security inspection cases has the baseline "explosion-proof anti-static and device accuracy equally weighted": define passive explosion-proof by area grade, protect detection accuracy by ESD and EMC, protect equipment by liner and vibration verification. Security inspection cases, explosion-proof inspection toolkits, video surveillance system cases, security engineering toolkits, and explosion-proof toolkits each emphasize different points, but all revolve around explosion-proof, shielding, and traceability.
