Oil-Well Pressure Instruments & Pipeline Inspection Equipment Cases

Detection equipment in petrochemical and gas industries operates in a combined environment of oil gas, flammable gas, corrosive media, and field vibration. The core conclusion: the baseline of a petrochemical inspection case is not "drop-proof" but an integrated three-proof of explosion-proof, anti-corrosion, and leak-proof. The case itself must not become an ignition source, nor let corrosive media seep in and damage precision probes. This article covers five scenarios - oil-well pressure instrument cases, pipeline inspection equipment cases, gas-leak detector cases, chemical sampling cases, and hazardous-chemical test cases - explaining explosion-proof grades, material corrosion resistance, sealing, and liner solutions.

The risk chain at petrochemical sites is clear: probe leakage or case static discharge may ignite flammable gas; acidic media seepage corrodes instruments and liner; transport bumps make precision sensors inaccurate. Selection must treat "explosion-proof certification, media compatibility, anti-vibration" as hard indicators, not options. The following expands item by item.

Table of Contents

• Risks and Protection Baseline of Petrochemical Inspection Cases
• Explosion-Proof and Temperature Resistance of Oil-Well Pressure Instrument Cases
• Anti-Corrosion Sealing of Pipeline Inspection Equipment Cases
• Portability and Alarm Linkage of Gas-Leak Detector Cases
• Leak-Proof Design of Chemical Sampling Cases
• Compliant Transport of Hazardous-Chemical Test Cases
• Explosion-Proof Standards: ATEX, IECEx and GB System
• Materials and Media Compatibility
• Liners and Instrument Fixing
• Gasket and Accessory Selection
• Transport, Vibration and Salt-Fog Tests
• Test Documentation and Certification
• OEM/ODM and Procurement Advice
• Common Selection Mistakes

Risks and Protection Baseline of Petrochemical Inspection Cases

The first risk of petrochemical inspection is explosion. Near the lower explosive limit of oil gas, natural gas, or VOCs, any spark or static discharge may ignite. The second risk is corrosion: H2S, CO2, formation water, and various chemicals attack metal and foam. The third is leakage causing sample contamination and personnel exposure.

The protection baseline locks three points: case and accessories produce no fire (anti-static, no-spark structure); materials resist media (PP/PTFE by contact list); sealing controlled (dust-water proof yet controlled ventilation in hazardous scenarios). Related hazardous-environment equipment protection references the anti-static thinking in Explosion-Proof Equipment Cases.

Before purchase, define the "area explosion-proof grade" (Zone 0/1/2 or Div 1/2), then choose the case. For sites involving fire fighting, cases should coordinate storage with Fire-Fighting Equipment Cases & Rescue Forcible-Entry Kits.

Explosion-Proof and Temperature Resistance of Oil-Well Pressure Instrument Cases

Oil-well pressure instruments include pressure sensors, data loggers, and batteries, used at wellhead and downhole with high pressure, high temperature, and sour gas. The case should be anti-static, shell surface resistance per GB/T 32304 / IEC 61340 in 10^4-10^11 ohm; latches and hinges avoid spark structures; liner uses flame-retardant foam (UL94 V-0/V-2).

For temperature, near wellheads may be briefly high; case material must state continuous use temperature and short tolerance, experience value continuous 60-80 C, short above 100 C needs special formula. Downhole communication equipment needs higher sealing; related thinking references the downhole protection in Mining Instruments & Geological/Hydrological/Environmental Monitoring Cases.

JUNZHJIA can custom-cut anti-static liners and explosion-proof accessories by oil-well pressure instrument list, and provide ESD and flame-retardant records for wellsite safety acceptance. For pressure modules with batteries, batteries should be separately insulated and fire-proof.

Anti-Corrosion Sealing of Pipeline Inspection Equipment Cases

Long-distance and city pipeline detection equipment (inline inspection probes, ultrasonic thickness gauges, coating holiday detectors) often contacts soil, water, and inhibitors. Corrosion resistance starts with material: PP and PTFE lining resist most chemicals; metal parts dacromet or 316 stainless. Gaskets use FKM fluoro-rubber resisting oil and some solvents, better than EPDM.

Sealing structure needs IP67 with a cable gland on the lid so probe cables exit without breaking overall seal. Internal humidity cards and desiccant help judge condensation. For cases returning with samples (e.g. pipeline deposits), use a leak-proof bladder like chemical sampling cases. Related pipeline patrol references the field-operation spec in Power-Line Patrol Cases & Substation Maintenance Toolkits.

In real-world deployment of the protective case, sealing performance must be verified against GB/T 4208, which is equivalent to IEC 60529, with IP67 as the common target: fully dust-tight and able to survive immersion at 1 m depth for 30 minutes. For units that are airdropped, vehicle-mounted, or shipboard-transported, it is advisable to add MIL-STD-810H drop (Method 516.8) and random vibration (Method 514.8) to confirm environmental adaptability, and to require a formal test report with a defined sampling plan at acceptance rather than relying on the manufacturer's claimed rating. JUNZHJIA can supply the corresponding documentation package for batch OEM programs. Related approaches are described in the equipment case program. Flame retardancy and corrosion resistance are hard thresholds for the enclosure in harsh conditions. The shell is preferably modified PP, ABS, or PC and should be rated under UL94, typically targeting V-0 or V-1; salt-fog and damp-heat environments are tested per GB/T 10125 neutral salt spray, with metal parts preferably 316 stainless steel or corrosion-resistant engineering plastics. For this class of equipment case, the service life of latches, hinges, and gaskets under corrosion often decides the usable years of the whole case earlier than the shell itself does. Related approaches are described in the equipment case program. From a maintenance-support angle, the case should be field-repairable. The liner is custom-cut to the tool or spare list, with edges and pressure parts in separate pockets; common latches and gaskets are made field-replaceable. For this case, attach a concise maintenance card: inspect gasket, lubricate latch, dehumidify liner every 3 to 6 months; strengthen corrosion control in salt fog; rotate stock to stay fresh, sharing standardized upkeep with similar equipment to keep missions uninterrupted. Related approaches are described in the equipment case program. On standards mutual recognition, export or defense-trade cases often need parallel standards: domestic IP per GB/T 4208, international IP per IEC 60529 equivalently; environmental testing per MIL-STD-810H or associated GJB methods; flame per UL94 or the corresponding national standard. For the buyer, requiring readable test reports with sampling plans is more valuable than a single pass/fail verdict and lets the same evidence chain be reused across multiple national acceptances. Related approaches are described in the equipment case program.

Portability and Alarm Linkage of Gas-Leak Detector Cases

Gas-leak detectors (catalytic, infrared, laser methane) serve pipeline patrol and household safety, stressing portability and instant response. The case should be light with shoulder strap, liner with shock slot for the detector, and a controlled sound-escape hole (not breaking seal) for alarm audibility. Some scenarios need case-detector alarm linkage logging, with a transparent window on the lid to view status lights.

Ingress protection IP65 covers most outdoor patrol; wading or rain upgrades IP67. Instrument charging batteries separately partitioned and meeting transport fire safety. For batch household-safety config, unified asset numbers and QR; related terminal protection references the light protection in POS-Terminal Protective Boxes & Barcode-Scanner Cases.

JUNZHJIA can integrate liners and accessories by gas-leak detector model, supporting OEM/ODM small-batch for staged gas-company issue. Fields often coordinate with Security Inspection Cases & Explosion-Proof Inspection Toolkits for a security-inspection combo.

Transport fixation is the easily-overlooked step. When cases are stacked, anti-slip ribs and locating bosses keep the stack stable; single-stack height limits and counterweights must be stated in the specification. Vehicle transport fixes the case with webbing through the lift-ring so it does not shift during hard braking or cornering. ISTA procedures (e.g., ISTA 2A/3A) simulate accumulated damage from road and intermodal shipping and serve as a useful reference method before the equipment case leaves the factory, markedly reducing field open-box breakage rates. Related approaches are described in the equipment case program. On risk control, configuration errors of the case are costly: mixed weapons and ammunition, sample leakage, or instrument shock damage all translate directly into mission failure. For this case, run a failure-mode analysis (FMEA thinking) before design freeze to identify high risks such as seal failure, fixation loosening, temperature drift, and EMC interference, and add redundancy; before delivery, use ISTA/MIL-STD sampling verification so every batch falls within an acceptable quality interval rather than depending on one sample case passing. Related approaches are described in the equipment case program.

Leak-Proof Design of Chemical Sampling Cases

Chemical sampling cases transport liquid, gas, and solid samples (wastewater, catalyst, powder); the core is leak-proof and anti-contamination. The bladder uses sealable HDPE or PTFE bottle holders, sample bottles double-capped with absorbent cotton, limiting spread even if broken. Case overall IP67, liner chemical-resistant closed-cell cotton.

Sampling cases must avoid sample mutual reaction: oxidizer and reducer, acid and alkali must be compartment-separated, with GHS labels outside. For volatile samples, lid has controlled vent plus filter cotton to avoid internal pressure buildup. Related hazardous thinking is consistent with compliant transport in Hazardous-Chemical Test Cases, unified under dangerous-goods rules.

Sampling records (sample number, time, person) travel with the case; recommend a waterproof record pouch. JUNZHJIA can build compartment liners and absorbent config by sampling list, providing media compatibility notes.

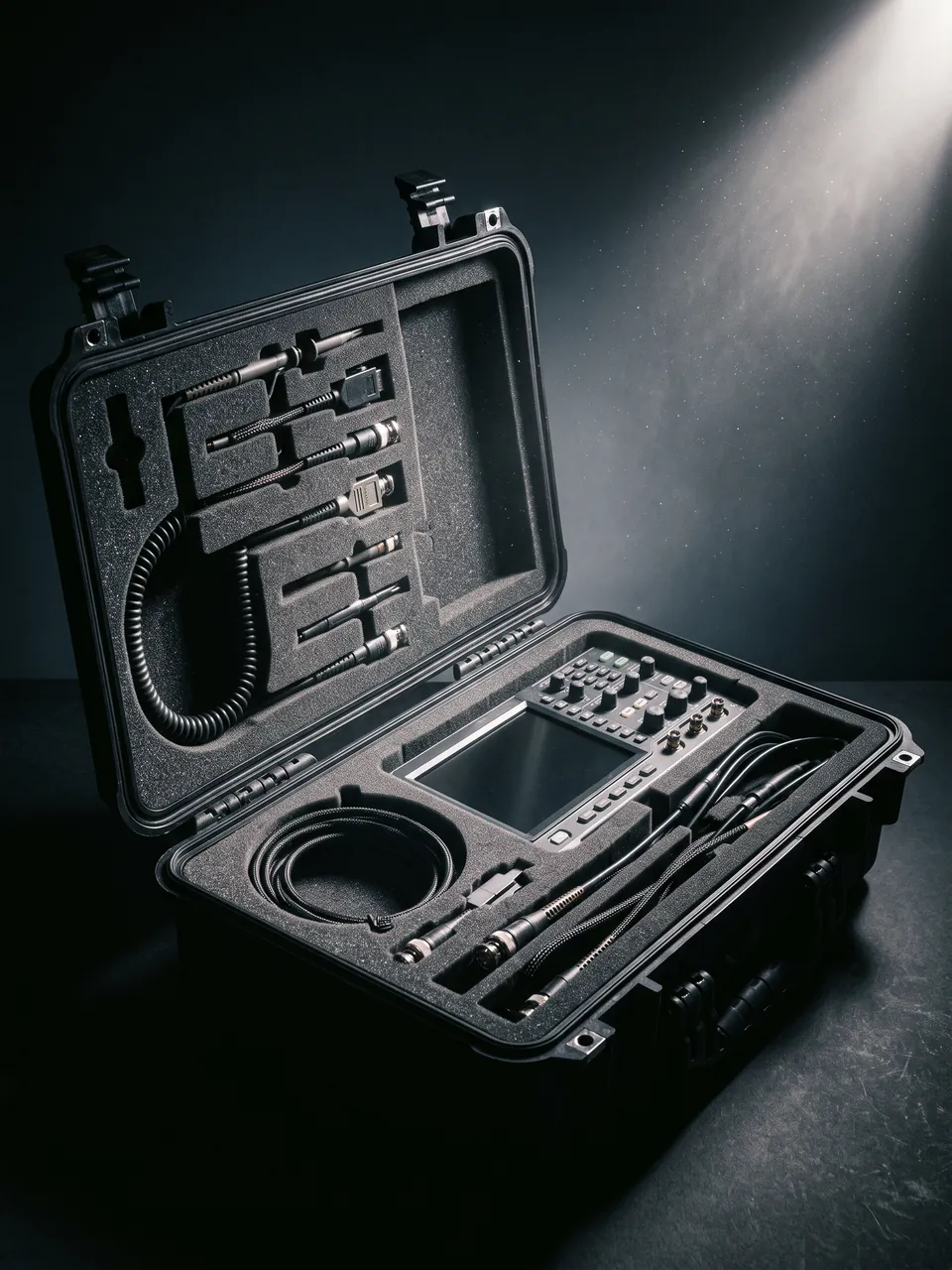

Cushioning and liner are the core of protecting precision contents. High-density EVA is custom-cut to the three-dimensional profile of the equipment; heavy items use contoured pockets plus straps, optics get independent shock-isolated compartments, and tool edges get separate cut-resistant pockets. The buffering design should address both impact (IK-rated 0.5 to 20 J) and long-term compression creep. JUNZHJIA can produce custom-cut liners from the equipment list so every item is individually located and stays put when opened or closed, with modular dividers replaceable in the field. Related approaches are described in the equipment case program. In real-world deployment of the protective case, sealing performance must be verified against GB/T 4208, which is equivalent to IEC 60529, with IP67 as the common target: fully dust-tight and able to survive immersion at 1 m depth for 30 minutes. For units that are airdropped, vehicle-mounted, or shipboard-transported, it is advisable to add MIL-STD-810H drop (Method 516.8) and random vibration (Method 514.8) to confirm environmental adaptability, and to require a formal test report with a defined sampling plan at acceptance rather than relying on the manufacturer's claimed rating. JUNZHJIA can supply the corresponding documentation package for batch OEM programs. Related approaches are described in the equipment case program.

Compliant Transport of Hazardous-Chemical Test Cases

Hazardous-chemical test cases themselves may carry flammable, corrosive, or toxic reagents; transport must comply with dangerous-goods rules (TDG, ADR, or corresponding national standard). The case should reserve UN-spec packaging label positions, GHS label area, and leak-collection layer. Liner compartments isolate incompatible reagents with absorbent and neutralizing material (e.g. acid-alkali neutralization cotton).

Material-wise, corrosion-contact compartments use PTFE or PP, metal anti-corrosion; anti-static treatment avoids ignition. Beyond vibration, transport verification considers stacking and temperature change. For cross-border projects, packaging meets corresponding international rules with compliance statements. Related safety references the anti-static and flame-retardant requirements in Explosion-Proof Equipment Cases.

JUNZHJIA can issue media compatibility tables and separation plans by hazardous-chemical list, with bilingual test summaries for overseas acceptance.

Temperature control and seal-failure analysis matter greatly. Gaskets are preferably foamed silicone or EPDM, retaining elasticity from -40 deg C to +80 deg C; extreme ranges require high-low temperature cycling (MIL-STD-810H Methods 502.7/501.7) to confirm no embrittlement or leakage. For cases holding electronics, reagents, or samples, reserve a slot for a temperature-humidity data logger so the whole transit is recorded and traceable at goods receipt, supporting accountability and acceptance evidence. Related approaches are described in the equipment case program. Flame retardancy and corrosion resistance are hard thresholds for the enclosure in harsh conditions. The shell is preferably modified PP, ABS, or PC and should be rated under UL94, typically targeting V-0 or V-1; salt-fog and damp-heat environments are tested per GB/T 10125 neutral salt spray, with metal parts preferably 316 stainless steel or corrosion-resistant engineering plastics. For this class of equipment case, the service life of latches, hinges, and gaskets under corrosion often decides the usable years of the whole case earlier than the shell itself does. Related approaches are described in the equipment case program.

Explosion-Proof Standards: ATEX, IECEx and GB System

Explosion-proof equipment protection cites area standards. Internationally ATEX (EU) and IECEx, graded by gas group (IIC etc.) and temperature group (T1-T6); domestically GB 3836 series divides equipment protection levels in explosive atmospheres. Although the case is not "electrical equipment", its anti-static, no-spark, and flame-retardant requirements should match the site area grade.

The table gives common scenario grades:

Note: case explosion-proof is passive safety, not replacing the detection instrument's own certification. Require the supplier to state the case and accessory explosion-proof corresponding grade in files. More electromechanical explosion-proof references the spec in Security Inspection Toolkits.

Procurement acceptance should write the case metrics into a technical specification and close the loop with test documents. The core checklist: IP rating (GB/T 4208), drop and vibration (MIL-STD-810H), flame rating (UL94), impact (IK level), non-spark latches and cycle life, certifications and compliance files, lead time and OEM/ODM capability. For batch programs, sample first to confirm liner and protection, then validate in a small batch, then mass-produce, avoiding systemic risk from a single large order placed blindly. Related approaches are described in the equipment case program. Transport fixation is the easily-overlooked step. When cases are stacked, anti-slip ribs and locating bosses keep the stack stable; single-stack height limits and counterweights must be stated in the specification. Vehicle transport fixes the case with webbing through the lift-ring so it does not shift during hard braking or cornering. ISTA procedures (e.g., ISTA 2A/3A) simulate accumulated damage from road and intermodal shipping and serve as a useful reference method before the equipment case leaves the factory, markedly reducing field open-box breakage rates. Related approaches are described in the equipment case program. Cushioning and liner are the core of protecting precision contents. High-density EVA is custom-cut to the three-dimensional profile of the equipment; heavy items use contoured pockets plus straps, optics get independent shock-isolated compartments, and tool edges get separate cut-resistant pockets. The buffering design should address both impact (IK-rated 0.5 to 20 J) and long-term compression creep. JUNZHJIA can produce custom-cut liners from the equipment list so every item is individually located and stays put when opened or closed, with modular dividers replaceable in the field. Related approaches are described in the equipment case program.

Materials and Media Compatibility

Material choice decides corrosion life. PP resists most acid/alkali at low cost; PTFE resists strong corrosion but is expensive; ABS/PC not solvent-resistant, use carefully. Metal parts prefer 316 stainless or dacromet carbon steel, salt-fog experience value 96-480 h. Gaskets use FKM in oil environments, EPDM or silicone in normal.

When purchasing, provide the maker a "media contact list" (name, concentration, temperature, contact duration) for a compatibility table. JUNZHJIA recommends material and gasket by list, attaching compatibility notes in delivery files to reduce wrong-material risk. For sour wells, material also needs H2S stress-cracking resistance; related downhole protection references Geological/Environmental Monitoring Cases.

In operational composition, the equipment case is rarely used alone; it is paired with command, communication, medical, and supply units into a system. Taking this case as an example, it can interface with command-comms, scene-investigation, and maintenance-support units to form a complete chain such as command-weapon-support or detect-handle-review. Select interfaces and standardized outer dimensions early so same-batch cases stack, intermodal-ship, and share maintenance, lowering lifecycle management and inventory cost. Related approaches are described in the equipment case program. Temperature control and seal-failure analysis matter greatly. Gaskets are preferably foamed silicone or EPDM, retaining elasticity from -40 deg C to +80 deg C; extreme ranges require high-low temperature cycling (MIL-STD-810H Methods 502.7/501.7) to confirm no embrittlement or leakage. For cases holding electronics, reagents, or samples, reserve a slot for a temperature-humidity data logger so the whole transit is recorded and traceable at goods receipt, supporting accountability and acceptance evidence. Related approaches are described in the equipment case program. Procurement acceptance should write the case metrics into a technical specification and close the loop with test documents. The core checklist: IP rating (GB/T 4208), drop and vibration (MIL-STD-810H), flame rating (UL94), impact (IK level), non-spark latches and cycle life, certifications and compliance files, lead time and OEM/ODM capability. For batch programs, sample first to confirm liner and protection, then validate in a small batch, then mass-produce, avoiding systemic risk from a single large order placed blindly. Related approaches are described in the equipment case program.

Liners and Instrument Fixing

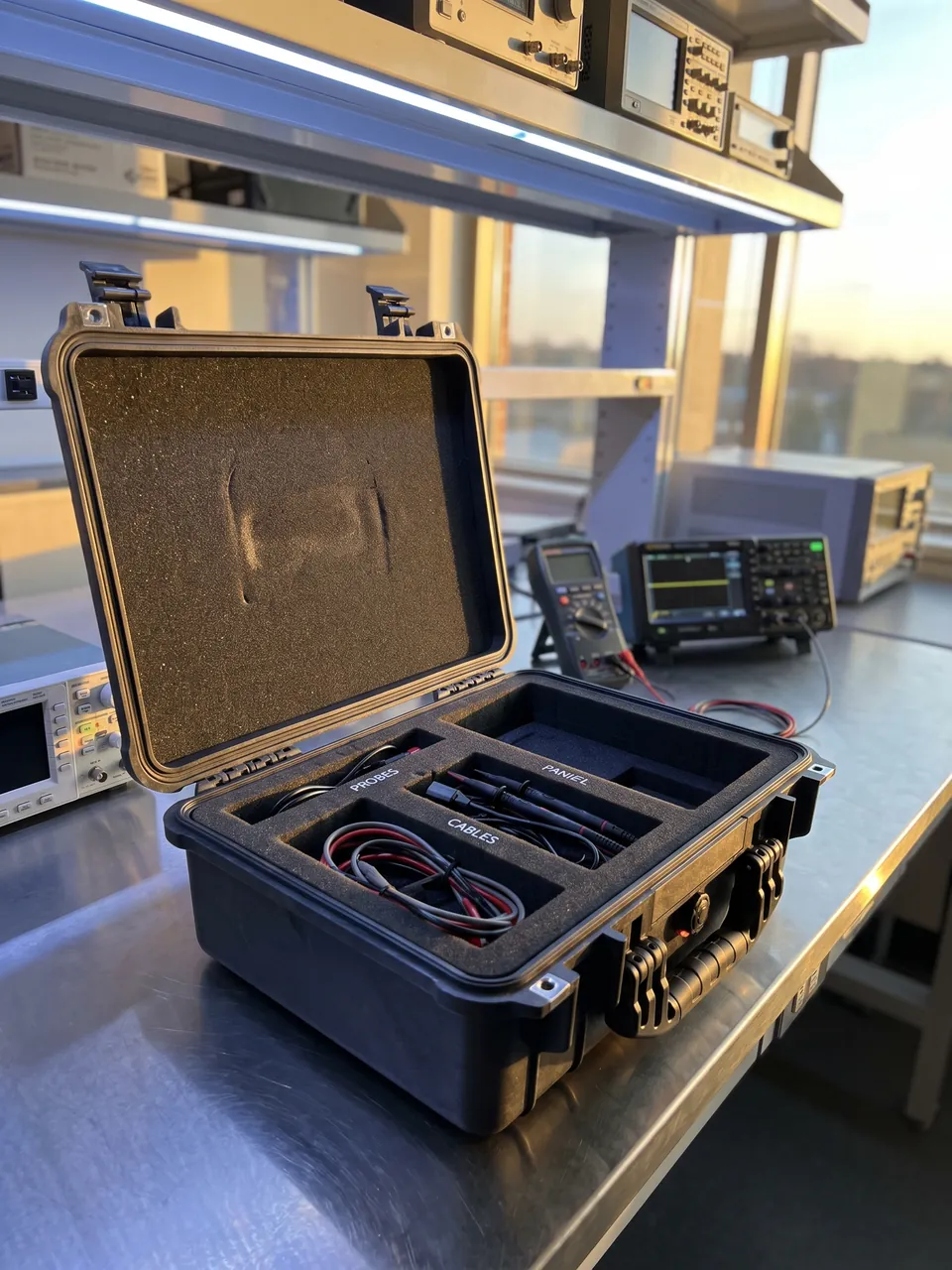

Petrochemical instruments are precise with probes; liners layer: main unit bottom hard support, probes upper soft foam with protective caps, cables independent groove. Shock follows MIL-STD-810H 514.8 random vibration, ensuring zero sensor displacement under vehicle bumps. Liner material by media uses chemical-resistant closed-cell cotton to avoid liquid swelling.

Compartment isolation is key for incompatible samples and reagents, liners separate oxidizer/reducer, acid/alkali with partitions. JUNZHJIA supports liner die-cut by instrument and sample list, lid adds transparent pouch for operation cards. For multi-probe pipeline detection, compartment logic references the quick-access design in Detection Instrument Protective Cases.

Material and structure decide reliability under harsh duty. Wall thickness is usually 2.5 to 4 mm with thickened corners and stiffeners against deformation; PC may be used for transparent status viewing but needs UV treatment against yellowing. For this case, impact resistance depends not only on the shell but also on latch load paths and lid hinge design; in severe environments prefer metal-cored axles and widened latch bolts, validated to IK08 or above. Related approaches are described in the equipment case program. From a lifecycle-cost view, the equipment case should not be compared on unit price alone. Gasket aging, liner replacement, latch repair, and re-verification all incur ongoing cost; a one-case-one-file record of batch, repair, and rotation minimizes the chance of missing a case before mission. For scaled outfitting, modular liners and universal gasket kits cut spare-part variety and let the front line self-replace, raising equipment readiness. Related approaches are described in the equipment case program.

Gasket and Accessory Selection

Gaskets matter especially in petrochemical scenarios. Main seal by media uses FKM or EPDM; cable-gland seal pressure and media resistant; pressure equalization valve with waterproof breathable membrane and anti-clog. All accessories anti-static or anti-corrosion, latches no-spark.

Metal accessories recommend 316 stainless or dacromet, salt-fog experience value 48-96 h plus no red rust. For floating wading scenarios, closed-cell structure gives positive buoyancy; related design references Waterproof Protective Boxes & Floating Waterproof Cases. All accessories should be separately purchasable to lower lifecycle cost.

Transport, Vibration and Salt-Fog Tests

Petrochemical inspection cases have complex transport: vehicle, hoist, off-road. Verification uses ISTA 3 or MIL-STD-810H vibration (514.8) and shock (516.8). Salt fog references Method 509.7, offshore platform experience value 96-480 h. Stacking verifies bottom case under load no deformation.

Test checklist:

1. Corner/edge/face drop, record latch and seal;
2. Random vibration 1-2 h, check liner shift;
3. Salt fog 48-480 h then functional parts smooth;
4. Seal and liner status after media immersion;
5. IP67 immersion verify internal dry.

Pass criteria written into acceptance files and co-signed. For disaster-rescue transport, the case also needs floating and waterproof verification from Earthquake Emergency Kits & Flood-Control Emergency Cases.

EMC and ESD protection are not negligible for electronic contents. Cases holding PCBs, batteries, or sensors should use conductive liners and grounding following general ESD practice (in the spirit of IEC 61340); for radiated or strong-magnetic environments add a shielding layer. When the case involves night-vision, comms, or detection gear, transport and storage avoid strong magnetic fields and unknown radiation, with temperature, humidity, and shock logging forming an auditable transit file. Related approaches are described in the equipment case program. Packaging and marking are the last compliance step. Hazardous, weapon, or sample classes must have matching seal numbers, consistent in-case manifest and shipping note, and full traceability; high-visibility color and warning marks aid identification and inventory. For cross-border or defense-trade scenes, reserve a certification nameplate position stating IP, applied standard, and manufacturer, together with GB/T 4208 and MIL-STD-810H documents, reducing customs and acceptance friction. Related approaches are described in the equipment case program.

Test Documentation and Certification

Delivery files should contain anti-static parameters (surface resistance), flame-retardant grade (UL94), media compatibility table, salt-fog report, vibration/shock record, IP report, and factory inspection sheet. Explosion area projects also need case explosion-proof correspondence statement. Export needs RoHS, REACH, and corresponding dangerous-goods compliance statements.

Files must be numbered, with sample photos and co-signature, issued by qualified labs. JUNZHJIA provides bilingual test summaries and traceability numbers by batch, supporting OEM/ODM customers into system acceptance. Testing turns "experience values" into "citable conclusions", key for overseas customs and safety acceptance. Related quality spec references Security Inspection Cases & Explosion-Proof Inspection Toolkits.

Scenario-based selection beats parameter stacking. If the case is for alpine border duty, prioritize weatherability, UV resistance, and low-temperature toughness; if shipboard, prioritize salt-fog corrosion resistance and anti-sway fixation; if urban emergency, prioritize fast open-close and modular swap. For this case, list the usage profile (temperature, humidity, drop, vibration, exposure media) first, then match material, seal, and liner backward, avoiding both over-design and under-protection. Related approaches are described in the equipment case program.

OEM/ODM and Procurement Advice

Petrochemical units often run multi-site, multi-media; recommend a "standard shell plus swappable liner plus compartment bladder" module: fix explosion-proof anti-static case type, swap liner and bladder by media and instrument. This batches shells to spread cost, liners small-batch custom, inventory drops.

Communicate with the maker: instrument and sample list, media contact list, area explosion-proof grade, wading/salt-fog or not. JUNZHJIA supports from single-case customization to full-line OEM/ODM, gaskets by model, liners by drawing, plus test files. Contract should specify explosion-proof corresponding grade, acceptance standard number, warranty and spare supply; writing standard numbers into contract gives a basis for disputes.

Common Selection Mistakes

Mistake one: normal case replacing explosion-proof, static discharge ignition risk. Mistake two: ignoring media compatibility, foam swells, metal rusts through. Mistake three: samples not compartmented, acid reacts with alkali. Mistake four: wrong gasket material, swells and leaks in oil. Mistake five: no leak-collection layer, spread on break. Mistake six: no explosion area statement, no acceptance basis. Mistake seven: liner too loose, probe inaccurate in transport.

The core to avoid is the three hard indicators "explosion-proof + media + vibration", writing standard numbers and compatibility tables into files. Using Oil-Well Pressure Instruments & Pipeline Inspection Equipment Cases as reference shortens evaluation.

Frequently Asked Questions

Q: What does explosion-proof mean for petrochemical inspection cases, does the case need explosion-proof certification? A: Here "explosion-proof" is passive safety: the case and accessories themselves must not become an ignition source, including anti-static (surface resistance 10^4-10^11 ohm per GB/T 32304 / IEC 61340), no-spark latches and hinges, flame-retardant liner (UL94 V-0/V-2). The case itself is usually not "electrical equipment" and does not take ATEX/IECEx equipment certification, but its protection grade should match the site area (Zone 0/1/2 or Div 1/2) and state the corresponding grade in files. Real explosion-proof certification targets the detection instrument itself. Require the supplier to state the case and accessory explosion-proof corresponding grade in writing into acceptance files, avoiding vague "explosion-proof quality" replacing citable conclusions. Related anti-static references explosion-proof equipment cases.

Q: Oil well contains H2S, how to choose case material and sealing? A: H2S both corrodes and ignites; material needs sulfide-stress-cracking resistance. Case prefers chemical-resistant PP, metal 316 stainless or dacromet, salt-fog experience value 96-480 h; gasket in sour and oil environment uses FKM fluoro-rubber, better than EPDM. Liner flame-retardant foam and anti-static, batteries separately insulated and fire-proof. Continuous use temperature experience value 60-80 C, short above 100 C needs special formula, must be stated. JUNZHJIA can custom-cut anti-static liners and explosion-proof accessories by oil-well pressure instrument list, providing ESD and flame-retardant records for wellsite safety acceptance. Downhole communication needs higher sealing, referencing geological environmental downhole protection.

Q: Does a gas-leak detector case need IP67, how to see the alarm? A: Most outdoor pipeline patrol IP65 covers, wading or rain upgrades IP67. The key is instant response: liner with shock slot for the detector, lid with controlled sound-escape hole (not breaking seal) to hear alarm, and a transparent window to view status lights, seeing status without opening. Instrument charging batteries separately partitioned and meeting transport fire safety. Batch household-safety config can unify asset numbers and QR. JUNZHJIA integrates liners and accessories by detector model, supporting OEM/ODM small-batch for staged gas-company issue, often coordinating with security inspection cases for a security combo.

Q: How to prevent sample leakage and mutual reaction in chemical sampling cases? A: Core is "double insurance plus compartment". Bladder uses sealable HDPE or PTFE bottle holders, sample bottles double-capped with absorbent cotton, limiting spread if broken; case overall IP67, liner chemical-resistant closed-cell cotton. Incompatible samples must compartment-separate: oxidizer and reducer, acid and alkali apart, GHS labels outside. Volatile samples get controlled vent plus filter cotton on the lid to avoid internal pressure. Sampling records travel with the case with a waterproof pouch. JUNZHJIA builds compartment liners and absorbent config by sampling list, providing media compatibility notes, turning "leak-proof plus anti-reaction" into a concrete liner layout.

Q: What rules must hazardous-chemical test case transport comply with, how to label? A: Must comply with dangerous-goods rules (TDG, ADR, or corresponding national standard). The case reserves UN-spec packaging label positions, GHS label area, and leak-collection layer; liner compartments isolate incompatible reagents with absorbent and neutralizing material (e.g. acid-alkali neutralization cotton). Material-wise corrosion-contact compartments use PTFE or PP, metal anti-corrosion, anti-static to avoid ignition. Beyond vibration, transport verification considers stacking and temperature change. Cross-border projects need packaging meeting corresponding international rules with compliance statements. JUNZHJIA issues media compatibility tables and separation plans by hazardous-chemical list with bilingual test summaries for overseas acceptance. Case explosion-proof requirements are consistent with explosion-proof equipment cases.

Q: Why do petrochemical case gaskets often use FKM instead of normal rubber? A: Petrochemical sites have oils, solvents, and some chemicals; normal EPDM or silicone easily swells, hardens, or cracks in these media, causing seal failure and leakage. FKM fluoro-rubber resists oil, most solvents, and high temperature, far better media compatibility, the first choice for oil wells and pipeline detection. But FKM costs more and is slightly brittle at low temperature, so normal oil-free environments can still use EPDM. When purchasing, provide the maker a media contact list (name, concentration, temperature, duration) for a compatibility table and material choice. JUNZHJIA recommends material and gasket by list, attaching compatibility notes in delivery files.

Q: What to provide for liner die-cutting, how long the cycle? A: At minimum provide instrument and sample list (name, size, weight, vulnerability, incompatibility or not) and outline (2D or 3D, physical measurable). Flow is measure, layered layout, CNC die-cut, trial fit, revise; small-batch sample cycle experience value 1-3 weeks. Liner material by media uses chemical-resistant closed-cell cotton to avoid swelling; compartment isolation uses partitions. JUNZHJIA supports liner die-cut by list, lid adds transparent pouch for operation cards, multi-probe scenarios borrowing the quick-access design in detection instrument cases. To shorten, provide clear drawings at quotation and specify foam hardness.

Q: What must test files contain, any extra export requirements? A: Basic files should contain anti-static parameters (surface resistance), flame-retardant grade (UL94), media compatibility table, salt-fog report, vibration/shock record, IP report, and factory inspection sheet, numbered, with sample photos and co-signature. Explosion area projects also need case explosion-proof correspondence statement. Export needs RoHS, REACH, and dangerous-goods compliance statements, some markets require corresponding language. Files issued by qualified labs, avoiding verbal guarantees. JUNZHJIA provides bilingual test summaries and traceability numbers by batch for direct overseas acceptance. Writing standard numbers and compatibility tables into the contract is the most effective way to reduce acceptance disputes.

Q: How to use modular design to lower multi-media site inventory? A: First sort the large case types shared by multi-site units, fix explosion-proof anti-static case type and latch accessories, only swap liner and compartment bladder by media and instrument, bladder with quick-release for on-site switch. Benefits: shells batch-purchased to spread cost, liners and bladders small-batch custom, inventory variety drops. Key points: shell reserves uniform liner fixing, bladder numbered to media and task, build borrow-return ledger. For units running oil well, pipeline, gas, chemical together, this system balances protection consistency and task flexibility, annual re-inspection only targets the shell, liners and bladders supplemented as needed, lowering total ownership cost.

Conclusion and Related Reading

Selecting petrochemical inspection cases has the baseline of integrated three-proof "explosion-proof, anti-corrosion, leak-proof": define anti-static and flame-retardant by area grade, define material and sealing by media contact list, define liner by vibration verification. Oil-well pressure instrument cases, pipeline inspection equipment cases, gas-leak detector cases, chemical sampling cases, and hazardous-chemical test cases each emphasize different points, but all revolve around safety and compliance.
