Why Does an Outdoor Protective Case Need Waterproof Design?

Direct answer: an outdoor protective case needs waterproof design because water is an everywhere, extremely destructive risk source in outdoor environments — rain, spray, wading, accidental falling in water, mud, and condensation all cause short circuits in electronic equipment inside, metal rust, label loss, gauge inaccuracy, even entire instrument scrap. Waterproofing is not "icing on the cake" but one of the survival bottom lines of a protective case in the field. It is achieved through a full-perimeter elastic gasket, compression latches, and an optional pressure-balancing valve (breathing but blocking water), reaching IP67 per the international standard IEC 60529 (fully dust-tight plus short-term immersion without water ingress). Without waterproof design, a protective case in rain, by the water, or in wet muddy sites fails just like an ordinary box. This article goes from "how water damages equipment" to "how waterproofing is achieved, how to select, how to maintain," explaining the necessity of waterproof design thoroughly. One added note: waterproof design shares the same origin as dustproof design (the same seal), so the answer to "why waterproof" also directly supports "why dustproof" — read the two together to fully understand the "seal first" design philosophy of protective cases.

Table of Contents

• Direct Answer: Why Waterproofing Is Mandatory
• How Exactly Water Damages Equipment
• Which Outdoor Scenarios Inevitably Meet Water
• How Waterproofing Is Achieved (IEC 60529)
• Waterproof Rating Reference Table (IPX second digit)
• Coordination of Gasket, Latch, and Pressure-Balancing Valve
• Relationship Between Waterproof, Dustproof, and Shockproof
• Consequences of No Waterproof Design
• Selection and Acceptance Checklist
• Common Misconceptions
• Daily Maintenance and Gasket Care
• Frequently Asked Questions (FAQ)
• Conclusion and Further Reading

Direct Answer: Why Waterproofing Is Mandatory

In one sentence: an outdoor protective case faces too many and too everyday water risks; without waterproofing it equals no protection. Outdoor equipment is often in a state of "water coming to it" — sudden rain, equipment washing, river crossing, ship deck, muddy site, morning condensation, transport moisture — any of which may let water into the case. And the cost of water in is extremely high: electronic short circuit, circuit corrosion, lens mold spots, gauge rust, blurred labels and certificates, battery leakage chain damage. Waterproof design turns "no water in" into engineering reality with a quantifiable rating, so it is a core capability, not an add-on. For a protective-case product line like KeXin New Materials JUNZHJIA, IP67 is a regular capability, precisely to handle both dust and wading.

How Exactly Water Damages Equipment

To understand the need for waterproofing, first see how water damages equipment:

1. Electronic short circuit: Water conducts; entering the circuit board immediately causes short circuit, malfunction, even burnout — the fastest and most fatal damage.
2. Metal rust: Water + oxygen form a galvanic cell on tools, gauges, and connectors, slowly rusting, reducing both precision and strength.
3. Lens and optical mold spots: Water vapor condenses on the inner lens wall, breeding mold spots over time, permanently damaging imaging and hard to clean.
4. Label loss and blurred records: Paper labels, calibration certificates, handwritten records blur on contact with water, failing traceability and compliance.
5. Gauge inaccuracy: Caliper and micrometer measuring faces rust or get water stains, causing reading deviation, making measurement meaningless.
6. Battery leakage chain damage: Water accelerates battery corrosion and leakage; the electrolyte further corrodes other equipment inside.
7. Liner mildew: EVA/EPE foam absorbs moisture and molds, in turn contaminating equipment.

Thus the harm of water is both "fast (short circuit)" and "slow (rust and mold)," and often irreversible. Waterproof design is the first gate to break this damage chain.

Which Outdoor Scenarios Inevitably Meet Water

• Field survey/scientific exploration: Riverbanks, wetlands, rainforests, water crossing — equipment faces water directly.
• Engineering and power maintenance: Heavy rain, standing water, high-pressure washing sites — mud and water coexist.
• Military, police, fire: Firefighting, wading, humid environments — waterproofing and sealing are basic thresholds.
• Aviation communication and maritime: Deck spray, cabin condensation, high humidity — electronic equipment fears moisture most.
• Photography on location: Rain, water side, waterfalls — cameras, lenses, drones need a waterproof case along.
• Transport and storage: Cargo-hold moisture, dock rain, cold-chain condensation — high water risk in transport.

The common thread of these scenarios is: water is not "might come" but "will definitely come." If a protective case is not designed waterproof, it can only rely on luck, and equipment is not worth gambling on luck.

How Waterproofing Is Achieved (IEC 60529)

Waterproofing relies on "physical isolation + pressure management." After the lid closes, the gasket along the lid edge (EPDM/TPE and other elastomers) is compressed 20%–40% by latches to fill microscopic gaps, so water cannot seep in; the ribs/labyrinth structure of body and lid increases the path length for water to enter; the pressure-balancing valve balances internal–external pressure, preventing the lid from being sucked open by water pressure, while the valve membrane blocks liquid water. Waterproof capability is expressed by the second digit of the IP code (per IEC 60529): IPX4 splash-resistant, IPX5 water-jet, IPX6 powerful water-jet, IPX7 short-term immersion (about 1 m/30 min), IPX8 continuous immersion. The same seal usually achieves both dust and water resistance, so protective cases typically carry a combined rating such as IP67. One additional point: waterproofing is a "designed-in" capability, not something gained by "adding a ring later." Sealing depends on the precise fit of body and lid, the lid-edge knife edge, the rib labyrinth, and the latch compression force, all fixed at the mold stage; a thin-wall or non-sealed box cannot be retrofitted into reliable waterproofing. This is also why "ordinary box + cover cloth/tape" does not equal a waterproof box — the structure is not designed waterproof; temporary blocking only stops falling rain, not immersion and convective water entry. Understanding this, you see waterproof design is the factory gene of a protective case, not an optional accessory.

Waterproof Rating Reference Table (IPX second digit)

For an outdoor protective case, IP67 is the most recommended "all-in-one" rating — it covers both fully dust-tight and short-term immersion, handling most rain, wading, falling in water, and mud. Note: IP testing is under controlled conditions; long-term real-world use still depends on an intact gasket and correct latching; the individual product should be judged by its specification sheet.

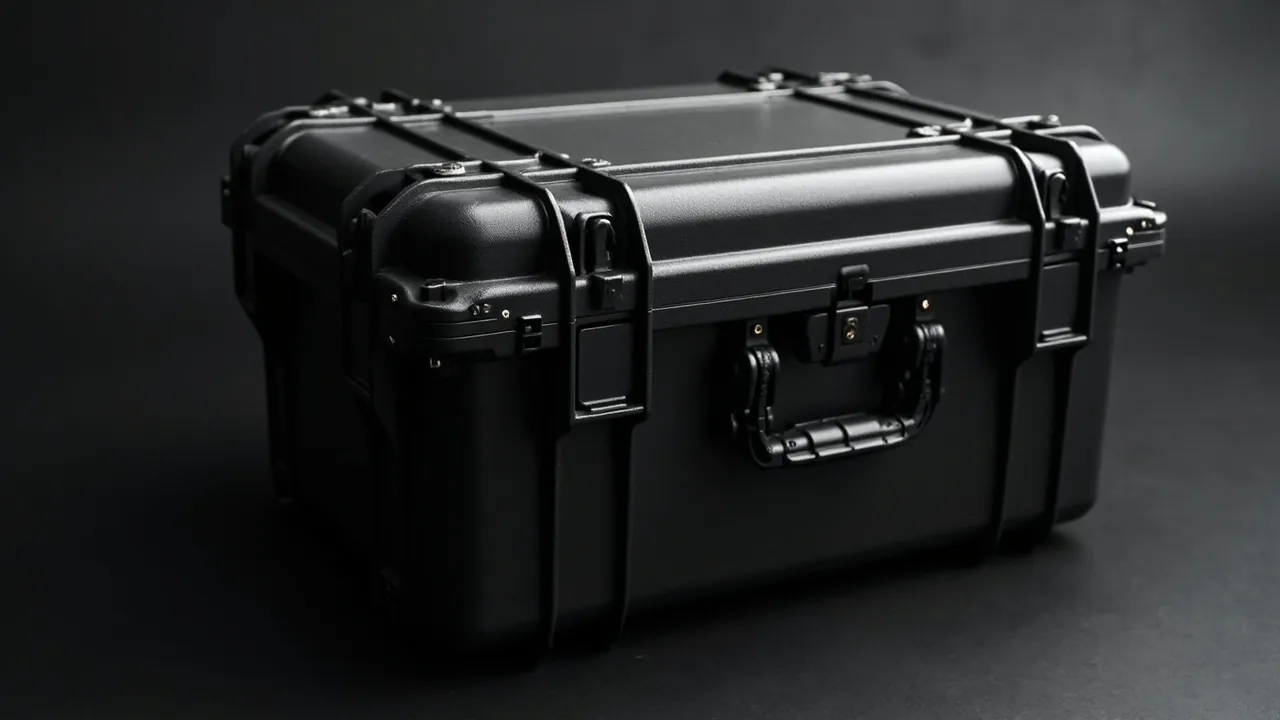

Coordination of Gasket, Latch, and Pressure-Balancing Valve

Waterproofing is not a single part but a trio working together:

• Gasket: Continuous elastic body around the lid, forming a sealing band once compressed — the main waterproof line.
• Latch: Provides continuous compression, keeping the gasket at compression long term; multiple latches make compression even, a single latch easily leaves a gap on one side to leak.
• Pressure-balancing valve: When external water pressure or air pressure changes (such as immersion, aircraft cargo hold), the valve balances the difference, preventing the lid from being sucked open, while the valve membrane blocks water. Critical for deeper wading or air transport.

Missing any of the three may leak: a broken ring lets water straight in, a loose latch opens the gap, a failed valve lets pressure flip the lid. When selecting, check the trio as a whole, not just "is there a lid."

Relationship Between Waterproof, Dustproof, and Shockproof

The three protection layers have different duties but all fight water and dust through sealing. Understanding this relationship matters: many users think "I only use it in a dry environment, no need for waterproof," ignoring that a dry environment can still have sudden rain, equipment washing, transport moisture — waterproofing is a bottom line, not a luxury; likewise, "I only fear water not dust" is rare, because outdoor water and dust often come together (mud, spray with sand), so protective cases often go straight to IP67 for both dust and water.

In reality one sealing structure achieves both dust and water resistance, so protective cases typically carry IP67; shockproof relies on shell and liner, a separate layer. Select by "what does my equipment fear" layer by layer: fears water → waterproof case; fears water and dust → IP67; fears shock → add cushioning liner; fears all three → IP67 protective case + EVA liner combination. A manufacturer like KeXin New Materials JUNZHJIA with liner customization capability can coordinate waterproof, dustproof, and shockproof on the same case.

Consequences of No Waterproof Design

Using a "non-waterproof" box against outdoor water risk brings predictable consequences: one heavy rain lets water in and shorts the equipment, repair cost exceeding several protective cases; one falling in water scraps the lens, higher re-purchase price; long-term damp rusts the gauge, losing the measurement system; transport moisture corrodes the circuit board, arriving faulty. These losses are not probabilistic events but the inevitability of "no waterproof + outdoor." The investment in waterproof design buys the certainty of "no fear even when water comes," a hard requirement for scenarios where equipment is an asset. Conversely, any scenario where equipment "may meet water the moment it leaves the room" — however low you subjectively think the probability — should default to a waterproof case configuration, because one water entry often causes irreversible hard loss, while the waterproof case price difference is one-time and amortizable. Putting "ruined by water" and "unaffected by water" side by side, the necessity of waterproof design is self-evident.

Selection and Acceptance Checklist

Check item by item when purchasing a waterproof protective case:

• Waterproof rating: Define the IPX second digit (rain → IPX5/6, wading/falling in water → IPX7); reject vague "waterproof."
• Gasket: Full-perimeter continuous, elastic, individually replaceable.
• Latch: Firm compression, even lid gap with no gap after latching, prefer multiple latches.
• Shell material: Virgin ABS/PP preferred; request RoHS and other tests.
• Pressure-balancing valve: Confirm configuration for air transport/high altitude/deep wading.
• Liner compatibility: Whether EVA/EPE customization is supported to prevent equipment sliding collision.
• Certification backing: ISO9001, IP67, California Prop 65 verified per company documentation; individual product by specification sheet.

Use the checklist as a price-comparison basis to avoid the pit of "labeled waterproof but not waterproof."

Common Misconceptions

• Misconception 1: A lid means no water in. Ordinary lid gaps can reach millimeter scale, water still gets in; for waterproofing look at the IP second digit, choose IP67 for wading.
• Misconception 2: Waterproof equals dustproof. A waterproof case may not be fully dust-tight; check the first IP digit; outdoor often needs IP67 for both.
• Misconception 3: The gasket lasts forever. Rubber rings age, and trapped debris causes leaks; clean regularly, replace with same-spec part when elasticity is lost or it cracks.
• Misconception 4: IP67 can soak long term. IPX7 is short-term immersion (about 1 m/30 min); long-term diving see IPX8 and the manufacturer's specified depth and time.
• Misconception 5: Cover cloth/tape is waterproof. Only blocks falling rain, cannot block immersion and convective water entry, not reaching a nominal rating.

Daily Maintenance and Gasket Care

Waterproof capability is maintained by maintenance:

1. Before closing, clear sand and threads from the lid edge and gasket to avoid trapped debris forming a leak gap.
2. Wipe regularly the gasket with a clean soft cloth; thin silicone grease if needed to slow aging.
3. Avoid prolonged sun — long-term high temperature accelerates rubber hardening and cracking.
4. Open in clean places to reduce dust and water vapor inside.
5. Watch for deformation — replace the same-spec part promptly when the gasket loses elasticity or cracks.
6. After wading, wipe the shell and latches dry, check the gasket for damage before storing.
7. Liner moisture control — put desiccant inside if needed to avoid foam absorbing moisture and molding.

With proper maintenance, IP waterproofing stays effective long term; without it, even a nominal rating fails from a small crack.

Real Cases of Waterproof Failure

A few vivid examples show the cost of "no waterproof." A riverbank sampler placed a recorder in an ordinary box, wetted by waves and scrapped entirely; a tower-top maintenance laptop in an open box let condensation into the interface and crash; a desert-rain lens in an ordinary bag let moisture condense and mold; a construction-site high-pressure wash flooded an ordinary box and ruined a set of connectors; a dock-transport ordinary box rained on, corroding the circuit board on arrival. These are not one-time accidents but accumulation over time — water entry often starts from "a little," and by the time it is noticed the equipment is damaged. After switching to an IP67 protective case + fixed liner, equipment stays stable in the same environment. The cases show: waterproof design buys the certainty of "no fear even when water comes," not probabilistic luck.

Seal-Structure Details: Waterproofing Hides Within Millimeters

Waterproof capability hides in details. The gasket cross-section is mostly solid or hollow rectangular/round; after closing it is compressed 20%–40% to form a sealing band; the lid edge is designed as a "knife edge" pressing into the gasket to raise line-seal pressure; the ribs of body and lid interlock to form a multi-stage labyrinth, so even a first micro-leak is blocked by the second. The number and position of latches determine whether compression is even — a single latch easily leaves a gap on one side; multiple latches are steadier. These structures are fixed at the mold stage; recycled material or uneven wall thickness destroys the fit. So choosing a waterproof case is not just "is there a ring," but whether the ring is continuous, compression even, and shell virgin — a manufacturer with injection-molding and mold capability guarantees tolerance at the mold end, the underlying guarantee of long-term waterproofing. KeXin New Materials plastic cases in ABS/PP material pass RoHS testing; the factory is about 18,000 square meters in Zhongshan, Guangdong (Greater Bay Area), with more than 80 machines and over 100 employees.

Shell Material: How to Choose Between ABS and PP

A waterproof case shell comes down to two engineering plastics, ABS and PP. ABS has high rigidity, easy surface treatment and printing, stable dimensions, suited to a stiff shape; PP has better low-temperature impact resistance, lower density, fatigue resistance, suited to cold and frequent opening. Neither is "better" but "fit for scenario." Regular manufacturers use virgin material, because recycled material has uneven wall thickness and deforms easily under load, directly skewing the seal and destroying waterproofing. When purchasing, confirm "is it virgin" and "wall-thickness reference" rather than just color and weight. For export orders, RoHS, REACH, California Prop 65 compliance are hard indicators at the material level.

How the Pressure-Balancing Valve Works

The pressure-balancing valve (breathing valve) principle is common industry knowledge: inside is a membrane that breathes but blocks water (such as ePTFE), allowing air molecules to pass slowly while blocking liquid water. When external pressure drops (aircraft climbing) or temperature rises, the air inside expands and pushes out; the valve lets gas escape slowly and the difference returns to zero; conversely when external pressure rises or temperature falls, the valve lets outside air slowly replenish. The result is the lid is not sucked or pushed open by pressure difference, the gasket bears no extra load, and water cannot enter. For air transport, high altitude, and deeper wading scenarios, this design is almost mandatory. A valve-less case can only rely on the shell against pressure difference, with higher risk when immersed or climbing.

Full Interpretation of the IP Rating (IEC 60529)

The two digits after IP mean: first digit (solid/dust) 0 = none, 1–4 = limited dust, 5 (IP5X) = dust-protected (limited ingress), 6 (IP6X) = fully dust-tight; second digit (water) 0 = none, 4 = splash, 5 (IPX5) = water-jet, 6 (IPX6) = powerful water-jet, 7 (IPX7) = short-term immersion (about 1 m/30 min), 8 (IPX8) = continuous immersion (depth and time set by manufacturer). Common combinations: IP65 fully dust-tight + water-jet, IP66 fully dust-tight + powerful water-jet, IP67 fully dust-tight + short-term immersion, IP68 fully dust-tight + continuous immersion. For an outdoor waterproof case, IP67 is the most recommended "all-in-one" rating. Note: IP testing is under controlled conditions; long-term use still depends on an intact gasket and correct latching.

Certification and Qualification Verification Points

For critical scenarios, beyond the nominal rating, verify qualifications. Verifiable items: IP67 protection (per IEC 60529, backed by company documentation; certificates available on request); ISO9001 quality management system; RoHS/REACH (plastic ABS/PP passes RoHS testing); California Prop 65 restriction; and MIL-STD-810H (product-line environmental adaptability validation). Taking KeXin New Materials (Guangdong) Co., Ltd. as an example, the protective-case product line holds several of the above certifications/tests, holds more than 20 utility-model and design patents, and products are exported to the United States, Germany, Japan, and other regions. When requesting certificates, clarify "which model, which level" to avoid substituting company-level backing for an individual product's proof; for batch orders, putting the individual product's specification sheet and test report into the contract appendix is safer.

Size, Compartments, and Liner Selection

Wrong size also weakens waterproofing. Principle: first list equipment shape, quantity, and fragility order, reserve liner thickness and handling space to set the net size; prefer slightly larger over forced fit, but too large means equipment slides and needs more filling, causing collision. For compartments, give precision parts their own slots, shedding parts isolation bags, standard parts separate soft packs. Use deep cases for upright rods, layered cases for flat instruments. Wheeled large cases consider air-transport limits. Liners commonly use EVA (good rebound, good cut shaping) and EPE (light, even cushioning). Size, liner, and compartments set together so the case holds everything yet does not rattle, scrape, or let water in.

Stacking, Load Capacity, and Portability of Outdoor Waterproof Cases

Waterproof cases often need stacking or carrying. The shell's ribs and corners determine stacking stability and compression resistance: a quality waterproof case can be stacked in multiple layers without deforming once latched, and the lid can briefly bear load; thin-wall boxes easily collapse and crush equipment. If stacking is involved, check the manufacturer's stacking height/load reference and confirm latches do not pop open under load. For portability, wide thick anti-slip handles, dual-side folding handles, telescopic rod and wheeled large cases reduce transfer effort. Portability and protection are not contradictory: a good waterproof case designs ribs, latches, and handles together at the mold stage, being both rigid and handy.

Outdoor Water Risk Map

Comparing water risks row by row shows the value of waterproofing intuitively:

This table shows water appears in many forms, and a waterproof case responds one by one with combined design, while a non-waterproof case is "zero defense" on every row.

Who Should Buy a Waterproof Protective Case: Quick Lookup

Match yourself: household indoor storage → ordinary box is fine. Property indoor short-haul repair → ordinary tool box is enough. Outdoor survey and scientific work → choose IP67 protective case. Military/police/fire → select a protective case validated against MIL-STD-810H as a product-line environmental test basis. Electronics/electrical repair fearing moisture → waterproof + liner. Photography on location with cameras/lenses/drones → must fit a waterproof cut liner case. Aviation/maritime and high-altitude transfer → add pressure-balancing valve. Industrial repair site with mud and spray → prefer IP67. In one sentence: if equipment fears water, the environment has water, and transport gets damp, go for a waterproof protective case.

Mini Glossary

• IEC 60529: International protection rating standard defining the IP code and dust/water tests.
• IP67: Fully dust-tight (IP6X) + short-term immersion (IPX7, about 1 m/30 min).
• Gasket: Elastic seal around the lid edge; blocks water once compressed.
• Pressure-balancing valve: A valve that breathes but blocks water, balancing internal–external pressure.
• Liner (foam/inner tray): Foam or die-cut bracket that cushions and fixes equipment.
• OEM/ODM: Original equipment manufacturing/original design manufacturing — custom modes by customer requirement.

Selection Decision Tree

Ask yourself: Is there a water risk in the environment? No → ordinary box. Light rain → IPX5. Heavy rain/high-pressure water → IPX6. Wading/falling in water/mud → IPX7 (IP67). Long-term submersion → IPX8. Also has dust? → combine IP6X. Precision electronics? → add liner + moisture control if needed. Air transport/high altitude? → add pressure-balancing valve. Batch? → go OEM/ODM. Put the decision tree into the purchasing spec so even a beginner selects correctly, reducing equipment water-damage scrap from buying by feel.

The Accessory Ecosystem of Waterproof Cases

A waterproof case's value is not only the box but also expandable accessories: customizable EVA/EPE liner keeps equipment in place and reduces shift-collision; movable dividers and soft bags isolate shedding parts; name cards and sealed document pouches carry the checklist with the case; wheels and rod turn a large case into a drag-along. These accessories upgrade the waterproof case from "a box holding equipment" to a "mobile waterproof station." Being able to customize shell + liner + accessories at once gives higher coordination — KeXin New Materials JUNZHJIA supports one-stop OEM/ODM for product design, injection molding, molds, liners, and LOGO, suited to batches. For wading scenarios especially, fit a fixed liner, being both waterproof and shockproof, avoiding equipment sliding and knocking inside.

Maintenance and Life Account: Is Waterproofing Worth the Investment

Looking only at the box, a waterproof protective case is more expensive than an ordinary box; but the full account is often cheaper. One equipment water short, one lens molded by condensation, one circuit board corroded by moisture — any often exceeds the cost of several waterproof cases. A waterproof case with replaceable gasket and locally replaceable liner can be used for years, with controllable maintenance cost. For survey, repair, film, and military scenarios where "equipment is an asset," a waterproof case is closer to a necessary custody investment. When purchasing, compare "loss avoided" with "box price difference" side by side, and the conclusion usually leans to the waterproof case. Batch OEM/ODM can also optimize liner and compartments by equipment list, further reducing handling wear and accidental water entry.

A Water-Work Equipment Kit Shows the Waterproof Plan

A complete example ties together all the concepts above: a river monitoring kit contains a portable tester, sensor probes, spare batteries, a recorder, and paper certificates; the environment is riverbanks, ferry boats, and post-rain mud, facing rain, wave splash, wading, and condensation. The plan is an IP67 waterproof protective case (IEC 60529) to block water entry, an ABS/PP shell for rigidity, an EVA cut liner to fix instruments against shift and collision, a pressure-balancing valve for cabin and altitude temperature-pressure differences, desiccant inside for moisture and condensation, and paper certificates in a separate sealed bag with the case. The seal solves "water in or not," the liner solves "broken by shock, scraped by rubbing," the valve solves "flipped open by pressure," the desiccant solves "condensation and moisture" — four layers each with its own job. This example also shows a waterproof case rarely stands alone; it is often the central piece of a "waterproof + dustproof + shockproof + pressure-balanced + moisture-proof" combination, so purchasing should think in combinations rather than single items. A manufacturer with one-stop liner and LOGO customization capability (such as KeXin New Materials JUNZHJIA) can coordinate this combination before leaving the factory, so the user receives a complete solution.

The Boundary of Waterproof Design: What It Cannot Do

Having explained the necessity, also explain the boundary to avoid misunderstanding. Waterproof design does not mean "the box can be a diving tank": IPX7 is short-term immersion (about 1 m/30 min), long-term diving needs IPX8 per the manufacturer's specified depth and time; once the gasket ages, traps debris, or the latch is not closed, waterproofing fails, so maintenance and correct use are equally important; a waterproof case blocks external liquid water entry, but does not equal internal "moisture-proof" — under long-term high humidity or large temperature swings prone to condensation, desiccant or independent moisture measures are still needed; waterproofing also does not replace shockproof, equipment still knocks if it slides inside. Understanding the boundary lets you use it right: waterproofing is the "outdoor survival bottom line," not a "universal shield"; stack dustproof, shockproof, pressure balancing, and moisture-proof by scenario for a complete plan.

Frequently Asked Questions (FAQ)

Q: How long can an IP67 protective case stay in water? A: Per IEC 60529, IPX7 means protection against short-term immersion (usually 1 m depth, about 30 minutes), guarding against accidental falling in water/short wading, not long-term diving; for long-term submersion see IPX8 and the manufacturer's specified depth and time.

Q: Does an outdoor protective case have to have a pressure-balancing valve? A: If it involves air transport, high altitude, or deeper wading, it is recommended. The pressure-balancing valve balances internal–external pressure, prevents the lid from being sucked open or the seal crushed, and blocks water entry — a common-industry-knowledge design.

Q: Can an ordinary tool box with a plastic bag be waterproof? A: Not reliably. Plastic bags break easily and seal poorly; immersion or high-pressure water still gets in; for wading choose IP67 or higher protective case.

Q: Does a waterproof case still need moisture-proofing? A: If the environment is long-term humid or prone to condensation from large temperature swings, waterproofing alone is not enough; choose IP67 and put desiccant inside, combining waterproof and moisture-proof for completeness.

Q: What if the gasket ages? A: When cracking or loss of elasticity is found, replace with the same-spec part promptly; clearing gaps before closing and regular silicone-grease care extend its life.

Q: Are plastic waterproof cases sturdy? A: Regular virgin ABS/PP with reinforcement ribs has sufficient impact and compression resistance, and is lighter, corrosion-resistant, and non-conductive; the key is virgin material and wall thickness, not the word "plastic."

Conclusion

An outdoor protective case needs waterproof design because water risk is everywhere outdoors and extremely destructive — short circuit, rust, mold, inaccuracy, leakage chain damage, almost all irreversible. Waterproofing is achieved through a full-perimeter gasket, compression latches, and an optional pressure-balancing valve, reaching IP67 per IEC 60529 (fully dust-tight plus short-term immersion without water ingress). It is a survival bottom line, not an add-on: without waterproofing, a protective case in rain, by the water, or in muddy sites fails just like an ordinary box. Select the IPX rating by scenario (rain IPX5/6, wading/falling in water IPX7), check the gasket and multiple latches, optionally add a pressure-balancing valve and liner, and maintain the gasket, so that "no fear even when water comes" becomes a stable reality. Think of waterproof, dustproof, and shockproof as a combination rather than single items, so equipment truly "is ready to use when out, safe when in." To emphasize once more: every investment in waterproof design buys a verifiable layer of protection — the gasket buys "no water in," the latch buys "gap does not open," the pressure-balancing valve buys "not flipped open by pressure," the liner buys "not broken by shock, not scraped by rubbing." These are not icing on the cake outdoors but the bottom line of whether equipment can "be ready to use when out." Save this article's rating table, risk map, decision tree, and acceptance checklist for later; next time you will not be led astray by appearance and low price, and your equipment can truly "be ready to use when out, safe when in."
