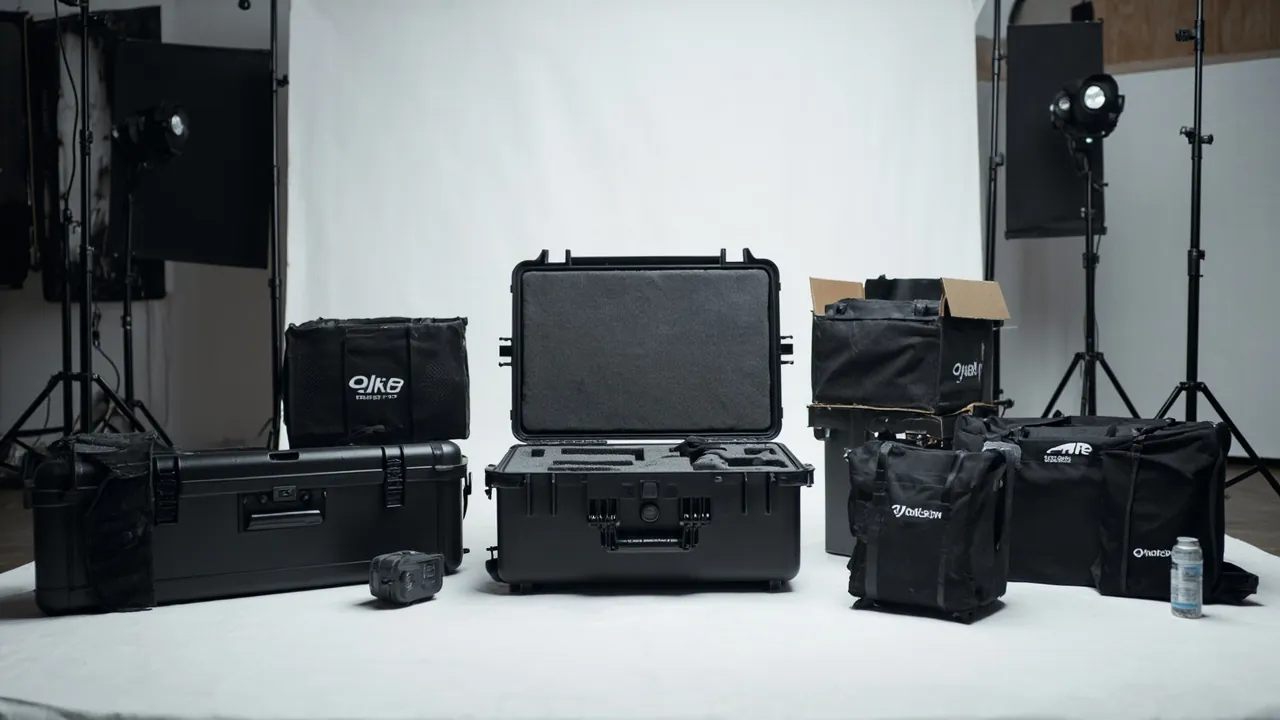

Camera Equipment Cases and Camera-Body Boxes: Lens, Camcorder and Gimbal Protection

What photographers and filmmakers fear most is not missing the shot, but having gear damaged in transit. The conclusion up front: a qualified camera equipment case must center on "item fixation, fragile-surface sinking, quick access", combined with a waterproof dustproof shell and custom-cut lining, to simultaneously protect camera bodies, lenses, camcorders, gimbals and monitors. This article covers camera equipment cases, film and television camera equipment cases, camera-body boxes, lens protection cases, camcorder protection cases, gimbal protection cases and monitor protection cases, providing parameters, standards and selection methods for procurement and engineering implementation.

Cameras, lenses and film equipment are generally high value, high precision, and afraid of drops, dust and moisture. A high-end lens contains floating element groups and electronic contacts; a single drop or sand ingress can scrap it. A cinema camera body carries a sensor and thermal structure, equally sensitive to temperature-humidity and shock. Therefore the case is not simple storage but the first line of asset protection. Whether a personal camera-body box or a film-production transit case, it should be planned from structure, lining, sealing and ergonomics.

Table of Contents

• Protection Needs and Pain Points of Camera Equipment Cases
• Design Essentials of Camera-Body Boxes
• Zoning Method for Lens Protection Cases
• Camcorder Cases and Gimbal Protection
• Monitor and Film Lighting Protection
• Whole-Set Solution for Film Camera Equipment Cases
• Value of Custom-Cut Lining
• Case Material (PP/ABS/PC)
• Sealing and Three-Protection (IP Dust and Water)
• Transport and Air-Check-in Rules
• Moisture Control and Humidity Management
• Camera Gear Boxes and Portable Boxes
• JUNZHJIA Custom Capability and OEM/ODM
• Procurement Acceptance and Documents
• FAQ

Protection Needs and Pain Points of Camera Equipment Cases

The pain points of camera equipment cases concentrate on three points: first, equipment shapes are irregular and accessories many, ordinary boxes cannot fit or fit but rattle; second, lenses, filters and monitor screens have many fragile surfaces that scratch against each other in transport; third, shooting environments are complex, seaside salt spray, desert dust and rainforest humidity all threaten gear. The solution is to upgrade "storage" into "protection + fixing".

In protection grades, field cases commonly use IP67 (GB/T 4208 / IEC 60529) against splash and short immersion; long-distance production transit can reference ISTA 3 transport verification; shell flammability references UL94 (when batteries or lights inside). For documentary, advertising and wedding teams, cases must also be light, quick-opening and cabin-carryable, complementing the large film camera equipment cases.

In field deployments, the sealing and cushioning of Camera Equipment Cases & Camera-Body Boxes come first: referencing IEC 60529 and GB/T 4208 for the IP rating, IP65 suits dust and splash protection while IP67 is preferred for wet or submerged environments to keep the contents free from moisture and grit.

Camera Equipment Cases & Camera-Body Boxes is often paired with Oil-Well Pressure Instruments & Pipeline Inspection Equipment Cases, for example a main unit with separate battery and accessory layers that protect the gear and speed field setup.

In field deployments, the sealing and cushioning of Camera Equipment Cases & Camera-Body Boxes come first: referencing IEC 60529 and GB/T 4208 for the IP rating, IP65 suits dust and splash protection while IP67 is preferred for wet or submerged environments to keep the contents free from moisture and grit.

Design Essentials of Camera-Body Boxes

The camera body is the core of the whole kit; the design essentials of a camera-body box are "body fixation + screen protection + accessory zoning". The body is wrapped in foam grooves so the grip and mount bear no pressure; the LCD and viewfinder side gets sunken cushioning to avoid screen pressure; small items like batteries, cards and straps use separate cells or mesh bags, known complete at a glance when opened.

The camera-body box is mostly for single-body short trip or spare-body warehouse, emphasizing compact and clear labeling. For professional bodies with vertical grips or external recorders, the lining must reserve expansion space and never force-fit. Whether camera-body case or camera-body box, paste an equipment list and opening checklist on the inner lid, and use it with lens protection cases and camcorder cases to form a protection system.

For impact resistance, Camera Equipment Cases & Camera-Body Boxes should be designed to an IK rating per IEC 62262, with thickened rounded corners and metal latches; transit drops are evaluated against MIL-STD-810H Method 516.8, and experience shows the shell can survive multiple 1.2 m drops without cracking.

For shipping, add desiccant and a humidity card outside Camera Equipment Cases & Camera-Body Boxes, especially for sea freight or humid regions; long-term storage follows the ISTA guidance on temperature-humidity cycling to avoid gasket aging and metal corrosion.

Zoning Method for Lens Protection Cases

Lenses are the most delicate in camera gear: glass elements fear bumps, electronic contacts fear oxidation, zoom rings fear sand. The core of a lens protection case is "single independent, vertical or horizontal oriented, soft between". The common practice is an independent foam slot for each lens, oriented by axis (vertical preferred, saving space and even force), with thickened partition walls between slots to prevent collision.

For super-telephoto primes or cinema lenses, use extended cases with end buffer columns to avoid cantilever stress. Filters and hoods can have shallow cells but never hard-contact the glass. Coordinated with the camera-body case, take "body + matching lens" as a group before shooting for highest efficiency. The protection thinking of related precision instruments can also learn from precision instrument cases.

Vibration and transit reliability can be verified with the ISTA 3A/3E series of simulated shipping tests; for sensitive loads such as Camera Equipment Cases & Camera-Body Boxes, custom-cut EVA foam that holds every item in place markedly reduces in-transit damage.

When standard grids cannot fit odd-shaped gear, custom-cut Camera Equipment Cases & Camera-Body Boxes pays off; JUNZHJIA's OEM/ODM flow is sample, drawing, prototype and batch, with test files supplied and tooling on hand to shorten lead time.

Camcorder Cases and Gimbal Protection

Cinema and mirrorless video cameras are larger with more accessories (monitor, power, wireless video, gimbal); a camcorder protection case needs "large capacity + modular tray". The host is fixed independently, battery and power modules zoned separately; the gimbal (three-axis stabilizer) contains brushless motors and attitude sensing and should avoid long-term compression, with a separate groove and relaxed center.

The gimbal protection case emphasizes gimbal homing and counterweight storage: before transport, lock the gimbal latch and relax the motor; the lining should avoid the latch position to prevent the latch from damaging the shell. The gimbal protection box is the portable version for solo short-video teams. Whether case or box, never let the gimbal share a slot under heavy accessories.

Material choice for Camera Equipment Cases & Camera-Body Boxes typically spans modified PP, ABS and PC: PP is light and shock-tolerant for frequent carrying, ABS offers good rigidity at moderate cost, and PC gives the highest impact strength at the expense of weight; flame rating can be specified to UL 94 V-1 or better for in-vehicle and cabin safety.

If Camera Equipment Cases & Camera-Body Boxes carries lithium cells or energetic parts, give it a separate fire-resistant bay with labeling and ship per UN 38.3 and IATA rules for lithium batteries; like Detection Instrument Protective Cases: Gas, Water-Quality, Noise & Wind-Speed Meters, isolation and marking are key.

Monitor and Film Lighting Protection

External record monitors and director monitors are mostly LCD; the core of a monitor protection case is screen sinking and edge wrapping; touch screens also need anti-mis-touch pressure. Film lighting equipment (LED lights, softbox frames) has irregular shapes and often heat fins; film lighting protection values compression resistance and layering. Related categories can refer to the whole-set solution of film lighting and sound equipment cases.

The monitor protection box is for single-screen portability, emphasizing lightness and hanging. Whether case or box, the screen must have an independent soft partition and never share a slot with hard objects. For monitors with batteries, reserve a battery compartment inside meeting insulation fixation, consistent with the battery handling of camera-body cases above.

Liners commonly use high-density EVA or PE foam, CNC-cut to the actual part or drawing so each item sits in its own pocket. JUNZHJIA supports custom liners and OEM/ODM with brand-color printing, matched seals and test documentation for batch acceptance.

Whole-Set Solution for Film Camera Equipment Cases

Production transit often needs a whole set of gear protection: host case, lens case, light case, gimbal case, monitor case, power case configured in sections, with unified dimensional modules for stacking on transport vehicles. The film camera equipment case advantages are large capacity, strong structure and wheeled pushing, suitable for truck or air freight; the design must balance weight limit, forklift holes and stacking location.

The key of the whole set is "listing": each case corresponds to an equipment list and assembly order, take and count on-site by diagram, missing items found immediately. For cross-city shooting, trial in small batches first, observing lining deformation and seal retention under real transport, then decide mass configuration.

Temperature and humidity control is an often-overlooked aspect of Camera Equipment Cases & Camera-Body Boxes transport: passive insulation can use phase-change cold packs or an insulated bladder, and extreme temperature bands follow MIL-STD-810H Methods 501/502, with experience indicating structural stability from -20 C to +60 C.

Value of Custom-Cut Lining

Custom-cut lining (CNC groove by three-dimensional shape of gear) is almost standard for camera gear. It has triple value: shock absorption (gear embeds into foam limiting displacement), fixing (each item one slot, missing known at a glance), surface protection (screen and lens sunk without pressure). For precision equipment such as lens protection cases and camera-body boxes, custom lining directly decides protection success or failure.

JUNZHJIA can open mold and cut lining according to your gear list or physical object, achieving precise wrapping of one slot per object, and support silk-screen and color by brand model. If you already have a case and want to upgrade, you can also order lining and seal kits separately without buying a whole new set.

For Camera Equipment Cases & Camera-Body Boxes with electronic circuits, consider conductive gaskets and a metallized case for EMI shielding, assessed against the GB/T 17626 series for immunity so strong electromagnetic fields in the field do not disturb readings or comms.

Case Material (PP/ABS/PC)

Camera cases commonly use three engineering plastics: PP is tough, chemical resistant, cheap, suitable for general transfer; ABS has high rigidity and fine appearance, suitable for display and light gear; PC is strong and temperature resistant, suitable for demanding cinema cameras and light cases; there is also ABS+PC alloy compromise. The shell is best injection-molded in one piece, with a labyrinth seal groove at the lid mouth to improve dust and water resistance.

For large cases like film camera equipment cases, the bottom should have forklift guidance and stacking locating pins, with stiffeners and corner thickening to extend life. Light camera-body boxes can reduce wall thickness under guaranteed strength to ease carrying.

At incoming inspection, Camera Equipment Cases & Camera-Body Boxes should ship with third-party IP, IK and drop reports; check gasket continuity, even latch compression and liner fit item by item. Like Portable Diagnostic Equipment Cases: Handheld Ultrasound, Patient Monitor, Ventilator & Defibrillator, complete documentation eases warehousing and insurance claims.

Sealing and Three-Protection (IP Dust and Water)

Three-protection means waterproof, dustproof and anti-corrosion. Seals are mostly nitrile or silicone rings embedded in the flange under compression. To reach IP67, the ring must be uniformly compressed, no breakpoint, no debris pressed in. Camera-body cases shot at seaside should care about ozone and salt spray aging of the seal and replace periodically.

Waterproof does not mean immersion. IP67 means no ingress at 1 meter for 30 minutes; long immersion needs IP68 with clear pressure and duration. If gear fears moisture, the ring alone is not enough; combine desiccant and humidity card for "seal + moisture absorption" double insurance. Related sealing can also refer to the general practice of sealed protective boxes.

For site management, tag Camera Equipment Cases & Camera-Body Boxes with an ID and a contents card, keep a master list with the supervisor, and reconcile against the card on departure and return; this mirrors the numbering system used by Fire-Fighting Equipment Cases & Rescue Forcible-Entry Kits and cuts loss rates.

Transport and Air-Check-in Rules

Air check-in limits case size and weight, and the cargo hold has drop, stack and temperature risks. Recommendations: single-case weight within two-people-lift or one-person-push range; large cases with wheels and forklift holes; gear fully fixed by lining to avoid sliding impact; bodies, monitors and lights with lithium batteries insulated and fixed separately per air dangerous-goods rules with labels.

Cross-city productions can reference ISTA 3 transport verification to confirm the case does not fail under vibration, drop and compression. Multi-case shipping uses unified outer dimensional modules for palletization, reducing per-piece transport cost and loss risk.

For Camera Equipment Cases & Camera-Body Boxes that is airdropped or flown at altitude, balance weight and ballast, add redundant latches and, where needed, a pressure-equalization valve to counter altitude-induced suction; related thinking appears in Earthquake Emergency Kits & Flood-Control Emergency Cases.

Moisture Control and Humidity Management

Lens mold and contact oxidation mostly come from out-of-control humidity. The moisture solution is "sealed case + desiccant + humidity card": desiccant absorbs, humidity card shows intuitively, a typical value recommends keeping in-box relative humidity at 40%-55% (specific per gear storage requirement). Lens protection cases for long storage can equip rechargeable dry cores, regenerated periodically.

After seaside and rainforest shooting, wipe salt and water from gear surface before boxing and replace saturated desiccant. For high-end cinema lenses, attach a humidity record card for asset management and claim evidence.

To extend seal life, keep the silicone gasket of Camera Equipment Cases & Camera-Body Boxes away from oil and prolonged UV, wipe it regularly and apply silicone grease; lubricate latch hinges and store the case slightly open to avoid crushing the gasket.

Camera Gear Boxes and Portable Boxes

Solo photographers and short-video teams more often use portable forms like camera gear boxes, camera-body boxes, lens protection boxes and camcorder protection boxes: small, cabin-carryable, emphasizing quick open and hanging. The advantage of portable boxes is flexibility; the disadvantage is limited capacity, requiring selection of "one common set", leaving spares to large cases.

Whether case or box, interior must insist on item fixation and fragile-surface sinking. Portable forms like gimbal protection boxes and monitor protection boxes must also avoid sharing slots with hard objects. Outdoor shooting can also combine the waterproof form of outdoor gear cases against bad weather.

On size and stacking, choose Camera Equipment Cases & Camera-Body Boxes with interlocking ribs and lateral stackability so vehicle or rack transport saves space and resists sliding; aligning the outline with Security Inspection Cases & Explosion-Proof Inspection Toolkits simplifies modular handling.

JUNZHJIA Custom Capability and OEM/ODM

For film and photography organizations, JUNZHJIA provides integrated capability from case selection, lining customization to seal kit matching. We can customize CNC-cut foam lining according to your body, lens, camcorder, gimbal and monitor shapes, achieving one slot per object; support OEM/ODM color, silk-screen and structural modification by model; for export projects provide IP, flammability and transport related detection documents for inclusion in technical agreements. Existing cases can also order lining and seal kits separately to upgrade protection.

Export Camera Equipment Cases & Camera-Body Boxes must address RoHS, REACH and packaging directives, with flame and environmental declarations supplied in the case; JUNZHJIA can prepare market-specific compliance files to lower the buyer's customs and audit risk.

Procurement Acceptance and Documents

Documents recommended for camera case acceptance: material grade (PP/ABS/PC), IP grade declaration or report, lining layout drawing, drop/vibration records (for large cases), flammability grade when powered, moisture description. The contract clarifies warranty, seal replacement cycle and spare supply. For high-value categories like film camera equipment cases, trial in small batches before mass, observing lining and seal stability under real transport.

Mistake one: only look at capacity not fixation, gear rattles and scratches. Mistake two: treat "fits" as "protects", too large gap to wall. Mistake three: ignore moisture, box directly after seaside/rainforest. Mistake four: over-stack, overweight single case causes injury. Mistake five: not replace seals, use as IP67 after ring aging. The methods in this article avoid these systematically.

The lining decides protection life. EVA/PE foam should avoid long-term compression deformation; do not press heavy objects in the box during storage; dry or replace foam after absorbing moisture; wipe oil-stained foam with neutral cleaner, not strong solvent. Check seal ring elasticity and cracks every six months, replace if aging. Regenerate or replace desiccant when humidity card changes color. With these, a camera equipment case can serve a typical value of many years without protection drop.

Beyond the immediate protection function, the camera equipment case should be evaluated on total lifecycle cost. A cheaper case that needs lining replacement every season, or that fails a latch on a remote shoot, ends up more expensive than a robust case maintained for years. When comparing quotes, ask for the expected seal replacement interval, the availability of spare lining kits, and whether the shell can be repaired after a crack. For professional teams, these factors often outweigh a small upfront saving and should be part of the purchase scorecard rather than an afterthought.

Many production houses run shared kits that rotate between crews. For these, the case must support quick visual audit: a labeled lining where every slot has a part number lets the returning crew confirm completeness in minutes. Adding a small damage-log sleeve on the lid, where users note any scratch or fault, builds a history that protects both the gear and the team. JUNZHJIA can pre-print such logs and part-number labels as part of the OEM/ODM service, so the kit arrives audit-ready instead of needing a retrofit.

Insurers increasingly ask for proof of suitable packaging after a transit claim. A case supplied with an IP declaration, a lining layout drawing and a drop-test summary strengthens the claim and shortens settlement. Keep a digital copy of these documents with the policy. For cross-border work, the same documents satisfy customs questions about the value and origin of the contained professional equipment, which is especially useful when a kit crosses several jurisdictions in one tour.

Climate adaptation is often overlooked. Cold environments make plastics more brittle and seals stiffer; hot environments soften adhesives and can warp thin-wall boxes. If your work spans seasons, choose a material grade rated for the full temperature band and verify the seal remains compliant at both ends. Desiccant capacity should also be sized for the humid leg of the journey, not just the storage condition, because a case that is dry in the studio may still sweat during a tropical transfer.

A solo creator benefits from one well-packed portable box they never have to think about; a team benefits from a system of matched cases that stack and share liners. Decide which model fits before buying, because retrofitting a team system from mismatched boxes is costly and error-prone. The modular approach pays off when a second shooter or a client review requires the same kit to split and rejoin without confusion, and it also simplifies training because everyone learns one layout.

Foam lining wears and eventually sheds; choosing a lining material that can be re-cut from stock, rather than a molded part unique to one case, keeps spares cheap and reduces waste. JUNZHJIA's CNC-cut lining supports this, since a new liner can be produced from the original drawing at any time. Pair it with a recyclable shell program where available, and the kit's environmental footprint stays manageable over a long service life, which matters to organizations with sustainability targets.

Protection is only as good as the person closing the lid. A short onboarding that shows how to seat the seal, how to tension straps and how to read the humidity card prevents most field failures. Include this in the kit's quick-start card. Teams that train new members on the case itself report far fewer transit incidents than teams that treat the case as obvious, because the routine becomes muscle memory rather than a document nobody reads.

A practical pre-trip checklist: confirm each item is in its slot, confirm the seal is clean and compressed, confirm batteries are in their compartment and off, confirm the humidity card is green, and confirm the lid label matches the contents. Thirty seconds on this routine saves a ruined shoot. The same checklist works whether the kit is a single portable box or a ten-case production transit, which is why it scales cleanly as a team grows.

For buyers comparing suppliers, request a reference build: a sample case packed with your actual gear, photographed open and closed, with the lining drawing attached. This single exercise reveals more about real protection than any specification sheet, because it shows whether the vendor understood the fragile surfaces, the weight distribution and the access order you actually use on set. Treat the reference build as the contract baseline, and volume orders will match it.

Against soft bags, the hard shell of Camera Equipment Cases & Camera-Body Boxes wins on crush resistance, water protection and security, suiting higher-value or long-stored Camera Equipment Cases & Camera-Body Boxes; specify by equipment value and terrain rather than chasing the highest nominal rating.

Frequently Asked Questions

Q: What is the core difference between camera equipment cases and ordinary storage boxes? A: The core difference is whether "item fixation, fragile-surface sinking, quick access" is achieved. Ordinary storage boxes just pile gear together, colliding and scratching in transport; camera equipment cases use custom-cut lining to embed each item in foam and limit displacement, with sunken cushioning for LCD and lens to avoid pressure. In addition camera cases must meet waterproof dustproof (GB/T 4208/IEC 60529), anti-vibration (ISTA) and flammability (UL94 when powered), which ordinary boxes do not. Production transit also needs unified modules and wheeled pushing. Therefore selection should start from gear risk, not just appearance capacity.

Q: Why must lens protection cases be single independent? A: Lenses contain floating element groups and electronic contacts, most afraid of bumps, sand and mutual collision scratches. A single independent slot ensures each lens oriented by axis, not touching, with partition walls absorbing impact to prevent collision. Super-telephoto cinema lenses also need end buffer columns to avoid cantilever stress. If multiple lenses share a slot, transit vibration makes barrels rub, lightly coating scratches, heavily element misalignment. Taking with the camera-body case as a group also improves preparation efficiency. Therefore single independent is the bottom-line design of lens protection cases.

Q: How does a camera-body box protect the LCD? A: The LCD and viewfinder are the most damageable surfaces; the body box uses "sunken cushioning": dig a groove slightly larger than the screen at the foam corresponding position, so the screen contacts no hard object and bears no direct pressure; the body is wrapped in foam, grip and mount not compressed. An opening checklist is pasted on the inner lid for counting. The camera-body box portable version must also do screen soft partition, not omitted for small size. Bodies with vertical grips or external recorders need lining expansion space; force-fit will damage the shell.

Q: What are the special requirements of gimbal protection cases? A: The gimbal contains brushless motors and attitude sensing; before transport, lock the gimbal latch and relax the motor; the lining should avoid the latch position to prevent the latch from damaging the shell; the motor axis avoids long-term compression, with a separate groove and relaxed center. The gimbal protection case emphasizes counterweight and battery zoning, not sharing slots with heavy accessories. The gimbal protection box is the portable version for solo short-video teams, also insisting on one slot per object. Whether case or box, homing and relaxation are keys to gimbal life.

Q: What to note for air-check-in of camera gear? A: The cargo hold has drop, stack and temperature risks. Recommend single-case weight within two-people-lift or one-person-push range, large cases with wheels and forklift holes; gear fully fixed by lining to avoid sliding; bodies, monitors and lights with lithium batteries insulated and fixed separately per air dangerous-goods rules with labels. Cross-city productions can reference ISTA 3 verification. Multi-case uses unified modules for palletization, reducing loss risk. Valuable cinema cameras are recommended cabin-carry or transport insurance.

Q: How to prevent lens mold and contact oxidation? A: The key is humidity management, using "sealed case + desiccant + humidity card": desiccant absorbs, humidity card shows intuitively, a typical value keeps in-box relative humidity at 40%-55% (per gear requirement). Lens protection cases for long storage can equip rechargeable dry cores regenerated periodically. After seaside/rainforest, wipe salt and water before boxing and replace saturated desiccant. High-end cinema lenses attach a humidity record card for asset management and claims. Seal alone is insufficient for moisture; moisture absorption double insurance is required.

Q: Is custom lining worth it? A: Almost mandatory for camera gear. Custom-cut lining (CNC groove by 3D shape) has triple value: shock (gear embeds limiting displacement), fixing (each item one slot, missing known), surface (screen and lens sunk without pressure). For precision equipment such as lens protection cases and camera-body boxes, lining directly decides protection. JUNZHJIA can open mold and cut by list or physical object, one slot per object, supporting silk-screen color; existing cases can also order lining separately, no whole new buy. Compared with repair and shoot-stop loss, custom lining cost is minimal.

Q: How to combine film camera equipment cases and portable boxes? A: The principle is "large case transit, small box carry". Productions use film camera equipment cases for host, light and gimbal segmented large-capacity transit, unified module stacking; individuals and short-video teams use camera gear boxes, camera-body boxes, lens protection boxes and camcorder protection boxes cabin-carry for one common set. Both share lining logic: item fixation, fragile-surface sinking. Outdoor bad weather can combine the waterproof form of outdoor gear cases. This avoids over-carrying weight while ensuring key gear always available.

Q: How often to replace the seal? A: The seal ring is a consumable, check elasticity and cracks every six months, shorten to quarterly in seaside salt spray or high-frequency field. Once the ring hardens, cracks or compression marks are unrecoverable, replace even if appearance intact, otherwise IP67 fails. Choose same-spec nitrile or silicone ring, clean flange before install. Desiccant and humidity card should be regenerated or replaced synchronously. With seal and lining maintenance, a camera equipment case serves a typical value of many years without protection drop.

Conclusion and Related Reading

Camera equipment case selection should center on "item fixation, fragile-surface sinking, quick access", combined with waterproof dustproof shell, custom-cut lining and moisture management, to systematically protect camera bodies, lenses, camcorders, gimbals and monitors. Doing protection before transit is far more cost-effective than repair and shoot-stop loss after damage.
