Motorcycle Tool Cases: Protection for On-Board Tools & Spares

The environment around a motorcycle tool case is far harsher than any workshop cabinet. There is sustained heat from the engine and exhaust, high-frequency vibration transmitted from the road, mud and water thrown up in rain and at river crossings, ultraviolet ageing from long hours in the sun, and the practical demand to reach a tool with one gloved hand at the roadside. Across a 2000 km tour, an on-board tool kit sees tens of thousands of vibration cycles, dozens of temperature swings and several soakings, yet its whole job is to get the bike running again in the middle of nowhere. Tools do not fail from being used; they fail from being carried. A ball-end hex key rounds off, a ratchet mechanism jams with grit, a spare chain link deforms, a tyre plug hardens in the heat.

The goal of on-board protection is zero movement, zero mutual abrasion and fast access for every tool, combined with a shell that stays structurally sound and sealed under vibration, rain and temperature swing. JUNZHIJIA builds motorcycle tool cases in three layers: a liner that locates each item, a shell that resists vibration and impact, and a controlled sealing and drainage path.

Table of Contents

• What a Motorcycle Tool Case Has to Solve
• On-Board Tool Inventory and Compartment Design
• Vibration and Dust: The Endless Test of a Moving Vehicle
• Dedicated Stowage for Tyre Repair and Chain Tools
• Protecting Torque Wrenches and Precision Instruments
• Classifying Spares and Wear Items
• Mounting Options and Load Limits: Frame, Pannier Rail, Top Box, Crash Bar
• Rattle Prevention and Positive Retention of Every Tool
• Rust and Water Ingress After Rain and River Crossings
• Balancing Roadside Access Against Theft Resistance
• Liner and Retention Methods Compared
• Shell Structure, Sealing Class, Acceptance and Maintenance
• Frequently Asked Questions FAQ
• Conclusion and Related Reading

What a Motorcycle Tool Case Has to Solve

A workshop cabinet carries static load; an on-board case carries dynamic load, and the dynamic load is usually larger. At a steady 60 km/h over moderately rough asphalt, vertical vibration acceleration at the case can sit between 1 g and 3 g for hours, with peaks above 10 g over a speed bump or a pothole. The effect on the contents is repeated micro-collision. If a tool has 2 mm of free travel in its pocket, a single day produces hundreds of thousands of impacts, and the outcome is either a damaged tool or a case wall worn through.

The second constraint is space and weight together. Usable mounting volume on a motorcycle is tight: a top box is typically 25 to 45 litres, a single pannier 20 to 40 litres, a crash-bar bag only 3 to 8 litres. Total payload, rear axle loading and handling stability all cap the weight. An on-board tool case therefore cannot carry everything; it must subtract, keeping only tools that match the bike's common fastener sizes and only spares that can realistically be fitted at the roadside.

The third constraint is access. Roadside repair usually happens with the bike on its side stand or on the ground, on gravel or mud, with gloves on and possibly in poor light. A case that needs two quick-release catches opened, then a tray pulled out, then three layers searched will be a bad experience. The design test is simple: from stopping to holding the target tool in hand, can it be done in 60 seconds without dumping everything else out?

The fourth question is the sensible sealing class. Not every motorcycle tool case needs IP67. A commuter scooter and a long-distance adventure bike have different exposure to water depth, rain duration and mud concentration, so the scenario must be defined before the rating is chosen. The selection logic is set out in Toolbox IP54 vs IP65 Rating.

On-Board Tool Inventory and Compartment Design

The inventory drives the compartments. Grouping by failure type rather than by tool category makes more sense at the roadside, because that is how a rider thinks when something breaks. A practical list covering most mid-capacity machines looks like this.

Three rules govern compartment design. First, heavy low and light high: anything above 200 g, such as a ratchet, chain tool or torque wrench, belongs in the layer nearest the mounting face so the inertia moment is small. Second, tips inward and grips outward: screwdrivers, reamers and cables should point their sharp ends toward the middle of the case so vibration cannot drive them through a wall or into another tool. Third, one item per pocket. Two tools sharing a pocket will abrade each other, and the chrome or anodised finish is always the first casualty.

Vibration and Dust: The Endless Test of a Moving Vehicle

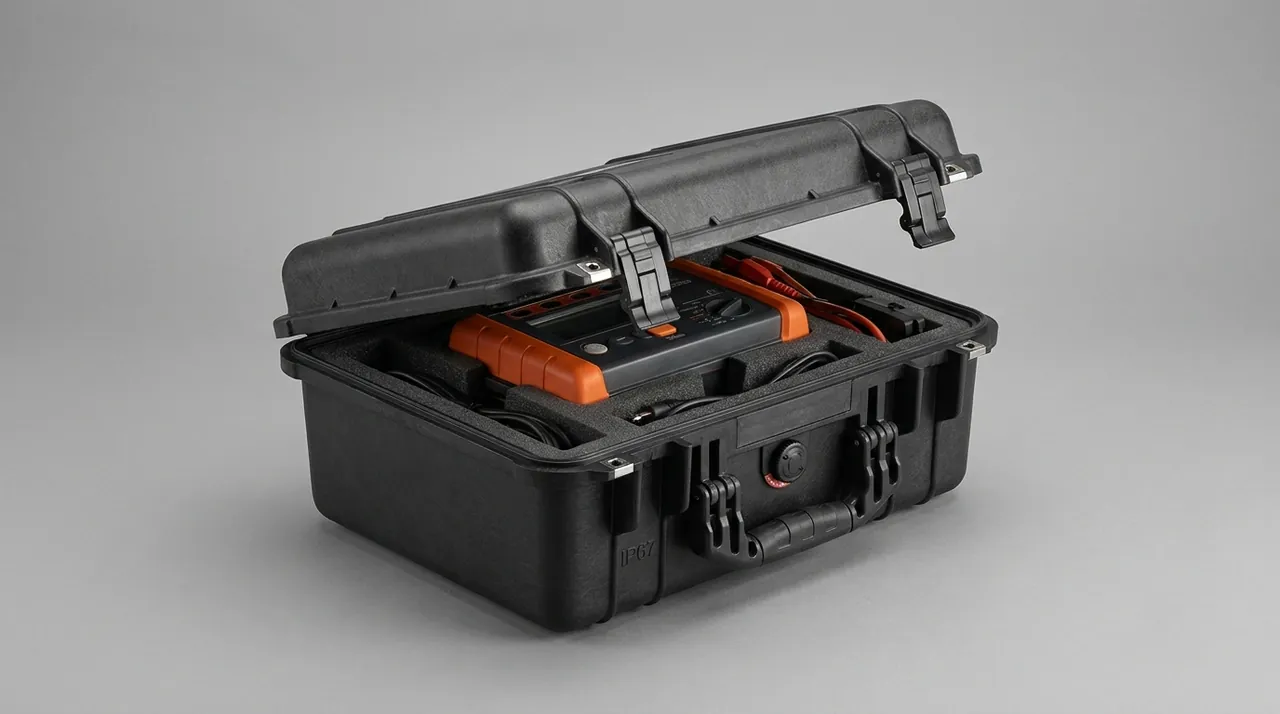

Vibration is the primary killer of on-board tool cases, and it damages in three ways. The first is fatigue: the case-to-bracket joints, the latch and hinge pins and the liner anchor points develop micro-cracks under alternating load, especially in cold weather. The second is fretting wear: two metal tools in contact under micro-motion generate oxide debris that accelerates further wear, so a spanner jaw can open measurably within a few months. The third is loosening: threaded joints back off slowly, and latch pre-tension springs lose force to fatigue.

Several countermeasures are standard. Raising system stiffness lifts the first natural frequency away from the vehicle's dominant excitation spectrum, usually by reinforcing the bracket, shortening the cantilever and adding fixing points. Reducing clearance is equally effective: compress free travel below 0.5 mm by using pockets slightly shallower than the tool thickness, typically 0.3 to 0.8 mm of foam pre-compression. Adding damping helps too, for example a 3 to 5 mm rubber pad between bracket and case, or a damping sheet bonded to the case floor. Whole-vehicle verification methods follow ISTA Transport Testing Procedure and ASTM D4169 Distribution Cycle.

Dust and mud usually enter not through a failed seal but at the moment of opening. Open a case in a dusty section with the lid up and dust settles in; with the lid down, muddy water runs in. A side-opening or top-opening lid with a raised lip helps, because the open lid then forms a small rain hood. The liner should avoid deep narrow dead corners so a brush can clean it, and the lining material itself must resist oil and solvents, where EVA outperforms ordinary PE. See EPE vs EVA Foam for Toolboxes for the material comparison.

Dedicated Stowage for Tyre Repair and Chain Tools

Punctures and chain faults are the two most frequent roadside breakdowns on a motorcycle, so these tools deserve their own designed positions rather than sharing space with everything else.

Tyre repair kit includes plugs, the insertion needle, the reaming tool, and either CO2 cartridges or a compact pump. The weak point of the plugs is heat ageing: butyl and modified rubber plugs stiffen and lose tack above roughly 60 degrees Celsius, and temperatures near a motorcycle exhaust and rear wheel pass that easily. Plugs therefore belong in a compartment away from hot faces, ideally in a lidded tube, with an aluminium foil or heat-reflective layer as a barrier. Both the insertion needle and the reamer carry sharp threads, so the tips must point down or wear a guard rather than puncture other packaging. CO2 cartridges are pressure vessels: fix them individually, keep them from clashing with hard items, and avoid long exposure to heat and direct sun.

Chain tools include the breaker, the riveting tool for staked links, spare master links and retaining clips. The breaker pin is a precision part; once bent it will not align with a chain link, so storage must keep axial load off the pin, ideally with a deep cavity that holds the whole tool vertically or a dedicated bracket. Master links and clips are tiny and must live in a lidded compartment, because once they scatter they are almost impossible to find. If two spare links are carried, mark their orientation so the rivet is not staked from the wrong side during a repair.

One frequently overlooked detail is liquids. Chain oil, chain wax and cleaner must be isolated from electrical spares and tyre plugs and given secondary containment in a zip bag or sealed box. A leak contaminates the whole case and accelerates ageing and deformation of the foam liner.

Protecting Torque Wrenches and Precision Instruments

In touring and fleet tool kits the torque wrench is the highest-value item and the easiest to ruin. Its core is a calibrated spring beam or a split-beam sensing mechanism with accuracy typically within three to four percent of full scale, and shock, drops and long-term static preload all shift that calibration. A stowed torque wrench must therefore be de-loaded, independently supported and kept away from impact sources.

In practice: wind the setting back to the minimum scale after every use, without going below the maker's stated minimum, so the spring returns to a free state. Design two supports inside the case, one under the drive head and one under the handle end, so the wrench behaves as a simply supported beam rather than a cantilever. Place it near the mounting face of the case where vibration amplification is lowest. If the fleet uses digital torque wrenches, add moisture and dust protection, because the sensor and display are humidity sensitive, and include replaceable desiccant in the case.

Other precision items such as tyre pressure gauges, callipers and multimeters are similarly impact sensitive. A mechanical gauge head should sit in a foam-wrapped pocket. A multimeter travels best in its own pouch inside the case. All precision items should be separated from large steel tools, since the classic failure is a small mass repeatedly struck by a large one. Place the precision zone in the middle rather than the ends of the case: case ends see the highest acceleration in a drop or impact, while the middle is comparatively calm.

Classifying Spares and Wear Items

Spares take a large share of the carried weight and are often dumped in loose, so that when they are needed they cannot be found, or are found already damaged. Classify on two axes at once: replacement frequency, and dimensional stability.

By replacement frequency, high-frequency spares such as zip ties, fuses, bulbs and plugs belong in the outer layer or in a quick-access zone inside the lid, while low-frequency items such as spare cables, a spare lever or a master link can sit deeper. By dimensional stability, items that hate bending, such as cables, fuel hose and seal strip, must lie along the long axis with a bend radius of at least ten times their outside diameter. Items that hate compression, such as paper gaskets, filters and spark plugs, need a hard-shelled pocket.

Electrical spares deserve special treatment. Fuses should be sorted by rating into separate compartments under a transparent lid, so they can be identified instantly. Bulbs, especially LED types, are crush sensitive and should keep their original packaging or sit in wrapped foam. Relays and fuse box covers need locations they cannot fall out of. All electrical items should be kept away from any possible liquid leak source and separated from metal tools, so pins are neither bent nor shorted. If consumables such as top-up oil or coolant must be carried, put them in a separate sealed cavity with anti-tip retention and leave a drainage and cleaning path in the case.

Mounting Options and Load Limits: Frame, Pannier Rail, Top Box, Crash Bar

Mounting is the decisive factor in on-board tool case safety, and the source of many incidents. The four common positions each have distinct load and failure characteristics.

Direct frame mounting is the most rigid. The case connects to existing frame threads or clamps through a bracket, giving high stiffness and the least vibration amplification, at the cost of limited mounting points and poor universality. Capacity depends on local frame strength and bolt size; an M6 bolt with good support carries roughly 300 to 500 N per point, so at least two fixing points plus locking washers are needed.

Pannier rail mounting offers generous space, good access and symmetric loading left to right. The drawback is a long cantilever and a large moment, so vibration amplification is pronounced; pannier rails also tend to have low natural frequencies that couple readily with road excitation. Keep the tool case on a pannier rail under 5 kg and mount it as close to the frame side as possible.

Top box mounting is limited by box volume, so it usually carries only light tools, and its rearward position far from the centre of gravity has the largest effect on handling. A second risk is secondary release: if the top box base uses only a single locking point, the whole box can pop open on rough ground, so a secondary safety tether is essential.

Crash bar mounting, using a bar bag or bracket, sits low and has little effect on the centre of gravity, which suits tyre repair kits and light items. But the crash bar area takes the first hit in a drop, so the case needs real impact resistance and must not compromise the protective function of the bar itself.

Two hard rules apply to any method. The mounted envelope must stay within a sensible vehicle width, generally no wider than the handlebars, and must never obscure lights, the plate, the exhaust outlet or the wheel's swept envelope. Exceeding either creates legal and safety exposure.

Rattle Prevention and Positive Retention of Every Tool

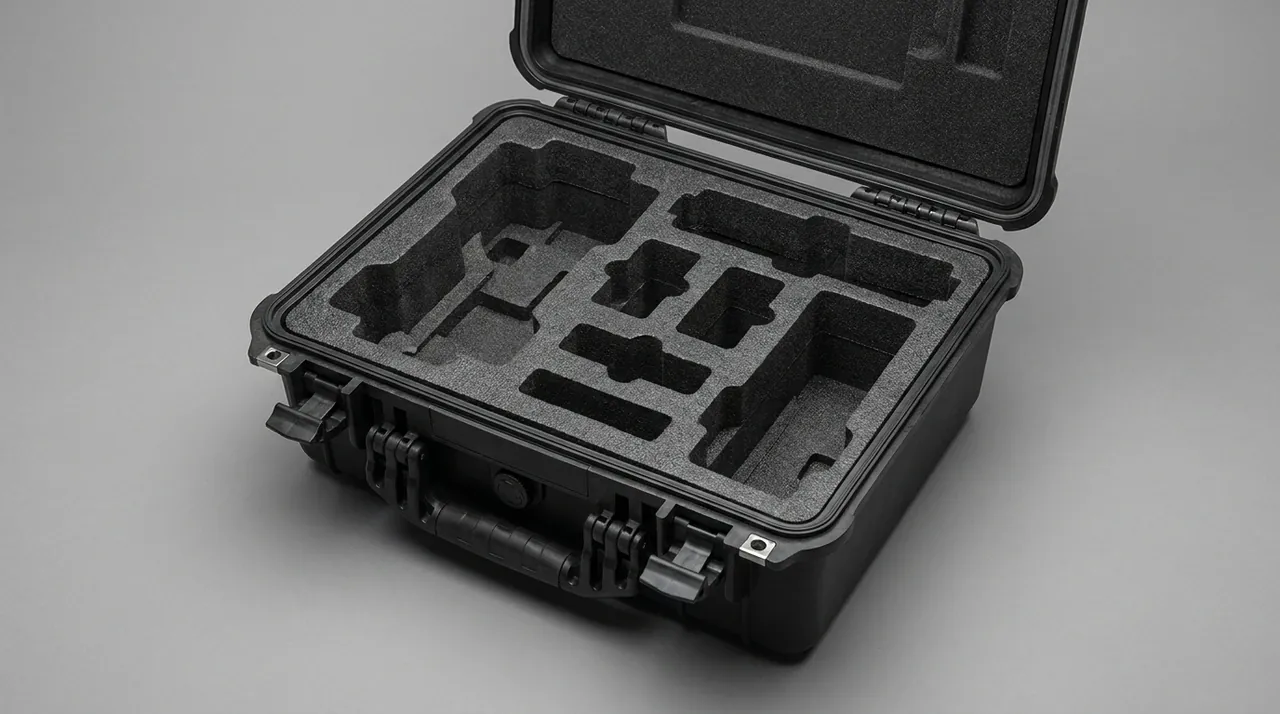

Rattling is not merely a noise problem; it is direct evidence that a tool is moving inside the case, and every movement is an impact and a wear event. Fixing it starts with limiting degrees of freedom rather than stuffing in a rag.

Four retention approaches exist, in rising effectiveness. Fill packs loose foam or cloth into the gaps. It is cheapest and least stable, since foam compacts and stops working. Compartmentalise divides the interior with dividers and foam so one pocket holds one item, limiting horizontal freedom. Die-cut mills cavities to the tool outline with vertical walls and radiused floors, controlling compression to 0.3 to 0.8 mm and locating to about plus or minus 0.5 mm, which restrains both horizontal and vertical freedom. Compress adds a second foam layer or resilient pressure strip inside the lid so closing pre-loads the tools into their cavities, the most reliable arrangement for touring and off-road use.

Trade-offs between these methods are discussed in Toolbox Internal Foam Selection. Three low-cost additions are worth noting: a magnetic strip for flat steel items such as spare washers and small spanners, which reduces the number of pockets needed; a hook-and-loop strap across the middle of the case as secondary restraint against the whole tray jumping; and a 45 degree chamfer on the cavity edge as a finger relief, which aids removal without weakening the locating wall.

Rust and Water Ingress After Rain and River Crossings

Water reaches a motorcycle tool case along three paths: seepage through an under-compressed gasket, rain carried in at the moment of opening, and brief immersion at a river crossing. The first two are slow and chronic, the third is brief and violent, and they need different answers.

For the seal itself, the class should match the scenario. Wind, dust and occasional light rain are covered by IP54 to IP55. Regular wet-season riding and frequent rain suggest IP65. Where fording is expected, across streams, deep puddles or long flooded stretches, choose IP67. Note that IP67 covers brief immersion, not prolonged soaking, and it must be paired with a pressure equalisation valve; otherwise temperature changes create internal negative pressure that deforms the gasket. The life-limiting component of any sealing system is the gasket, so it needs scheduled inspection and replacement, as described in Silicone Gasket Replacement Cycle.

For water carried in at opening, the shell can do two things. Provide a low-point drain, either a gentle floor slope or a small plugged drain hole to empty standing water during indoor servicing. Make the liner lift out as a whole, so the shell can be rinsed and inverted to dry; foam and fabric liners that stay damp grow mould and lose resilience, so they must be washable or replaceable.

For the tools themselves, rust control cannot come from the case alone. Wipe tools down and apply a thin film of protective oil before they go in, especially bare steel such as open-ended spanners, chain tools and reamers. Small items such as spare bolts and washers belong in sealed bags with desiccant. Keep steel and aluminium from long direct contact to avoid galvanic corrosion. If the bike fords water regularly, dry the inner rim of the case after every crossing while checking that the gasket is intact. Actual sealing performance has to be proven by test rather than read off a label; see Waterproof Toolbox IP65 Field Test for a practical method.

Balancing Roadside Access Against Theft Resistance

Roadside efficiency and theft resistance pull in opposite directions: the easier the case opens, the easier it is to steal from, but the harder it opens, the longer the repair takes. The answer is tiered access with two levels.

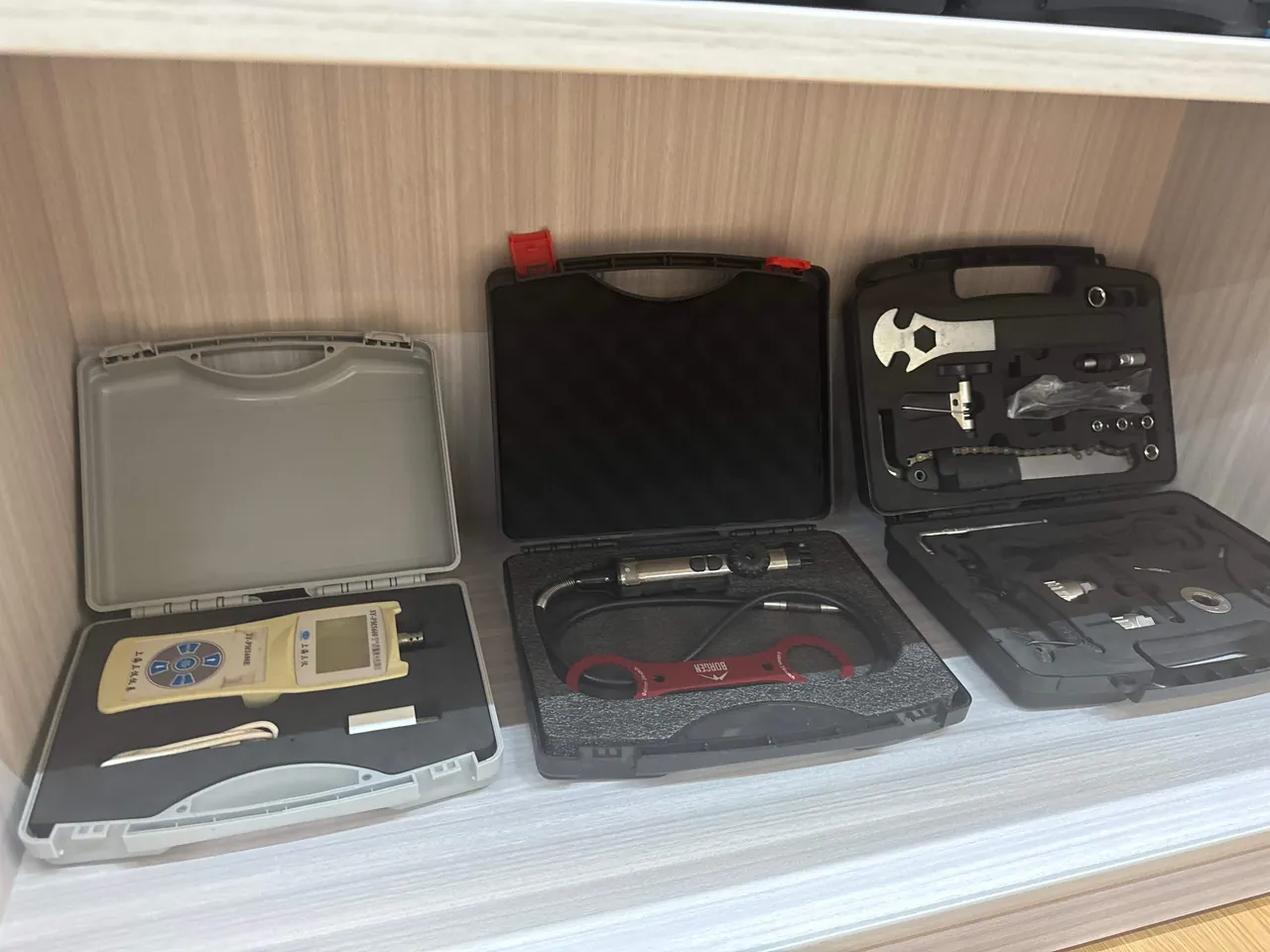

Level one is quick access for high-frequency tools. A shallow zone in the lid or the outermost layer holds the three to five most-used items, such as the hex key set, combination spanners, a screwdriver and zip ties. It can use a single-hand latch or a resilient pressure strip, targeting under five seconds to open. Level two is deep access for low-frequency spares. Spare parts, precision instruments and high-value tools sit in the inner layer behind a lock or a two-hand release, where a 30 second access time is acceptable.

Theft measures should match the risk. A simple padlock suits low-risk use. Urban parking and overnight stops call for a through hasp, tamper-resistant bolts and a secondary lock. High-value kits deserve a locked inner box plus a chain lock anchoring the case to the frame, so the entire case cannot be walked away with. Use security-head fasteners with thread locker on the mounting bolts to slow removal.

Two practical additions matter. First, add reflective tape to the case, since opening a case at night on a roadside is exactly when passive visibility counts; this is often overlooked and always valuable. Second, tape an inventory list with position numbers inside the lid, which shortens handover between riders sharing a bike and makes it easy to spot a missing tool before it becomes a failure.

Liner and Retention Methods Compared

The table below consolidates the preceding trade-offs for selection by scenario.

The rule of thumb is straightforward. Where unit value is high, accuracy matters, or the duty cycle is off-road and long distance, choose die-cut cavities with lid compression. Where universality and cost dominate on short trips, choose divider compartments with filler. Every arrangement benefits from adding one hook-and-loop strap as secondary insurance, because whole-tray bounce is the shared weakness of all compartment schemes. Load verification for brackets follows the logic of Handle Static and Dynamic Load Test; the joint between bracket and case is usually the weakest link in the whole load chain.

Shell Structure, Sealing Class, Acceptance and Maintenance

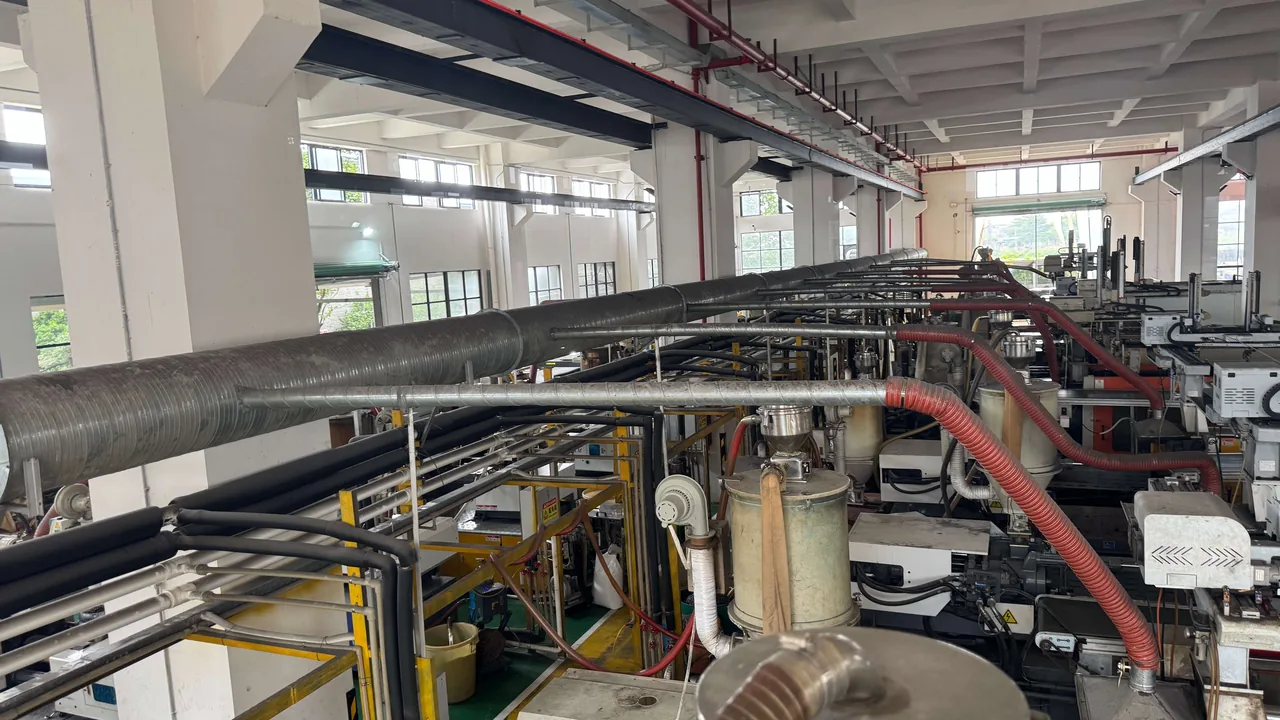

On material, injection-moulded copolymer polypropylene gives the stiffness, dimensional stability and production efficiency that suit volume on-board tool cases. Rotomoulded LLDPE offers thick walls and strong low-temperature impact performance for off-road and heavy-duty use. Blow moulding is a lighter, cheaper structure for entry-level products. The motorcycle-specific twist is that available space is tight while the outer wall is highly likely to be struck, so external corners should be reinforced or over-moulded, and side walls should carry transverse ribs to spread the concentrated load delivered by the bracket.

Sealing class selection was covered above, but the supporting components deserve emphasis. A pressure equalisation valve, a gasket and a latch together form the sealing system: the valve keeps the pressure differential manageable, the gasket provides static sealing, and the latch maintains gasket compression. If any one fails, the effective protection class drops. Latches should use a draw action with pre-tension travel and be fatigue verified; selection logic is in Toolbox Hinge Latch Seal.

Acceptance and maintenance should run on a schedule. On receipt, check the shell for cracks and stress whitening, the gasket for gaps, latch pre-tension consistency and whether bracket holes match the vehicle. Then run two checks, one empty and one fully loaded, watching for tool movement and bracket loosening. Routine care means inspecting the gasket and checking screw torque every three months, replacing desiccant every six months, and inspecting for water after every ford or heavy rain. Replace liner foam that shows permanent set or crumbling, because a compression set means locating accuracy has already been lost, and a case that no longer locates its tools quickly transfers damage to the tools themselves.

Frequently Asked Questions FAQ

Q: Should an on-board motorcycle tool case be IP54 or IP65?

A: The answer depends on exposure rather than budget. IP54 keeps dust out and resists water spray from any direction, which suits urban commuting, bikes with a top box, and cases that park under cover. Its main risks come from rain carried in when the case is opened and from road dust, and neither calls for a higher class. IP65 resists nozzle-directed water jets, which suits year-round riding, frequent rain, and cases mounted on a crash bar or frame where the shell faces the weather directly. Where fording is possible, across streams, deep puddles or flooded stretches, specify IP67 because it tolerates brief immersion. Note that a rating is a laboratory statement, while real performance depends on gasket compression, latch pre-tension and how clean the sealing lip stays. Gaskets harden and lose elasticity over time, so whichever class is chosen, treat the gasket as a scheduled wear item and open the case to check for water after every heavy rain or water crossing.

Q: How much weight can a tool case mounted on a pannier rail carry?

A: Look at the whole load chain rather than the case rating alone. A pannier rail is a cantilever, so the further the case sits from the frame, the larger the bending moment at the rail root for the same weight. As a working rule, keep a rail-mounted tool case under 5 kg in total, and bias the heavy items, the torque wrench, socket set and gas cartridges, toward the frame side of the case. A practical overload test: press the outer end of the case with one finger and watch for visible elastic deflection in the rail, then ride over a speed bump at 40 to 60 km/h and check for loosened bracket bolts and new noises. If the rail deforms permanently or bolts keep backing out, the load or stiffness is mismatched, so shorten the cantilever, add a third fixing point, or move heavy items to the top box or under the seat. Keep left and right loads roughly symmetric so the bike stays balanced.

Q: How do you eliminate rattle from tools inside the case?

A: Rattle is evidence of relative movement between the tools and the case, so the fix is to limit degrees of freedom in four steps. First, stop putting several tools in one pocket; one item per pocket usually removes most of the noise, because tools are no longer striking each other. Second, upgrade compartments to die-cut cavities with vertical walls and radiused floors, compressing the tool by 0.3 to 0.8 mm so it sits under gentle preload, which restrains horizontal and vertical freedom together. Third, add a 5 to 10 mm resilient strip or foam layer inside the lid so closing creates a second preload; for touring and off-road duty this step is close to mandatory, because road impacts briefly unload the tools and let them rebound inside the cavities. Fourth, run a hook-and-loop strap across the middle of the tray to stop whole-tray bounce, which is cheap and highly effective. If noise remains, inspect the bracket and case joint, because a loose bracket, a hardened rubber pad or a bolt without locking provision always announces itself as a rattle.

Q: Why do tyre repair plugs carried on a motorcycle go bad?

A: Heat ageing and storage conditions are the main causes. Tyre plugs are usually butyl rubber or modified rubber, and their tack and flexibility depend on plasticising and tackifying components in the compound. Prolonged exposure above roughly 50 to 60 degrees Celsius accelerates migration and evaporation of those components, so the plug hardens, loses tack, and fails to seal against the tyre carcass when inserted. The area around the rear wheel and exhaust is among the hottest on the bike, so a case in the top box or close to the exhaust can easily exceed the safe internal temperature after summer sun and a long ride. Three improvements help: place the plugs in a compartment away from hot faces, adding a foil or heat-reflective barrier if needed; use a sealed plug tube to limit air contact; and replace by batch, typically every twelve months or at the start of each riding season, rather than judging by appearance alone. Keep plugs away from chain oil and solvent cleaners as well, since solvent vapour ages rubber just as effectively as heat.

Q: Will a torque wrench lose calibration if it lives on the bike?

A: It will, and the drift often happens unnoticed. The measuring element is a spring beam or strain gauge, and sustained preload causes stress relaxation so actual output falls below the set value, while drops and shocks during transport can cause permanent deformation and non-linear error. Control it from both sides. In use, always wind the setting back to the minimum after each job, without going below the maker's stated minimum, so the spring returns to free length, and never use the wrench as a pry bar. In storage, design two supports inside the case, one at the drive head and one at the handle end, so it acts as a simply supported beam rather than a cantilever, which reduces alternating stress at the root, and place it near the mounting face where vibration amplification is lowest. For maintenance, re-verify calibration every six to twelve months depending on use, and for fleet tools keep a log of calibration date and deviation, withdrawing any wrench that exceeds the permitted error.

Q: What should be done with the case after a river crossing?

A: The priority is to detect water ingress early, dry everything thoroughly, and restore the seal. Stop somewhere safe and open the case immediately, checking the floor, the liner edges and the sealing lip for water marks or grit, and confirming that the gasket has not been lifted or deformed by mud. Next, lift the liner out, which is exactly why the liner should be removable, and rinse the shell interior with clean water to remove mud and salt, because grit left on the sealing face will keep defeating the seal and salt will accelerate corrosion of metal parts. Then invert the shell in a ventilated place to dry naturally; do not use a hot air gun on polypropylene or LLDPE, since local overheating deforms the shell and destroys dimensional accuracy. Inspect the tools, dry them and apply a thin oil film, particularly open-ended spanners, chain tools and bare steel parts, and return small items to sealed bags with fresh desiccant. Finally, reassemble and check that latch pre-tension and gasket compression feel normal, and after deep or prolonged immersion also check bracket bolts and any electrical spares that were soaked.

Q: How do you balance quick roadside access with theft resistance?

A: Use two-tier access, splitting opening actions by frequency rather than applying one security level to everything. The first tier is a quick-access zone in the lid or outer layer holding only the three to five most-used items, such as the hex key set, combination spanners, a screwdriver and zip ties, opened with a single-hand latch or a resilient strip, with a target of under 60 seconds from stopping to holding the tool. The second tier is an inner locked zone for spares, precision instruments and high-value tools, using a locked inner box or a two-hand release; a longer access time is acceptable because it corresponds to infrequent events. Match theft measures to risk: a plain padlock for low-risk use; a through hasp with tamper-resistant Torx bolts and thread locker for urban parking and overnight stops; and for high-value kits, a chain lock anchoring the case to the frame so it cannot be carried off whole. Add reflective tape for night visibility, and tape an inventory list with position numbers inside the lid so shared bikes can be handed over and audited quickly.

Q: Should the liner be pre-cut foam or the hand-tearable grid type?

A: The difference shows up in long-term behaviour rather than initial cost. Hand-tearable grid foam, often called pick-and-pluck, is universal and lets the user tear out a shape, with a low unit price and simple stock. Its weaknesses are jagged cavity walls and loose dimensional tolerance, often three to five millimetres, which means poor locating accuracy, and small blocks that shed over time and leave debris inside the case, while compression destroys their rebound so tools start moving again. Pre-cut or die-cut foam gives flat cavity walls, controlled compression and locating accuracy near plus or minus 0.5 mm, and allows density zoning, with dense EVA for the structural layer and EPE for cushioning, which matters for precision and high-value tools. The recommended compromise is pick-and-pluck where generic tools dominate and the inventory changes often, and die-cut liners where a fixed on-board tool list is carried, especially when it includes a torque wrench or precision instruments.

Conclusion and Related Reading

Locating every tool, mounting the case where it can take load, and controlling sealing and drainage decide whether the case is equipment or ballast. JUNZHIJIA offers liner die-cutting, shell tooling and OEM/ODM delivery.
