Why is a weapons consolidated tool kit dearer than a metal chest?

Answer: The money sits in the liner and the number positions: slots are cut item by item, the lid recess and seal holes are extra.

Can a soft bag replace it?

Answer: For short, infrequent trips with a changing list, yes. It has no sealed shell and needs three units in five years.

How should ingress ratings be compared?

Answer: Same immersion depth, same sample ratio, same inspection moment. A bare IP67 claim cannot be set against three options.

What is the minimum for traceability?

Answer: One case number, item numbers per slot and a seal number at opening, all on one sheet.

Is the option with fewest service visits cheapest?

Answer: Not always. Six hours a year is 30 hours over five years; two hours a year plus one gasket set still beats a whole-case replacement.

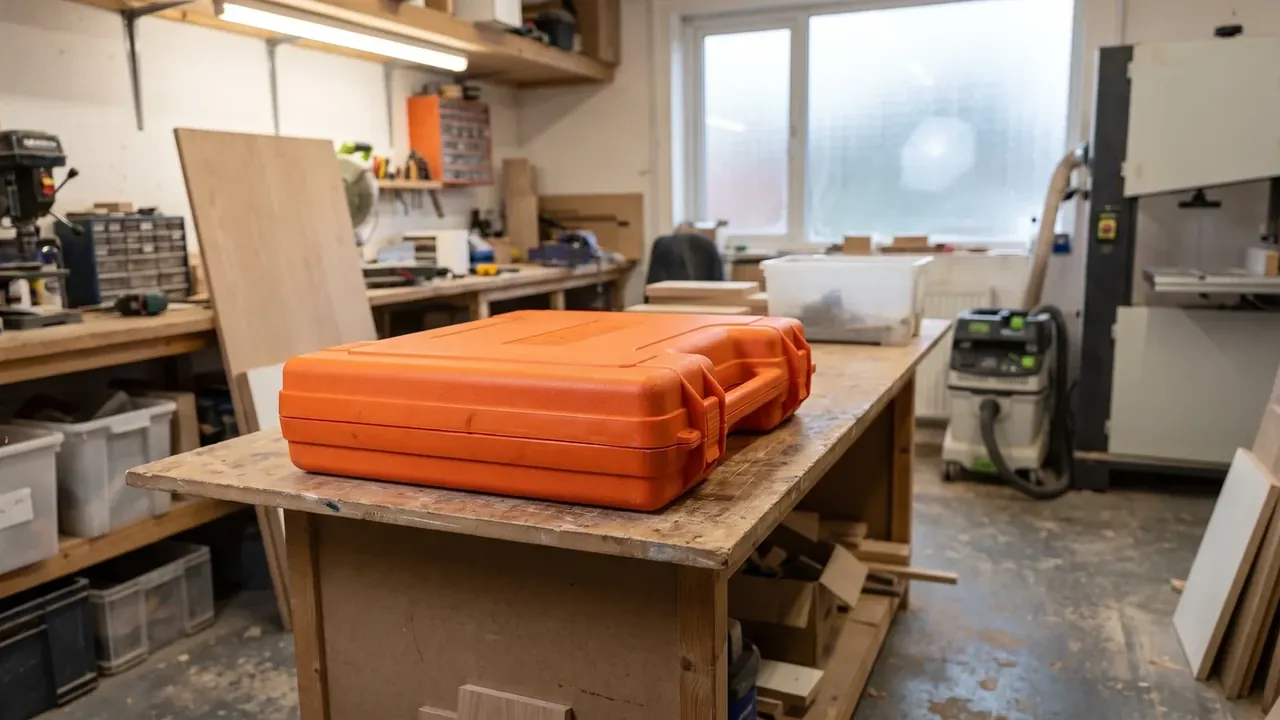

Weapons Consolidated Tool Kit vs Three Alternative Case Types

Quick answer: A weapons consolidated tool kit is not separated from a sheet-metal chest, a soft bag or a plain rotomoulded case by volume. Five measures decide it: ingress rating, check time, cost per loaded kilogram, traceability and service frequency. Fix volume, item count and service life first; the gap then shows in the seal, the slot layout and the number position.

How a Weapons Consolidated Tool Kit Sits Among Three Alternatives
Ingress, Drop and Stack
Check Time in Minutes
Cost Per Loaded Kilogram and Traceability
Service Frequency and the Whole-Life Account
FAQ

1. How a Weapons Consolidated Tool Kit Sits Among Three Alternatives

Quotations differ: a bag by fabric metre, a chest by sheet and welds, a rotomoulded case by mould and wall, a weapons consolidated tool kit as shell plus slots. Fix 40 litres, 42 items and five years.

The weapons consolidated tool kit is a double wall with slots and front seal holes; the chest 1.0 to 1.2 millimetre cold-rolled sheet with three trays, the bag 1680 denier polyester, the plain case a 2.5 to 3 millimetre single wall.

Option	Seal	Empty weight
Soft bag	Water-resistant zip	1.2 kg
Metal chest	8 to 10 mm gasket	7.4 kg
Plain rotomoulded	Round cord in groove	4.6 kg
Slotted kit	U-channel and vent valve	5.9 kg

2. Ingress, Drop and Stack

Split the rating into water, drop and stack; the four options do not rank alike in each.

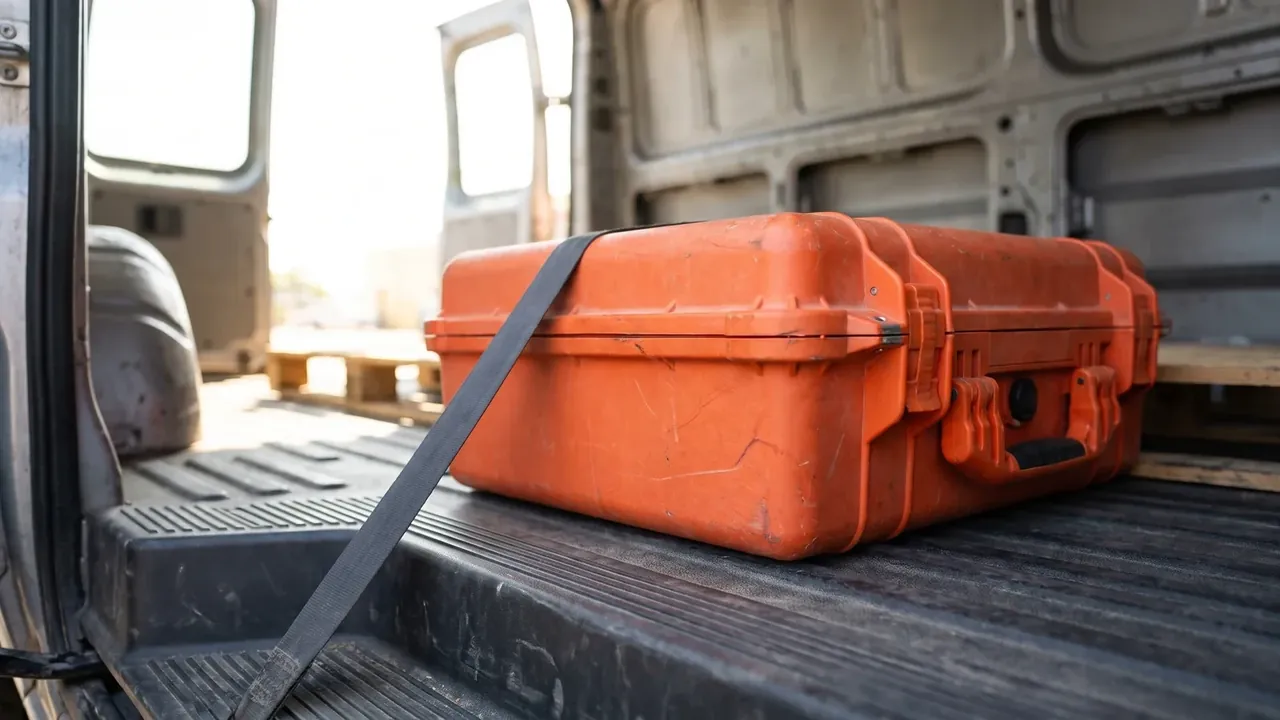

Weapons consolidated tool kit: an orange case on a van floor, a black strap across the lid, scuff marks on the shell, pallets outside

A bag has no sealed shell, only fabric rated 1000 to 1500 millimetres of water column. A chest presses an 8 to 10 millimetre gasket and weeps at the hinge. A plain lid carries a cord but few ribs, so its middle lifts. The weapons consolidated tool kit uses a U-channel and cross ribs: after 30 minutes at IPX7 no water mark may show, on a two-in-ten sample.

Sheet metal dents and stays dented. The kit takes ten drops from 0.9 metres, then 150 kilograms on the lid for 12 hours, 2 millimetres of sag.

3. Check Time in Minutes

One routine, two people, 42 items: lid open, item check, lid closed, signature.

A bag averages 6 minutes 40 seconds, items lying on one another. The chest takes 4 minutes 10 seconds with three trays, the plain case 5 minutes 20 with no numbers in the squares. The kit 1 minute 50 seconds: slot numbers show a missing item as an empty cavity.

At 250 checks a year, that 4 minute 50 second gap comes to about 20 hours.

4. Cost Per Loaded Kilogram and Traceability

Cost per loaded kilogram is price divided by loaded kilograms and by years. On a 40 litre case at 20 kilograms the bag indexes 100, the rotomoulded case 210, the chest 265, the weapons consolidated tool kit 300; price alone favours the bag.

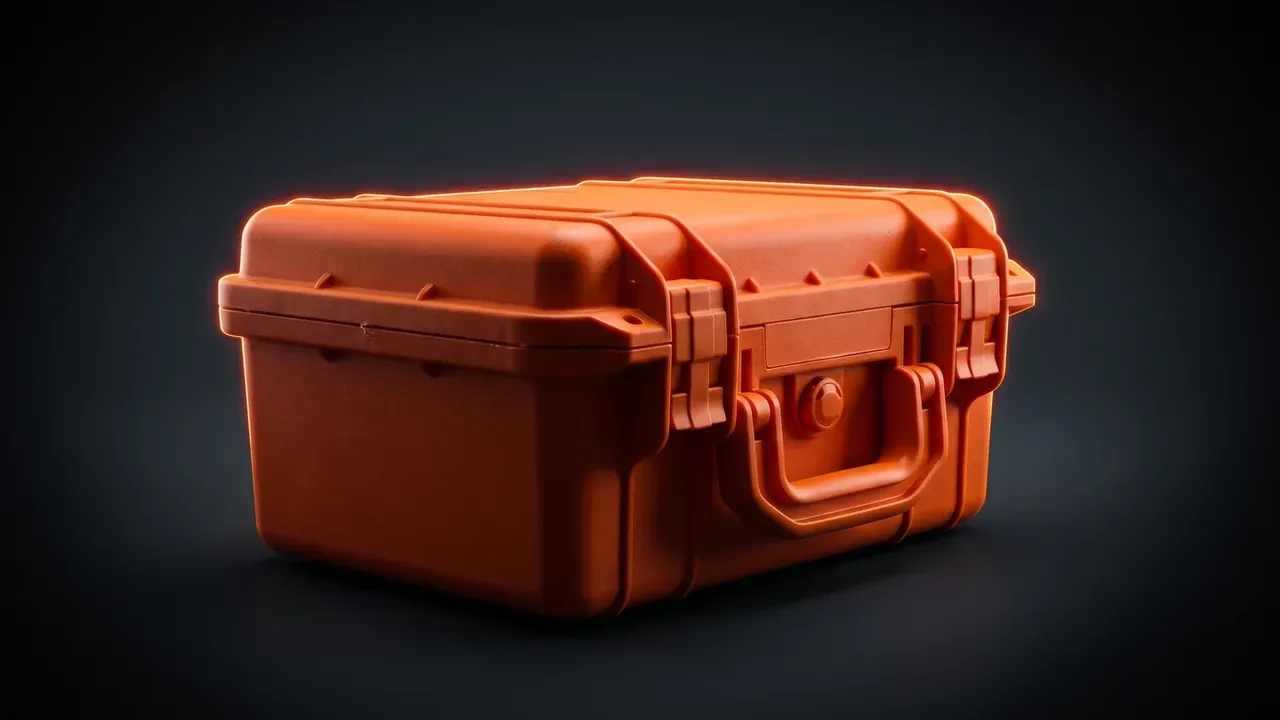

Weapons consolidated tool kit: an orange case angled on a dark grey background, two latches and a round pressure valve at the front

A bag lasts 18 months, 3.3 units in five years, index 330; a chest repaint every five years at 15 percent of price gives 305; rotomoulded over eight years 260; the kit over ten years 300.

Traceability is number positions: a batch label on the bag, an eight-digit plate on the chest, a sticker on the plain case, a 10-digit number in a 60 by 20 millimetre lid recess on the kit.

5. Service Frequency and the Whole-Life Account

Checks run four times a year on a bag, twice on a chest, once on a plain case, once on the weapons consolidated tool kit.

Gaskets go at two years on a chest, three on a plain case, three or 30 percent set on the kit; latches at five years or 5000 cycles. Annual hours: six chest, 3.5 bag, two kit, 1.5 plain.

Option	Checks a year	Gasket	Hours a year	Cost index
Soft bag	4	None, replace whole	3.5	330
Metal chest	2	2 years	6	305
Plain rotomoulded	1	3 years	1.5	260
Slotted kit	1	3 years or 30 percent set	2	300

Conclusion

No option wins on all five: the bag on price, the chest on puncture resistance, the plain case on simplicity, the weapons consolidated tool kit on counting and traceability. What separates them is the measure a handover sheet names, which is where the weapons consolidated tool kit wins.

This article discusses only the container (case body) side of specifications and design intent, and does not cover any handling, loading or use of the contents.
