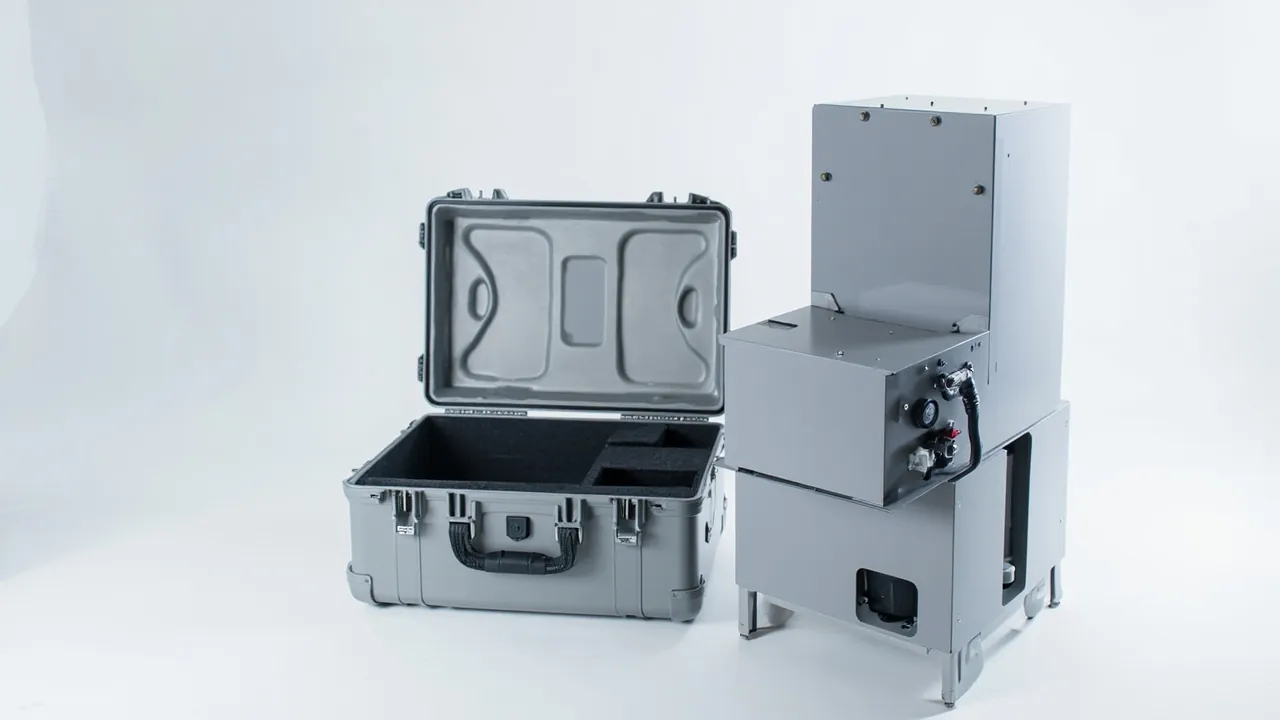

Why Scrubbers and Catalysts Cannot Share One Scheme

Within a single VOCs abatement project, scrubber and catalyst packaging requirements are close to opposites. The reason lies in four differences.

The first difference is value density. Scrubber packing media, nozzles and spray headers are commodity items with modest unit prices and easy availability. Catalyst modules are priced by volume, typically costing several times the scrubber, and have long lead times. Packaging investment should naturally be weighted toward the catalyst.

The second difference is visibility of failure. Damage to scrubber components is almost always visible: a cracked tower section, a deformed nozzle, broken packing. It is known the moment the case is opened. Catalyst damage is mostly invisible: active sites covered, substrate moistened, coating lifted — the appearance is intact while performance has already fallen, and the problem usually only surfaces when emission data goes out of specification after commissioning.

The third difference is load-bearing requirement. Scrubber components are mostly light bulky items (PP, PVC or FRP tower sections) or loose small items (packing rings), needing deformation, collapse and loss prevention. Catalyst modules are heavy brittle items needing rigid cradling and freedom from localized load.

The fourth difference is environmental sensitivity. Scrubber components are generally tolerant of moisture (plastics and FRP do not mind water) but fear UV ageing and thermal stress. Catalysts are extremely moisture-sensitive, losing strength and potentially suffering coating lift when wet.

Their only common point is humidity control. FRP components in prolonged high humidity may suffer resin hydrolysis and a drop in Barcol hardness, and catalysts need no explanation. Humidity control can therefore be considered jointly, while everything else must be designed separately. This division of labour mirrors the logic in waste incinerator component cases, where failure modes are separated before solutions are defined.

Tower and Pipework Materials: Transport Weaknesses of PP, PVC and FRP

Scrubber towers and pipework use four main materials, each with a distinct transport weakness. "It is only plastic, pack it anyhow" is not acceptable.

PP (polypropylene) tower sections are tough and corrosion-resistant but have low stiffness. Under localized compression in transit they creep and take a permanent dent; once a tower flange face deforms, on-site assembly leaks gas or liquid. PP is also cold-sensitive: in cold regions its brittleness increases and impact can crack it.

PVC tower sections are stiffer but more brittle, cracking under impact, with cracks typically starting at flange bolt holes or weld seams. PVC also contains chlorine, so chloride migration is a consideration when metals are packed nearby.

FRP (glass fibre reinforced plastic) towers and ducts are the most common scrubber material. FRP strength comes from the combination of glass fibre and resin, and its weakness is interlaminar shear and localized impact: handling knocks can delaminate internal fibres without any visible external trace, and under operating pressure and vibration the delamination gradually develops into leakage. FRP also suffers UV ageing, with surface resin chalking when stored outdoors.

Linings and internal lining components (rubber or plastic linings) fear lifting and blistering; compression in transit damages the bond between lining and substrate.

One case deserves separate mention: large-diameter thin-wall tower sections. In transit they carry both self-weight bending and stacking pressure, and with too few support points the shell ovalizes, so flange faces misalign on assembly. Empirical practice is to fit annular support rings around the shell so load transfers evenly around the circumference, rather than relying on a few timber bearers as point supports.

Packing Media, Nozzles and Mist Eliminators: Keeping Loose Items Together

Scrubber loose items are numerous and individually small, and they are the main source of missing and mixed parts on site. Three categories need different treatment.

Packing rings (Pall rings, cascade mini rings, Raschig rings and similar) are usually supplied by volume in woven bags. Transport risks are bag rupture causing loss, and loss of identity when different sizes are mixed. Pack per tower section or per layer, mark specification, material and quantity on each pack, and keep the interior dry — some plastic packings deform under sustained compression, so stacking height must be controlled.

Nozzles are precision wear items whose orifice diameter and spray angle govern coverage. Their main transport risks are orifice deformation and internal scoring. Fit protective caps individually and place each in its own compartment. Nozzle materials (PP, PVDF, silicon carbide, stainless steel) differ greatly in brittleness; silicon carbide nozzles are hard but poor in impact resistance and need thicker cushioning.

Mist eliminators come in chevron and mesh types. Chevron units are usually block modules with thin blades and narrow spacing that deform under compression; mesh types lose their density when squeezed. Keep both in their original frames and never stack other goods on top of a module.

Spray headers and circulation pipework are long components, and their branch connections and nozzle bosses are precision areas. Support them along the full length, sleeve the connections, and apply axial restraint at the ends. General practice for related pipe and heat transfer components is set out in heat exchanger component cases.

Circulation pumps and valves contain mechanical seals and mating faces and are precision items needing individual packing; pump couplings and shaft ends must never take direct load.

How Catalyst Deactivation Mechanisms Define Packaging Priorities

The catalyst is the highest-value and most delicate component in the whole abatement system. Understanding how it deactivates is what tells you what transport protection must prevent.

Catalyst deactivation falls into four categories. The first is poisoning: sulphur, halogens, alkali metals and heavy metals strongly adsorb onto or react chemically with active sites, forming compounds that are difficult to regenerate. The second is fouling: dust, particulate matter and high-boiling organics deposit on the catalyst surface, blocking pores and masking active sites. The third is sintering: at high temperature, active component crystallites grow, specific surface area falls, and the deactivation is irreversible. The fourth is substrate degradation: after moisture uptake or thermal shock the substrate develops cracks, loses strength, or even powders.

The first two categories relate directly to transport and storage. Poisoning and fouling normally occur during operation, but if the transport and storage stages introduce contamination into the case, a hidden problem is planted in advance. Examples: sharing a case with packing media, filter bags or sulphur-bearing packaging materials introduces dust and sulphur; using halogen-containing film or chlorine-bearing cleaning agents introduces halogens; excessive internal humidity promotes the binding of sulphides to active sites.

Sintering and substrate degradation relate to transport temperature and shock. Catalyst modules must not be exposed to high temperatures in transit (for example, inside a container baking in summer sun); honeycomb substrates that take impact or localized compression develop microcracks that are hard to see, and these propagate under thermal stress after commissioning.

The Brittleness Envelope of Honeycomb Substrates and How to Support Them

The honeycomb ceramic substrate is the most common catalyst structure in VOCs abatement, and its mechanical behaviour determines the packaging approach.

The honeycomb structure is strong axially and weak radially. Compressive strength along the channel direction is reasonable, but compressive and flexural strength perpendicular to the channels is low, and the structure is extremely sensitive to point loads. Catalyst modules must therefore transfer load evenly through the end faces along the axis, and pressure must never be applied to a module side or to a localized area.

The module's mounting form determines how much load it can take. Common configurations include metal frames, stainless steel mesh shells and ceramic fibre mats. A framed module can let the frame carry the load, simplifying packaging; a bare module needs full cradling plus side infill to prevent movement.

Three transport risks: first, stacking pressure, where too many layers cause the modules below to take excessive side load and develop microcracks; second, shock, where handling drops damage end faces and internal structure; third, vibration wear, where repeated friction against the case wall abrades end face sealing surfaces and coatings.

The recommended support arrangement is "pallet plus end-face cradling plus soft lateral restraint." The pallet provides a rigid face-contact base; end-face cradling lets stacking load travel along the axis; and soft lateral restraint prevents lateral displacement without applying clamping pressure. For unframed modules, fill the sides with compressible cushioning material, with the fill adjusted so that hand pressure meets slight resistance; over-packing applies lateral compression.

On stacking layers: the permitted number of catalyst module layers should follow the manufacturer's recommendation, which is usually well below that of ordinary industrial components. Where a project requires multiple layers, add rigid interlayer boards to route load into the case walls rather than stacking module on module.

Catalyst Poisoning Prevention: Sulphur, Halogens, Alkali Metals and Dust

The word "poisoning" in the catalyst industry usually refers to poisons in the process gas, but in transport and storage there are several poisoning sources that can be introduced by direct contact, and each must be excluded.

The first is organic and inorganic sulphur. Certain rubber products, sulphur-bearing lubricants and some packaging materials made from recycled stock release sulphides. Storing catalysts in the same case delivers the poison directly to the active sites. Packaging materials should therefore be specified as sulphur-free or low-sulphur, and rubber cushioning elements should have their compatibility with the catalyst confirmed.

The second is halogens, chlorine in particular. Chlorine-containing film, chlorine-containing label adhesives and chlorine-bearing cleaning agent residue are all risk sources. This parallels chloride control for stainless steel parts, but catalysts are more sensitive to halogens.

The third is alkali metals and heavy metals. Such contamination usually comes from the external environment rather than the packaging material itself. In practice, protection means maintaining packaging integrity and avoiding unpacking in workshops carrying dust or metal chips.

The fourth is dust and particulate matter. This is the most likely contamination: packing debris, casting sand and carton fibres from other items in the case migrate onto the catalyst surface. Because honeycomb channels are fine and dense, dust that enters is very hard to blow out completely and causes local overheating early in operation. Catalyst modules should therefore occupy a dedicated cavity or a dedicated case, and must never share a cavity with any material that sheds debris.

A practical poisoning prevention checklist: sulphur-free and halogen-free packaging materials (obtain supplier composition declarations); a clean packing area; an individual inner bag for each module with desiccant; no friable or debris-shedding materials anywhere in the case; and no prolonged exposure after opening in a dusty environment.

Humidity and Condensation: The Shared Enemy

Humidity control is the only item that scrubber and catalyst components genuinely need to share.

For catalysts, moisture causes harm along three paths. First, ceramic substrates and ceramic fibre mats lose strength when they absorb moisture, and a change in mat expansion rate alters the clamping preload in the mounting. Second, some metal oxide coatings may hydrolyse or migrate in the presence of moisture; precious metal coatings are more stable, but alkaline constituents on the substrate surface can migrate onto active sites and mask them. Third, a humid environment supplies the medium in which sulphides and halides bind.

For scrubber components the effect is more indirect but real. FRP in prolonged high humidity may undergo resin hydrolysis with surface chalking and a drop in Barcol hardness; unprotected metal flanges and fasteners corrode; rubber linings age faster under damp heat.

Condensation is a greater risk than high humidity alone. Condensation occurs when a surface temperature falls below the dew point of the surrounding air. Day-night temperature swings during transport and storage cause water vapour inside the case to condense on cooler surfaces, and catalyst modules have high thermal inertia — slow to warm and slow to cool — so they readily become the condensing surface during rapid temperature changes. Control follows the pattern described earlier: isolate components from case air with an inner barrier bag or film, place metered desiccant inside the barrier, reduce breathing with a pressure equalization valve, and elevate the case off the floor during storage. The mechanism is explained in how the pressure equalization valve works in a protective case.

One frequently overlooked detail: do not open the case during a temperature transition. A case stored in winter conditions or in an air-conditioned space, moved directly into a warm humid workshop and opened, will condense immediately on catalyst module surfaces. The correct approach is to let it equalize in the storage area for several hours first, and to perform the opening inspection in a relatively dry environment.

Liners and Supports: Two Different Load Paths for Light Bulky and Heavy Brittle Parts

The essential difference in liner design lies in the load transfer path.

Light bulky items (PP and PVC tower sections, FRP ducts) follow the principle of distributed support, displacement restraint and freedom from localized load. Practices include annular support rings around shells; flat pallets under flange faces with protective caps; support points distributed evenly along long pipe runs; divider panels between items with strapping for restraint, and edge protectors wherever strapping touches a component.

Heavy brittle items (catalyst modules) follow the principle of rigid face contact, axial load transfer and soft lateral restraint. Practices include rigid pallets carrying the stacking load; module end faces acting as the load transfer surface; compressible side infill that never clamps; rigid interlayer boards between modules; and stacking layers limited to the manufacturer's recommendation.

Loose items (packing media, nozzles) follow the principle of subdivision, separation and traceability. Practices include packing by specification with labels; individual compartments for nozzles; and a list in the case with compartment structures that can be removed without damage.

The common requirement for liner material is no contamination, no shedding and no moisture absorption. For the catalyst cavity, materials must additionally be sulphur-free, halogen-free and low-outgassing; for spray header and nozzle cavities, materials must contain no abrasive particles. Rubber damping elements should be used cautiously in the catalyst cavity, with compatibility confirmed first.

Marking, Moisture Control and Static Control in Practice

These three items look minor and are troublesome when they go wrong.

A three-level marking system is recommended. The first level is external: item name, project number, case number, gross weight, stacking tier limit, this-way-up and keep-dry marks. The second is cavity-level: identifying the component type stored in that cavity and the opening sequence. The third is item-level: for catalyst modules, model, specification, batch and installation orientation; for nozzles, orifice diameter and spray angle.

Moisture control practice: suspend desiccant distributed in the upper part of the case rather than under components; place humidity indicator cards where they can be seen, with a viewing window in the case wall where necessary; check barrier bags for damage after sealing; and for long-duration projects, agree inspection intervals and replenishment rules in the technical agreement.

Static control addresses two scenarios. The first is protection of electronic components (control cabinet modules, sensors, instruments). The second is work environments involving combustible solvent vapour. The latter deserves particular attention on VOCs abatement projects: where equipment has been exposed to combustible solvent vapour, opening and handling should take place with good ventilation and in accordance with site safety rules, avoiding accumulation of flammable gas inside the case followed by an igniting discharge. For electrical cavity treatment, see the approach in heat treatment equipment cases.

Compliance Boundaries: VOCs Abatement Rules and Spent Catalyst Status

Packaging and transport of air pollution control equipment touch several layers of compliance, which need to be understood separately.

The first layer is the emission compliance context on the equipment side. VOCs abatement facilities are governed by emission standards and fugitive emission control requirements, such as the national standards for fugitive volatile organic compound emission control and the industry emission standards for petroleum refining, petrochemicals and synthetic resins. These constrain equipment operation, not packaging itself, but they influence spare part design: sealing performance, for example, bears directly on fugitive emission control, so protecting seal faces during packaging and storage has a compliance dimension.

The second layer is environmental requirements on packaging materials and work steps. Where components carry coatings, volatile substances or solvent residue, sealed packaging in a hot environment can cause volatiles to accumulate and produce a concentration peak at opening. Work instructions should therefore state ventilation and personal protection requirements before opening. Waste water and residues from cleaning and clearing should be handled under site environmental rules.

The third layer is the status of spent catalysts and contaminated parts. Spent catalysts typically carry specific management requirements under different legal systems and may fall into a specially regulated waste category. When packaging and shipping catalyst that has already been used and is returning for regeneration or disposal, take particular care: first confirm the component's status and the applicable management requirements; use sealed packaging with clear marking; ship separately rather than mixing with new catalyst; and state the component condition and origin honestly in the accompanying documents. Where dangerous goods packaging and marking requirements apply, work to the general clauses listed in packaging and marking rules for dangerous goods cases.

In every case, honest marking and traceable documentation are the baseline. This serves compliance and also site safety: unpacking staff need to know whether components carry chemical residue, whether respiratory protection is required, and how the contents should be handled after opening.

Test References and Acceptance Criteria

Verification for these component cases needs to cover mechanical, environmental and cleanliness lines.

Mechanical references: pick the stacking, vibration, impact and drop procedures that match the real transport mode from the GB/T 4857 family; adopt the relevant ISTA program for intermodal movements; and for export shipments, structure the test sequence with ASTM D4169 on a distribution-cycle basis. For large FRP items the stacking test matters especially, because shell side walls have limited compressive capacity.

Environmental references: damp heat and thermal cycling tests to assess condensation risk; salt spray methods to assess corrosion protection on metal flanges and fasteners. MIL-STD-810H may be cited as a source of environmental test methods, but the document must describe it as a cited method, not a military certification, listing the method numbers and severity levels used, so it cannot be misread as a product qualification.

Cleanliness checks should be written into the technical agreement and cover: visible particles in the catalyst cavity after opening; impact damage on module end faces and sides; completeness of packaging material composition declarations; and internal humidity indicator readings.

Suggested acceptance criteria:

Storage, Unpacking and Pre-Loading Recheck

Storage. Catalyst modules should be stored in a dry, light-excluded room with modest temperature swings, avoiding open yards and containers baking in the sun. FRP items should be shaded and elevated off the floor to avoid ground damp and UV ageing. Packing media and nozzles can be stored at ambient temperature provided packaging stays intact. For long-duration projects, inspect humidity indicators quarterly and replenish desiccant.

Unpacking. Let the case equalize first, then read humidity indicators, then inspect the inner bag, then examine each item. For catalyst modules, focus on end face sealing surfaces and sides for impact marks; because internal microcracks are invisible, record and photograph the appearance and end faces in detail before loading as the basis for any later liability assessment.

Pre-loading recheck. Before loading catalyst, confirm four things: module appearance undamaged; specification and batch matching the design; installation orientation marking clear; and cleanliness acceptable (no dust, no oil). For catalyst commissioned after long storage, if packaging shows moisture ingress or the indicator card has changed colour, assess per the manufacturer's guidance rather than loading directly.

Repacking and reuse. Scrubber maintenance windows usually align with production shutdowns and are tight on time. Once spares are used, the case often stores further spares, so liners should be removable and refittable, with the layout drawing and list kept in the case.

Customization Workflow and Supply Models

Customizing component cases for air pollution control projects is essentially about expressing two different logics within one case family. A six-stage workflow is recommended.

Stage one, process and component information. Establish the abatement process (spray scrubbing, packed absorption, adsorption concentration, catalytic oxidation, regenerative thermal oxidation and so on), component materials, dimensions and weights, and whether residue or coatings are present.

Stage two, classification. Sort components into light bulky, loose small, precision brittle and electrical groups, and identify which must have dedicated cases.

Stage three, scheme design. For each group, define support method, liner material, barrier and desiccant arrangement, marking system and document list.

Stage four, trial case with real loading. Build a trial case with the actual list, check access convenience and restraint, and verify in particular that the lateral restraint on catalyst modules is neither too loose nor too tight.

Stage five, testing and production. After the agreed tests pass, move to volume production with records retained against the project number.

Stage six, delivery support. Provide refitting drawings, unpacking and loading work instructions, storage guidance and recheck intervals.

The cases described above are produced by Kexin New Materials (Guangdong) Co., Ltd. Cavities and cradle structures can be customized around scrubber packing specifications and catalyst module dimensions. The company takes on business through wholesale, agency and OEM/ODM arrangements and supplies customers worldwide; where a project requires it, test documents and material certificates can be provided under the terms of the contract. Where a project also covers dust collection or heat recovery components, review the approaches in dust collector equipment cases and industrial kiln component cases so the case family can be planned as one series.

Frequently Asked Questions

Q: Can catalyst modules be packed in the same case as scrubber packing media?

A: Not advisable unless strict cavity separation and independent cleanliness control are in place. There are three layers of reasoning. First, the contamination direction is one-way: packing rings, ceramic or plastic packings generate debris and dust during handling or previous service, and once dust enters honeycomb channels it is very difficult to blow out, causing local overheating and masking active sites after commissioning — while the packing media suffers no harm. Second, the load-bearing requirements differ: packing media is supplied by volume and can be stacked, whereas catalyst modules are heavy brittle items with low radial compressive strength and sensitivity to point loads, so one stacking arrangement cannot satisfy both. Third, although humidity targets can be aligned, the catalyst cavity needs its own barrier bag and desiccant; if shared with loose items, the repeated opening needed to retrieve a few packing rings destroys the sealed state of the clean cavity. If co-packing is unavoidable, separate the cavities with a rigid divider, seal the catalyst cavity independently, and keep it away from any debris-shedding material.

Q: What are honeycomb catalysts most vulnerable to in transport?

A: Three things: radial compression, impact and moisture. The honeycomb structure has reasonable axial strength but low compressive and flexural strength perpendicular to the channels, and it is extremely sensitive to point loads; once a module side takes stacking pressure it can develop microcracks that are hard to see, and these propagate into damage under thermal stress after commissioning. Impact comes mainly from handling drops and relative movement inside the case, causing end face damage and internal cracking. Moisture reduces the strength of ceramic substrates and ceramic fibre mats, and a change in mat expansion rate alters the clamping preload, while humid conditions also provide the medium in which sulphides and halides bind. Packaging must therefore provide: rigid pallet cradling, load transfer along the axis through end faces, compressible side infill that never clamps, stacking layers limited to the manufacturer's recommendation, an independent barrier bag with metered desiccant, and handling that avoids drops and lateral impacts. Note that microcracks are practically undetectable on site, which is why opening records and photographic documentation are the key evidence for liability assessment.

Q: Why do catalysts become poisoned, and what poisoning sources exist in the transport stage?

A: Catalyst poisoning is the strong adsorption or chemical reaction of sulphur, halogens, alkali metals and heavy metals with active sites, forming compounds that are difficult to regenerate and are mostly irreversible. In the transport and storage stage there are three main source categories. First, sulphur-bearing materials: some rubber products, sulphur-bearing lubricants and certain packaging materials made from recycled stock release sulphides, and storing catalysts alongside them delivers the poison directly to the vicinity of active sites. Second, halogen-bearing materials: chlorine-containing film, chlorine-containing label adhesives and chlorine-bearing cleaning agent residue can all introduce halogens. Third, dust and particulate matter create compound contamination: dust itself causes fouling, but when it carries alkali metal or heavy metal constituents it also triggers poisoning. Protective measures follow: obtain sulphur-free and halogen-free composition declarations for packaging materials; confirm compatibility before using rubber cushioning elements; give catalysts a dedicated cavity with a clean inner bag; keep the packing area clean; and avoid prolonged exposure in dusty environments after opening.

Q: Why do FRP components in a scrubber need careful protection too?

A: Because FRP damage is often internal while the exterior looks intact. FRP strength comes from the bond between glass fibre and resin, and its weak point is interlaminar shear. Handling knocks or point loads can delaminate internal fibres without leaving an obvious external trace, and after commissioning the delamination gradually develops into leakage under pressure, temperature and vibration, at which point repair usually requires local cut-out and reinforcement — laborious work with an impact on appearance. FRP is also sensitive to UV ageing, and outdoor storage chalks the surface resin and lowers Barcol hardness, which in turn affects corrosion resistance. Large-diameter thin-wall tower sections have a third problem: with too few support points the shell is pressed into an oval and flange faces misalign on assembly. Protection priorities are therefore: annular support rings to distribute load evenly around the circumference; no point supports or localized compression; shading and elevation during storage; no impact or dragging during handling; and tapping checks at suspect locations during receiving inspection to listen for abnormal hollow sounds.

Q: How should loose items such as nozzles and packing media be packed so nothing goes missing on site?

A: The core is three actions: subdivide, mark and trace. Subdivision means packing by specification or by tower layer rather than mixing different sizes in one bag; packing media divided by tower layer lets the site charge material directly by pack, avoiding a second sorting step. Marking means writing specification, material, quantity and the corresponding tower section on each pack, with a master list in the case that matches the physical contents item by item. Tracing means keeping a packing record: who packed it, when, and the quantity in each pack, so any discrepancy can be retraced. For precision small items such as nozzles, use compartment structures inside the pack and fit individual protective caps so parts cannot knock against each other and deform orifices; orifice deformation changes spray coverage and generally cannot be repaired on site, only replaced, so protection costs far less than replacement. Finally, liner and compartment structures should be removable without damage, so remaining parts stay protected after some items are taken out.

Q: How should the number of catalyst module stacking layers be determined?

A: Follow the manufacturer's recommendation, which is normally well below the permitted layer count for ordinary industrial components. The reason is that catalyst compressive capacity is anisotropic: along the channel direction it is reasonable, but perpendicular to the channels it is much lower, and stacking pressure is ultimately transferred through sides and end faces, so the more layers, the greater the lateral load on the modules below. Where a project genuinely requires multiple layers, the answer is not simply adding layers but changing the load path: insert rigid interlayer boards between layers to route upper-layer weight into the case walls or frame so the modules themselves carry no weight from above, and use end faces as the primary load transfer surface with sides serving only as soft restraint. Transport vibration friction should also be considered, and no relative movement space should exist between modules and case walls. If these conditions cannot be met, add more cases and spread the load rather than risk increasing stacking layers, because catalyst value density is far higher than case cost.

Q: What should be considered when storing and unpacking catalysts?

A: Storage must satisfy four conditions: dry, shaded, modest temperature swings, and intact packaging. Moisture is the primary control, so place metered desiccant inside the barrier layer with humidity indicator cards; light exclusion protects mounting materials and some coatings from UV effects; modest temperature swings reduce internal condensation, since a container in summer sun can be much hotter than ambient; and intact packaging keeps external dust and contaminants out. Unpacking should follow the sequence: equalize first, read indicators first, inspect item by item last. A case taken from cold or air-conditioned storage should be allowed to equalize in the storage area before opening, or cold surfaces will condense immediately in warm humid air. Read humidity indicators first to decide whether the inspection scope must be widened, then check module end faces and sides for impact marks. Because internal microcracks are invisible, record and photograph module appearance and end faces in detail before loading as the basis for later liability assessment. If an indicator card has changed colour or packaging shows moisture ingress, assess per the manufacturer's guidance rather than loading directly.

Q: Which tests should these component cases undergo?

A: Work along three lines. Mechanical: draw the appropriate stacking, vibration, impact and drop procedures from the GB/T 4857 family for the transport mode in question, or work to an ISTA program or an ASTM D4169 distribution-cycle sequence; the stacking test matters especially for large-diameter thin-wall tower sections and FRP items, whose side walls have limited compressive capacity. Environmental: damp heat and thermal cycling tests assess condensation risk, and salt spray methods assess corrosion protection on metal flanges and fasteners; MIL-STD-810H may be cited as a source of environmental test methods, but must be described as a cited method and not a military certification, with method numbers and severity levels listed, so it cannot be misread as a product qualification. Cleanliness and functional: particle checks in the catalyst cavity, appearance confirmation of module end faces and sides, documentary review of packaging material composition declarations, and internal humidity indicator readings — all of which need to be defined in the technical agreement, since general packaging standards do not cover them.

Q: What special requirements apply to packaging spent catalyst returning to the factory?

A: Confirm the status first, then decide the method. Spent catalyst typically carries specific management requirements under different legal systems and may fall into a specially regulated waste category, so before returning it for regeneration or disposal, establish its status and applicable scope rather than treating it as ordinary industrial goods. Once the status is established, four packaging practices are recommended: use sealed packaging to prevent dust and residue leakage; mark clearly with the item name, source unit, condition and cautions; ship separately rather than mixing with new catalyst or other spares, avoiding cross-contamination; and state the condition, origin and quantity honestly in the accompanying documents so the receiving party can handle it under its own management rules. Where dangerous goods packaging and marking requirements apply, follow the corresponding general practice. In addition, personal protection and the work environment for unpacking staff should be described in the work instruction, because spent catalyst may carry chemical residue, and opening and transfer should take place with good ventilation and in accordance with site safety rules.

Conclusion and Related Reading

Designing air pollution control component cases means fitting two entirely different logistics needs into one case family: bulky items need form retention, high-value items need absolute cleanliness. Tower sections, pipework and loose items are organized around crack prevention, deformation prevention and loss prevention, with annular support, layered subdivision and full-length support as the three keywords. Catalyst modules are organized around moisture, contamination and compression prevention, with rigid cradling, axial load transfer and independent sealing as the three keywords. Humidity control is the single technical thread the two share. At receiving inspection, beyond routine appearance and document checks, write catalyst cavity cleanliness, humidity indicator readings and module end face records into the criteria, because these three determine whether this batch of high-value spares can go directly into service.
