Waste Incinerator Cases: Grate & Heat-Recovery Component Protection

Spare-part packaging for municipal waste and hazardous waste incineration lines differs from ordinary industrial equipment cases in one decisive respect: corrosion, not impact, is the dominant failure mode. Grate bars spend their service life in contact with high-temperature flue gas and ash laden with chlorine and sulphur, while heat recovery tube bundles carry steam and water internally and accumulate fly ash externally. Whether the part is a used component removed during an overhaul or a new component that has been pickled and corrosion-protected, inadequate protection during transport and storage produces rust and chloride contamination that shortens service life immediately after the next start-up. The design conclusion is that incinerator component cases should make barrier protection against corrosive media, surface cleanliness control and condensation suppression the primary line, with mechanical restraint and cushioning second.

This article is written for waste-to-energy plants, hazardous waste treatment operators, incinerator and heat recovery boiler manufacturers, and environmental engineering contractors. It covers packaging methods for grate bars, grate beams, heating surface tube bundles, headers and economiser components; combined VCI and barrier film strategies; surface cleanliness and chloride residue control; dew point and condensation management; compliance boundaries for environmental equipment transport; and an unpacking acceptance workflow. Figures quoted are typical industry values and experience ranges; the actual scheme must follow the equipment drawings, transport mode and contractual technical specification.

Table of Contents

• Three Simultaneous Challenges: Corrosion, Residue and Heavy Load
• Grate Bars and Grate Beams: Materials, Duty and Damage Modes
• Protecting Heat Recovery Tube Bundles and Headers
• Anti-Corrosion Packaging: Combining VCI Film and Barrier Film
• Surface Cleanliness and Chloride Residue Control
• Liners and Restraint: Choosing Corrosion-Resistant Materials
• Moisture, Condensation and Dew Point Control
• Compliance Boundaries for Environmental Equipment Transport
• Test References and Acceptance Criteria
• Export Ocean Freight and On-Site Storage Yards
• Unpacking Acceptance and Record Management
• Supply Models and OEM Cooperation
• Frequently Asked Questions
• Conclusion and Related Reading

Three Simultaneous Challenges: Corrosion, Residue and Heavy Load

Packaging incineration line spares is difficult because three problems occur together and amplify one another.

The first is corrosive media. Flue gas from municipal and hazardous waste incineration contains hydrogen chloride, sulphur dioxide, nitrogen oxides and heavy metal compounds, and fly ash is enriched in chloride salts. These substances are relatively stable when dry, but once combined with moisture they form strongly corrosive electrolyte solutions. Chloride ions on a metal surface not only accelerate electrochemical corrosion but also break down passive films, producing pitting and crevice corrosion. This type of attack is far more concealed than uniform rusting, and it is common for a surface to look sound while corrosion pits have already formed beneath it.

The second is residue and contamination. Grate bars and tube bundle exteriors removed during an overhaul carry ash, salt deposits and unburned material. That residue contains water and chloride, and inside a closed case it becomes a continuous corrosion source. Packing without cleaning is equivalent to sealing a corrosion source inside the case. Dust from the residue also spreads under transport vibration and contaminates other components in the same case.

The third is heavy load coexisting with brittleness. Grate bars are usually high-chromium heat-resistant castings; individual weight is modest but quantities are large and stacked weight is significant. Grate beams and headers are long or heavy components. Heat recovery tube bundles are thin-walled tube banks with low stiffness that deform easily. These three families need different load-bearing and restraint approaches, yet frequently ship in the same batch.

They amplify each other in a specific sequence: residue supplies moisture and chloride, moisture condenses under temperature cycling, chloride produces pitting on the metal surface, heavy load and vibration spall the corrosion product layer, and fresh active surface is exposed to continue corroding. Packaging design must therefore aim at breaking that chain rather than simply adding more foam. Where a project also covers flue gas treatment components, the practices in air pollution control equipment component cases and dust collector equipment component cases are useful references.

Grate Bars and Grate Beams: Materials, Duty and Damage Modes

An incinerator grate system normally consists of alternating fixed and moving grate bars, together with grate beams, drive mechanisms and air plenums. Damage modes differ between components, and packaging strategy should follow.

Grate bars are usually high-chromium cast iron or heat-resistant alloy castings operating at high temperature under abrasive wear and thermal fatigue. The main damage modes in service include tooth wear and deformation, body cracking, and oxidative spalling of the working surface. In transport the risks concentrate in three places: tooth chipping, where a missing corner changes grate clearance and pushing behaviour; rusting of cast surfaces, affecting assembly clearance and appearance acceptance; and edge crushing from stacking. Grate bars should therefore be stacked in layers rather than tipped in bulk, with dividers between layers and corner protection at edges.

Grate beams are long components that normally carry bending load, so the main transport risks are bending deformation and damage to support faces. Use multi-point support, avoid long unsupported spans, and fit limiters at both ends and at mid-span to prevent axial travel.

Drive and transmission parts, such as hydraulic cylinders, connecting rods and swing arms, contain fit faces and seals, and their packaging requirements resemble those for ordinary hydraulic components, with emphasis on fit-face protection and dust exclusion.

The table below maps corrosion risk to packaging measures:

Handling of used parts deserves explicit attention. Grate bars and tube bundles removed during an overhaul usually carry firmly bonded ash and salt deposits that simple blowing cannot remove. Clean them before packing, by water or chemical methods as the manufacturer recommends, dry thoroughly, then apply the same corrosion protection and barrier packaging used for new parts. Where cleaning is genuinely not possible, at minimum mark the case and packing list as uncleaned and ship those items in separate cases, so cross-contamination does not spread to other spares.

Protecting Heat Recovery Tube Bundles and Headers

The heating surface of a heat recovery boiler is among the highest corrosion risk locations on an incineration line, and also the most difficult component to package. Its structural features determine the packaging requirements.

Tube bundles are thin-walled tube banks. Individual tube wall thickness is limited and overall stiffness is low. The main transport risks are bank bending, tube impact damage and tube end deformation. Support should use cradles or segmented saddles so the bank carries load through area contact, and it is unacceptable to sling the bank with wire rope or support it at a single point.

Internal tube surfaces must be dry. After pickling and hydrostatic testing, a newly manufactured tube bundle retains moisture internally, and without drying and capping the internal bore will rust during transport and storage. The sequence is: dry as the manufacturer recommends, for example with hot air or dry air purging; fit caps at tube ends, either plastic plugs or dedicated end covers; and place desiccant inside or adjacent to the cap. Caps must be reliably fixed so that vibration cannot loosen them and allow foreign matter to enter.

Stub seal faces on headers and manifolds are precision features. Once a seal face corrodes or is scratched, on-site welding or assembly requires re-machining, and the header material and wall thickness limit the available re-machining allowance. Support the header on an area-contact cradle, fit a dedicated protective cover over the seal face, and give it an independent cavity in the case.

Finned tubes and economiser components need additional care. Fins are thin-walled structures that cannot recover after local compression, and the effect is a direct loss of heat transfer area. The fin zone must carry no stacking load, and rigid protective plates should divert pressure into the frame.

Galvanic corrosion in mixed-material shipments also deserves attention. Heat recovery components may include carbon steel, low-alloy steel and stainless steel items, and direct contact between them in a damp environment creates a galvanic couple that accelerates corrosion of the more active metal. Provide an insulating separation layer between components of different materials.

From a packaging engineering perspective, the most suitable arrangement for heating surface components is a dedicated case with internal barriers and capped tube ends. Where dimensions force co-packing, ensure the bundle carries no load, is not adjacent to heavy components, and has its own barrier layer and desiccant. General practice for heat exchange components is covered in heat exchanger component cases.

Anti-Corrosion Packaging: Combining VCI Film and Barrier Film

The core logic of anti-corrosion packaging is barrier first, inhibition second, monitoring third, and all three are required.

Barrier means reducing the permeation of water vapour and corrosive gases. Aluminium foil composite film and high-barrier vacuum bags are common materials. For incinerator components the barrier target is not only water vapour but also acidic gases such as sulphur dioxide, which dissolve in condensed water films to form acidic solutions that corrode far faster than water alone. Gas transmission rate therefore deserves attention alongside moisture transmission rate.

Inhibition means actively suppressing corrosion within the enclosed space. Vapour-phase corrosion inhibitor materials release inhibiting compounds into the enclosure and form a molecular-level protective layer on metal surfaces, suppressing corrosion even when a small amount of moisture enters. For crevices, blind holes and tube interiors that are difficult to coat, VCI has a clear advantage.

Monitoring means confirming through visible means such as humidity indicator cards that protection is still effective. This step is the most frequently omitted in practice, yet it determines whether the condition can be judged immediately on opening.

The combinations available are compared below:

Two constraints apply when selecting a combination. The first is downstream process constraint: weld areas should use welding-compatible corrosion inhibitors whose residues do not impair weld quality, and surfaces that will be painted should be confirmed cleanable by routine methods. The second is material compatibility: VCI materials can react with certain rubber seals, plastic parts or coatings, causing swelling or discolouration, so compatibility should be confirmed at the design stage.

For incinerator components the recommended baseline configuration is removable rust preventive on critical machined faces, VCI film wrapping, an outer barrier film, metered desiccant and a humidity indicator card. This configuration suits tube bundles, headers and grate beams alike, with wrapping extent and desiccant quantity adjusted to component size.

Surface Cleanliness and Chloride Residue Control

For incinerator components, surface cleanliness is a precondition for corrosion protection, because any remaining salt or ash acts as a corrosion source. Four control points apply.

First, remove residue thoroughly. Overhauled parts should be cleaned and dried. Cleaning method follows material and coating, avoiding agents that introduce new contaminants. Follow with drying, especially in crevices, blind holes and tube interiors.

Second, control chloride residue. Chloride is the most typical corrosion trigger in incineration duty. On stainless steel components, chloride breaks down the passive film and causes pitting and stress corrosion cracking. Avoid chlorine-containing cleaning agents, and ensure packaging materials contain no chlorine; certain chlorine-bearing plastic films can release chlorides under specific conditions. Where the project specifies cleanliness acceptance, test surface chloride residue by the agreed method.

Third, prevent contamination from the packaging materials themselves. Paper packaging may contain acidic substances, low-grade foam may release plasticisers, and recycled materials may contain sulphur or chlorine. State material composition limits and cleanliness requirements in the technical specification.

Fourth, prevent secondary contamination in transit. The case interior should contain no materials that shed debris; straps and corner guards should be abrasion resistant and non-shedding; and any uncleaned items carrying ash must be strictly separated by cavity.

The table below gives operable cleanliness requirements:

Note that cleanliness and corrosion protection are sequential: clean first, dry second, protect third. Reversing the order leaves the corrosion preventive coat over contamination, where it neither functions nor permits later cleaning.

Liners and Restraint: Choosing Corrosion-Resistant Materials

Liner selection for incinerator components carries two additional constraints: the material itself should resist corrosion or at least introduce no corrosive media, and it must tolerate heavy load and vibration.

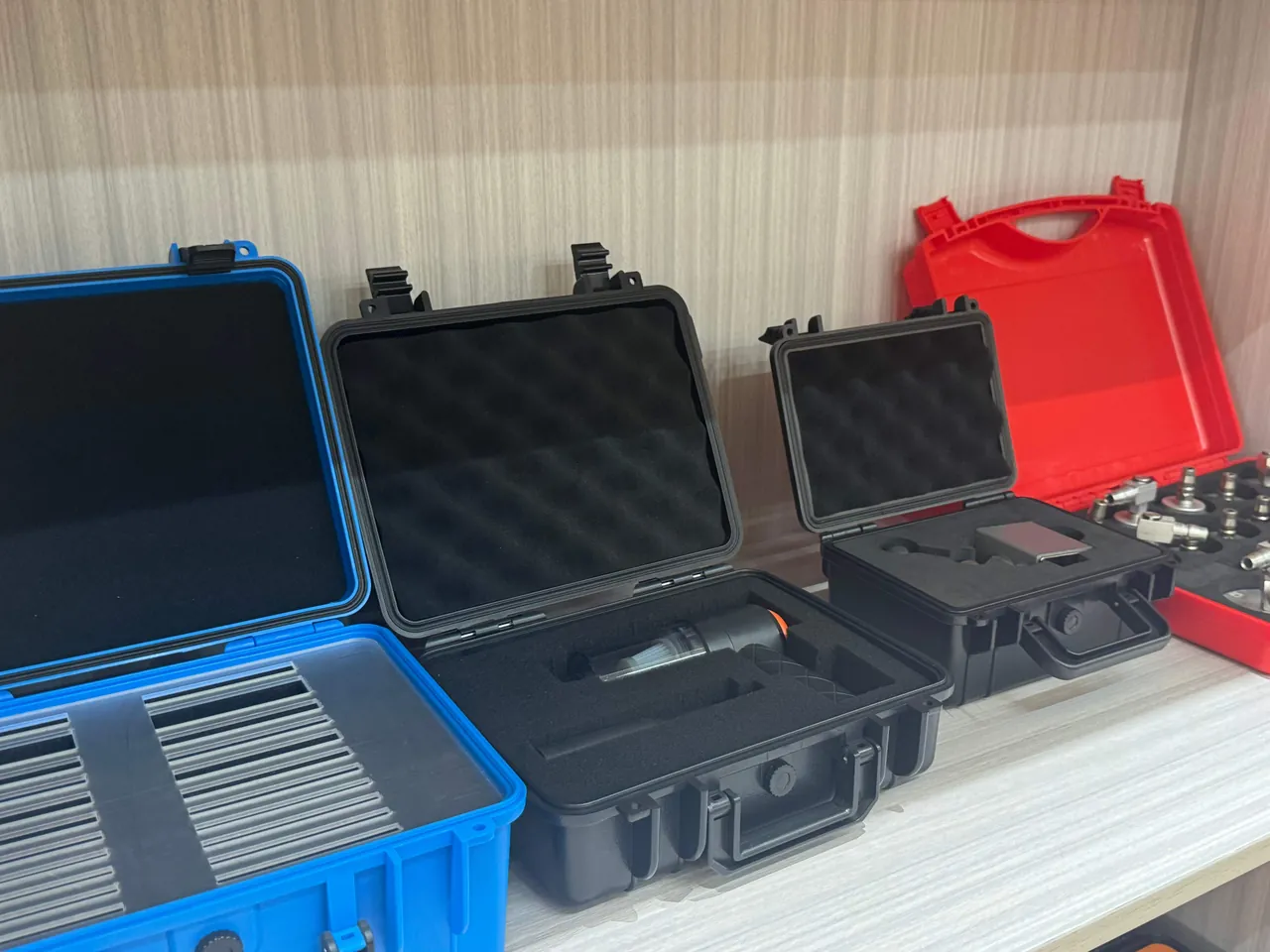

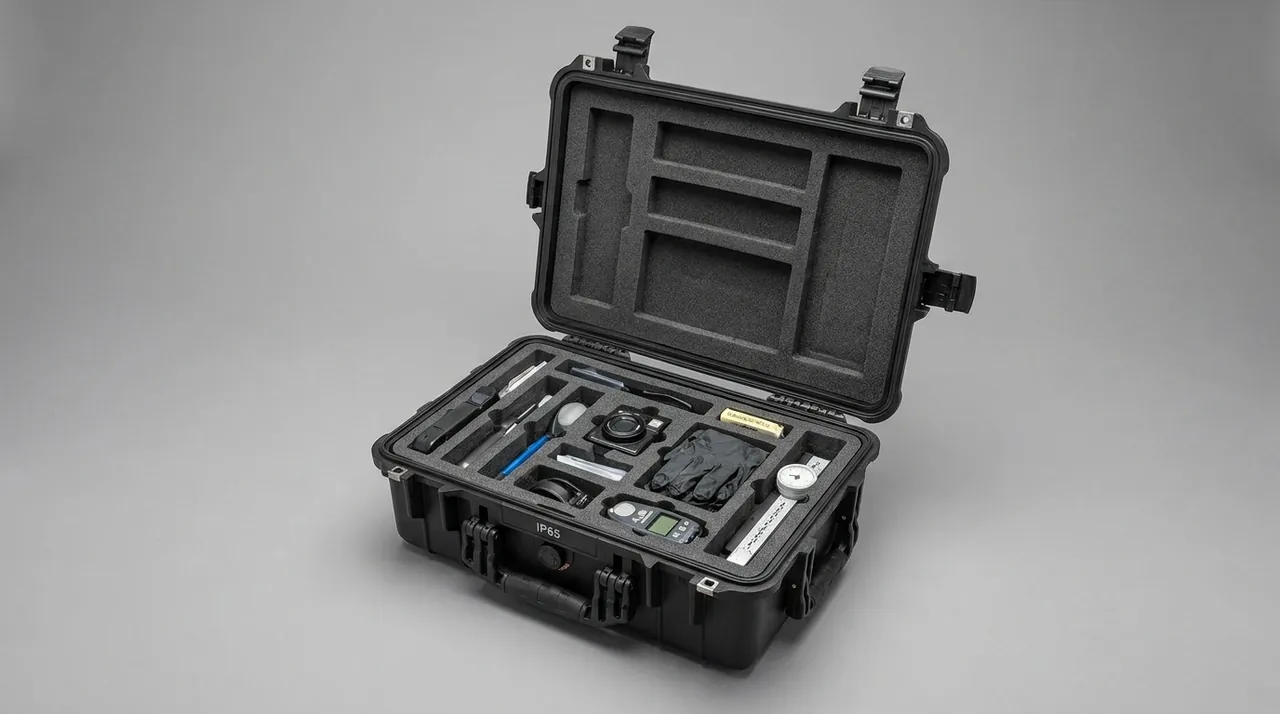

Foams such as EVA, PE and PU are common choices, with three cautions. Choose low-emission, halogen-free grades to avoid releasing corrosive substances. Select density and hardness according to load, using high-density foam or a composite build under heavy components. Foam creeps under long-term static load, so rigid support blocks should carry the main load beneath heavy components.

Rubber and elastomer materials suit damping and limiting duties and offer good damping performance. Confirm compatibility with metal components, however, because some rubbers release sulphur compounds over long contact, which is particularly harmful to copper and silver parts.

Engineered timber offers high stiffness at low cost and suits support bases. Moisture content and preservative treatment are the concerns: inadequately dried timber releases moisture, and preservative-containing timber may react with metals. Export projects also face quarantine treatment requirements for wood packaging.

Metal structural parts such as steel cradles and frames are strongest but must be corrosion protected, and a non-metallic separation layer is needed where they contact the component to avoid galvanic corrosion.

On restraint method, follow the principle of limiting before clamping. For heavy and long components, arc cradles or moulded blocks limit movement; for thin-walled tube banks, full-bank cradles spread load; for small castings such as grate bars, interlayer dividers and corner guards limit stacking displacement. Straps need corner protection and should never bear directly on machined or seal faces.

One detail deserves separate mention: the case interior should not contain materials that absorb and retain water. Ordinary cardboard and some natural fibre materials become difficult to dry once damp and then act as a persistent moisture source. Where paper materials are necessary, use moisture-resistant grades with a barrier layer, and avoid direct contact with metal surfaces.

Liner design should also support repacking. Overhaul schedules on incineration lines are tight, and spares are often repacked into the same case after use, so a liner destroyed during unpacking cannot serve that purpose. Make the liner removable without damage and supply a layout drawing with the case. Where frequent zoned access is needed, the reasoning in removable divider systems for protective cases is relevant.

Moisture, Condensation and Dew Point Control

On incineration project sites, diurnal temperature swings are pronounced, which turns moisture control into condensation control.

Condensation occurs when a surface temperature is below the dew point of the surrounding air. In regions with large day-night swings, the case radiates heat at night, internal surface temperature falls, and if it drops below the internal air dew point, water condenses on metal surfaces. The quantity is small per event, but over time it forms a water film in crevices and at the bottom, providing the conditions for chloride corrosion.

Four control measures apply:

1. Reduce absolute moisture content inside the case using metered desiccant to hold internal humidity within a safe band. Desiccant should hang in the upper internal volume, distributed rather than buried under components.

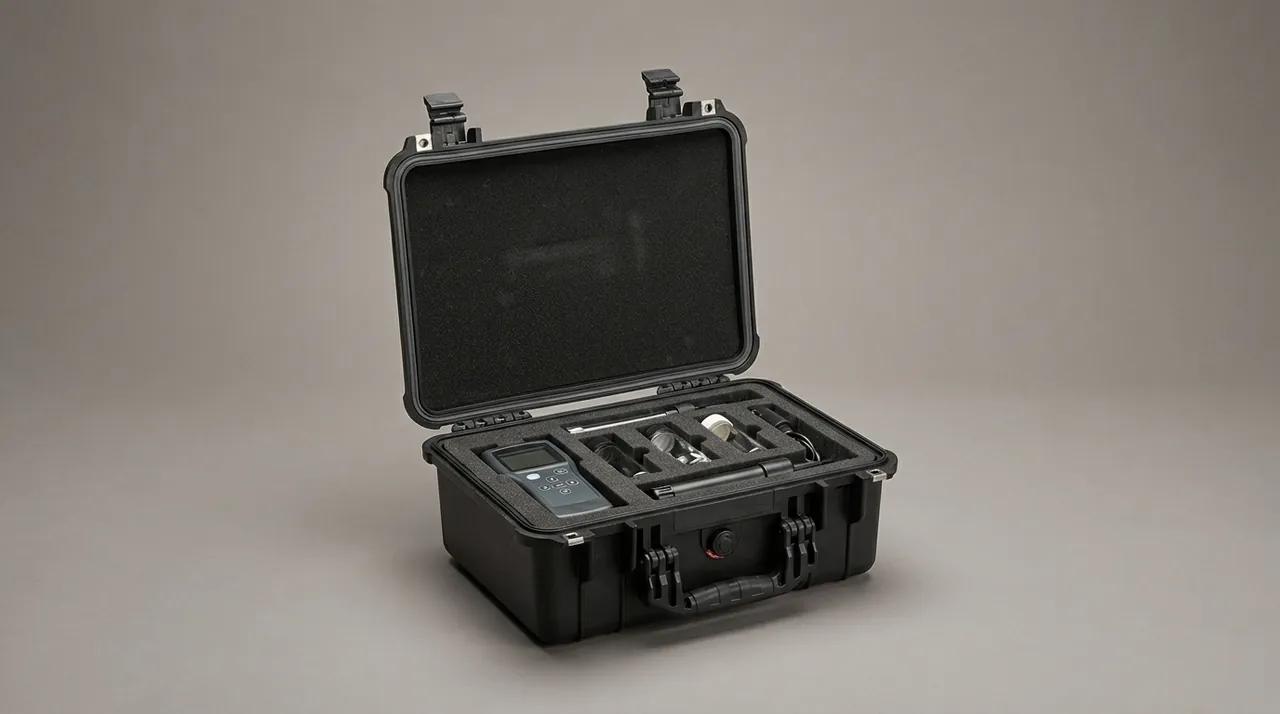

2. Reduce the breathing effect through a pressure equalisation valve combined with a barrier inner bag, so that differential pressure equalises at the valve and the bag performs the main barrier function. This matches the principle in IP67 protection logic for waterproof cases of controlling permeation paths first.
3. Prevent direct contact with cold ground. Raise the case off the ground during storage to reduce conductive cooling, which matters most in winter when ground temperature can be well below air temperature.
4. Control the timing of opening. Opening during a large temperature differential causes immediate condensation when cold components meet warm humid air. Open when ambient temperature is close to component temperature, or allow the case to equalise in a controlled environment first. This is the most commonly overlooked detail after cold-weather storage.

For components that have travelled through low temperatures, such as a northern winter movement, do not unpack immediately on arrival. Allow the case to equalise in the storage environment before opening. Material performance considerations for low-temperature duty are covered in extreme temperature case design.

Compliance Boundaries for Environmental Equipment Transport

Transport compliance for environmental equipment is easily misunderstood, and three situations must be distinguished.

Situation one: new components that have never contacted waste. These ship as ordinary industrial equipment and are outside hazardous waste management requirements. If pickling liquid, cleaning agent or corrosion preventive remains on the surface, it falls within chemical residue management and should be handled per the supplier's instructions and noted in the travelling documents.

Situation two: components removed during overhaul that have been thoroughly cleaned and dried. These generally ship as ordinary metal parts, but retain the cleaning record so that status can be evidenced if required.

Situation three: components carrying untreated ash, fly ash or deposits. This is the case requiring greatest care. Fly ash may concentrate heavy metals and salts and may fall within categories requiring dedicated management under different regulatory systems. Such items should be sealed, clearly marked, shipped separately, and the requirements of both destination and transit jurisdictions confirmed before dispatch. Where the transport leg engages packaging and marking requirements for dangerous goods, the general practice in ADR and IMDG compliance for hazmat transport cases is a useful reference.

In all three cases, state the component status truthfully in the travelling documents, as new, cleaned or residue-bearing, and mark the case accordingly. This is not only a compliance requirement but also a precondition for safe site work, because the unpacking crew needs to know whether protective equipment is required.

For projects linked to flue gas treatment, the packaging scheme should also reflect consideration of volatile organic compound emissions. If a component carries a coating or volatile substances, a sealed case in a hot environment can allow volatiles to accumulate, creating a concentration peak when opened. State ventilation requirements before opening in the work instruction. This is consistent with the approach to scrubber and catalyst components in air pollution control equipment component cases.

Test References and Acceptance Criteria

Verification of incinerator component cases should focus on whether corrosion protection works, not only on mechanical strength. Common references include:

• GB/T 4857 series: basic tests for transport packages covering stacking, vibration, impact and drop, used to verify mechanical protection.
• ISTA transport test procedures: selected by distribution mode, suited to intermodal duty assessment.
• ASTM D4169: organises test sequences around a distribution cycle, suited to export projects.
• MIL-STD-810H: environmental test methods applicable to humidity, temperature, vibration and shock, used as an environmental suitability verification basis. State clearly that this is a method reference and not a military certification, and specify the method number and severity level.
• Salt spray methods such as GB/T 10125: useful for assessing the effectiveness of corrosion treatment and packaging schemes in saline conditions, simulating high-salinity sea transit.

Acceptance criteria should be written in measurable form and should cover at least the following:

1. Mechanical: no structural distortion of the case after test, no liner displacement or collapse, no impact damage or deformation of components.
2. Sealing: internal humidity indication below the threshold, with internal humidity re-measured where necessary.
3. Surface: no corrosion on critical machined faces, no rust spots at cut edges and weld zones.
4. Cleanliness: chloride residue re-tested by the agreed method within the limit.
5. Functional: where components carry seal or fit faces, re-measured dimensions and flatness within the permitted range.

For incinerator components, surface and cleanliness criteria usually reflect the true quality of a packaging scheme better than mechanical criteria, because corrosion failure appears later than the transport event. It is therefore worth adding a post-unpacking observation period to the acceptance flow: inspect on opening, then store under the recommended conditions for a defined period and re-inspect critical surfaces, which reveals inadequate protection earlier.

Export Ocean Freight and On-Site Storage Yards

Failures on export projects frequently occur in two phases: the sea voyage and post-arrival yard storage. Both require specific consideration.

During the sea voyage, the main threats are high humidity, salt spray, temperature cycling inside the container and cargo stacking pressure. Countermeasures include protection matched to voyage length, a barrier inner bag with metered desiccant, reinforced corrosion treatment of salt-sensitive areas, and sensible load distribution inside the container to control stacking pressure. Where container shipping is used, also consider condensation on the container itself; container linings condense heavily under day-night temperature swings, and an under-protected case absorbs that additional external moisture load.

During yard storage, the main threats are rainfall in the open, ground damp, dust contamination, and elevated internal temperature from solar gain. Countermeasures include raising the case off the ground, preventing standing water on the lid, keeping clear of walls, respecting the marked stacking limit, and reading the humidity indicator periodically.

The table below matches experience practice to storage duration:

In high-salinity coastal projects, also confirm during acceptance that the packaging materials themselves contain no sulphur, chlorine or acidic substances, because these are more readily released and more likely to participate in corrosion under hot, humid conditions.

Unpacking Acceptance and Record Management

Unpacking acceptance should produce a traceable record covering at least:

Record management should follow three rules. First, named responsibility, with one person accountable for the record. Second, photographic archiving, photographing critical areas at unpacking. Third, trend management, comparing successive deliveries of similar components so that any decline in protection level is detected and the scheme adjusted. Case service life and replacement criteria are discussed in protective case service life and replacement.

Supply Models and OEM Cooperation

Incineration line projects are normally procured by equipment train, and a single project contains both large quantities of small items such as grate bars and large items such as tube bundles and headers, so packaging must be planned as a whole. A five-step workflow is recommended.

Step one, collect data. Provide the component list, materials, dimensions, unit weights, surface status as new, cleaned or residue-bearing, transport mode and route, storage duration and destination climate.

Step two, design the solution. Determine which items share a case and which must ship separately, and for each case define protection level, liner form, barrier and corrosion protection scheme, cleanliness requirements, and the marking and document list.

Step three, verify the first article. Build a first article and run loading verification, adding transport testing or salt spray testing as described above where needed.

Step four, volume production and traceability. Produce by project equipment-train number and retain key process records.

Step five, site support. Provide repacking drawings, unpacking work instructions and storage advice.

On the manufacturing side, cases in this family are produced by Kexin New Materials (Guangdong) Co., Ltd., which customises case dimensions and liner forms to the incineration line equipment train, takes OEM/ODM orders and supplies worldwide through wholesale and agency channels. Where acceptance support is required, inspection and material documents can be provided under contract. For projects covering both flue gas treatment and fly ash handling components, plan the case family as a whole at the design stage to reduce production changeover cost and simplify on-site management.

Frequently Asked Questions

Q: Can incinerator grate bars and heat recovery tube bundles ship in the same case?

A: In principle this is not recommended unless strict physical isolation and independent cleanliness control are applied. There are three reasons. First, surface condition differs greatly: grate bars removed during an overhaul may still carry ash and salt deposits, while tube bundles are normally cleaned and dried, so co-packing causes cross-contamination. Second, environmental requirements differ: tube bundles are more sensitive to chloride and moisture and need stricter barriers and drying, while grate bars are numerous and their stacked weight is significant, which may require thicker cushioning and a stiffer load-bearing structure. Third, the load-bearing approach differs: tube bundles require full-bank area-contact support to avoid distortion, while grate bars are mainly layered stacked, and mixing them compromises both. If the number of cases available forces co-packing, separate them by cavity with their own barrier layers and desiccant charges, and seal the residue-bearing items entirely within their own cavity. For high-value tube bundles, a dedicated case is recommended.

Q: Why must used components be cleaned before packaging?

A: Because ash and salt deposits are themselves corrosion sources. Fly ash formed under incineration duty is enriched in chloride salts and heavy metal compounds. It is relatively stable when dry, but once it absorbs moisture it forms a strongly corrosive electrolyte solution, and over long periods inside a case it produces pitting and crevice corrosion that may be invisible on the surface while already penetrating the material. Dust from the residue also spreads under transport vibration and contaminates other components and the liner, making later cleaning difficult. The order of cleaning and drying cannot be reversed: select a cleaning method suited to material and coating, remove ash thoroughly, dry completely with particular attention to crevices, blind holes and tube interiors, and only then apply corrosion protection and barrier packaging. Where cleaning is genuinely impossible at the site, mark the case and packing list clearly as uncleaned, ship those items separately from cleaned components, and store them separately so the corrosion risk does not spread to other spares.

Q: Can VCI materials replace desiccant?

A: No. The mechanisms differ, and the two are normally used together rather than as alternatives. Desiccant reduces relative humidity within the enclosed space, reducing the water available for corrosion at the source. VCI materials release inhibiting compounds into the enclosure and form a molecular-level protective layer on metal surfaces, suppressing the corrosion process even when a small amount of moisture enters. On incinerator components, damp conditions also involve acidic gases, so reducing humidity alone is not sufficient to fully suppress corrosion, and relying on VCI alone is not sufficient for prolonged exposure to high humidity. The recommended combination is removable rust preventive on critical machined faces, VCI film wrapping, an outer barrier film with metered desiccant, and a humidity indicator card inside the case. Two cautions apply: VCI materials can react with certain rubber seals, plastic parts or coatings, so confirm compatibility, and weld areas should use welding-compatible products whose residues will not impair weld quality.

Q: How should internal rust in heat recovery tube bundles be prevented?

A: Internal tube rust is the most commonly overlooked problem in tube bundle transport, because it is completely invisible externally and only appears at the hydrostatic test or during operation. Prevention requires three steps: dry, cap and barrier. First, dry. A newly manufactured tube bundle retains moisture internally after pickling and hydrostatic testing, so apply hot air drying or dry air purging as the manufacturer recommends, and extend drying time for sections that are difficult to reach. Second, cap. Fit caps matched to the tube diameter, either plastic plugs or dedicated end covers, and fix them reliably so that transport vibration cannot loosen them or allow foreign matter to enter; place desiccant inside or adjacent to the cap. Third, barrier. Wrap the tube end area in barrier film to reduce water vapour ingress. During acceptance, confirm caps are intact and not displaced, and use a borescope to inspect tube interiors where necessary. For projects with long storage, open and sample tube ends after a storage interval to confirm protection remains effective.

Q: Why is chloride control especially important for stainless steel components?

A: Because the corrosion resistance of stainless steel depends on a dense passive film, and chloride ions locally break that film down, producing pitting, crevice corrosion and even stress corrosion cracking. This type of attack develops quickly and is well concealed, and once established it usually cannot be remedied by surface cleaning. Incineration duty is itself rich in hydrogen chloride and chloride salts, so the risk from residue originating in that duty is elevated. Controls include avoiding chlorine-containing cleaning agents and rinsing with deionised water; ensuring packaging materials contain no chlorine, since certain chlorine-bearing plastic films release chlorides under specific conditions; avoiding packaging materials containing sulphur or acidic substances; and preventing direct contact between stainless and carbon steel in damp conditions to avoid galvanic acceleration. Where the project specifies cleanliness acceptance, test surface chloride residue by the agreed method and write it into the acceptance criteria. Where a limit is not specified, agree one at the design stage rather than leaving the value to be negotiated after the parts have shipped.

Q: How does condensation occur in transit, and how is it avoided?

A: Condensation occurs when a surface temperature falls below the dew point of the surrounding air. During transport and storage, day-night temperature swings cause the case to radiate heat at night, internal surface temperature drops while the moisture content of the internal air is unchanged, so relative humidity rises, and once surface temperature is below dew point water condenses on metal surfaces. Accumulated over time it forms a water film in crevices and at the bottom, providing conditions for chloride corrosion. Four measures avoid it. First, use metered desiccant to reduce the absolute moisture content inside the case. Second, reduce the breathing effect with a pressure equalisation valve combined with a barrier inner bag, letting the bag perform the main barrier function. Third, raise the case off the ground during storage to reduce conductive cooling. Fourth, control opening timing, avoiding openings during large temperature differentials and, after low-temperature transport, allowing the case to equalise in the storage environment before opening, otherwise cold components meeting warm humid air condense instantly.

Q: What transport testing is needed for incinerator component packaging?

A: Verify along two lines, mechanical and environmental. For mechanical performance, select stacking, vibration, impact and drop methods from the GB/T 4857 series according to the actual transport mode, or select ISTA procedures by distribution mode, to verify that liners and restraint can withstand transport loads; export projects can also use ASTM D4169 to organise test sequences around a distribution cycle. For environmental performance, focus on the corrosion protection scheme: humidity testing and temperature cycling assessment evaluate condensation risk, while salt spray methods assess the effectiveness of corrosion treatment in saline conditions and simulate high-salinity sea transit. Where the contract cites MIL-STD-810H, cite it as an environmental test method reference, state clearly that this is a method reference and not a military certification, and specify the method number, severity level and acceptance criteria. Every test should have acceptance criteria set in the technical specification in advance, otherwise the report cannot support acceptance.

Q: What compliance issues apply to shipping components that carry residue?

A: First distinguish the component status. New components that have never contacted waste ship as ordinary industrial equipment. Components removed during an overhaul but thoroughly cleaned and dried generally also ship as ordinary metal parts, but retain the cleaning record. Components carrying untreated ash or fly ash require particular care, because fly ash may concentrate heavy metals and salts and may fall within categories requiring dedicated management under different regulatory systems. For that third case, seal the packaging, mark it clearly, ship separately, and confirm the requirements of both destination and transit jurisdictions before dispatch; where the transport leg engages dangerous goods packaging and marking requirements, follow the applicable general rules. In every case, state the component status truthfully in the travelling documents and mark the case accordingly. This is both a compliance requirement and a precondition for safe site work, because the unpacking crew needs to know whether protective equipment is required and whether ventilation must precede opening.

Q: Why do large cases fail at moisture control more often than small ones?

A: Because size amplifies three effects. The first is the breathing effect: differential pressure caused by temperature cycling is proportional to internal volume, so a larger case exchanges more air through gasket micro-gaps per cycle and accumulates more moisture. The second is gasket length: the total gasket length of a large case increases significantly, so even at the same leakage rate per unit length the total leakage is greater, and a long gasket is more likely to fail locally through deformation in transit. The third is uneven humidity distribution: air movement inside a large case is poor, so if desiccant is placed in one location, distant positions may remain at higher humidity and form local condensation zones. Large cases should therefore prioritise a barrier inner bag with metered desiccant and a pressure equalisation valve, reducing the controlled volume from the whole case to the bag interior, while distributing desiccant by hanging it at several points and fitting humidity indicators at different locations for zoned monitoring.

Conclusion and Related Reading

The design thread for waste incinerator component cases condenses into one statement: control the corrosion chain first, then address mechanical protection. In practice, remove residue and moisture, the two corrosion sources, through cleaning and drying; then build a three-layer defence from barrier film, VCI and desiccant, with humidity indication for visible management; then solve restraint for heavy and brittle components through the load-bearing structure and liner. At acceptance, write surface corrosion, chloride residue and humidity indication into the criteria rather than checking only that the case is intact. With those in place, the target at unpacking is unambiguous: grate teeth free of chipping and rust, tube banks undistorted, header seal faces uncorroded, and internal humidity still inside the safe band.
