Short answer: there is no single universal certification for an ammunition transport box. What is needed is a set of standards matched to the application, usually covering four layers: military environmental suitability such as MIL-STD-810H; transport packaging validation such as ASTM D4169, ISO 4180, the ISTA series and the GB/T 4857 series; protection ratings under IEC 60529 or GB/T 4208-2017; and material and safety performance such as UL94 flammability and ISO 9227 salt spray. What is loosely called shock and vibration resistance is broken down in the standards into specific test items: drop, vibration, shock, stacking and concentrated impact, each with its own standard, test conditions and pass criteria. The right question is therefore not "which certification is needed" but "how is this cargo shipped, through what climate, holding what contents, and who accepts it", and from that a standard set is chosen. This article breaks down the positioning and selection logic of each standard, with a certification matrix table, a testing workflow and common pitfalls.

The most common trap in procurement is to assume that a single test report settles everything. In fact a report's value depends on three things: whether the sample matches the delivered product, whether the test conditions cover actual service conditions, and whether the pass criteria are clear. A drop test report that covers only one of six faces, or uses an empty unloaded case, cannot support a claim of transport shock resistance. The purpose of this article is to turn certification from a yes-or-no question into a question of what is covered, under what conditions, and with what judgement, so that procurement and engineering staff can write certification requirements precisely into a technical agreement.

Table of Contents

  • Short Answer: Certification Is a Standard Set Matched to Application
  • Layers of Certification and Testing: Military, Transport, Protection, Material
  • Military Standards: The MIL-STD-810H Method Framework
  • Box Specifications: What Files Like A-A-59779 Are
  • Transport Packaging Standards: ASTM D4169 and ISO 4180
  • The ISTA Series: Choosing 1A, 2A or 3A
  • Chinese Standards: The GB/T 4857 Series
  • Protection Rating Certification: IEC 60529 and GB/T 4208
  • Material and Safety Certification: UL94 and ISO 9227
  • Shock and Vibration: How Drop, Vibration and Shock Tests Are Done
  • Certification Matrix Table
  • Testing Workflow and Documentation Requirements
  • Common Pitfalls: A Report Is Not a Qualified Product
  • Certification Planning for Custom Projects
  • FAQ
  • Conclusion and Related Reading

Short Answer: Certification Is a Standard Set Matched to Application

Treating "what certification does a transport box need" as a question with a standard answer usually gets a supplier's sales pitch. The right method is to define the application first, then match a standard set.

Four layers of responsibility:

  1. Military environmental suitability: validates the suitability of the case and contents under simulated military environments, represented by MIL-STD-810H, covering temperature, humidity, rain, vibration, shock, drop and more.
  2. Transport packaging validation: validates the integrity of the packaged item through the real logistics chain, represented by ASTM D4169, ISO 4180, the ISTA series and the GB/T 4857 series, covering drop, vibration, stacking and concentrated impact.
  3. Protection rating: validates the case's protection against solids and liquids, represented by IEC 60529 and the corresponding Chinese standard GB/T 4208-2017, the IP code.
  4. Material and safety: validates the material's own flammability, corrosion and related properties, represented by UL94 for plastic flammability and ISO 9227 for salt spray corrosion.

Application decides the combination. For a case used only in domestic road transport with dry warehousing, the transport and protection layers are usually enough. For a case used in air freight, sea freight, multiple climates, long-term storage or government procurement, the military environmental layer is added. For special contents such as batteries or chemicals, additional material and safety validation is needed.

The core question: ask first how it is shipped, through what climate, holding what, and who accepts it, then ask which standards to run. Reversing the order buys a pile of useless reports or misses a critical item.

Layers of Certification and Testing: Military, Transport, Protection, Material

Breaking the four layers down further shows that each answers a different question, which also explains why they cannot substitute for one another.

The military layer answers environmental suitability. It simulates combined temperature, humidity, rain and vibration and judges whether equipment or packaging keeps its function and protects its contents under environmental stress. Its question is whether it works in harsh environments.

The transport layer answers logistics integrity. It simulates sorting, handling, stacking and long-haul transport and judges whether the package is still intact at the end of the chain and whether contents are damaged. Its question is whether it arrives and whether it breaks.

The protection layer answers enclosure protection. It uses a reproducible grading to describe dust and water protection and judges whether ingress occurs under defined conditions. Its question is what the rating is and whether it is comparable.

The material layer answers whether the material itself is suitable. It evaluates flammability, corrosion and weathering and judges whether the material meets safety and durability requirements. Its question is whether the material is chosen correctly.

Why they cannot substitute. An IP67 rating cannot prove transport shock resistance; a drop report cannot prove dust and water protection; a UL94 flammability report cannot prove salt spray life. The four layers are in parallel, not in series. For the full logic, see how to set an ammo box waterproof rating and are waterproof ammo boxes really waterproof.

Military Standards: The MIL-STD-810H Method Framework

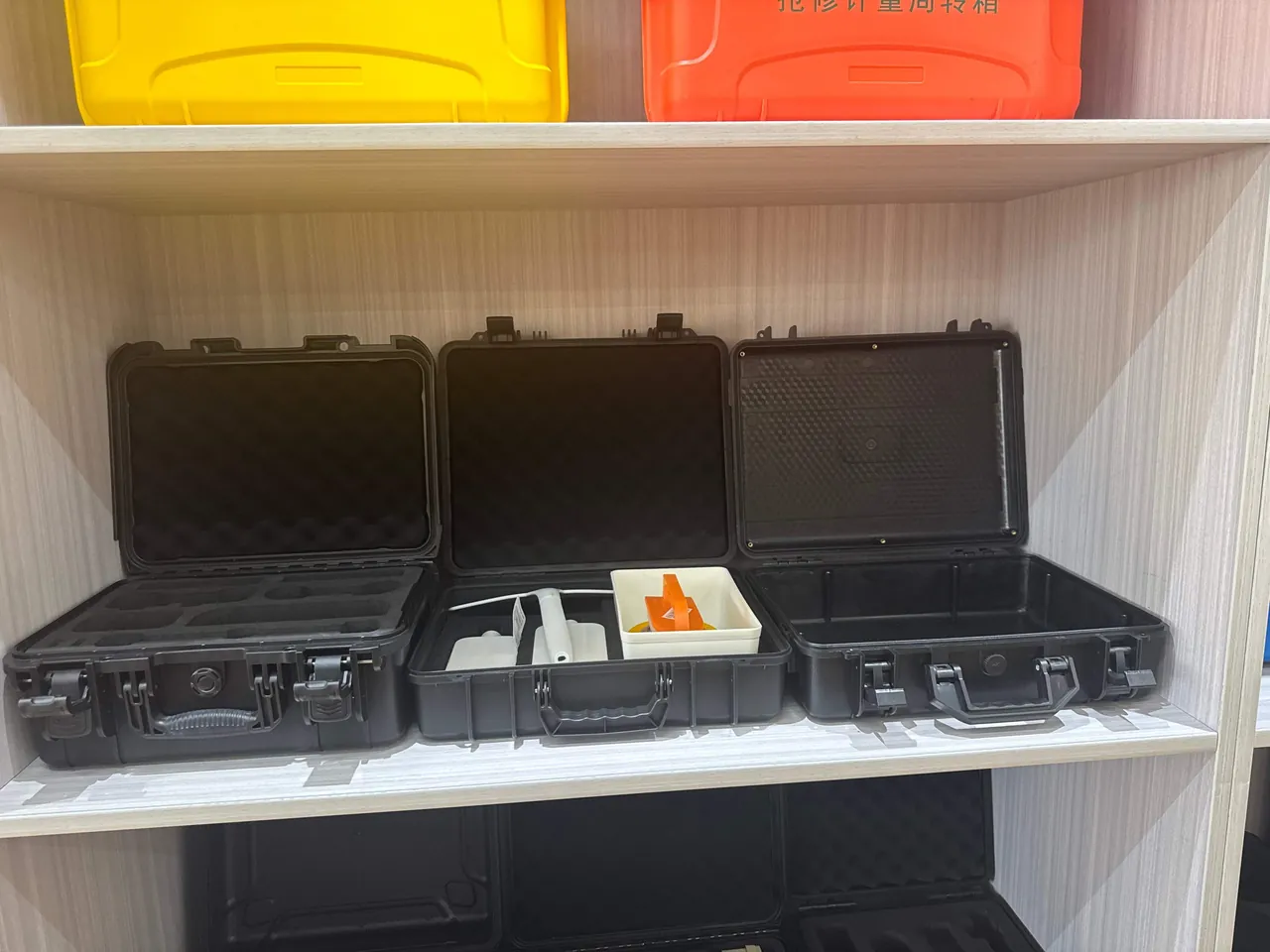

Shock and Vibration Standards - product detail close-up
Shock and Vibration Standards - product detail close-up

MIL-STD-810H, Environmental Engineering Considerations and Laboratory Tests, is the core document for military environmental suitability validation. It is not one test but a library of dozens of methods. Understanding it means knowing what each method answers.

Climate methods. These include low temperature, high temperature, temperature shock, humidity, rain, fungus and salt fog. Rain is Method 506 and humidity is Method 507. These evaluate the case's sealing and material behaviour under climate stress.

Mechanical methods. These include vibration, usually Method 514 series, shock, usually Method 516 series, drop and acceleration. These correspond directly to shock and vibration resistance and are the items most often required for transport cases. Vibration simulates sustained vibration in transport and use, shock simulates transient high-acceleration events, and drop simulates handling falls.

Combined and special methods. These include combined temperature-humidity-vibration, sand and dust, and explosive atmosphere. Combined methods simulate several stresses acting at once, closer to real use, but are more complex and costly.

The principle of method selection. MIL-STD-810H stresses tailoring, that is, selecting methods and severity levels from the product's actual life-cycle profile rather than running everything. Whether a military report is reasonable therefore depends on whether it states the basis for selection. Buyers should focus on which methods were run, at what level and why, not merely on whether it is a military report.

How to read the report. A compliant military environmental report should contain a sample description and configuration, test method and procedure or level, test profile or conditions, test equipment, pre- and post-test functional checks, pass criteria and conclusion, and sample photographs. Missing any one reduces the report's usefulness.

Box Specifications: What Files Like A-A-59779 Are

Besides environmental test methods, military systems include specification documents for specific products. A-A-59779 is one such frequently cited box specification, setting out material, structural, performance and acceptance requirements for a particular class of box.

The difference between specification and test method. A test method such as MIL-STD-810H answers how to test; a product specification such as A-A-59779 answers what the product must meet. The two are used together: the specification sets the requirements and criteria, the method sets the test procedure.

What a specification document usually contains: scope and classification, material and process requirements, dimensional and structural requirements, performance requirements such as sealing, strength and corrosion, test methods and sampling, marking and packaging, and acceptance criteria. For procurement, a specification is an important source for drafting a technical agreement.

How to use such a specification. If a project explicitly cites it, check each clause. If it is not mandatory, its performance and test requirements can still serve as a skeleton for the technical agreement. Note that specifications are revised, so the version or date should be cited to avoid ambiguity.

Interface with civil standards. Many military box projects require both military and civil transport standards, forming a combination where the specification sets requirements, the method performs validation and the transport standard covers the chain. This combination covers the path from product specification to real logistics. For structural and strength design logic, see how high-strength case structures are designed.

Transport Packaging Standards: ASTM D4169 and ISO 4180

The transport packaging layer is where shock and vibration resistance is mainly tested. ASTM D4169 and ISO 4180 are the two most representative combined transport validation standards.

ASTM D4169. It provides a set of performance test methods for shipping containers and systems. The core idea is to select a test sequence and severity level by distribution cycle, then apply drop, vibration, stacking and concentrated impact in turn, and finally check the state of the package and contents. Its strength is closeness to the real logistics chain, and it is widely used in packaging design and validation. The selected distribution cycle and assurance level must be stated.

ISO 4180. It gives general rules for compiling test schedules for complete, filled transport packages, helping users combine test items and sequences by transport mode, stacking and climate. Its thinking is close to ASTM D4169, and the selected schedule and conditions must be stated.

The relationship. Both are combined-scheme standards: they do not define a single test but how to combine tests. The report must therefore state the combination, or the coverage cannot be judged.

Key test items. Drop at different attitudes and heights, random vibration simulating the transport spectrum, stacking under static or compressive load, and concentrated impact simulating a sharp-object strike are the four core items. These correspond directly to shock and vibration resistance.

Procurement note: the value of a combined transport standard lies in the combination and chain coverage. Running only one item does not constitute passing transport validation; the report should list the full sequence and conditions.

The ISTA Series: Choosing 1A, 2A or 3A

Shock and Vibration Standards - manufacturing and testing scene
Shock and Vibration Standards - manufacturing and testing scene

The ISTA series, from the International Safe Transit Association, is another widely used set of transport packaging validation methods, characterised by classification by transport form, with intuitive and practical items.

Series 1, non-simulation integrity tests. Represented by 1A, these are basic tests mainly for screening and quick validation, with fewer items and shorter cycles, suited to initial confirmation of conventional packages.

Series 2, partial simulation tests. Represented by 2A, these simulate part of the transport stress with more items than Series 1, suited to comparison and optimisation of packaging design.

Series 3, general simulation tests. Represented by 3A, these simulate the full transport chain with a combination of drop, vibration and stacking, suited to parcel and express delivery validation; 3E targets unitised loads. Series 3 is closest to real logistics and the most demanding.

How to choose. Choose by transport form and risk: for conventional palletised transport with a controllable chain, Series 2 may be enough; for parcels, express delivery and multiple transfers with higher risk, Series 3 is advised; for design screening or comparison only, Series 1 is enough. Confirm with the customer or carrier so the standard chosen is accepted.

Relation to other standards. ISTA, ASTM D4169 and ISO 4180 are complementary: ISTA emphasises standardised test sequences by transport form, while ASTM D4169 emphasises combination and assurance levels by distribution cycle. Where a project requires both, choose one or combine them according to customer and market access needs.

Report points. State the ISTA series number and version, the sequence of test items, the test conditions, sample state and photographs, and the post-test inspection conclusion. A report without conditions and conclusion cannot support the packaging design.

Chinese Standards: The GB/T 4857 Series

In domestic projects and supply chains, the GB/T 4857 series is the most frequently cited transport packaging test system.

Structure. The series is divided by test type, with commonly used parts including static stacking, compression, vibration, shock, drop, water spray and temperature-humidity conditioning. Each part sets the equipment, procedure and judgement. The specific part number and year should be cited.

Common parts and uses:

Standard partTest typeMain use
---------
GB/T 4857.3Static stackingWarehouse and transport stacking validation
GB/T 4857.4CompressionCompressive strength determination
GB/T 4857.5DropHandling drop and impact resistance
GB/T 4857.7Fixed-frequency sine vibrationTransport vibration effects
GB/T 4857.10Swept sine vibrationVibration spectrum and resonance check
GB/T 4857.23Random vibrationSimulating real transport vibration

Correspondence to shock and vibration resistance. Drop corresponds to transient impact, vibration to sustained excitation, stacking to long-term static load, and compression to load-bearing capacity. Together they form the combination commonly used in domestic projects.

Division of labour with military standards. Military standards are broader and more severe; GB/T 4857 focuses on the transport packaging stage. A common domestic approach uses GB/T 4857 for the transport chain and military or industry standards for special environments. When both are cited, avoid overlap and conflict and clarify which items each covers. For the full stacking method, see can military ammo boxes be stacked.

Protection Rating Certification: IEC 60529 and GB/T 4208

The protection rating is a basic metric for a transport box, especially in chains needing rain, dust and water protection.

Standard and code. IEC 60529 defines the IP code, with GB/T 4208-2017 as the Chinese equivalent. Two digits describe solid and dust protection and water protection respectively, with IP65, IP66 and IP67 common. For the meaning of each digit and the test conditions, see what the IP67 protection rating is.

Choosing for transport. Open storage, rain and washdown suggest at least IP65; wading or brief immersion suggests IP67; long-term underwater requires agreed conditions. Transport and storage should also consider the effect of temperature and pressure differential on sealing, with a pressure equalisation valve where needed.

Verification. Request the IP rating report and check that the sample matches the delivered product. Common misleading practices include using a generic series report to cover a different configuration, using an empty case instead of the service state, and omitting test conditions. For verification methods, see how to verify IP67 certification.

Relation to transport standards. The protection rating answers whether water or dust enters; transport standards answer whether it arrives and whether it breaks. They are complementary and cannot substitute for each other. Where contents are moisture-sensitive, cover both and assess seal degradation in long-term storage.

Material and Safety Certification: UL94 and ISO 9227

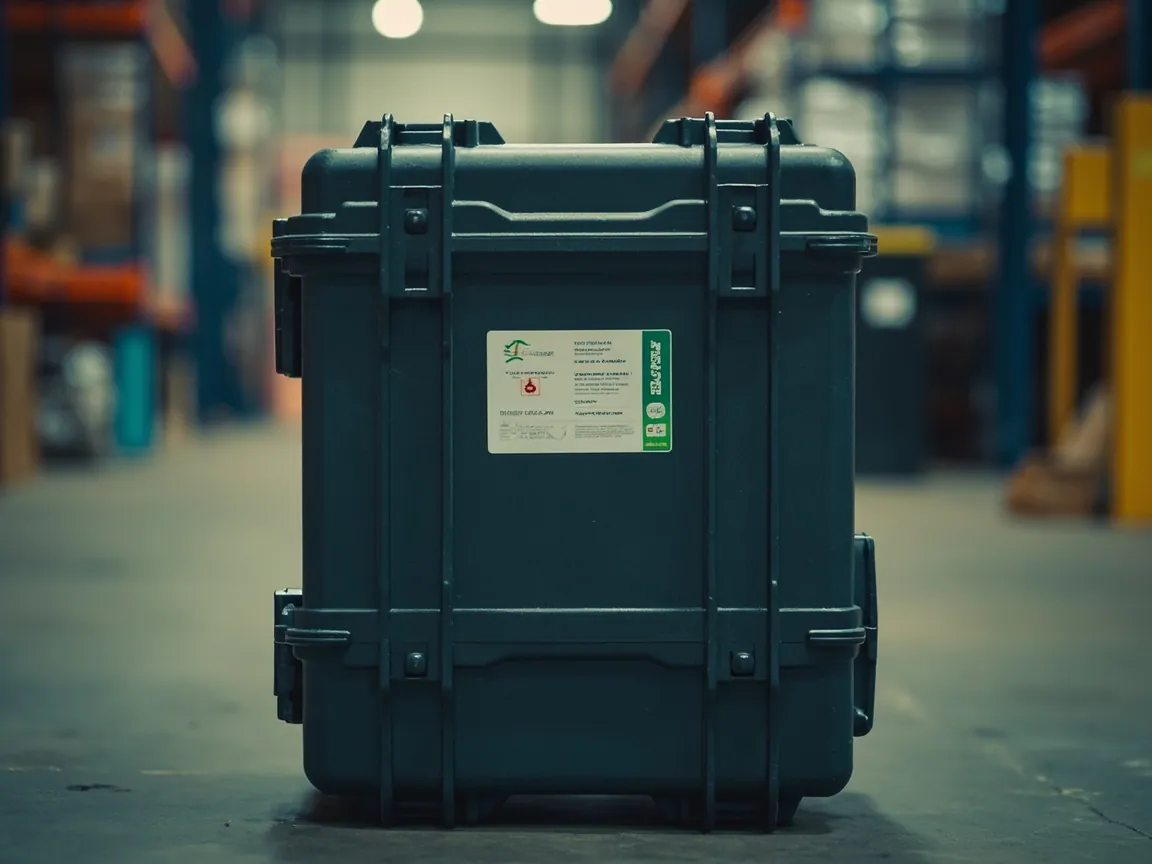

Shock and Vibration Standards - real application scene
Shock and Vibration Standards - real application scene

The material layer is often overlooked but determines usability and safety in special environments.

UL94 flammability rating. UL94 is a common standard for evaluating the flammability of plastic materials, with common ratings including HB, V-2, V-1 and V-0, higher ratings indicating better flame resistance. For applications needing flame resistance, such as near electrical equipment, battery transport or storage in enclosed spaces, the rating is an important metric. Distinguish between material flammability and complete-box flammability, and require the report to state the test object.

ISO 9227 salt spray test. This standard defines neutral salt spray, acetic acid salt spray and copper-accelerated salt spray methods to evaluate the corrosion resistance of coatings and metal parts. Sea freight, coastal and high-humidity high-salinity environments require attention. The report should state the test type, concentration, temperature, duration and judgement.

Other material validation. Depending on contents and environment, additional needs may include ultraviolet ageing for long outdoor use, chemical resistance for contact with oil or solvent, anti-static for electronic contents, and food-contact compliance for specific uses. These should follow the application rather than being piled on uniformly.

Material layer and contents. Where contents are special categories such as lithium batteries or chemicals, the material and packaging must also meet the corresponding transport packaging requirements, including packaging performance marking and supporting documents. These fall within transport compliance and should be confirmed at project outset to avoid rework.

Shock and Vibration: How Drop, Vibration and Shock Tests Are Done

Shock and vibration resistance is the collective name for four kinds of specific test. Understanding the logic of each allows a judgement of whether a report covers the need.

Drop test. Simulates falls during handling and transport. Key parameters include drop height, attitude (corner, edge, face), number of drops and floor conditions. The attitude should cover the weakest direction, and the height should follow package weight and transport mode, with the rule of thumb that heavier packages drop from lower heights. A single-face drop is usually not enough to prove drop resistance.

Vibration test. Simulates sustained vibration in transport. It divides into fixed-frequency sine, swept sine and random vibration. Random vibration is closer to real transport and is often used in combined transport validation; swept sine is used to find resonances. Key parameters include frequency range, acceleration spectral density, duration and axis, usually covering all three axes.

Shock test. Simulates transient high-acceleration events such as collision, sudden braking and handling impact. Common methods include half-sine and trapezoidal shock, with key parameters being peak acceleration, duration and waveform. The difference from a drop test is that a drop is free fall while a shock is a controlled pulse, covering different failure mechanisms.

Stacking and concentrated impact. Stacking simulates long-term static load (see GB/T 4857.3 or ISO 2234), and concentrated impact simulates a sharp object or local strike. Both are often combined with vibration and drop to form complete transport validation.

A judgement point: a compliant shock and vibration report should state the test conditions, sample attitude, loading direction, duration and pass criteria for each item. A report with conclusions but no conditions cannot be assessed for coverage.

Certification Matrix Table

The table below summarises the four layers with standards, coverage and typical applications for direct citation in a technical agreement. Standard numbers are common examples; actual use should follow project requirements and the latest versions.

LayerRepresentative standardCoverageTypical application
------------
Military environmentMIL-STD-810H methods, such as 506 rain, 507 humidity, 514 vibration, 516 shockTemperature, humidity, rain, vibration, shockMultiple climates, long-term storage, government procurement
Box specificationProduct specifications such as A-A-59779Material, structure, performance, acceptanceProjects citing the specification
Transport packagingASTM D4169, ISO 4180Combined drop, vibration, stacking, concentrated impact by chainExport and combined transport validation
Transport packagingISTA 1A / 2A / 3A / 3EStandardised test sequences by transport formE-commerce, parcels, unitised loads
Transport packagingGB/T 4857 seriesStacking, compression, vibration, shock, dropDomestic projects and supply chains
Protection ratingIEC 60529, GB/T 4208-2017Dust and water IP ratingOpen storage, rain, wading
Material safetyUL94Plastic flammability ratingNear electrical, battery, enclosed space
Material durabilityISO 9227Salt spray corrosionSea freight, coastal, high salinity

How to use it. First set the mandatory layers by application, then choose specific standards and items within each layer, and finally state the test conditions and pass criteria item by item. A common cost-effective combination is the GB/T 4857 series for transport plus IEC 60529 or GB/T 4208 for protection plus ISO 9227 for corrosion resistance, adding ASTM D4169, ISTA or MIL-STD-810H for export or multiple climates.

Testing Workflow and Documentation Requirements

Putting certification into practice needs a clear testing and documentation workflow.

Step one: define requirements. Establish the application, contents, transport mode, climate conditions and customer acceptance needs, and form a certification requirement list rather than copying another project's standard list.

Step two: choose standards and items. Select layers and specific standards from the matrix, and state the test conditions, sample state and pass criteria item by item. The choice of conditions should have a basis, such as the relationship between drop height and weight.

Step three: prepare samples. The key principle is that the sample must match the delivered product: same structure, material, seal, lining configuration and loading state. If the sample differs from mass production, the report cannot represent mass production.

Step four: run the tests. Use a laboratory with the appropriate capability, record the conditions and process, and perform functional and appearance checks before and after.

Step five: issue and archive. The report should contain the sample description, standard and version, test conditions, equipment, process records, pass criteria, conclusion and photographs. Archive a model-to-configuration-to-report mapping for later traceability and customer review.

Step six: change management. When structure, material, seal or supplier changes, assess whether revalidation is needed. Many report-invalidation problems stem from mass production changing while the report was not updated. For overall transport safety, see transport safety for outdoor protective cases.

Common Pitfalls: A Report Is Not a Qualified Product

The pitfalls below appear frequently in procurement, with corrections listed.

Common pitfallSymptomCorrection
---------
Only checking whether a report existsReport items do not match the dutyCheck items, conditions and judgement
Sample differs from mass productionReport cannot represent the delivered productAgree sample consistency requirements
Only one drop face testedCoverage insufficient, damage still occursRequire coverage of weak attitudes
Using an IP report for transport validationVibration and shock are missedAdd transport packaging validation
Using a military report for the whole chainLogistics sorting stress is missedAdd ISTA or ASTM D4169
Ignoring material flammabilitySpecial scenarios failChoose UL94 rating by contents and environment
Report has no test conditionsCoverage and severity cannot be assessedRequire conditions and judgement in writing
No revalidation after changeReport invalidatedBuild a change and revalidation mechanism

One sentence: the value of a report equals sample consistency times condition coverage times clarity of judgement. Missing any one leaves only paper.

Certification Planning for Custom Projects

For custom cases, certification should be planned alongside design, not added after it, which avoids rework and wasted cost.

Step one: front-load certification requirements. Determine the certification layers and standards at the design input stage and put them into the design brief, rather than asking whether certification is needed at the prototype stage.

Step two: link design and testing. Consider test requirements during structural design, such as weak points corresponding to drop attitudes, stiffness corresponding to vibration direction and long-term load corresponding to stacking. Review the test plan together with the design. For structural strength logic, see how high-strength case structures are designed and stacking structure design points.

Step three: validate at prototype stage. Complete key tests at the prototype stage to find problems early and avoid urgent changes before mass production.

Step four: mass-production consistency. Define the mass-production structure, material, seal and lining configuration and align them with the test sample, and build a change review mechanism.

Step five: document delivery. Deliver test reports, material certificates and a service-conditions statement matching mass production. The report should answer under what conditions, through what tests, and with what conclusion.

Planning for special contents. Where contents are special categories such as lithium batteries or chemicals, confirm the corresponding transport packaging requirements and documents at project outset, including packaging performance marking and supporting material, and plan them together with the structural certification. For related transport scenarios, see requirements for lithium battery transport cases.

JUNZHJIA, manufactured by KeXin New Materials (Guangdong) Co., Ltd., produces protective cases, tool boxes, military-specification storage cases and waterproof junction boxes, can plan certification combinations by project scenario, and supplies custom linings, seals and test documentation, serving wholesale, distribution, OEM/ODM and global supply.

FAQ

Q: What certifications does an ammunition transport box actually need? Is there a list? A: There is no universal list; certification is a standard set matched to the application, usually covering four layers. The first layer is military environmental suitability, represented by MIL-STD-810H, covering rain, humidity, vibration and shock. The second is transport packaging validation, represented by ASTM D4169, ISO 4180, the ISTA series and the GB/T 4857 series, covering drop, vibration, stacking and concentrated impact. The third is the protection rating, represented by IEC 60529 and GB/T 4208-2017. The fourth is material and safety, represented by UL94 flammability and ISO 9227 salt spray. Define the application first, meaning transport mode, climate, contents and accepting party, then choose the layers and specific items. For domestic road transport with dry warehousing, the transport and protection layers are usually enough; export, multi-climate or government procurement projects add the military layer.

Q: Does MIL-STD-810H have a specific shock and vibration method? A: There are corresponding mechanical methods, but shock and vibration resistance is not one method but a group. Vibration usually corresponds to the Method 514 series, shock to the Method 516 series, and drop is a separate test item; acceleration is another. They differ in the mechanism simulated: vibration simulates sustained excitation in transport and use, shock simulates transient high-acceleration events, and drop simulates free fall. MIL-STD-810H stresses tailoring, selecting methods and severity levels from the product life-cycle profile, so the report should state which methods were chosen, at what level and on what basis. In procurement, focus on which methods, under what conditions, rather than merely whether it is a military report. A report without conditions cannot be assessed for coverage.

Q: Should I choose ASTM D4169 or ISTA 3A? A: The two are similar in positioning but different in approach; choose by customer and market access needs, combining them where necessary. ASTM D4169 is a combined method that selects a test sequence and assurance level by distribution cycle, emphasising closeness to the real logistics chain, and the selected distribution cycle and assurance level must be stated. ISTA 3A is a general simulation test giving a standardised test sequence by transport form, with intuitive and practical items, suited to parcel and express validation. The choice follows transport form and the accepting party: if the customer or carrier specifies a standard, follow it; if not, choose by chain complexity, with Series 2 for a controllable palletised chain and Series 3 for parcels with multiple transfers. Either way, the report should state the full test sequence and conditions.

Q: If I have an IP67 report, does that prove transport safety? A: No. The IP rating only answers to what degree dust and water are excluded and does not cover vibration, shock, drop or stacking in transport. Transport safety needs transport packaging validation, such as ASTM D4169, the ISTA series or the GB/T 4857 series. The correct combination is that the protection rating answers whether water or dust enters and the transport standard answers whether it arrives and whether it breaks; the two are complementary. Where contents are moisture-sensitive, also assess sealing after long storage and temperature change, with a pressure equalisation valve where needed. Request both report sets separately and check that the sample matches the delivered product. IP alone without transport validation can still lead to damage from vibration and shock in real transport.

Q: If the sample differs from mass production, is the report still valid? A: Generally not, or its validity is greatly reduced. A test report is responsible only for the sample submitted; if mass production changes the structure, material, seal, lining configuration or loading state, the report cannot represent the product. Common problems include testing an engineering sample before mass production and then changing the seal or wall thickness, dropping an empty case when actual use is loaded, and using a generic model report to cover a special configuration. The remedy is to agree sample consistency requirements in the technical agreement, define which changes require revalidation, and keep a model-to-configuration-to-report record. Where change is unavoidable, run a difference assessment and re-test key items as needed. This is the most common source of report invalidation.

Q: What preparation is needed for testing, and what is the workflow? A: Six steps are recommended. First, define requirements: establish the application, contents, transport mode, climate and acceptance needs, and form a certification requirement list. Second, choose standards and items: select layers and items from the matrix and state the test conditions, sample state and pass criteria item by item. Third, prepare samples: ensure consistency with the delivered product, including structure, material, seal, lining and loading state. Fourth, run the tests: use a capable laboratory, record conditions and process, and perform functional and appearance checks before and after. Fifth, issue and archive the report, containing the sample description, standard version, test conditions, equipment, process, judgement, conclusion and photographs. Sixth, manage changes: assess revalidation when structure or material changes.

Q: Do military and civil transport standards conflict or overlap? A: In most cases they complement rather than conflict, but the division of labour must be clear to avoid duplication and omission. Military standards are broader and more severe, suited to special environments and long-term storage; civil transport standards focus on the logistics chain with intuitive, widely accepted items. A common approach uses transport packaging standards for sorting, handling, transport and stacking, military or industry standards for climate and special environments, and protection rating standards for dust and water. In planning, create an item-to-standard-to-responsibility table so each item has an owner, avoiding doing one item twice while missing another. If the customer specifies a standard, follow it; where requirements overlap, confirm whether to take the more severe level or run both, and write it into the technical agreement.

Q: What is different when the contents are a special category? A: Additional transport packaging requirements and documents are needed, planned together with structural certification. For special categories such as lithium batteries or chemicals, there are usually dedicated transport packaging requirements that may involve packaging performance marking, supporting material and corresponding tests. These fall within transport compliance and should be confirmed at project outset rather than just before mass production. The approach is to confirm the content category and the applicable transport requirements, then confirm their effect on case structure, material, sealing and marking, and finally merge them with structural strength, protection rating and transport validation into one certification plan. Special contents may also impose extra material requirements, such as a UL94 flammability rating or chemical resistance, which should be included in material selection.

Q: What content makes a certification report complete and usable? A: A complete, usable report should contain eight items. First, sample description and configuration: model, structure, material, seal, lining and loading state. Second, standard and version: the number and year of the standard relied on. Third, test method and procedure or level: the specific approach and severity. Fourth, test conditions: temperature, humidity, drop height, vibration spectrum, duration and direction. Fifth, test equipment: model and calibration information. Sixth, process records: pre- and post-test functional and appearance checks. Seventh, pass criteria and conclusion: a clear pass or fail and its basis. Eighth, sample photographs reflecting the test state and result. Missing any one reduces the report's usefulness. Check each item in procurement and confirm that the sample matches the delivered product.

Conclusion and Related Reading

Returning to the title question: there is no universal certification for an ammunition transport box. What is needed is a set of standards matched to the application, covering four layers: military environmental suitability, transport packaging validation, protection rating and material safety. Shock and vibration resistance is broken down in the standards into specific items such as drop, vibration, shock, stacking and concentrated impact, each with its own standard, conditions and pass criteria. The right approach is to define the chain and scenario first, then choose the standard set, and to ensure sample consistency with mass production, condition match with the duty, and clear, checkable judgement.

Three practical recommendations: first, front-load certification requirements, setting the layers and standards at the design input stage and linking them with structural design. Second, match the combination to the application, using GB/T 4857 plus a protection rating for routine transport and adding ASTM D4169, ISTA or MIL-STD-810H for export or multiple climates. Third, build a change and revalidation mechanism, avoiding report invalidation from mass-production changes.

JUNZHJIA, manufactured by KeXin New Materials (Guangdong) Co., Ltd., produces protective cases, tool boxes, military-specification storage cases and waterproof junction boxes, serving wholesale, distribution, OEM/ODM and global supply, and can plan certification combinations by project scenario with supporting test documentation.
