Laboratories move flasks, volumetric ware, cuvettes, and optical cells between benches, sample rooms, and field sites every day, and glass fails quietly: a hairline crack invalidates a titration, a scratched cuvette face distorts a spectrum, and a contaminated neck ruins a batch. A laboratory glassware case must classify and divide each item so nothing contacts, cushion thin glass against vibration, use an acid-free non-shedding liner so residues never leach into the ware, and stay sealed and traceable from bench to bench. This article specifies cases for testing labs, university labs, and pharmaceutical quality control, with references to IEC 60529, GB/T 4208, ISTA procedures, and UL 94 so the choices survive both a dropper and an auditor.

The core error in this category is treating glassware like any fragile object and reaching for bubble wrap. Bubble wrap gives no permanent division, sheds plastic, and offers no acid-free surface, so ware collides, scales abrade, and cuvette faces pick up films. The right case is a classified, divided, acid-free, traceable unit, and the difference appears as rework avoided and data you can trust. For a lab, trustworthy data is the product.

We cover the three fragility profiles, acid-free foam, classified layout, vibration isolation, cuvette protection, sealing and chemical resistance, shock survival, hardware, decontamination and traceability, sizing and mobility, transit testing, customization, and the cost and service-life picture. Use the Table of Contents to reach the section that matches the ware you move most.

Table of Contents

1. Why Laboratory Glassware Needs a Specialist Case

Glassware carries value that is not visible. A volumetric flask is trusted because its calibration is true; a cuvette is trusted because its optical faces are clean and parallel. Transport that chips a spout, abrades a scale, or films a window destroys that trust, and the failure shows up later as an out-of-spec result rather than as a broken box. The case is the only thing protecting that invisible value between benches.

A specialist case treats classification, division, and liner purity as the design targets, ahead of mere cushioning. Generic packing fails all three: items touch and abrade, the wrap sheds plastic onto the ware, and there is no acid-free surface to keep residues out. The result is rework, recalibration, and occasionally a distorted data set that is expensive to catch.

Specifying this case is also a quality-system activity. ISO-aligned labs document chain of custody and decontamination, and a case that cannot be cleaned, labeled, and traced becomes a gap in that system. The cases described here are built so a lab can demonstrate clean, classified, traceable transport, which is part of compliant operation rather than an extra.

2. Flask, Volumetric and Cuvette: Three Fragility Profiles

These three ware types fail differently, and the case must be zoned for each. Flasks are bulky and crack at the neck and spout; volumetric ware is calibrated and fails by abrasion of its scale or chip of its lip; cuvettes and optical cells are thin, optically critical, and fail by scratch or film on the window. The table below maps each to its dominant risk so you can prioritize features.

Ware typeDominant riskPriority case feature
---------
FlasksNeck and spout fractureCradle pocket, base retention
VolumetricScale abrasion, lip chipDedicated slot, no contact
CuvetteWindow scratch, filmSealed cell, lint-free foam

Flasks travel as individual bulky items and want a cradle pocket that supports the body and leaves the neck clear, so a drop loads the glass through foam instead of through the spout. Volumetric ware is calibration-critical and wants a dedicated slot with clearance on every side so nothing rubs the scale or chips the lip during transit. Cuvettes are the most fragile and the most data-critical; they want a sealed, lint-free cell that protects the optical window from scratch and keeps fingerprints and residue off the faces.

Because a lab often moves a mix, the practical answer is a classified insert: a flask cradle zone, a volumetric slot zone, and a sealed cuvette cell zone, combined in one shell sized to the kit. When you brief a supplier, lead with the ware list and the calibration sensitivity, because the interior architecture follows the ware, not the outer dimensions.

3. Acid-Free, Non-Shedding Foam for Sensitive Ware

The liner is where glass actually rests, so its chemistry matters. Standard polyurethane foams can leach plasticizers or shed particles that contaminate sensitive ware, and some foams are not inert to the residues labs carry, so an acid-free, non-shedding grade is the correct choice for glassware. Acid-free here means the material is formulated without acidic catalysts or fillers that could transfer to the ware, and non-shedding means it does not generate lint or dust in use.

For the liner and foam grades and how they compare on inertness and cleanability, our case foam material comparison covers the trade-offs between polyethylene, cross-linked foam, and ester grades for lab use. The right liner is closed-cell, easily wiped, and documented as compatible with the solvents and samples your lab handles, because a liner that reacts with a residue is worse than no liner.

Pair the acid-free foam with the classified layout in the next section, and you have a surface that both cushions the glass and keeps it pure. For the underlying cushion logic, see our cushion and liner case guide, but specify the acid-free grade explicitly on the purchase order rather than accepting a generic foam.

4. Classified, Divided Layout to Prevent Contact

Classification means every item has a labeled home, and division means no two items share a pocket, because contact is how glassware abrades and chips. The layout is drawn from the ware list: a cradle for each flask size, a slot for each volumetric, and a sealed cell for each cuvette, with labels that match the lab's inventory so handlers place ware correctly without thinking.

A removable divider system lets you re-zone the case for different kits without buying a new insert, which matters because labs run varying ware by project. For divider options and cell sizing, our removable divider system guide covers fixed versus adjustable walls and the clearance rules that prevent rub. The discipline of labeled homes is what turns a case from a box into a standardized, auditable unit.

The foam pockets should have clearance on all sides and a soft standoff from the lid, so closing the case never presses glass against glass or against the shell. After loading, the shake test applies: close the case and shake it; if anything moves or rings, the layout is wrong regardless of the spec sheet, because moving glass is glass that will chip.

Classified, divided, collision-proof acid-free liner
Classified, divided, collision-proof acid-free liner

5. Vibration Isolation for Thin Glass

Thin glass hates sustained vibration as much as a single drop. A flask riding bolted to the shell with no damping will, over a route, work micro-fractures at the neck; a cuvette cell that transmits road buzz to its window will, over time, loosen its seating. The case isolates by wrapping each item in foam and decoupling the insert from the shell wall, so vibration travels through foam instead of through the glass.

The base deserves the most isolation, because that is where road input enters. A medium-density cross-linked foam pad under the ware zone absorbs the first input, and the divided cells above keep items from striking each other. The shake and rattle test reveals foam quality faster than any sheet: if you hear glass move when the closed case is handled roughly, the density or the pocket is wrong.

Transit vibration is slower but cumulative. A case that isolates the ware zone from the wall prevents the long-term micro-damage that shows up as a chipped lip or a loosened cuvette at arrival. Pair this with the transit testing in section 13, and you have evidence the case survives the route rather than the showroom.

6. Cuvette and Micro-Volume Protection

Cuvettes and optical cells are the highest-risk items in the kit, because their value is in the optical window, and the window fails by scratch or film. They want a sealed, lint-free cell with the window protected on both faces and the cell held so it cannot rotate against an abrasive surface. A dedicated cuvette tray with individual wells and a clear lid is the usual answer, and the foam in that tray must be lint-free so it does not deposit fibers on the window.

Handling discipline matters as much as the case. Cuvettes should be loaded and removed by the opaque body, never by the window, and the case should make that the only easy path, for example by wells shaped so the window faces a protected wall. After use, the cuvette returns to its sealed cell rather than riding loose in a pouch, because a loose cuvette is a scratched cuvette and a distorted spectrum.

For optical cells the same rules apply with tighter tolerance: the window must stay clean and the cell must stay seated, so specify a dedicated, verifiable cell and label it. A case that zones cuvettes separately from bulk flasks prevents a heavy flask from ever bearing on a delicate optical cell, which is the most common way cuvettes are lost in transit.

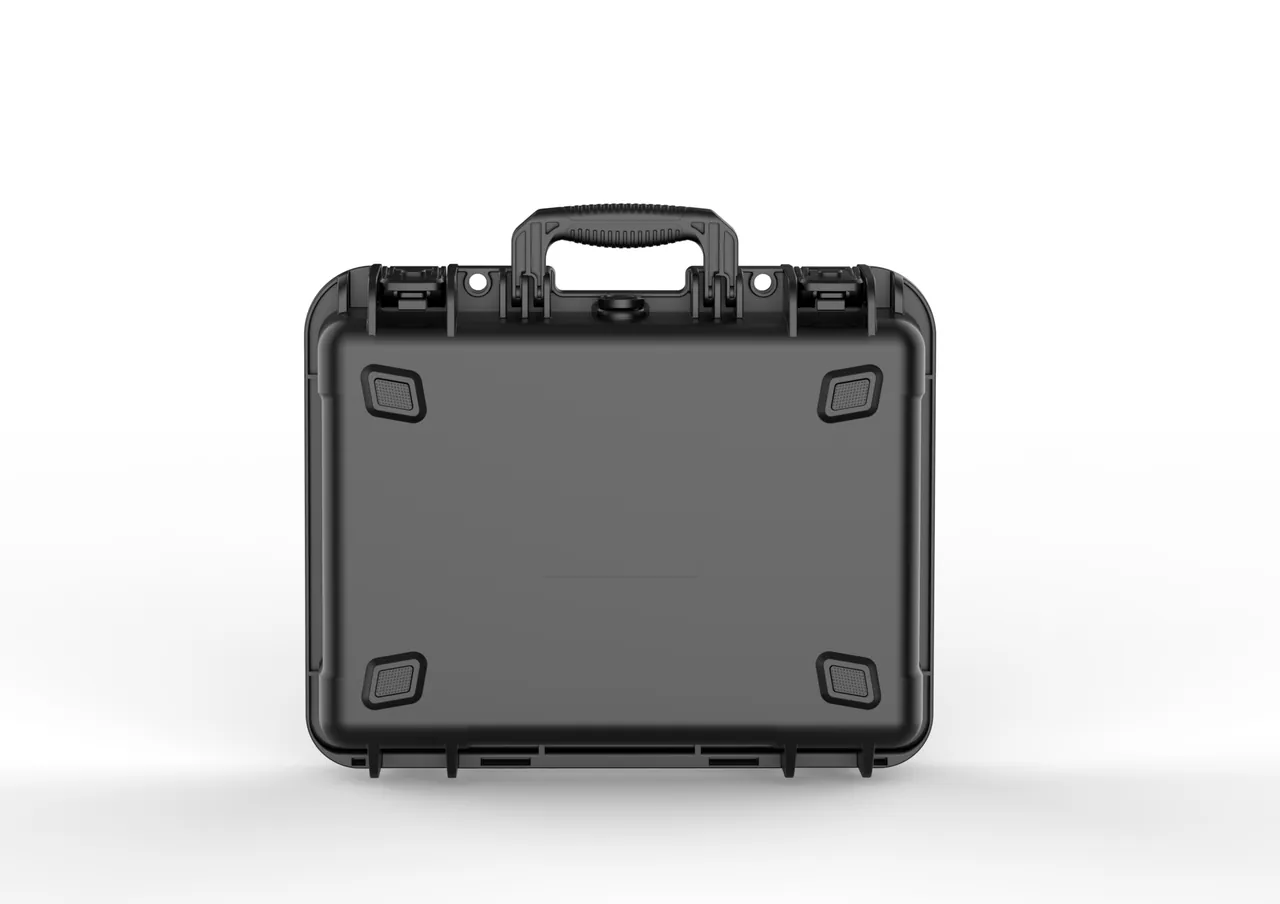

Sealed lint-free cuvette cell protecting optical windows during transit
Sealed lint-free cuvette cell protecting optical windows during transit

7. Ingress Protection and Gasket to IEC 60529 and GB/T 4208

Ingress protection codes from IEC 60529, with the aligned Chinese national standard GB/T 4208, describe how well a case keeps solids and water out, and for lab glassware the rating protects both the ware and the samples inside it. IP65 keeps out dust and low-pressure water jets, which covers wash-down and rainy loadouts; IP67 adds short immersion protection useful when a case is dropped in a sink or left on a wet bench.

You rarely need more than IP67 for lab transit, and chasing IP68 without a real use case just adds cost. Ask the supplier for the test report that names the standard and the exact code, because the rating applies to the assembled case with its gasket and latch, not to the bare shell. A stamped code without a report is a claim, not evidence, and the report is what your quality file should hold.

Sealing is only as good as the gasket and the latch compression. A gasket pinched or a latch that does not pull the lid tight will leak regardless of the stamped rating. The relationship between sealing and latch design is covered in our waterproof case and IP guide, which is worth reading before you compare quotes, because the seal is what keeps contaminants off calibrated ware.

8. Chemical Resistance and UL 94 Shell Rating

Lab cases sit next to solvents, acids, and disinfectants, so the shell and liner must resist the chemicals you actually use without swelling or softening. Most closed-cell foams and copolymer shells handle typical lab solvents well, but aggressive agents can attack some adhesives, so tell your supplier which chemicals you use and ask for a chemical-resistance statement rather than assuming compatibility.

Flammability is the other material question. UL 94 is the widely used flammability classification for plastic materials, and a case stored in a lab or a vehicle benefits from a rated, slow-burning or self-extinguishing grade such as UL 94 HB or V-0 depending on thickness. This is about reducing the chance that a case near a burner or a battery bank becomes fuel in an already bad situation, not about passing a fire test in the field. Request the UL 94 grade on the material certificate and keep it with your compliance file.

A vague "flame retardant" claim is not the same as a stated UL 94 classification, and for a lab that distinction is worth a line on the purchase order. The shell, the liner, and the adhesive should each be named, because contamination and fire risk both live in the details the supplier is willing to document.

9. Shock Management and Drop Survival

Glassware fails on shock when a drop drives one item into another or into the shell. The case manages this with a rigid shell that distributes load and an interior foam that decouples each item, so the impact travels through foam instead of through the glass. The target is simple: after a drop, every item stays in its pocket with clearance intact, and nothing transfers load to a neighbor.

Density matters. Too soft and the item bottoms out on impact and meets the shell; too hard and it transmits shock. For flasks a medium-density cross-linked foam with a precision cradle is usual, while cuvettes want a softer, lint-free cell with more standoff. The shake test in the showroom reveals foam quality faster than any specification, because a rattling case is a case that will chip glass on the first pothole.

The proof of drop survival is a test standard, not a claim. An ISTA sequence subjects the packed case to drops and compression that approximate real handling, and a case that passes gives confidence for daily lab transit. Ask for the report and the drop height, because drop height scales with case weight and a light case tested low is not comparable to a heavy loaded case tested higher.

10. Hinges, Latches and Seals for Lab Use

Lab cases open and close repeatedly, often with gloved hands, and sometimes in a hurry between runs, so hardware is where they live or die. The hinge must be pinned and reinforced, not a living plastic tab that fatigues; the latch must draw the lid down with enough force to compress the gasket and seat the divider, and it must work one-handed.

This is where a validated toolbox hinge, latch and seal assembly earns its place: a reinforced pivot, a positive-locking latch, and a continuous gasket channel delivered as one coordinated, serviceable package, instead of three parts hoped to fit. For daily lab use the integration matters more than any single rating, because the seal only works if the latch pulls the lid tight every time, and the latch only survives if the hinge does not fail first.

Specify stainless or coated hardware because labs are wet and chemical-exposed, and confirm the latch can be operated with gloves. Replaceable latches are a plus; a case whose only fault is a worn latch should not be scrapped. Ask whether the hinge and latch are serviceable before purchase, because serviceability is the difference between a case that lasts and one discarded over a small part.

11. Cleaning, Decontamination and Traceability

Cleanability and traceability are quality-system requirements for lab cases. After a run, the case may carry residues or contaminants, so the routine is: remove the divider and liner, wash and decontaminate per your lab protocol, dry fully, label the case and the kit, and reload. A case designed for fast teardown makes this routine realistic rather than theoretical, and traceability means the case and its contents are identifiable at every handoff.

Our how to clean a protective case article gives the step-by-step and the chemical cautions that keep liners intact, and most of it applies to lab cases because the soiling can be reactive. The points that matter most are to use a decontaminant the liner tolerates, to avoid soaking a closed-cell foam past its seam, and to dry completely before closure so you do not trap moisture that later grows mold or reacts with residues.

Keep a log of cleanings and of what each case carried, because audits ask for chain-of-custody and decontamination evidence. A case that tears down in minutes and accepts a label makes that cadence documentable, and the small discipline protects both the ware and your ability to show a clean, traced history.

12. Sizing, Weight and Field Mobility

Lab cases get heavy with glass, so sizing is a weight decision as much as a volume one. Weigh the loaded case, not the empty one, and keep a margin under the handler limit, because a case too heavy to lift safely becomes a two-person job that slows every transfer. For field sampling a mid-size case that carries a flask cradle, a volumetric slot row, and a cuvette tray in one layer is usually right.

Size the case to the kit plus a small buffer. Too small and ware wedges and contacts; too large and the divider must be built up with filler that migrates. A modular insert that re-zones for the kit avoids both. For walks from vehicle to bench, wheels and a trolley handle turn a heavy case into a rollable one, and our case wheels and trolley handle notes help you choose wheel quality that survives lab and field ground rather than failing on the first trip.

Remember the lid standoff from section 4 when sizing, because tall flasks, not just diameter, often set the case depth. A case sized only to the body will press the neck when closed, so size to the tallest element plus clearance.

13. Stacking, Transit and ISTA Testing

Lab cases stack in carts and on pallets, and glass on glass is unforgiving, so stack stability is safety. Look for cases with interlocking corners that keep a stack from sliding, and never stack a heavy case on a case holding cuvettes, because the weight will bear on the most delicate ware. The proof of transit survival is a drop-test standard rather than a claim of toughness.

ISTA procedures are the practical benchmark. An ISTA 1A or 3A sequence subjects a packed case to drops, vibration, and compression that approximate parcel and mixed-mode shipping, and a case that passes gives confidence for daily lab transit even though the cart is gentler than a parcel network. Ask for the ISTA report and the drop height used, because drop height scales with case weight and a light case tested low is not comparable to a heavy loaded case tested higher.

For how these tests are run and what the results mean, see our ISTA transport testing procedure write-up. Pair the transit rating with the shock and vibration guidance above, and you have a case validated for the route rather than the showroom, which is what a lab paying for trustworthy data actually needs.

Stacked lab cases with interlocking corners secured for transit
Stacked lab cases with interlocking corners secured for transit

14. Custom Foam and OEM/ODM Options

A lab that moves the same ware set repeatedly benefits from a standardized insert. When your cradle map, slot row, and cuvette cell match your actual inventory, every handler loads faster and every item is held the same way, which reduces chip and scratch and speeds training. A coordinated build from a manufacturer such as JUNZHJIA specifies the shell, the acid-free liner grade, the classified cell map, and the latch hardware as one package rather than parts sourced separately and hoped to fit.

The value is consistency across sites and shifts. Every case in the fleet holds the same ware the same way, which simplifies spares and audit, and a manufacturer such as JUNZHJIA can supply the material certificates and test files you need for quality evidence. For what to verify before you commit, our how to choose a case OEM factory guide covers the questions that separate a capable builder from a box mover.

Custom does not mean costly by default. A custom insert for a known ware set is often cheaper than buying generic cases that hold the same items poorly, and it protects the glass better. The rule is the same as for any case: if your ware is stable and repeated, standardize it; if it changes weekly, stay modular with a removable divider you can re-zone without new foam.

15. Service Life, Cost and Common Mistakes

Price is the wrong number to optimize; data integrity and reuse are the right ones. A cheaper case that sheds foam, lets ware contact, or cannot be decontaminated costs more in recalibration and rework than a specified case that lasts years. Track the case fleet by wear indicators: gasket gaps, hinge play, divider warp, and liner shedding are the signals to retire or repair before they damage a shipment.

Cost factorCheap case outcomeSpecified case outcome
---------
Ware damageFrequent chip and scratchRare
Data integrityAt risk from film, scratchProtected, traceable
DecontaminationPoor teardownFast, auditable
Service life1 to 2 yearsMultiple years

The common mistakes are predictable. Using bubble wrap instead of a classified acid-free insert lets ware abrade. Skipping the shake test lets poor foam through. Accepting a vague "acid-free" claim instead of a stated liner grade removes your only proof. Forgetting the UL 94 grade and the ISTA report leaves you unable to defend the spec later. For help spotting low-grade construction before you pay, our identify genuine versus fake case guide lists the tells, and our protective case service life article gives the retire-on-wear rule that turns replacement into a budgeted line instead of a surprise.

Frequently Asked Questions

Q: Why does the liner need to be acid-free for glassware? A: An acid-free, non-shedding liner matters because glassware carries invisible value: a volumetric flask is trusted for its calibration and a cuvette for its optical window, and a liner that leaches plasticizers, sheds particles, or reacts with residues can contaminate the ware or abrade its scale and window. Standard polyurethane foams can shed lint and may not be inert to the solvents and samples a lab carries, so an acid-free grade formulated without acidic catalysts or fillers, and a closed-cell non-shedding structure, keep the ware both cushioned and pure. Specify the grade explicitly on the purchase order and ask for the material certificate, because a vague "acid-free" claim is not the same as a documented liner specification, and the certificate is what your quality file should hold. Pair the liner with a classified layout so the foam protects the glass without ever contacting it in a way that transfers residue or scratch. Specify the grade on the purchase order and keep the material certificate in your quality file at all times. Q: How do I keep volumetric ware from losing calibration in transit? A: Calibration is lost by abrasion of the scale or a chip of the lip, so the fix is a dedicated slot with clearance on every side and no contact during transit, plus a soft standoff from the lid so closing the case never presses the ware. Draw the layout from your actual ware list so each volumetric has its own labeled home, and run the shake test after loading: close the case and shake it, because if the ware moves or rings the pocket is wrong and the scale will abrade. Use an acid-free, lint-free foam so no particle abrades the graduation, and keep volumetrics in their own zone away from bulk flasks that could bear on them. The case does not recalibrate the ware; it simply prevents the transit damage that would force a recalibration, and that prevention is what protects the data the ware produces. Run the shake test after loading so any movement is caught before the ware leaves the bench for transit. Q: What IP rating should a lab glassware case have? A: For lab transit, IP65 is the practical minimum because it keeps out dust and low-pressure water jets, which covers wash-down and rainy loadouts and protects both the ware and any sample inside it. IP67 is the better choice when cases are exposed to immersion risk such as a drop in a sink or a case left on a wet bench, since it adds protection against temporary submersion to one meter. You rarely need IP68 for lab work, and chasing it only raises cost without a corresponding real-world benefit. Always ask for the test report that cites IEC 60529 and, for Chinese-sourced supply, GB/T 4208, because the rating must apply to the fully assembled case with its gasket and latch, not to the bare shell. A stamped code without a report is a claim, not evidence, and the report is what your quality file should contain. Ask for the test report citing IEC 60529 and GB/T 4208 and keep it with your quality file for auditors. Q: How do I protect cuvette optical windows from scratch? A: Cuvette windows fail by scratch or film, so the fix is a sealed, lint-free cell that protects both faces of the window and holds the cuvette so it cannot rotate against an abrasive surface, with the window facing a protected wall rather than an open pocket. Load and remove cuvettes by the opaque body, never by the window, and shape the wells so that is the only easy path, because a loose cuvette riding against foam is a scratched cuvette and a distorted spectrum. The foam in the cuvette tray must be lint-free so it deposits no fibers on the optical face, and the cell should be sealed so fingerprints and residue cannot reach the window in transit. Keep cuvettes in their own zone separate from bulk flasks, because the most common way cuvettes are lost is a heavy flask bearing on a delicate optical cell during stacking. Keep cuvettes in their own zone so a heavy flask never bears on a delicate optical cell during stacking. Q: What does ISTA testing prove for a glassware case? A: ISTA procedures subject a packed case to drops, vibration, and compression that approximate parcel and mixed-mode shipping, so a pass gives confidence the case survives the shocks and stacking of daily lab transit even though a cart is gentler than a parcel network. Ask for the ISTA report and the drop height used, because drop height scales with case weight and a light case tested at a low height is not comparable to a heavy loaded case tested higher, so the report only matters if the tested weight matches your real kit. Pair the transit rating with the base-cushioning and divided layout so impacts travel through foam instead of through glass, and you have evidence the case is validated for the route rather than the showroom. The test does not guarantee zero breakage by itself, but it removes the mechanical-failure modes that would otherwise chip necks, abrade scales, and scratch windows. Pair the transit rating with the divided layout so impacts travel through foam, not through the glass. Q: How should a lab case be cleaned and decontaminated? A: Clean and decontaminate it between every run that carried reactive or contaminated material, because lab cases can carry residues that later contaminate the next ware, and a case that cannot be torn down and washed is a gap in your quality system. The routine is to remove the divider and liner, wash and decontaminate per your lab protocol, dry fully, label the case and kit, and reload, and a case designed for fast teardown makes this realistic rather than theoretical. Use a decontaminant the liner tolerates, avoid soaking a closed-cell foam past its seam, and dry completely before closure so you do not trap moisture that reacts with residues or grows mold. Keep a log of cleanings and of what each case carried, because audits ask for chain-of-custody and decontamination evidence, and a case that accepts a label and tears down in minutes makes that cadence documentable. Dry fully before closure and keep a log of cleanings and of what each case carried between benches. Q: What materials resist lab solvents and meet flammability rules? A: The liner and divider should be a closed-cell, acid-free, non-shedding foam such as cross-linked polyethylene that wipes clean and tolerates the solvents and disinfectants your lab uses, because open-cell or unspecified foam can wick and shed and become a contamination source. The shell should be a copolymer rated for repeated lab and vehicle use, and the hardware should be stainless or coated because labs are wet and chemical-exposed, with replaceable latches so a worn part does not scrap the whole case. On flammability, request the UL 94 grade of the shell material so you have a stated classification rather than a vague flame-retardant claim, which matters for a case stored near burners or battery banks. The material certificate and the UL 94 grade belong in your compliance file alongside the IP and ISTA reports, because both contamination and fire risk live in the details the supplier is willing to document. Request the UL 94 grade and the material certificate so both contamination and fire risk are documented. Q: How often should a laboratory glassware case be replaced? A: Replace or repair on wear indicators rather than a calendar: retire a case when the gasket shows gaps at the corners, the hinge develops play, the divider warps so ware no longer seats, or the liner begins to shed or lose its acid-free integrity. Any of these lets moisture, residue, or impact reach calibrated ware you cannot afford to lose, and the cheap time to act is before a chip or a film ruins a result, not after. Track the fleet so replacement is a budgeted line instead of a surprise, and keep a first-article reference unit to compare against incoming batches during acceptance. For the retire-on-wear rule and the cost picture, our service-life article gives the indicators and the total-cost view that shows a specified case costing less per year than a cheap one that sheds, contacts, and cannot be decontaminated, once data integrity and reuse are counted. Track the fleet by wear indicators and keep a first-article reference for incoming acceptance checks. Q: When does custom foam make sense for a lab? A: Custom foam makes sense when your ware set is stable and repeated, because a cradle map, slot row, and cuvette cell matched to your actual inventory remove guesswork for every handler and speed the open-reload cycle while reducing chip and scratch. The value is consistency across sites and shifts: every case holds the same ware the same way, which simplifies spares, audit, and training, and a manufacturer can supply the material certificates and test files you need for quality evidence. Custom does not mean expensive by default; a custom insert for a known ware set is often cheaper than buying generic cases that hold the same items poorly, and it protects the glass better. The decision rule is simple: if your kit is stable and repeated across benches, standardize it with a custom acid-free insert; if it changes weekly by project, stay modular with a removable divider you can re-zone without new foam. For a stable kit the custom insert usually costs less than generic cases while protecting the glass better.

Conclusion & Related Reading

A laboratory glassware case is a classified, divided, acid-free, traceable unit, not a box of bubble wrap. It classifies and divides each flask, volumetric, and cuvette so nothing contacts, isolates thin glass from vibration with an acid-free non-shedding liner, seals to IEC 60529 and GB/T 4208, carries a UL 94 shell grade, and survives an ISTA drop sequence, all while staying cleanable and labeled for chain of custody. Working with a supplier such as JUNZHJIA that can deliver the shell, acid-free liner, and test files as one coordinated package further simplifies fleet standardization and the quality evidence auditors ask for. For most testing, university, and pharmaceutical labs the total cost of a specified case is lower than a cheap one once recalibration, rework, and reuse are counted, because the case is what protects the invisible value of the ware between benches.
