How Do You Judge Toolbox Durability? Rib Design and Load Testing with Virgin ABS Engineering Resin

Start with the conclusion: judging whether a toolbox is durable has almost nothing to do with asking "how many millimetres thick is the wall." It has everything to do with three things working together - the topology and dimensions of the reinforcing ribs, whether the shell is moulded from virgin ABS engineering resin rather than regrind or heavily filled compound, and whether the injection moulding process has eliminated weld lines and sink marks in the wrong places. IEC 62262 (mirrored in China by GB/T 20138, the IK code for enclosure impact resistance) gives you a graded impact scale. GB/T 1043.1 and ISO 179 define how to measure Charpy impact strength. GB/T 9341 covers flexural properties. The GB/T 1634 series covers deflection temperature under load. Together these standards turn "durable" from an adjective into a number you can put into a purchase contract. One engineering rule of thumb is worth memorising: increasing wall thickness delivers far less stiffness gain than adding ribs for the same mass. Redistributing material away from the neutral axis through ribs can improve bending stiffness by multiples while weight barely moves. That is the reason every serious professional toolbox and protective case uses dense ribbing instead of simply thicker walls.

Plenty of buyers still test a box by standing on it. The problem with that method is repeatability: the same box behaves completely differently when you stand on a rib intersection versus the centre of a large flat panel, and the difference can be several-fold. This article is written for engineers, purchasers and product managers who need a language they can actually reproduce. It walks through how to decompose a load spectrum, how to read the five rib design parameters that matter, how virgin ABS differs from regrind in measurable ways, how to build static, dynamic and fatigue load tests, and how drop impact, creep, environmental ageing and moulding defects each eat into structural performance. It ends with a verification checklist you can drop into a technical agreement. Whether you are outfitting a fleet of field crews, specifying transit cases for instruments, or developing an OEM/ODM programme, the framework below converts durability into something measurable, negotiable and claimable.

Table of Contents

• The Short Answer: Durability Is a Product, Not a Sum
• What "Durability" Actually Means: Decompose the Load Spectrum First
• The Mechanics of Ribbing: Why Thin Walls with Ribs Beat Thick Walls
• Five Rib Design Parameters and How to Read Them on a Finished Box
• Four Rib Patterns Compared: Straight, Diagonal, Grid, Radial
• Virgin ABS, Regrind and Filled Compounds: How Big Is the Gap?
• Three Basic Load Test Types: Static, Dynamic and Fatigue
• A Load Test You Can Run in Your Own Warehouse
• Drop and Impact: Using IK Ratings, GB/T 1043 and ISO 179 Correctly
• Creep and Long-Term Load: Why Plastics Deform Slowly
• Environmental Ageing: Heat, UV and Low-Temperature Embrittlement
• How Moulding Defects Eat Structural Strength
• Procurement Checklist: Writing Durability as a Testable Clause
• Frequently Asked Questions
• Conclusion and Further Reading

The Short Answer: Durability Is a Product, Not a Sum

Toolbox failures are rarely caused by a single factor. Sort the damaged boxes you have seen over the years and nearly every one lands in one of three buckets: structural design (poor rib layout, sharp corners with no radius, no local reinforcement at latch seats), material selection (too much regrind, over-filling that destroys toughness, using a homopolymer PP in a cold-climate application), and process control (weld lines landing in high-stress zones, short packing pressure producing sink marks and internal voids, excessive melt temperature degrading the polymer).

These three behave like a product, not a sum. If any one of them approaches zero, the whole result approaches zero.

So when you pick up a box, run this three-minute physical before you spend a cent on testing:

1. Flip it over and look at the base. A well-designed base carries a closed or semi-closed grid of ribs. Rib height typically runs at roughly two to three times the nominal wall thickness, and rib spacing is tight enough that the panel does not visibly dish when you press it. If the underside is a bare panel with only a perimeter rim, that box will flex badly under load, and over time you will see unstable stacking and abnormal stress on the latches.
2. Press and watch the rebound. Push on the centre of the large faces and on the side walls with your palm. Watch how much it deflects and how fast it comes back. An engineering thermoplastic should recover essentially completely. If you are left with a visible white mark - stress whitening - the material has already yielded or micro-cracked at that spot, which means either insufficient toughness or inadequate rib support.
3. Tap and listen. Rap the surface with your knuckles at several locations. Dense, uniform structure produces a consistent, crisp sound. A dull thud or a marked change at one spot usually indicates an internal void, a gas pocket, or a rib that has collapsed on the back side.
4. Look for material identification. Reputable moulders emboss a material code (for example ">ABS<" or ">PP<"), a cavity number and a recycling mark inside the shell. The absence of these marks is not automatic grounds for rejection, but their presence is the foundation of traceability.
5. Inspect the high-stress zones. Handle roots, wheel bosses, hinge seats, latch seats and stacking bosses should all carry extra ribbing or metal inserts. If those areas are the same wall thickness as everything else with no reinforcement, you can predict the failure location before the box ever ships.

None of this requires instruments, yet it eliminates a large fraction of the low-end products on the market. When you need a defensible number, move to the quantitative tests below. JUNZHJIA runs an extended version of this same logic in outgoing inspection: a visual and structural screen first, then batch sampling for static load and drop verification, with test records retained for customers on request.

What "Durability" Actually Means: Decompose the Load Spectrum First

Durability is a word of mouth. In engineering terms it means the ability to maintain a specified function over a specified service life under a specified load spectrum. Change the load spectrum and the answer changes completely. A household box holding 5 kg of hand tools and a site box holding 25 kg of power tools plus accessories may look identical on the outside while being designed to targets that differ by multiples.

Break the loads a toolbox sees into six categories and assign rough magnitudes to each. Only then does a test plan have any basis.

Rank these six against your real application and the test priorities become obvious. A vehicle-mounted toolbox is dominated by vibration plus thermal cycling, with drops secondary. A site rotation box is dominated by drops plus stacking. A warehouse storage box is dominated by long-term static load plus stacking. Applying one universal test protocol to every scenario either over-engineers the product and inflates cost, or passes in the lab and still fails in the field.

If you are unsure which bracket you fall into, the discussion of duty classification in industrial versus household toolbox design is a useful starting point: establish whether you need industrial, professional or household grade before selecting test items.

The Mechanics of Ribbing: Why Thin Walls with Ribs Beat Thick Walls

This section is the technical core of the whole article. Understand it and you can read the structural quality of almost any moulded case at a glance.

When a flat plate bends, its resistance is governed by the second moment of area, I. For a rectangular cross-section, I scales with the cube of thickness. So going from 2.5 mm to 3.0 mm wall - a 20% increase - raises I by roughly a factor of 1.7. That is a real gain, but you also added 20% weight, 20% material cost, and - often overlooked - a much longer cooling time, because cooling time tends to grow with the square of wall thickness. Cycle time and unit cost both go up.

Ribbing takes a different approach: instead of spreading material evenly, it moves material away from the neutral axis. Because the second moment of area integrates area multiplied by the square of distance from that axis, placing the same quantity of material vertically - as a rib - raises I dramatically. In practice, a well-designed ribbed panel can reach several times the bending stiffness of the original flat panel for a single-digit percentage increase in weight. That is where the cost-performance advantage comes from.

But ribs are not a "more and taller is better" proposition. There are hard physical limits:

• Too thick and you get sink marks. Material accumulates at the rib root, cools more slowly than the surrounding area, and shrinks more, leaving a depression on the visible face. Sink marks ruin appearance and, on a sealing flange, ruin flatness. The widely used rule of thumb is to keep rib root thickness in the range of roughly 40% to 60% of the nominal wall, with cosmetic-critical parts held closer to 50%.
• Too tall and the rib buckles. A slender rib in compression fails by buckling, exactly like a slender column. Once rib height exceeds about three times wall thickness, you need either more rib thickness or transverse connecting ribs to stabilise it.
• Too widely spaced and the panel still dishes. The panel between ribs behaves like a plate supported on all four edges; wider spacing means more central deflection. Spacing in the range of two to three times wall thickness is generally safe, adjusted for actual load.
• Rib direction must follow the principal stress direction. If load runs along the long axis of the box, a dense set of transverse ribs does little good. Continuous longitudinal ribs do the work.

One more point that is frequently missed: on an injection moulded part, ribs also serve as flow leaders and vents. Sensible rib layout helps the melt fill evenly, reduces the number of weld lines, and gives trapped gas a path to escape, which cuts burning and short shots. Rib design is therefore a process question as much as a structural one. It is also why two boxes that look structurally similar can perform very differently - the mould and process know-how is buried in the rib details.

For a broader view of how this fits into a complete enclosure, see structural design principles for high-strength protective cases.

Five Rib Design Parameters and How to Read Them on a Finished Box

You rarely get a drawing when you are evaluating a sample. The good news is that you can back out the important parameters with a calliper, a torch and your hands.

Measuring in the field. Use a digital calliper on any ribs visible on the outside - most toolboxes carry either decorative or functional external ribs. Where the structure is internal, run your fingers along the inside to sense rib depth and pitch. If that fails, shine a bright torch through one side and look from the other: rib locations are thicker, transmit less light, and show up as darker bands. Crude, but entirely sufficient to separate "ribbed" from "bare panel."

Why draft matters. The part has to come out of the tool. Without draft you get drag marks, or the part sticks and gets damaged by ejector pins. But draft also thins the rib tip and removes load-bearing section. Good tool design minimises draft while still releasing reliably, and adds a small radius at the rib tip. If you see vertical drag marks or whitening along ribs, demoulding is marginal and the rib strength in that batch is probably already compromised.

Root fillet radius is the toughness lever. A sharp corner concentrates stress, and impact cracks almost always initiate at a sharp rib root. ABS is notch-sensitive, so this matters more here than in many other resins. To check, hold the box to the light and look at the rib-to-wall transition: you want a visible arc. A crisp right angle, especially at handle roots or latch seats, is a crack waiting for an excuse.

Rib termination matters too. Ribs should not stop abruptly. A sudden ending creates a stiffness discontinuity and another stress concentration. Good practice is a tapered run-out, or tying the rib into another rib or the perimeter so the load path closes. Look at the underside: a closed or semi-closed grid beats a scattering of floating short ribs every time.

Four Rib Patterns Compared: Straight, Diagonal, Grid, Radial

Different regions call for different patterns.

Use a grid on the base. The base carries the contents, and the load is never evenly distributed - heavy items cluster to one side. A two-way grid avoids a weak direction. A grid also works with stacking features: the feet of the upper box land over the ribs of the lower box so load passes straight through the ribs to the ground instead of pressing on the middle of a thin panel. That idea is developed further in the benefits of stackable toolbox design.

Use vertical straight ribs on side walls. Side walls primarily see stacking compression and lateral knocks. Vertical ribs deliver compressive stiffness and - conveniently - align with the fill direction when the melt flows upward from the base, which makes the tool friendly to run.

Use radial ribs plus local thickening at point loads. Wheel bosses and handle seats introduce load through a small footprint, and that load has to be spread into the shell. The classic failure is a ring crack around a wheel boss, and the root cause is almost always a missing load-spreading path.

Virgin ABS, Regrind and Filled Compounds: How Big Is the Gap?

Material is the second pillar. The mainstream toolbox shell resins are PP (polypropylene) and ABS (acrylonitrile butadiene styrene), with higher-end protective cases moving to PC/ABS blends or reinforced PP. For the fundamentals of PP versus ABS, see PP versus ABS toolbox materials. This section focuses on a narrower question: for the same nominal ABS, how much does virgin resin differ from regrind?

ABS is a three-component system, and that explains its behaviour. Acrylonitrile contributes chemical resistance and surface hardness. Butadiene contributes toughness - it is the rubber phase, and it is what makes the material survive impact. Styrene contributes flow and gloss. Every reprocessing pass subjects the butadiene phase to thermal and oxidative history, and impact strength is consistently the first property to fall. That is precisely why a regrind box can look identical to a virgin box and shatter on the first drop.

How do you spot regrind? Five practical checks. Colour: virgin resin is even and saturated; regrind tends to look grey, dull or blotchy. Black specks: inspect light-coloured shells under a strong light - regrind commonly shows fine dark specks from carbonised degradation. Odour: virgin resin is essentially odourless; regrind gives off a sharp smell when warmed. Toughness: bend a small sample from a hidden area; virgin resin whitens at the bend but survives repeated flexing, while high-regrind parts often snap on the first bend. Documentation: ask for the melt flow rate (GB/T 3682) and Charpy notched impact strength (GB/T 1043.1 or ISO 179) reports - regrind typically shows a clear shift on both, with MFR rising and impact falling.

"Modified" does not mean "better." Glass fibre raises stiffness and HDT but lowers impact toughness and introduces anisotropy. Mineral filler lowers cost and shrinkage but generally costs you toughness. For a part like a toolbox that needs stiffness *and* drop resistance, a high filler loading is usually a bad trade. The sound approach is to get toughness from virgin ABS and stiffness from ribs, rather than buying modulus with filler. That trade-off is discussed systematically in plastic material selection for protective cases.

One more property worth naming: HDT, or deflection temperature under load (GB/T 1634 series), which measures the temperature at which a material reaches a specified deflection under a specified load. A toolbox in a closed vehicle in summer can reach temperatures well above ambient. If HDT is marginal, the box softens and distorts under load while hot. The related field problem is analysed in heat deformation of toolboxes stored in vehicles. ABS generally offers a higher HDT than PP, which is one reason ABS cases behave better in high solar-load environments.

Three Basic Load Test Types: Static, Dynamic and Fatigue

Splitting tests into three families clarifies what each one is actually answering.

Static testing answers "how much can it carry." Place a specified weight in the box, either distributed as specified or concentrated, set the box on a level rigid platform, hold for a specified time, and measure base deflection plus residual deformation after unloading. A sensible acceptance criterion has two parts: no cracking, latch release or permanent collapse during loading; and residual deformation after unloading within an agreed band, typically a small fraction of the initial deflection. For boxes that will be stacked, add a stacking static test: stack multiple fully loaded boxes, and measure side-wall deformation and inter-layer slip at the bottom layer.

Dynamic testing answers "does it survive a sudden event." The two workhorses are drop and impact. Drop testing usually follows the transport packaging tradition - ISTA series protocols or the GB/T 4857 series - specifying drop height, orientation (face, edge, corner), number of drops and acceptance criteria. Impact testing can follow the IEC 62262 / GB/T 20138 IK method, using a pendulum or drop hammer of specified energy against specified locations.

Fatigue testing answers "how long will it last." Cycle the load on and off - repeated opening, repeated carrying, long runs on a vibration table - and either record the cycles to a defined failure criterion or check for failure after a defined number of cycles. The two fatigue locations that matter most on a toolbox are latch open-close life and hinge life, followed by fatigue at the handle from repeated lifting.

Temperature conditions must match the application. Polymer properties are strongly temperature dependent: the notched impact strength of ABS falls markedly at low temperature, and PP has a well-defined brittle range. If your boxes will be used outdoors in a northern winter, the drop test must include low-temperature conditioning - hold at the specified cold temperature long enough for the whole sample to equalise, then test immediately. Without it, you get the classic pattern of everything passing at room temperature and a wave of field cracks in January.

A Load Test You Can Run in Your Own Warehouse

You do not need a universal testing machine to produce a defensible comparison. The following protocol suits incoming inspection and supplier benchmarking.

Tools: digital calliper (0.01 mm), dial indicator or digital depth gauge, calibrated weights or weighed sandbags or steel stock, a level rigid platform (a surface plate or thick steel plate), tape measure, thermo-hygrometer, timer, marker, phone for photos and slow-motion video.

Step 1 - baseline. With the empty box level, measure the distance from the platform to the base centre and to each corner; record as h0. Also record length, width and diagonals as a reference for later deformation checks.

Step 2 - staged loading. Load in steps of 25%, 50%, 75%, 100% and 125% of rated capacity. After each step, wait at least 10 minutes before reading - plastics creep, and the reading needs time to settle. Spread the load as evenly as possible; if you are simulating a concentrated load such as a heavy rotary hammer, place it centrally and record the contact footprint.

Step 3 - hold and observe. Hold 100% load for 24 hours (extend to 72 hours for long-term storage cases), measuring at 1, 4, 8 and 24 hours to see how deflection evolves. A healthy curve rises quickly over the first few hours and then flattens. Deflection that keeps climbing without converging signals runaway creep, and that box is not suitable for long-term heavy storage.

Step 4 - unload and recover. Measure immediately after unloading (the elastic recovery) and again after 24 hours (delayed recovery). Residual set equals the 24-hour reading minus h0. A large residual set means plastic deformation or permanent structural damage.

Step 5 - functional recheck. At full load and after unloading, verify: the lid opens and closes normally; the latches engage smoothly; the gasket still seats evenly; stacking features still align; liners and dividers have not shifted. A surprising number of "structurally fine but unusable" failures surface right here.

Step 6 - record and judge. Use a standard form capturing at minimum: sample ID, model, material marking, ambient temperature and humidity, deflection at each load step, 24-hour residual set, functional recheck result, and photo references. With that record in hand, a conversation with your supplier becomes factual rather than emotional.

Safety note. Loading to 125% can produce sudden, energetic failure. Barrier off the area, keep people out of the likely collapse direction, and when using cast iron weights, put a cushion under the box so a local stress concentration does not distort the result.

Drop and Impact: Using IK Ratings, GB/T 1043 and ISO 179 Correctly

This is the most misused group of standards in the category, so it is worth being precise.

GB/T 1043.1 and ISO 179 (Charpy impact) measure a material, not a product. They use a standard specimen - a bar of defined dimensions with a defined notch - struck by a pendulum, and report energy absorbed per unit area in kJ/m2. That number is a property of the resin, used for incoming material control and compound comparison. It does not tell you whether the box survives a one-metre drop, because product drop performance also depends on structure, ribbing, weld line location, corner radii and assembly state.

IEC 62262 and GB/T 20138 (IK code) measure a product enclosure. A hammer or pendulum of defined energy strikes defined locations a defined number of times, and the result is expressed as a rating from IK00 to IK10, corresponding to impact energies from below 1 joule up to 20 joules. The IK rating applies to the complete enclosure, which is fundamentally different from a material-level test.

Three common misuses. First, quoting a material impact number as if it were a product IK rating - it is not. Second, testing only the middle of large flat faces and skipping corners and handle roots, which are the real weak points. Third, testing at room temperature and then claiming cold-climate suitability.

The correct combined approach is to use GB/T 1043.1 / ISO 179 at material level for incoming consistency control - making sure every lot has the same toughness - and to use drop testing plus IK impact at product level for design validation. Together you have both process control and outcome assurance. Drop conditions can be structured along the lines of transport package test methods such as the drop test procedures in the GB/T 4857 series: set height by gross weight, and sequence orientations as one corner, three edges, six faces.

Thermal conditioning before drop testing is the step most programmes skip. Run three groups: ambient (conditioned at roughly 23 degrees C and controlled humidity), cold (set to your lowest service temperature, for example minus 20 degrees C or lower, long enough for the sample to equalise throughout), and hot (set to your highest service temperature). The cold group is almost always what separates the tiers.

Creep and Long-Term Load: Why Plastics Deform Slowly

Plastics differ from metals in one fundamental way: they are viscoelastic, which means their deformation depends on time as well as load. Under a constant load, deformation keeps growing with time even when the stress is far below the short-term strength. That is creep. The mirror-image phenomenon is stress relaxation, where stress decays under constant deformation.

Two practical consequences for toolboxes:

1. A box kept fully loaded for years will sag. Excessive base deflection can make the lid hard to close, make gasket compression uneven, and let stacked boxes slide. Boxes intended for long-term storage therefore need higher base stiffness than boxes used purely for transport.
2. Latch clamping force decays over time. Many latches rely on elastic deflection of a plastic feature to generate clamp load. Under long-term closure, that force relaxes and sealing performance drops. It is also why a sealed case that has sat closed for a year should have its seal checked before it goes back into service.

How to manage creep risk. Three routes: raise structural stiffness (back to rib design) so the actual stress level is lower; select a grade with better creep resistance (grades differ substantially - ask your resin supplier for creep curves); and design out sustained high stress (do not park a latch permanently at maximum deflection).

How to assess it practically. The GB/T 11546 series covers determination of creep behaviour, but it is heavier than most buyers need. The simplified 24-hour hold described above is usually enough to rank suppliers: at equal load, the smaller the 24-hour deflection increment relative to the initial deflection, the better the creep behaviour. It will not extrapolate to a five-year figure, but it will tell you who built the better box.

Environmental Ageing: Heat, UV and Low-Temperature Embrittlement

Every laboratory number is generated in a standard atmosphere, typically 23 degrees C and 50% relative humidity. Real service is harsher.

Thermal ageing. Sustained heat accelerates thermo-oxidative degradation, showing up as discolouration, surface chalking and loss of impact strength. A toolbox in a sealed vehicle in summer can reach temperatures far above ambient - measured in the field and discussed in toolbox heat deformation in vehicles. Mitigations include specifying a higher-HDT grade, avoiding dark heat-absorbing finishes, and not storing the case where direct sun hits it through glass.

UV ageing. Ultraviolet radiation breaks polymer chains, and the butadiene phase in ABS is particularly vulnerable. Long-term outdoor exposure leads to yellowing, chalking and embrittlement. The standard approach is artificial weathering per the GB/T 16422 series (aligned with ISO 4892) using xenon-arc or fluorescent UV apparatus, or natural exposure programmes. For cases that will live outdoors, ask whether the compound carries UV stabilisers and antioxidants, and request the artificial weathering report. The broader outdoor picture is covered in toolboxes for outdoor work and waterproof toolboxes for outdoor storage.

Low-temperature embrittlement. Toughness falls as temperature drops; this is common to essentially all thermoplastics. GB/T 5470 covers the determination of brittle temperature by impact. In practice the more direct approach is a cold drop test: condition at your lowest service temperature, then drop from the specified height and look for cracking. Put this clause into the technical agreement whenever the market includes northern regions, cold-chain surroundings or high-altitude work.

Humidity and chemical exposure. In humid conditions some polymers absorb moisture - polyamide being the classic case - and change dimension and properties. Contact with oils, solvents or cleaners can trigger environmental stress cracking. ABS is sensitive to certain organic solvents, so confirm compatibility up front if the application involves chemical contact.

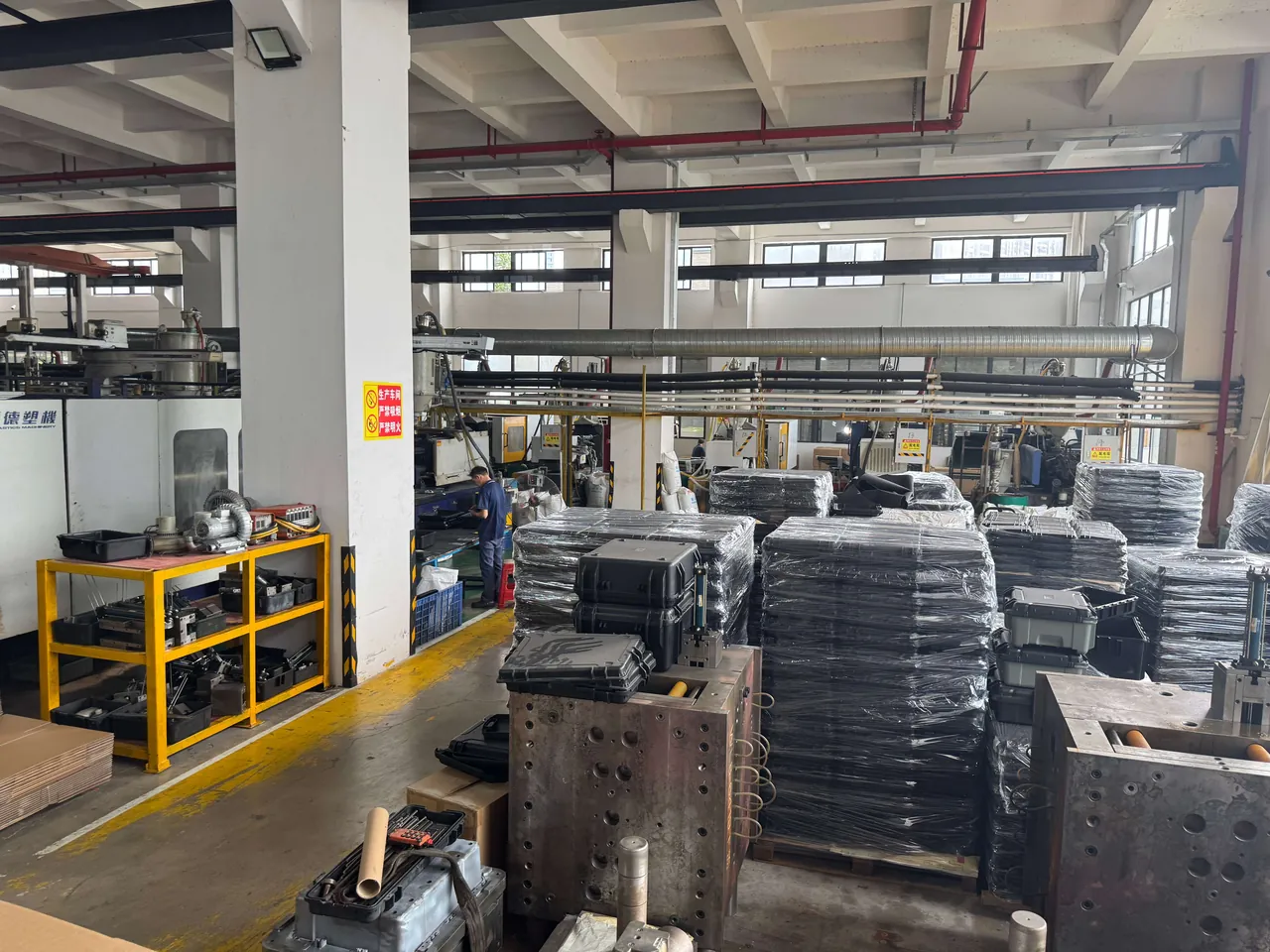

How Moulding Defects Eat Structural Strength

A perfect drawing and a genuine virgin resin still will not save you if the process is out of control. Five defect classes dominate in toolboxes.

Weld lines (knit lines). Where two or more melt fronts meet, molecular orientation is discontinuous, and air or release-agent residue can be trapped. Strength at the weld is well below bulk. Weld lines cannot be eliminated - any hole or insert creates one - but their location can be engineered. The dangerous case is a weld line sitting in a handle root, wheel boss or latch seat. Good design moves it into a low-stress region by adjusting gate position and number. To find one, hold the surface to the light: weld lines usually appear as a hairline, or as a subtle gloss difference on dark parts.

Sink marks and internal voids. Where wall thickness varies sharply or packing pressure is short, thick sections dish on the surface and can develop a vacuum void inside. Sink is not merely cosmetic - on a sealing flange, it destroys flatness, and flange sink is a routine cause of seal failure. Run your hand over large panels and rib backs, or view under raking light; tapping and listening helps locate internal voids.

Short shots and burn marks. Incomplete filling leaves missing material, most often at rib ends. Trapped gas that cannot vent overheats and carbonises, appearing as small dark patches at rib ends or corners. Both directly reduce load-bearing section.

Warpage. Uneven cooling or uneven orientation distorts the whole part, so the lid and base no longer meet evenly - which immediately affects sealing and stacking. Check by placing the lid on a surface plate to see whether all four corners contact, and by setting the base down to see whether it rocks.

Material degradation. Excessive melt temperature or long residence in the barrel breaks chains, producing yellowing, black specks and loss of impact strength. This is more likely with high regrind ratios and older machinery.

What evidence should you ask for? Request the moulding process sheet (melt temperature, mould temperature, pack pressure and time, cooling time), first-article inspection records, batch sampling records, and SPC data on critical dimensions where available. For OEM/ODM customers, JUNZHJIA can supply structural validation records and material test documentation at model level so the customer can build an incoming inspection standard around them.

Procurement Checklist: Writing Durability as a Testable Clause

Finally, something you can execute. The following template can go straight into a technical agreement or purchase specification; adjust the numbers to your own duty.

1. Material clause. Name the grade and level (for example "virgin ABS engineering resin; unapproved regrind not permitted"), and require Charpy notched impact strength (GB/T 1043.1 or ISO 179) and flexural property (GB/T 9341) test reports, plus melt flow rate for lot-to-lot consistency monitoring.
2. Structural clause. State the baseline requirement for base and side-wall ribbing (for example "base shall use a two-way grid of reinforcing ribs with no through discontinuities in the rib network"), and require local reinforcement at high-stress zones: handle seats, wheel bosses, hinge seats and latch seats.
3. Static load clause. Define rated capacity, loading method (distributed or concentrated), hold time (24 hours recommended), and maximum permitted deflection and residual set after unloading.
4. Stacking clause. Define number of layers, load per layer, hold time, and maximum permitted inter-layer slip and side-wall deformation.
5. Drop clause. Define drop height (by weight), orientation sequence (one corner, three edges, six faces, or an agreed simplification), drops per orientation, thermal condition (ambient, cold, hot), and acceptance criteria (no cracking or loss of function affecting use; sealed products shall be re-checked for sealing).
6. Impact clause. Where applicable, state the IK rating (IEC 62262 / GB/T 20138) and the impact locations.
7. Vibration clause. Where applicable, state the profile (frequency range, acceleration, duration, axis) and the acceptance criteria.
8. Fatigue clause. State the required open-close cycle life for latches and hinges.
9. Ageing clause. Where applicable, state the artificial weathering method and duration (GB/T 16422 series) plus acceptance criteria.
10. Appearance and workmanship clause. Define permissible sink depth, permissible weld line locations, and prohibited defects (short shots, burning, cracks, voids).
11. Sampling and acceptance. Define the sampling plan (number drawn per lot), the AQL level, and the handling of non-conforming lots.
12. Documentation clause. Define which test reports are required and what traceability marking (moulded material code and lot number) is expected.

When you hand this list to a supplier, mark which items are mandatory and which are preferred. Making everything a pass-fail gate drives cost without improving outcomes. A sensible split: safety-related items (drop, static load, latch life) are mandatory; appearance and comfort items are preferred.

Sizing and capacity still have to be solved alongside strength - a very strong box that will not hold your kit is useless. See how to calculate toolbox capacity and how to choose the right toolbox size.

Frequently Asked Questions

Q: Are more ribs and taller ribs always better? A: No. There are hard physical limits. An excessively tall rib buckles before it delivers further stiffness gain - it behaves like a slender column in compression - and the buckling event itself can cause local damage. Industry practice generally keeps rib height to roughly two to three times wall thickness; beyond that you need transverse connecting ribs or more rib thickness to keep it stable. Excessively dense ribbing has its own problems: tooling cost and complexity rise, melt flow between tightly packed ribs generates a lot of weld lines, and material build-up causes uneven cooling with more sink and warpage. Good design puts enough continuous rib along the real load paths rather than carpeting the shell. You can validate the result by feel: the large panels should not visibly dish when pressed, the sound when tapped should be broadly consistent across the part, and the underside should show a continuous load-path network rather than scattered short ribs.

Q: How much shorter is the real service life of a regrind ABS toolbox compared with virgin resin? A: There is no single "years" answer, because life depends on load spectrum, usage frequency and environment. What is clear is where the gap comes from. ABS toughness comes from its butadiene rubber phase, and the thermal and shear history of reprocessing ages that phase and degrades chains, so impact strength is consistently the first property to fall. Drop two otherwise similar boxes from one metre and the virgin box may only show a white mark while a high-regrind box cracks open. Regrind also has poor lot-to-lot consistency, so individual units within one shipment can vary widely - which is particularly dangerous in volume purchasing, where a passing sample does not mean a passing batch. Practically: require a written material-grade commitment plus traceability marking; put Charpy notched impact strength (GB/T 1043.1 / ISO 179) into incoming inspection so you are gating on a number rather than a look; and run cold-drop sampling on critical lots. If budget is genuinely tight, use regrind in non-load-bearing parts such as internal dividers and keep virgin resin in the shell. That is a far better cost-performance trade than downgrading the shell.

Q: Without any test reports, how do I make a quick structural judgement on site? A: Use the five-step method: flip, press, tap, look, check. Flip the box and inspect the base - good structure is a continuous two-way rib grid, poor structure is a bare panel with a perimeter rim. Press the centre of large faces and the side walls to gauge deflection and rebound; stress whitening means the material has already yielded. Tap across the surface - a consistent crisp sound indicates dense structure, while a dull spot or sharp change suggests an internal void or a collapsed rib back. Look for local reinforcement at handle roots, wheel bosses, hinge seats, latch seats and stacking bosses; check that rib-to-wall transitions have a radius; inspect light-coloured shells under strong light for black specks. Check for moulded material codes and lot numbers inside the shell, and check that the gasket seats evenly once the lid is latched - a strip of paper pulled around the perimeter should meet roughly equal resistance all the way round. No instruments required, a few minutes per box, and it works for incoming screening and supplier audits alike. Move to staged static loading and drop testing whenever you need a number.

Q: In a load test, should the weight be distributed or concentrated? A: Do both - they answer different questions. Distributed load simulates a box filled with tools and evaluates overall base stiffness and long-term creep; it is the basis for defining rated capacity. Concentrated load simulates a few heavy items - a rotary hammer, an angle grinder - pressing on a small area, and evaluates local compressive and puncture resistance; it is harsher and closer to real accident conditions. Write both into the technical agreement: distributed defines the rating, concentrated validates the worst case. When running a concentrated test, always record the load contact area and shape, because a sharp foot and a flat base give very different results. Decide on the basis of actual use whether to place a pad between the load and the floor of the box - in real use tools sit directly on the floor or liner, so usually no extra cushion is added, but state the condition in the report so the result is reproducible and comparable.

Q: How high should a drop test be, how many drops, and which orientations? A: Drop height is normally tied to sample weight - transport packaging practice sets height in bands by gross weight, with heavier items dropped from lower heights because in practice heavy items are simply not carried as high. You can reference the drop test procedures in the GB/T 4857 series or the ISTA series, and state in the agreement which edition you are using. For orientation, the full sequence is one corner, three edges, six faces: drop the weakest corner first, then the three edges meeting at that corner, then the six faces, usually once each, rising to three to five times for critical programmes. For toolboxes the corner and edge drops deserve the most attention, because corners are what actually hits the ground first in a real fall, and corners are also where weld lines and stress concentrations tend to meet. Specify thermal conditions separately: ambient, cold-conditioned and hot-conditioned groups. The cold group is usually what separates the tiers. For acceptance, write something like "no cracking or loss of function affecting use," and define what loss of function means - cannot be latched, seal compromised, handle detached.

Q: What is the difference between an IK rating and an IP rating, and which one should I look at for a toolbox? A: They measure completely different things. The IP rating (IEC 60529 / GB/T 4208) measures protection against solid objects and water: the first digit is dust, the second is water. The IK rating (IEC 62262 / GB/T 20138) measures protection of the enclosure against external mechanical impact, graded by impact energy in joules. Neither implies the other: a case can be IP67 with a poor IK rating, or vice versa. Which one matters depends on your risk. If the contents are precision instruments, electronics or moisture-sensitive gauges, the IP rating comes first. If the box gets knocked around on sites, in workshops or in mining environments, the IK rating and drop testing matter more. Most professional applications need both, with separate reports for each. One warning: a material-level impact strength figure (GB/T 1043.1, ISO 179) is not a substitute for a product IK rating - the first tests a standard specimen, the second tests a complete enclosure, and conflating them is a common piece of marketing misdirection.

Q: Why does a toolbox deform in a car in summer and then crack in winter? A: Those are two classic expressions of viscoelasticity and temperature sensitivity. In a closed vehicle in summer, the interior can reach temperatures well above ambient; once the temperature approaches or exceeds the material's deflection temperature under load (HDT, measured per the GB/T 1634 series), the modulus falls and the box visibly sags - or permanently deforms - under the weight of its contents. In winter the problem is toughness: with less molecular mobility the material shifts from ductile to brittle, so a crack propagates easily under impact. The same box can therefore fail in completely different modes in different seasons. Countermeasures: specify a grade with higher HDT and better low-temperature toughness; use ribbing to raise stiffness so the actual stress level is lower; avoid long summer exposure in a sealed vehicle by storing the case low down or shaded; and avoid rough handling in the cold. The single most valuable purchasing move is to require drop testing that includes a cold-conditioned group - passing everything at room temperature and then cracking in bulk over winter is a quality incident that repeats across the industry.

Q: How is a toolbox's rated capacity determined, and can I trust the number on the label? A: Methods vary widely between manufacturers, and that is exactly the problem. The rigorous approach bases the rating on static test deflection and residual set: the load at which base deflection and post-unload residual set remain within acceptable limits becomes the rated value, usually after division by a safety factor. Less rigorous approaches include "it did not break when we filled it," "copying a comparable product," or simply writing down whatever marketing wants. To judge whether a number is credible, ask for three things: a written statement of the test method and criteria (loading method, hold time, permitted deflection, residual set limit); the sample size and sample condition (with or without liner, conditioned in a standard atmosphere or not); and whether any third-party testing was done. If the supplier can only say "our box holds X kilograms" with no method behind it, run your own staged loading test to calibrate. A robust working habit is to treat 70% to 80% of the stated figure as your daily operating limit, leaving the margin for shock, ageing and unit-to-unit variation.

Q: For an OEM or ODM toolbox programme, what durability requirements should I put to the manufacturer first? A: Four categories. First, define the duty: describe the real application in concrete terms - load types and magnitudes, how it is carried, whether drops are likely, transport mode, temperature range, outdoor or indoor, chemical contact - rather than just saying "make it strong." Duty is the design input, and a wrong input guarantees a wrong output. Second, hold a structural review: ask for a rib layout description or structural drawing, and focus on whether high-stress zones (handle seats, wheel bosses, hinge seats, latch seats, stacking features) are reinforced, whether ribs form continuous load paths, and whether corner radii are adequate. Third, agree the validation plan up front: which tests will be run (static, stacking, drop, IK, vibration, open-close life, ageing), under what conditions, on how many samples, with what acceptance criteria - and execute it at first-article stage rather than discovering problems in mass production. Fourth, control change: require notification and revalidation when resin grade, tool or process parameters change, so performance does not quietly drift after launch. For customers with documentation requirements, also specify which test reports are needed and how they will be delivered.

Conclusion and Further Reading

Toolbox durability is neither mysticism nor a matter of intuition you can settle by standing on the lid. It is the combined result of rib topology, the toughness of virgin ABS engineering resin, and injection moulding consistency - and it can be converted into measurable, negotiable and claimable clauses using the IK scale of IEC 62262 / GB/T 20138, the impact strength of GB/T 1043.1 and ISO 179, the flexural properties of GB/T 9341, the deflection temperature of GB/T 1634, and a coherent set of static, drop, fatigue and vibration tests.

For buyers, the three highest-value steps are: screen on site with the flip-press-tap-look-check method; compare candidates with staged static loading plus a 24-hour hold; then write static load, stacking, drop (including cold) and open-close life into the technical agreement along with a sampling plan. None of this needs expensive equipment, and it removes most of the risk.

For users, the practical advice is: operate at 70% to 80% of the stated rating, avoid long summer exposure in sealed vehicles, avoid rough handling in the cold, and rotate boxes periodically during long-term loaded storage so creep stays even.
