1. Component architecture and failure modes of cold headers and thread rollers

A cold header applies high pressure to wire at room temperature and forms a bolt head, a nut blank or a special part in a single pass through multi-station tooling. A thread roller uses two toothed plates, one fixed and one reciprocating, to roll threads onto a workpiece. The tooling for both machine types falls into the high-value, high-precision, high-turnover category.

Classifying transportable components by failure mode is more useful than classifying them by name:

The first four classes are the clearest case of precision being the value. A thread plate pair or a multi-station die set usually costs far more than everything else in the case combined, and failure rarely means breakage. It means crest collapse or a two-to-five micron dimensional shift that is invisible to the eye. That shift shows up as a thread gauge that will not pass, scatter in the torque coefficient or length variation, and tracing it is expensive. Forming dies and thread tooling therefore follow three rules: individual locating, no mutual contact, and no load on working edges or tooth faces.

The last two classes are more about assembly-face integrity. Once a cam or ejector pin mating face is damaged, stroke behavior becomes unstable after assembly. Once a hydraulic seal face is scored, leakage follows, and the leak point often only appears after a period of operation. Visual inspection rarely catches these risks, so they have to be designed out structurally.

JUNZHJIA's usual approach in the fastener and thread tooling sector is tiered, split-case packaging based on the customer's tooling list: forming dies and thread tooling in dedicated compartmentalized cases, thin-edge shearing parts in a dedicated thin-edge case, hydraulic and pneumatic parts in an independent sealed case, and feeding and drive parts in general-purpose stackable cases. Total packaging cost stays under control while the most expensive tooling sits on the most controlled path.

2. Cold-heading dies and punches: edge and mating-face protection

The die insert and the punch are the two highest-precision parts on the line. The punch impact face takes the forming load, and the die bore determines the workpiece profile. Their failure modes differ clearly:

• Punch failure mode. Stress concentration at the impact face initiates micro-cracks, which later propagate into chipping under a concentrated load during transport or setup. Punches are usually high-speed steel or powder-metallurgy high-speed steel at HRC 60 and above with limited toughness. They handle the uniform compressive stress of forming but not a point load from a drop.
• Die insert failure mode. Bore scoring and fretting wear. Die bores are often finished below Ra 0.2, and rubbing against a hard object inside the case produces longitudinal scratches that show up as dimensional scatter and poor ejection.

Protection addresses three things: impact energy absorption, relative displacement control and contact-surface matching.

First, energy absorption. Use two-stage cushioning: the insert foam absorbs small energy events over 5 to 15 mm of deflection, while case ribs and a reinforced base provide rigid support for large events so the foam never bottoms out into hard-on-hard contact. For punches under 20 kg, leave about 10 to 15 percent of insert thickness as compression reserve. For single items above 30 kg, add a high-density PE backing plate.

Second, relative displacement. Multi-station sets travel in groups of five to ten. Left loose on one layer, transport vibration makes them rub and strike each other. Each item needs its own machined pocket with 0.3 to 0.5 mm single-side clearance and a depth of 60 to 80 percent of part thickness, so the part nests rather than sits on top.

Third, contact-surface matching. Mirror-finish bores and impact faces must not rub directly against firm foam; add a non-woven or EPE transition layer. For mating parts such as a punch and its holder or a die insert and its sleeve, separate packaging is better, since it removes a chance for misalignment and a second impact before assembly.

One procedural detail decides whether a die set survives three regrinds or eight: after removal from the machine, demagnetize and blow clean, then apply a very thin rust-preventive film, wrap in rust-inhibiting paper, and only then pack. Packing a die that still carries cold-forming oil and metal fines lets the oil glue those fines to the working edge, and in transit they act as lapping compound, effectively grinding the die for you.

3. Trimming dies and shear knives: locating and cushioning thin-edge parts

Trimming dies and shear knives are classic thin-edge parts: thin working edge, low stiffness, demanding flatness. Their failure modes concentrate in three areas: edge chipping, edge rolling, and flatness deviation.

The packaging logic for thin-edge parts differs from that for massive dies. The core idea is keep the edge unloaded and let the face carry the load:

1. Edge up or oriented consistently. The cutting edge must never face down against the case floor or insert, because any localized point load can chip it. The correct arrangement is edge up, with the back face in contact with the insert carrying the load.
2. Full-face high-density backing. The back face should sit against a high-density PE or EVA block across its full area, avoiding a supported-at-both-ends, unsupported-in-the-middle condition, where repeated flexing from transport vibration can initiate fatigue micro-cracks in the edge.
3. One per pocket, never stacked. When two trimming dies are stacked, the upper part's full weight rests on the lower part's edge, which is the most common cause of chipping. Use one pocket per part with a solid divider between layers.

Shear knives have an additional risk: burrs on the fracture face. A new or freshly reground knife may carry fine burrs at the edge, and rubbing against the insert in transit knocks them off and leaves irregular small notches. Deburr before packing and add a soft edge protector.

For customers changing over frequently, a removable divider system is worth the small premium: when the specification changes, only the compartment insert is replaced and the case body is reused. This structure is covered in more detail in removable case divider systems, and it pays off especially in a many-specification, small-batch fastener shop.

4. Thread-rolling plates: tooth-face protection and matched-pair control

Thread-rolling plates are the core tooling for thread forming. They are used in pairs, one fixed and one reciprocating, and they generate the thread by squeezing the workpiece between them. The two plates in a pair must match precisely, since tooth pitch and thread form angle together determine the pitch and flank geometry of the rolled thread, and that accuracy is governed by the ISO 4759 fastener tolerance system.

The transport failure mode is distinctive: crest collapse and localized pitch deformation. The crest is an extremely narrow contact surface, so any hard contact locally crushes it, and a plate with a dent produces a rolled thread with localized pitch-diameter deviation that typically shows up as a go gauge that passes intermittently. That is extremely hard to diagnose. Protection rests on three measures:

1. Tooth-face isolation. Orient all plates tooth face up with a divider between layers, or place them tooth face to tooth face with a soft separator between. Never let a tooth face rest directly on the case floor or against another plate's teeth.
2. Matched pairs and numbering. Plates must be packed, shipped and issued as pairs, with the pair number marked inside the case, to prevent mismatching on the shop floor. A mismatched pair produces a tooth-form mismatch that is often misdiagnosed as an equipment fault or a material problem, making the investigation very expensive.
3. Rust-inhibiting wrap. Plates are typically Cr12MoV or SKD11-type cold-work die steel, whose corrosion resistance is limited at modest chromium levels. Pitting can appear within two to three weeks in humid sea freight, and pitting destroys the tooth face directly. Rust-inhibiting paper plus VCI film is the most cost-effective combination.

Weight management also matters. A typical plate weighs 5 to 25 kg, and a stacked pair puts meaningful load on the case base. With a multi-layer structure, distribute layers by weight: heavy items on the bottom, light items above, with solid dividers between layers so the upper load does not pass through the insert onto the lower tooth faces.

On inventory and circulation, one management practice is worth adopting: run a ledger per case. Each case maps to one plate set and one location drawing, and both issue and return are reconciled by count. That protects the tooling and builds the plate-life data needed for purchasing and regrinding plans.

5. Rolling dies and taps: bore locating and thread-form isolation

Rolling dies form threads by rolling, which suits high-strength threads and wood screws, while taps cut internal threads. Both demand high accuracy, but their packaging priorities differ.

Rolling dies fail mainly through bore mating-face damage and tooth-face scratching. A rolling die mounts on a shaft, and its bore is a precision fit, so damage causes radial runout after assembly and a periodic fluctuation in the pitch diameter of the rolled thread. Pack them with bore locating and the tooth form suspended: a locating arbor passes through the bore, the tooth form touches nothing hard, and each die gets its own compartment.

Taps present the slender-part problem plus an edge problem. A small tap, say below M3, will bend or snap if it is unsupported at both ends and transport vibration does its work, and its cutting edges are sharp enough to chip on any hard contact. The correct arrangement is:

• Foam strips with longitudinal channels so the tap nests along its full length, with roughly 5 mm of support at each end.
• No contact between taps, with channel spacing of at least 10 mm.
• No load bearing at the shank-to-flute transition, which is a stress concentration zone.

Thread tooling accuracy management is itself part of the quality system. Where tooling is held to ISO 4759 tolerances, the packaging plan should be linked to the accuracy ledger, for example by assigning case positions by precision class and fixing positions by pair number, so high-precision tooling never ends up sharing a low-precision case.

6. Feed rolls, straightening rolls and grippers: outside-diameter protection

The feeding system on a cold header includes straightening roll sets, feed rolls, pressure rolls, grippers and guide plates. What they share is that the outside diameter or the jaw face is the functional surface and must never be used as a support surface.

Feed and straightening rolls fail through outside-diameter marking. The OD contacts the wire directly, so once it carries a mark, feed length fluctuates periodically and the product shows length scatter and incomplete head forming. The correct arrangement is bore locating with the OD suspended, using a locating arbor through the bore so the outside diameter never touches the case wall or insert.

Grippers and jaw parts fail through jaw-face damage. The jaw face sets the consistency of the gripping position, so damage shifts the feed position. Give them individual pockets with the jaw facing up and a soft pad at the jaw. If the gripper carries springs or linkages, avoid long-term compression, since a spring held under load takes a permanent change in free length that alters gripping force.

For multi-roll assemblies such as a straightening roll set, a matched-set case works well: one case maps to one roll train, every roll has a numbered pocket, and the whole set is replaced at once, which avoids the straightening inconsistency that comes from replacing a single worn roll.

7. Ejection mechanisms and cams: mating faces and stroke parts

The ejection and cam system handles part release and transfer, and includes cams, ejector pins, ejection blocks, slides and linkages. These parts are long, have mating faces and sometimes carry precision stroke surfaces.

Cams and slides fail through mating-face damage and surface scoring. Cam profiles are often finish machined, and a localized ding changes the stroke curve, making ejection unstable and producing inconsistent ejector marks or incomplete release. Pack so the working profile is suspended and the load is carried by the back face or a non-working surface.

Ejector pins and linkages are slender and lose straightness and coaxiality in transit. Three-point support is the practical answer, with supports at roughly one-fifth, one-half and four-fifths of the length and soft support between them, so the middle does not sag as it would with end support only. For pins with threaded ends, add a thread protector so the threads are not damaged.

Stroke parts have one additional requirement: limit the stroke. If a pin can slide freely along its axis inside the case, repeated impact makes its end strike the case wall, producing burrs or even denting the guide surface. Fit elastic stops at both ends of the case, permitting limited cushioning while preventing the part from running.

8. Hydraulic and pneumatic components: seals, oil and cleanliness

The hydraulic and pneumatic components of a cold header or thread roller include cylinders, valve blocks, accumulators, fittings, seals and filter elements. The protection logic here is entirely different from the previous classes, because the focus is cleanliness and seal faces rather than geometric precision.

• Seal faces must not be damaged. Cylinder bores, spool and seat mating faces and O-ring grooves are all seal surfaces, and a single score can cause leakage. Plug ports with plastic caps or dedicated plugs and keep everything hard away from seal faces.
• Control the oil. A removed hydraulic component usually carries oil on its surface, and sharing a case lets that oil contaminate the insert and lubricate other parts into sliding more easily under vibration. Keep hydraulic parts in a separate case or use oil-absorbent padding.
• Protect the ports. Fitting threads and cones are the sealing interface and should carry protective caps. Coil high-pressure hoses and fix them so the bend radius never becomes too small and damages the inner layer.
• Maintain cleanliness. Hydraulic system contamination directly shortens component life, so the case interior must stay clean and any port not immediately reconnected should be re-plugged.

For parts with accumulators there is also a safety point: depressurize to specification before transport or maintain the charged state as the manufacturer requires, and handle the shipment under the applicable dangerous goods rules where pressure vessels or specific media are involved. Packaging should serve those requirements, for example by providing a locating structure and guard for an accumulator rather than simply dropping it into a box.

9. Case structure, material, UL94 and IK impact

Fastener shop parts cases are typically made from copolymer polypropylene, high-density polyethylene, ABS or modified engineering plastics:

Note how important the oil resistance column is in a fastener plant, where cold-forming oil, cutting fluid and hydraulic oil are everyday realities. Prolonged contact makes some materials swell or stress-crack. Where cases routinely hold oily tooling, prefer a more oil-resistant material or add oil-absorbent padding.

For export to the EU or North America, customers often specify a material flammability rating. UL94 is the common basis for evaluating plastic material flammability, with HB for horizontal burning and V-0, V-1 and V-2 for vertical burning, lower numbers being more demanding. It must be stated that UL94 rates the material, not the finished case; a flammability claim about a finished case requires separate evaluation of the finished structure.

For mechanical impact, the IK rating defined in IEC 62262 (IK00 to IK10) characterizes impact resistance in energy terms. Die and plate cases are commonly designed around the IK08 (5 J) level, while heavy-duty or long-haul export cases may call for IK10 (20 J). IK performance depends strongly on wall thickness, rib layout and corner radius, and well-placed ribs are usually more economical than extra wall thickness.

On hardware, tool cases in fastener shops often need to be controlled, meaning they can take a padlock or a tamper seal so high-value tooling is not casually removed in circulation. For lock and control options, see case lock customization options, which compares hardware schemes across control levels.

10. Sealing and ingress protection: IP65/IP67 under IEC 60529 and GB/T 4208

IP codes are the most basic and most misread specification on a protective case. IEC 60529, and GB/T 4208 which China adopted equivalently, define the first characteristic digit as protection against solid foreign objects and dust, and the second as protection against water.

For cold header and thread roller parts cases, IP67 is the usual threshold for export sea freight and high-humidity warehousing in southern China. Day-night temperature swings inside a container deposit water vapor as liquid on the case surface, and only a temporary-immersion-rated seal keeps it out. Once a die or plate takes on water, corrosion typically starts at tooth faces and working edges, and the loss is irreversible. IP65 suits in-plant and short-distance use, and IP66 fits outdoor loading and short port drayage.

For sealing details, including dual-lip gaskets, foamed silicone, seal groove cross-sections and the compression window, see the sealing structure of IP67 protective cases and IP ratings for waterproof cases explained. The conclusion here is short: gasket compression should be held between 25 and 35 percent. Below 20 percent leaks are likely, and above 40 percent the gasket takes a permanent set and the case becomes hard to close. On die cases opened many times per shift, this matters a great deal.

The better the seal, the more pronounced the pressure problem becomes. During air freight or thermal cycling, the pressure difference can make a lid very hard to open or locally suck the gasket out of shape, so long-haul tool cases should be specified with a pressure equalization valve. Gasket material also has to match the environment for oil, temperature and aging resistance; see seal material selection for more.

11. Insert design and transport validation: EVA/PE, ISTA, GB/T 4857, ASTM D4169

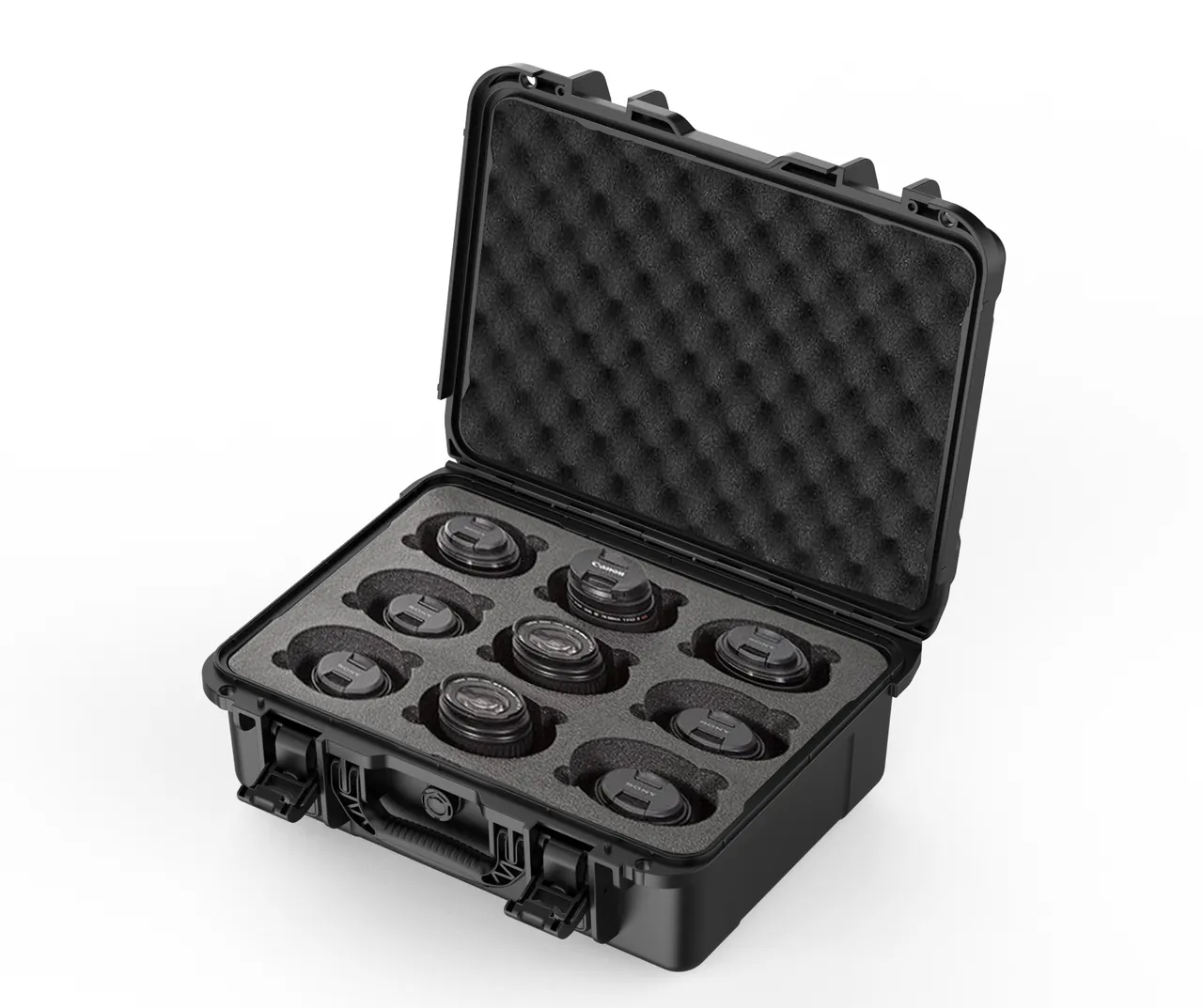

The insert is the real protective gear of a parts case. Material properties are as follows:

Die cases most often use an EVA inner locating layer plus cross-linked PE foam for energy absorption. For flat parts such as thread plates and trimming dies, use a flat recess with a full-face backing block; for rotating parts such as punches and rolling dies, use a bore locating arbor with compartments; for slender parts such as taps and ejector pins, use continuous channels.

Pocket tolerance depends on the process: hot-knife cutting lands around plus or minus 0.5 mm, CNC routing reaches plus or minus 0.2 mm, and die cutting suits high-volume thin sheets. Tier A die parts should be CNC routed with 0.3 to 0.5 mm single-side clearance. For a fuller comparison, see foam material comparison and the EVA insert customization process.

Three transport validation frameworks are commonly used:

• ISTA. ISTA 3A covers single packages up to 70 kg in parcel and LTL service with drop, random vibration and concentrated impact. ISTA 3E covers unitized loads with compression, vibration and inclined impact. ISTA 2A suits basic single-case verification.
• GB/T 4857 series. China's basic test methods for transport packages, covering vibration, impact, stacking, drop and compression, and the series most cited by domestic customers.
• ASTM D4169. Organizes test intensity around distribution cycles, well suited to North American customers and complex logistics chains; see ASTM D4169 distribution cycle testing for acceptance criteria.

In addition, methods 514 (vibration) and 516 (shock) of MIL-STD-810H are frequently cited as the methodological basis for environmental testing. This must be stated plainly: citing MIL-STD-810H means only that its test methods are used. It does not mean the product holds any military certification or qualification.

The practical advice is to copy your actual logistics chain into the test conditions rather than copying a good-looking report. Draw the node map from dispatch to machine installation, mark the maximum drop height, longest vibration duration and highest stack count, and then choose the program. For program details see ISTA transport testing procedures and GB/T 4857 transport packaging tests.

12. Rust control, selection table and OEM/ODM acceptance

Corrosion of a metal part requires three conditions at once: a metal surface, water, and oxygen with an electrolyte. A protective case controls the water, using sealing and dehumidification to hold internal relative humidity below the critical value for corrosion, commonly taken as about 60 percent RH for carbon steel.

A three-layer system is well established for fastener tooling transport:

1. Contact layer. Rust-inhibiting paper or film wrapped around the tooling. VCI-bearing products sublimate vapor-phase corrosion inhibitor inside the enclosed space, where it adsorbs onto the metal surface as a molecular film.
2. Barrier layer. A VCI film or aluminum-plastic laminate envelope reduces the water vapor transmission rate.
3. Moisture absorption layer. Desiccant in the case plus a two-stage humidity indicator card, typically 40 percent RH and 60 percent RH.

One caution is essential: VCI is not a substitute for process rust-preventive oil. VCI depends on an enclosed environment at reasonably stable temperature, and when a case is opened frequently or left open the concentration cannot be maintained. High-frequency in-plant tool cases fit a thin oil film plus rust-inhibiting paper; long-term storage and export sea freight fit a VCI envelope plus desiccant. Desiccant quantity can be estimated from free internal volume at roughly 200 to 500 g of high-efficiency desiccant per 100 L, taking the upper end for long sea voyages. On thread plates and trimming dies, tooth faces and cutting edges are the first surfaces to corrode, so they deserve the most attention before packing.

On selection, the most common error is choosing a case from the largest component's footprint. The right order is to calculate load and stacking first, then fix external size and structure, and finally lay out the insert compartments:

• Total case weight W = sum of component net weights + insert weight + case self weight
• Required stacking strength F = W x stacked layers x safety factor (1.5 to 2.0 recommended)
• Internal clear size = largest component envelope + insert wall (15 to 25 mm per side) + finger-access allowance
• Keep total case weight in the 25 to 35 kg band; above 40 kg add casters, a telescopic handle or forklift pockets

For acceptance, sampling is better than full inspection or no inspection. The counting-sampling logic of GB/T 2828.1 offers a workable scheme: a tighter AQL for critical characteristics such as sealing, hardware function and insert pocket and layer accuracy, and a looser AQL for color variation and printing. See custom case acceptance AQL sampling for details.

On delivery capability, JUNZHJIA is manufactured by Kexin New Materials (Guangdong) Co., Ltd. and serves wholesale, distribution, OEM/ODM and global supply. We build foam inserts and compartment layouts to a customer's tooling list, match seals and hardware to the case platform, and can supply material and test documentation for a quality department to file. For cold header and thread roller users we generally recommend prototyping with one work station's die set plus one thread plate pair, validated through the real logistics chain before committing to volume. When comparing quotes, include lifecycle cost: a case that is 30 percent cheaper but distorts and leaks within two years usually costs far more in die repair and corrosion rework than the price difference. For service-life expectations and factory selection, see protective case service life and how to choose a protective case OEM factory.

Frequently Asked Questions

Q: How should I select a die case for a cold header, and which parameter should be fixed first?

A: The first parameter is not case size or IP rating but the precision class of the tooling and the number of items in a set. A cold-heading die set usually contains five to ten items, and failure is dominated by edge chipping and micron-level dimensional drift, with the root cause almost always relative movement and mutual impact in transit rather than water ingress. Select in this order. List the tooling, individual weights and precision classes, and confirm the item count and largest envelope in a set. Then design the insert: one machined pocket per Tier A item, 0.3 to 0.5 mm single-side clearance, depth at 60 to 80 percent of part thickness, with a soft transition layer in the pocket base. Then choose cushioning, where heavy items above 20 kg do best with an EVA inner layer plus cross-linked PE outer layer. Only then choose the IP rating: IP67 under IEC 60529 and GB/T 4208 for export sea freight, IP65 for in-plant circulation. If heat-treated parts with loose scale share the shipment, separate cases or vertical layering is mandatory. One caution: demagnetize and blow-clean a die before packing, because oil will otherwise glue metal fines to the working edge and create a lapping effect.

Q: How do I keep thread-rolling plates from being damaged, and why does matched-pair control matter?

A: Three measures: tooth-face isolation, matched-pair control with numbering, and rust-inhibiting wrap. First, isolate the tooth faces. Plates are used in pairs and their tooth faces must never touch each other or rest on the case floor. Orient all plates tooth face up with dividers between layers, or face the teeth toward each other with a soft separator between. A single dent on a crest is enough to produce a localized pitch-diameter deviation in the rolled thread, and that deviation typically shows up as a go gauge that passes intermittently, which is extremely hard to diagnose. Second, keep pairs together and numbered. Plates must be packed, shipped and issued as pairs with the pair number marked in the case, because mixing pairs on the shop floor is often misdiagnosed as an equipment fault or a material problem. Third, prevent rust. Plates are typically Cr12MoV or SKD11-type cold-work die steel, whose corrosion resistance is limited at modest chromium levels, so pitting can appear within two to three weeks in humid sea freight and directly destroys the tooth face. Rust-inhibiting paper plus VCI film is the most cost-effective combination. Thread-form accuracy itself falls under the ISO 4759 tolerance system, so the packaging plan should be linked to the accuracy ledger.

Q: What should I watch for when packing rolling dies and taps?

A: Their priorities differ. A rolling die is a rotating part and fails mainly through bore mating-face damage and tooth-face scratching. It mounts on a shaft, and its bore is a precision fit, so damage causes radial runout after assembly and a periodic fluctuation in the rolled thread's pitch diameter. Pack with bore locating and the tooth form suspended, using a locating arbor through the bore, with tooth forms touching nothing hard and one die per compartment. A tap is a slender part, so the problems are slenderness and cutting edges. A small tap, below M3, will bend or snap if unsupported at both ends under transport vibration, and its edges chip on any hard contact. The correct arrangement is foam strips with longitudinal channels so the tap nests along its full length with roughly 5 mm of support at each end, channel spacing of at least 10 mm, and no load bearing at the shank-to-flute transition where stress concentrates. For both, adopt a ledger per case: one case maps to one tooling set and one location drawing, and issue and return are reconciled by count. That protects the tooling and builds the life data needed for purchasing and regrinding plans.

Q: How do I pack thin-edge parts such as trimming dies and shear knives so they do not chip?

A: The logic is to keep the edge unloaded and let the face carry the load. Three points. First, orient the edge up or consistently; never let it face down against the case floor or insert, because any localized point load can chip it. Let the back face contact the insert and carry the load. Second, back the part across its full face with a high-density PE or EVA block, avoiding a supported-at-both-ends, unsupported-in-the-middle condition, where repeated flexing from transport vibration initiates fatigue micro-cracks in the edge. Third, one part per pocket and never stacked, because when two trimming dies are stacked the upper part's full weight rests on the lower part's edge, which is the most common cause of chipping; use a solid divider between layers. Shear knives have an additional point: a new or freshly reground edge may carry fine burrs, and rubbing against the insert in transit knocks them off and leaves irregular notches, so deburr before packing and add a soft edge protector. For customers changing over frequently, a removable divider system lets you replace only the insert when the specification changes while reusing the case body.

Q: What special requirements apply to hydraulic and pneumatic components?

A: Their protection logic differs entirely from the other classes, because the focus is cleanliness and seal faces rather than geometric precision. First, seal faces must not be damaged: cylinder bores, spool and seat mating faces and O-ring grooves are seal surfaces, and a single score can cause leakage, so plug ports and keep everything hard away from them. Second, control the oil: a removed hydraulic component usually carries oil, and sharing a case lets that oil contaminate the insert and lubricate other parts into sliding more easily under vibration, so keep hydraulic parts in a separate case or use oil-absorbent padding. Third, protect the ports: fitting threads and cones are the sealing interface and should carry caps, and high-pressure hoses should be coiled and fixed so the bend radius never becomes small enough to damage the inner layer. Fourth, maintain cleanliness: contamination directly shortens hydraulic component life, so any port not immediately reconnected should be re-plugged. Where accumulators are involved there is also a safety requirement: depressurize to specification before transport or maintain the charged state as the manufacturer requires, and handle the shipment under applicable dangerous goods rules, with a locating structure and guard in the case rather than a simple drop-in fit.

Q: In a fastener shop, how do I choose between IP65 and IP67 cases?

A: Choose from the harshest link in the logistics chain. IP65 means dust tight plus protection against water jets, covering in-plant circulation, brief outdoor transfer and washdown areas, and it is entirely sufficient for day-to-day internal movement. IP67 means dust tight plus protection against temporary immersion, in the order of one meter for 30 minutes, and its real value lies in container condensation: day-night temperature swings inside a sea freight container deposit water vapor as liquid on the case surface, and only a temporary-immersion-rated seal blocks it. Once a die or thread plate takes on water, corrosion typically begins at tooth faces and working edges and the loss is irreversible. The decision rule is simple: will the case travel by sea, or enter a high-humidity warehouse during the rainy season? If yes, specify IP67; if no, IP65 is more economical, with IP66 fitting outdoor loading and short port drayage. Remember that an IP rating is a type test result and real protection depends on the gasket retaining compression, so hold compression between 25 and 35 percent and check hinge and latch clamping regularly. Fastener shops also run oily, so confirm gasket oil and aging resistance separately, and add a pressure equalization valve for air freight or thermal cycling.

Q: For export sea freight, how should I handle rust prevention and transport testing on die and plate cases?

A: Use a contact layer, a barrier layer and a moisture absorption layer. For the contact layer, wrap the tooling in rust-inhibiting paper or film; VCI-bearing products sublimate vapor-phase corrosion inhibitor inside the enclosed space and adsorb onto metal as a molecular film. For the barrier layer, use a VCI film or aluminum-plastic laminate envelope to reduce the water vapor transmission rate. For the moisture absorption layer, place desiccant in the case with a two-stage humidity indicator card, typically 40 percent RH and 60 percent RH. Desiccant quantity can be estimated from free internal volume at roughly 200 to 500 g of high-efficiency desiccant per 100 L, taking the upper end for long sea voyages. Note that VCI is not a substitute for process rust-preventive oil, because it depends on an enclosed space and its concentration cannot be maintained if the case is opened frequently. For testing, draw the logistics chain node map first: use ISTA 3A with drop, random vibration and concentrated impact for single-case LTL dispatch, ISTA 3E for pallet dispatch, the GB/T 4857 series for domestic acceptance, and ASTM D4169 distribution cycles for North American customers and complex chains. Where a customer specifies an environmental test methodology, methods 514 and 516 of MIL-STD-810H can be referenced, with the explicit note that this means only the test methods are adopted and implies no military certification. Samples must use production structure and process.

Q: How are minimum order quantity and the acceptance flow arranged for custom die cases?

A: A sound flow has five stages: requirement clarification, concept and drawings, prototype, validation and volume production. Clarification takes the most time and should not be skipped. It needs the tooling list, individual weights and center-of-gravity positions, precision classes, item count per set, the logistics chain of in-plant, domestic, sea and air legs, whether stacking and pallet dispatch apply, the target IP rating, and whether locking control is required. The concept stage produces the structure and insert drawings; we recommend prototyping with one work station's die set plus one thread plate pair and running it through the real logistics chain once before committing to volume, which is much safer than a single large order. Validation selects appropriate items from ISTA 3A or 3E, GB/T 4857 or ASTM D4169 according to the logistics chain. In volume production and outgoing inspection, use a tighter AQL for critical characteristics such as sealing performance, hardware and lock function, and insert pocket and layer accuracy, and a looser AQL for color variation and printing, following the counting-sampling logic of GB/T 2828.1. Minimum order quantity and prototype lead time depend on structure and tooling approach; combining standard modular case bodies with custom inserts usually lowers the entry threshold considerably, while a dedicated case mold requires its own tooling cost and amortization analysis. JUNZHJIA is manufactured by Kexin New Materials (Guangdong) Co., Ltd., serving wholesale, distribution, OEM/ODM and global supply, with inserts built to a customer's tooling list and supporting technical documentation.

Conclusion & Related Reading

The value of a cold header and thread roller parts case comes down to two outcomes: whether dies and thread plates survive more regrind cycles, and whether they can go straight onto the machine on arrival. Neither is achieved by making the case thicker. It comes from grading tooling correctly, designing how a working edge or tooth face carries load, assembling a complete moisture and rust control system, and copying the right transport conditions into the test plan. In an industry where precision is profit, packaging is an underrated link in the chain.

If you are building a protection program for cold-heading die sets, thread plates, trimming dies or hydraulic components, start with a complete tooling list and a logistics chain map, and ask the supplier for the insert concept before discussing the case body. Most rework and damage problems can be eliminated at the concept stage.
