1. Why Tread Segments and Mold Components Need Dedicated Cases
Start with the working conditions of a tire mold. Tire curing happens at elevated temperature and pressure in a steam or nitrogen atmosphere. The mold sees long-term thermal cycling, and the tread segments against the side plates, and the two mold halves, open and close tens of thousands of times. This means the mold's accurate state was established hot and under pressure, while transport and storage happen cold and unloaded. The gap between those two conditions is what makes tire molds so vulnerable.
The main components and how they move.
Main components.
- Tread segments, used on segmented molds. Numerous, commonly 8 to 12 or more per mold, each with its own tread face and a locating structure on the back. These are the most easily damaged items in transit.
- Two-piece molds, upper and lower halves. One-piece tread, heavy, with high-accuracy cavities and parting faces.
- Side plates, upper and lower. Carrying engraved lettering and sidewall detail, with highly accurate surfaces.
- Bead rings. Cone-fitted, with dimensional accuracy that directly affects bead forming quality.
- Curing bladders. Elastomer parts, sensitive to oil, heat, ozone and ultraviolet.
- Steam chambers, centre mechanisms, guide pins and guide bushes. Precision motion pairs and pressure-containing parts.
Transport and transfer situations.
- Mold shop to tire plant. New mold delivery, mostly road freight or ocean export, and the most demanding protection situation.
- In-plant transfers. From the mold store to the curing shop, or from the curing press to the repair room, extremely frequent but short distance.
- Mold repair and maintenance. Tread segments and side plates are periodically removed for repair, welding, polishing and re-engraving, so round trips are frequent.
- Mold transfers and sharing. Molds loaned between plants in the same group, travelling between regions and experiencing repeated handling.
- Export and overseas plant programs. Cross-climate shipping with condensation and salt air combined.
These five situations impose different requirements, but they share one conclusion. Damage to tire molds comes mainly from local point loading, relative friction and humid corrosion acting together, and generic wooden crates and racks address none of the three.
One cost logic must be stated plainly. A single tread segment is usually not expensive, but replacing one costs far more than its price: matching, trial curing, adjustment, tread quality verification and lost curing press capacity. Mold packaging investment is therefore insurance against lost press time and downgraded tires, following the same logic as the custom case mold cost analysis, where front-end investment reduces lifecycle cost.
The usual JUNZHJIA delivery format for tire molds is a combination of a compartmented profile insert, a heavy-duty rigid frame and layered compression, with forklift pockets, reinforced hinges and a pressure equalization valve available, plus structural parameters and inspection documents on request.
2. Where Tread Segments Fail: Tread Ribs, Parting Faces and Engraving
Listing the vulnerable points defines the insert design task.
| Location | Structural feature | Typical transport failure | Protection point |
|---|---|---|---|
| --- | --- | --- | --- |
| Tread ribs, including sipe slots | Narrow raised features with very small local sections | Chipped corners, rounded edges, crushed ribs | Tread face must not touch hard objects; independent relief cavity; no load |
| Groove bottoms and walls | Polished or shot-blasted surfaces | Scoring, impressions, rust spots | Lint-free isolation, never pressed face to face |
| Parting faces, between segments and against side plates | Precision mating faces with small clearance | Impression causing flash and misalignment | Parting face carries no load; rigid protective plate or face toward open space |
| Back mounting face and guide slot | Locating and load-bearing structure | Distortion or impact preventing correct installation | Use the back mounting face as the only load-bearing and locating datum |
| Threaded and dowel holes | Hole accuracy and thread quality | Damaged thread, distorted hole mouth | Thread protection plugs, relief shoulder at the hole mouth |
| Engraved lettering and marking faces | Shallow relief or engraving | Chipping that destroys the lettering | Independent relief, protective cover where needed |
| Edges and sharp corners | Sharp edges | Chipped corners that also tear the insert | Insert clearance at sharp corners, soft corner guards |
The core rule: a tread segment's weight must be carried by the back mounting face, and the tread face and parting face must see zero contact and zero load.
The rule sounds simple but is frequently broken in practice. The most common violation is laying segments tread-face down on the case floor with a thin foam sheet underneath to save space. Under transport vibration the foam compacts, the tread ribs press directly against the rigid case floor, and with inertial loading the ribs crush or chip. The correct attitude is tread face up or inward, with the back mounting face seated on the load-bearing frame.
On the relative arrangement of segments. Segments are assembled in a defined order and by locating features, so they should also travel independent, evenly spaced and not touching. In practice, a compartmented insert gives each segment its own pocket, with pocket spacing based on actual segment dimensions plus clearance, a rigid pocket floor corresponding to the back mounting face, a soft pocket wall that cannot score the sides, and the tread face upward covered by a lid or soft liner. This bottom-rigid, side-soft, top-covered differentiated design is the most practical insert structure for tread segments.
On managing segments as a set. A mold has many segments whose shapes may differ slightly, since segments at different positions carry different tread patterns. Mixed packing makes it hard to find the right segment during assembly and creates mis-installation risk. Insert pockets should therefore be marked with the mold number and segment position number, so that one case holds one set and one pocket holds one position. This is both a protection requirement and a management requirement.
For general methods of edge protection and contact isolation on precision parts, the cushion liner design guide organizes multi-point support, relief structures and contact surface control and can be used directly in a segment insert review.
3. Mold Components: Side Plates, Bead Rings, Bladders and Chambers
Beyond tread segments, several tire mold components need separate discussion because their failure modes differ substantially.
Side plates, with sidewall detail and engraved lettering.
A side plate is a large-diameter, relatively thin disc carrying sidewall detail plus engraved brand, size and regulatory information.
- Failure modes: form distortion such as warping, impact on the engraved face, surface scoring.
- Protection points: carry load on the back or a non-mating face and use uniform multi-point support, the same logic as any large thin-walled disc; face the engraved side upward and cover with a soft liner; never stack several side plates in direct contact and allow relative motion.
- Particular note: once engraved lettering is damaged it usually requires re-engraving or a new plate, because the tire marking information is part of a regulatory requirement.
Bead rings.
The cone face that contacts the bead directly affects bead forming quality and tire uniformity.
- Failure modes: scoring and impressions on the cone face, oval distortion, corrosion.
- Protection points: the cone face must be relieved; as a ring part, a bead ring suits a cylindrical pocket or a profile ring seat, with contact on the non-cone outer diameter or the end face; add axial restraint so it cannot roll or slide inside the case.
- Particular note: when stacking bead rings, cone faces must never touch; use spacer rings or soft washers.
Curing bladders.
Bladders are elastomer parts and behave more like rubber goods than metal components.
- Failure modes: compression set, oil contamination, heat ageing, ozone and ultraviolet ageing, scoring by metal parts.
- Protection points: store free, never under long-term compression; pack separately and keep away from oils, solvents and sharp metal edges; avoid light, heat and ozone sources such as motors and welding equipment; track shelf life and use first in, first out.
- Particular note: bladders should not share a compartment with metal parts already coated in rust preventive, because the preventive may attack the rubber. Compatibility and storage boundaries for elastomer seals are covered in seal material and case compatibility.
Steam chambers, centre mechanisms, guide pins and guide bushes.
These are pressure-containing parts and precision motion pairs.
| Component | Feature | Transport failure mode | Protection point |
|---|---|---|---|
| --- | --- | --- | --- |
| Steam chamber | Pressure vessel with sealing face | Scored sealing face, distorted shell | Independent sealing face protection, support on the outer diameter |
| Centre mechanism | Assembly with guiding and sealing | Scored guide face, damaged thread | Keep factory assembly state, protective sleeve on the guide face |
| Guide pin | Slender precision part | Bending, surface galling | Independent relief bore for location, no load |
| Guide bush | Accurate bore | Impact in the bore, oval distortion | Cylindrical pocket location, protective cap on the bore mouth |
| Fasteners and accessories | Many sizes, easily lost | Scattered, size mix-up | Compartment tray, marked by size and counted |
On handling assemblies. Any assembly that leaves the factory already built, such as a centre mechanism, should in principle travel assembled, without disassembly or part swapping. Reassembling on site typically introduces new fit errors and cleanliness problems. Where disassembly is genuinely required, for long storage or inspection, the disassembly list and reassembly requirements should be documented.
4. Thermal Cycling and Cleaning: Heat Load on Rubber Molding Packaging
This section covers what distinguishes tire molds from other molds.
Three hidden loads created by thermal cycling.
First, the hot-state calibration effect. A tire mold's accurate state is established at curing temperature. As the mold cools to ambient, dimensions change according to the thermal expansion of the material. If a hot mold is forced into a rigidly constrained package, the contraction is restrained and residual stress can be introduced. The first rule is therefore that the mold must be fully cooled to ambient before packing, with surface temperature confirmed. A practical field value is to pack once the surface temperature is within about 10 degrees Celsius of ambient, with the actual limit set by mold material, structure and mass.
Second, stress release and micro-crack growth from thermal cycling. A mold in long service contains thermal fatigue micro-cracks, especially at the roots of tread ribs and at sharp corners. Transport impact can extend those cracks. For molds with long service life or known micro-cracks, the packaging plan should therefore be more conservative, with longer cushioning travel and lower local contact stress, rather than reusing the new-mold plan.
Third, corrosion risk rises with temperature variation. Temperature differences cause condensation inside the case, particularly when a mold is packed warm and then cools: the internal air contracts and creates a slight negative pressure, drawing humid outside air through gaps in a non-sealed case, or condensing internal moisture on the cooler surfaces. This explains why packing a warm mold in a plain wooden crate is the combination most likely to produce corrosion.
Two problems created by cleaning.
Tire molds are usually cleaned before repair or pattern change, to remove curing residue, release agent and carbon build-up. Done incorrectly, cleaning creates two issues.
- Cleaner residue becomes a corrosion source. Alkaline or chloride-bearing cleaner left in parting face gaps and threaded holes continues to absorb moisture and initiate corrosion. After cleaning, drying must be complete, with emphasis on deep holes, blind holes and parting face gaps.
- The original protective layer is removed. Cleaning also strips the existing rust-preventive film, so protection must be re-applied before packing.
Combined rust and condensation countermeasures.
- Use a compatible rust preventive on parting faces and tread faces. Prefer thin products that are easy to remove or compatible with later processing, so the first cured tire does not show oil marks.
- Size desiccant from free space volume and transport duration. Normally 1 to 2 kg of high-efficiency desiccant per cubic metre of free space, doubled for long ocean voyages, with a humidity indicator card placed where it is visible on opening.
- Keep moisture out of the case. Confirm the case interior is dry before packing, so the case itself does not bring moisture in.
- Sealing and pressure equalization. Temperature-driven differentials accelerate gasket fatigue, and a pressure equalization valve balances the differential while maintaining the IP rating, as explained in case pressure equalization valve.
- Temperature cycling tests. For export programs, temperature and humidity cycling verifies whether condensation forms inside the case. The method basis can follow the MIL-STD-810H temperature and humidity methods, tailored to the actual transport profile.
5. Rust and Cleanliness: Moisture and Corrosion in the Steam Curing Shop
The curing shop of a tire plant is a textbook hot and humid environment. Steam lines, steam escaping when presses open, and floor washdown keep the shop air humid for long periods. Molds in temporary storage or transfer sit in exactly that environment.
How the shop environment affects molds and cases.
| Environmental factor | Effect on the mold | Effect on the case | Countermeasure |
|---|---|---|---|
| --- | --- | --- | --- |
| High humidity including steam | Corrosion of parting faces and threads | Accelerated gasket ageing, corroded hardware | Sealed case plus desiccant; stainless or treated hardware |
| Elevated and fluctuating temperature | Accelerated corrosion and loss of oil film | Softening and dimensional change in plastics | Confirm material temperature range; avoid storage against hot equipment |
| Dust and curing residue | Settles in parting faces and tread grooves | Settles inside the case and inserts | Clean the case before packing; keep cases washable |
| Oil mist and release agent | Attracts dust, forming an abrasive paste | Sticky case surfaces, falling labels | Oil-resistant materials and labels |
| Floor washdown water | Case base takes on moisture | Standing water wets case and mold | Store off the floor on pallets; raised or waterproof base |
Workable shop-floor practices.
- Never store molds directly on the floor. Storing off the ground avoids washdown water and rising damp acting on the case base.
- Clean and dry cases on each return. Wipe, dry and check gasket condition before the next load.
- Replace gaskets on a cycle. A gasket is a consumable and ages faster in hot and humid conditions. Ageing mechanisms and replacement interval guidance are in protective case service life and replacement.
- Manage desiccant by batch. Record the insertion date, check the humidity indicator card on a cycle, and replace.
- Use weather-resistant marking. Oil mist and moisture make ordinary labels fall off, so use oil-resistant durable labels or screen printing.
On cleanliness. Tire molds demand a different kind of cleanliness from precision mating pairs. What matters here is that no hard particles remain in the tread grooves and no foreign matter remains on the parting faces. Hard particles pressed into the tread face during closing cause impressions, and this is the real source of many impressions that appear to have no origin. Therefore:
- Blow out parting faces and tread grooves before packing.
- Keep inserts easy to clean and free of dust traps.
- Avoid repeated opening and closing during long storage, which lets outside dust in.
- Where cases sit temporarily in the shop, close and latch them rather than leaving them open.
6. Shell Selection: IP65/IP67, IEC 60529 and GB/T 4208
The shell does two jobs for tire molds: isolating the environment of moisture, dust and washdown water, and providing a reusable heavy-duty load-bearing base.
IP ratings are defined by IEC 60529 and GB/T 4208, which share classification methods and acceptance criteria.
| Rating | Dust | Water | Practical meaning for a tire mold case | Typical use |
|---|---|---|---|---|
| --- | --- | --- | --- | --- |
| IP54 | Dust protected | Splash resistant | Basic dust protection, workable for dry short transfers | Transfers in dry shops |
| IP65 | Dust tight | Water jets | Resists rain and shop washdown, strong value | Road transport, general mold stores |
| IP66 | Dust tight | Powerful water jets | Withstands heavy streams, suits frequent washing and open yards | Open yards, frequent washing |
| IP67 | Dust tight | Temporary immersion, typically 1 m for 30 min | Tolerates short immersion and standing water | Ocean export, humid curing-shop transfers, rainy regions |
Two misreadings must be corrected. First, IP67 does not mean long-term submersion; the standard defines temporary immersion. Second, an IP rating describes only resistance to solid foreign objects and water, not load capacity or impact resistance. A tire mold case is heavy-duty packaging, and its load capacity must be determined separately by structural design.
Material and structure options.

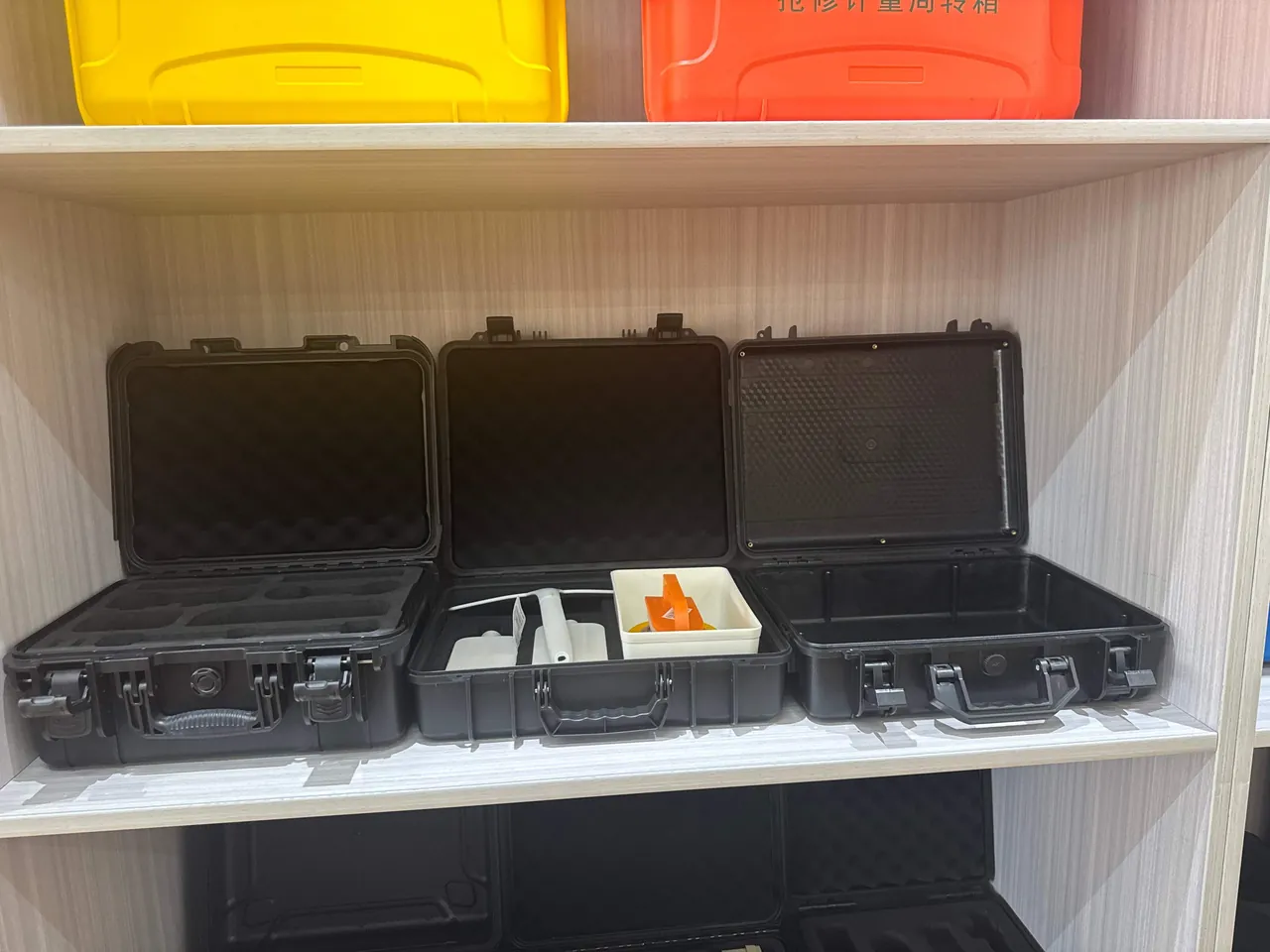

- Heavy-duty engineering plastic cases. They do not rust, resist chemicals, can be cleaned and insulate well, suitable for most tread segments and medium-weight components.
- Plastic case on a steel base pallet. Balances load capacity and corrosion resistance, suited to heavy side plates, complete mold halves and large assemblies.
- Heavy-duty cases with forklift pockets. Tire molds are heavy and handled frequently, so base forklift pockets are the safest and most efficient interface.
- Layered and drawer-style structures. Suited to complete sets of segments and in-plant transfers, emphasizing handling efficiency and position marking.
- Stackable structural cases. Where stacking is needed, the case should have stacking location features, and the layer count must be verified against contents weight and bottom-case capacity, marked on both the case and the documents.
For material selection and hardware configuration for sealed cases in humid environments, IP67 protective case design and verification expands on the subject, and for the three life-limiting component groups of hinges, latches and gaskets, see toolbox hinge latch and seal structure.
On case life management. Tire mold cases see high frequency and harsh environments, a high-wear application. Keep a case register recording the in-service date, repairs and gasket replacements, and repair or replace promptly when cracks, structural distortion, latch failure or sealing degradation appear. Case failure usually happens before mold damage and costs far less, so managing cases as consumables is the practical way to control mold damage.
7. Insert Design: Compartments, Profile Fit and Heavy-Duty Load Paths
The insert is the body of the protection system. For tire molds, insert design has to satisfy two apparently conflicting requirements: heavy-duty load carrying and zero contact on accuracy faces.
Step one: design the load path. Load must travel from the mold's load-bearing features, meaning the tread segment back mounting face, the rear of a side plate or the non-cone outer diameter of a bead ring, into the insert load-bearing face, through the rigid frame, into the case floor and out through the forklift pockets or lifting points. That path must not pass through any accuracy surface.
Step two: apply the three-face differentiated contact design. This is the central idea in a tire mold insert.
- The floor must be rigid. The load-bearing face must be a rigid material or high-density foam with low compression, otherwise heavy load collapses the insert, the mold sinks and shifts, and location is lost.
- The sides must be soft. Locating walls should be medium-density material or a soft facing, so mold sides and edges are not scored.
- The top must be soft but able to compress. When the lid closes, elastic strips or soft pads should lightly press the mold to remove jump freedom, with even and controlled compression.
Step three: compartments and profile fit. Compartments separate; profile fit holds. For a heavy-duty compartmented insert, pocket tolerance is typically part outline plus 1 to 3 mm, taking the larger value for heavy parts to ease loading, while profile cavity tolerance is typically plus 0.5 to 2 mm. Tread segments suit a matching cavity plus soft side liners.
Step four: control compression. For soft inserts, keep compression at roughly 10 to 20 percent of material thickness. Heavy parts should sit at the lower end, around 10 to 15 percent, because heavy load adds further compression.
Step five: keep it cleanable and reusable. The insert should be easy to blow out and wipe, without dust traps, and should hold dimensions through repeated handling and periodic cleaning.
Common insert structures and their applications.
| Insert structure | How it is built | Advantages | Typical use |
|---|---|---|---|
| --- | --- | --- | --- |
| Compartments with rigid floor and soft walls | Rigid frame floor, soft material on walls and top | No collapse under load, no side damage | Complete sets of tread segments |
| Full profile cradle | CNC-milled EVA or PU matching the outline | Large contact area, high locating accuracy | Precision side plates, irregular parts |
| Cylindrical pocket or ring seat | Cylindrical cavity or ring seat cut to diameter | Reliable location, prevents rolling | Bead rings, guide bushes, bladders with soft separators |
| Layered build | Load-bearing bottom, profile middle, compression top | Balances load and protection | Multiple parts per case, layered structures |
| Adjustable dividers | Divider positions movable or removable | Low changeover cost | Mixed sizes, frequent batch changes |
For a cross-comparison of density, resilience and compression set, case foam material comparison provides a usable table, and the full flow from material selection to CNC tolerance is in the EVA foam insert custom process.
One easily missed detail: insert debris. Debris left in cavities after CNC milling becomes hard particles that can be pressed into tread faces during closing or transport. Every custom insert should be blown out and visually confirmed before shipment, recorded in the inspection file.
8. Vibration and Shock: ISTA, GB/T 4857 and ASTM D4169
A completed design is not a proven design. Tire molds are heavy individual items in large numbers with many accuracy faces, so the test plan must be tailored accordingly.
Three main standard families.
- The ISTA series covers performance test procedures for transport packaging. Tire mold cases are usually organized along the lines of ISTA 3E for unitized loads and ISTA 3B. See the ISTA transport testing procedure.
- The GB/T 4857 series is the Chinese family of basic transport package test methods covering vibration, impact, drop, stacking and compression, and is the usual basis for domestic supply programs. See GB/T 4857 transport packaging verification.
- ASTM D4169 uses a distribution cycle framework, combining sequences by transport stage and risk level, suited to multimodal export programs covering road, rail and sea. See the ASTM D4169 distribution cycle case.
Trimmed test set for a tire mold case.
| Test | Purpose | Key observation |
|---|---|---|
| --- | --- | --- |
| Random vibration | Simulates sustained road and rail vibration | Segment migration, insert collapse, fastener loosening, fretting on ribs |
| Drop and impact | Simulates handling impacts | Case or base pallet cracking, insert penetration, heavy part migration |
| Stacking and compression | Simulates warehouse and container stacking | Bottom case distortion, insert compression, local impressions on the mold |
| Concentrated impact | Simulates forklift or foreign-object strikes | Local puncture and crush resistance |
| Temperature and humidity cycling | Simulates cross-climate, container and humid shop conditions | Condensation, corrosion, gasket elasticity at low temperature, insert dimensional stability |
| Fixed-frequency vibration | Screens for resonance risk | Sustained vibration near a part's natural frequency, critical for thin plates |
Three practical recommendations.
First, make accuracy face inspection a required test item, not just case damage. Inspect parting faces, tread ribs and bead ring cones visually, and with gauges or templates where needed, before and after the test, recording any impressions, fretting or migration.
Second, state the equivalence of the test item honestly. If a real mold is used, record its condition, including whether it is new or used and whether micro-cracks are present. If an equivalent mass is substituted, state the relationship between its mass, centre of gravity and outline and those of the real mold. Tire mold inserts are sensitive to local contact stress, and a simple rigid dummy cannot reproduce the real failure mode.
Third, run stacking at the actual layer count and duration. Heavy-duty inserts develop compression set under long-term stacking and then fail to hold the part, and this effect may not appear in a short test.
On quantified pass criteria. Agree testable criteria in the plan, for example no visible chipping on tread ribs, no visible impressions on parting faces, no scoring on bead ring cones, heavy part migration not exceeding a stated value, and no loosened fasteners. With quantified criteria, the result can be used for design confirmation and customer communication.
9. Lifting and Handling: Segment Weight and Lifting Point Control
Tire mold cases are heavy and handled frequently, so lifting and handling are the high-risk zone for accidents and damage.
Lifting and handling points.
- The case must carry clear centre-of-gravity and lifting point markings, with lifting points structurally verified, and the sling angle controlled within a reasonable range to avoid overloading the points.
- Prefer forklift pockets. For heavy mold cases, base forklift pockets are the safest and most efficient interface and greatly reduce sling slip and tip-over risk.
- Never lift by a protrusion. Chamber ports, guide pins and lifting eyes are not lifting points, and slinging over them for convenience is a common accident cause.
- Define stack layers and mark them twice, on both the case and the accompanying documents, stating whether top loading is allowed.
- Watch the handling surface. Floor flatness, slope and load capacity all affect forklift safety.
- Standardize the opening sequence. Confirm the case is stable before releasing latches; large lids should be opened with a support strut or by two people to avoid rebound.
On shop-floor handling of segments. Segments are numerous and individually heavy, and they are loaded and unloaded one at a time at high frequency. If the insert is not designed for fast handling, operators will tip or stack parts against the rules. Insert design should therefore include handling cues: pockets ordered by position number, finger or sling access space, and the packing layout screen-printed on the inside of the lid. The practical return on these details often exceeds simply thickening the insert, because they decide whether the plan is followed over the long term.
On intermediate storage during transfer. Between the mold store and the curing press, molds may need to wait in the shop. This step is the most easily overlooked and the most likely to cause moisture and impact damage. Define shop-floor rules such as closed and latched during temporary storage, stored off the floor on pallets, and a maximum temporary storage duration.
10. Temperature, Humidity and Ocean Freight: Controlling Condensation
Export programs for tire molds see more complex environmental loads than domestic supply. High temperature and humidity plus salt air in the container, cross-climate temperature cycling, and inland transport at the destination can all act on the same package.
Actual conditions inside a container.
- Large daily temperature swing. Under direct sun, the interior can be substantially hotter than ambient, then falls rapidly at night, producing repeated cycles.
- Relative humidity stays high for extended periods, creating the conditions for condensation.
- Uncontrolled condensation location. Moisture condenses on the coolest surfaces, often the parting faces, tread faces or case interior wall, exactly where protection is most needed.
- Long voyage duration. Ocean legs can run for weeks, and accumulated corrosion time is not negligible.
- The destination port may be hot and humid. Unloading and inland transport in some regions are also humid, which the plan should account for.
A usable test method basis. MIL-STD-810H is often used as the methodological basis for environmental testing, defining procedures and tailoring methods for temperature, humidity, vibration, shock and salt fog. The correct use is to select appropriate methods and procedures, tailor them to the real transport environment and produce a program-specific profile. It must be stated clearly that MIL-STD-810H is an environmental test method standard, and using it does not mean a product has obtained any military certification. No such implication should appear in customer communication or product literature.
Five low-cost measures for tire mold cases.
- Desiccant plus humidity indicator card. Estimate from free space and voyage duration: normally 1 to 2 kg of high-efficiency desiccant per cubic metre, doubled for long ocean voyages. Place the indicator card where it is visible on opening, so it becomes quantitative acceptance evidence.

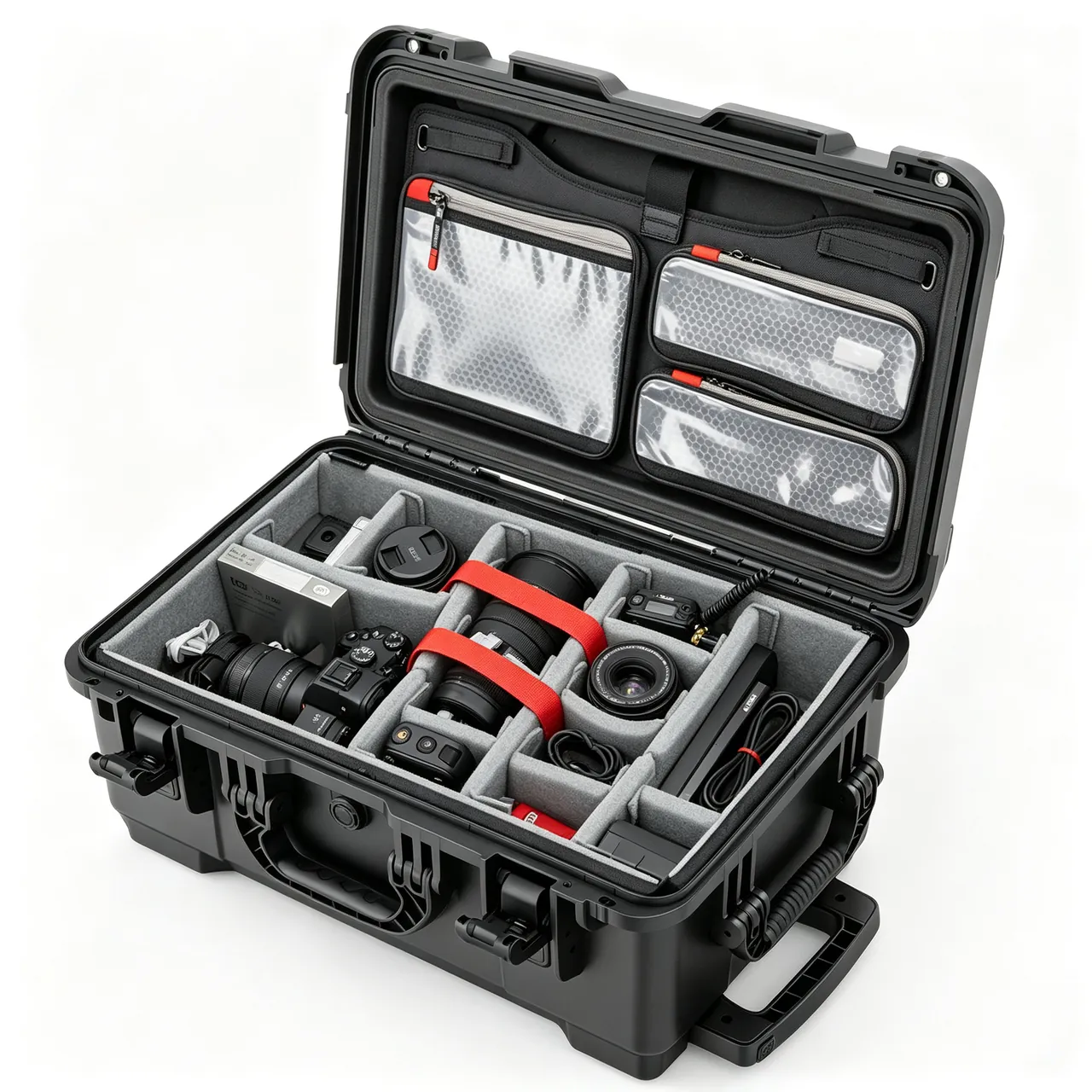

- Pressure equalization valve. A fully sealed case develops a differential as temperature changes, shortening gasket life and making opening difficult. A valve balances the differential while maintaining the IP rating, as explained in case pressure equalization valve.
- Use a dry or thin rust preventive on parting and tread faces, so it is easy to remove on arrival and does not leave oil marks on the first cured tire.
- Confirm gasket low-temperature performance. Cross-climate shipping may include low temperatures, at which gaskets harden and lose resilience, so the material temperature range must be confirmed.
- Inspect and re-measure on arrival. Focus on parting faces, tread ribs, bead ring cones and signs of corrosion, and record photographs as acceptance evidence.
On material behaviour at temperature extremes. Engineering plastics can embrittle at low temperature and soften at high temperature, so case and insert material selection should follow the actual temperature range encountered. Relevant material boundaries and selection logic are in extreme temperature case.
11. Incoming Inspection, Traceability and AQL Sampling
Both the case and the packaging plan require acceptance, and acceptance covers the packed state as a whole.
Three-layer acceptance structure.
Layer one, case appearance and structure. No cracks or abnormal distortion. Hinges and latches operate freely and lock reliably. The gasket shows no gaps or compression set. Forklift pockets and base pallet are intact. Stacking location features work. Marking is legible and resistant to oil and weather.
Layer two, function and performance. Sealing is sampled against the declared IP rating using IEC 60529 and GB/T 4208 methods. Insert dimensions match the drawing. Segments show no visible movement in their pockets. Loading is smooth without jamming. Compression is even and controllable.
Layer three, packed state and documents. Mold quantities and position numbers match the packing list. Tread face orientation and relief match the packing drawing. Thread plugs and cone protectors are fitted. Desiccant and humidity indicator card are in place. Documents are complete: case specification, insert drawing revision, packing drawing, inspection records and rust-prevention record.
AQL sampling follows the established framework: determine sample size from batch quantity and judge by defect class. For tire mold cases, the following classification is practical.
| Defect class | Typical items | Judgement |
|---|---|---|
| --- | --- | --- |
| Critical | Wrong position loaded, short quantity, tread rib or parting face damage, sealing failure | Not permitted |
| Major | Insert collapse or migration, insufficient compression, hinge or latch failure, signs of corrosion | Judged against limits with batch traceability |
| Minor | Cosmetic scratches, unclear marking, local insert burrs, poorly placed aids | Permitted within limits |
The full classification and sampling method is in custom case acceptance and AQL.
Marking and traceability should include at least the following.
| Marking | Suggested content | Form |
|---|---|---|
| --- | --- | --- |
| Mold and position number | Mold number plus segment position number and revision | Oil-resistant durable label or engraved marking |
| Contents list | Component name, quantity, specification | Label or accompanying document |
| Packing orientation | Tread face direction, stacking direction, lifting points | Screen print graphic |
| Weight and centre of gravity | Gross weight, net weight, CG position | Screen print or label |
| Protection data | IP rating, desiccant replacement date, rust-prevention date | Label |
| QR code | Link to packing drawing and inspection records | Weather- and oil-resistant label |
On one file per case. For complete mold sets, especially segmented molds, build an electronic file per case recording the packing drawing, position numbers, inspection results and transfer history. When a tread defect appears at the customer, this makes it fast to determine whether mold condition, assembly error or packaging damage is responsible, and greatly shortens investigation time.
12. Custom Insert Workflow and OEM/ODM Delivery
A standard workflow that can serve as a supplier technical requirement.
- Information review. Provide the component list with name, specification, quantity, unit weight and material; 3D models in STEP or IGES or complete 2D drawings; a list of critical accuracy faces covering parting faces, tread faces, cone faces and engraved faces; packing orientation and handling method; whether components travel as a set; and the intended transport mode including whether ocean freight is involved.
- Concept design. Determine case size and insert structure and issue the insert layout, packing orientation drawing, load path description and handling direction notes.
- First-article trial fit. Check that tread face relief is sufficient, the load-bearing face lands on the back mounting face, compression is even, and loading is smooth.
- Adjust and freeze. Fine-tune cavity dimensions and compression from the trial feedback, then freeze the drawing revision.
- Production and factory inspection. Blow out insert debris, sample dimensions and confirm appearance, supplying inspection records with each case.
- Change management. When the mold is revised or segment positions change, revise the insert drawing in step and withdraw the old revision.
For the collaboration boundary from requirement to volume production and the dimensions of supplier evaluation, including mold capability, insert machining accuracy, inspection equipment and document completeness, see how to choose a case OEM factory. JUNZHJIA provides an integrated service from component list interpretation and insert concept design through volume supply and OEM or ODM branding, with structural parameters and inspection documents available on request.
On alignment with automotive supply chain systems. Tire plants are often tier-one suppliers to vehicle makers, so their tooling management sits inside the controlled scope of IATF 16949, and the design, manufacture, acceptance, use, maintenance and storage of molds should all be traceable. PPAP ties tooling status to part approval, so a mold damaged in transit and then repaired may need dimensional capability re-confirmation, which can affect the approval conclusion. Treating the packaging plan drawing, packing checklist, transport test report and unpacking checklist as part of the tooling documentation is therefore far cheaper than reconstructing records later. Cleanliness of tread grooves and parting faces is best described quantitatively using the ISO 4406 particle class approach, with the acceptance method written into the technical agreement rather than left as a visual judgement. Where a case must enter an area with a flame-retardancy requirement, confirm the UL94 class of the plastic case material, typically V-0, V-1, V-2 or HB, together with the test method.
13. Selection Decision Tables and Common Misconceptions
Selection decision table.
| Situation | Recommended shell | Recommended insert | Priority verification |
|---|---|---|---|
| --- | --- | --- | --- |
| Short transfers in a dry shop | IP54 to IP65 transfer case | Compartments with rigid floor and soft walls | Handling efficiency, stacking stability |
| Domestic road delivery and mold store | IP65 heavy-duty case | Compartmented profile fit with flexible compression | Random vibration, stacking, sealing |
| Humid curing-shop transfers | IP66 to IP67 sealed case with desiccant | Compartments with rust prevention | Sealing, rust-prevention life, gasket ageing |
| Ocean export across climate zones | IP67 with pressure equalization valve | Compartmented profile fit, desiccant, dry rust preventive | Temperature and humidity cycling, stacking, salt fog |
| Heavy side plates and complete halves | Plastic case on steel base pallet | Uniform multi-point support with ring seat location | Stacking, drop, concentrated impact |
| Bladders and other elastomer parts | IP65 sealed case | Separate pockets, away from light and heat | Compression set, ageing, compatibility |
| Mixed components in many sizes | IP65 standard case | Adjustable dividers, compartment boxes, position marking | Mis-load risk, counting convenience |
Common misconceptions.
- Misconception one: a mold is heavy, so vibration does not matter. The greater the mass, the greater the inertial load, so vibration control and restraint matter more.
- Misconception two: tread face down is the most stable. Tread face down puts the ribs directly under load and is the attitude most likely to chip and crush them.
- Misconception three: packing a warm mold saves time. It worsens condensation inside the case and may introduce restraint stress.
- Misconception four: after cleaning, pack it straight away. Cleaning strips the existing protection and leaves residue, so drying and re-protection are required.
- Misconception five: a gasket can be used until it fails. Gaskets are consumables and age faster in humid heat, so replace on a cycle.
- Misconception six: IP67 means long-term submersion. The definition is temporary immersion and cannot be extrapolated.
- Misconception seven: one transport test result stays valid. Mold revisions, case ageing and route changes all invalidate it.
Frequently Asked Questions
Q: What damage is most common in tire tread segment transport, and why is tread face down the most dangerous attitude? A: Segment damage falls into four groups. The first is chipping and rounding of tread ribs, the most common and most serious, because the ribs directly shape the tread pattern and any loss leaves a corresponding defect on the tire surface, usually requiring welding and re-cutting at high cost. The second is scoring and impressions on tread grooves and walls, mostly from hard particles being pressed in. The third is impressions on parting faces, which appear as flash after closing. The fourth is corrosion, especially where moisture collects, such as groove bottoms and parting face gaps. Tread face down is the most dangerous attitude for three reasons. First, it means the weight transfers through the tread ribs, whose local cross-section is very small, producing very high contact stress. Second, the shop floor usually puts only a thin foam sheet underneath, and under transport vibration the foam compacts until the ribs press directly against a rigid case floor. Third, with the tread face down, the face cannot be inspected visually, so damage is often discovered long after unpacking. The correct attitude is tread face up or inward, load carried by the back mounting face, with a relief cavity above the tread face and a soft cover.
Q: Why must a mold cool to near ambient temperature before packing? A: There are three main reasons. The first is restrained dimensional change: a mold's accurate state is established at curing temperature, and as it cools to ambient its dimensions change with temperature. If a hot mold is forced into a rigidly constrained package, contraction is restrained and residual stress can be introduced, which may later appear as distortion or a change in fit. The second is condensation, the most immediate risk. When a warm mold is packed and then cools, the air inside the case contracts and creates a slight negative pressure that draws humid outside air through case gaps, while internal moisture condenses on the cooler surfaces, and the mold surface is usually among the coolest. Condensation on parting faces and in tread grooves can start corrosion within hours. The third is material compatibility: heat accelerates softening and ageing of insert materials and permanent deformation of gaskets. Surface temperature should therefore be confirmed near ambient before packing. A workable field value is within about 10 degrees Celsius of ambient, with the actual limit set by mold material, structure and mass and written into the work instruction.
Q: Why does a tread segment insert use a differentiated design with a rigid floor, soft walls and a compressible top? A: Because the three faces of the insert perform three different tasks, and a single material cannot satisfy all of them. The floor carries the entire weight, so it must be a rigid material or a high-density foam with low compression; otherwise heavy load collapses the insert, the mold sinks and shifts, location is lost, and the relief cavity above the tread face stops working. The walls only provide lateral restraint, keeping the segment from sliding under vibration while avoiding scoring of the mold sides and edges, so they should be medium-density material or a soft facing with low contact stress. The top provides compression, removing the jump freedom inside the case without forcing any single point, so elastic strips or multiple soft pads give even and controllable compression. This differentiated design has an added benefit: operators can identify the correct orientation by touch, reducing the chance of loading a segment the wrong way up. In a design review, list and verify the material, density, thickness and compression of the three faces separately.
Q: What should be watched when tire molds circulate in the humid environment of a curing shop? A: The curing shop is a hot and humid environment with steam escape, floor washdown and oil mist, affecting both molds and cases. First, corrosion risk rises sharply, with parting faces and threads first in line, so a sealed case with desiccant and a rust preventive on parting faces are needed. Second, gaskets age faster, since heat and moisture together accelerate rubber ageing, so confirm the temperature and humidity resistance of the gasket material and check and replace on a cycle rather than waiting for visible failure. Third, case hardware corrodes: hinges, latches and rivets should be stainless or surface treated, otherwise latches seize and hinges jam. Fourth, dust and curing residue settle inside the case and become hard particles that are pressed into tread faces during closing or transport, so cases and inserts should be easy to wipe and blow out and should be confirmed clean before packing. Fifth, store cases off the floor on pallets so washdown water does not act directly on the base. Sixth, marking must resist oil and weather, since ordinary labels fall off in oil mist and humidity, so use oil-resistant labels or direct screen printing.
Q: Why insist on position marking when tread segments travel as a set? A: Because segments are parts that look alike but function differently. A segmented mold commonly holds 8 to 12 or more segments, and the tread pattern, sipe layout and even the engraved content differ by position, while the external dimensions are often very close and hard to distinguish by eye. Without position marking in the insert, three practical problems follow. First, mis-installation risk: fitting a segment in the wrong position causes pattern misalignment, abnormal sidewall appearance, and in the worst case a scrapped tire, and such defects are usually only found when the tread is inspected after curing. Second, slow segment finding: operators must compare across several pockets to find the right one, which is slow and risks impact damage. Third, traceability difficulty: when a tread defect appears, it is impossible to tell quickly whether one specific segment or the assembly is responsible. Insert pockets should therefore be ordered and durably marked by mold number and position number at the design stage, and pocket numbering should correspond to the packing drawing, so that one case holds one set, one pocket holds one position, and drawing and contents match. The cost is minimal and the reduction in mis-installation and traceability risk is significant.
Q: A tread segment is not especially heavy, so why should the insert still be designed for heavy duty? A: A single segment typically weighs only a few tens of kilograms, but the insert does not carry static weight. It carries dynamic inertial load. Transport vibration and handling impact amplify the load, and the amplification factor depends on vibration amplitude, frequency and support stiffness, with common engineering values of two to four times or more. A 50 kg segment can therefore impose more than 150 kg of concentrated force on the insert at the moment of impact. Three factors add to this. The first is concentration: the contact area between segment and insert is limited, so load concentrates at the support face and the edges of the relief cavity. The second is duration: heavy-duty inserts develop compression set under long storage and repeated handling, gradually losing grip through a process that is gradual and silent. The third is multiple-part interaction: when a set travels in one case, mutual compression between adjacent segments further amplifies loading at individual points. Designing the insert for heavy duty is therefore not over-design but necessary margin. The test is simple: after repeated handling and long storage, can the insert still hold pocket accuracy and compression force?
Q: How should pass criteria be set for tire mold case transport verification? A: Set pass criteria on two levels. The first is the integrity of the case itself, with relatively straightforward criteria such as no cracks or structural distortion in the case, no base pallet distortion, functioning hinges and latches, and sealing still meeting the declared IP rating. The second level is the accuracy state of the mold, which is more important and more often overlooked, because an intact case does not mean an intact mold. Inspect parting faces, tread ribs and bead ring cones before and after the test, with gauges or templates where needed, and set criteria such as no visible chipping, no visible impressions on parting faces, no scoring on cones, heavy part migration within an agreed limit, and no loosened fasteners. Three further points matter. Record the condition of the test item honestly, including whether it is new or used and whether known micro-cracks exist, because an older mold has a lower failure threshold. If an equivalent mass substitutes for the real mold, state the relationship between its mass, centre of gravity and outline and those of the real mold, because a simple rigid dummy cannot reproduce failure driven by local contact stress. Finally, run stacking at the actual layer count and duration, because compression set in heavy-duty inserts may not appear in a short test.
Q: What is the workflow for a custom tire mold case insert, and what information is required? A: The standard workflow has six steps: information review, concept design, first-article trial fit, adjustment and freeze, volume production with factory inspection, and change management. The core information includes a complete component list with name, specification, quantity, unit weight and material; 3D models in STEP or IGES, easiest for reading the outline, or complete 2D drawings; a list of critical accuracy faces identifying parting faces, tread faces, cone faces and engraved faces, which is the basis for relief cavity design; packing orientation requirements, such as whether the tread face may face down and whether components must travel as a set; handling method, whether manual removal one at a time, sling lifting or complete rotation, and whether access space is needed; the mold number and position numbering system for pocket marking; the intended transport mode and distance, including ocean freight and cross-climate shipping; and whether accessories such as plugs, guide pins and bladders must be stored in the same case. The more complete the input, the higher the chance the concept passes first time. The trial fit stage is the most critical, because it exposes problems invisible at the design stage, such as insufficient relief at an edge, a loading passage that is too narrow, or uneven compression. Freeze the drawing after a successful trial, then move to volume production.
Conclusion & Related Reading
Transport protection for tire molds is fundamentally a structural design problem under three simultaneous constraints: heavy load, high accuracy and a humid hot environment. Four statements summarize the article. First, the vulnerable points are concentrated on tread ribs, tread grooves, parting faces, cone faces and engraved faces, and the insert must provide independent relief for each and keep them at zero contact and zero load, with all weight carried by back mounting faces, non-mating faces or outer diameters. Second, tread segments must be compartmented and position-marked, with a differentiated insert design of rigid floor, soft walls and compressible top that balances heavy load carrying with accuracy face protection. Third, rust and moisture control follows the combination of clean, dry, protected, sealed, desiccated and humidity-indicated, molds must cool to near ambient before packing, and humid curing-shop transfers and ocean export should use IP67 with a pressure equalization valve. Fourth, effectiveness must be verified with ISTA, GB/T 4857 and ASTM D4169, with accuracy face inspection as a required test item, and management fixed through AQL sampling and one-file-per-case traceability.
Written down, these actions become an executable packaging plan: case specification and IP rating, insert structure and three-face material configuration, pocket and position marking, packing orientation and lifting points, rust prevention and desiccant configuration, gasket replacement cycle, verification test items with quantified criteria, and the unpacking checklist and traceability content. JUNZHJIA can provide compartmented profile insert customization built around the actual tread segment and component outlines, heavy-duty case OEM and ODM supply, and structural parameter and inspection document support, helping tire plants and mold shops turn packaging into a controlled process.
Related Reading
