1. Why Kitchenware Molds and Punches Need a Dedicated Equipment Case

The way kitchenware is formed explains where the value of a tool actually sits: not in the weight of the tool steel, but in a few tens of micrometres of surface and clearance.

First, the value of a deep-draw die is in the cavity surface. For deep-drawn parts such as stainless cookware bodies and kettle shells, the punch and die cavity surfaces are mirror polished or hard chrome plated, and their roughness directly sets the friction that the sheet experiences as it flows. Once the cavity carries a scratch, a bruise, or a rust pit, the steel will show draw marks, orange-peel texture, or outright tearing. There is no field repair for this class of damage. The cavity must be re-polished, and re-polishing changes the cavity dimensions and the working clearance.

Second, the value of a blanking die is in the cutting edge. Blanking, piercing, and trimming edges are made from high-hardness tool steel or cemented carbide. Edge chipping immediately increases burr height, degrades the sheared surface, and shortens tool life. A local chip usually means the whole edge must be reground, and regrinding forces the shut height and stripping clearance to be reset.

Third, the value of a punch is in clearance and hardness. The single-side clearance between punch and die is typically a few percent of material thickness. If a punch bends or picks up a burr on its face during transport, the clearance becomes uneven after assembly, which drives one-sided wear and premature edge failure.

Fourth, circulation frequency is high. A kitchenware plant holds many tool sets, each spending little time in storage and moving often. At twenty movements a year, a tool that serves eight to ten years will be handled nearly two hundred times. Every one of those handling events must be repeatable and verifiable, which means the packaging has to be standard tooling rather than a consumable.

Practical note: the most expensive hidden cost in a kitchenware plant is not the purchase price of a tool but a tool that will not dial in after mounting. A large share of these cases trace back to cavity scoring, edge chipping, or surface rust introduced in transport and storage, and diagnosing a wrinkle in a deep-drawn part costs far more than a proper equipment case.

For kitchenware manufacturers and tool shops, the case also acts as an asset-management platform. One insert architecture can be shared across a cookware family, simplifying storage, circulation, and project kitting. Reuse assessment methods are described in protective case service life and reuse years.

2. Component List and Sensitivity Grading

Score each item on three axes - forming-precision sensitivity, shock fragility, and moisture and cleanliness sensitivity - to build the packing decision basis.

The pattern is clear: cavity and edge components are the physical protection priority, punches and guide posts are the fit-accuracy priority, and elastic elements and gauges are the slow-failure items that are most often overlooked.

3. Failure Modes: Edge Chipping, Cavity Scoring, Punch Bending and Guide Post Damage

Edge chipping. The blanking edge is the hardest and least ductile region of the tool. When the die is struck laterally, or when the edge contacts another hard component, small chips form. A chip may be only a fraction of a millimetre, but it immediately shows up as out-of-tolerance burrs and a wider fracture band, and it propagates quickly over subsequent strokes.

Cavity scoring. Once a deep-draw cavity is scored, friction rises locally as the sheet flows, and the drawn part develops draw marks, local thinning, or cracking at the corresponding position. Worse, the score traps metal debris and hard particles from the lubricant, creating continuous abrasion so that the damaged zone grows with every stroke.

Cavity corrosion. Kitchenware tool rooms see water-based cleaning, cooling, and humidity swings. If a cavity loses its oil or rust-preventive film in transit, pitting can appear within days to weeks. Once pitting exists, polishing repair must remove a measurable layer of material, and the cavity dimensions change with it.

Punch bending and face damage. A slender punch without support can deflect elastically and even yield plastically under vibration and stacking loads. If the face edge is struck and forms a lip, the cutting clearance becomes uneven after assembly and one side of the edge wears rapidly.

Guide post and bushing scoring. The guide mating surface is the accuracy datum of the whole tool. Scoring or corrosion destroys guiding accuracy, the clearance fluctuates through the stroke, and the part shows misalignment and burrs.

Stripper plate and blank holder distortion. These plates are large in area and relatively thin. If supported only at the corners in transit, the centre deflects under self-weight and stacking load, and after assembly the blank-holding force is uneven.

Safety note: a mold is a heavy component. Lifting and handling must use dedicated lifting gear or symmetrical load points. Never pass a wire rope through a cavity, a guide post bore, or a stripper screw hole to lift a die - cavity edge chipping and guide post scoring usually happen at exactly this step.

4. Cleanliness and the Food-Contact Boundary for Kitchenware

A kitchenware mold is not itself a food-contact material, but it determines the surface condition of the food-contact face. Cleanliness requirements therefore have to be written into the packaging specification, not left in a workshop rulebook.

Where the boundary sits. Under the logic of food-contact material regulation - stainless steel products are commonly assessed against the GB 4806.9 series, with separate parts covering plastics and coatings - the compliance obligation ultimately lands on the finished kitchenware surface, not on the mold. However, corrosion products from the cavity, polishing paste residue, release agents, and emissions from packaging materials can all transfer to the finished surface through the forming operation. The core packaging requirement is therefore: introduce no corrosion, no sulphur or chlorine bearing contamination, and no residue that cannot be removed.

Packaging material compatibility. Some foams, rubbers, and adhesives can release acidic species, plasticisers, or sulphides during long contact. Copper alloy punches, chrome plated cavities, and stainless steel parts are especially sensitive to sulphur and chlorine. Specify the composition and compatibility from the insert material supplier, and run a small contact test where the risk is high. A comparison of materials is available in case foam material comparison.

Cleanliness control. Debris from CNC-cut foam is a classic contamination source. Inserts must be de-dusted and cleaned after machining; the assembly area must be free of airborne wood dust and cutting fluid mist; operators should wear gloves so that hand sweat never touches a polished cavity or a cutting edge.

Sequence of cleaning and degreasing. The tool should be cleaned, degreased, and dried before packing, then protected with rust-preventive oil or VCI. If cleaning is deferred until after unpacking, the corrosion risk is concentrated in exactly the transport and storage window where nobody is watching.

Cleaning before case reuse. Reusable cases and inserts must be wiped clean and fully dried before every cycle; the method is described in how to clean a protective case.

5. Weight and Size Boundaries: From 80 kg Single Dies to 3 t Progressive Dies

Kitchenware tooling spans a very wide weight range. A single-station blanking die may weigh 80 to 150 kg, while a multi-station progressive die or a large deep-draw tool can reach 1.5 to 3 t. Each weight class needs its own packing route.

Design points.

• Support count matters more than insert thickness. For a large flat tool, supports should sit at roughly one fifth of the span in from each edge, so the centre cannot sag.
• The centre of gravity must sit low. A high centre of gravity promotes rocking and a tip-over risk in transit; the heavy mass should be as close to the case floor as the design allows.
• Mark the fork pockets. Unmarked pockets get used incorrectly, and the load path ends up somewhere the case base was never designed for.
• Print the stacking load on the label. Storage stacking heights usually exceed transport stacking heights, and that is the main source of case deformation.

Tip: for tools above 500 kg, design the case and the pallet as one integrated structure rather than dropping a standard case onto a generic pallet. The added stiffness measurably reduces low-frequency sway over long road journeys.

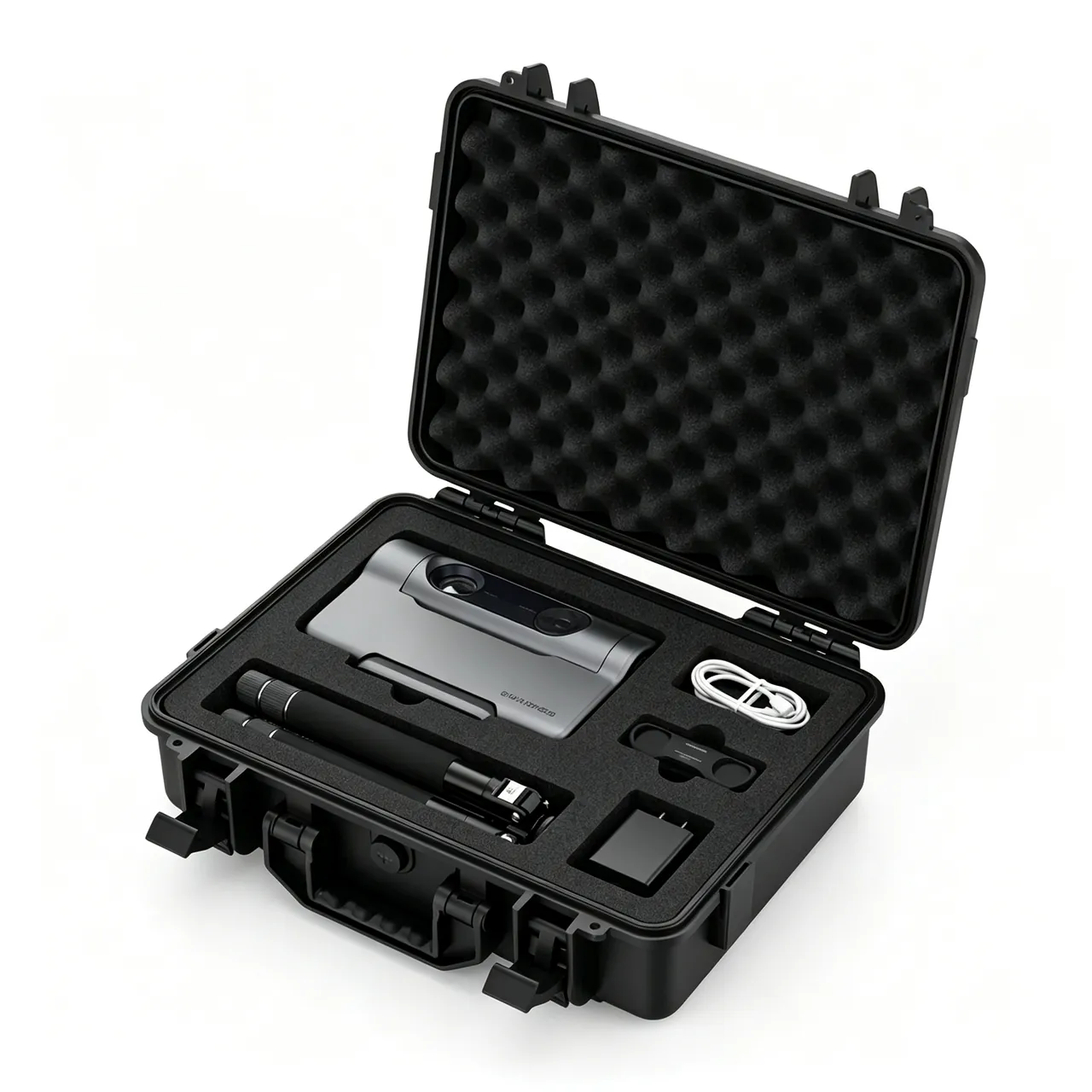

6. Case Structure and Material Selection

A kitchenware mold case has to balance stiffness, weight, sealing, and handleability.

Shell material. Common choices include high-impact copolymer polypropylene, modified engineering plastics, and glass-fibre reinforced composites. Copolymer PP offers good toughness, chemical resistance, and very low water absorption, which suits most tool room and warehouse environments. Above roughly 1500 kg, a combination of steel skeleton and engineering plastic panels is normally required.

Flammability rating. Tool rooms contain oil mist, cleaning solvents, and electrical equipment, so an explicit flammability rating is worth specifying. UL94 is the widely used method for evaluating the burning behaviour of plastics; the V-0, V-1, and V-2 classifications are commonly quoted in procurement specifications. Note that UL94 is a material-level evaluation and is not equivalent to a finished-case fire certification.

Wall thickness and ribbing. Case stiffness comes primarily from rib geometry rather than from raw wall thickness. A well-designed rib grid spreads concentrated loads over a larger area while keeping weight and cost under control.

Hinges and latches. On a mold case that opens frequently, hinges and latches are the first parts to fail. Structure, materials, and the sealing interface are covered in toolbox hinge, latch and seal design.

Seals. Gasket material must match the environment: nitrile rubber for oil resistance, silicone for a wide temperature range, and EPDM where weather and water vapour resistance dominate. Selection guidance is in case seal material selection.

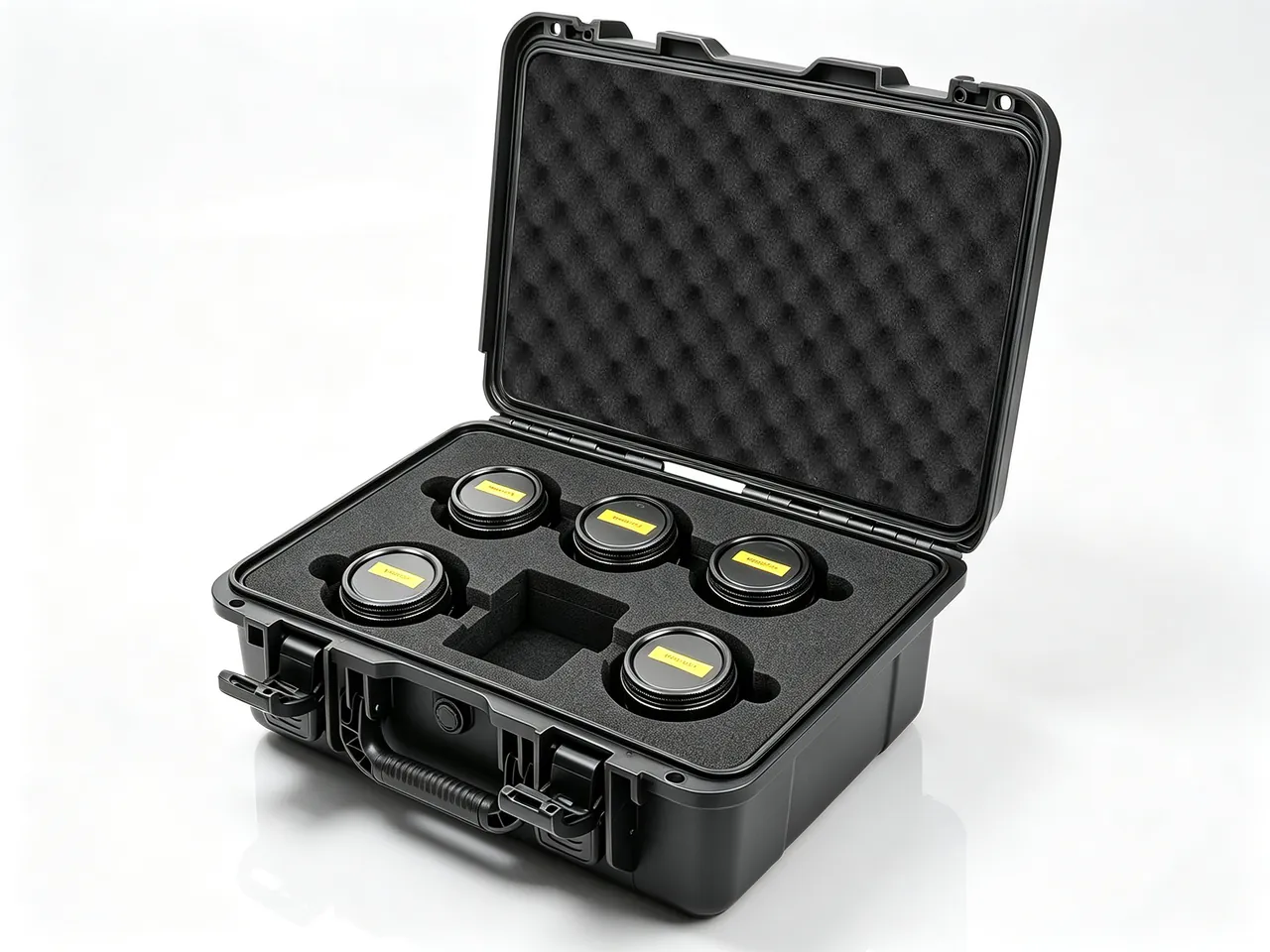

Pressure equalisation valve. A sealed case develops a pressure differential under temperature change or air freight altitude, which makes the case hard to open and can crush the gasket. For heavy mold cases that fly or cross climate zones, a pressure equalisation valve is a necessary fitting; the principle and selection logic are in case pressure equalisation valve.

Wheels and trolley handle. Below 150 kg, wheels and a telescopic handle markedly reduce manual handling strain, but the wheel structure consumes base volume and can affect stacking stability, so the trade-off has to be made deliberately. Design points are in case wheels and trolley handle.

7. Insert and Locating Design: Should the Cavity Face Up or Down

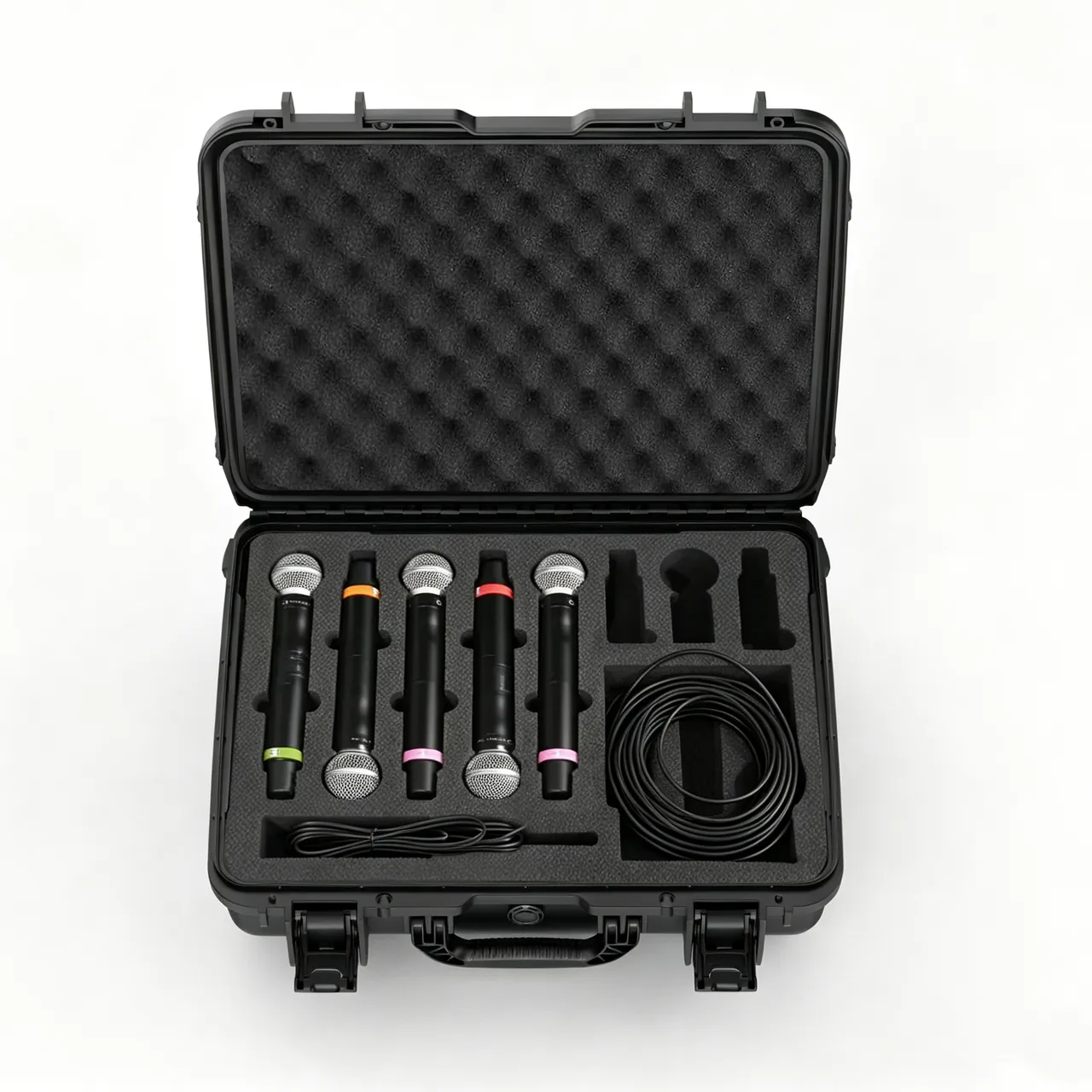

Insert design is the technical core of a kitchenware mold case. The same shell with a different insert can deliver several times the protection, or almost none.

Principle one: no mirror surface touches anything hard. Mirror cavities, chrome plating, and polished punch spheres must be held clear, or touch only a validated soft material. Note that soft does not mean harmless - many foams stiffen significantly under compression and will take a permanent set if left under static load.

Principle two: rigidity locates, elasticity cushions. Rigid members such as wood, engineering plastic, or metal framing restrain the six degrees of freedom, while elastic members such as foam, rubber, and air cushions absorb vibration and shock energy. Confusing the two roles is the single most common insert design error. The underlying logic is set out in cushion liner design.

Principle three: separate load faces from function faces. Every tool has non-functional surfaces - the base, side mounting faces, and the areas of the top face outside the datum. All support and clamping should land on those, so that functional faces such as cavities, edges, and guiding surfaces carry no load at all.

Principle four: the loading action must be repeatable. The insert should bring the tool to the same location every time, rather than requiring a nudge on every cycle. Use locating pins, corner stops, colour coding, and poke-yoke recesses.

Cavity up or cavity down? This is the question kitchenware deep-draw tooling raises most often.

Conclusion: large deep-draw dies generally use cavity-up with a low-strength dust cover over the opening and desiccant inside the cavity; small and deep-cavity tools use cavity-down with flat end-face support. Whichever is chosen, the orientation must be marked on the outside of the case and the first inspection step after opening must be written into the procedure.

Dust and condensation. A cavity-up arrangement turns the cavity into an open vessel, so workshop dust and warehouse moisture enter naturally. In addition to a dust cover, reserve a position in the insert for desiccant and fit a humidity indicator card inside the case so the condition can be judged quickly at opening.

8. Isolated Compartments for Punches, Guide Posts and Elastic Elements

Punches. Punches should be stored upright with the shank restrained at two or more points and the face edge touching nothing hard. For slender punches with a length-to-diameter ratio above eight, use a vertical bore with an elastic upper clamp so that self-weight cannot induce long-term bending over months of storage. Multiple punches of the same type go into separate compartments; never bundle them.

Guide posts and bushings. These should be fixed in pairs, coaxial, with mating surfaces facing out and wrapped in anti-rust paper. A guide post stored loose will inevitably pick up scratches from neighbouring parts. Bronze self-lubricating bushings are sensitive to sulphur and chlorine, so the packaging materials must be explicitly sulphur-free.

Elastic elements. Polyurethane elastomers and die springs take a permanent set and age under sustained compression. Store them free or lightly preloaded, not at working height. Keep them away from light, heat, and ozone sources such as motors and variable-frequency drives.

Stripper plates and blank holders. These stack well, but require flat interleaving pads between layers, and the stack height should be limited. Put the least flat component at the bottom of the stack.

Small parts and standard components. Locating pins, screws, springs, and inserts are small in size, dispersed in value, and the easiest things to lose. Use a compartmented tray and list quantities on the case manifest so that opening the case becomes a checkable count.

9. Rust Prevention: A VCI and ISO 4406 Cleanliness View

The dominant materials in kitchenware tooling are alloy tool steels and tool steels, which are carbon steel systems sensitive to humidity. Some punches use copper alloys or chrome plated surfaces, which are sensitive to sulphur, chlorine, and acidic species.

Suitability of vapour corrosion inhibitor (VCI). VCI materials continuously release inhibitor molecules that adsorb onto metal surfaces, which makes them particularly effective on cavity, edge, and guide post surfaces that are hard to oil reliably. Three cautions apply. First, compatibility: copper alloys and chrome plating need a product explicitly declared compatible, since some VCI chemistries discolour these surfaces. Second, effective distance: a VCI film or emitter must sit within a sensible distance of the metal, and the vapour concentration deep inside a narrow cavity may be insufficient, so an additional emitter is required. Third, service life: select a long-duration grade for long ocean transit and long storage, and state the replacement interval.

Oil film as a complement. For assembly fits such as guide post and bushing, punch shank, and guide bores, apply a thin oil film first and then wrap with VCI. The film should be even, thin, free of free water, and compatible with the grease used at assembly.

Cleanliness and ISO 4406. ISO 4406 is the widely used method for coding solid particulate contamination in hydraulic and lubrication systems, expressing particle counts in size bands as a three-number code. Borrowing that logic for mold packaging has real value: the particulate contamination level of a component surface can be specified as a cleanliness code plus a measurement method, rather than as an unverifiable statement that the surface shall be clean. Specify in the technical agreement that surfaces are cleaned and degreased before packing; that inserts are de-dusted after machining to the point where no visible particles remain; and that critical mating surfaces are blown with clean compressed air and verified with a white-cloth wipe.

Storage environment. Even good packaging needs environmental support for long storage. Keep relative humidity below roughly 60 percent, avoid walls and floors, and never store alongside acids, alkalis, or salts. Vibration and stacking requirements for storage and transport are covered in GB/T 4857 transport packaging test methods.

Desiccant quantity. Estimate the required desiccant mass from case volume, insert hygroscopicity, transit duration, and the climate zones crossed, then add margin. Fibrous insert materials must be pre-dried so that they do not act as a moisture source.

10. The Boundary of Press Safety Awareness

An equipment case protects the integrity of a die while it is not in operation. It cannot replace the safeguarding devices and management measures required on a press. This boundary should be written into the technical agreement and the training material so that nobody concludes that a dedicated case makes a press safe.

What a case cannot do.

• It cannot replace photoelectric guards, two-hand controls, light curtains, or other safeguarding devices on the press.
• It cannot remove pinch, fall, or mechanical injury hazards during die changeover.
• It cannot substitute for periodic inspection and crack detection of the tool.
• It cannot repair an existing structural crack or fatigue damage.

What a case can support.

• Rigid locating and clear labelling shorten the judgement time and trial-and-error moves during changeover, which reduces the exposure window.
• Weight and centre-of-gravity marking give the lift plan a factual basis.
• Status labels and an unpacking checklist turn die condition confirmation into a recorded, traceable step.
• A common insert architecture removes the improvised handling that comes from missing parts or wrong locations.

Safety note: changeover must follow the plant's established lockout-tagout, energy isolation, and lifting permit procedures. The case is one element of that system, not a substitute for it.

11. Sealing and Ingress Protection: An IEC 60529 and GB/T 4208 View

For a kitchenware mold case, sealing addresses three intruders: dust, water vapour, and condensate. The classification framework is defined in IEC 60529 and its Chinese counterpart GB/T 4208.

Selection logic. Do not chase IP67 by default. IP67 normally means a thicker gasket, higher latch preload, and more elaborate pressure equalisation, which affects how easy the case is to open and how heavy it is. Start from the worst credible case instead: will it be rained on, will it cross flooded ground, is the transhipment point under cover, is there high-pressure washdown in the shop? Then set the rating.

Sealing versus pressure equalisation. A high sealing rating creates a significant pressure differential. A case cycling between 45 C by day and 10 C at night builds a marked negative pressure, opening becomes hard work, and the gasket is repeatedly compressed and released. A pressure equalisation valve allows gas to exchange slowly while blocking liquid water and dust, and is standard practice above IP65.

Gasket maintenance. The gasket is a wearing part. Inspect it periodically for hardness, rebound, and set. Replace it when it hardens, cracks, or takes a permanent compression set. Matching gasket material to environment is covered in waterproof case IP protection and seal design.

Documentation. Ask the supplier for a rating verification statement, type test report, or third-party conclusion, and put the sampling rule into the contract. Sampling and acceptance practice is described in custom case acceptance and AQL sampling.

12. Transport Vibration and Shock Validation: GB/T 4857, ISTA and MIL-STD-810H

The protection actually delivered by a mold case has to be validated by transport testing, not by opinion.

The GB/T 4857 series. This is the basic Chinese test method system for transport packages, covering vibration, shock, stacking, and drop, and it suits domestic road transport scenarios. The stacking test matters especially, because storage stacking loads usually exceed transport loads. Key points are in GB/T 4857 transport packaging test methods.

The ISTA series. ISTA publishes transport packaging test procedures organised by distribution mode and package form. For mold cases shipped as unitised loads, the ISTA 3 series unitised load procedures are the closest match. See ISTA transport testing procedure.

ASTM D4169. This standard uses a distribution cycle framework that combines handling, stacking, vibration, and shock into a complete test sequence, which suits export projects and situations where the acceptance basis must be common across parties. See ASTM D4169 distribution cycle testing.

Where MIL-STD-810H fits. This is a United States military standard for environmental test methods, frequently cited outside ISO-based industries as an environmental test basis. It must be stated clearly that citing MIL-STD-810H methods is an environmental test basis only. It does not indicate military certification, and it does not indicate compliance with any national military procurement requirement. For kitchenware mold cases, the thinking in Method 514 (vibration) and Method 516 (shock) is useful as design input, but the test conditions must match the project's actual transport profile rather than being copied.

Validation points.

• Run a modal or resonance survey first, so that the dominant resonances of the case-plus-insert assembly are known and the test conditions do not accidentally avoid the real risk region.
• A mold has its own natural frequencies, so case, insert, and tool should be evaluated as one system.
• After testing, run a functional check: cavity surfaces, cutting edges, guide mating faces, and tool geometry. Do not settle for whether the case itself survived.
• Records must be traceable: test conditions, sample identity, inspection method, and verdict.

13. Labelling, Traceability and On-Site Unpacking

External labelling. At minimum include: tool number and name, applicable product model, gross weight including the tool, centre of gravity, lifting point identification, stacking limit, moisture and tip-over symbols, and orientation (cavity up or cavity down). Orientation and centre-of-gravity marks on heavy items should use high-contrast colours and remain readable in poor light.

Internal manifest. Fix a manifest to the inside of the lid listing the component name and quantity for each insert pocket. Its value is that anyone can complete a count without leaving the case to look up a drawing.

Status label. Use a four-field label: packing date, rust prevention method, expiry, and inspector. Both VCI and oil films have a finite life, and a status label turns expiry into a decidable fact.

Unpacking procedure.

1. Before opening, check the case exterior, seals, and labels, and record anything abnormal.
2. On opening, read the humidity indicator card and desiccant state before removing parts.
3. Remove parts in manifest order so that adjacent compartments do not scrape each other.
4. Inspect cavities, cutting edges, guide posts, and punch faces, then clean and re-oil or re-grease before use.
5. Before mounting, verify shut height, clearances, and ejection positions. Never assume the tool is still at its as-shipped setting.
6. Record any damage or deviation and feed it back to packaging and logistics so the loop closes.

Why traceability matters. Packaging and transport are where tool damage concentrates and where the evidence chain is weakest. With a case number, a seal number, and an unpacking record, where the damage happened stops being a matter of argument.

14. OEM/ODM Workflow, Acceptance and Reuse Management

Customisation workflow.

1. Requirement input. Tool list with model, dimensions, weight, and centre of gravity; 3D models or physical samples; circulation mode (in-plant, inter-plant, export); transport modes; environmental conditions; compliance requirements.
2. Design. Case size, insert architecture, locating and cushioning scheme, sealing rating, closure type, and labelling scheme.
3. Prototype and verify. Trial fit the first insert, check clearances, ease of loading, and load paths on functional faces; run vibration and drop tests where needed.
4. Pilot use. Run the case on the real circulation route for a period and collect unpacking records.
5. Freeze and produce. Release the drawing and process, then move to volume supply.
6. Reuse management. Establish case numbering, cycle counting, and replacement intervals for gaskets and inserts.

Acceptance points. Insert fit tolerance, locating repeatability, gasket compression, latch preload, material flammability rating, VCI expiry, and completeness of labelling. Build the sampling plan on AQL principles; the method is described in custom case acceptance and AQL sampling.

Reuse and life management. The hard shell normally lasts a long time, but inserts settle under repeated compression and gaskets age. Manage shell, insert, and gasket as three independent life items, and replace the whole case only when the shell cracks, distorts, or loses its closure function. The assessment approach is in protective case service life and reuse years.

Supplier selection. Kitchenware mold cases are a classic non-standard custom plus volume supply category, so the supplier needs mold design, foam machining, case moulding or assembly, and test coordination under one roof. An evaluation framework is given in how to choose a protective case OEM factory.

What JUNZHJIA offers. As a brand of Kexin New Materials (Guangdong) Co., Ltd., JUNZHJIA supplies protective cases, tool boxes, and equipment cases to the kitchenware and hardware tooling industries on an OEM/ODM basis. Capabilities include conformal insert design and CNC machining from 3D tool models, matched gaskets and pressure equalisation valves per case model, documentation supporting IP rating, material flammability rating, and transport testing, and volume acceptance against AQL rules. For tools above 500 kg, JUNZHJIA can supply an integrated case-and-pallet structure that supports lifting, forklift handling, and stacking in one design.

Frequently Asked Questions

Q: Should a kitchenware deep-draw die be packed cavity up or cavity down?

A: It depends on tool size and cavity geometry. Large deep-draw dies with shallow, wide cavities are normally packed cavity up: the cavity carries no load, it can be inspected the moment the case opens, a low-strength dust cover keeps objects out, and desiccant plus a humidity indicator card handles condensation. Small tools and deep narrow cavities are better packed cavity down, so the tool end face takes the support load and the cavity is shielded by its own body; in that case, prevent the cavity rim from taking local point loads and provide an annular rigid support face instead. Slender tools or double-sided cavities can be placed on their side, but then dedicated lateral rigid support and anti-rotation features are mandatory. Whichever orientation is chosen, mark it on the outside of the case in high-contrast colour and write the first inspection step into the unpacking procedure so that operators never improvise.

Q: Why must punches be stored upright rather than bundled together?

A: A punch's accuracy depends on face edge condition, shank straightness, and shoulder fit, and none of those survive lateral compression or sustained self-weight bending. In a bundle, punches touch each other and transmit vibration, the shank surfaces score, and face edges chip. For slender punches with a length-to-diameter ratio above eight, horizontal storage also allows a slow bend to develop under self-weight and transport vibration, which shows up after mounting as uneven clearance and one-sided wear. The correct approach is upright storage in individual compartments, with the shank restrained at two or more points, the edge end contacting nothing hard, and an elastic upper clamp limiting axial movement. Multiple punches of the same type go into separate pockets rather than being stacked, and pocket spacing should allow fingers in to lift the part out. Springs, locating pins, and other small parts also belong in separate compartments, with quantities listed on the case manifest so that counting after opening is straightforward.

Q: Should kitchenware tooling be protected with rust-preventive oil or with VCI material?

A: They are complementary, not alternatives. Assembly fits such as guide posts and bushings, punch shanks, and guide bores suit a thin, even oil film, because the film tolerates face contact and relative movement and is easy to wipe off before assembly. Cavities, deep recesses, blind holes, and tooth forms that cannot be oiled reliably suit VCI, which adsorbs a vapour-deposited film onto the metal and reaches places that spraying and brushing cannot. Three cautions apply. First, compatibility: copper alloy punches and chrome plated cavities need a VCI product declared compatible, because some chemistries discolour these surfaces. Second, effective distance: vapour concentration deep inside a narrow cavity may be inadequate, so add an extra emitter. Third, service life: choose a long-duration grade for ocean transit and long storage, and state the replacement interval. Packaging materials themselves must be free of sulphur and chlorine, because both accelerate discolouration of copper and plated surfaces.

Q: Is IP65 enough for a mold case, and when is IP67 actually required?

A: IP65, meaning dust tight and protected against water jets under the IEC 60529 and GB/T 4208 framework, already covers the common situations: dusty workshops, shops with washdown, and ordinary long-distance road transport. It is the most common rating for kitchenware mold cases. IP67 becomes necessary only when short-term immersion is a credible risk, for example when the route crosses sections prone to standing water, when the transhipment point is uncovered during heavy rain, or when in-plant movement passes through a washdown or flooded floor area. Moving to IP67 has side effects: a thicker gasket, higher latch preload, noticeably more effort to open, and a mandatory pressure equalisation valve, because otherwise the differential from temperature change makes opening difficult and fatigues the gasket. The correct order is to define the worst credible condition first, then set the rating, then specify the matching gasket and pressure equalisation hardware. In procurement, ask for the rating verification statement or type test conclusion and write the sampling rule into the technical agreement.

Q: Mould growth and damp are usually a southern problem; can northern sites relax moisture requirements?

A: Do not cut requirements by geography. Design to the worst credible case. Northern risk takes a different form rather than being smaller: with a large indoor-outdoor temperature difference in winter, a tool coming out of a cold warehouse into a warm shop has a surface temperature below the dew point, so condensation forms immediately. That arrival-time condensation can be more concentrated and more damaging than sustained high humidity further south. The real driver is therefore not absolute humidity but condensation driven by temperature change. Practical measures: fit adequate desiccant plus a humidity indicator card inside the case; use low-absorption insert materials and pre-dry any fibrous material; match the sealing rating to the actual duty and fit a pressure equalisation valve to reduce differential-driven gasket stress; and keep storage below roughly 60 percent relative humidity away from external walls and floors. After unpacking, let the case reach room temperature before removing inner packaging, which reduces surface condensation.

Q: Can an equipment case replace a press safeguarding system, and how should changeover safety be understood?

A: No, and it should not be presented as one. A case protects die integrity while the die is not running. Press safety during operation belongs to machine safeguarding and work management, and requires photoelectric guards, light curtains, two-hand controls, lockout-tagout, and energy isolation as a complete set. Write this boundary into the technical agreement and the training material so nobody concludes that a dedicated case makes the press safe. What a case can legitimately contribute is narrower but real: rigid locating and clear labelling cut the judgement time and trial-and-error moves during changeover; weight and centre-of-gravity marking give the lift plan a factual basis; status labels and an unpacking checklist turn die condition confirmation into a recorded, traceable step; and a common insert architecture removes the improvised handling caused by missing parts or wrong locations. Treating packaging as part of the changeover standard work is where its safety value actually comes from.

Q: Which transport tests actually validate a kitchenware mold case?

A: Choose a standard combination that matches the transport modes, and make sure a functional check follows every test. For domestic road transport and warehousing, build on the GB/T 4857 series and prioritise vibration and stacking, because stacking loads usually exceed transport loads and are the main cause of case deformation. For export projects shipped as unitised loads, the ISTA 3 series unitised load procedures are a close match. Where the acceptance basis has to be common across parties or the customer specifies a distribution cycle framework, ASTM D4169 applies. For air freight or extreme climate exposure, the environmental test thinking in MIL-STD-810H Method 514 for vibration and Method 516 for shock can be cited, with the explicit statement that this is an environmental test basis and not military certification. The design keys are: evaluate case, insert, and tool as one system; inspect cavities, cutting edges, and guide mating faces after testing rather than judging by case appearance alone; and record test conditions, sample identity, and verdict so the result is traceable.

Q: How long does a mold case last, and do inserts and gaskets need scheduled replacement?

A: Manage shell, insert, and gasket as three independent life items, because their failure mechanisms and service lives differ substantially. The shell usually lasts longest; provided it shows no cracks, no obvious distortion, and no structural damage at the closure, it can serve for years, with life driven mainly by cumulative handling cycles and load level. Insert life depends on compression frequency and static load duration. Foam gradually loses rebound, which shows up as looser fits and reduced locating repeatability, and typically requires partial or full replacement after several years. The gasket is a wearing part; ageing appears as hardening, cracking, loss of rebound, and permanent compression set, driven by ozone, ultraviolet, oil contamination, and thermal cycling, so inspect it periodically and replace it on condition. In addition, VCI and oil films have finite lives and must be renewed on the interval stated on the label. Recording all three in a case log alongside unpacking records produces a predictable maintenance rhythm instead of a run-to-failure habit.

Q: Can the insert material in a mold case affect food-contact compliance?

A: A mold is not itself a food-contact material, and the compliance obligation ultimately rests on the finished kitchenware surface, typically assessed against the GB 4806 series for stainless steel products, with separate parts for coatings and plastics. However, there is an indirect link, and three categories of risk need managing. The first is corrosion products: cavity rust transfers to the finished surface through the forming operation. The second is sulphur and chlorine bearing contamination, to which copper alloy punches and chrome plated cavities are sensitive, and which some rubbers, foams, and adhesives can release. The third is residue that cannot be removed, such as certain release agents, polishing paste residue, and emissions from low-quality foam. The engineering response is to require the insert material supplier to declare composition and compatibility and to run a small contact test where risk is high; to complete cleaning, degreasing, and drying before packing; to specify sulphur-free and chlorine-free packaging materials; and to use a fully removable rust prevention scheme on critical cavities. A material comparison is available in the related reading below.
