Concrete Batching Plant Cases: Metering & Mixer Component Protection

When a concrete batching plant is relocated as a whole station, built overseas, overhauled between seasons, or replenished with spare parts, the real loss rarely happens at the installation site. It happens on the road. The conclusion is straightforward: twin-shaft mixer shaft assemblies, batching weigh-cell sensors, silo arch-breaking devices, and mixer arms with blades and liners must travel in purpose-built cases designed around three rules, which are that alkaline dust must be fully removable, precision sensing elements must carry zero load throughout the journey, and wear-part cutting edges must never touch one another, so the parts can move straight into assembly on arrival. In practice many plants tie mixer arms into a bundle and throw them into an open wooden crate, pack weigh cells bare in a cardboard box, and load arch-breaking air cannons together with hardened cement chunks. On arrival the blade edges are chipped, sensor zero points have drifted, and vibrator pistons are seized, with rework and downtime costing many times the price of the packaging itself.

Equipment departments at batching plants, ready-mix fleets, and mixer OEMs all face the same set of problems. Component geometry is highly irregular, single-piece weight jumps from a few kilograms to several hundred, the surface residue is a silicate slurry with a pH that can exceed 12, and the transport environment is dusty, rainy, and handled repeatedly. Ordinary cartons cannot stop cement powder, general-purpose wooden crates cannot absorb lifting impact, and open tote bins cannot prevent alkaline slurry from curing into a hard crust during a humid long-haul journey. This article works through six families of core components one by one, giving a complete plan covering material selection, liner cavities, fixation methods, cleaning procedure, and transport validation, with comparison tables and a receiving checklist that procurement and engineering teams can lift directly into tender documents and work instructions.

Table of Contents

• Typical Failure Modes in Concrete Batching Plant Component Shipping
• Transport Protection and Shaft Alignment for Twin-Shaft Mixer Assemblies
• Positioning and Anti-Collision Packing for Mixer Arms, Blades, and Liners
• Precision Protection for Batching Weigh-Cell Sensors
• Anti-Seize and Anti-Deformation Packing for Silo Arch-Breaking Devices
• Seal Face Protection for Screw Conveyors and Discharge Gate Parts
• Cleaning Procedure for Cement Dust and Alkaline Residue
• Liner Material and Cavity Design Selection Logic
• Rust and Moisture Prevention in Alkaline Environments
• Lifting and Case Load-Bearing Design for Heavy Components
• Sealing Class and Adaptation to Outdoor Mud and Water
• Vibration and Shock Cushioning Validation
• Mixed-Load Zoning and Packing List Control
• Receiving Inspection and Unpacking Procedure
• FAQ
• Conclusion and Further Reading

Typical Failure Modes in Concrete Batching Plant Component Shipping

Transport failures at batching plants follow strong patterns and concentrate in four mechanisms. The first is alkaline slurry curing into a crust. Residual concrete left on a component continues to hydrate in transit, and within twenty-four to forty-eight hours it can harden into cement stone on shaft journals, flange faces, and blade roots, reaching a hardness close to that of C30 concrete. Chipping it off by hand easily scores machined surfaces. The second is mechanical damage from lifting and stacking. Mixer arms and liners are heavy and irregularly shaped, and site crews commonly sling them directly with steel wire rope; the rope hitch concentrates stress on the curved edge of a liner and chips the casting. The third is static and lateral loading of precision parts. Weigh cells and the diaphragms and spools inside arch-breaking devices are micro-deformation sensitive. Once an upper layer of heavy parts presses on them or the case wall pushes sideways, the unit can look perfect while its zero point and return error drift out of tolerance. The fourth is moisture and electrochemical corrosion. Cement dust is hygroscopic, and when mixed with rainwater it forms a strongly alkaline electrolyte that attacks carbon steel, zinc plating, and aluminium alloy case bodies far faster than a neutral environment would.

Understanding these four mechanisms is the starting point for choosing a concrete batching plant component transport case. The table below sets the failure focus of each of the six component families beside its handling action so a buyer can check item by item instead of forcing one packaging scheme onto every part.

Transport Protection and Shaft Alignment for Twin-Shaft Mixer Assemblies

The twin-shaft mixer is the single most valuable unit at a batching plant, and the core of its transport protection is not wrapping it up but preserving shaft straightness and the flatness of the seal faces at both ends. The main shaft is typically a large-diameter alloy steel bar two to four metres long, fitted with bearing housings, labyrinth seal rings, air seal components, and oil seals at each end, with straightness normally controlled to the order of 0.1 mm per metre. Three risks dominate in transit: mid-span sag under the shaft's own weight, local bending when the shaft end is used as the single lifting point, and mutual impact between the two shafts or their seal rings as they shift inside the case.

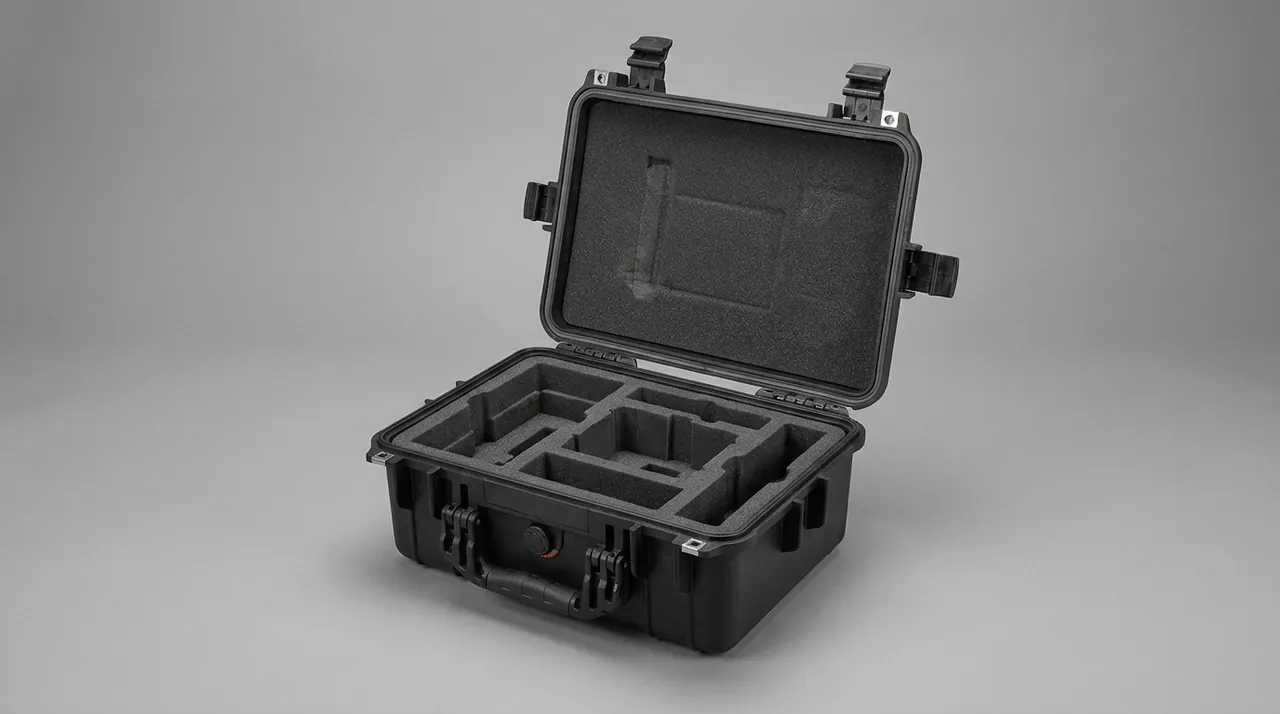

The correct approach is multi-point support packing. Support points belong at the two bearing housing seats and at mid-span, with a span no greater than sixty percent of shaft length. Support faces use closed-cell EVA or polyurethane blocks at 55 to 65 Shore A, and the arc is machined to the actual journal diameter with a wrap angle held between 90 and 120 degrees, which avoids point-contact bruising without creating so much grip that loading and unloading becomes difficult. Keyways, threaded sections, and tapers on the shaft ends need protective caps with 0.5 mm of clearance and a thin film of rust-preventive grease. When two shafts travel in one case, a rigid divider goes between them and each shaft is located independently, with cushion pads between the divider and the outer shell so the shafts cannot strike each other under vibration.

The load path through the case also needs deliberate design. Large shaft cases usually use a pallet base with reinforcing ribs, so shaft weight transfers into the base beams rather than the case walls. Lifting point markings must match the centre of gravity and be shown with the handling symbols of GB/T 191. For rental plants that cycle cases many times, a replaceable wear liner on the inside face is worth specifying, since a worn liner can be swapped instead of scrapping the whole case, an idea that parallels the design logic of wear-part transport cases. If a shaft assembly also needs to travel separately from the machine, it is worth comparing the packing plan against the drying drum support arrangement used for an asphalt plant component case, because the long-shaft support requirements in the two situations are closely comparable.

Positioning and Anti-Collision Packing for Mixer Arms, Blades, and Liners

Mixer arms, mixing blades, and liners are the highest-consumption spares at a batching plant and also the family with the highest transport damage rate. Blades are usually high-chromium cast iron or a hardfaced wear alloy with hardness above HRC 58, but they are brittle. Liners are mostly curved wear castings weighing between thirty and one hundred and twenty kilograms each. Both materials share one characteristic: they survive enormous abrasive wear yet cannot survive a single oblique impact. A chipped edge of two to three millimetres already measurably reduces mixing efficiency and promotes concrete segregation.

The key actions when packing are grouping, orienting, and isolating. Mixer arms should be split into left-hand and right-hand groups by installation orientation, arranged back-to-back within each group so the cutting edges face the centre of the case and the backs face outward, with an eight to ten millimetre rubber or EVA divider between the two groups. Soft gauges or short bolts should be inserted through the arm-to-blade bolt holes to protect the hole mouths from being distorted by other hardware under vibration. Each group is then bound with nylon strapping, with felt at every contact point. Steel wire rope and iron wire are not acceptable for direct binding.

Liners are best stood upright and inserted rather than laid flat and stacked. Standing upright with the curved face inward and the back outward, with the edge seated in locating strips on the case floor, keeps each stack under 500 mm with five millimetre rubber pads between layers to absorb vibration. Flat stacking looks like it saves space, but in reality the curved working face of a lower liner carries the full weight of everything above it, which produces bruising and stress cracks after a long journey, and loading and unloading requires flipping each plate over, roughly doubling the chance of impact damage. Where several liner sizes are mixed, a removable divider system keeps types segregated, and labels on the dividers showing type and quantity prevent mismatching during assembly.

Castings must be blown clean of residual slurry and dried before packing, because slurry left in bolt holes and recesses absorbs moisture in transit and creates local corrosion pits. Once packing is complete, a list label should go on the outside of the case showing part number, material, quantity, and net weight so the site can check items against the sheet.

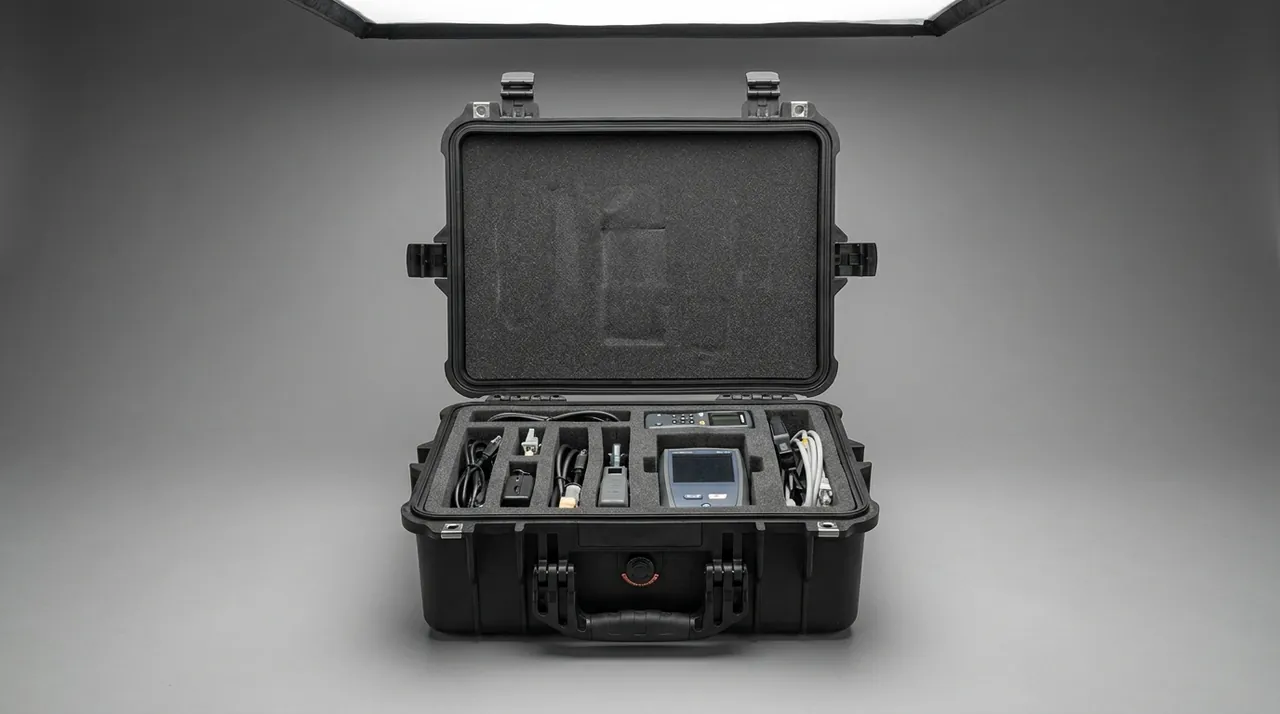

Precision Protection for Batching Weigh-Cell Sensors

Batching weigh cells are the source of a plant's metering accuracy; aggregate, cement, water, and admixture proportioning accuracy directly determines the scatter of concrete strength. Common types include cantilever beam, column, bridge, and S-type tension-compression load cells, with combined accuracy typically between 0.02 and 0.05 percent of full scale, and the internally bonded strain gauges are highly sensitive to shear and bending. The signature failure in transit is a unit that looks intact but whose zero point drifts out of tolerance, and this kind of hidden damage is the hardest to trace because it only surfaces when the metering calibration fails.

Packing a load cell must follow the rule of zero preload, zero side load, and zero vibration fatigue. Each cell goes into its own hard shell pod, fully enclosed in closed-cell EVA machined to the profile, with a ten millimetre cushion layer underneath and a three millimetre soft foam pad inside the lid that presses lightly without compressing the body. Multiple cells of the same type must not be stacked or bound together on a single strap. The shielded cable supplied with the cell should be coiled on a spool no smaller than eighty millimetres in diameter, never bent into a tight radius, and the connector protected with both heat-shrink tubing and a dust cap. Stainless steel housings also pit in alkaline dust environments, so the pod should be closed as soon as the count is confirmed.

For an integrated batching scale sensor set, a tiered tray layout works well: the junction box and mounting brackets on the bottom tier, the cells in the middle, and the calibration weights and documents on top. Weights are metrological reference artefacts and should travel with the cells to avoid the systematic error introduced by calibrating in two different locations, and they need their own rust and impact protection. The internal layout of cells and weights can follow the approach used for a metrology standard transport case, taking reference-artefact priority and load-path isolation as basic rules. Cases carrying strain bridge circuits should also include desiccant and a humidity indicator card on long ocean routes, because moisture condensation is a common cause of dropping bridge insulation resistance.

Anti-Seize and Anti-Deformation Packing for Silo Arch-Breaking Devices

Arch-breaking equipment on cement and powder silos includes wall vibrators, air cannons, pneumatic arch breakers, and fluidising plate assemblies, and its job is to break up powder arches and keep discharge continuous. These devices share a profile of precision motion pairs, elastomeric diaphragms, and small-bore air connections, all three of which are weak points in transit. With no grease protection, a vibrator's eccentric block and bearings endure long vibration that can leave raceway indentations. Air cannon diaphragms stiffen in low temperatures and deform permanently once squeezed. Quick-connect air fittings of every kind break easily on impact, and when one breaks the whole valve body usually has to be replaced.

The core actions when packing are depressurise, plug, and limit axially. Internal air pressure must be fully released before dispatch, the piston or diaphragm returned to its initial position, and the pressure regulator set to the lowest setting. Every air port gets a threaded plastic plug plus an outer dust cap to keep cement powder and moisture out of the air chamber. Air cannons and vibrators are located axially with a stop at each end so there is no axial play in the case, and they must not share a bay with liners, blades, or other heavy items. Diaphragm spares must be laid flat or rolled and bagged, never folded or compressed under load; ideally they are slipped over a rigid cardboard tube or PVC core of matching diameter.

Arch-breaking devices often ship together with level meters, pressure transmitters, and similar instruments, which are equally vulnerable to vibration and dust. These instruments belong in a separate soft-lined bay, fully located with a custom foam insert rather than mixed in with steelwork. Do not power up the equipment immediately on arrival. Blow the air circuit through with dry compressed air first, confirm there is no cement powder or hardened lump inside, and only then make the electrical connections, otherwise trapped powder is pressed into the valve seat and the seal fails. For coastal or high-humidity projects, the outer case should also be fitted with a pressure equalisation valve so internal and external pressure equalise automatically with temperature changes, preventing the gasket from being loaded continuously by a pressure differential and eventually failing.

Seal Face Protection for Screw Conveyors and Discharge Gate Parts

Screw conveyors are the workhorse for cement and fly ash, and their hanger bearings, tail bearings, screw flights, and flange faces are the parts most easily damaged in transit. Screw flights are thin-walled continuous helices with low stiffness, and once a heavy item presses on one, the pitch becomes uneven, which shows up after installation as fluctuating throughput and abnormal noise. Discharge gate cylinders and seal strips are equally fragile: the bore has a mirror finish typically specified at Ra 0.2 to 0.4 micrometres, and once the chrome plating on the piston rod is scored, replacing the seals will not restore the original tightness.

Screw shafts should be fixed with a combination of a V-shaped cradle and an axial clamp. The cradle arc is grooved to the screw outside diameter, with support at both ends and at mid-span so the flight surfaces stay clear of any load. Long screw sections need two or more cradles plus locating stops, otherwise the shaft can roll inside its cradle under vibration. Discharge gate cylinders must have the piston rod fully retracted and locked, with a protective cap on the rod thread, and the barrel held with soft straps rather than metal clamps gripping the cylinder body. Seal strips should be coiled into a large-diameter roll and bagged separately so nothing presses a permanent flat into them.

All flange faces, seal faces, and machined surfaces should be given a thin film of rust-preventive grease and a protective film before packing. The film should be a plasticiser-free PE type, because films that migrate plasticiser leave a gummy residue after reacting with grease. If bolts, washers, and other small parts travel in the same case, they must be collected in a compartmented box; loose small parts behave like grinding media inside a case, abrading machined faces continuously. This principle of consolidating small parts while zoning large ones is equally relevant in heavy engineering contexts such as a hydraulic lift component case.

Cleaning Procedure for Cement Dust and Alkaline Residue

Cleaning batching plant components is the step most often skipped in the protection chain and the one with the highest cost when it is. Hardened cement stone can approach the strength of low-grade concrete, and breaking it off with a hammer leaves unrecoverable chisel marks on castings and machined surfaces, while residual cement powder that absorbs moisture inside a case forms an alkaline solution that keeps attacking metal surfaces. Proper cleaning has to happen before the lifting and loading stage, and the part must be confirmed dry before packing.

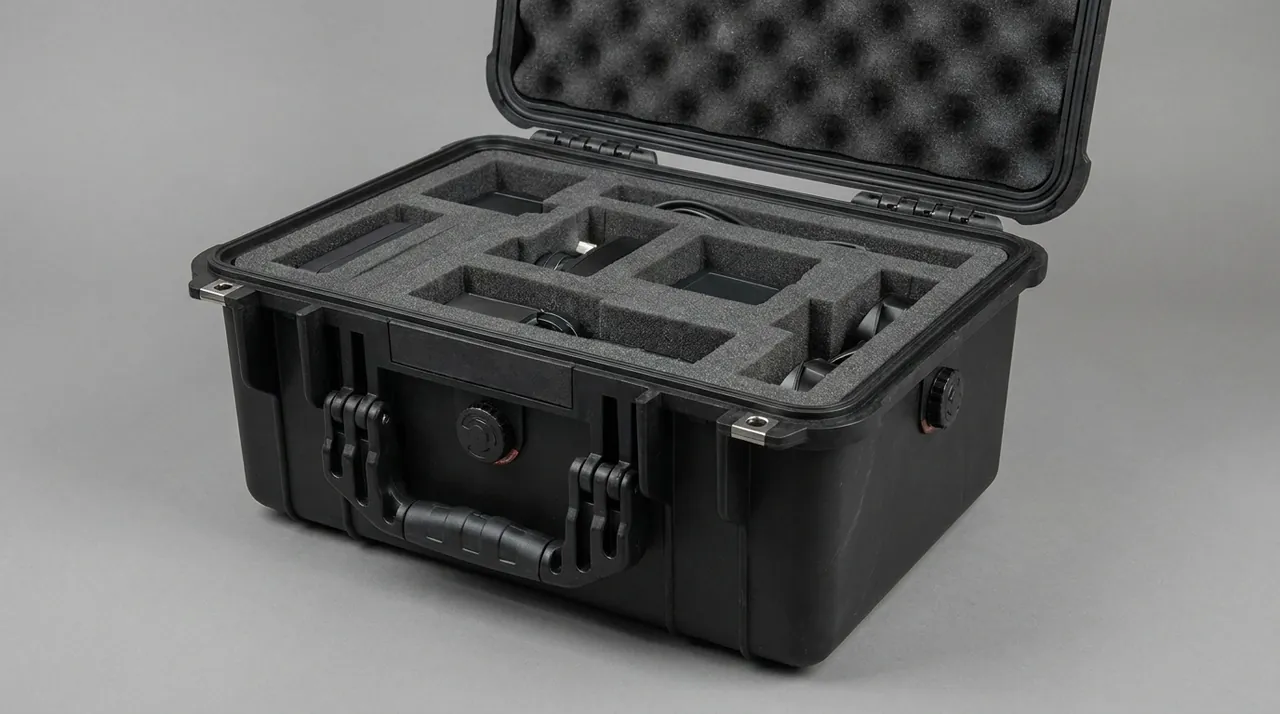

A four-stage procedure works reliably. The first stage is dry pre-cleaning: blow the blade roots, bolt holes, flange grooves, and shaft shoulder transitions with dry compressed air at no more than 0.4 MPa to remove loose powder and laitance. Do not start with a high-pressure water jet, because adding water triggers secondary hydration in the residual powder. The second stage is mechanical removal: chip hardened crusts off with a plastic or copper scraper held parallel to the substrate, never striking obliquely with a steel chisel. For hard lumps near liner curved faces and blade edges, a nylon brush with low-pressure wet sanding works better. The third stage is neutral washing with a pH 6 to 8 neutral detergent and a soft brush. Chlorinated cleaners and strong acid descalers must not be used, because chloride ions cause pitting and stress corrosion cracking on stainless steel, while strong acids destroy zinc plating and anodised layers. The fourth stage is rinsing and drying: rinse twice with deionised or clean potable water, then dry fully with hot air below 60 degrees Celsius or by natural ventilation, paying particular attention to bolt holes, blind holes, and keyways, which can be checked with a cotton swab for trapped moisture.

Cleaned components should be rust-treated and packed within four hours so they do not reabsorb moisture in the open air. Spares intended for long storage can be coated with a thin peelable rust-preventive film held to thirty to fifty micrometres. The packing record should capture the cleaning date, detergent type, drying method, and the humidity card reading inside the case, making the process traceable. Routine cleaning of a returnable case can follow the general protective case cleaning method, although batching plant use requires an additional alkaline residue neutralisation check.

Liner Material and Cavity Design Selection Logic

The liner determines protection performance, yet it is often treated as gap-filling material and chosen casually. Liner selection for batching plant components must satisfy three constraints at once: it must carry a single item weighing tens to hundreds of kilograms without collapsing, it must absorb shock accelerations above four times gravity, and it must survive long-term contact with alkaline dust without crumbling.

Start by grading on weight. Precision items under twenty kilograms, such as weigh cells, instruments, and spool valves, take a machined cavity in closed-cell EVA at 45 to 65 Shore A, with an interference of 0.5 to 1 mm against the part to give light clamping. Medium castings between twenty and eighty kilograms, such as mixer arms and blades, use cross-linked PE or EPP support blocks for local bearing combined with rigid PP dividers between bays, rather than a solid block of soft foam whose rebound fades under sustained load. Heavy items above eighty kilograms, such as shaft assemblies and full liner sets, must follow a structural route of base load beams plus elastic pads, where the foam only provides location and cushioning and carries no weight.

One detail of cavity design is routinely overlooked, which is the drainage and powder channel. Dust inevitably enters a batching plant case, and a closed pocket traps it against the bottom, where it absorbs moisture and becomes a corrosion source. A three to five millimetre drainage groove at the lowest point of each cavity lets dust and condensate flow into a removable collection channel at the base. For returnable cases that are opened and closed frequently, cavity edges should be chamfered so sharp rims do not wear and shed material during repeated handling. Liner machining methods and tolerance control are covered in the custom EVA foam insert process; in practice cavities are moulded or CNC-cut from a 3D model, and a dimensional tolerance within plus or minus one millimetre is sufficient for assembly needs.

Rust and Moisture Prevention in Alkaline Environments

The corrosivity of cement dust comes from its chemistry: hydrating Portland cement produces calcium hydroxide, whose saturated solution can reach a pH above 12.5, corroding carbon steel noticeably faster than a neutral salt environment. At the same time, soluble alkali and traces of chloride in cement powder form local cells on metal surfaces and initiate pitting. Aluminium alloy case bodies lose their oxide film in alkaline media and develop white bloom and powdering, so material and coating selection for batching plant cases has to be more careful than for general-purpose applications.

Rust prevention for metal parts uses three layers. The first is surface isolation: rust-preventive grease on machined faces with a PE protective film over it, and a quick-drying rust-preventive oil on non-machined surfaces. The second is vapour-phase inhibition: place VCI paper or film inside each closed bay, where the inhibitor volatilises and adsorbs onto metal surfaces as a monomolecular protective layer, which is especially useful for bolt holes, internal cavities, and tooth slots that cannot be reached by brushing. The third is humidity control: dose desiccant by case volume, with an experience value of sixty to one hundred grams per cubic metre and the upper end for long ocean voyages, plus a humidity indicator card so the first action on opening is reading the card rather than touching parts. Rust protection performance can be verified against GB/T 10125 using the corresponding salt spray method, typically requiring no visible red rust after forty-eight hours of neutral salt spray.

The case itself matters too. The base should not sit directly on standing water, so fifty millimetre feet are worth adding, and the gasket should be silicone or EPDM rubber rather than a general nitrile grade that ages quickly in alkaline conditions. For cases stored outdoors long-term, wash the exterior periodically with clean water and a neutral detergent, because attached cement dust forms an alkaline film on the surface under rain. These maintenance requirements align with the gasket care logic described under waterproof and IP rating selection, except that batching plant use adds chemical compatibility as a further consideration.

Lifting and Case Load-Bearing Design for Heavy Components

Lifting strength is where general-purpose protective cases most often fail at a batching plant. A twin-shaft mixer shaft assembly can weigh between 1.5 and 4 tonnes, and a full set of liners can exceed 800 kilograms. If a case is still designed on the assumption of manual handling, the base plate tears or a lifting lug pulls out on the very first lift.

Lifting design should follow four-point symmetry, base load transfer, and explicit marking. Use at least four lifting lugs in a symmetrical arrangement, each individually verified for at least 1.5 times the total case weight, with the lifting points aligned to the centre of gravity projection. The base uses a thickened honeycomb panel or a steel-timber composite pallet so concentrated loads spread into the forklift forks or lifting beam. The case side should carry the GB/T 191 symbols for this way up, keep dry, centre of gravity, and slinging point, together with total weight and permitted stacking layers. When stacking, the upper case must not bear directly on the lid of the lower one; load should pass through corner posts into the case corners, and the permitted stack height must be marked prominently.

For overweight or overlong components, a split structure of pallet base plus cover shell is worth considering: the base carries all the weight and the lifting load, while the cover only provides protection and sealing, and can be lifted off separately or slung on its own line during loading. This structure pays off in equipment rental and international station-building scenarios because the base is reusable while the cover can be changed with component geometry. Where a shipment must be consolidated with outsized items such as those covered by a bulk silo and material handling component case, run a load plan first, place the heaviest item in the central zone of the container or flatbed, and lash it down independently.

Sealing Class and Adaptation to Outdoor Mud and Water

A batching plant site is normally an open-air operation, muddy in the rainy season and dusty in the dry season, and the loading area generally sees mud and water splashing. If the case lacks basic dust and water protection, all the internal cleaning and rust prevention work is wasted. Under IEC 60529, which corresponds to GB/T 4208, the ingress protection code uses two digits, the first for solids and the second for water. For batching plant spares, IP67 is a pragmatic floor: complete dust protection plus survival of short-term immersion under specified conditions.

Meeting a declared rating depends on three details rather than the label. The first is a continuous closed gasket. The gasket must form a closed loop around the case mouth with no joints at the corners, which means moulded corners or hot-melt butt joints rather than square mitre joints that leave a leak path. The second is even latch clamping force. Too few latches or excessive spacing leaves parts of the gasket under-compressed, so latch spacing should not exceed 300 mm and should be distributed evenly around all four sides; self-locking anti-loosening latch designs are preferable, and general requirements are set out under toolbox hinges and latches. The third is pressure equalisation. A well-sealed case develops an internal-external pressure differential when temperature swings, which makes the case hard to open or loads the gasket permanently, so a breather valve with a hydrophobic membrane should be fitted in the wall.

One caution: an IP rating describes dust and water resistance, not chemical resistance. Alkaline slurry and cement powder adhering long-term accelerate the ageing of some gasket materials, so gasket compounds should be verified by immersion testing, commonly by soaking a gasket sample in lime water at pH 12.5 for seventy-two hours and measuring hardness change and volume swell, with a change within ten percent considered acceptable.

Vibration and Shock Cushioning Validation

Components at a batching plant mostly experience random vibration between 3 and 200 Hz on the road, overlaid with drop shock during handling. Long shafts are sensitive to low-frequency vibration and can suffer resonance-driven fatigue. Precision sensors are sensitive to high-frequency vibration, and strain gauge leads can fail in fatigue. Castings are sensitive to high acceleration shock, and a blade edge can chip in a single event. Whether the protection design actually works cannot be judged by feel; it has to be validated against a standard.

Three validation routes are commonly used. The first is vibration and shock testing to the GB/T 4857 series, running the random vibration test and the drop test to simulate road and rail vibration spectra and handling drop heights. The second is distribution cycle simulation to ASTM D4169, designing a test profile around the specified distribution cycle and assurance level to cover handling, stacking, vibration, and shock, which suits ocean freight and intermodal routes. The third is environmental test method referencing, designing a validation plan around the vibration, shock, temperature, and humidity methods in MIL-STD-810H; note that this only cites the test methods as a basis for environmental design and does not mean the product holds any military certification.

Acceptance criteria should be quantified. After testing, check whether the liner has collapsed by more than fifteen percent of its original thickness, whether any component has shifted by more than fifty percent of the cavity clearance, whether machined faces show visible bruising, and whether the sensor fails calibration on re-inspection. Batching plant use should also add a non-standard alkaline dust ingress test: spread dry cement powder in the cavity, run the transport profile, then check whether dust has entered the precision bay, which is the most direct way to judge whether the sealing design works. Test commissioning and report requirements are described under the ISTA transport testing procedure.

Mixed-Load Zoning and Packing List Control

Spare parts dispatched to a batching plant usually travel as a mixed load, and poor zoning can undo all the individual protection work. The basic principles are to layer by weight, zone by sensitivity, and isolate by chemistry. The heaviest items, such as shaft assemblies and full liner sets, go at the bottom of the case or the bed of the vehicle, medium items in the middle, and precision parts and instruments in separate soft-lined bays on top. Never place heavy items above precision parts, and never leave heavy items tight against the case wall, because under vibration they strike the wall continuously.

At least four functional zones are advisable: a heavy load-bearing zone, a medium casting zone, a precision instrument zone, and a consumables zone. The precision instrument zone must be fully separated from the casting zone by a rigid divider whose height is at least 1.2 times the height of the instrument bay. The consumables zone holds bolts, washers, oil seals, and circlips in lidded compartment boxes with specifications labelled. Chemical isolation applies to detergents, rust preventives, and oils, which must be sealed individually and given secondary containment so a leak cannot contaminate spares or liner; where dangerous goods are involved, packaging and marking must be judged against the applicable hazmat transport rules.

The packing list must correspond item by item with the physical load and should cover part number, description, material, quantity, net weight, parent equipment tag, and case position, with a copy attached to the outside of each case. Issue the list in duplicate, one travelling with the goods and one retained, and tick items off during receiving verification. For international projects, list descriptions in both Chinese and English to avoid misreading caused by translation differences.

Receiving Inspection and Unpacking Procedure

Receiving inspection determines whether damage is found and traced in time, yet many sites reduce it to counting pieces. Proper inspection starts once the case is set down and before it is opened, and follows a defined sequence.

Step one is appearance and marking check: look for distortion, breakage, water marks, and mud on the case, verify that seals and security tags are intact, and record the state of temperature-humidity indicator cards and tilt indicators. Step two is sequence-controlled opening: open the upper precision bay first and read the humidity card to confirm no water ingress or condensation, then open the heavy zone and check whether straps have slackened, whether support blocks have shifted, and whether any component touches the case wall. Step three is item-by-item inspection: check quantities and part numbers against the list, focusing on chipped edges, bruised machined faces, distorted bolt holes, cable indentations, and rust on seal faces, with an additional visual and cable continuity check for weigh cells. Step four is recording and disposition: write findings, photographs, conclusions, and corrective actions into the receiving sheet and establish responsibility.

To make inspection quantifiable, use a sampling plan for bulk incoming lots, setting sample size and acceptance criteria on AQL principles, as described in custom case acceptance and AQL. Critical components such as main shaft assemblies and metering sensors should be inspected one hundred percent rather than sampled. When an anomaly is found, do not rush to repair it on site; preserve the original state and photograph it, because repair marks make responsibility difficult to establish. Once inspection is complete, clean the liner, replace the desiccant, record case condition, and move the parts into storage.

FAQ

Q: Why can't a concrete batching plant use ordinary wooden crates or open tote bins for component cases?

A: Ordinary wooden crates and open totes have four unavoidable weaknesses in a batching plant setting. First, they offer no dust or water protection: an open structure lets cement powder fall straight in, and the gaps between crate boards do not block dust either, so rain turns the contents into alkaline slurry that seeps into every crevice. Second, wood itself releases moisture and acidic substances; its moisture content changes with the environment and creates a humid microclimate inside a closed crate that accelerates metal corrosion, and it can also carry insect eggs and mould. Third, cushioning and fixation are inadequate: crates are usually packed with straw or shredded paper, so heavy castings shift and strike the walls under vibration. Fourth, the service life is short: a crate falls apart quickly after forklift handling and repeated rain soaking, so its cost per trip ends up higher than a reusable professional case. Batching plant components are heavy, dirty, and strongly alkaline, so packaging must solve load bearing, sealing, and cleanability at the same time, and a professional protective case delivers all three consistently, which is cheaper over the long run.

Q: A weigh cell looks undamaged but metering is out of specification. How do we diagnose and prevent this?

A: This hidden damage is common at batching plants, and diagnosis can start from three angles. First, static testing: measure input and output impedance with a multimeter and compare against the factory values, treating a deviation above one percent as a warning sign. Second, no-load zero check: reinstall the cell in its original mounting position and read the zero output; a drift above 0.1 percent of full scale indicates the strain bridge or the elastic body has been affected. Third, recalibration check: run a repeatability test with certified weights, and a repeatability error outside specification confirms damage. Prevention centres on never applying preload or side load in transit: each cell goes into its own hard shell pod fully enclosed in closed-cell EVA, multiple cells must not be stacked or bound together on one strap, cables are coiled on a spool of at least eighty millimetres diameter to avoid tight bends, and connectors get dust caps. Stainless steel housings also pit in alkaline dust, so clean and seal the pod quickly before dispatch. For integrated batching scale sensor sets, ship the cells together with the calibration weights to avoid systematic error from calibrating in two places, and include desiccant and a humidity card to prevent moisture from lowering bridge insulation resistance.

Q: How should cement dust and residual concrete slurry be cleaned, and can a high-pressure water jet be used?

A: Directly blasting with a high-pressure water jet is not advisable, and it is the most common cleaning mistake. Residual dry powder hydrates faster when hit with pressurised water, especially in bolt holes, keyways, and flange grooves that are hard to blow dry, and the resulting cement stone approaches the strength of low-grade concrete and becomes extremely difficult to remove later. The correct order is dry first, wet second. Start by blowing blade roots, bolt holes, and shaft shoulders with dry compressed air at no more than 0.4 MPa to clear loose powder. Then chip hardened crusts with a plastic or copper scraper held parallel to the substrate, never striking obliquely with a steel chisel. Next, wash with a pH 6 to 8 neutral detergent and a soft brush, avoiding chlorinated or strong acid cleaners, since chloride ions trigger pitting and stress corrosion cracking in stainless steel. Finally rinse twice with clean water and dry with hot air below 60 degrees Celsius or by ventilation, checking blind holes with a cotton swab for trapped water. Complete rust treatment and packing within four hours of cleaning, and record the cleaning date, detergent type, and drying method in the packing file so the process stays traceable.

Q: Mixer blade and liner edges chip easily in transit. Is there a reliable packing method?

A: The key is to replace bundling with oriented grouping and soft isolation. Split mixer arms into left-hand and right-hand groups by installation orientation, arrange them back-to-back within each group so the cutting edges face the centre of the case and the backs face outward, and place an eight to ten millimetre rubber or EVA divider between the two groups. Insert soft plugs or short bolts through the arm-to-blade bolt holes to protect the hole mouths. Bind each group with nylon strapping and put felt at every contact point; steel wire rope and iron wire must not be used for direct binding, because a rope hitch concentrates stress on the curved edge. Liners should stand upright rather than lie flat and stacked: curved face inward, back outward, edge seated in floor locating strips, each stack under 500 mm with five millimetre rubber pads between layers. Where several sizes are mixed, use removable dividers to separate them and label type and quantity on the divider. Note that high-chromium cast iron exceeds HRC 58 yet remains brittle, and a chipped edge of two to three millimetres already reduces mixing efficiency and worsens segregation, so blow the parts free of residual slurry and dry them fully before packing to stop alkaline residue from hydrating further during the journey.

Q: Sites are rainy and muddy. What IP rating should a protective case carry?

A: For open-air batching plant spares, IP67 should be treated as the floor, meaning complete dust protection to IEC 60529 and GB/T 4208 plus short-term immersion survival under specified conditions. The reason is that loading areas generally see mud and water splash and rainy-season standing water, and cases often sit outdoors briefly, so IP54 or IP65 carries too much risk during prolonged heavy rain and immersion. Bear in mind that the rating depends on structural details rather than the label. The gasket must form a joint-free closed loop around the case mouth, with moulded or hot-melt corners instead of square mitre joints. Latch spacing should not exceed 300 mm and should be even, keeping gasket compression uniform. Fitting a breather valve with a hydrophobic membrane prevents temperature swings from creating a pressure differential that makes opening difficult or loads the gasket permanently. One further point deserves emphasis: an IP rating describes dust and water resistance, not chemical resistance. Alkaline slurry adhering long-term accelerates gasket ageing, so soak a gasket sample in lime water at pH 12.5 for seventy-two hours and aim for hardness change and volume swell within ten percent.

Q: For overlong and overweight items such as a mixer shaft assembly, how should case load bearing and lifting be designed?

A: The design priority here is preserving shaft straightness and the flatness of the seal faces at both ends while routing weight along the correct path. Use multi-point support, with points at the two bearing housing seats and at mid-span, spanning no more than sixty percent of shaft length. Support blocks use closed-cell EVA or polyurethane at 55 to 65 Shore A, with arcs machined to the journal diameter and a wrap angle between 90 and 120 degrees, avoiding point-contact bruising without creating excessive grip. Keyways, threaded sections, and tapers on the shaft ends get protective caps and a thin film of rust-preventive grease. When two shafts share a case, put a rigid divider between them and locate each independently. For lifting, use at least four symmetrical lugs, verify each for at least 1.5 times total case weight, and align lifting points with the centre of gravity projection; the base uses a thickened honeycomb panel or a steel-timber composite pallet so concentrated loads spread into the forks or lifting beam. A split structure of pallet base plus cover shell is recommended, since the base carries all weight and lifting load while the cover only seals and protects, which simplifies repeated cycling and lowers replacement cost.

Q: When mixing many different spare parts in one shipment, how should zoning prevent them from damaging each other?

A: Follow three principles: layer by weight, zone by sensitivity, and isolate by chemistry. The heaviest items, such as shaft assemblies and full liner sets, go at the bottom of the case or the vehicle bed, medium castings in the middle, and precision parts and instruments in separate soft-lined bays on top. Never place heavy items above precision parts, and never leave heavy items tight against the case wall, because on a long run they strike the wall continuously. At least four zones are advisable: heavy load-bearing, medium castings, precision instruments, and consumables. Separate the instrument zone from the casting zone with a rigid divider at least 1.2 times the instrument bay height. Keep consumables such as bolts, washers, and circlips in lidded compartment boxes with labelled specifications, since loose small parts travel like grinding media and continuously abrade machined faces. Detergents, rust preventives, and oils must be individually sealed with secondary containment so leaks cannot contaminate spares or liner, and dangerous goods require packaging and marking judged against the relevant transport rules. The packing list should correspond one-to-one with the physical load and record part number, description, quantity, net weight, parent equipment tag, and case position, with a copy attached to each case.

Q: How should a custom batching plant component case be inspected on arrival, and are there quantifiable acceptance criteria?

A: Inspection should begin once the case is set down, before it is opened. First check appearance and marking, recording case distortion, seal integrity, and the state of the humidity cards. Then open in sequence: the upper precision bay first, reading the humidity card to confirm no condensation, then the heavy zone to check for slackened straps, shifted support blocks, and any component touching the case wall. Follow with item-by-item inspection focusing on chipped edges, bruised machined faces, distorted bolt holes, cable indentations, and rust on seal faces, plus a cable continuity check for weigh cells. Suggested quantified criteria are liner collapse under fifteen percent of original thickness, component movement under fifty percent of cavity clearance, no visible bruising on machined faces, and no calibration drift on re-inspection. For bulk lots, set sample size on AQL principles and inspect critical items at one hundred percent. When an anomaly appears, preserve the original state and photograph it rather than repairing on site.

Conclusion and Further Reading

Protecting batching plant components means getting cleaning, isolation, load bearing, sealing, and validation right together. Cleaning sets the corrosion starting point, isolation preserves precision, load bearing keeps heavy parts liftable, sealing holds the line on a long route, and validation proves the plan works. JUNZHIJIA engineers part-specific cavities for mixer OEMs and ready-mix producers, with OEM/ODM support and model-matched seals.
